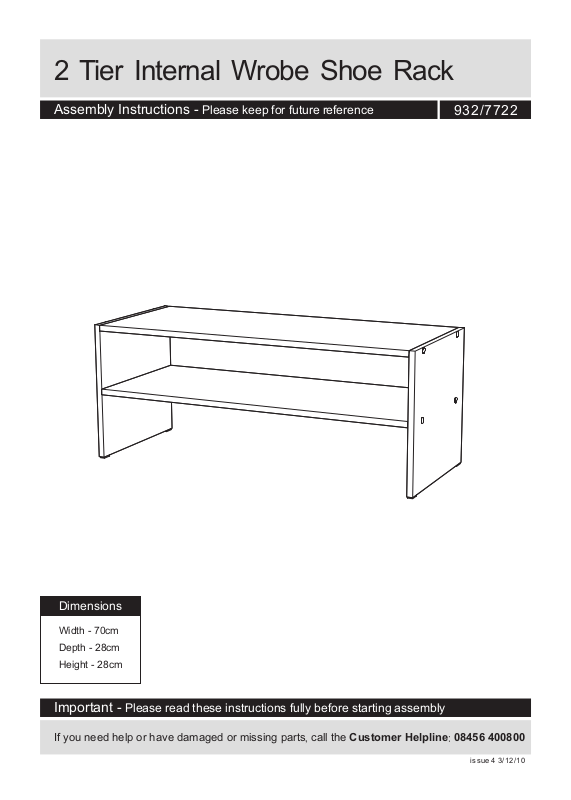

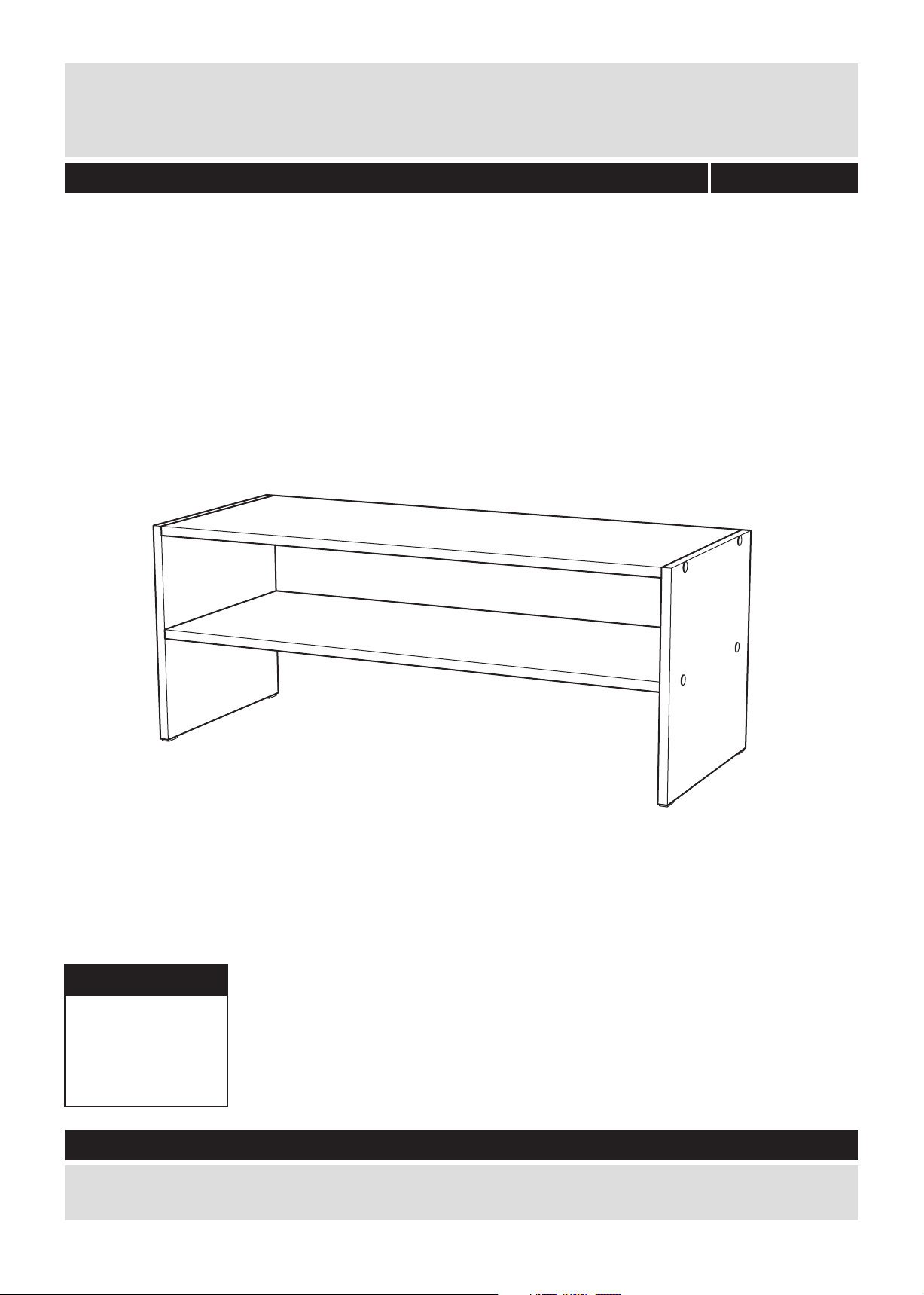

2 Tier Internal Wrobe Shoe Rack
Assembly Instructions - Please keep for future reference
932/7722
Dimensions
Width - 70cm
Depth - 28cm
Height - 28cm
Important - Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
issue 4 3/12/10
Page 2

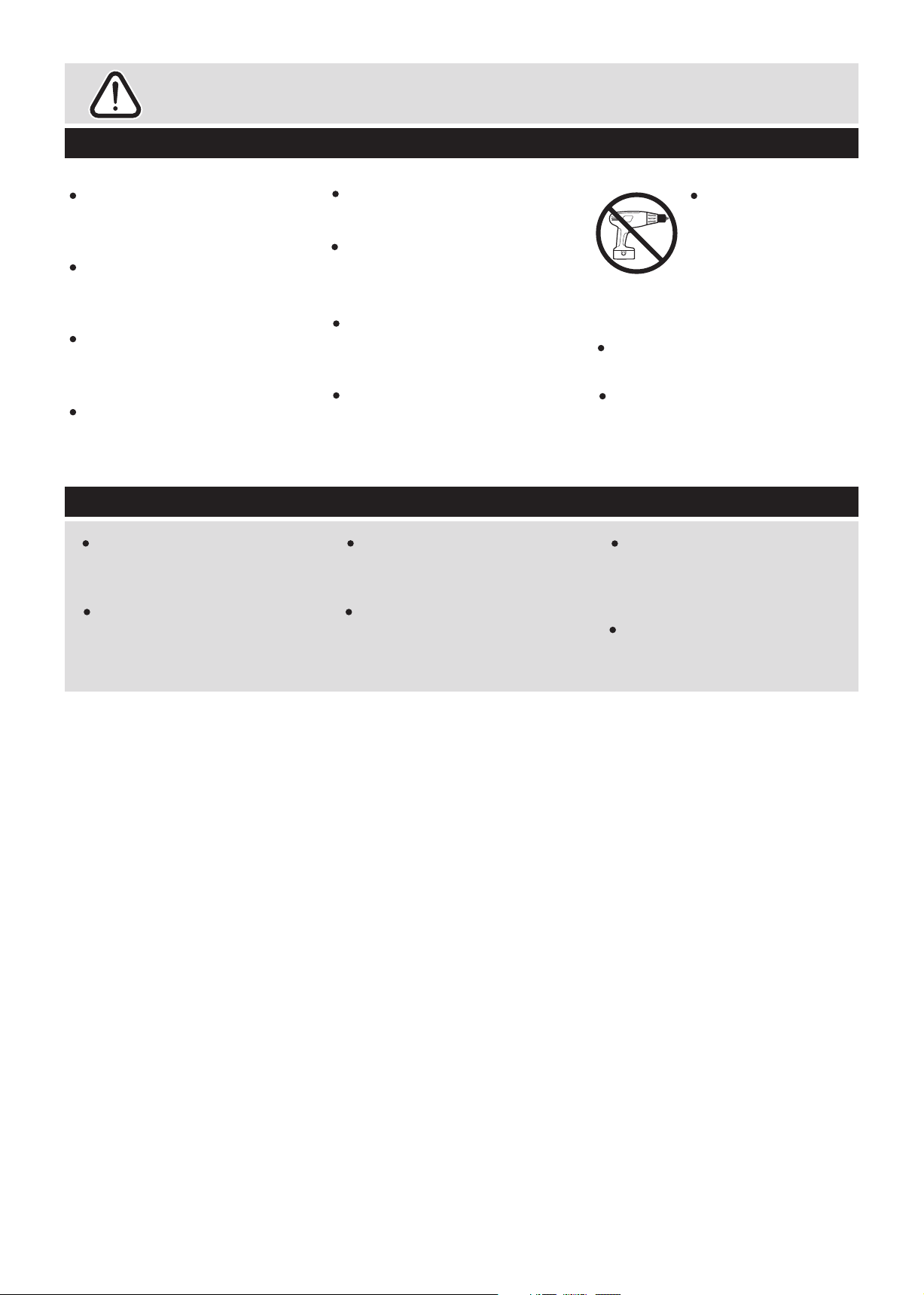

Safety and Care Advice
Important - Please read these instructions fully before starting assembly
Check you have all the
components and tools listed on
pages 2 and 3.
Remove all fittings from the
plastic bags and separate them
into their groups.
Keep children and animals
away from the work area, small
parts could choke if swallowed.
Make sure you have enough
space to layout the parts before
starting.
Care and maintenance
●Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
Assembly to be carried out by
the competent adult only.
Do not stand on the panels, this
could cause damage.
Assemble the unit as close to its
final position (in the same room)
as possible.
Assemble on a soft level
surface to avoid damaging the unit
or your floor.
Parts of the assembly will be
easier with 2 people.
●From time to time check that
there are no loose screws on this
unit.
During assembly children
should be kept away from the
product due to the potential risk of
injury.
We do not
recommend the use
of power drill/ drivers
for inserting screws,
as this could damage
the unit. Only use hand
screwdrivers.
Dispose of all packaging carefully
and responsibly.
Warning: The unit weighs
approximately 4.8kgs.
Please lift with care.
●This product should not be
discarded with household waste.
Take to your local authority waste
disposal centre.
disposal centre.
Do not use this item if any
components are missing or
damaged.
1
Page 3

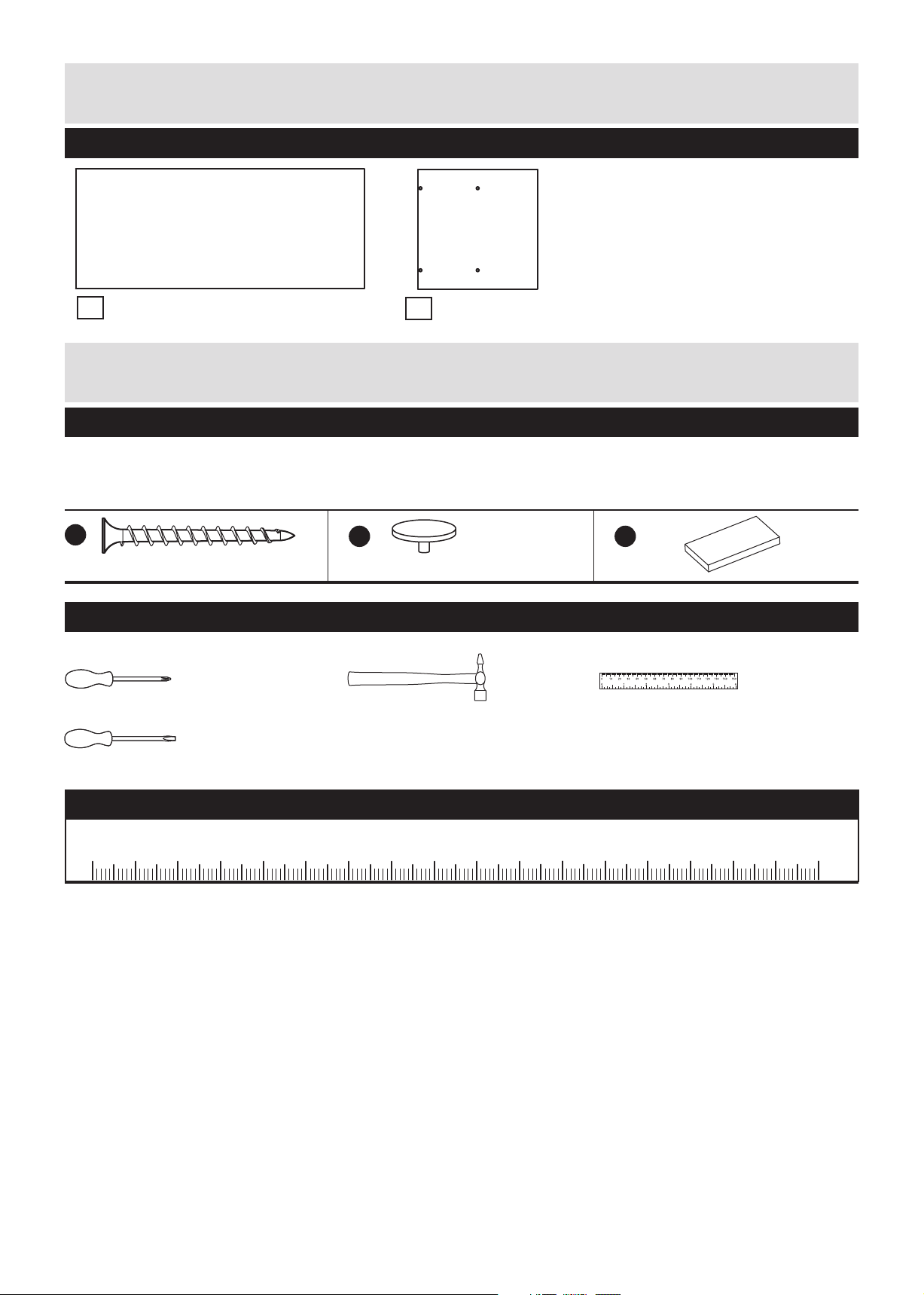

Components - Panels
If you have damaged or missing components,
call the Customer Helpline:08456 400800
Please check you have all the panels listed below
Shelf x 2 (67.6 x 28cm)
1
Side x 2 (28 x 28cm)
2
Components - Fittings
Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings
may be supplied than are required.
A
45mm Screw x 8
B
Cap x 8
Tools required
Phillips screwdriver
(medium & large)
Flatblade screwdriver
(medium)
Small
hammer
Ruler - Use this ruler to help correctly identify the screws
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100
C
Foot x 4
Ruler/tape
measure
105
110 115 120 125 130 135 140 145 150 155 160 165 170
2
Page 4

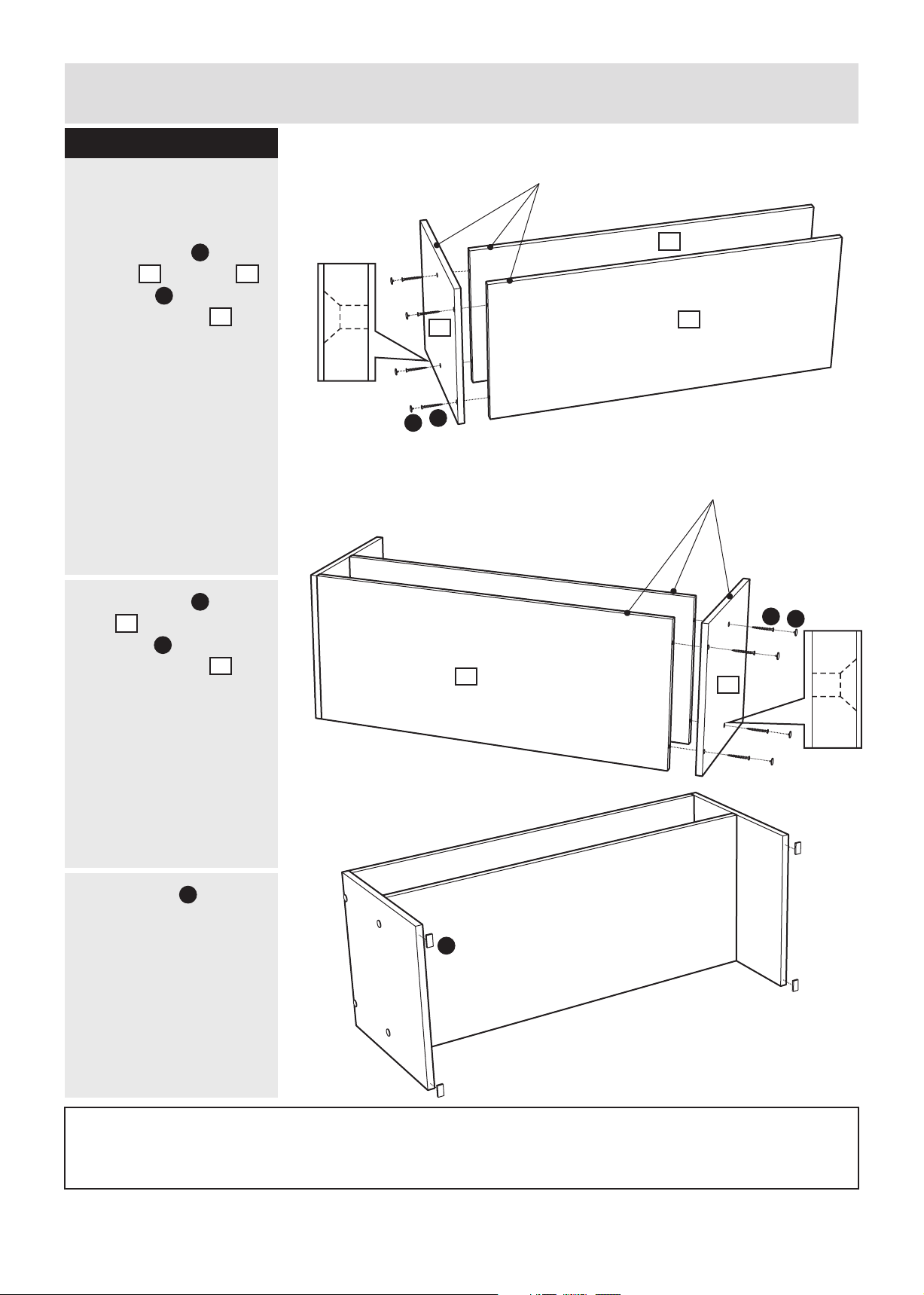

Assembly Instructions
Step 1
Step 1
Fitting the shelves
a: Use Screws to fix
Shelves onto Side .
Use Caps to cover
holes on the Side .
1 2
b: Use Screws to fix
Side onto the unit.
Use Caps to cover
holes on the Side .
2
A
B
2
A
B
2
a:
b:
Fini shed
fron t edge
1
2
A
B
1
1
Fini shed
fron t edge
A
2
B
c:
c: Stick Feet onto the
unit.
Assembly is complete.
If you need help or have damaged or missing parts, call the
3
C
C
Customer Helpline : 08456 400800
