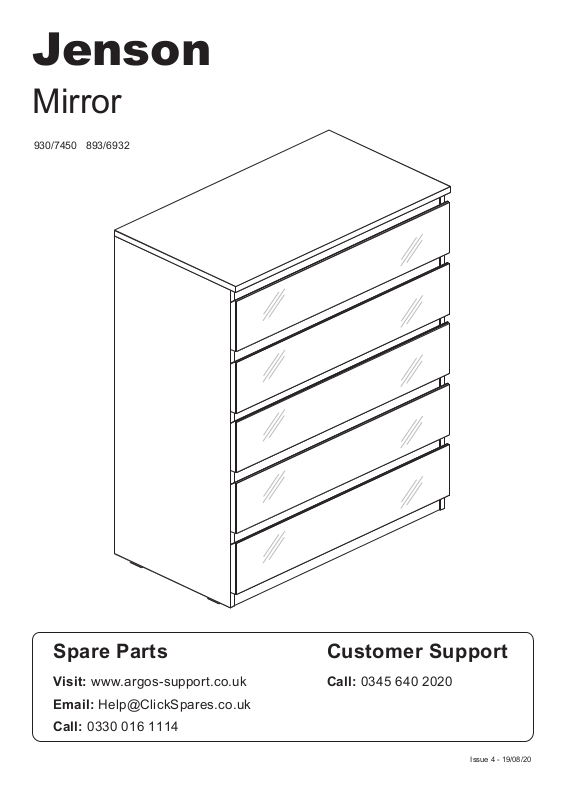

Page 1
Jenson
Mirror
930/7450 893/6932
Spare Parts
Visit: www.argos-support.co.uk
Email: [email protected]
Call: 0330 016 1114
Customer Support
Call: 0345 640 2020
Issue 4 - 19/08/20
Page 2

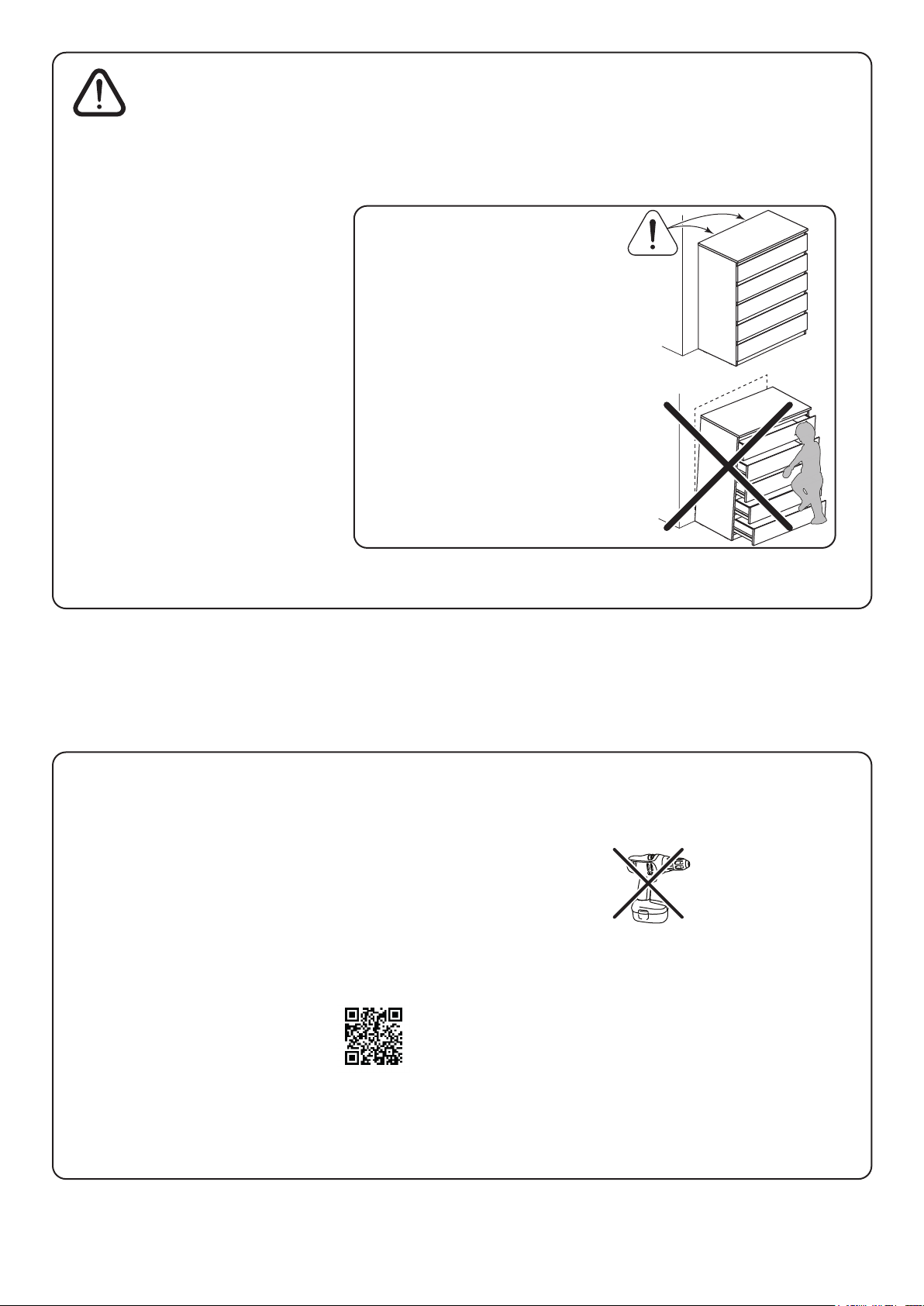

Safety
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 46kgs.
Please lift with care.
• During assembly children
should be kept away from the
product due to possible risk of
injury.
• Installation shall only be
carried out exactly according to
the manufacturer’s instructions otherwise a safety risk can
occur if incorrectly installed.
• Do not use this item if any
components are missing or
damaged.
• WARNING: To prevent
possible overbalancing this unit
must be secured to a wall using
the 2 overbalance protector kits
supplied.
• A unit that is allowed to topple
can cause serious or fatal injury.
In addition to wall fixing the unit,
place heavy items on the lower
drawers, do not put any heavy
objects on top of the unit and
never allow children to climb or
hang on drawers, doors or
shelves.
• Refer to guide after section 18
for wall fixing information.
Care Advice
• Check you have all the
components and tools listed on
relevant pages.
• Remove all fittings from the
specified plastic bag and
separate them into their groups.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
• Assembly videos are
available throughout
these instructions by
scanning in the QR
codes.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Dispose of all packaging
carefully and responsibly.
Page 3

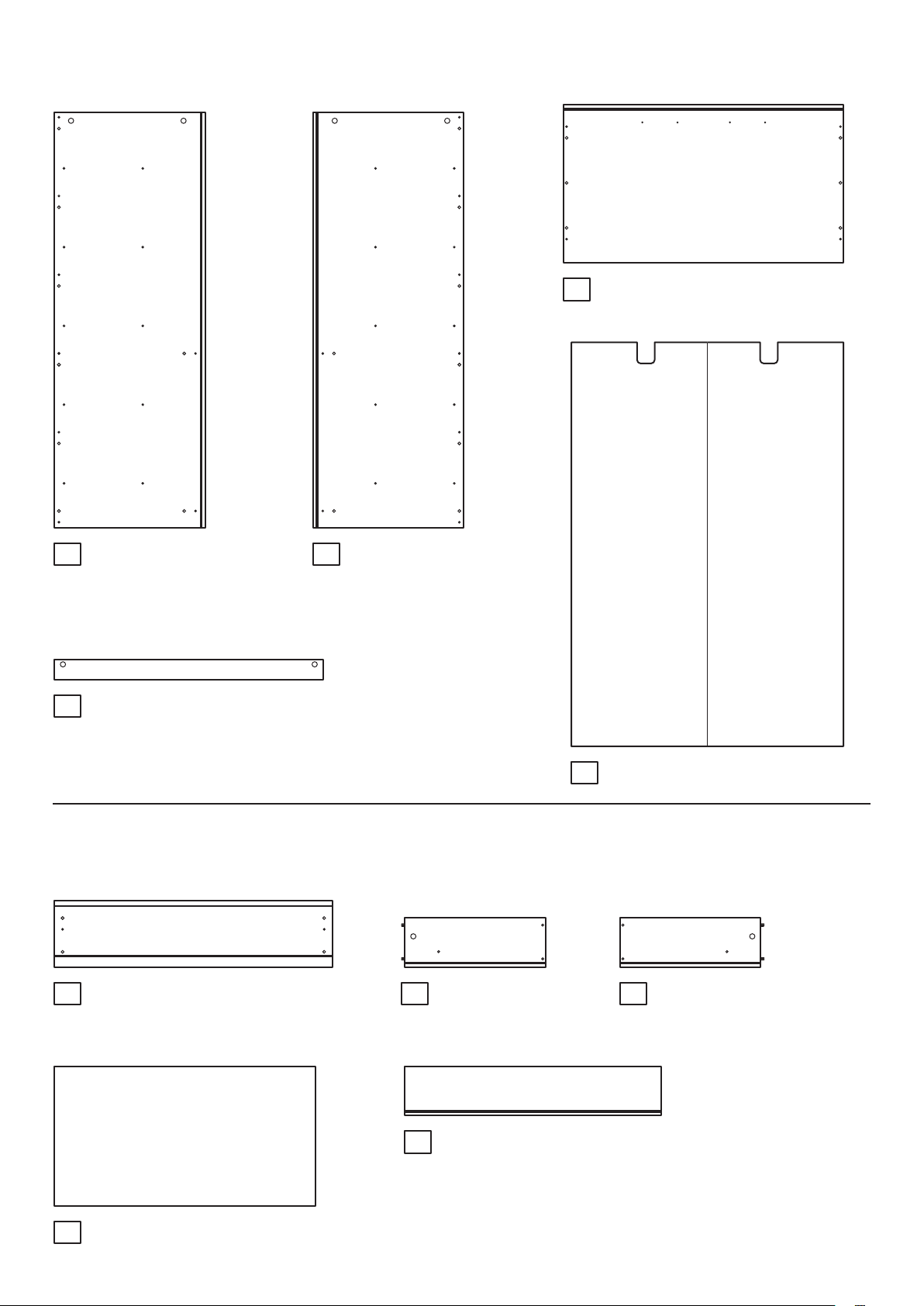

Cabinet Panels
DF-00013263
3 79.8 x 45cm
DF-00013307
1 118.1 x 42.9cm 2 118.1 x 42.9cm
DF-00021435
4 76.4 x 6cm
x 8
Drawer Panels
DF-00017015
DF-00013308
5 114.9 x 77.4cm
WRP-00000209
XDF-00013309
WRP-00000211
6 79 x 18.9cm
9 74.25 x 39.7cm x 5
x 5
TDF-00017022
7 40 x 14cm
10 73.15 x 14cm x 5
x 5
40 x 14cm x 5
8
WRP-00000212
Page 4

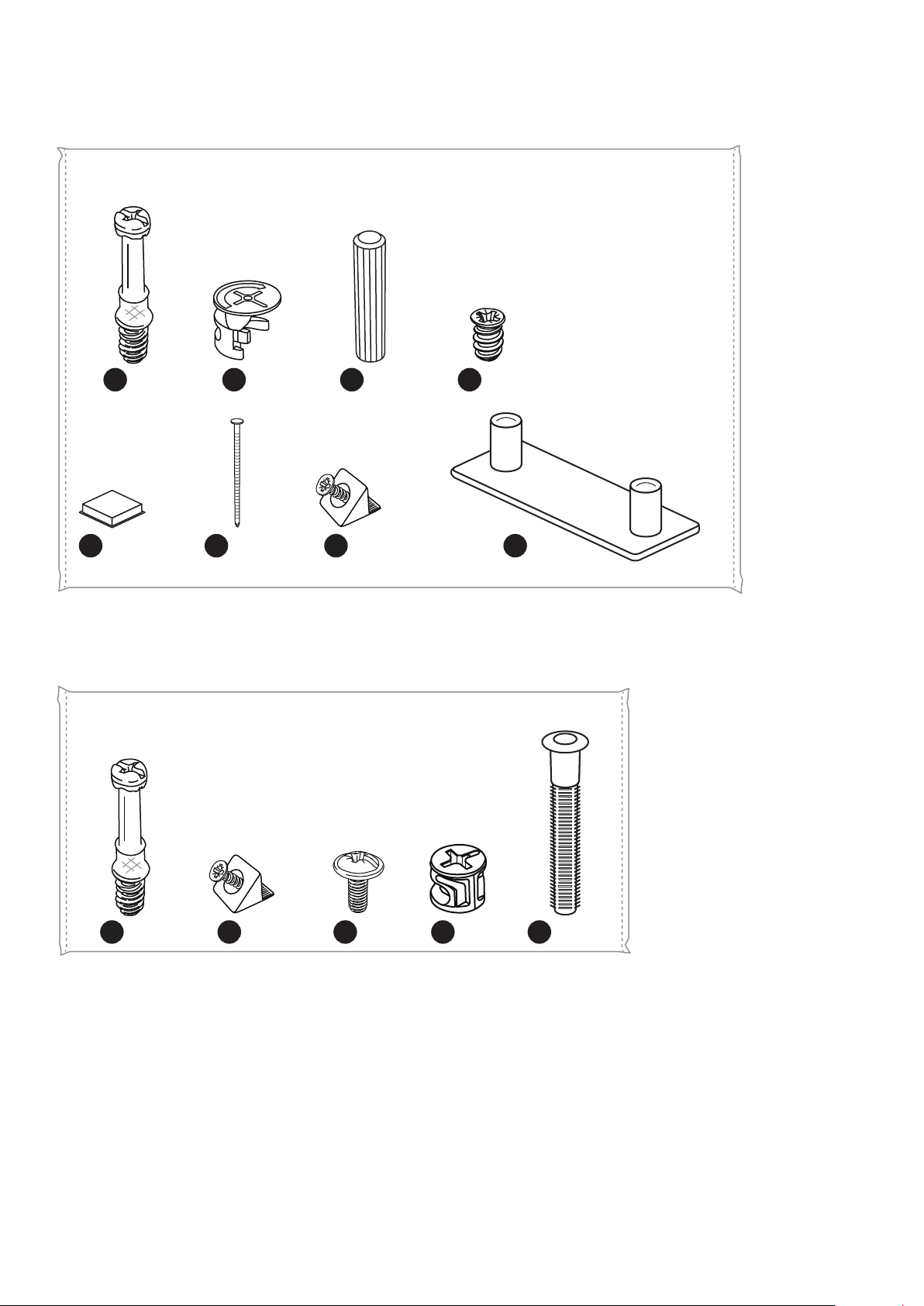

Fittings
Use these drawings to
correctly identify the fittings
Bag 1
E
A
A
x 20
x 10
F901
F137
x 22
x 8
F22
D
F639
F900
B
x 20
F51
F
x 5
C
G
x 20
H
F73
x 4
F646
Bag 2
A
A
x 10
F901
G
x 20
F639
I
F74
x 10
J
x 10
F3
K
F171GY
x 20
Page 5

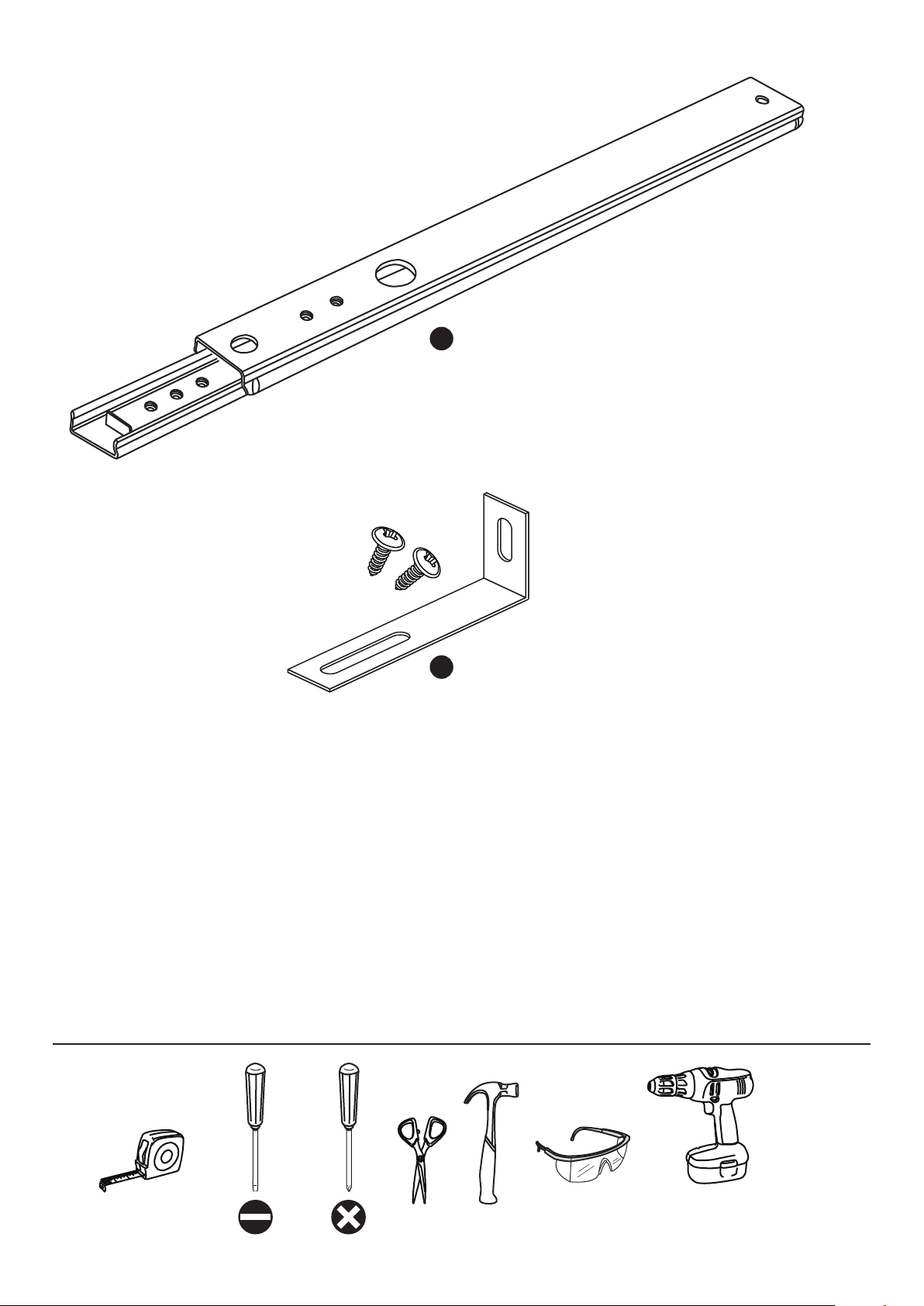

Fittings
L
F450
x 10
M
F474
x 2
Tools
Only used for
drilling walls
Page 6

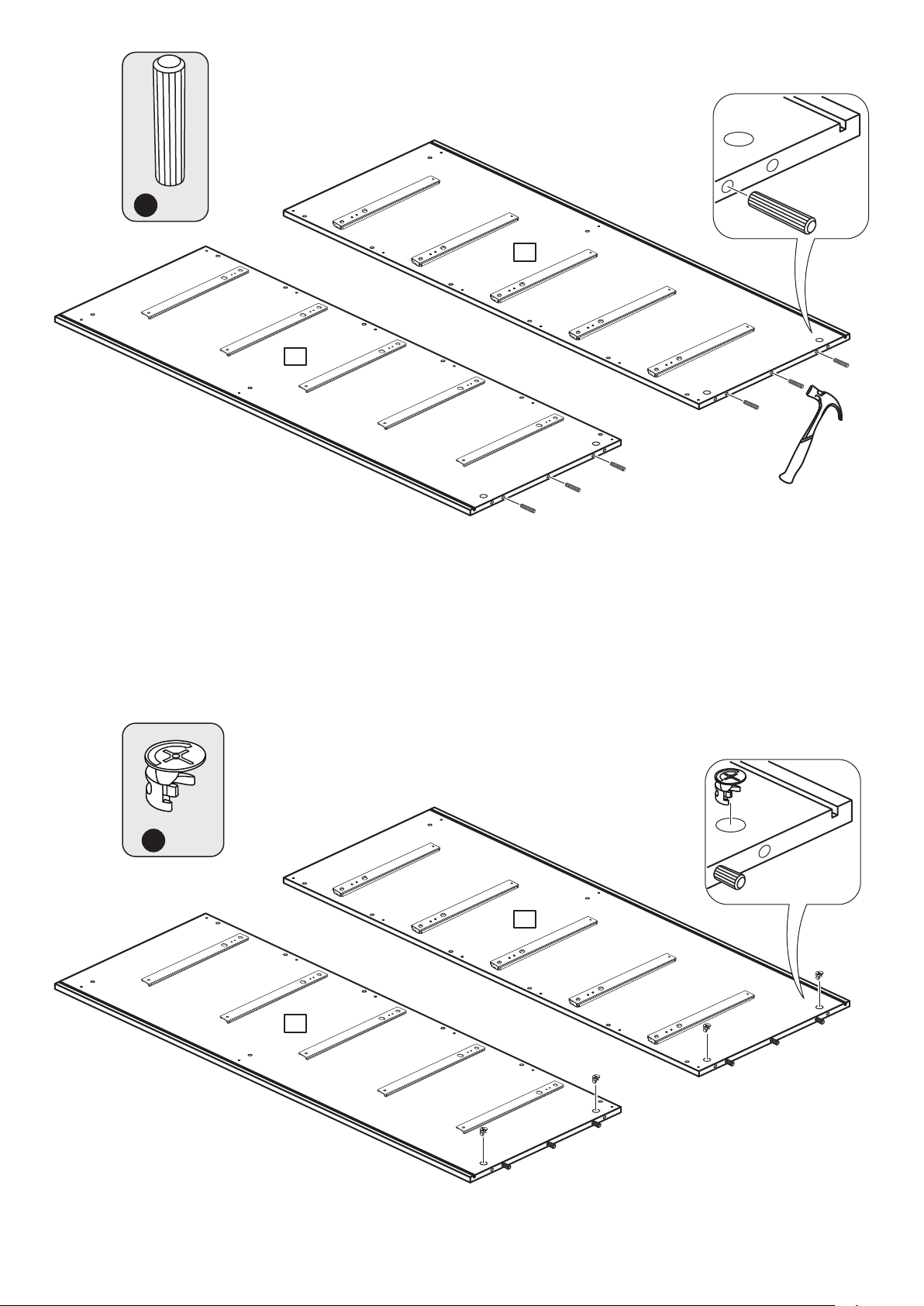

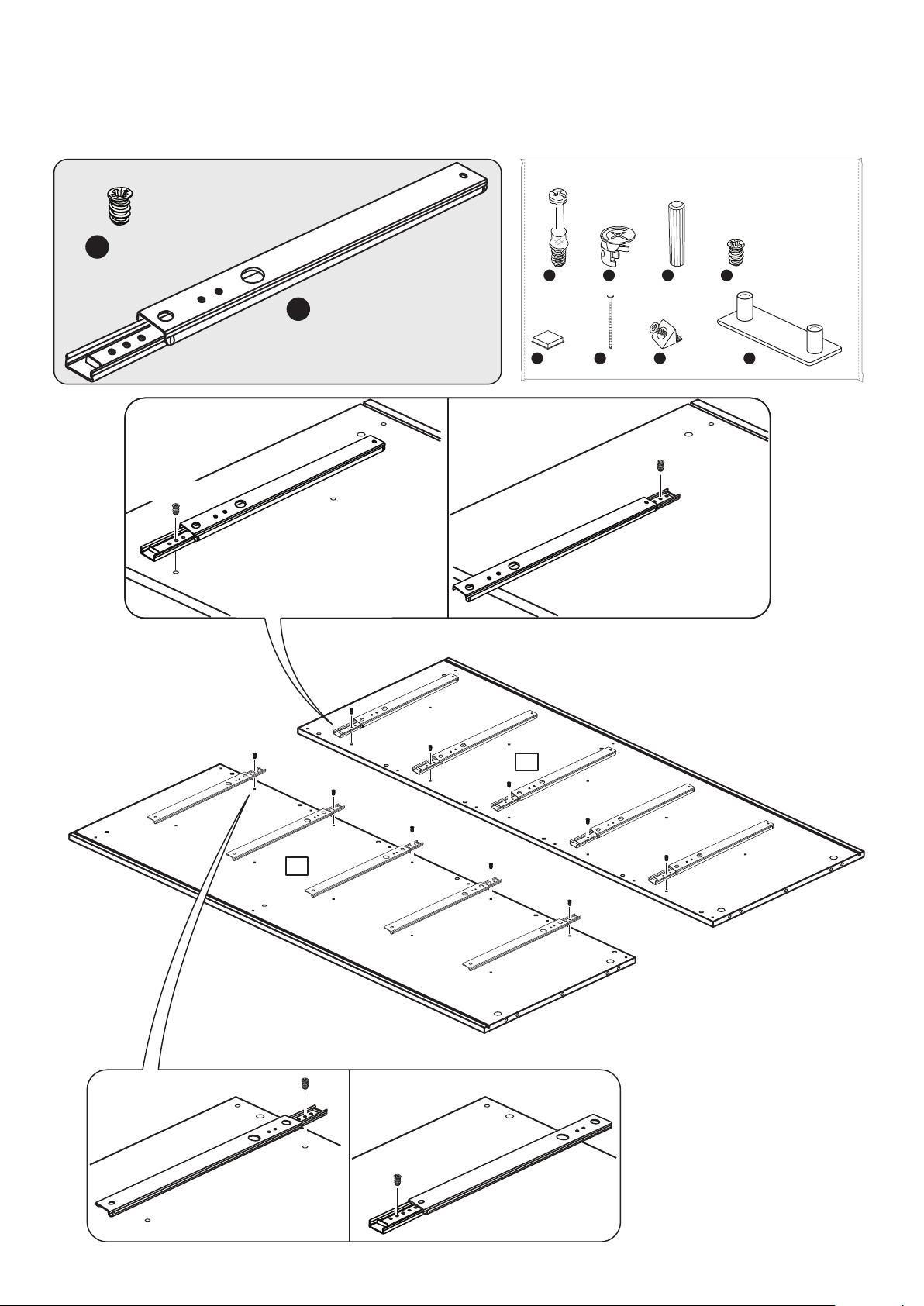

1
D
x 20
Fitting Ball Bearing Runners
www.youtube.com/watch?v=yG4xtiJJeSg
A
A
L
x 10
x 20
Bag 1
B
x 20
C
x 22
D
x 20
A B
2nd hole
E
x 10
2
F
G
x 8
H
x 4x 5
1
2nd hole
A B
Page 7
2
C
x 6
2
1
3
B
x 4
2
1

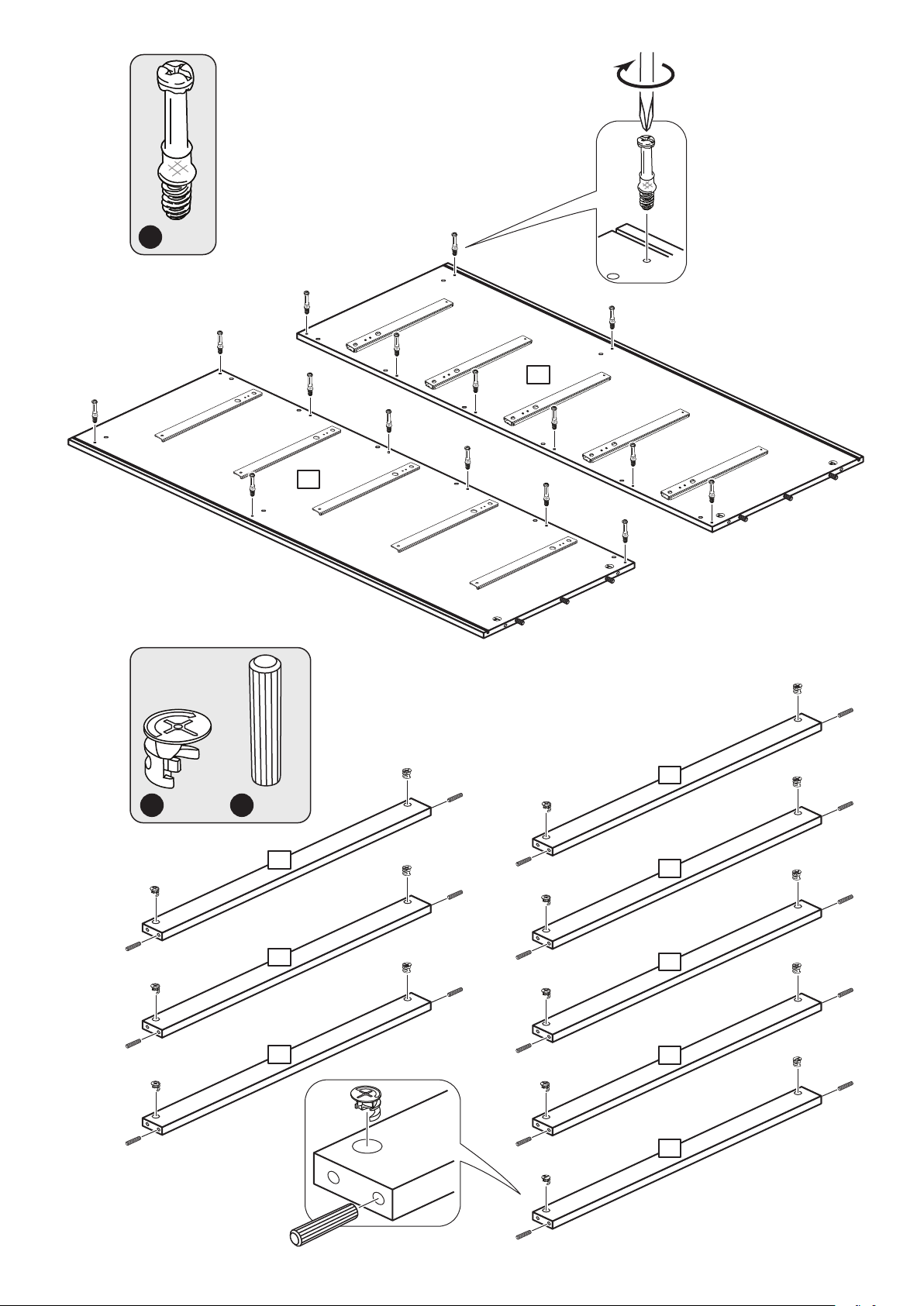

Page 8
4
A
x 16
2
1
5
B
x 16
C
x 16
4
4
4
4
4
4
4
4
Page 9

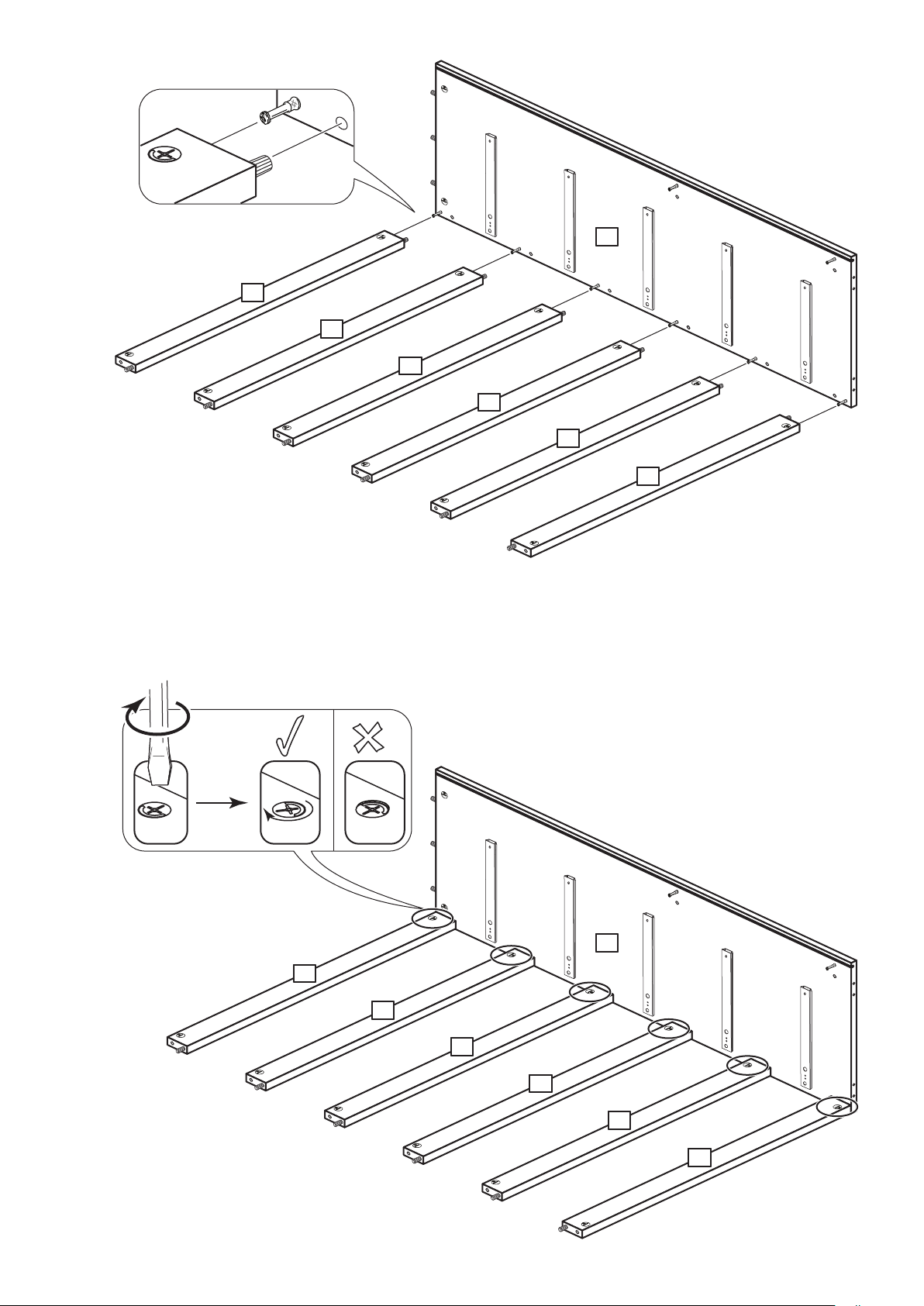

6
41
44
44
44
44
44
44
7
x 6
41
44
44
44
44
44
44

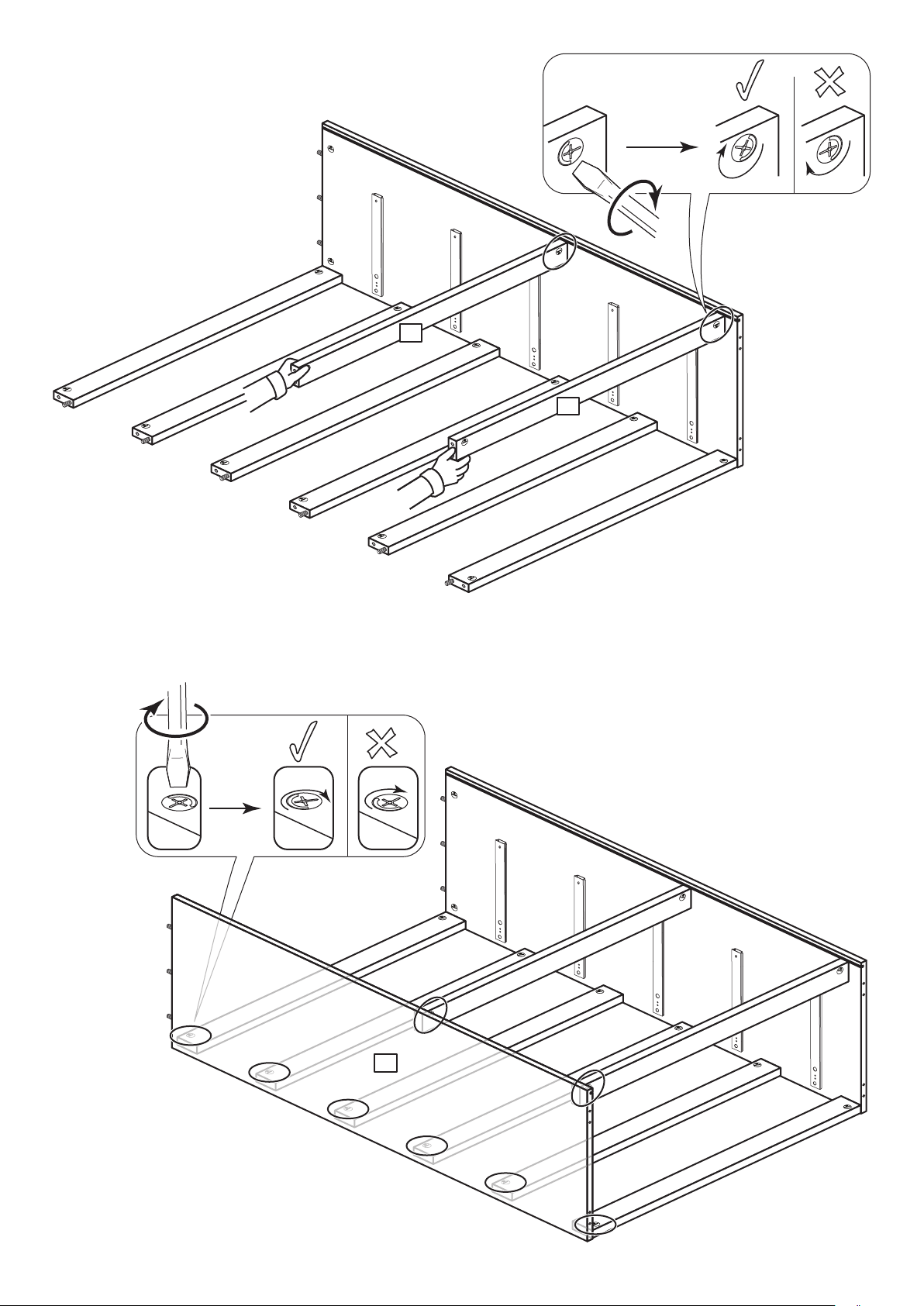

Page 10
8
x 2
4
4
9
x 8
2
Page 11

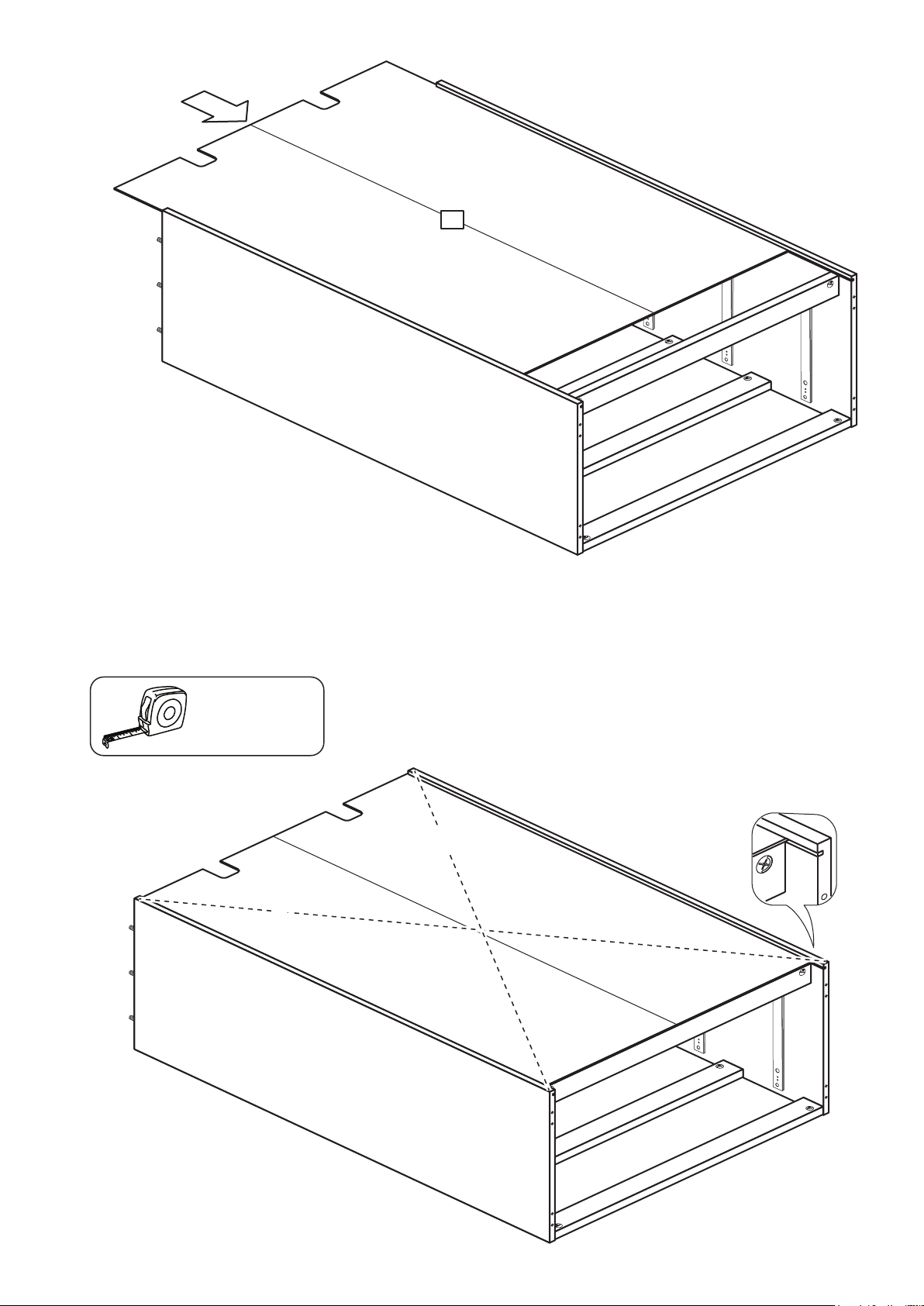

10
5
11
Make sure measurement
A and B are the same
Squaring up a Chest and fitting the Back Panel
www.youtube.com/watch?v=FeaI6541z7o
A = B
The Back panel must be
flush with the Back Rail.
BB
AA
Page 12

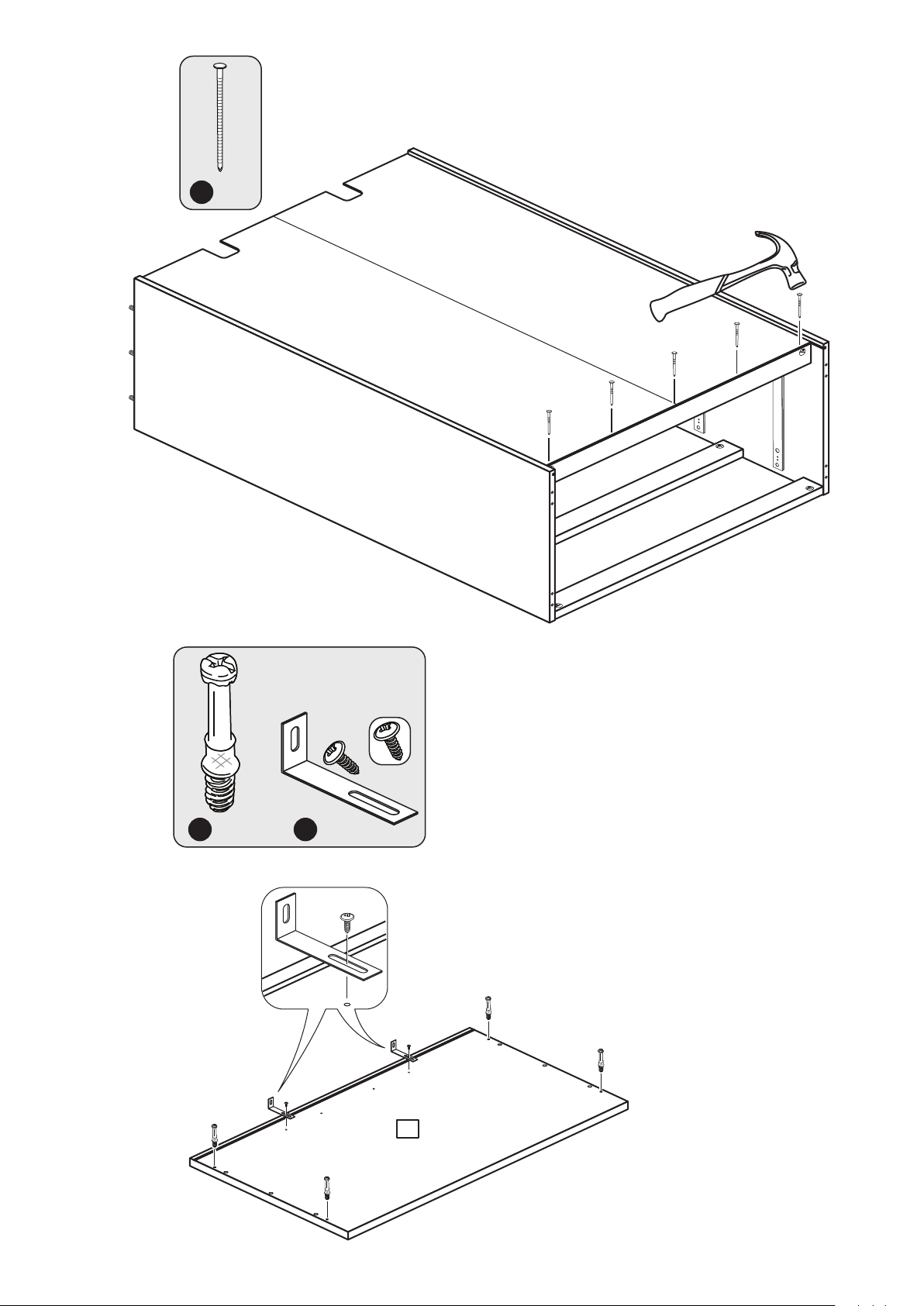

12
F
x 5
13
A
x 4
M
x 2
3

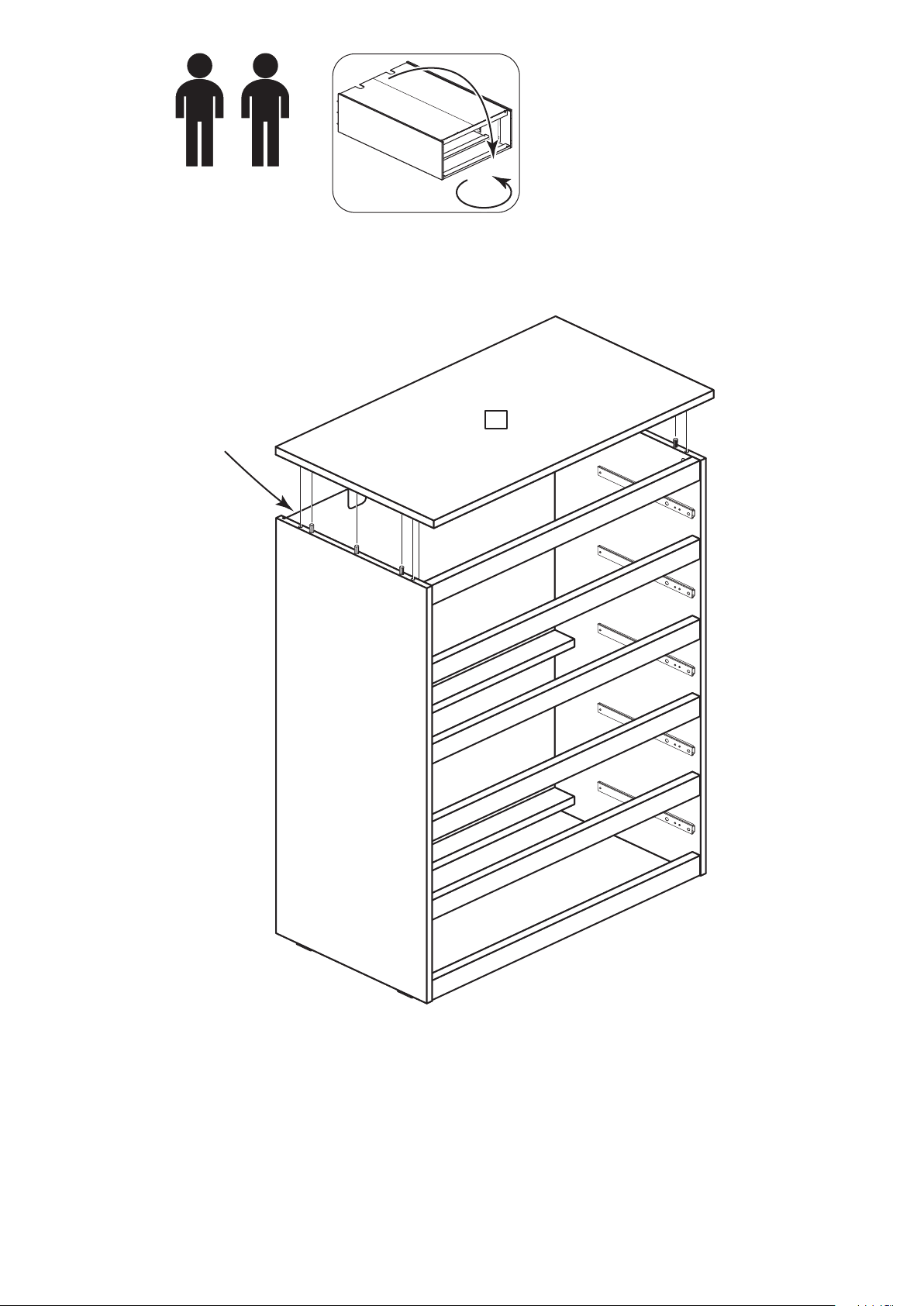

Page 13
14
IMPORTANT:
The Back panel must
slot into the groove
in the Top panel
3
Page 14
15

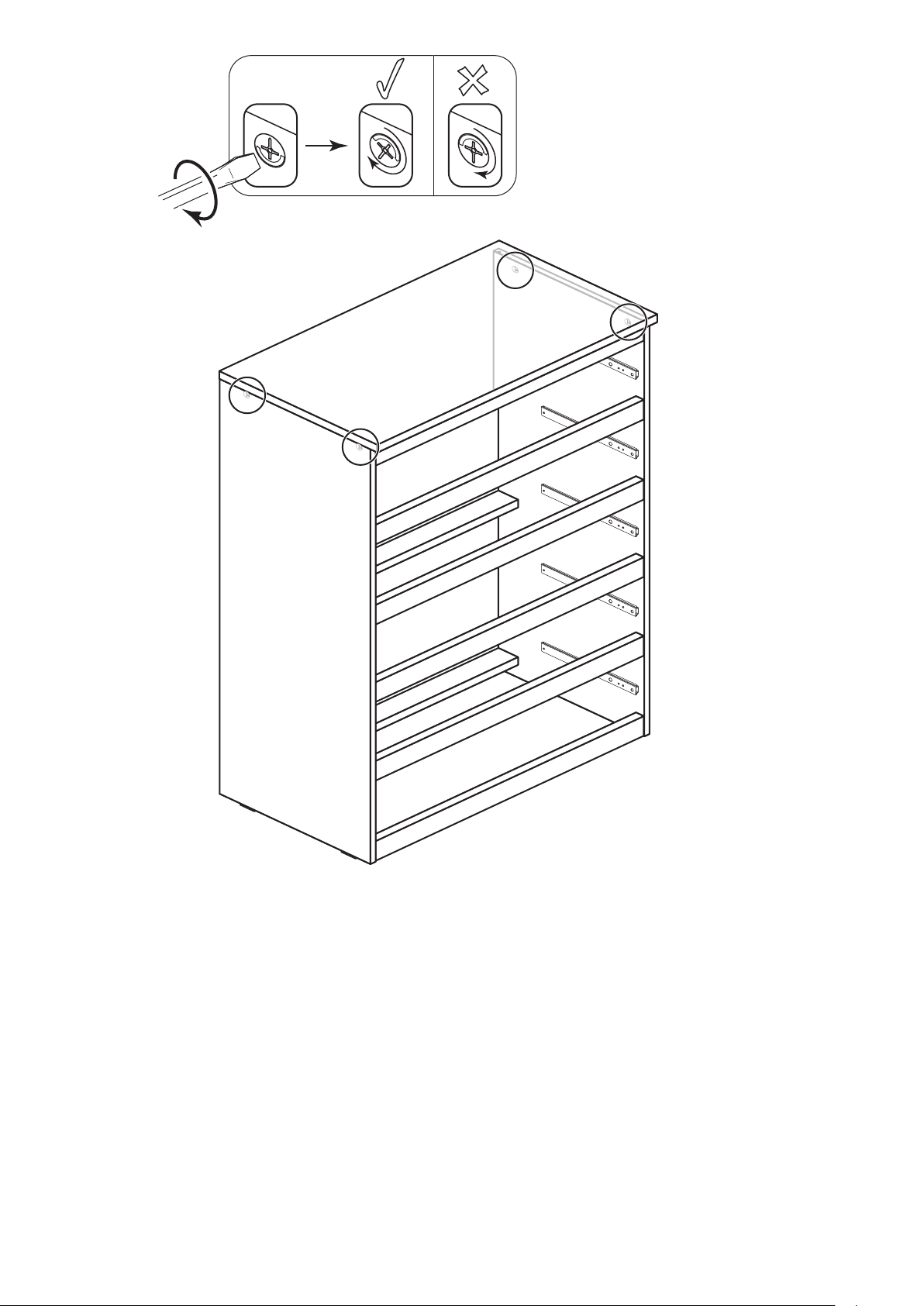

x 4

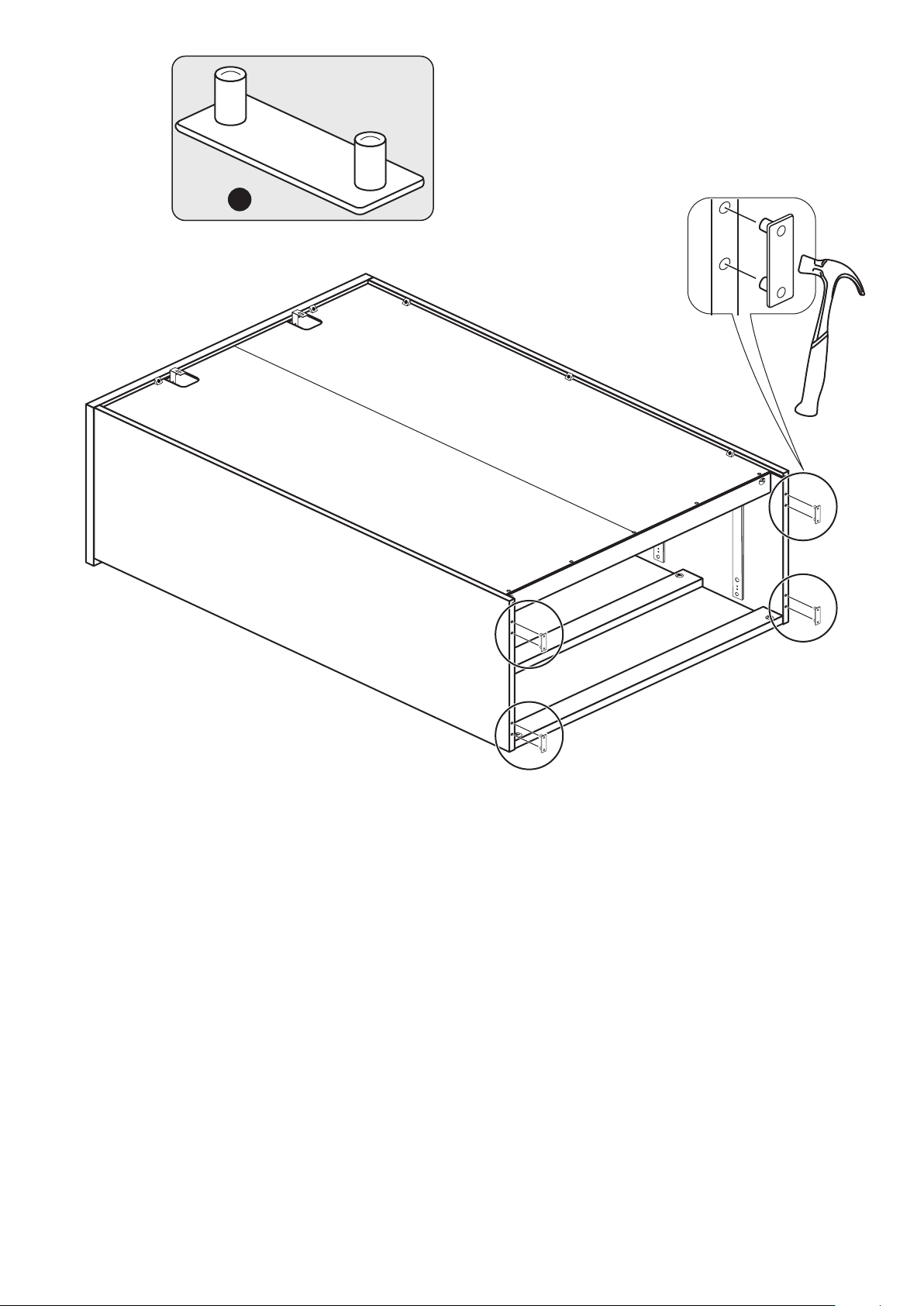

Page 15

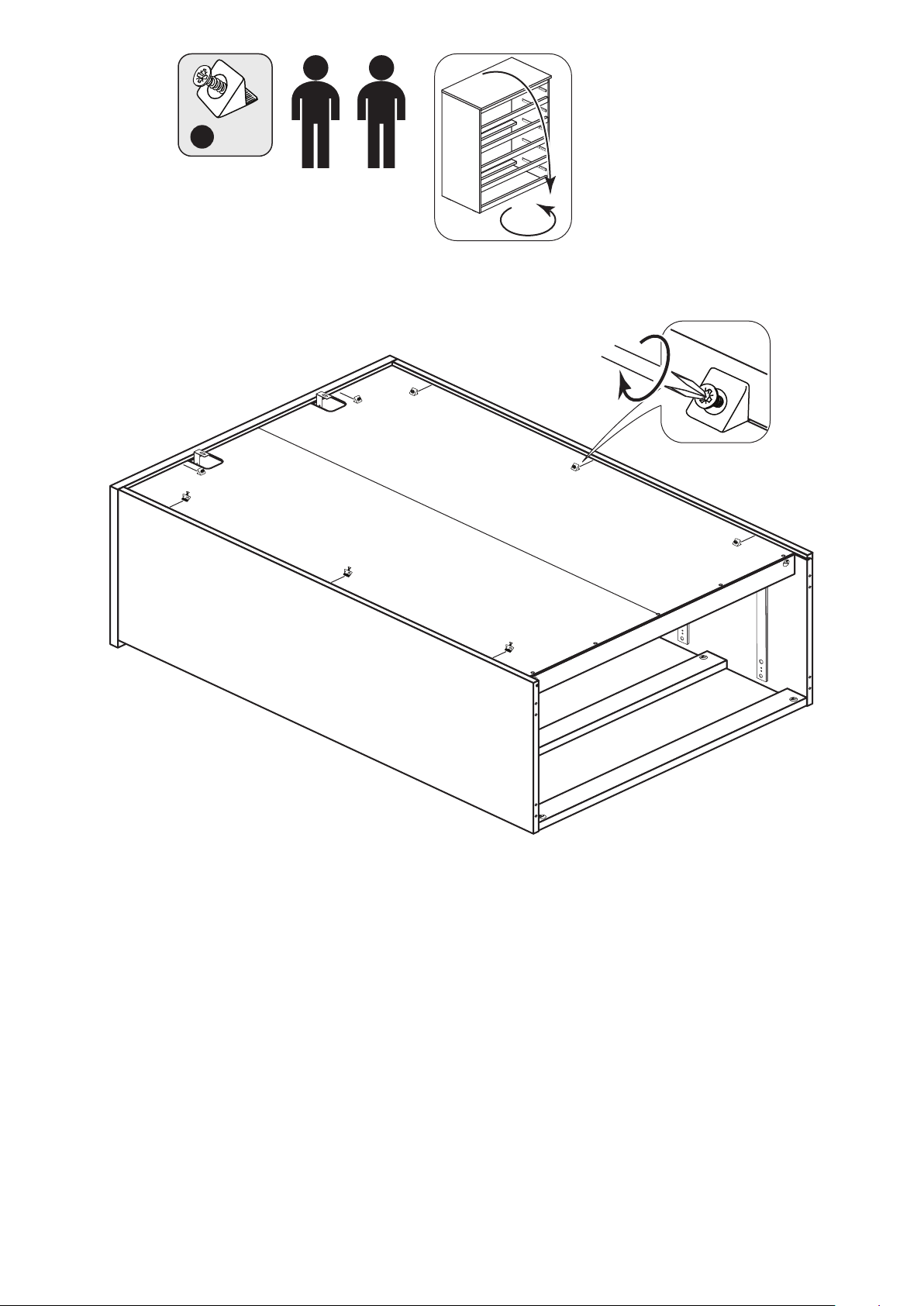

16
G
x 8
Page 16
17
H
x 4
Page 17

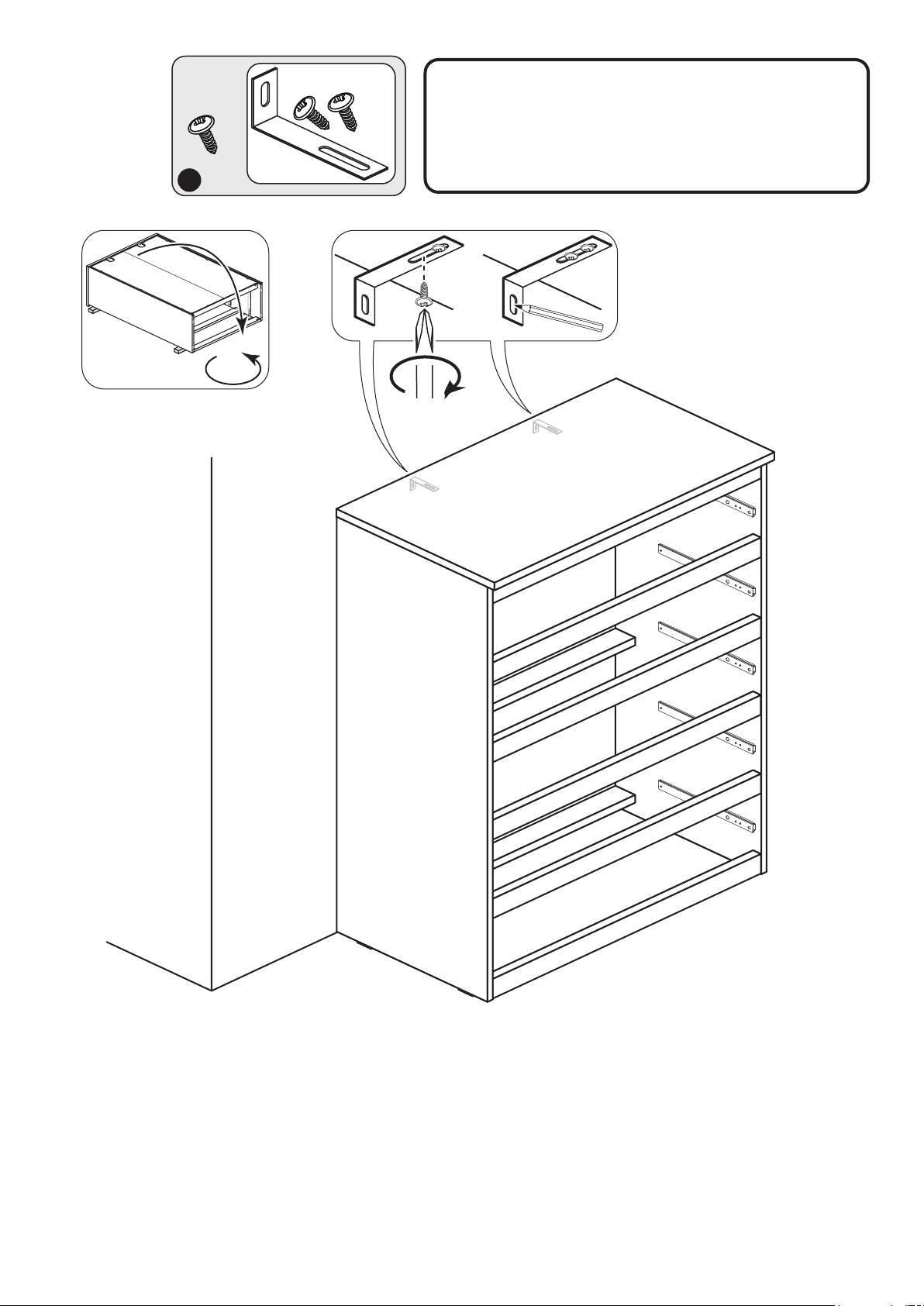

WARNING!
18
M
x 2
In order to prevent overturning
this product must be used with the
2 wall attachment devices provided
Top
See the next section for a guide
to wall mounting and fixings
Slide the Brackets against the wall. Fit the 2nd screws supplied
with the Brackets into the underside of the Top panel.
Mark the slot at the back of the Brackets for drilling into the wall.
Wall fixings are not supplied as they will need to suit the wall type.
Take care when drilling the wall that you do not drill
Note:
into any pipes, wires etc.
If in doubt, consult an expert.
Page 18

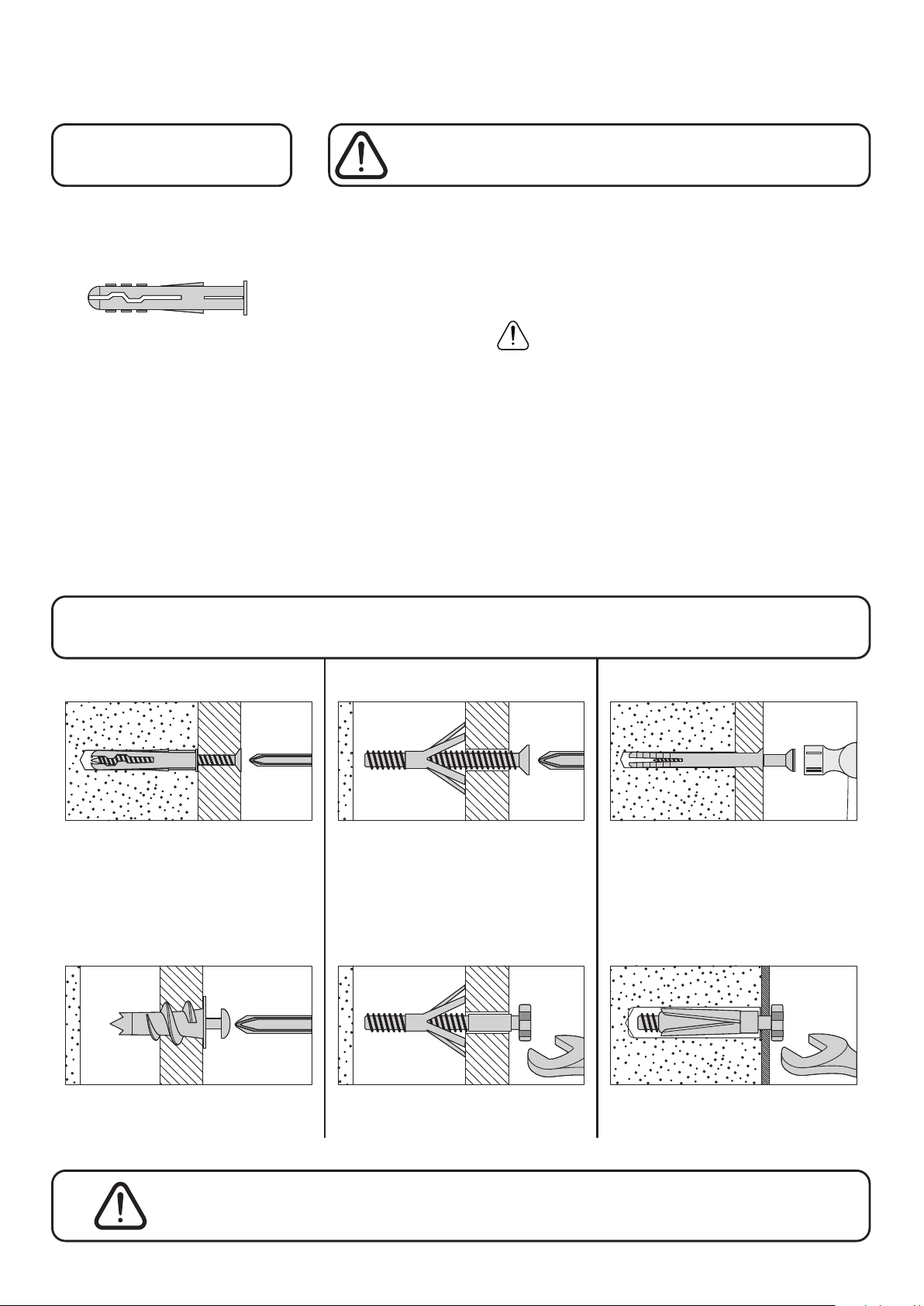

A Guide to Wall Mounting & Fixings
Important note:
If plastic wall plugs
are supplied with your
product:
- these are only suitable for
use in masonry walls.
If you are in any doubt about
the correct wall plugs for
your wall, seek professional
advice.
Failure of the product due to
using incorrect fixings is the
responsibility of the installer.
Important: When drilling into walls always
check that there are no hidden wires or pipes etc.
Make sure that the screws and wall plugs being used
are suitable for supporting your unit. Consult a qualified
tradesperson if you are unsure.
Hints:
1: General rule: Always use a larger screw and wall plug
if you are not sure.
2: Ensure you use the recommended drill bit to match the wall
plug and hole size.
3: Ensure you drill the hole horizontally, do not force the drill or
enlarge the hole.
4: Take extra care when drilling high walls, ceilings and ceramic
tiles. Ensure wall plugs are inserted beyond the thickness of
the ceramic tiles to avoid the tiles splitting or cracking.
5: Ensure wall plugs are well fitted and are a tight fit in the
drilled hole.
Types of walls
No.1 “General Purpose” wall plug No.3 “Cavity Fixing” wall plug No.5 “Hammer Fixing” wall plug
Generally aerated blocks should not
be used to support heavy loads, use
a specialist fitting in this case. For light
loads, general purpose wall plugs can
be used.
No.2 “Plasterboard” wall plug
You can use one of the following types of wall plug if your
walls are made of brick, breeze block, concrete, stone or wood.
For use with plasterboard partitions or
hollow wooden doors.
No.4 “Cavity Fixing-Heavy Duty”
wall plug
For use with walls stuck with
plasterboard. The hammer fixing allows
it to be fixed to the wall rather than the
plasterboard. Always check the fixing
is secure to the retaining wall.
No.6 “Shield Anchor” wall plug
Heavy loads
For use when attaching light loads on
to plasterboard partitions.
Care &
Maintenance
For use when fitting or supporting
heavy loads such as shelving, wall
cabinets and coat racks.
Safety: Always check the fitting
and location to ensure your safety
in and around the home.
For use with heavier loads such as TV
& HiFi speakers and satelite dishes etc.
Fitting: From time to time check
the fitting to ensure the wall plugs
or screws do not become loose.
Page 19

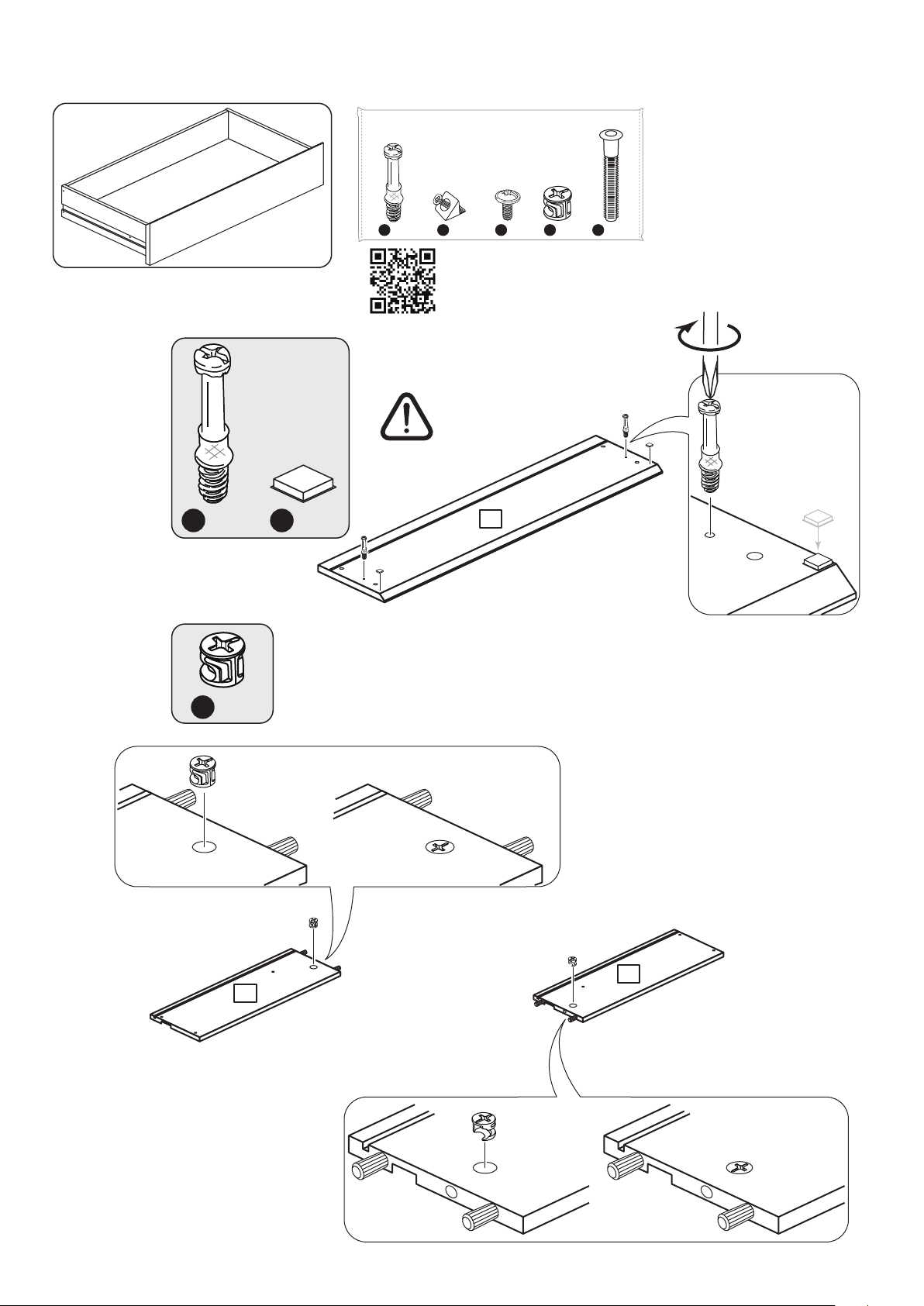

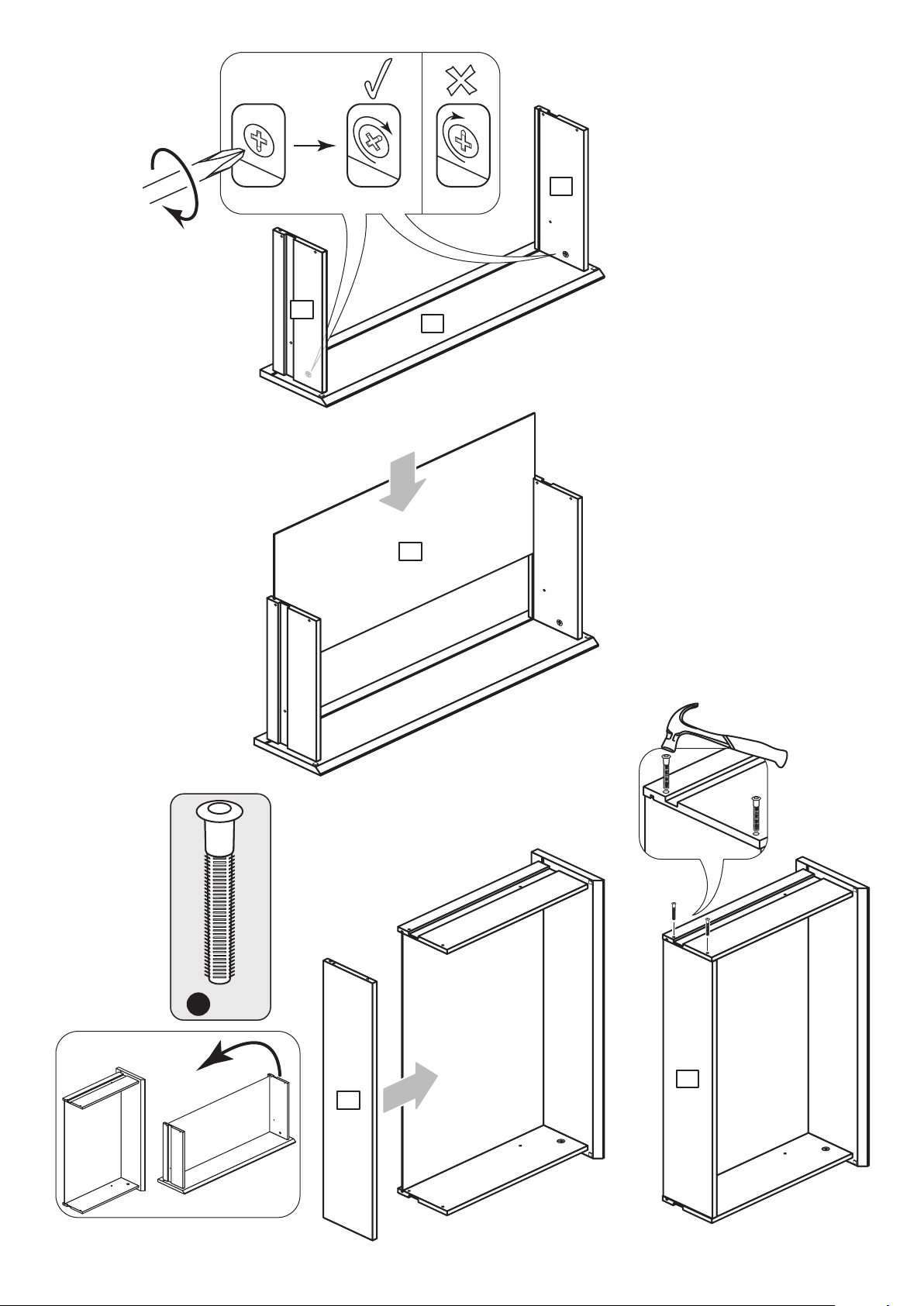

Drawer Assembly
x 5
19
A
x 10
E
x 10
Bag 2
A
A
x 10
G
x 20
Drawer Assembly
www.youtube.com/watch?v=InNBV_uuMmo
Warning:
Glass! Handle
with care
F74
x 10
J
x 10Kx 20
I
6
20
J
x 10
8
7

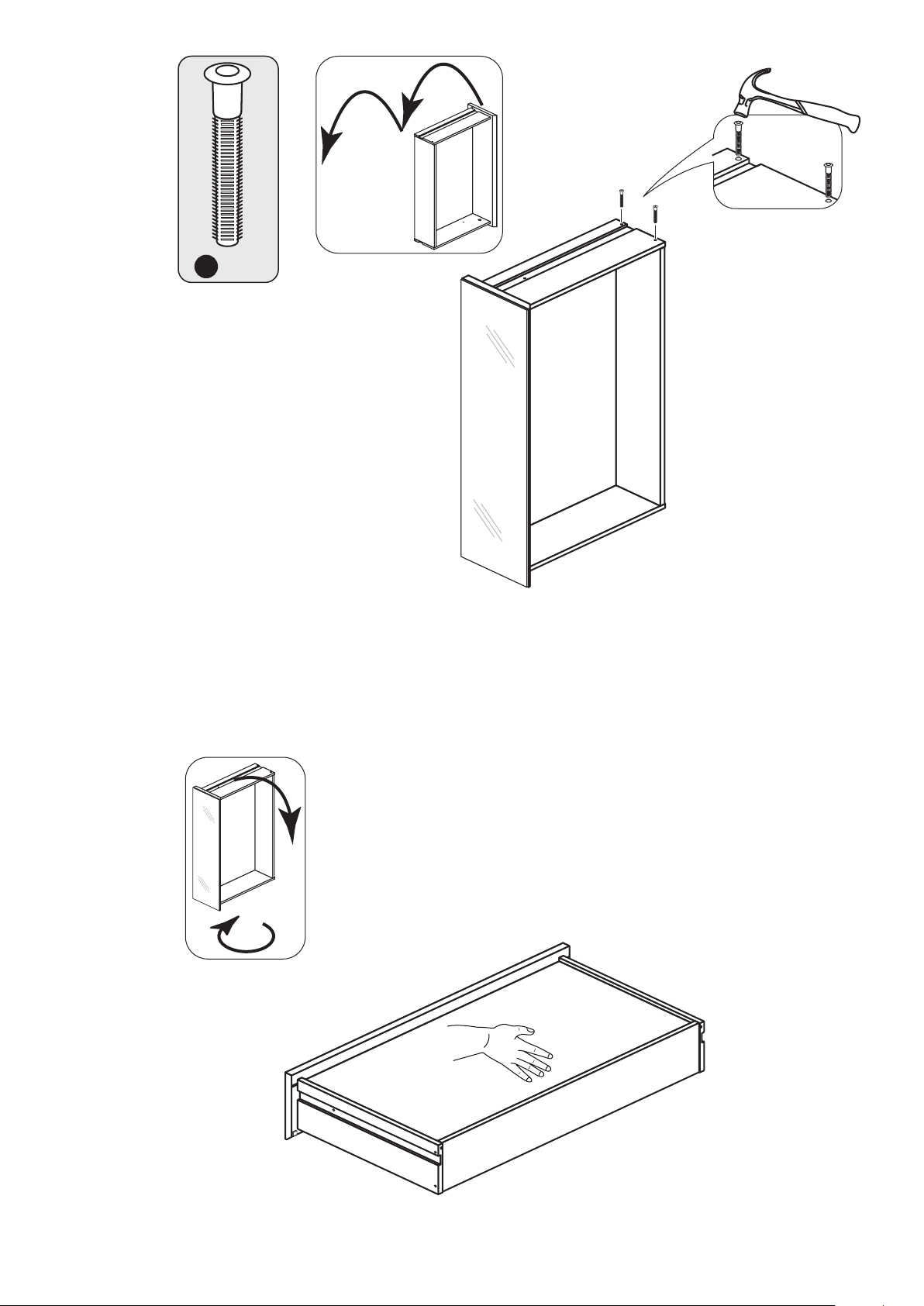

Page 20
21
8
22
7
6
9
23
K
x 10
10
10
Page 21
24
K
x 10
25
Before securing the Drawer Base,
make sure it is inserted in all 4 grooves.
You may need to manoeuvre it slightly.
Page 22

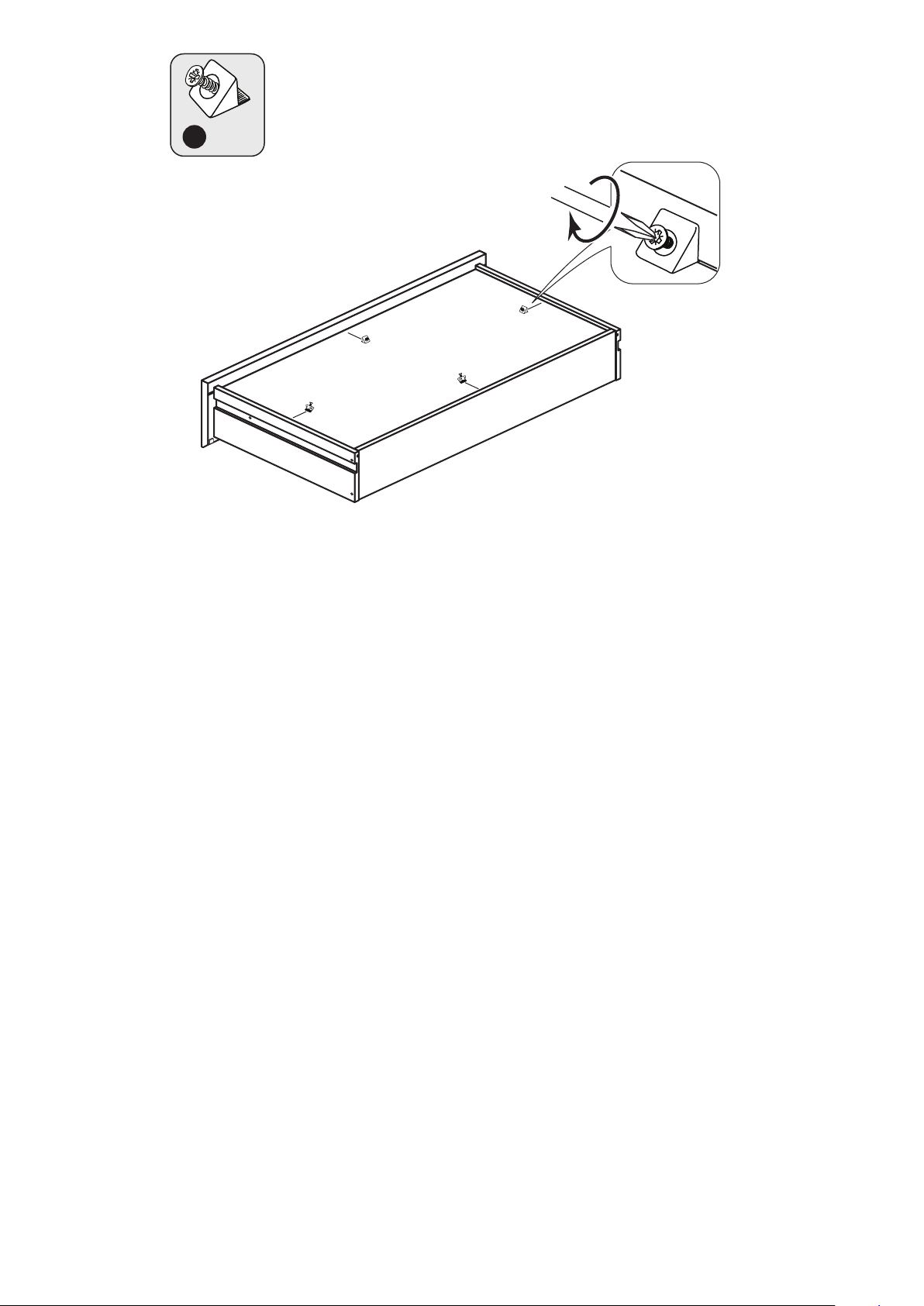

26
G
Important: Make sure that the
drawer assembly is square
before fitting the wedgefixes.
x 20
Page 23

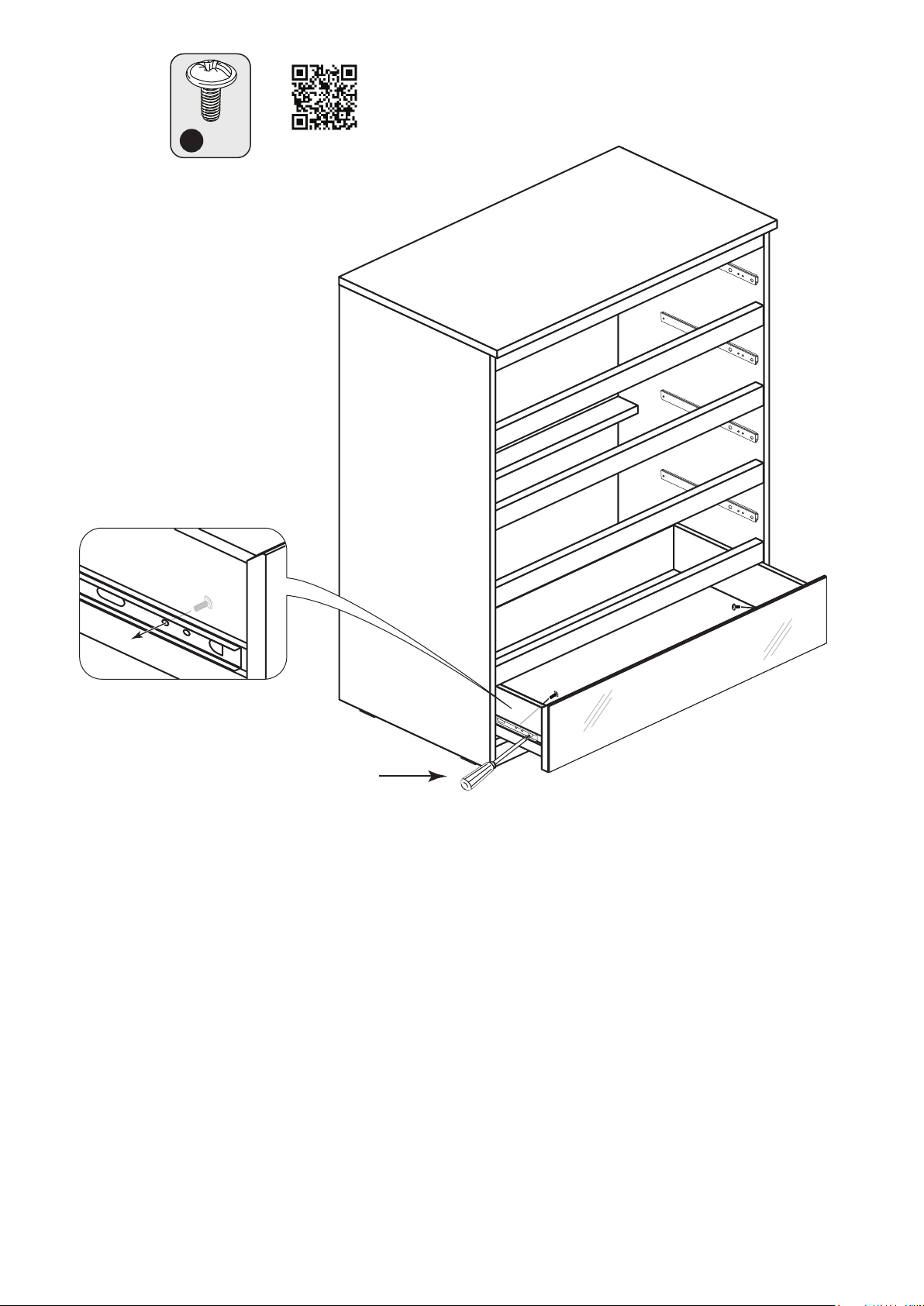

27
Fitting Ball Bearing Runners
www.youtube.com/watch?v=yG4xtiJJeSg
I
x 2
Warning: Use a Screwdriver
to position the Runners as
they could have sharp edges
Fit the bottom Drawer by sliding both its Runners forward and locate the Drawer Sides between
them, lining up the holes in the Drawer Sides with the 2nd 'threaded' holes in the Runners.
Working from the inside of the Drawer, insert 2 Screws through the Drawer Sides and out into
the 2nd threaded hole in the Runner.
Note: Do not overtighten the Screws.
If they catch on the runner you may need to loosen them slightly.
Page 24

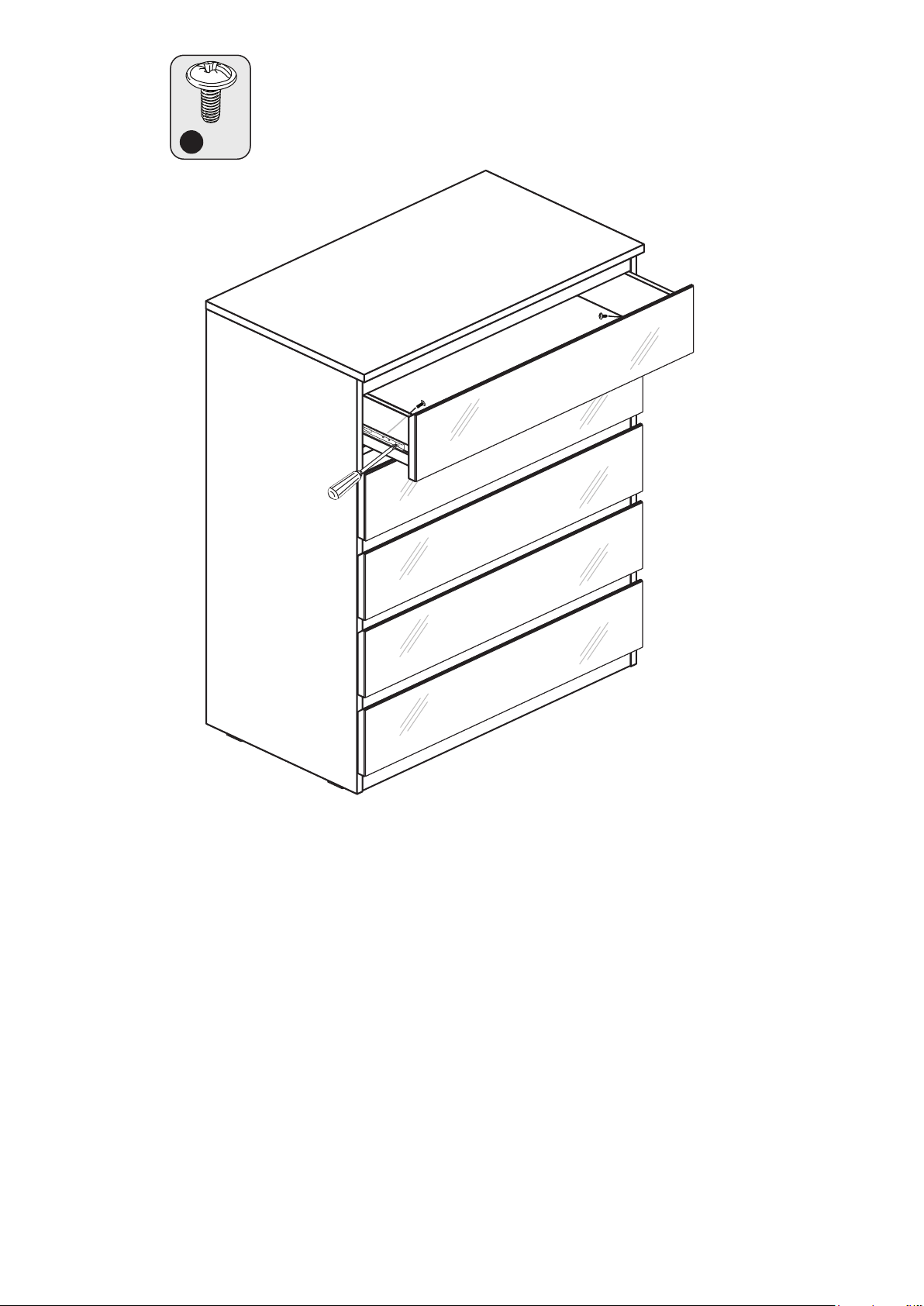

28
Fit the rest of the Drawers,starting from
the lower ones and working your way up.
I
x 8
Assembly is complete
Please remove any blue protective film from panel edges and
clear protective film from panel surfaces and clean the mirrors
ALR3550
