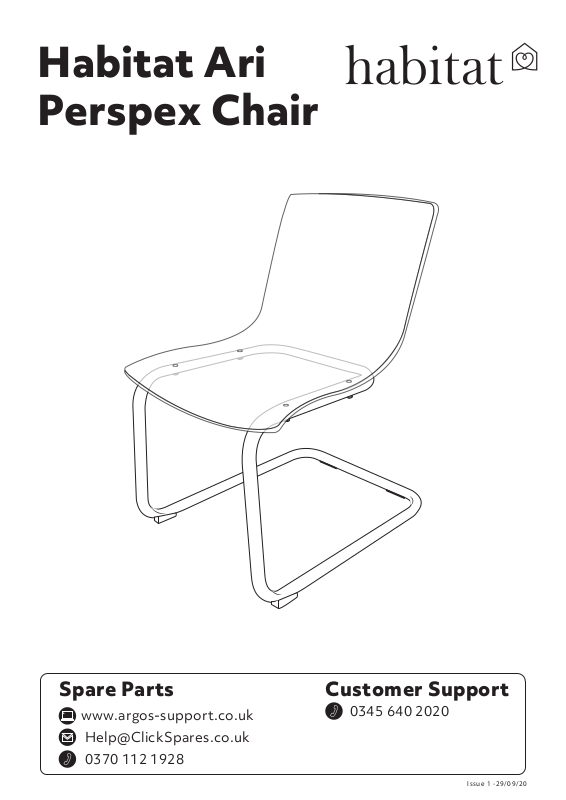

Page 1
Habitat Ari
Perspex Chair
Spare Parts
www.argos-support.co.uk
0370 112 1928
Customer Support
0345 640 2020
Issue 1 -29/09/20
Page 2
Safety and Care Advice
Product Details
917/5785 HAB ARI PERSPEX CHAIR
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY.
Keep children and animals
away from the work area, small
parts could choke if swallowed.
Make sure you have enough space
to layout the parts before
starting.
• This product has been
constructed to be used in the
domestic environment only and
not for commercial purposes.
Care and maintenance
Only clean using a damp cloth
and mild detergent. Do not use
abrasive cleaners.
Use a dry cloth to clean the
product, furniture polish is
not recommended.
Assemble the item as close
to its final position (in the same
room) as possible.
Assemble on a soft level
surface to avoid damaging the
unit or your floor.
• From time to time check that there
are no loose screws, nuts or bolts.
If there are please re-tighten.
We do not
recommend the
use of power
drill/drivers for
inserting screws
as this could damage the unit.
Only use hand screwdrivers.
Parts of the assembly will be
easier with 2 people.
Dispose of all packaging
carefully and responsibly.
This product should not be
discarded with household
waste.Take to your local
authority waste disposal
centre.
Additional Guidance
● Assemble all parts and bolts loosely during assembly, only once the product is complete should you
fully tighten the bolts.
● Regularly check and ensure that all bolts and fittings are tightend properly.
● This product is compliant EN12520
● Maximum user weight 110kg
Sainsbury's Argos is a trading name of both: Argos Limited, Registered office: 489-499 Avebury Boulevard, Milton Keynes, United
Kingdom, MK9 2NW, registered number: 01081551 (England and Wales); and Sainsbury's Supermarkets Limited, Registered
office: 33 Holborn, London, EC1N 2HT, registered number: 03261722 (England and Wales). Both companies are subsidiaries of J
Sainsbury's plc.
1
Page 3
Parts
1 2
Backrest
Fittings (Shown to scale)
Bag 1
A
M6 x 32mm Bolt x 4
D
Pt. No
B C
Curved Washer x 4
E
Pt. No
Leg frame
Plastic Soft Mat x 4
Nut x 4
Tools required
Ruler/tape
measure
Allen Key x 1
2
Page 4
1
ABC
BC
ABC
1
A
M6 x 32mm Bolt x 4
D
Nut x 4
B C
Curved Washer x 4
E
Allen Key x 1
Plastic Soft Mat x 4
A
M6 x 32mm Bolt x 4
C
Curved Washer x 4BPlastic Soft Mat x 4
D
Nut x 4
ABC
1
D
D
ABC
D
ABC
E
Allen Key x 1
1
2
B A ECD
2
D
ABC
Turn
Product
Assembly complete.
