Children’s Slide
Assembly & User Instructions - Please keep for future reference
9108381
9108398
Warning
Age: 24+ months
Important - Please read these instructions fully before assembly or use
These instructions contain important information which will help you get the best from your
product and ensure safe and correct assembly, use and maintenance.
If you need help or have damaged or missing parts, call the Customer Helpline: 01291 650581
Page 2
Contents
Parts
Assembly Instructions
Steps 1-3
Steps 4-6
Step 7
3
4
5
6
2
Page 3
Parts
if you have damaged or missing parts,
call the Customer Helpline: 01291 650581

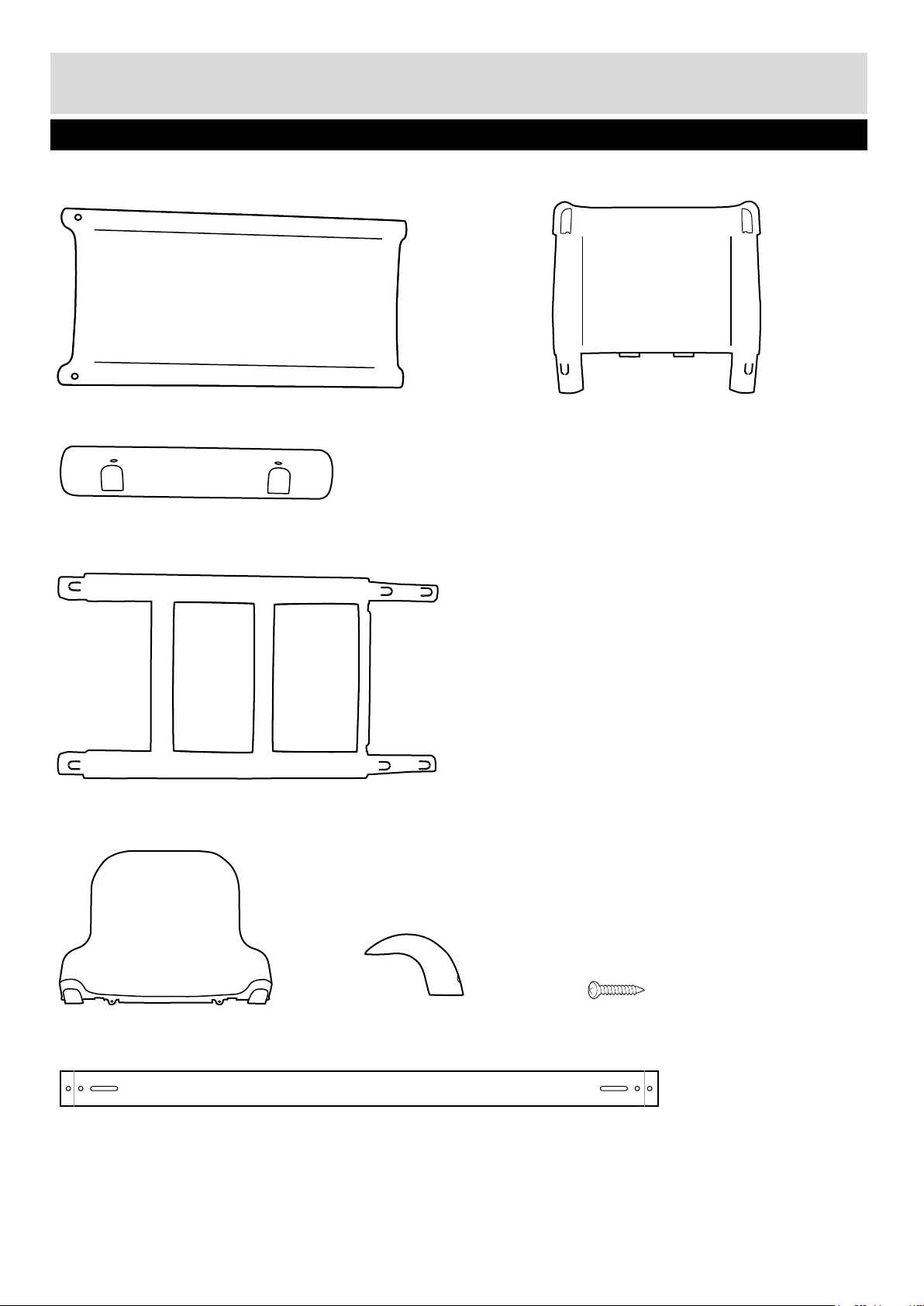

1 Chute x1
2-20-984
5 Base x1
6-20-984
4 Ladder x1
5-20-984
2 Starting section x1
1-20-984
3 Extension x1
3-20-984
7 Strip x1
vpt000546
6 Handle Bars x2
4-20-984
Screw x4
3
Page 4
Assembly Instructions

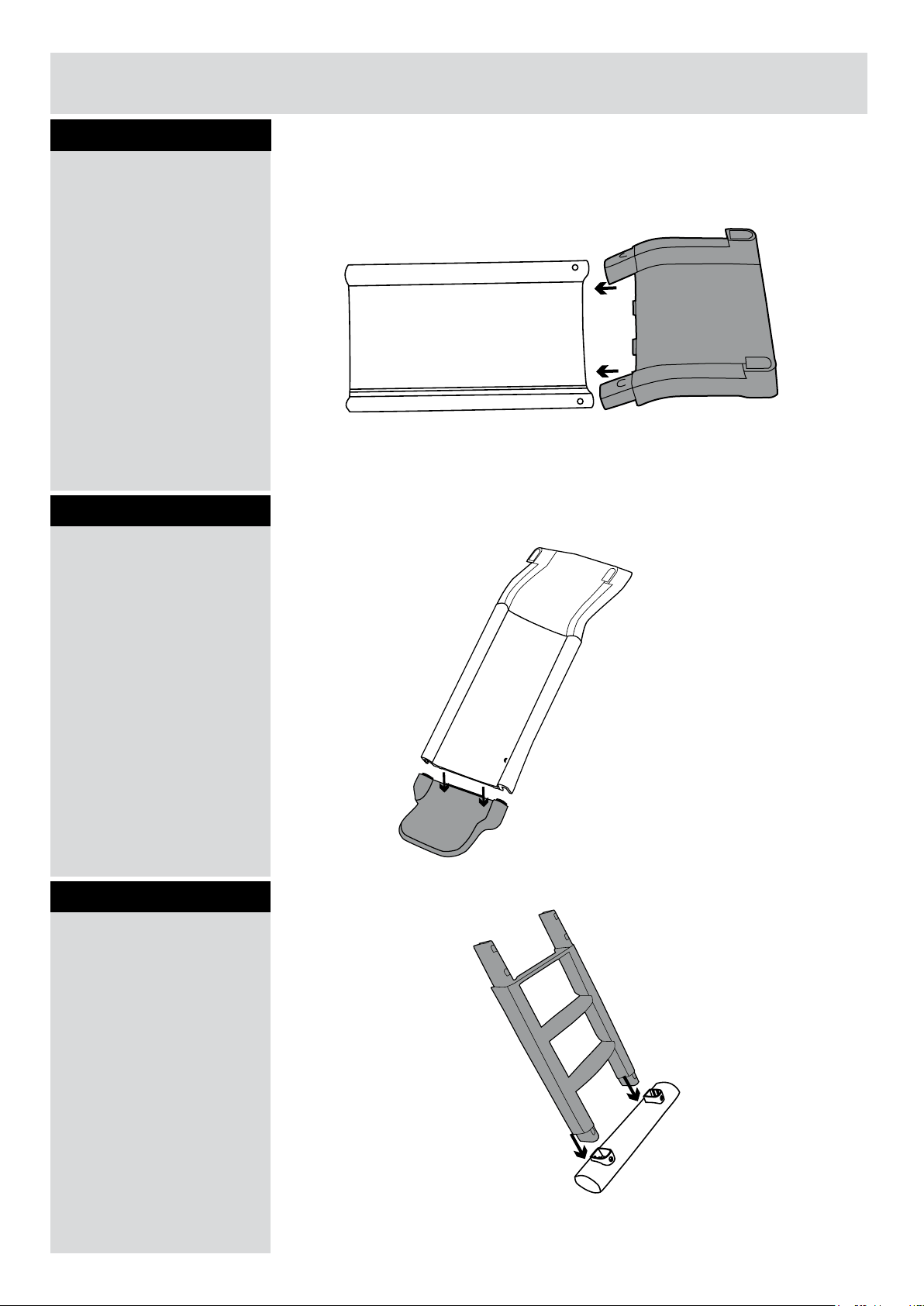

Step 1
Connect the starting
section to the chute.
Step 2
1
2
Connect the extension
part to the chute.
Step 3
Connect the ladder into
the base.
1
3
4
5
4
Page 5
Assembly Instructions

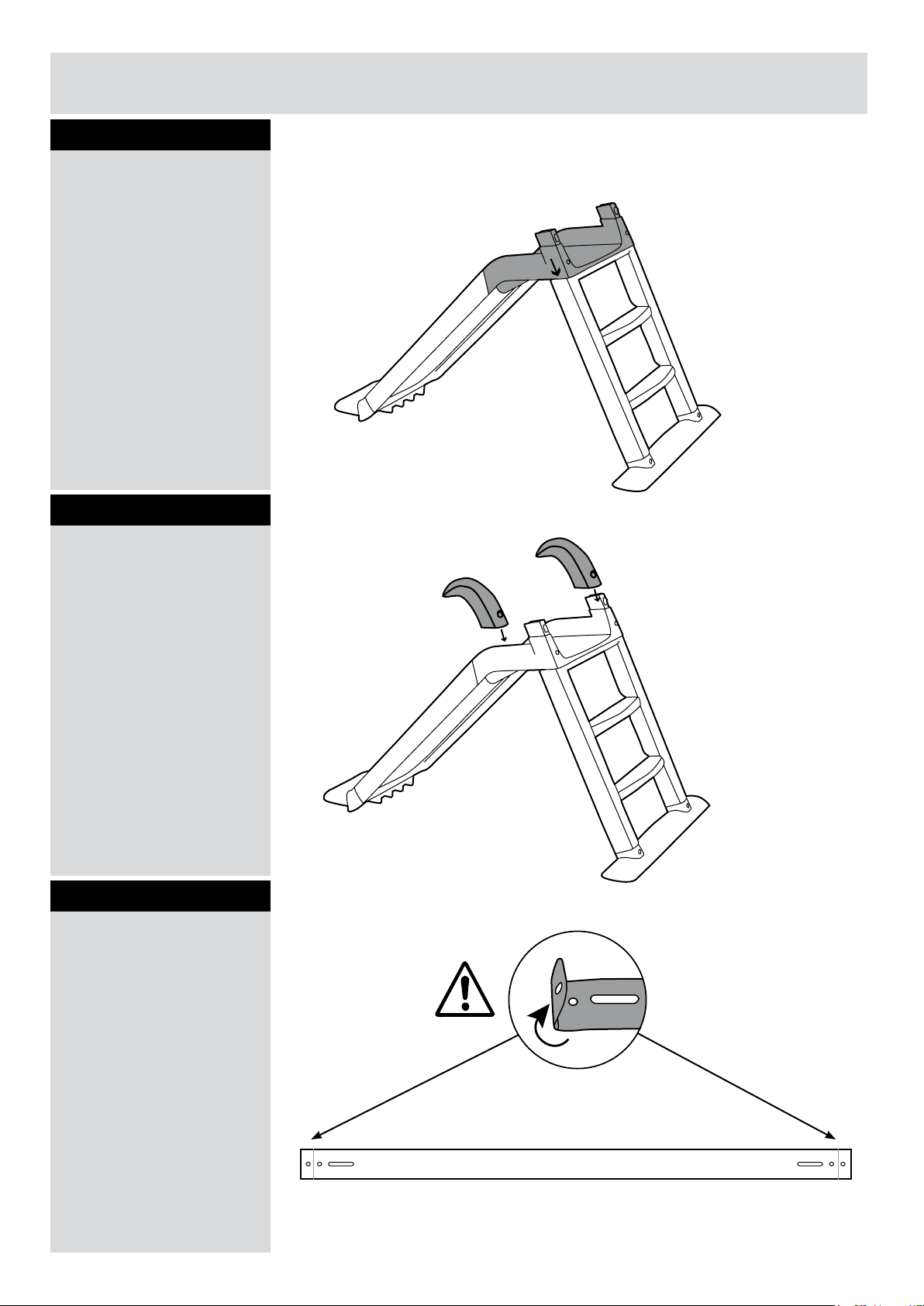

Step 4
Click the start section to
the ladder.
2
Step 5
Connect handle bars.
1
6
2
1
4
5
6
4
Step 6
Double fold the strip
before introducing the
screw.
5
5
Page 6
Assembly Instructions

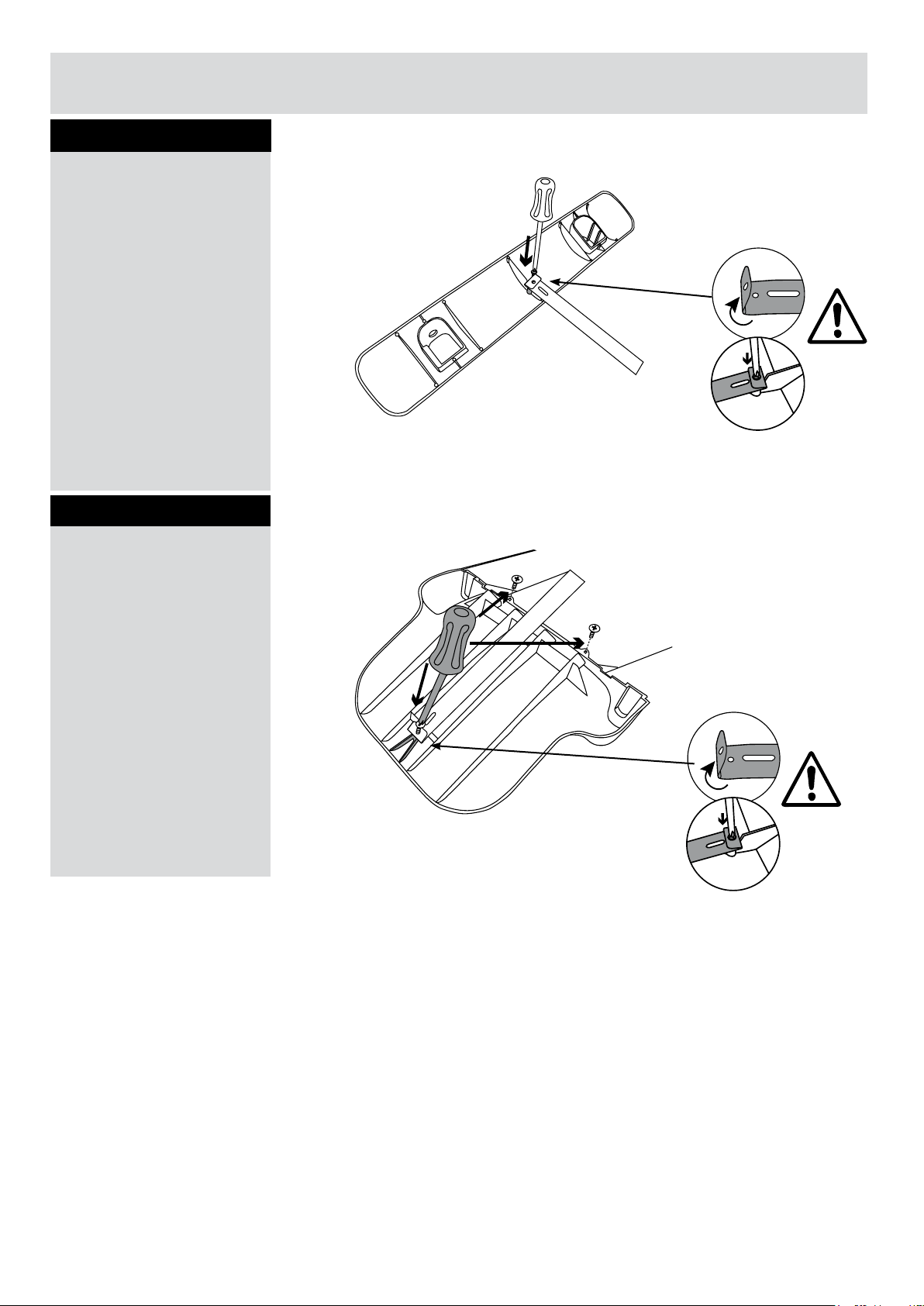

Step 7
Assemble base-strip on
the bottom of the ladder
base.
Step 8
5
7
Assemble the screws
connecting extension to
chute.
Assemble free screw at
end of strip to the hole in
the extension.
1
7
3
6
Page 7
Page 8
• Warning! For Domestic use only.
• Warning! Max user weight: 30 kg.
• Warning! For indoor / outdoor use.
• Warning! 24+ months.
• Remove all packaging materials such as: bags, & cartons.
• Place the toy on a level surface at least 2 mt from any structure or obstruction, such as fence,
garage, house, overhanging branches, laundry lines or electrical wires.
• The toy shall not be installed over concrete, asphalt or any other hard surface.
• Do not face slide-chute directly towards the sun when in use.
• Check regularly the toy before use.
• Check connections regularly for continued security and for any evidence of deterioration or hazards.
• Replace, if required, with suitable & new parts.
• Failure to do so may result in an injury or fall.
• Adult assembly required.
• Adult supervision is required at all times
• Please keep this instruction sheet for future reference.
If you need help or have damaged or missing parts, call the Customer Helpline: 01291 650581
Produced for Chad Valley Toys. Country of origin: Israel.
Address: Argos Ltd., 489 - 499 Avebury Boulevard, Central Milton Keynes, MK9 2NW.
