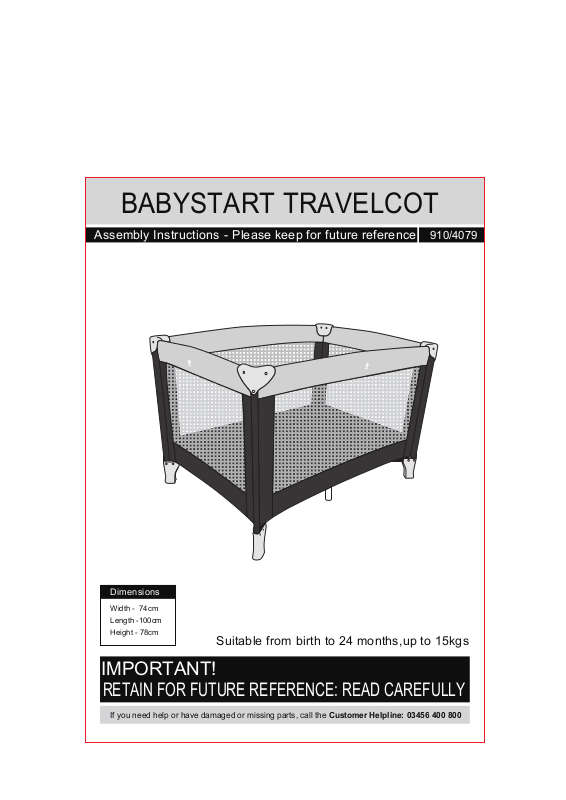

BABYSTART TRAVELCOT
Assembly Instructions - Please keep for future reference 910/4079
Dimensions
Width - 74cm
Length -100cm
Height - 78cm
Suitable from birth to 24 months,up to 15kgs
IMPORTANT!
RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400 800
Page 2
Safety and Care Advice
Important
• WARNING Be aware of the risk of open fire and other sources of heat,
such as electric bar fires, gas fires etc in the near vicinity of the cot.
• WARNING Do not use the cot if any part is broken, torn or missing and use
only spare parts approved by the manufacturer.
• WARNING Do not leave anything in the cot, such as toys, or place the cot
close to another product, which could provide a foothold or present a
danger of suffocation or strangulation, e.g. strings, blind/curtain cords etc.
• WARNING Do not use more than one mattress in the cot.
Recommendatory mattress size is 940*680mm.
• WARNING Do not use your travel cot without the mattress.
• WARNING The depth of the mattress should not reduce the side height
above it to less than 500mm
• WARNING Keep your travel cot away from trailing cords or flexes.
• WARNING Failure to extend the top rails and lock them securely creates a
safety risk. ALWAYS check that the rails are fully engaged before use.
• WARNING To prevent injury from falls, if the child can stand unaided or is
able to climb out of the cot, the cot shall no longer be used for that child.
• WARNING Do not use any other matress which are not approved by the
manufacturer.
• WARNING Do not allow young children to play unsupervised in the vicinity
of the travel cot.
• WARNING Do not use the bassinet when the child can sit or kneel or pull
itself up.
• WARNING Never leave your child unattended in the changing station.
• It complies with EN716-1&-2:2008+A1: 2013
–Please read these instructions fully before starting assembly
01 / 07
Page 3
1.Parts List
If you have damaged or missing components,
call the
Customer Helpline:
Please check you have all the parts listed below
Carry bag
03456 400 800
Frame
Mattress
02 / 07
Page 4
2. Opening for use
Step1
Unzip the travel bag and
remove the frame and
mattress.Place the cot in
the vertical position and
open the touch fasteners
to remove the mattress.
Step2
With the feet on the floor
pull the feet apart so that
they are approximately
60cm/24” apart. Lift the
short sides of the cot
upwards untill they lock
into position.
CLICK!
Step3
Now lift the long sides of
the cot upwards untill they
lock into position. Check
that all four sides have
engaged correctly by
pressing down on each
arm at the centres.If you
have difficulty locking the
sides,lift the centre of the
base a little higher and
start the process again.
CLICK!
03 / 07
Page 5
Step4
Now push the centre of
the cot base downwards
until it audibly locks into
place.
Step5
Place the mattress in the
travel cot with the padded
side up.Align the touch
fasteners on the mattress
with those on the base
and press down to ensure
they are stuck together.
Note - The travel cot is ready for use, only when the locking
mechanisms are engaged. Check carefully that they are fully
engaged before using the travel cot
04 / 07
3
Page 6
3. Folding
Step1
Lift the handle in the
base under the mattress
pull the centre of the base
upwards.
Step2
Lift the side rails slightly(a)
and hold the lock in
the middle of the rail (b)
(indicated with arrows).
Hold the lock pressed
whilst gently lowering the
side rail(c) . Ensure that the
side rail disengages on
both sides of the
Pull together the 2 supporting legs
underneath the fabric to center
base as close as possible (d).
mechanism.
a
c
b
d
05 / 07
Page 7
Step3
Repeat this process with
the short sides.Check that
all 4 sides have
disengaged properly and
then pull the centre of the
base.If you have difficulty
unlocking the sides,lift the
centre of the base a little
higher and start the
process again.
Step4
With the upper part of the
travel cot in the closed
postion push all 4 feet
together.
Step5
Wrap the mattress
around the travel cot
tightly with the padded
section inside.Fasten
the touch fasteners
through the tabs and
secure. Pull the travel
bag over the travel cot
and close the bag with
the zip.
06 / 07
Page 8
Care and Maintenance
Your child’s safety is your responsibility
To clean the mattress base and travel cot fabric wipe it using a mild
detergent and water. Never clean with abrasive, ammonia based, bleach
based or spirit type cleaners. The travel cot must be dried thoroughly
before use or storage.
Argos Limited
Avebury, 489-499 Avebury Boulevard, Milton Keynes, MK9 2NW
www.argos.co.uk
Customer Helpline: 03456 400 800
