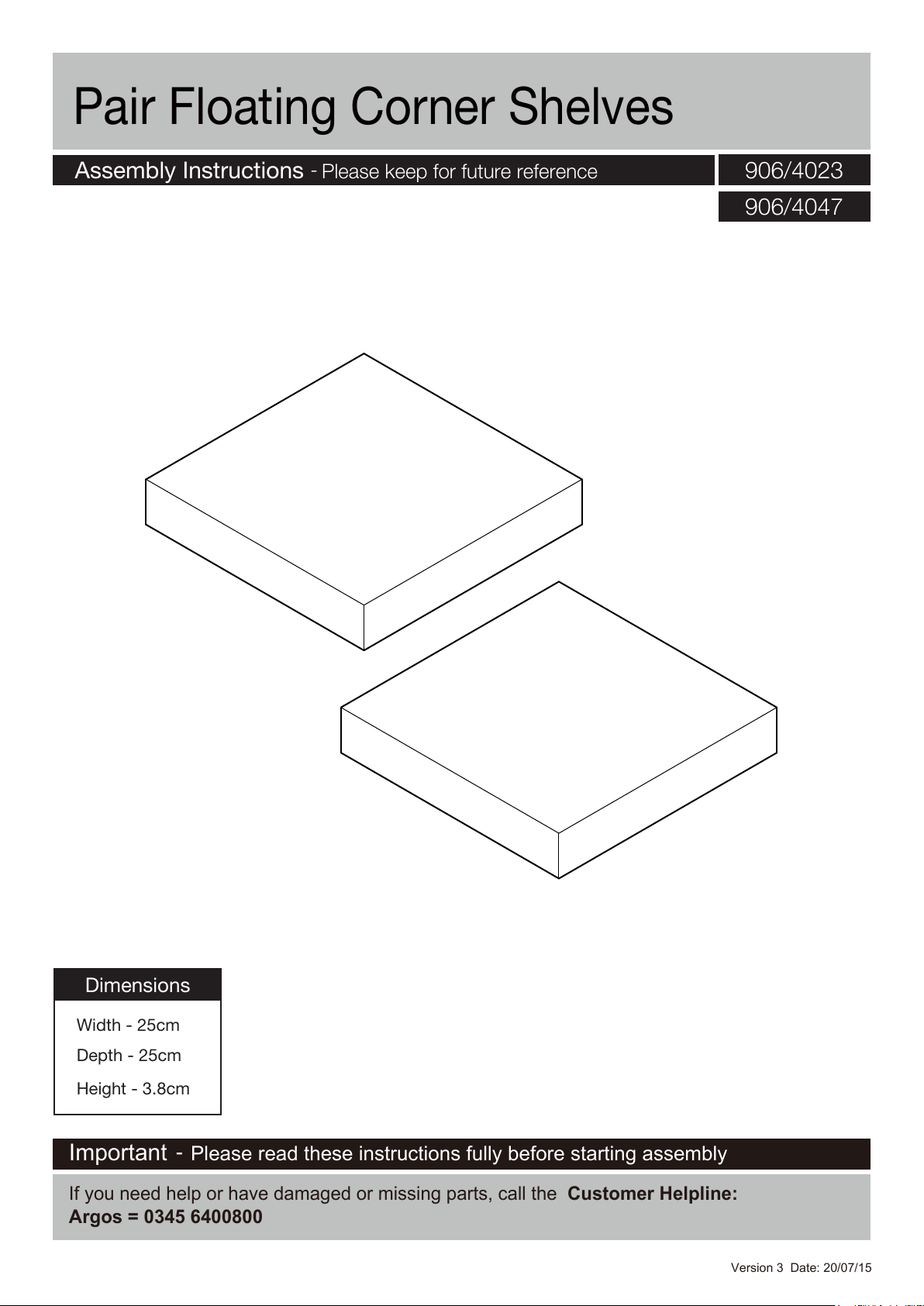

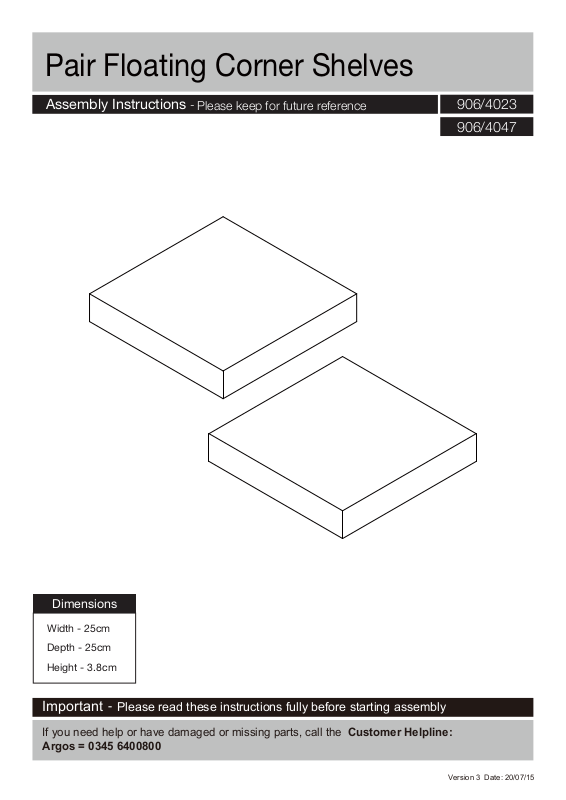

Page 1
Pair Floating Corner Shelves
Assembly Instructions
-
Please keep for future reference
906/4023
906/4047
Dimensions
Width - 25cm
Depth - 25cm
Height - 3.8cm
-
Important
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 0345 6400800
Please read these instructions fully before starting assembly
Version 3 Date: 20/07/15

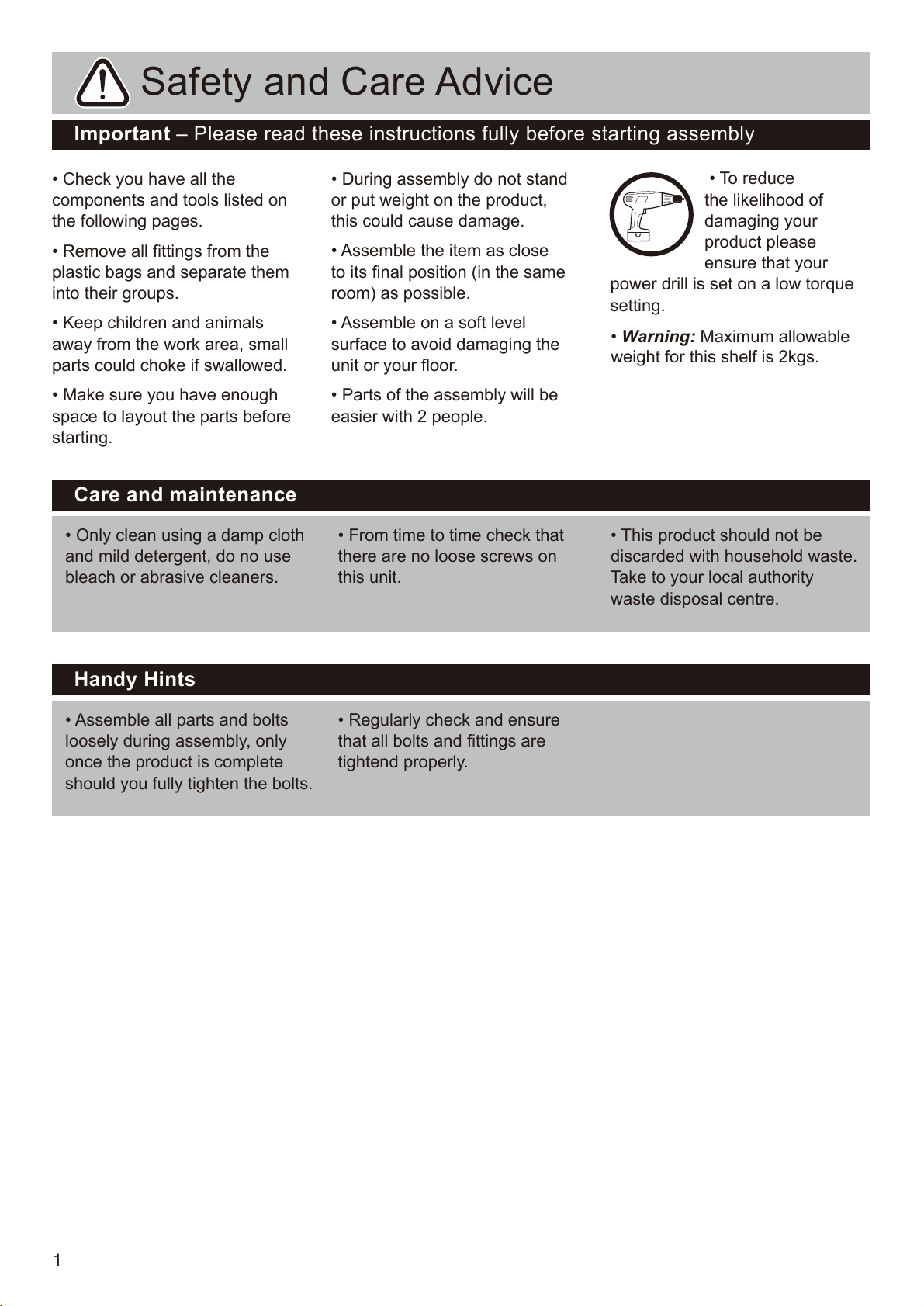

Page 2
Safety and Care Advice
Important – Please read these instructions fully before starting assembly
• Check you have all the
components and tools listed on
the following pages.
• Remove all fi ttings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Make sure you have enough
space to layout the parts before
starting.
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• During assembly do not stand
or put weight on the product,
this could cause damage.
• Assemble the item as close
to its fi nal position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your fl oor.
• Parts of the assembly will be
easier with 2 people.
• From time to time check that
there are no loose screws on
this unit.
• To reduce
the likelihood of
damaging your
product please
ensure that your
power drill is set on a low torque
setting.
• Warning: Maximum allowable
weight for this shelf is 2kgs.
• This product should not be
discarded with household waste.
Take to your local authority
waste disposal centre.
Handy Hints
• Assemble all parts and bolts
loosely during assembly, only
once the product is complete
should you fully tighten the bolts.
• Regularly check and ensure
that all bolts and fi ttings are
tightend properly.
1

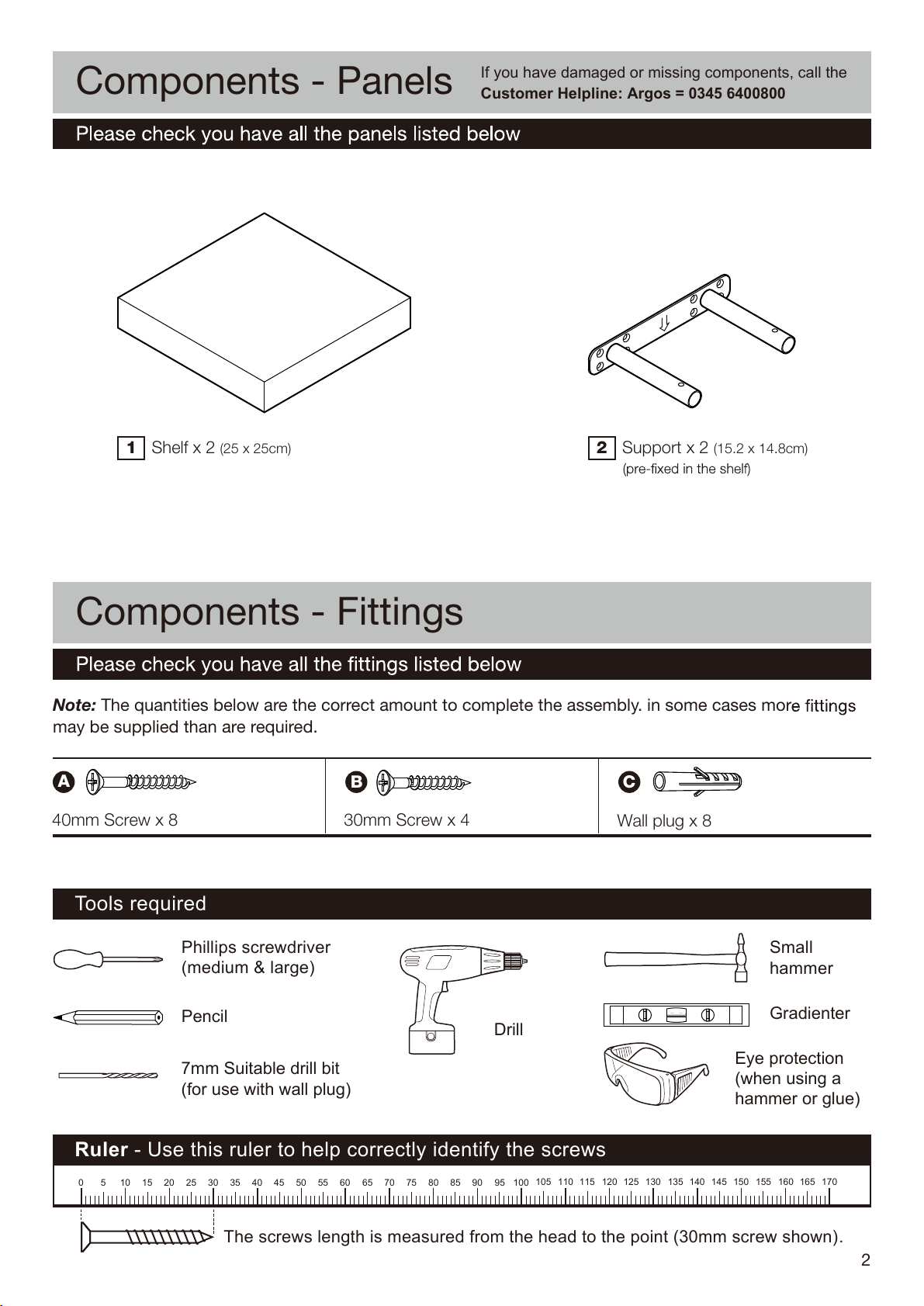

Page 3
Components - Panels
If you have damaged or missing components, call the
Customer Helpline:
Argos = 0345 6400800
Shelf x 2 (25 x 25cm)
1
Support x 2 (15.2 x 14.8cm)
2
Components - Fittings
Note: The quantities below are the correct amount to complete the assembly. in some cases mor
may be supplied than are required.
A
40mm Screw x 8 30
B
4 x wercS mm
C
Wall plug x 8
Tools required
Phillips screwdriver
(medium & large)
Pencil
7mm Suitable drill bit
(for use with wall plug)
Drill
Ruler - Use this ruler to help correctly identify the screws
105
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100
The screws length is measured from the head to the point (30mm screw shown).
110 115 120 125 130 135 140 145 150 155 160 165 170
Small
hammer
Gradienter
Eye protection
(when using a
hammer or glue)
2

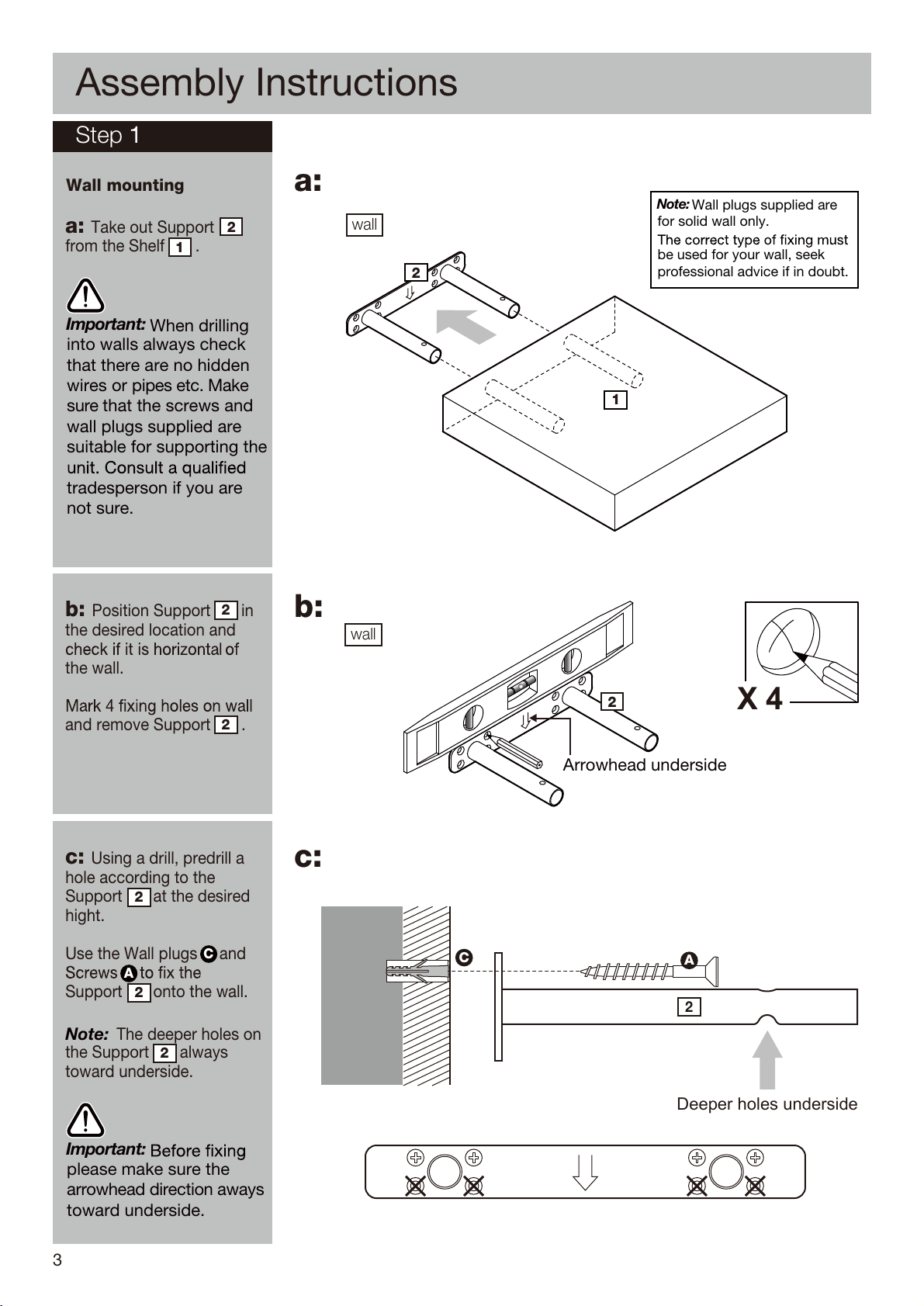

Page 4
Assembly Instructions
Step 1
Wall mounting
a:
Take out Support
from the Shelf .
Important:
into walls always check
that there are no hidden
wires or pipes etc. Make
sure that the screws and
wall plugs supplied are
suitable for supporting the
tradesperson if you are
not sure.
b:
Position Support in
the desired location and
the wall.
1
When drilling
2
2
l
a:
b:
wall
wall
Note:
Wall plugs supplied are
for solid wall only.
be used for your wall, seek
2
professional advice if in doubt.
1
and remove Support .
c:
Using a drill, predrill a
hole according to the
Support at the desired
hight.
Use the Wall plugs and
Support onto the wall.
Note:
the Support always
toward underside.
Important:
please make sure the
arrowhead direction aways
toward underside.
2
A
2
The deeper holes on
2
2
C
c:
2
Arrowhead underside
C
A
2
Deeper holes underside
X 4
3

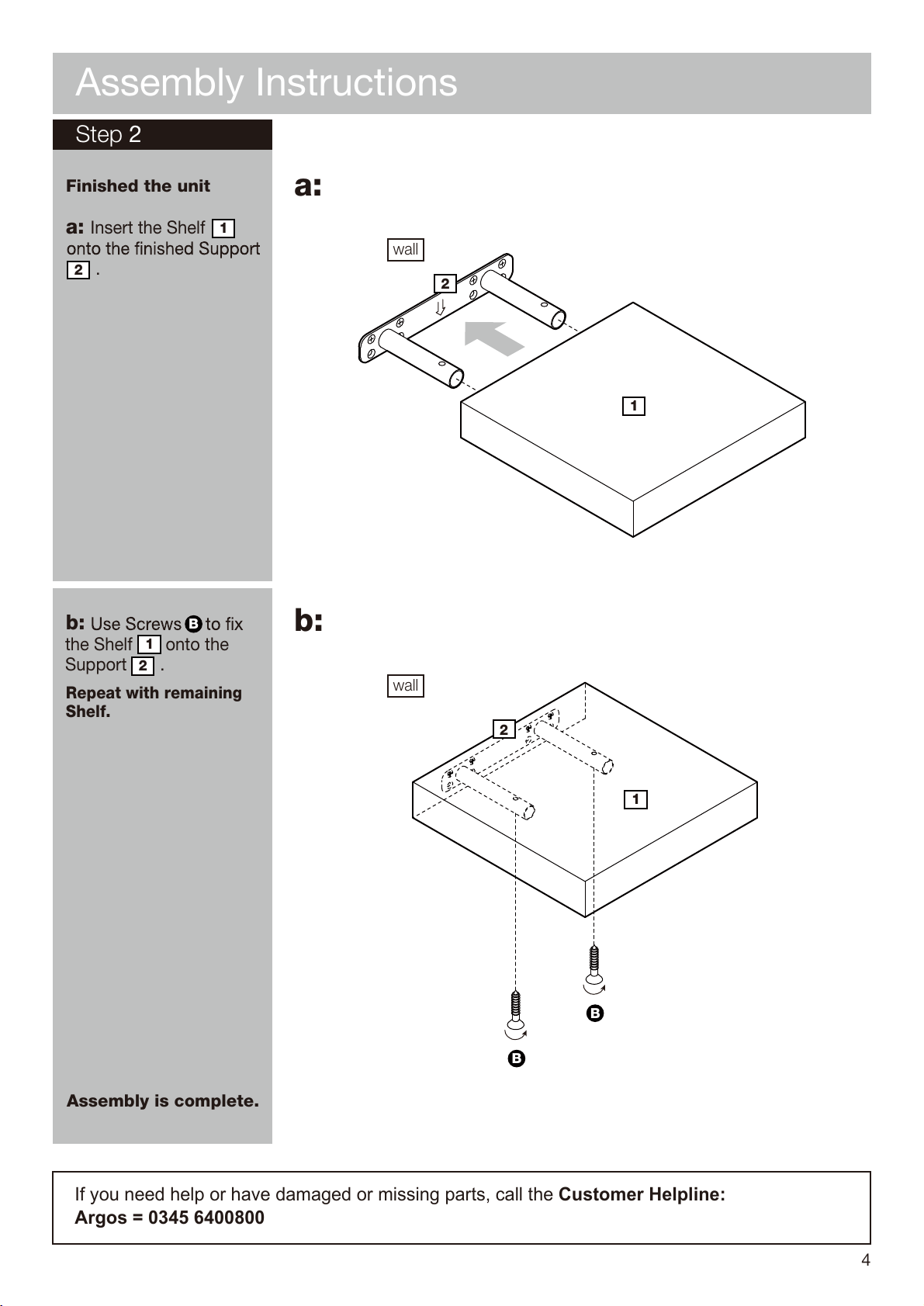

Page 5
Assembly Instructions
Step 2
Finished the unit
a:
Insert the Shelf
.
2
b:
the Shelf onto the
Support .
Repeat with remaining
Shelf.
1
2
1
B
a:
wall
2
1
b:
wall
2
1
B
B
Assembly is complete.
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 0345 6400800
4

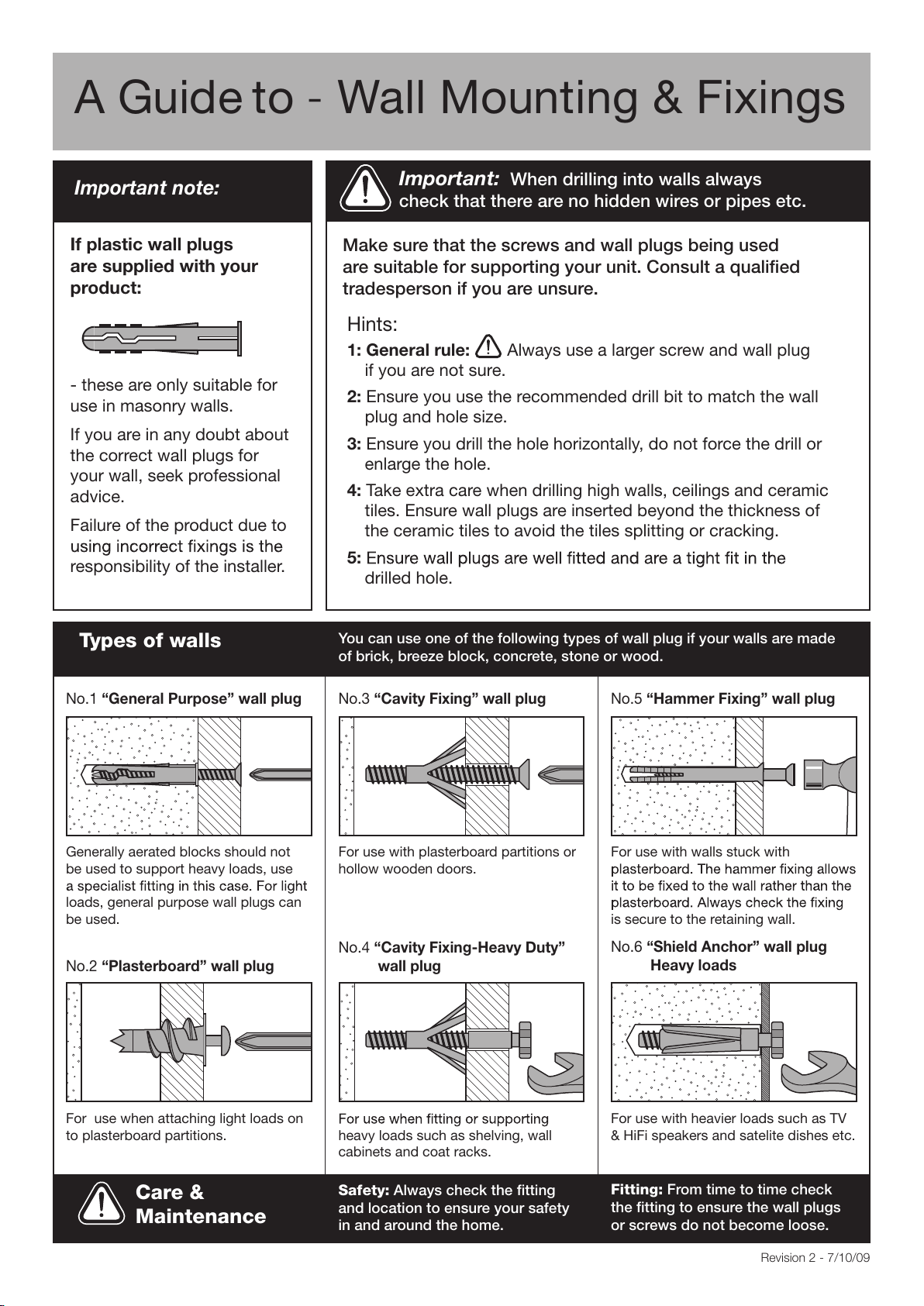

Page 6
A Guide to - Wall Mounting & Fixings
Important note:
If plastic wall plugs
are supplied with your
product:
- these are only suitable for
use in masonry walls.
If you are in any doubt about
the correct wall plugs for
your wall, seek professional
advice.
Failure of the product due to
responsibility of the installer.
Important: When drilling into walls always
check that there are no hidden wires or pipes etc.
Make sure that the screws and wall plugs being used
are suitable for supporting your unit. Consult a qualified
tradesperson if you are unsure.
Hints:
1: General rule: Always use a larger screw and wall plug
if you are not sure.
2: Ensure you use the recommended drill bit to match the wall
plug and hole size.
3: Ensure you drill the hole horizontally, do not force the drill or
enlarge the hole.
4: Take extra care when drilling high walls, ceilings and ceramic
tiles. Ensure wall plugs are inserted beyond the thickness of
the ceramic tiles to avoid the tiles splitting or cracking.
5:
drilled hole.
Types of walls
No.1 “General Purpose” wall plug
Generally aerated blocks should not
be used to support heavy loads, use
loads, general purpose wall plugs can
be used.
No.2 “Plasterboard” wall plug
You can use one of the following types of wall plug if your walls are made
of brick, breeze block, concrete, stone or wood.
No.3 “Cavity Fixing” wall plug
For use with plasterboard partitions or
hollow wooden doors.
No.4 “Cavity Fixing-Heavy Duty”
wall plug
No.5 “Hammer Fixing” wall plug
For use with walls stuck with
is secure to the retaining wall.
No.6 “Shield Anchor” wall plug
Heavy loads
For use when attaching light loads on
to plasterboard partitions.
Care &
Maintenance
heavy loads such as shelving, wall
cabinets and coat racks.
Safety: Always check the fitting
and location to ensure your safety
in and around the home.
For use with heavier loads such as TV
& HiFi speakers and satelite dishes etc.
Fitting: From time to time check
the fitting to ensure the wall plugs
or screws do not become loose.
Revision 2 - 7/10/09
