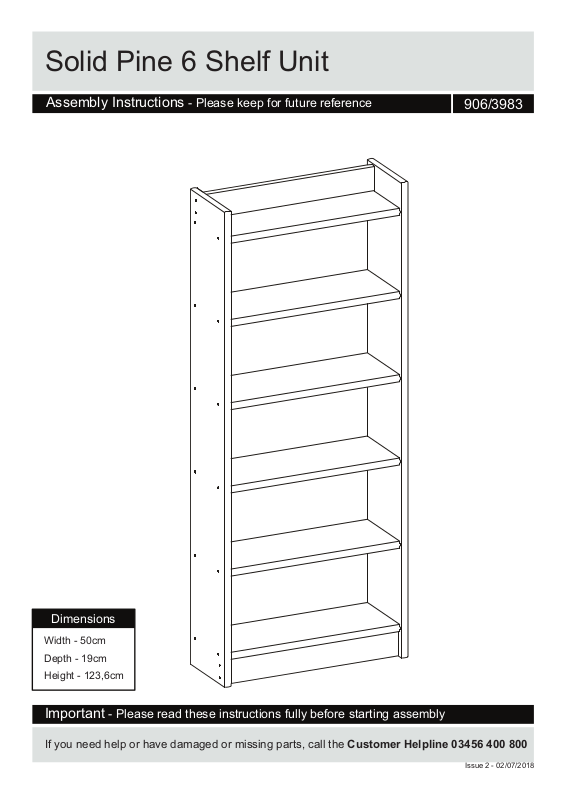

Page 1
Solid Pine 6 Shelf Unit
Assembly Instructions - Please keep for future reference
906/3983
Dimensions
Width - 50cm
Depth - 19cm
Height - 123,6cm
Important - Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline 03456 400 800
Issue 2 - 02/07/2018
Page 2
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Check you have all the
components and tools listed on
pages 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor.
• Parts of the assembly will be
easier with 2 people.
• We do not
recommend the use
of power drill/drivers
for inserting screws,
as this could damage
the unit. Only use hand
screwdrivers.
• Dispose of all packaging
carefully and responsibly.
Glue safety - Take care when using glue, please follow the advice below
Skin contact: Remove
contaminations by washing with
soap and water. This procedure
should also be followes prior to
eating and drinking.
Eye contact: Rinse immediately
with clean water for 15 minutes
and seek medical advice.
If swallowed: Seek medical
advice immediately.
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
ther are no loose screws on this
unit.
Note: if required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
1
Page 3
If you have damaged os missing components,
call the Customer Helpline: 03456 400 800.

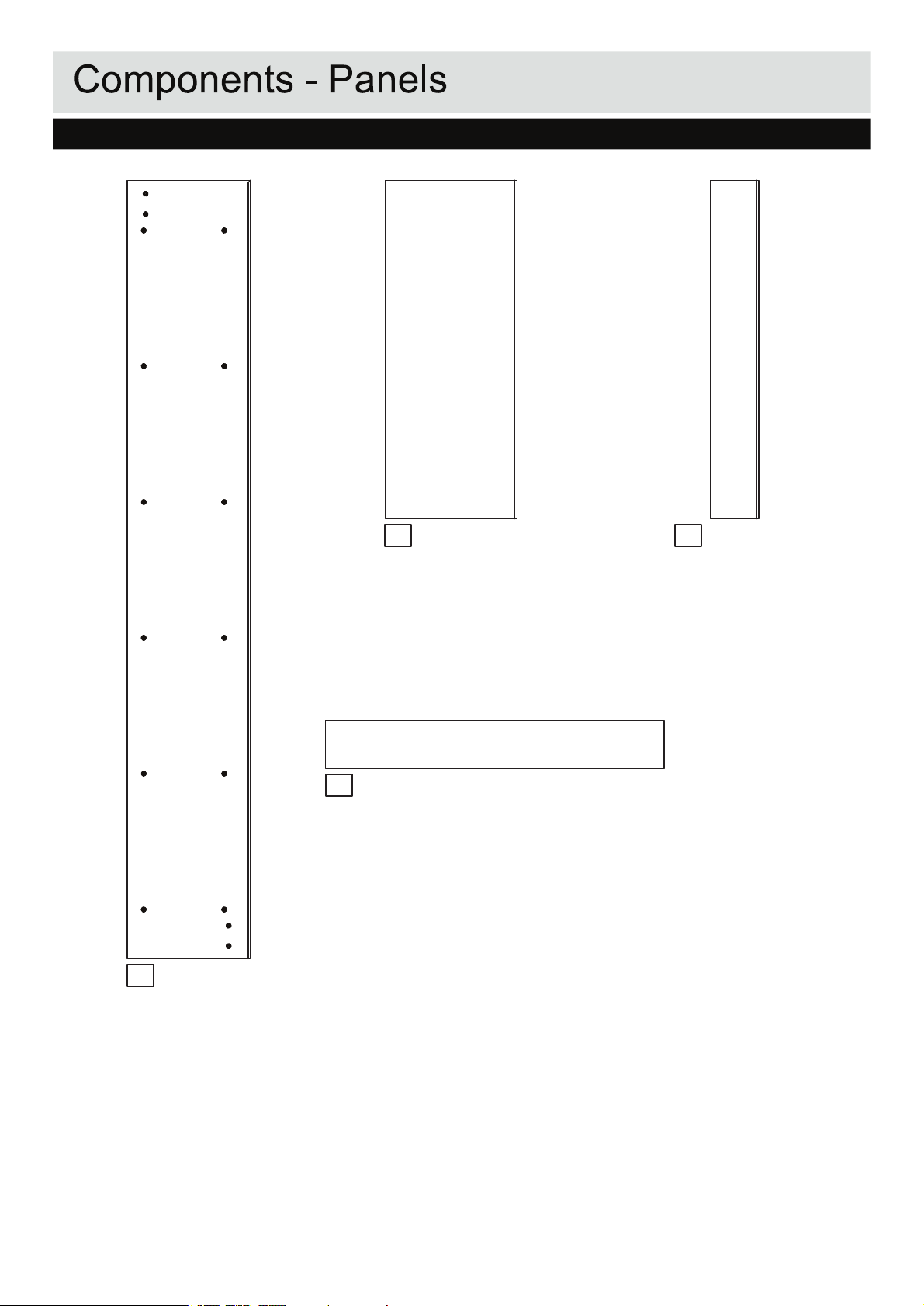

Please check you have all the panels listed below
Shelf x 6
2
(46,8 x 17,8cm)
Bottom rail (46,8 x 4,5cm)
4
Note: Curved Edge
Top rail
3
(46,8 x 4,5cm)
Note: Curved Edge
Side Panel x 2
1
(123,6 x 19cm)
2
Page 4

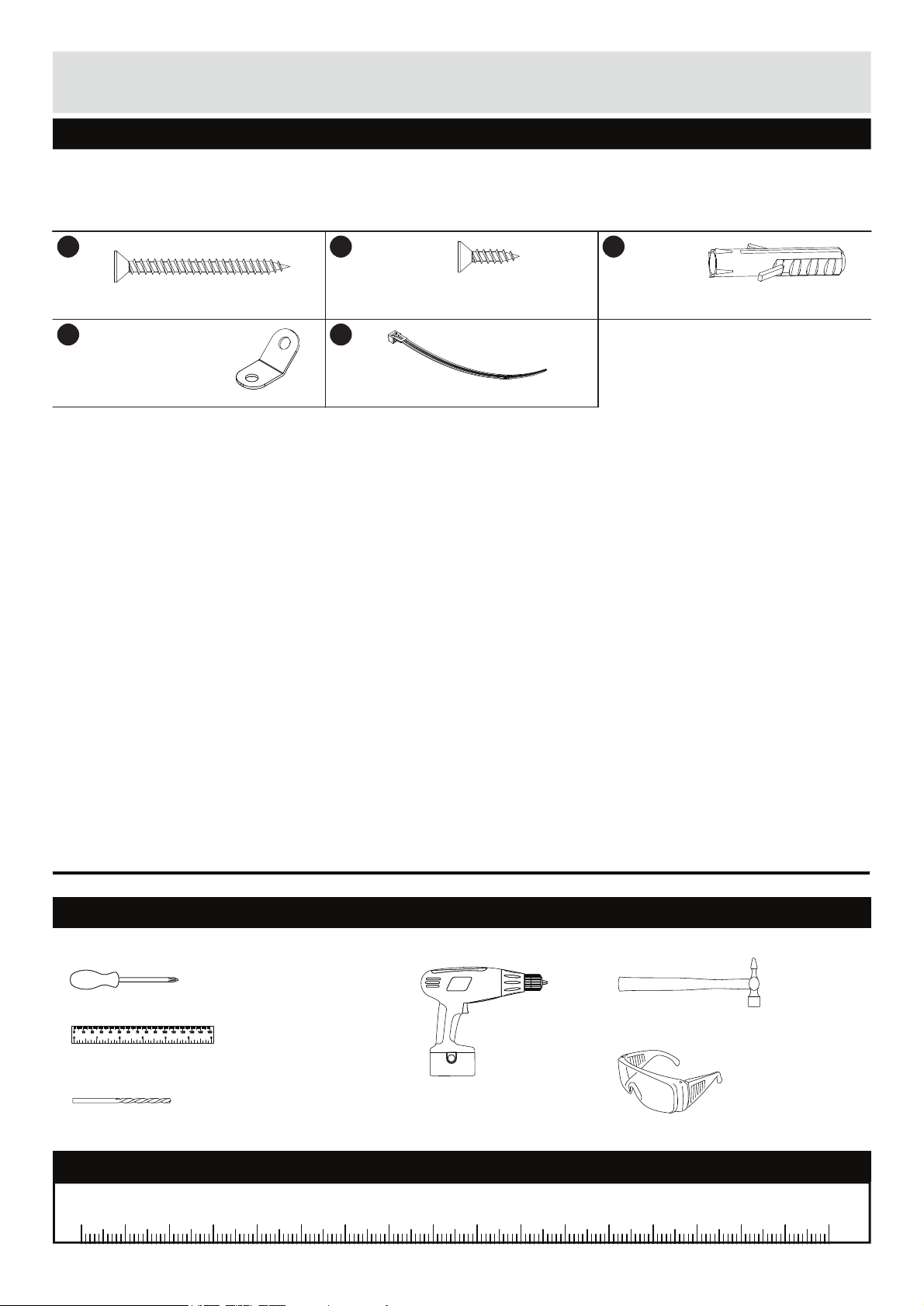

Components - Fittings
Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings
may be supplied than are required.
A B
40mm Screw x 33
D E
Metal bracket x 2
16mm Screw x 1
Plastic bracket x 1
D
C
Wall plug 6mm x 1
Tools required
Phillips screwdriver
(medium & large)
Ruler/tape
measure
6mm Suitable drill bit
(for use with wall plug)
Drill
For fixing to
wall only.
Small
hammer
Eye protection
(when using a
hammer or drill)
Ruler - Use this ruler to help correctly identify the screws
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 1705 15 25 35 45 55 65 75 85 95 105 115 125 135 145 155 165
3
Page 5

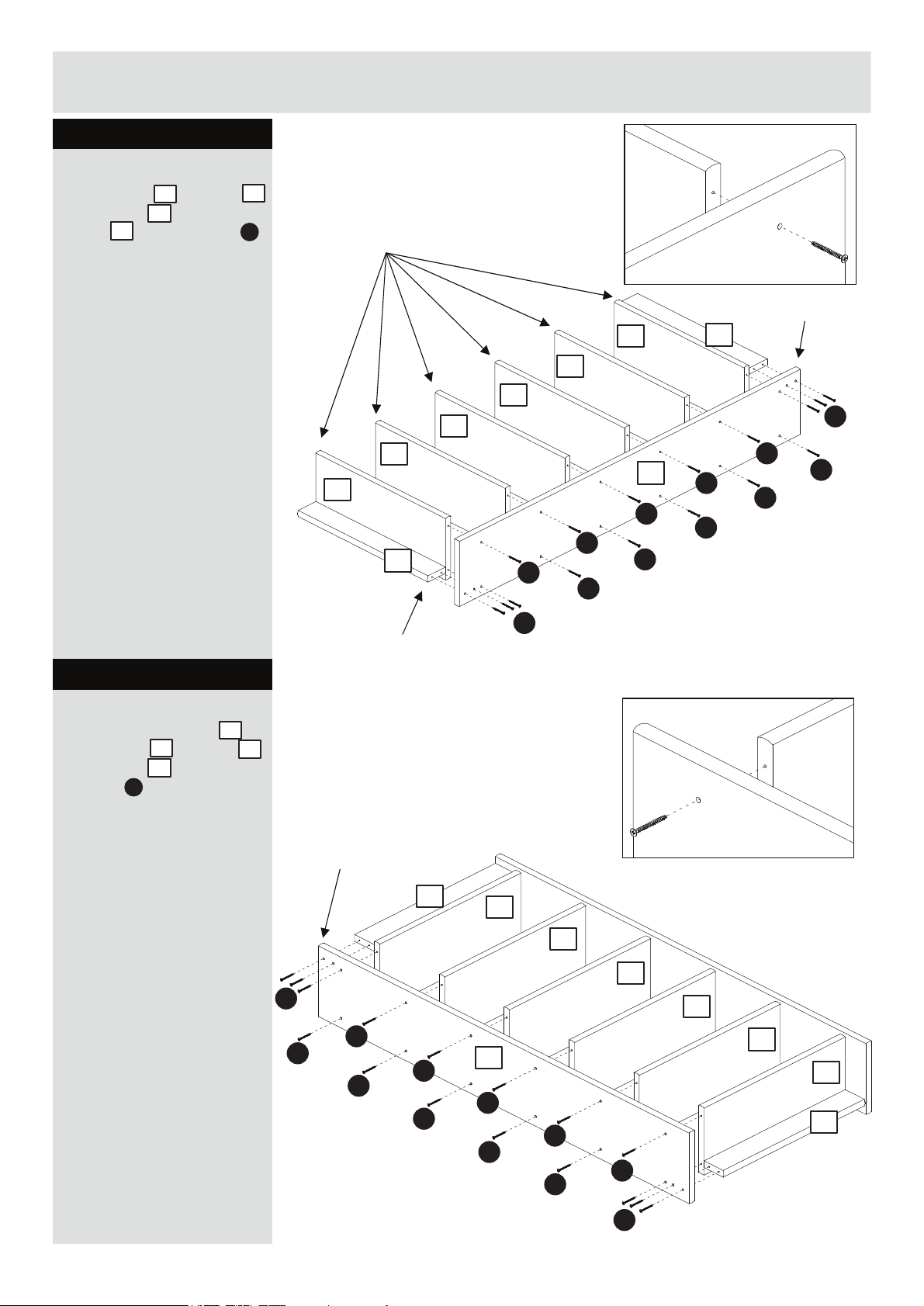

Assembly Instructions
Step 1
Fix shelves 2 , top rail 3
bottom rail 4 on side
panel 1 using screws A
2
4
1
3
A
Curved edge
2
2
3
Curved edge
Curved edge
2
4
2
2
2
A
A
1
A
A
A
A
A
A
A
A
A
A
Step 2
Fix other side panel 1
on shelves 2 , top rail 3
bottom rail 4 , using
screws A .
2
4
A
1
3
Curved edge
A
A
4
2
2
2
2
A
2
1
A
2
A
A
A
3
A
A
A
A
A
4
Page 6
Assembly Instructions
- Wall plug supplied for
masonry wall only.
- Wall plug and fixing
used must be correct for
wall type.
- If any doubt seek
professional advice.

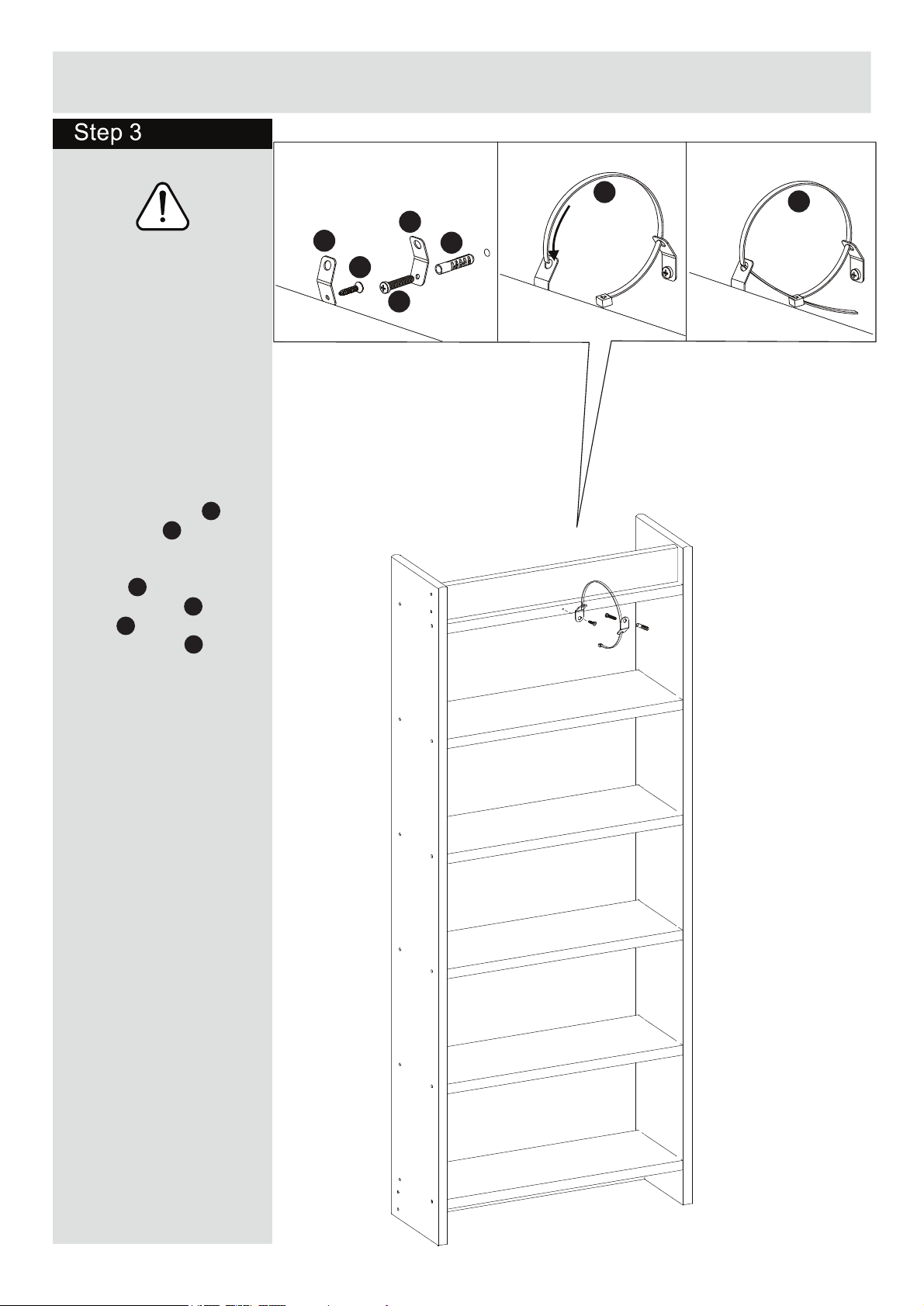

Wall Fixing
Fix metal bracket E
using screw C to the
central superior side of
the furniture. Fix metal
bracket E to the wall,
using wall plug D and
screw B .
Crossing piece F ,
between the holes of the
metal brackets, fix
according the illustration.
D
A
D
B
C
E
E
D
D
B
A
C
E
5
Page 7

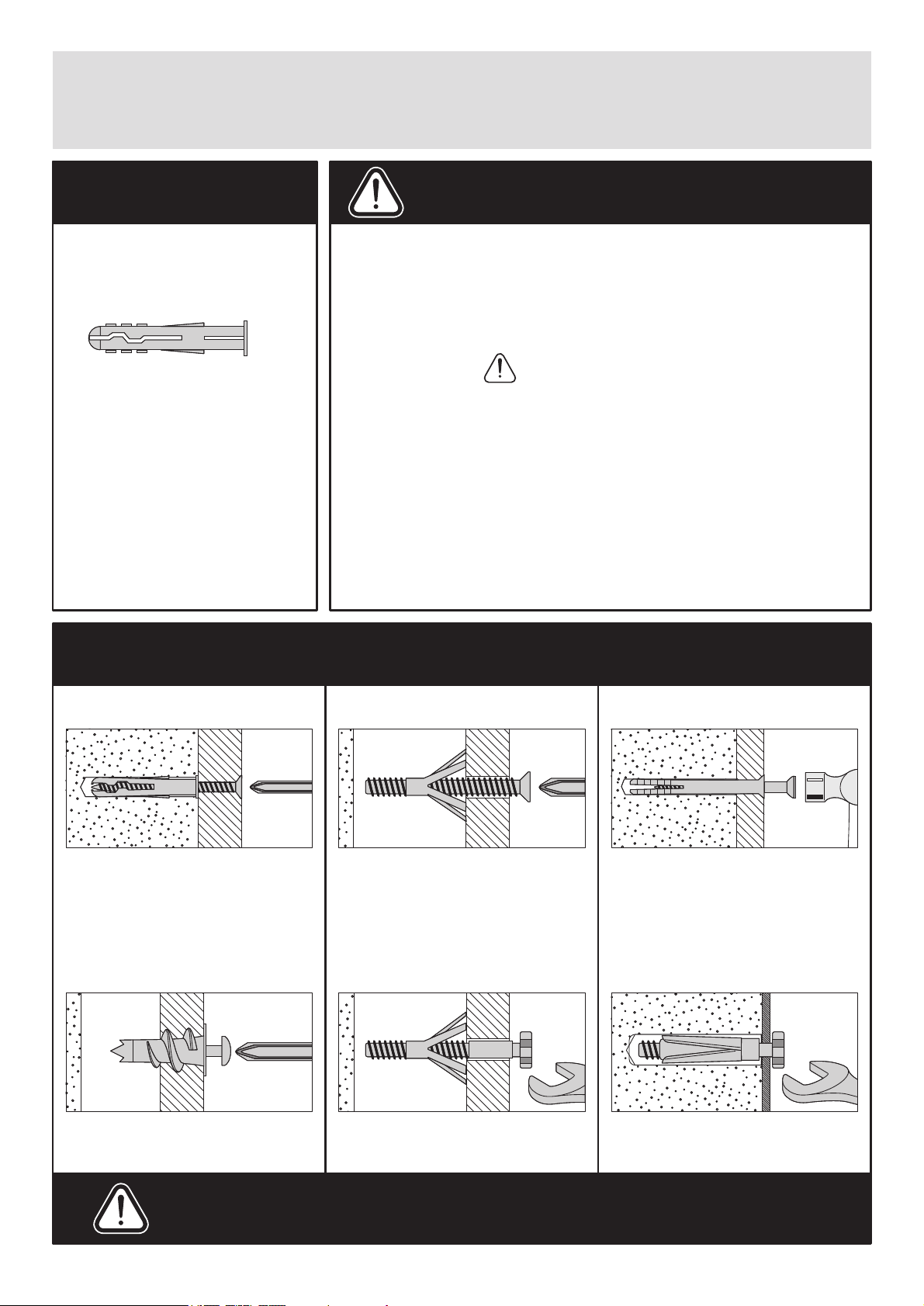

A Guide to -Wall Mounting & Fixings
Important note:
If plastic wall plugs
are supplied with your
product:
- these are only suitable for
use in masonry walls.
If you are in any doubt about
the correct wall plugs for
your wall, seek professional
advice.
Failure of the product due to
using incorrect fixings is the
responsibility of the installer.
Important: When drilling into walls always
check that there are no hidden wires or pipes etc.
Make sure that the screws and wall plugs being used
are suitable for supporting your unit. Consult a qualifed
tradesperson if you are unsure.
Hints:
1: General rule: Always use a larger screw and wall plug
if you are not sure.
2:Ensure you use the recommended drill bit to match the wall
plug and hole size.
3:Ensure you drill the hole horizontally, do not force the drill or
enlarge the hole.
4:Take extra care when drilling high walls, ceilings and ceramic
tiles. Ensure wall plugs are inserted beyond the thickness of
the ceramic tiles to avoid the tiles splitting or cracking.
5:Ensure wall plugs are well fitted and are a tight fit in the
drilled hole.
Types of walls
You can use one of the following types of wall plug if your
walls are made of brick, breeze block, concrete, stone or wood.
No.1“General Purpose”wall plug No.3“Cavity Fixing”wall plug No.5“Hammer Fixing”wall plug
Generally aerated blocks should not
be used to support heavy loads, use
a specialist fitting in this case. For light
loads, general purpose wall plugs can
be used.
No.2“Plasterboard”wall plug
For use with plasterboard partitions or
hollow wooden doors.
No.4“Cavity Fixing-Heavy Duty”
wall plug
For use with walls stuck with
plasterboard. The hammer fixing allows
it to be fixed to the wall rather than the
plasterboard. Always check the fixing
is secure to the retaining wall.
No.6“Shield Anchor”wall plug
Heavy loads
For use when attaching light loads on
to plasterboard partitions.
Care &
Maintenance
For use when fitting or supporting
heavy loads such as shelving, wall
cabinets and coat racks.
Safety:Always check the fitting
and location to ensure your safety
in and around the home.
For use with heavier loads such as TV
& HiFi speakers and satelite dishes etc.
Fitting:From time to time check
the fitting to ensure the wall plugs
or screws do not become loose.
6

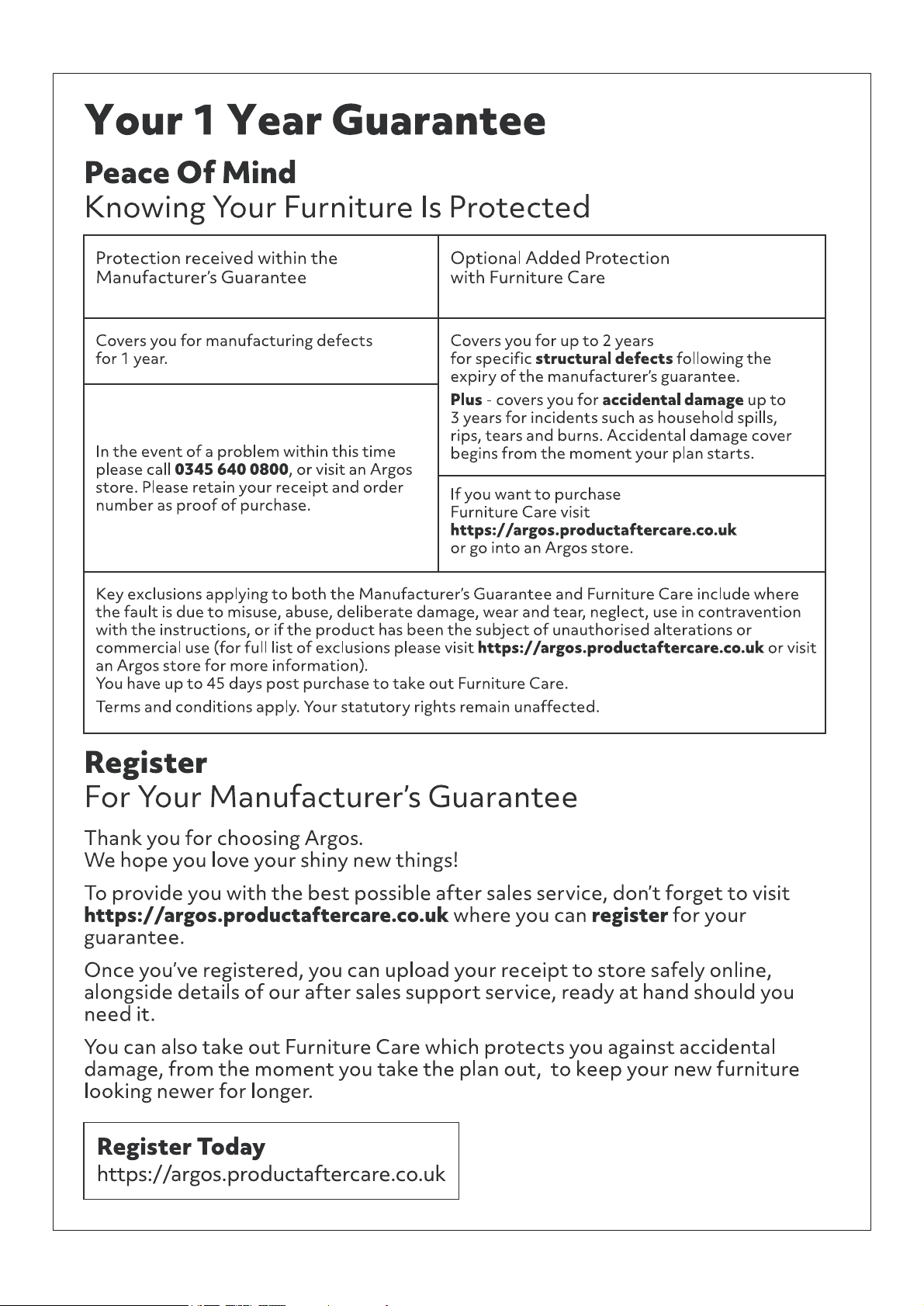

Page 8
