DVD Storage Store 33 DVD’s
Assembly Instructions
-
Please keep for future reference
903/6240
Dimensions
Width - 64cm
Depth - 13cm
Height - 21cm
Important - Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the
Customer Helpline: 08456 400800
Version2 Date:10/09/12
Page 2
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Check you have all the
components and tools listed on
pages 2 and 3.
rom the
plastic bags and separate them
into their groups.
• Keep children and animals away
from the work area, small parts
could choke if swallowed.
• Make sure you have enough
space to layout the parts before
starting.
• Do not use this item if any
components are missing or
damaged.
• Do not stand on the product,
this could cause damage.
• Assemble the item as close to
room) as possible.
• Assemble on a soft level surface
to avoid damaging the unit or your
r.
• Parts of the assembly will be
easier with 2 people.
as this could damage the unit.
Only use hand screwdrivers.
• Dispose of all packaging
carefully and responsibly.
• Note: Only apply the glue once
you are sure of the assembly.
Glue safety - Take care when using glue, please follow the advice below
Skin contact: Remove
contamination by washing with
soap and water. This procedure
should also be followed prior to
eating and drinking.
Eye contact: Rinse immediately
with clean water for 15 minutes
and seek medical advice.
If swallowed: Seek medical
advice immediately.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do not use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household waste.
Take to your local authority waste
disposal centre.
1
Page 3
If you have damaged or missing components,

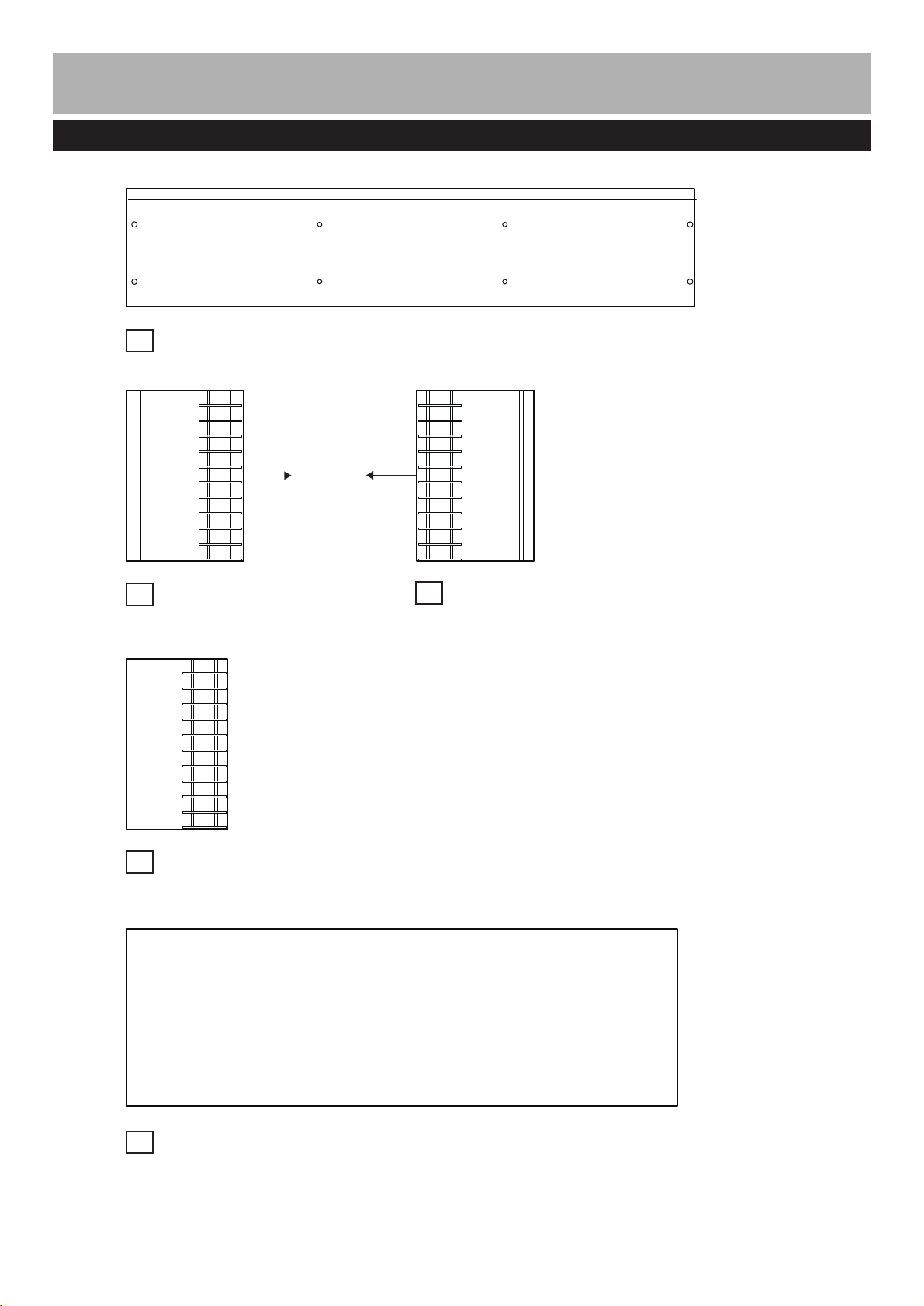

Components - Panels
call the Customer Helpline: 08456 400800
Please check you have all the panels listed below
Top/Bottom panel x 2 (63.6 x 13.2cm)
1
Right side panel (19.1 x 13.1cm)
2
Finished
front edge
Left side panel
3
(19.1 x 13.1cm)
Middle panel x 2
4
Back panel
5
(19.1 x 11.3cm)
(61.7 x 19.8cm)
2
Page 4

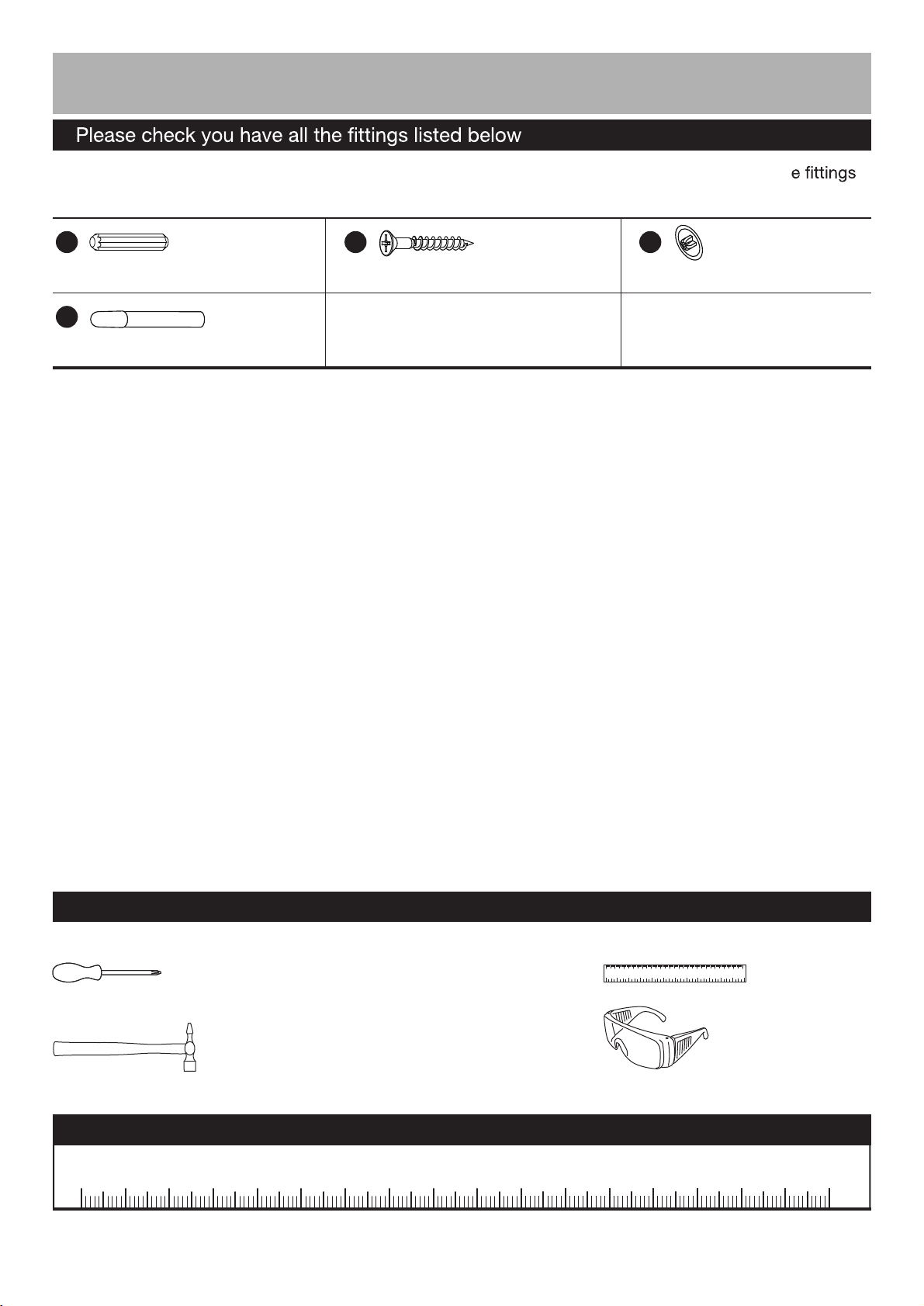

Components - Fittings
Note: The quantities below are the correct amount to complete the assembly. in some cases mor
may be supplied than are required.
A
30mm Dowel x 8
D
Glue x 1
B
30mm Screw x 8
C
Screw cover x 8
Tools required
Phillips screwdriver
(medium & large)
Small
hammer
Ruler - Use this ruler to help correctly identify the screws
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100
3
0 1 2 3 4 5 6
110 120 130 140 1500 10 20 30 40 50 60 70 80 90 100
Ruler/tape
measure
Eye protection
(when using a
hammer or glue)
105
110 115 120 125 130 135 140 145 150 155 160 165 170
Page 5
Assembly Instructions

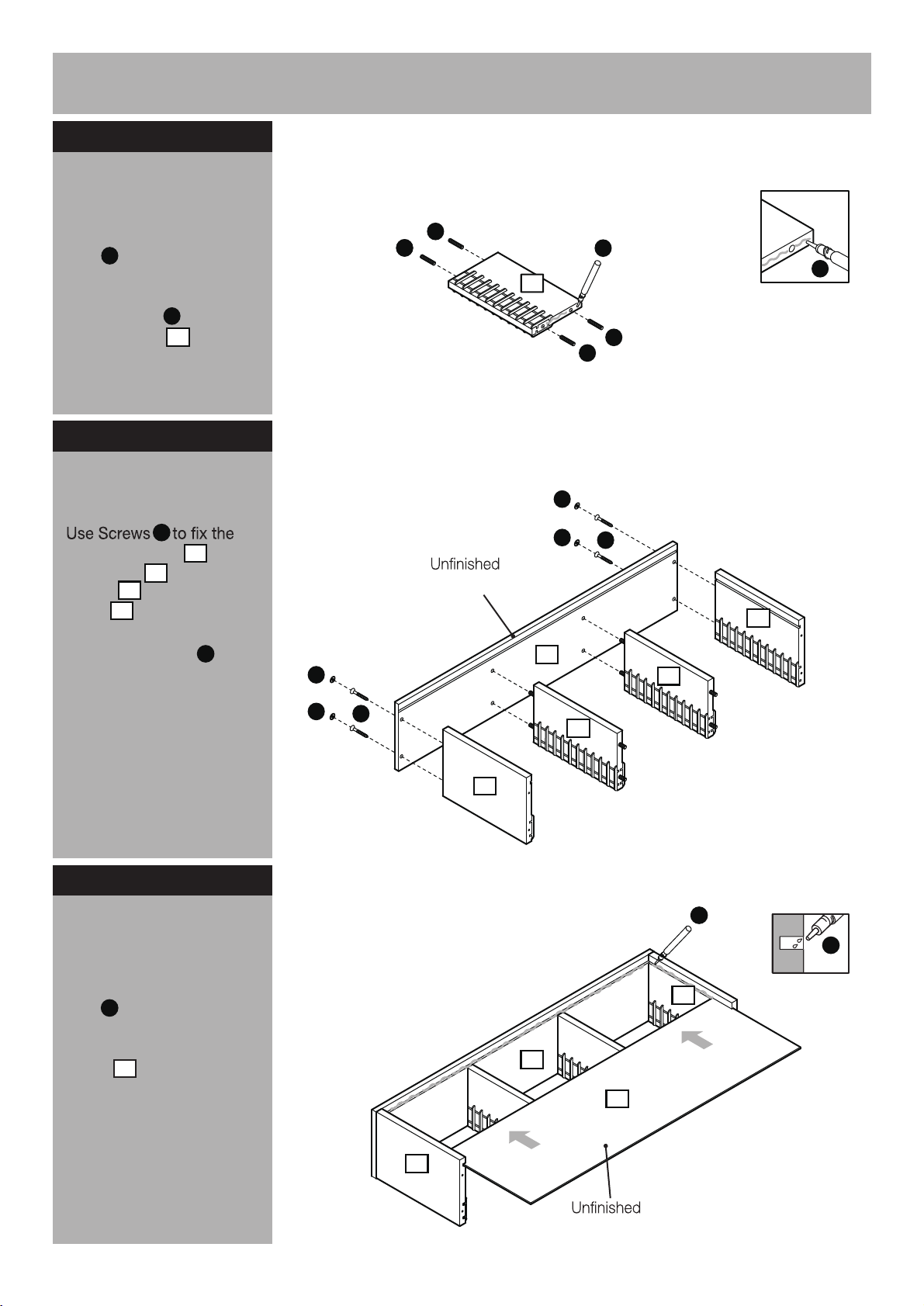

Step 1
Fitting dowels
Place a small amount of
D
Glue onto the joint’s
surfaces.
Insert Dowels into the
Middle panels .
A
4
Step 2
Attaching top panel
B
Right side panel , Left
side panel and Middle
panels onto the Top
panel .
4
1
Use Screw covers to
cover the screw heads.
2
3
C
A
A
A
4
back edge
1
C
D
D
A
A
C
C
B
X 2
3
4
Step 3
Attaching back panel
Place a small amount of
D
Glue into the grooves.
Carefully slide the Back
panel into the unit.
5
C
B
2
4
D
D
3
1
5
2
back surface
4
Page 6
Assembly Instructions

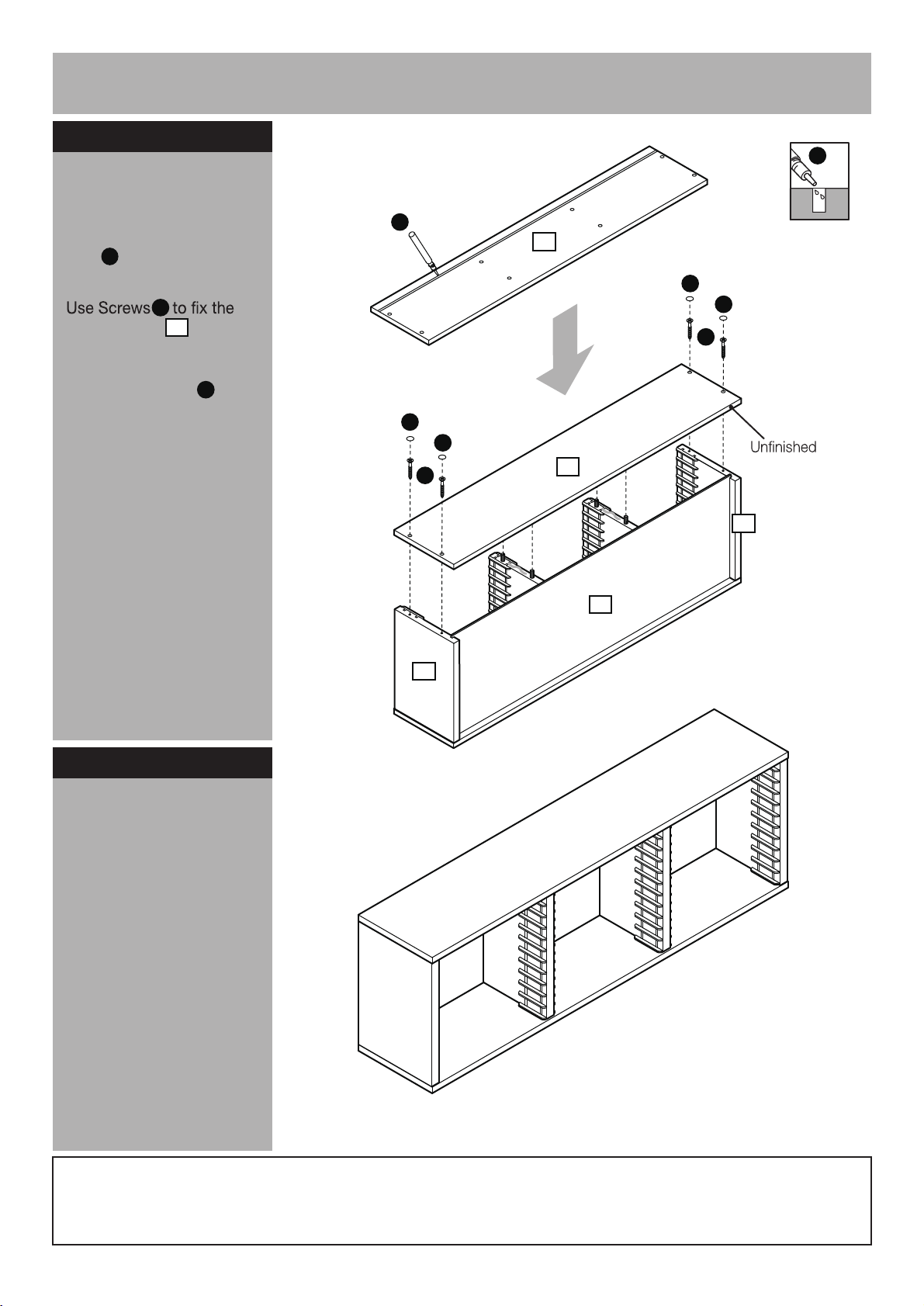

Step 4
Attaching bottom panel
D
Place a small amount of
D
Glue into the groove.
B
Bottom panel onto the
1
unit.
Use Screw covers to
C
cover the screw heads.
D
1
C
C
B
C
C
B
3
1
5
back edge
2
Step 5
Finishing the unit
With help, carefully stand
the unit upright and place
to intended position.
Before use allow the
Note:
glue to dry for 24 hours
and make sure the unit is
secure.
Assembly is complete.
