Ellington
Quilted Barstool
Spare Parts
www.argos-support.co.uk
0370 112 1928
Customer Support
0345 640 2020
Issue 1 -11/04/20
Page 2
Safety and Care Advice
Product Details
888/5825 893/7333
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY.
Keep children and animals
away from the work area, small
parts could choke if swallowed.
Make sure you have enough space
to layout the parts before
starting.
• This product has been
constructed to be used in the
domestic environment only and
not for commercial purposes.
Care and maintenance
Only clean using a damp cloth
and mild detergent. Do not use
abrasive cleaners.
Use a dry cloth to clean the
product, furniture polish is
not recommended.
Assemble the item as close
to its final position (in the same
room) as possible.
Assemble on a soft level
surface to avoid damaging the
unit or your floor.
• From time to time check that there
are no loose screws, nuts or bolts.
If there are please re-tighten.
We do not
recommend the
use of power
drill/drivers for
inserting screws
as this could damage the unit.
Only use hand screwdrivers.
Parts of the assembly will be
easier with 2 people.
Dispose of all packaging
carefully and responsibly.
This product should not be
discarded with household
waste.Take to your local
authority waste disposal
centre.
Glue safety - Take care when using glue, please follow the advice below
Skin contact: Remove contamination by washing with soap and water. procedure should also be followed
prior to eating and drinking.
Eye contact: Rinse immediately with clean water for 15 minutes and seek medical advice.
If swallowed: Seek medical advice immediately.
Additional Guidance
● Assemble all parts and bolts loosely during assembly, only once the product is complete should you
fully tighten the bolts.
● Regularly check and ensure that all bolts and fittings are tightend properly.
● This product is compliant BS12520
Sainsbury's Argos is a trading name of both: Argos Limited, Registered office: 489-499 Avebury Boulevard, Milton Keynes, United
Kingdom, MK9 2NW, registered number: 01081551 (England and Wales); and Sainsbury's Supermarkets Limited, Registered
office: 33 Holborn, London, EC1N 2HT, registered number: 03261722 (England and Wales). Both companies are subsidiaries of J
Sainsbury's plc.
1
Page 3
Parts
1
Seat
3
Gas lift
Pt. No
Pt. No
2
Upper leg
4
Base
Pt. No
Pt. No
2
Page 4
Fittings (Shown to scale)
Bag 1
A
M6 x 18mm Bolt x 4
Tools required
B
Flat Washer x 4
C
Allen Key x 1
Ruler/tape
measure
3
Page 5
1
A
M6 x 18mm Bolt x 4
E
arrow
sticker
Pt. No
A
B
B C
Pt. No
Flat Washer x 4
2
A
B
A
B
A
B
Allen Key x 1
Pt. No
lever
A
M6 x 18mm Bolt x 4
C
Allen Key x 1
B
Flat Washer x 4
C
A
B
2
arrow
1
3
sticker
plastic tip
4
4
Page 6
3
1
2
3
4

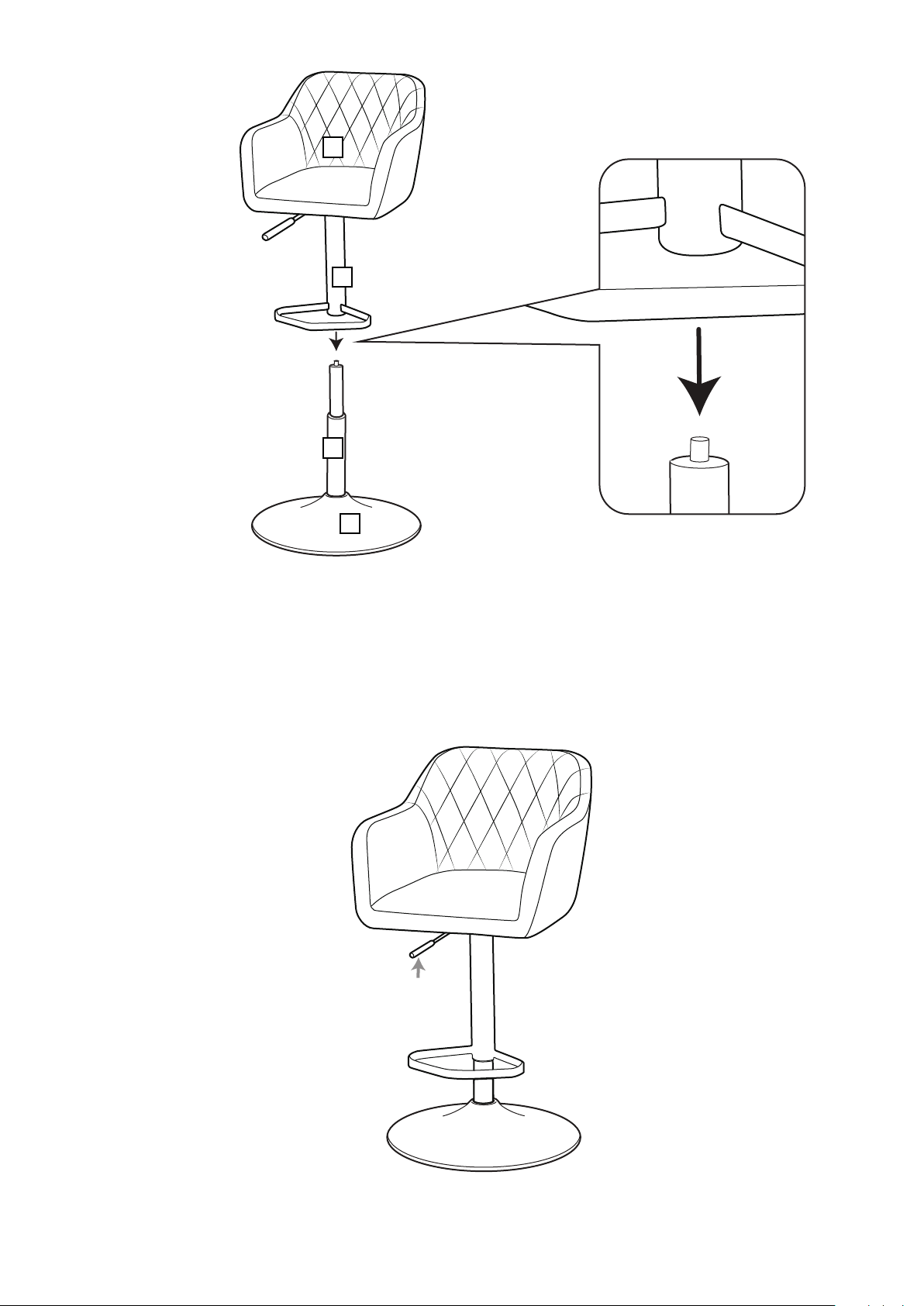

lever
Assembly complete.
5
