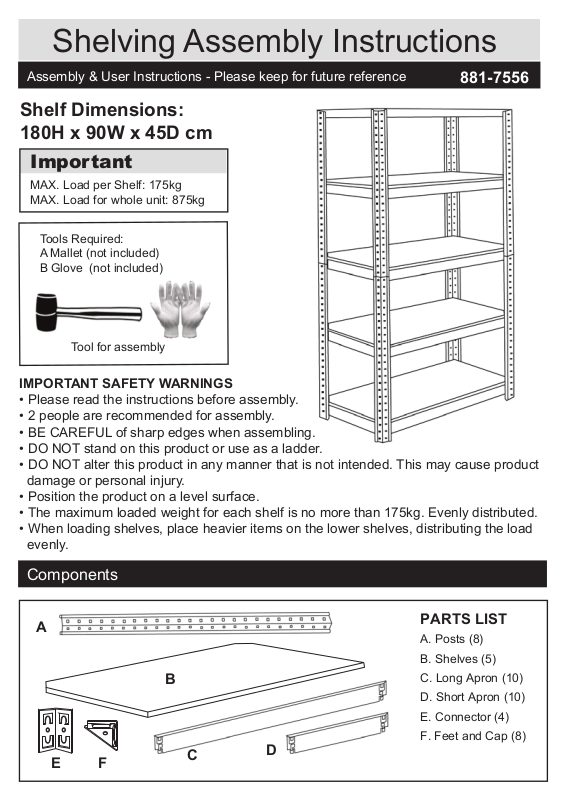

Shelving Assembly Instructions
Assembly & User Instructions - Please keep for future reference
881-7556
Shelf Dimensions:
180H x 90W x 45D cm
Important
MAX. Load per Shelf: 175kg
MAX. Load for whole unit: 875kg
Tools Required:
A Mallet (not included)
B Glove (not included)
Tool for assembly
IMPORTANT SAFETY WARNINGS
• Please read the instructions before assembly.
• 2 people are recommended for assembly.
• BE CAREFUL of sharp edges when assembling.
• DO NOT stand on this product or use as a ladder.
• DO NOT alter this product in any manner that is not intended. This may cause product
damage or personal injury.
• Position the product on a level surface.
• The maximum loaded weight for each shelf is no more than 175kg. Evenly distributed.
• When loading shelves, place heavier items on the lower shelves, distributing the load
evenly.
Componentseference
A
B
E F
PARTS LIST
A. Posts (8)
B. Shelves (5)
C. Long Apron (10)
D. Short Apron (10)
E. Connector (4)
F. Feet and Cap (8)
C
D
Page 2
Important:
Be sure to line up and match hole
pattern on all posts prior to
assembly.
• Place post upright, Install the feet(part F)
to protect floor.
• Insert tabs on long shelf support apron
into slots on post.
• Press on tabs with fingers to guide into
slots.
• Push down or gently tap apron corner with
rubber mallet to extend tabs through slots.
• It is recommended that the bottom shelf
aprons be placed in the second and third
slots from the bottom.
• To ensure stability of the vertical unit, do
not place bottom shelf aprons any higher
than the sixth slot.
• Incorrect installation will result in incorrect
results.
2
Next, insert tabs of a short apron into
the front post, creating a “tripod”.
Then alternate insertion of support
aprons with posts.
Page 3
3
Place shelves starting at the
bottom as you build each layer.
Gently tap the top of the shelf
around each corner with a rubber
mallet until tabs are flush with slots.
This unit can be assembled upright
(vertically) or side-by-side (horizontally).
For Vertical Assembly
Attention please:
Please wear the gloves when insert the
connectors to avoid any harm for your hands And
don't put your hands in the connection position.
• The vertical direction is assembled with the
connector (E), as shown in the figure.
• Repeat this process until all four columns are
assembled.
• Continue to install the shelves until they are
finished.
Page 4
IMPORTANT NOTICE
• When assembling your unit it is
recommended that you place the top
shelf aprons in the first and second
slots from the top.
• When moving assembled unit, always
handle by the lower half. Recheck all
apron tabs/slots being sure they are
securely seated.
• To ensure stability of the unit, do not
place the top shelf aprons any lower
than the sixth slot. This applies to both vertical and horizontal assembly.
• The apron must be level, if not will result in assembly failure.
For Horizontal Assembly
First and second slots
recommended
Optional Location
Care and Maintenanceference
• Only clean using a damp cloth and mild
detergent, do no use bleach or abrasive
cleaners.
• This product should not be discarded with
household waste. Take to your local
authority waste disposal centre.
Argos, 489-499 Avebury Boulevard, Saxon Gate West,
Central Milton Keynes, MK9 2NW, United Kingdom
• From time to time check that there are
no loose fitting or parst on this unit.
• Do not overload the shelf.
