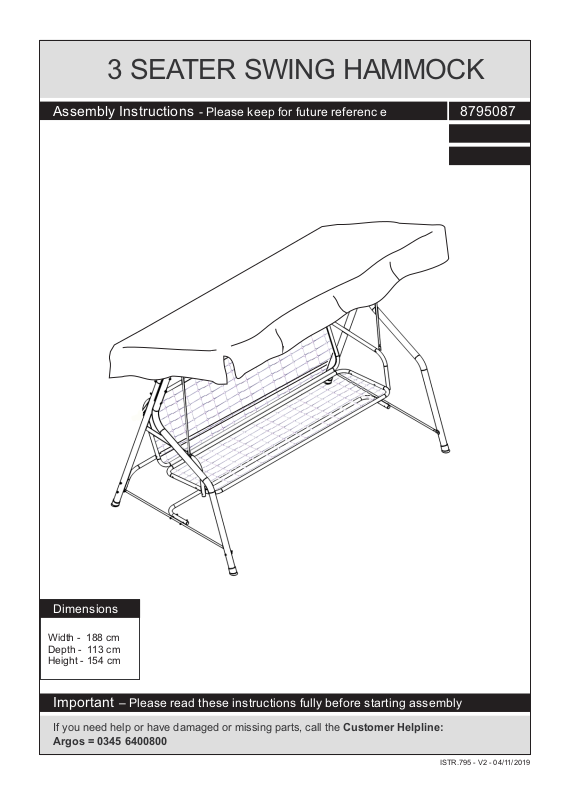

3 SEATER SWING HAMMOCK
Assembly Instructions - Please keep for future referenc e
8795087
Dimensions
Width - 188 cm
Depth - 113 cm
Height - 154 cm
Important – Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 0345 6400800
ISTR.795 - V2 - 04/11/2019
Page 2
Safety and Care Advice
Important – Please read these instructions fully before starting assembly
• Check you have all the
components and tools listed on
the following pages.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Plump up the cushions and
let them rest for 24 hours to
regain their original dimensions
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Make sure you have enough
space to layout the parts before
starting.
• During assembly do not stand
or put weight on the product,
this could cause damage.
• Assemble the item as close
to its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor.
• Parts of the assembly will be
easier with 2 people.
• To reduce
the likelihood of
damaging your
product please
ensure that your
power drill is set on a low torque
setting.
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
Handy Hints
• Assemble all parts and bolts
loosely during assembly, only
once the product is complete
should you fully tighten the bolts
• From time to time check that
there are no loose screws on
this unit.
• Regularly check and ensure
that all bolts and fittings are
tightend properly.
• This product should not be
discarded with household waste.
Ta ke to your local authority
waste disposal centre.
Note: if required the next
page can be cut out and used
as reference throughout the
assembly. Keep this page with
these instructions for future
reference.
1
Page 3
Components - Panels
Customer Helpline:
Please check you have all the components listed below
Argos = 0345 6400800
Back leg x 2 (137.5x4.5 cm)
1
Roof bar x 2 (118 x 17 cm)
4
Back x 1 (150x48 cm)
7
Nr. 3 springs
Front leg x 2 (150x34 cm)
2
Roof pole x 2 (169 x 1.5 cm)
5
Amrest x 2 (66 x 21 cm)
8
Top x 1 (178 x 35 cm)
3
Seat support x 1 (150 x 48 cm)
6
Nr.18 Springs
Seat support bar x 4
9
(79 x 1.6cm)
Side bar x 2 (104 x 2.5 cm)
10
Cross bar x 2 (178 x 21 cm)
11
Canopy x 1 (243 x 160 cm)
12
2
Page 4
Components - Fittings
Please check you have all the fittings listed belo w
Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings
may be supplied than are required.
A
M8 x 10cm Screw x 6
B
M6 x 8cm Screw x 4
D
M6 x 6cm Screw x 8
E
M6 x 5,5cm Screw x 4
F
M6 x 4cm Screw x 4
G
M6 Screw x 2
Tools required
(Supplied)
Ruler - Use this ruler to help correctly identify the screws
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100
The screws length is measured from the head to the point (30mm screw shown) .
3
105
110 115 120 125 130 135 140 145 150 155 160 165 170
Page 5
Components - Fittings
Please check you have all the fittings listed belo w
Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings
may be supplied than are required.
H
M8 Nut x 6
K
Ø8 x 12
N
Spring x 2
Q
T
Ø45 x 4
x 8
I
M6 Nut x 22
L
Ø6 x 36
O
28 x 2.5 cm
R
U
x 2
x 2
x 2
J
M6 Nut x 2
M
Ø6 x 2
P
Ø45 x 2
S
x 4
V
Ø28 x 8
4
Page 6
Assembly Instructions
Step 1
Insert the plastic foot Q
onto the end of the back
1
legs 1
Q
2x
1
Q
1
Q
Step 2
a: Insert the plastic cap
P
P into the end of front
2
legs 2
Note:
Pay attention to the
position of the holes
b: Insert the plastic foot
Q
Q onto the other end of
the front legs 2
2
2x
a:
P
2
2
P
b:
2
Q
Q
5
Page 7
Assembly Instructions
Step 3
Assemble back leg 1
and front leg 2 together
with plastic spacer O
using screws A ,
washers K and nuts H .
Note:
Do not fully tighten
bolts.
Repeat with the
remaining legs.
2
A
K
1
O
H
2x
H
K
1
1
1
H
K
O
K
2
K
A
H
K
A
H
K
O
K
K
A
A
Step 4
Assemble the top 3 with
the legs using screws A ,
washers K and nuts H .
K
3
A
H
2
3
H
1
2
1
2
K
1
3
K
A
2
6
Page 8
Assembly Instructions
Step 5
fix the plastic caps S
onto the side bar 9
S
10
Step 6
Assemble the side bar 9
with the legs using
screws D , washers L
and nuts I.
Note:
Pay attention to the
position of the holes
D
L
I
10
L
2x
S
S
10
10
10
S
L
D
Step 7
Insert the plastic caps
V
V into the end of one
cross bar 10
11
11
10
I
L
D
I
2
L
D
V
10
11
I
V
V
7
Page 9
Assembly Instructions
Step 8
Assemble the cross bar
11
10 with the back legs
using screws B, washers
L
L and nuts I
Note:
Do not fully tighten
bolts.
B
I
1
Step 9
Insert the plastic caps V
into the end of the other
cross bar 10
11
V
L
10
11
I
I
L
11
V
1
L
B
L
B
Step 10
Assemble the cross bar
11
10 with the side bars
using screws D, washers
L
L and nuts I
Note:
Do not fully tighten
bolts.
D
I
10
11
11
V
V
11
10
11
L
L
D
D
L
I
I
L
10
10
8
Page 10
Assembly Instructions
Step 11
Insert the plastic caps V
into the end of the
armrests 7
8
V
Step 12
Assemble the seat
support and back 6
together using screws D,
washers L and nuts I
6
L
7
D
I
2x
V
V
8
V
V
8
18 SPRINGS
7
3 SPRINGS
I
L
76
3 SPRINGS
6
18 SPRINGS
7
6
L
D
7
I
D
I
6
D
9
Page 11
Assembly Instructions
Step 13
Assemble the left armrest
8
7 with the seat support
6 and back 7 using
6
screws E , washers L
and nuts I
7
E
I
L
Step 14
Assemble the right
armrest 7 with the seat
support 6 and back 7
using screws E ,
washers L and nuts I
8
6
E
L
7
I
7
L
8
E
8
L
E
I
L
I
L
6
E
8
E
E
7
6
7
L
8
E
L
I
E
8
Step 15
Fix the plastic caps T
onto the seat support bar
9
8
T
4x
8
L
I
6
T
T
9
E
L
9
T
10
Page 12
Assembly Instructions
Step 16
Assemble the left bar 8
to the back 6 using
screw F , washers L
and nuts I
7
F
I
9
L
Step 17
Assemble the right bar 8
to the back 6 using
screw F , washers L
and nuts I
7
F
I
9
L
9
I
9
L
F
7
F
9
7
9
F
F
Step 18
Assemble the left front
9
bar 8 to the armrest 7
using screw F , washers
LL
L and nuts I
F
I
8
L
I
9
I
L
9
F
8
F
11
Page 13
Assembly Instructions
Step 19
Assemble the right front
9
bar 8 to the armrest 7
using screw F , washers
LL
L and nuts I
F
I
Step 20
8
9
9
F
L
I
F
8
Insert the springs N into
the seat support bars 8
N
9
Step 21
Fix the spring N to the
3
top 3
N
N
N
9
9
N
3
12
3
N
Page 14
Assembly Instructions
Step 22
Fix the nuts J to the pin
G
G , deep in the longest
thread.
Step 23
Insert the pin G through
the plastic joint R by the
shortest thread.
Push it as far as the nut
J
J touches the plastic
R
joint R
LJ
G
R
2x
J
2x
J
G
G
G
1
2
3
R
4
Click!
13
Page 15
Assembly Instructions
Step 24
Fix the plastic joint R to
the top 3 using the
washer L and the nut
L
I
I
3
LL
R
Note:
the longest thread of
the pins G have to be
G
horizontal after fixing
Step 25
Fix one roof bar 4 to the
G
pin G using the washer
L
M
M and the wheel U
4
U
R
3
3
R
R
L
I
U
M
U
4
M
4
Step 26
Insert the roof poles 5
into the canopy's slots
12
6
12
Note:
Let the roof poles pass
through the complete
slots
5
G
R
12
5
12
14
5
5
Page 16
Assembly Instructions
Step 27
Insert the roof poles 5
into the assembled roof
4
bar 4
5
Step 28
Insert the roof poles 5
into the other roof bar 4
5
4
12
12
5
4
4
4
5
Step 29
4
Fix the other roof bar 4
to the pin G using the
washer M and the wheel
U
U
Tighten completely all
bolts.
Assembly is complete.
