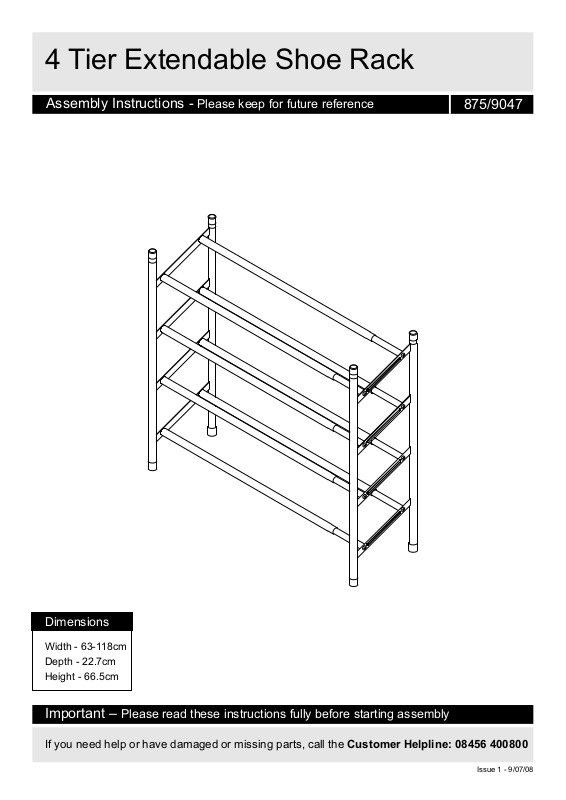

4 Tier Extendable Shoe Rack
Assembly Instructions - Please keep for future reference
875/9047
Dimensions
Width - 63-118cm
Depth - 22.7cm
Height - 66.5cm
Important – Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Issue 1 - 9/07/08
Page 2
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
Check you have all the
components and tools listed on
page 2.
Remove all fittings from the
plastic bags and separate them
into their groups.
Do no stand or put weight on
the product during assembly,
this could cause damage.
Assemble on a soft level
surface to avoid damaging the
Shoe rack or your floor.
We do not
recommend the
use of power
drill/drivers for
inserting screws, as this could
damage the unit.
Only use hand screwdrivers.
Keep children and animals
away from the work area, small
parts could choke if swallowed.
Make sure you have enough
space to layout the parts before
starting.
Care and maintenance
Only clean using a damp cloth
and mild detergent, do not use
bleach or abrasive cleaners.
Parts of the assembly will be
easier with 2 people.
From time to time check that
there are no loose screws on
this Shoe rack.
Dispose of all packaging
carefully and responsibly.
This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
1
Page 3

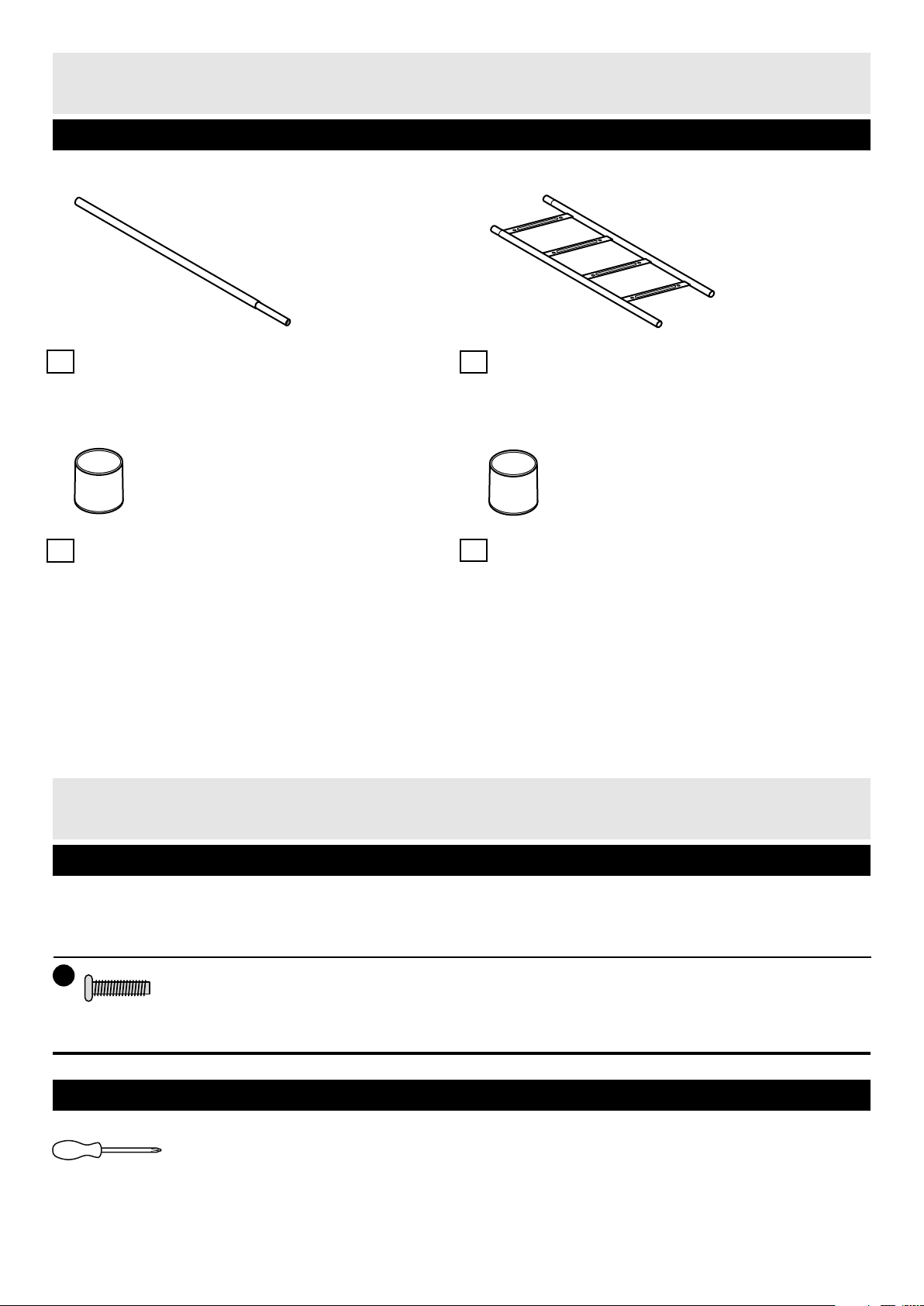

Components - Parts
If you have damaged or missing components,
call the Customer Helpline: 08456 400800
Please check you have all the fittings listed below
Extendable tube x 8
1
Upper end plug x 4
3
Side frame x 2
2
Lower end plug x 4
4
Components - Fittings
Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases more
fittings may be supplied than are required.
A
20mm Screw x 16
Tools required
Screwdriver
2
Page 4
Assembly Instructions

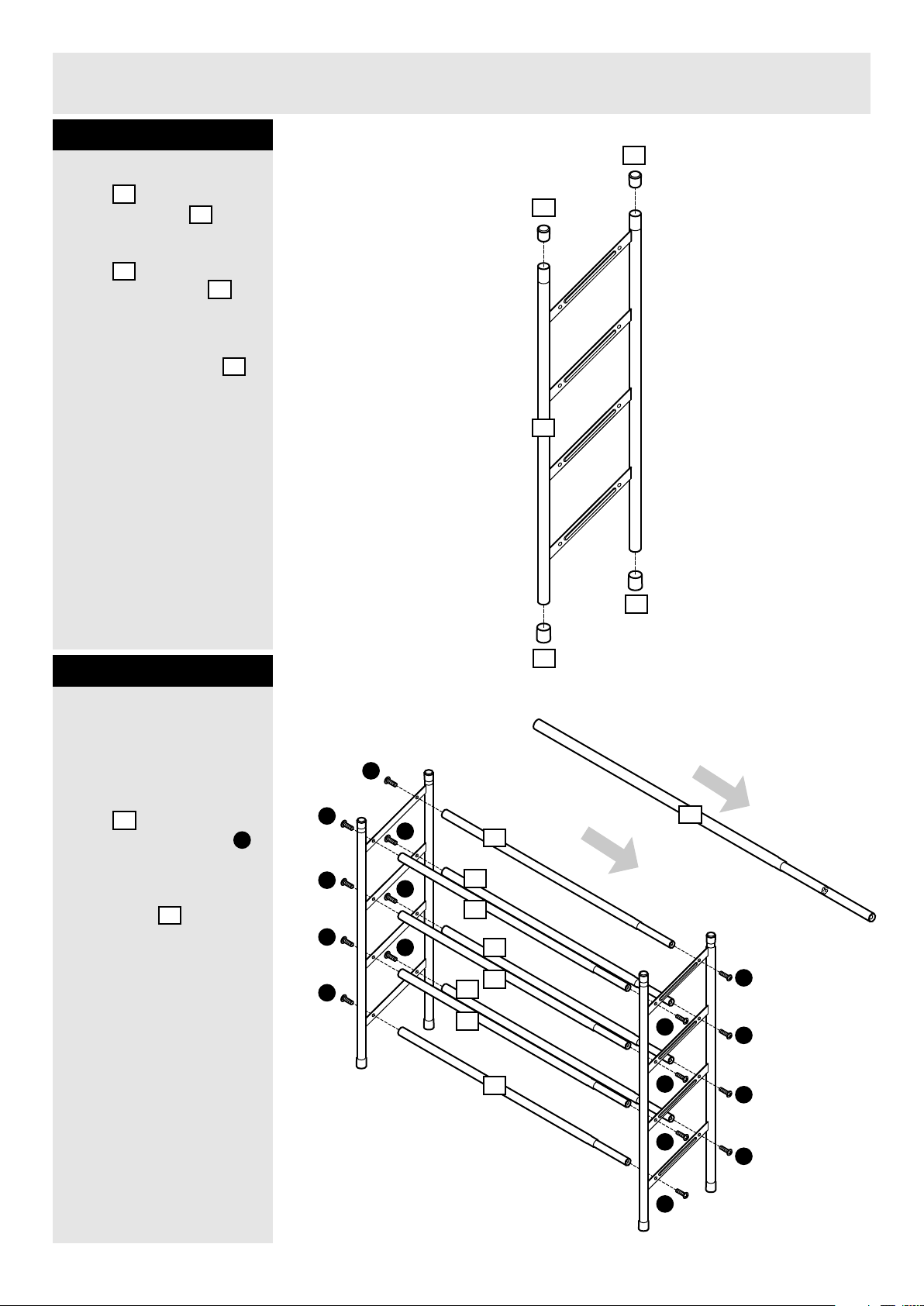

Step 1
Insert the Upper end
plugs into the top of
the Side frame .
Insert the Lower end
plugs into the bottom
of the Side frame .
Repeat the above
processes for the
second Side frame .
3
2
4
2
2
3
3
2
Step 2
No te : It would be useful
to ask someone to help
you at this stage.
Fix the Extendable
tubes to the Side
frame using Screws .
Repeat the above
process for the second
Side frame .
1
A
2
4
4
A
A
A
A
A
A
A
A
1
1
1
1
1
1
1
1
A
A
A
1
A
A
A
A
A
3
Page 5
Assembly Instructions

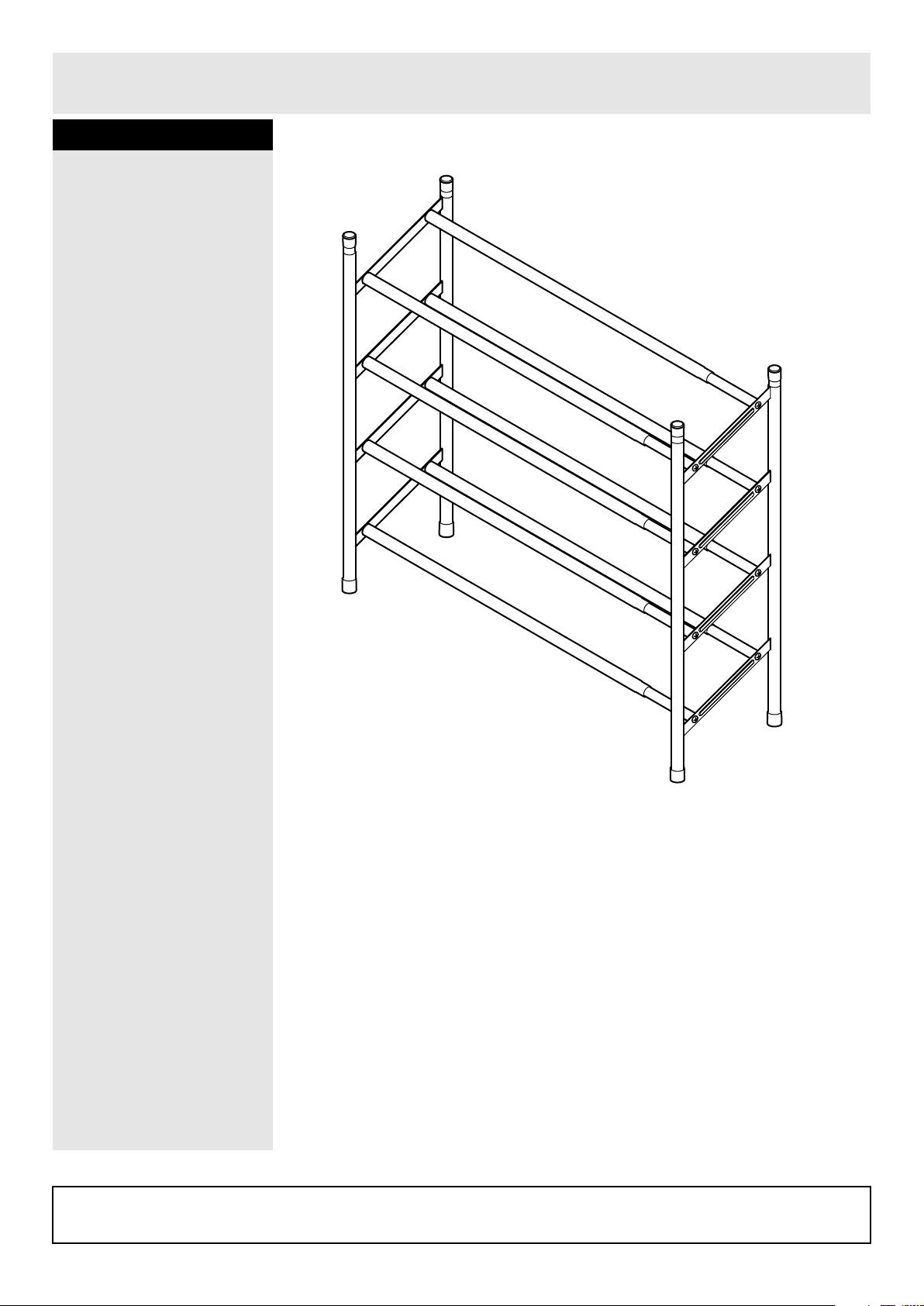

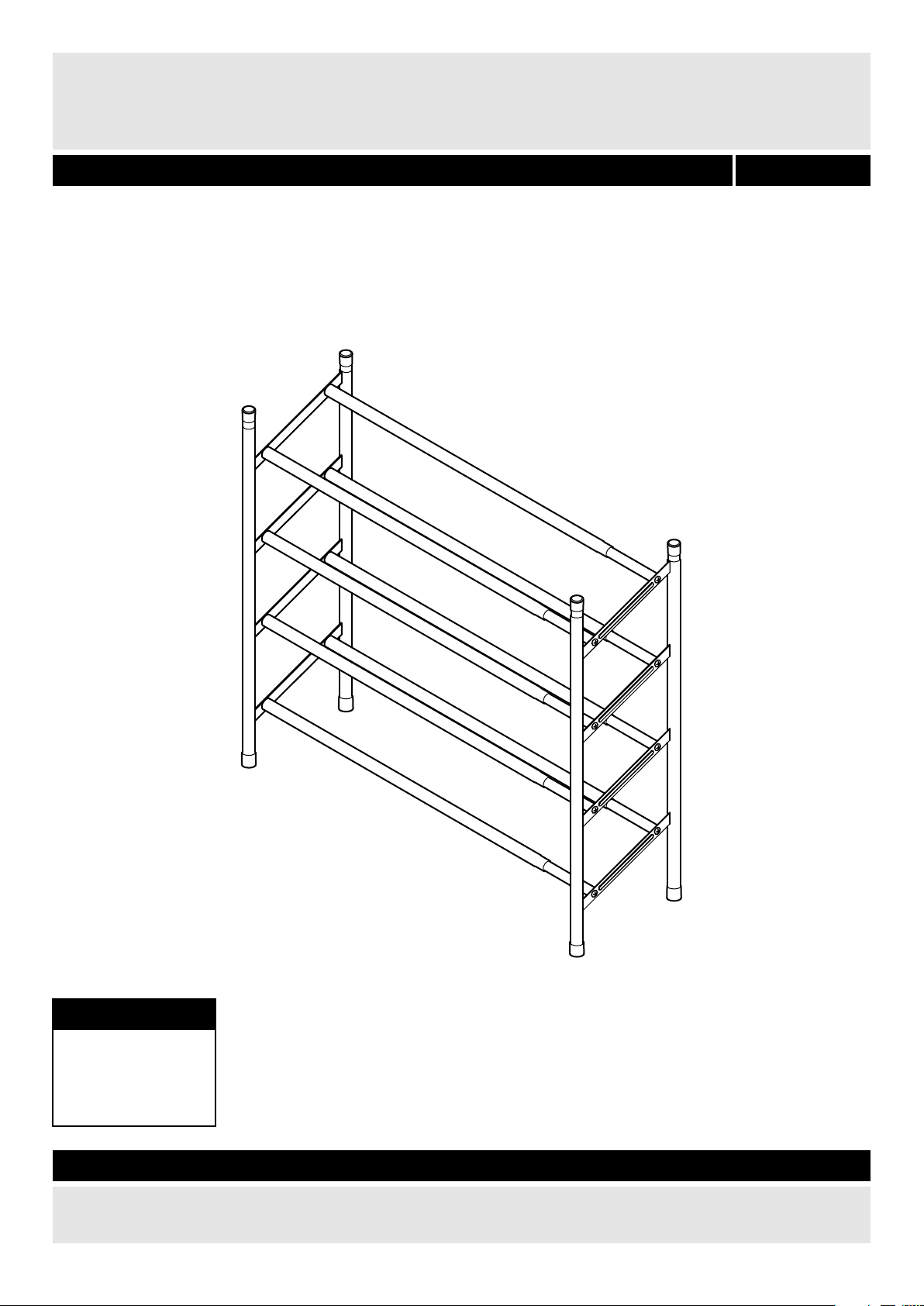

Assembly is complete.
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
