Page 1

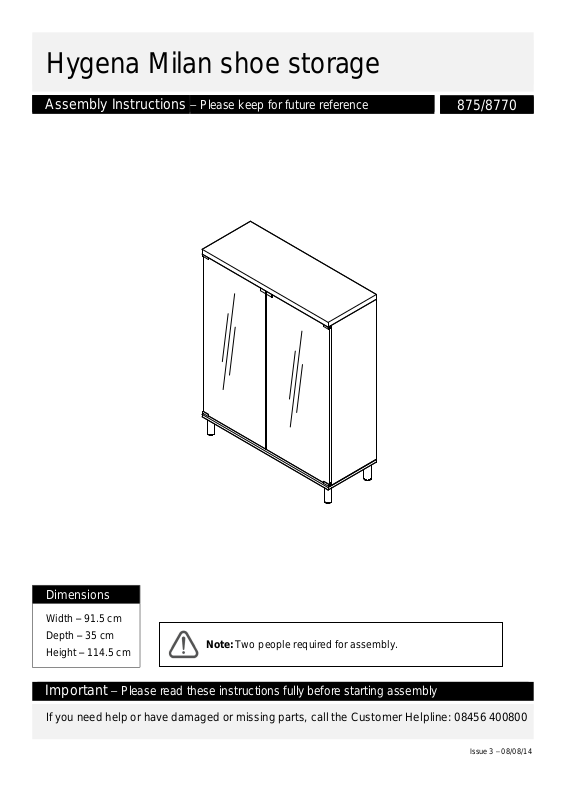

Hygena Milan shoe storage
Assembly Instructions
Important
– Please keep for future reference
875/8770
Dimensions
Width – 91.5 cm
Depth – 35 cm
Height – 114.5 cm
– Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Note: Two people required for assembly.
Issue 3 – 08/08/14
Page 2
Safety and Care Advice
recommend the use of
y
Important – Please read these instructions fully before starting assembly
● Check you have all the
components and tools listed on
pages 2 and 3.
● Remove all fittings from the
plastic bags and separate them
into their groups.
● Keep children and animals
away from the work area, small
parts could choke if swallowed.
● Make sure you have enough
space to layout the parts before
● Do not stand or put weight on
the product, this could cause
damage.
● Assemble the item as close to
its final position (in the same
room) as possible.
● Assemble on a soft level
surface to avoid damaging the
unit or your floor.
● Parts of the assembly will be
easier with 2 people.
● We do not
power drill/drivers for
inserting screws, as
this could damage the unit. Only
use hand screwdrivers.
● Dispose of all packaging carefull
and responsibly.
starting.
Glass safety – Take care when handling glass, please follow the advice below
● This product complies with
BS EN 14749:2005.
● If a glass component is
chipped or broken, stop using
the product and consult the
manufacturer or supplier.
● Do not sit or stand upon
horizontal glass surface(s).
● Do not use the glass as a
chopping surface.
● Do not place very hot or
very cold items on the glass
surface(s) unless adequately
thick table mats are used to
prevent such items from
coming into contact with the
glass.
● Do not strike the glass with
hard or pointed items.
● When cleaning glass panels
use a damp cloth or leather with
washing up liquid or soft soap if
necessary.
● Do not use washing powders
or any other substances
containing abrasives since these
substances scratch glass.
Care and maintenance
● Only clean using a damp
cloth and mild detergent, do not
use bleach or abrasive cleaners.
1
● From time to time check that
there are no loose screws on this
unit.
● This product should not be
discarded with household waste.
Take to your local authority waste
disposal centre.
Note: if require the next
page can be cut out and used
as reference throughout the
assembly. Keep this page with
these instructions for future
reference.
Page 3

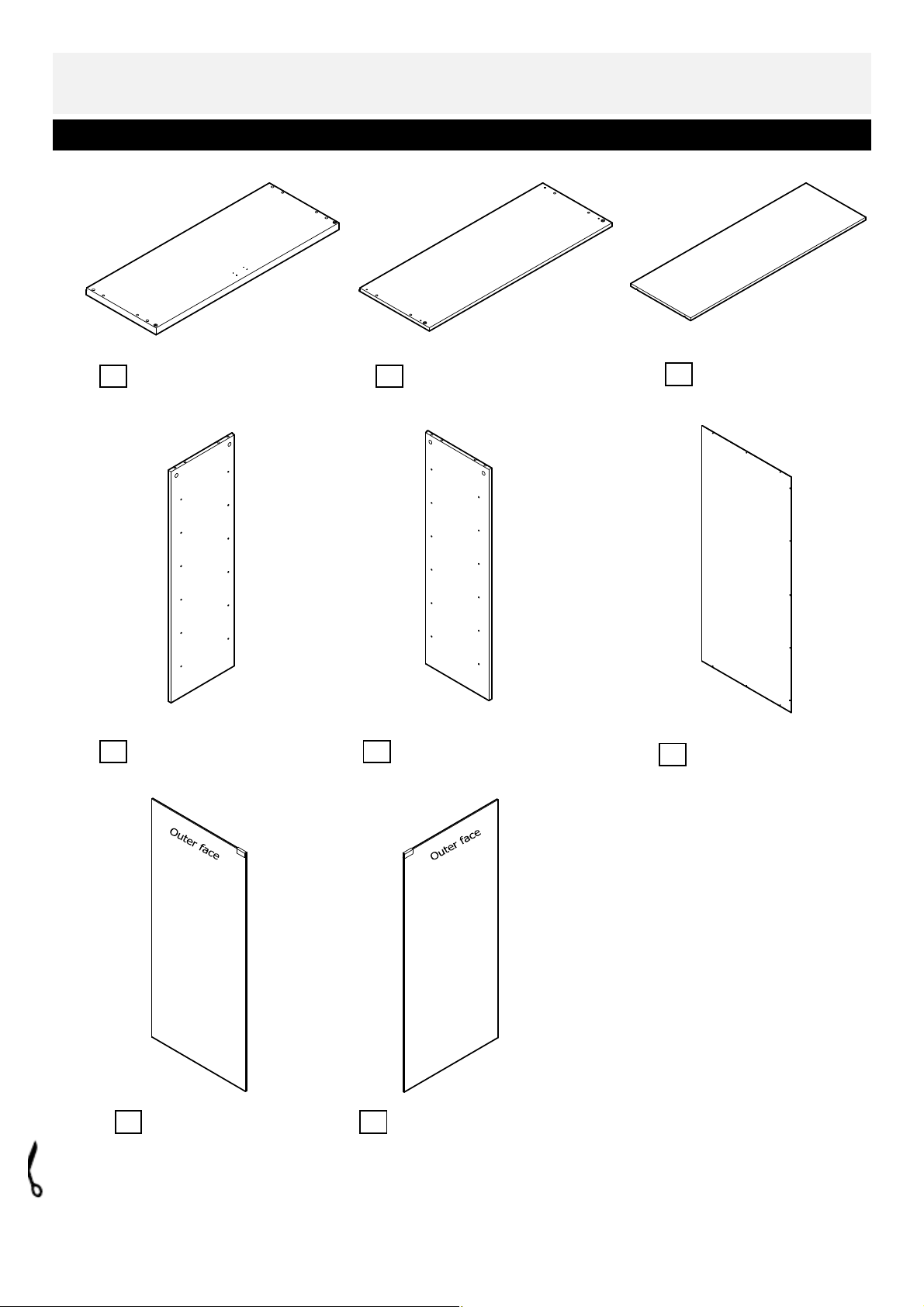

Components - Panels
1
4
6
Please check you have all the panels listed below
Top panel
Left side panel Right side panel
2
5
Base panel
Adjustable shelf x 6
3
Back panel x 2
Left door
7
Right door
8
2
Page 4
If you have damaged or missing components,
Metal dowel
x 4 Metal cam
x 4 Wood do
wel x 8
A
Φ
3.5 x
14mm Screw x 16
Shelf pin x 24
Φ3 x 14mm Screw x
22
D
4
0 mm Screw x 4
Foot x 4
FMagnet
package x 1 set
Webbing and screw x 2
KJoining strip

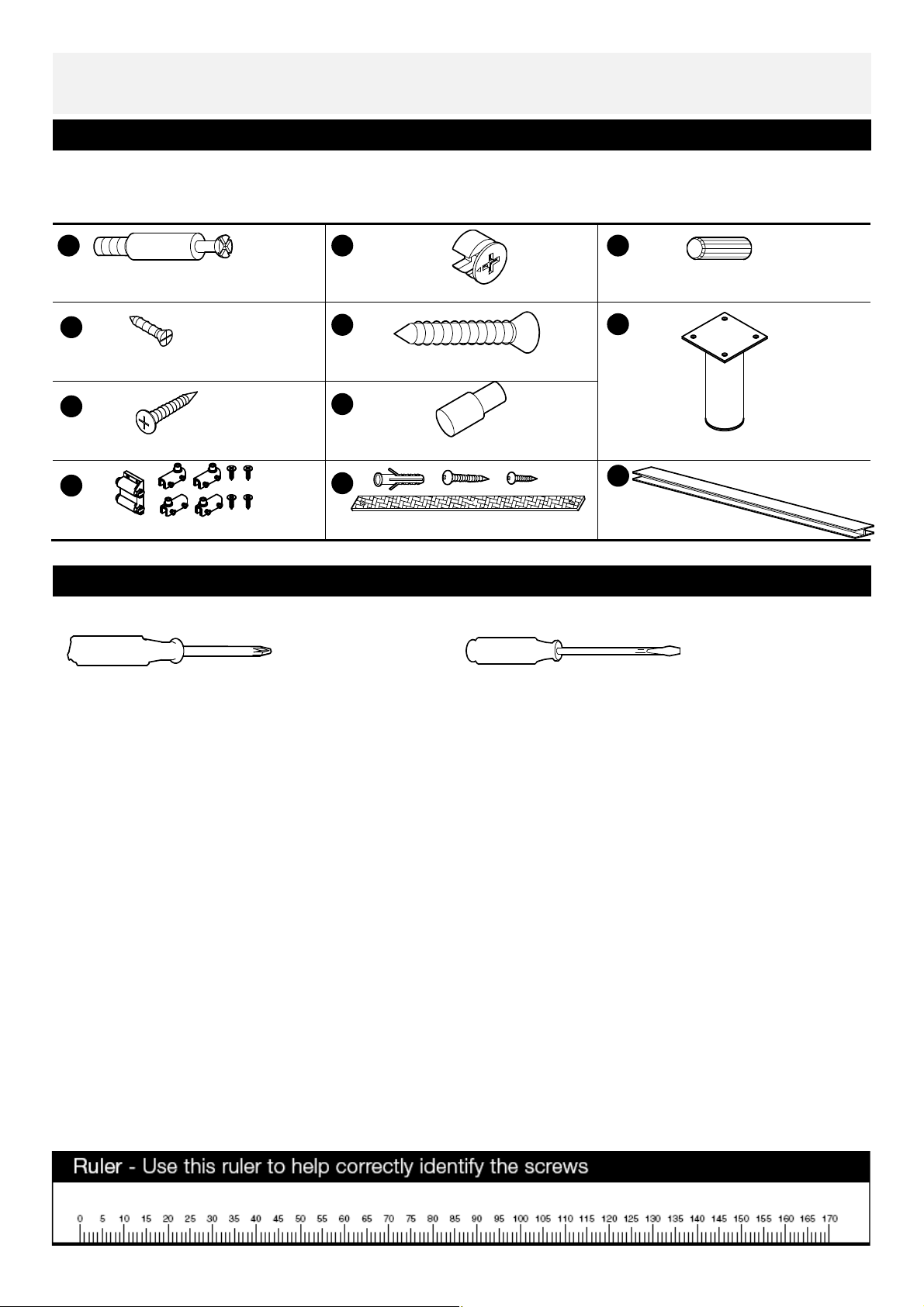

Components - Fittings
call the Customer Helpline: 08456 400800
Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases more
fittings may be supplied than are required.
G
I
Tools required
Philips screwdriver
B
E
H
J
C
Flatblade screwdriver
3
Page 5
Step
Assembly Instructions
Step
Step
A
A
1

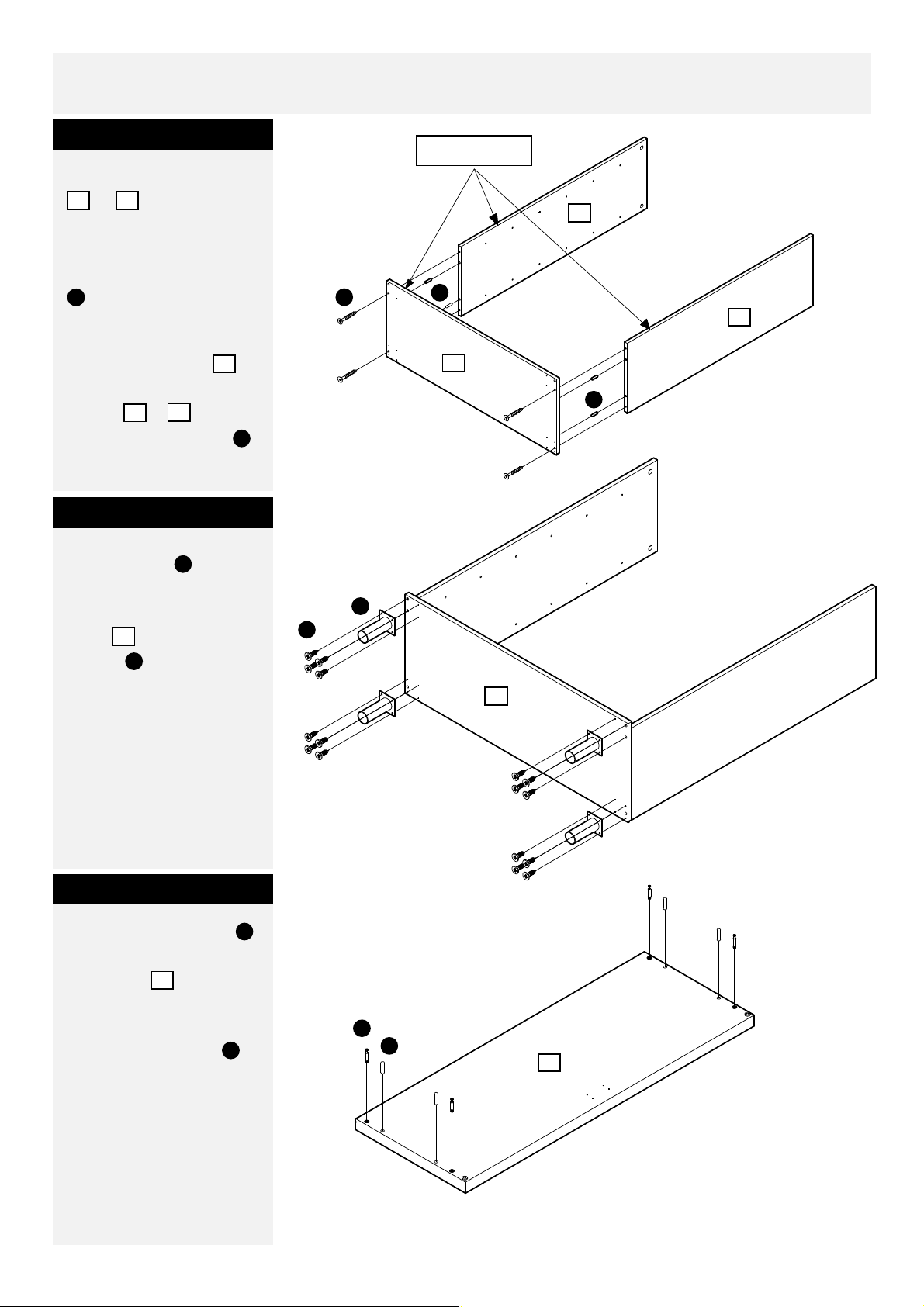

Place the Side Panels
4
5
& on a flat
surface, as shown.
Insert two Wood dowels
C
into the middle end
holes in each Side panel.
Locate Base Panel
2
onto the ends of Side
5
Panels & and
secure with 4 Screws .
4
E
2
Screw 1 Foot to the
pre-drilled holes in each
corner of Base
panel , using
Screws .
2
G
F
3
Screw 4 Metal dowels
into the threaded holes in
Top Panel , as
shown.
Insert Wood dowels
into the middle holes in
Top panel.
1
C
Taped edge.
E
C
2
G
F
C
4
5
C
2
1
4
Page 6
Assembly Instructions
Step
Step
5 A B 4 1 5 B 5 4 B 1 5 4 C
4

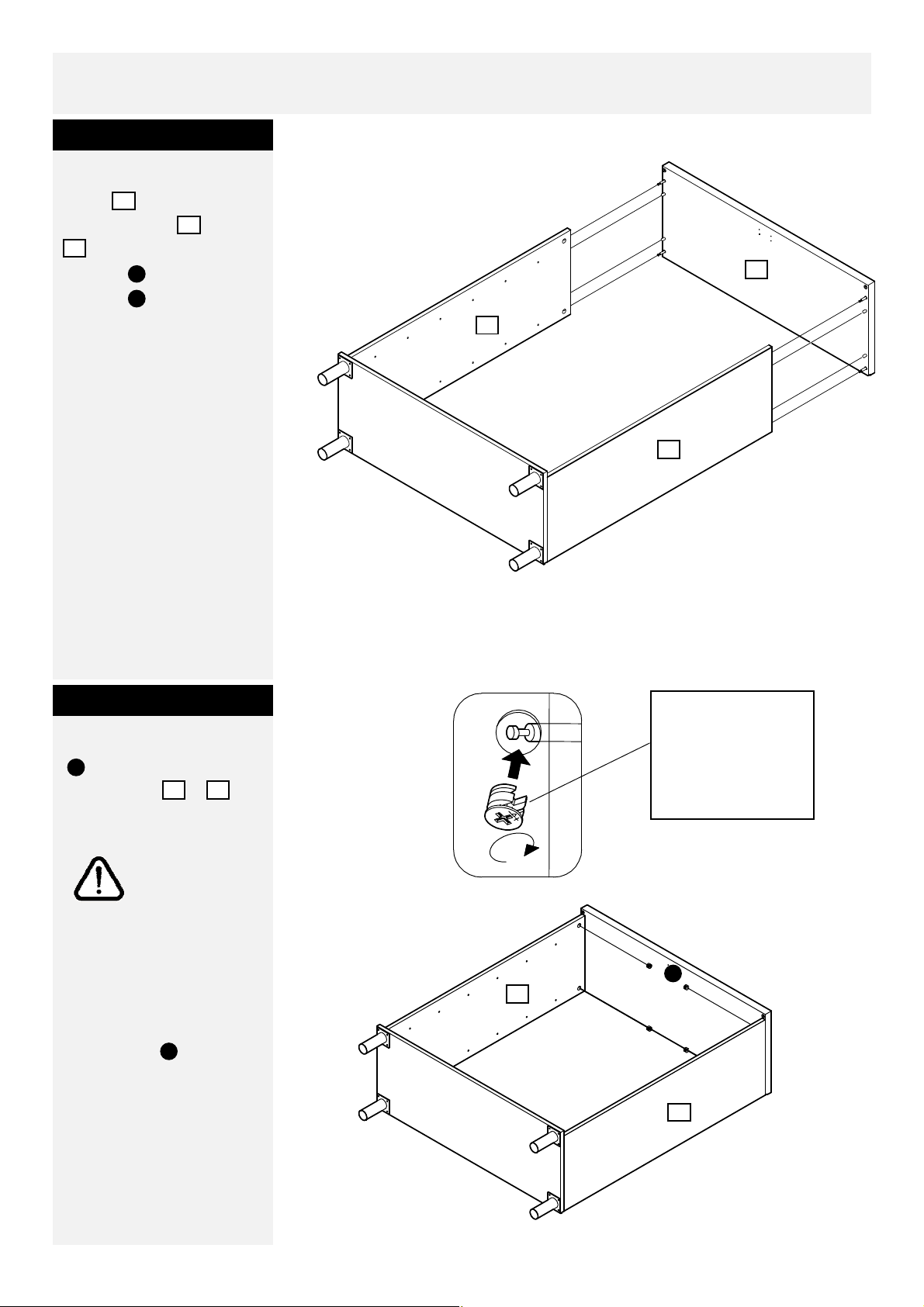

Firmly push the Top
Panel onto the ends
of Side panels and
, ensuring the Metal
dowels and wood
dowels enter
corresponding holes.
5
Insert the 4 Metal Cams
into the 4 holes on
Side Panels & so
that they are flush.
4
Note: Longer leg of
the cross on the
Metal Cams must
face towards end
of panel.
Note: Longer
leg of the cross
on the Metal
Cams must face towards
end of panel (as shown).
Then, using a Philips
Screwdriver, screw all 4
Metal Cams
clockwise until they are
‘hand tight’.
5
Page 7
Assembly Instructions
Step
edges of Panels
Step
Step
1 4 D D I I 1 6
4 I 2 5
6 K 6 K I I 1
2
6

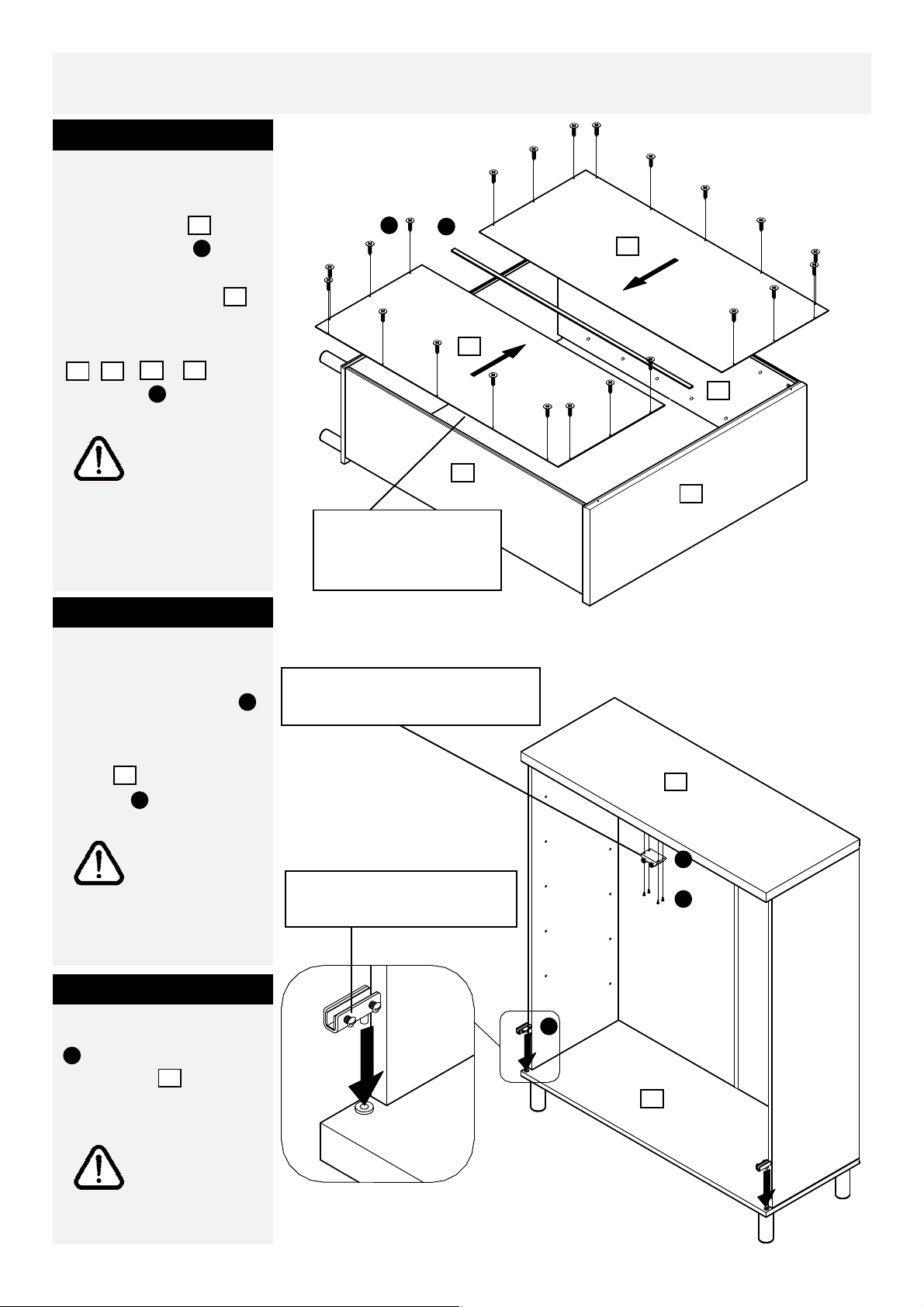

Lay the unit on its face.
Fit Back panels into
the Joining strip .
Secure Back Panels
into the recess on the
rear
, , & using
2
22 Screws .
Note: The
foiled side of
Back panel
should face downward
(as shown).
6
7
Stand the unit upright.
Screw Magnetic catch
to the pre-drilled holes in
the underside of Top
panel , using
Screws .
Note: Make
sure the
magnetic head
face outward.
8
Push the 2 Door hinges
I
into the fixed tube in
Base panel as
shown.
Note: Make
sure the
screws in
hinges face inward.
Note: The foiled side
of Back panel should
face downward.
Note: Make sure the magnetic
head face outward.
Note: Make sure the screws
in hinges face inward.
5
1
6
Page 8
Assembly Instructions
Step
into Side Panels &
Step
H 4 5 H 4 5 3 H
9

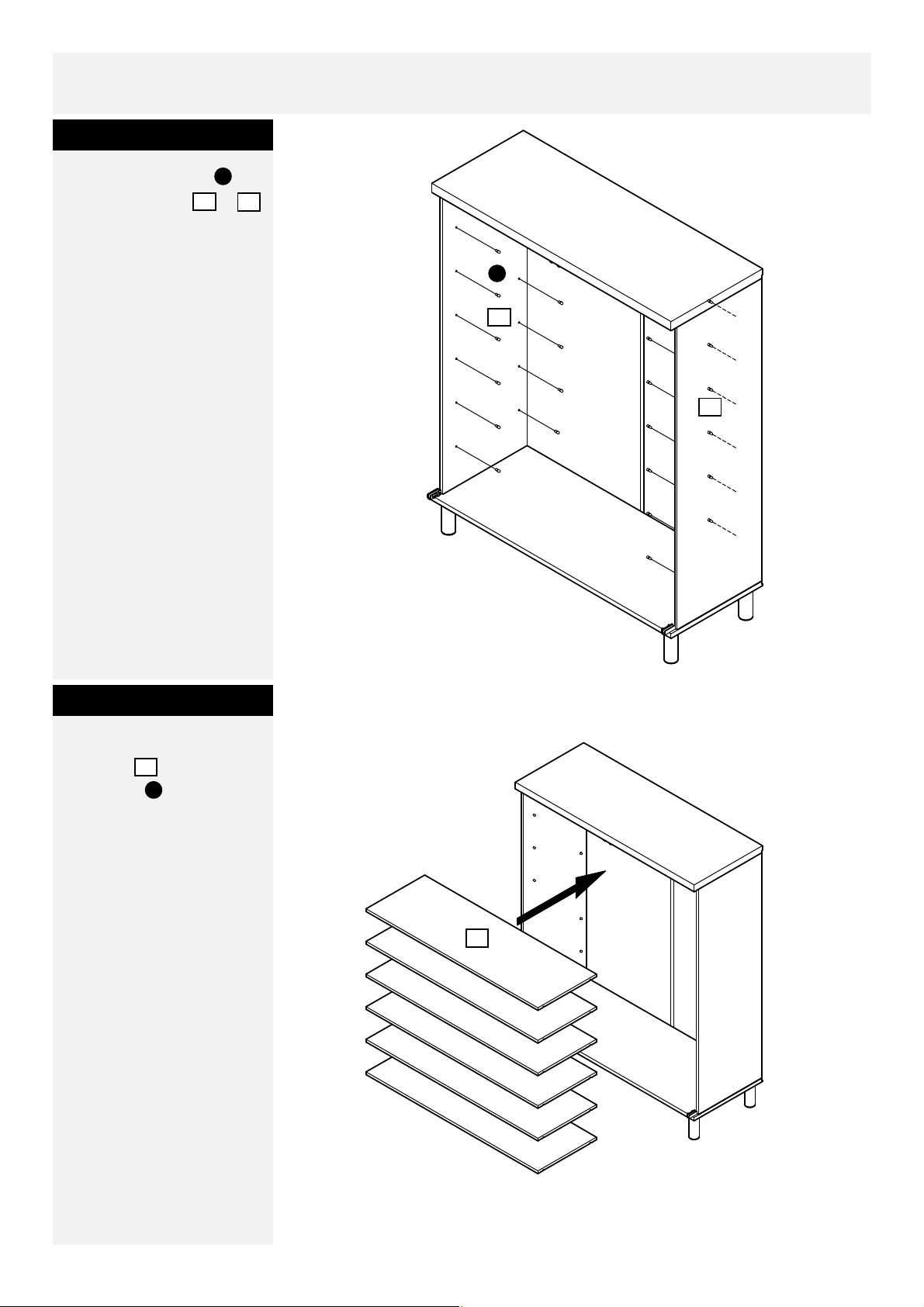

Push 24 Shelf Pins
at shown.
10
Slide the 6 Adjustable
shelves onto the
Shelf pins .
3
7
Page 9
Assembly Instructions
Step
Step
Door
I I 7 7 8 I 7 8 1 1 7 8 I
11

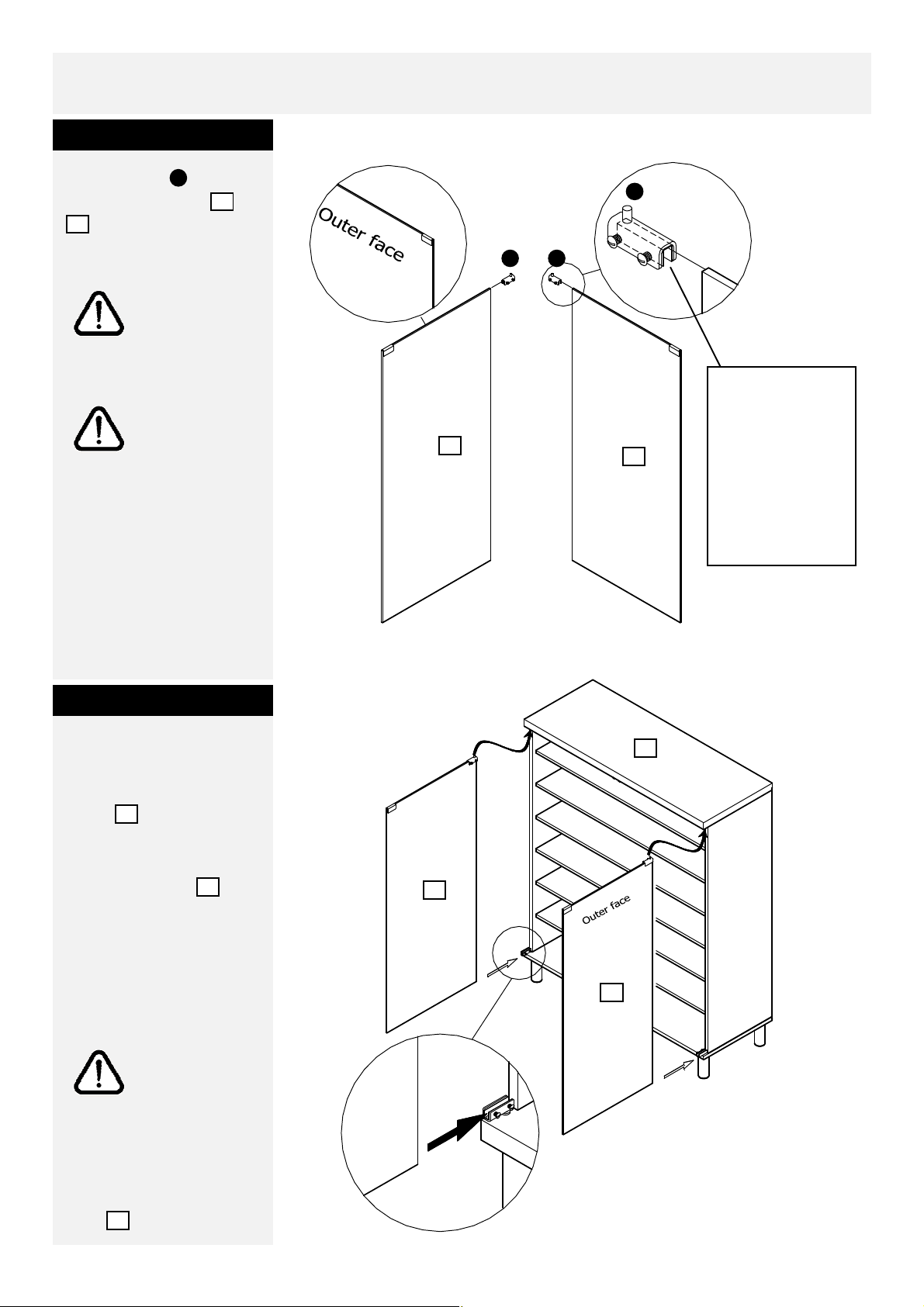

Slide Hinges onto the
top edge of Doors &
and secure by
screwing the screws.
Note: ’Outer’
label on door,
must be on
outside.
Note: Make
sure the
screws in
hinges face inward as
shown. Make sure there
is a plastic sleeve within
the metal bracket before
screwing as shown.
Screw gently to prevent
the glass door from
break.
12
Insert the pin of Hinges
into the fixed tube in the
underside of Top
panel .
Slide the bottom corner
of Left side
into the bottom hinges.
Secure the door by
screwing the screws in
hinges.
8
Note: Make sure
there is a plastic
sleeve within the
metal bracket
before screwing.
Screw gently to
prevent the glass
door from break.
glass door from break.
Repeat this step to
assemble Right Side
door .
Note: Screw
gently to
prevent the
8
Page 10
Assembly Instructions
Step
13

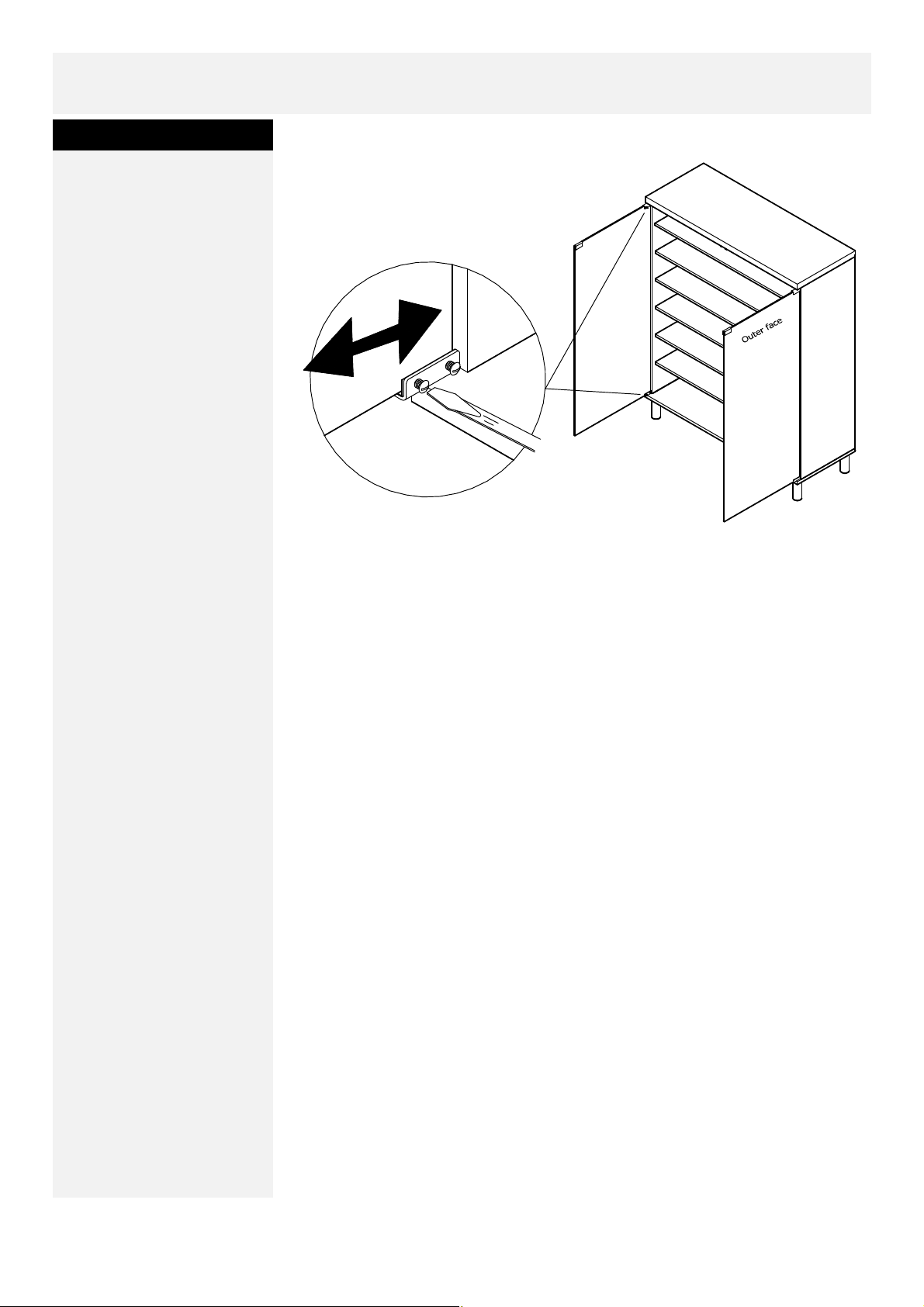

Adjusting the doors
Note: This step will be
easier with 2 people.
Note: Before adjusting the
doors please make sure the
cabinet is in its final position
and make sure it is level.
Loosen the screws in the
hinge. Push the door inward
or outwards slightly, and
retighten screws as
illustrated.
Close the door to check the
alignment, and adjust again
if necessary.
Adjust the other hinges
to make sure the space
around the door is even
and the two doors are
line up with each other.
9
Page 11
Assembly Instructions
Step

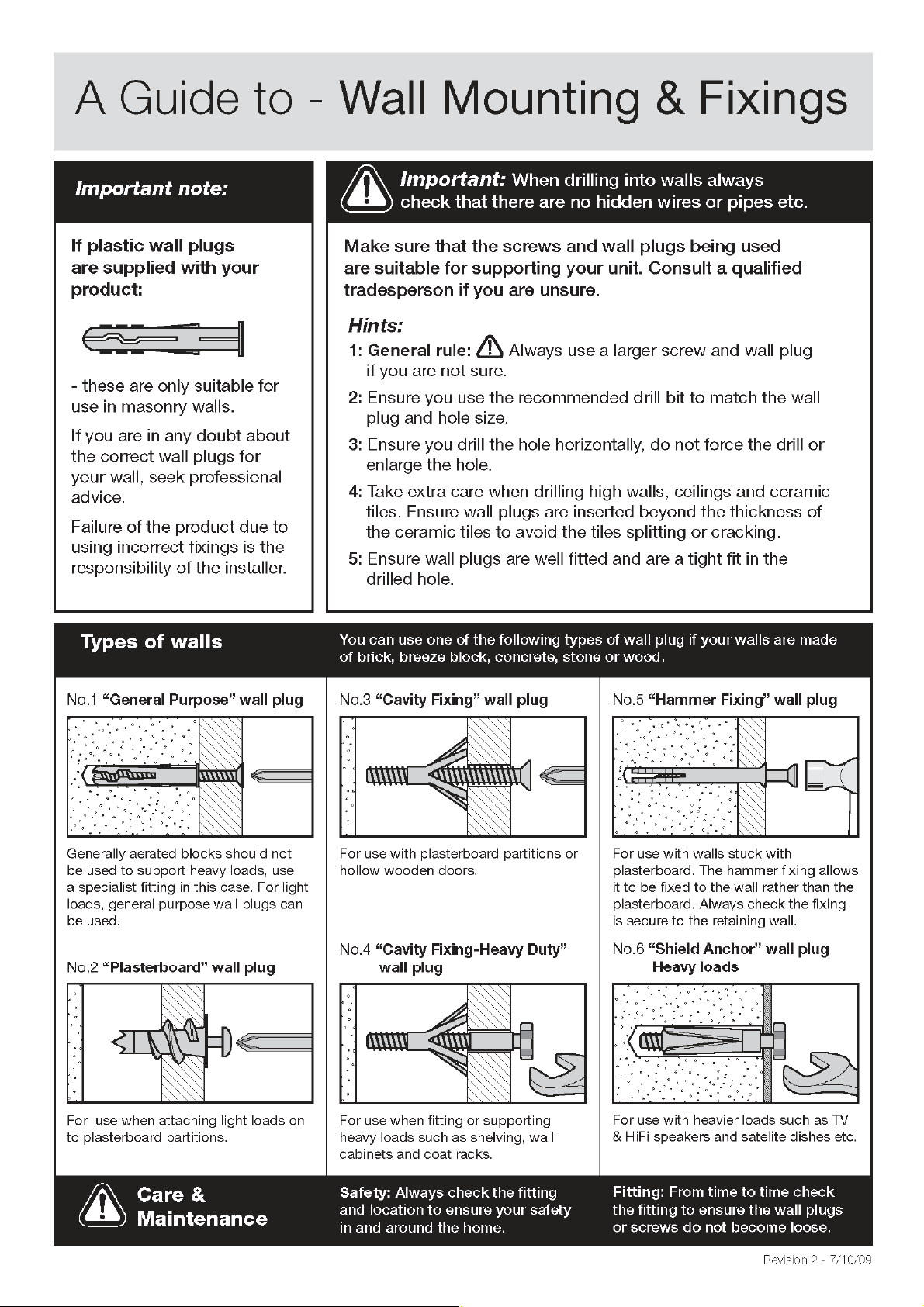

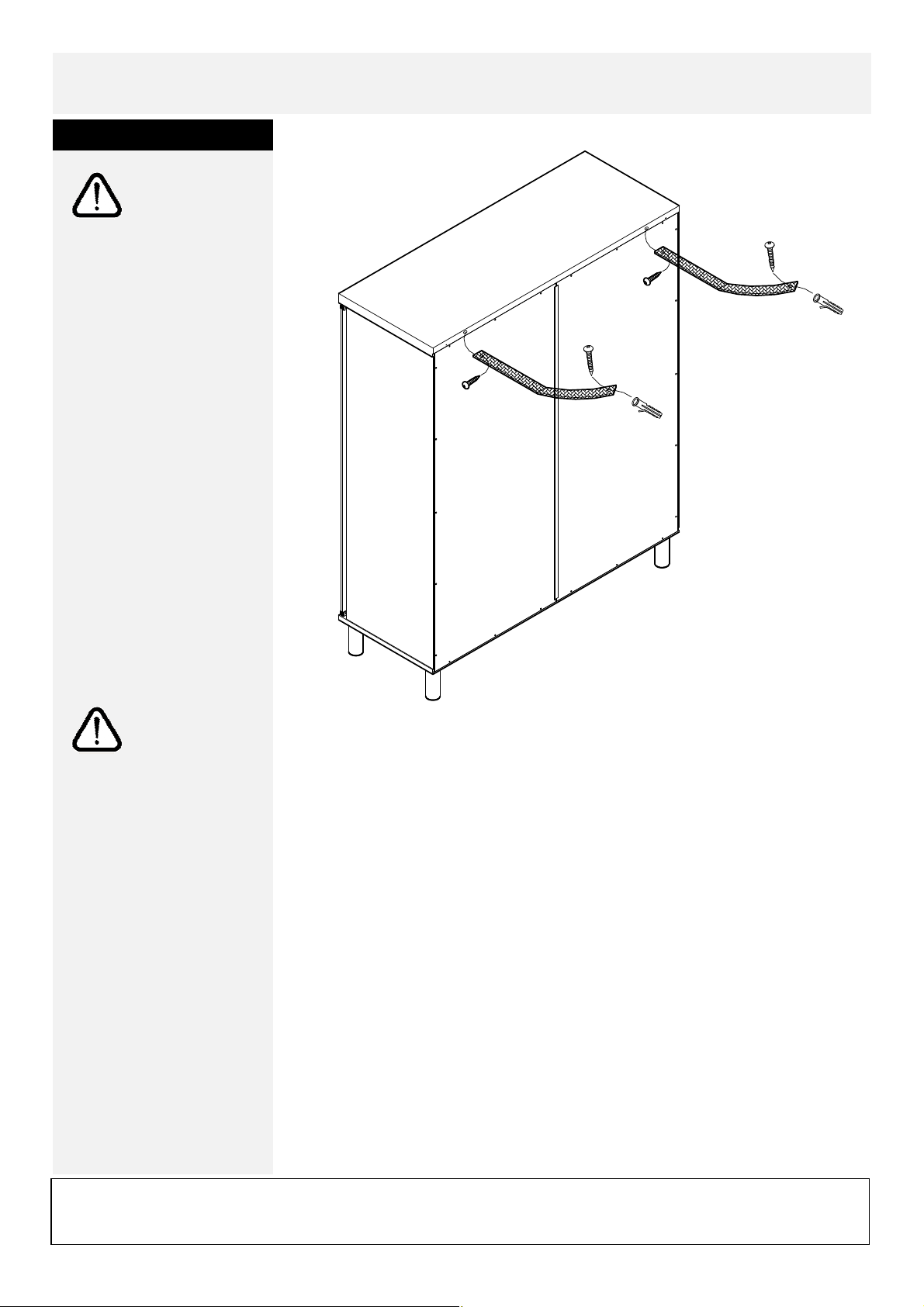

2 Large Wall Screws
14
Note: This Step
is for securing
the Unit to a
wall and should only be
attempted by
experienced persons.
You will Need the
Following:
- Another person to
assist you
- Electric Drill (& Drill
Bits)
- Screwdriver
Fixings Supplied:
- 2 Webbings
- 2 Small Wood
Screws
-
- 2 Wall Plugs
Note: The
fixings
described are
for use with solid
masonry walls only.
Alternative fixings should
be purchased if you have
a different wall
construction.
Assembly is complete.
If you need help or have damaged or missing parts, call the Customer Help Line: 08456 400800
Shaw Spencer Hometrading Ltd. 34-38 Vale Road, Bushey. WD23 2HE.
10
