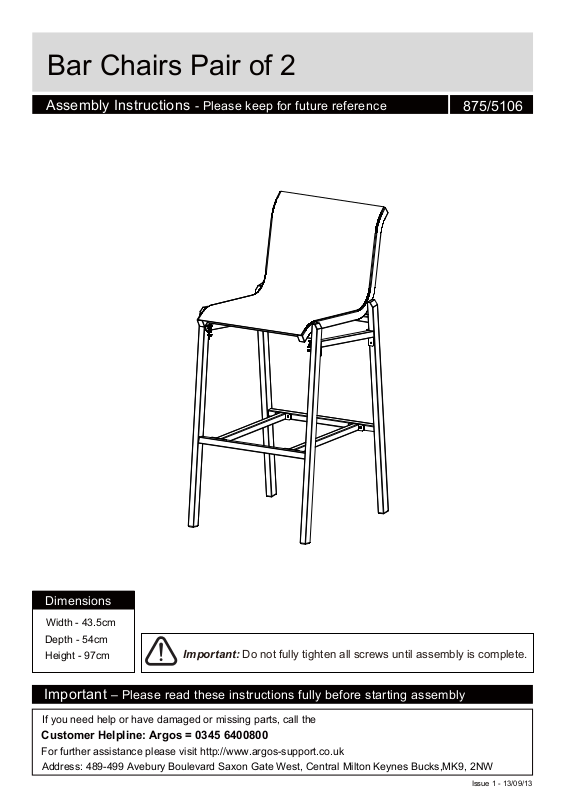

Page 1
Bar Chairs Pair of 2
Assembly Instructions
- Please keep for future reference
875/5106
Dimensions
Width - 43.5cm
Depth - 54cm
Height - 97cm
Important
If you need help or have damaged or missing parts, call the
Customer Helpline: Argos = 0345 6400800
For further assistance please visit http://www.argos-support.co.uk
Address: 489-499 Avebury Boulevard Saxon Gate West, Central Milton Keynes Bucks,MK9, 2NW
– Please read these instructions fully before starting assembly
Important: Do not fully tighten all screws until assembly is complete.
Issue 1 - 13/09/13
Page 2
Safety and Care Advice
Important – Please read these instructions fully before starting assembly
• Check you have all the
components and tools listed on
pages 2.
•
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Make su re you have enough
space to layout the parts before
starting.
Care and mainte nance
• Only clean using a damp cloth
and mild detergent, do not use
bleach or abrasive cleaners.
• Do not stand or put weight on the
product during assembly, this could
cause damage.
• Assemble the item as close
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
chair or your floor.
• Parts of the assembly will be
easier with 2 people.
r
• F om time to time check that
the e are no loose screws on
r
this chair.
• We do not
recommend the
use of power
drill/drivers for
inserting screws ,
as this could damage the unit.
Only use hand screwdrivers.
• Dispose of all packaging
carefully and responsibly.
• Maximum safe seated
weight: 110kgs.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
• Make sure each screw
matches the corresponding
figure to ensure correct
assembly.
• Do not fully tighten all screws
until assembly is complete.
Friendly Tips
• Do not fully tighten all
screws
• Make sure the assemble will be easier with 2 people.
until assembly is complete.
1
Page 3
Components - Parts & Fittings
If you have damaged or missing components, call the
P
lease check you have all the parts & fittings listed below
Customer Helpline: Argos = 0345 6400800
21
Left Leg x 1
4
5
Right Leg x 1 Seat x 1
aa
Bottom Support Pole x 2 Upper Support Pole x 1
A
B
3
6
bb
Upper Support Pole x 1
C
M6X15mm M6X28mm
Screw x 2Screw x 18
D
Screw caps x 20
provided
Allen key x 1
E
Ruler - Use this ruler to help correctly identify the screws
Washer x 20
0 5 10 1 5 2 0 25 30 3 5 4 0 45 50 5 5 60 6 5 70 75 80 8 5 9 0 9 5 100
105
11 0 115 12 0 12 5 130 13 5 140 145 15 0 155 16 0 165 170
2
Page 4
Assembly Instructions
Step 1
Important:
Do not fully tighten all screws until assembly is
complete. Otherwise, it may occur some screw
holes cannot line up, difficult to assemble.
and
Use screws
washers
bottom support pole
4 onto the legs 1
and
2
A
C to fix the
1
2
Step 2
Use screws and
washers to fix the
upper support pole
onto the frame
Attention: please
make sure labels
are located together.
A
C
5
aa
4
D
A
C
D
A
C
D
A
C
D
A
C
5
aa
aa
3
Page 5
Assembly Instructions
Step 3
D
A
C
Reverse assembled unit
use screws and
washers to fix the
upper support pole
onto the frame
A
C
6
bb
bb
C
bb
Attention: please
make sure labels
are located together.
Step 4
bb
A
D
6
Use screws and
washers to fix the
3
seat onto the legs
B
C
3
D
B
C
4
Page 6
Assembly Instructions
Step 5
Use screws and
washers to fix the
3
seat onto the frame
Tighten all the screws and
cover all the screws
B
and with cap .
A
C
A
D
Step 6
D
A
C
3
Assembly is complete
If you need help or have damaged or missing parts, call the
Customer Helpline: Argos = 0345 6400800
For further assistance please visit http://www.argos-support.co.uk
Address: 489-499 Avebury Boulevard Saxon Gate West, Central Milton Keynes Bucks,MK9, 2NW
5
