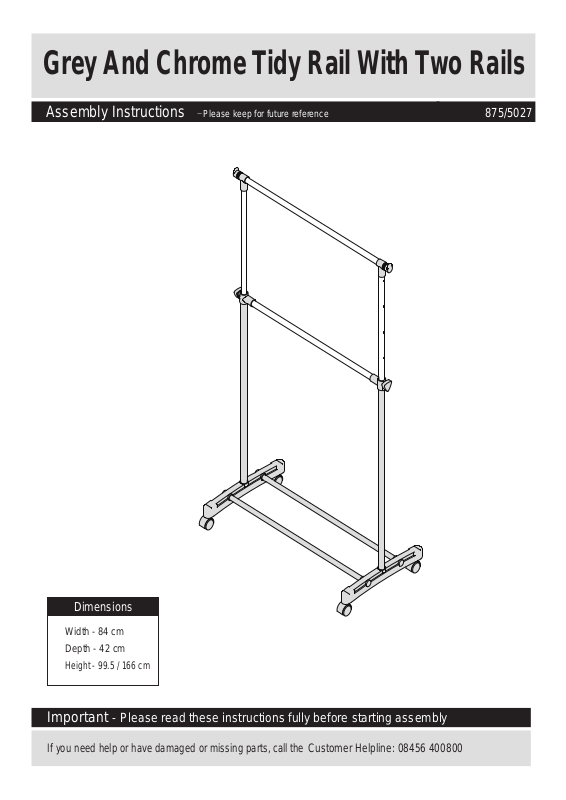

Grey And Chrome Tidy Rail With Two Rails
Assembly Instructions
-
Please keep for future reference
875/5027
Dimensions
Width - 84 cm
Depth - 42 cm
Height - 99.5 / 166 cm
Important
If you need help or have damaged or missing parts, call the
- Please read these instructions fully before starting assembly
Customer Helpline: 08456 400800
Page 2
Safety and care advice
Important - Please read these instructions fully before starting assembly
• Check you have all the
components and tools listed on
pages 2 and 3.
• Remove all fittings from the
plastic bags and separate them into
their groups.
• Keep children and animals away
from the work area, small parts
could choke if swallowed.
• Make sure you have enough
space to layout the parts before
starting.
• Assemble the unit as close to its
final position (in the same
room) as possible.
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• Assemble on a soft level surface
to avoid damaging the unit or your
floor.
• Parts of the assembly will be
easier with 2 people.
• If using power tools, please
follow the safety instructions
supplied with the tools.
• From time to time check that
there are no loose screws on this
unit.
• We do not
recommend the use
of power drill/ drivers
for inserting screws,
as this could damage
the unit. Only use hand
• Dispose of all packaging carefully
and responsibly.
• This product should not be
discarded with household waste.
Take to your local authority waste
disposal centre.
screwdrivers.
Note: if required the next page
can be cut out and used as a
reference throughout the
assembly. Keep this page with
these instructions for future
reference.
1
Page 3
Components
Components - Parts

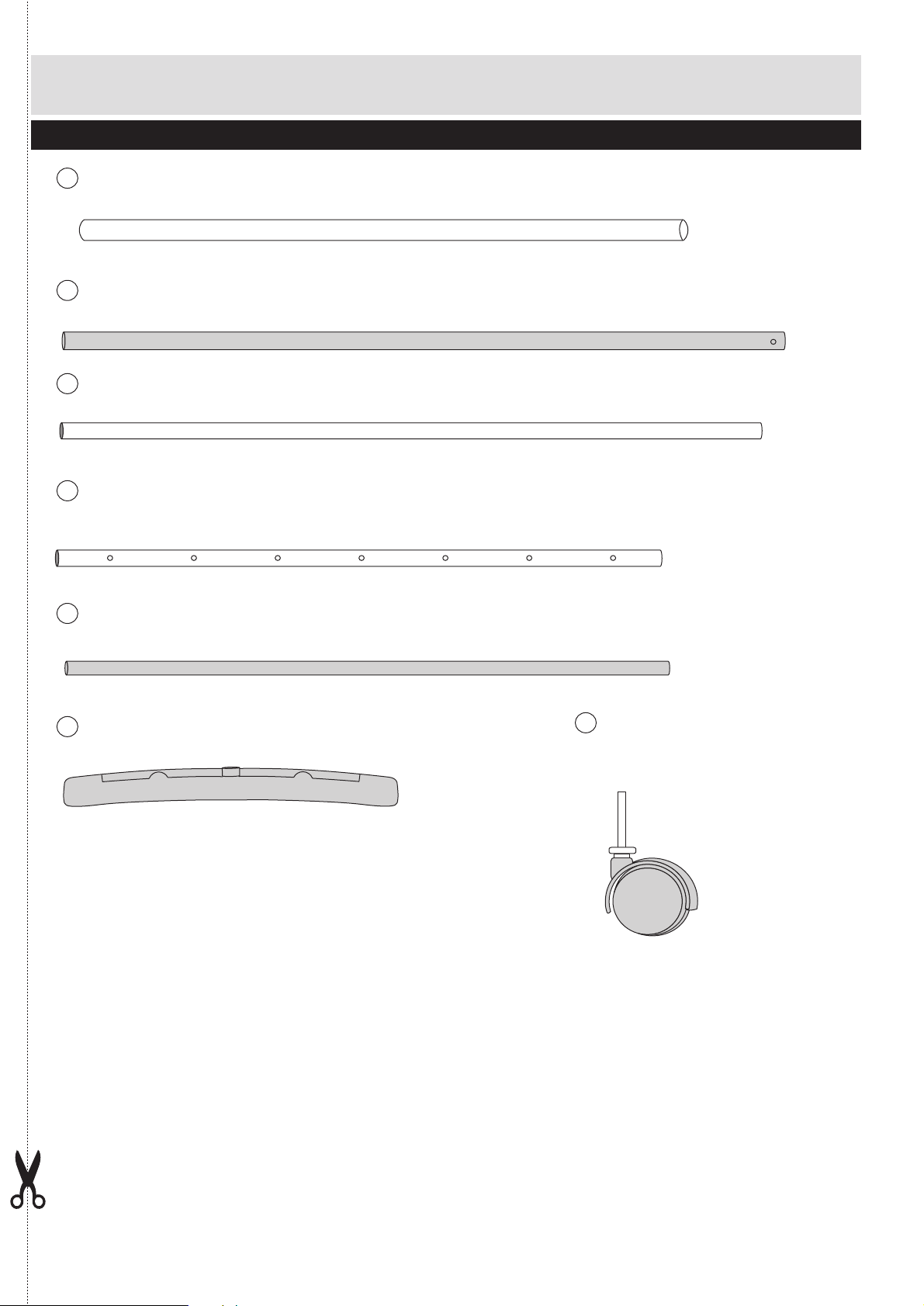

Please check you have all the panels listed below
A
1 x Hanger
2 x Lower Side Support
B
C
1 x Top Crossbar
2 x Upper Side Support
D
2 x Bottom Crossbar
E
F
(Inserted inside component B)
G2 x Leg Section
4 x Castor
2
Page 4
Components - Fittings
If you have damaged or missing components,
call the Customer Helpline: 08456 400800
Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings
may be supplied than are required.

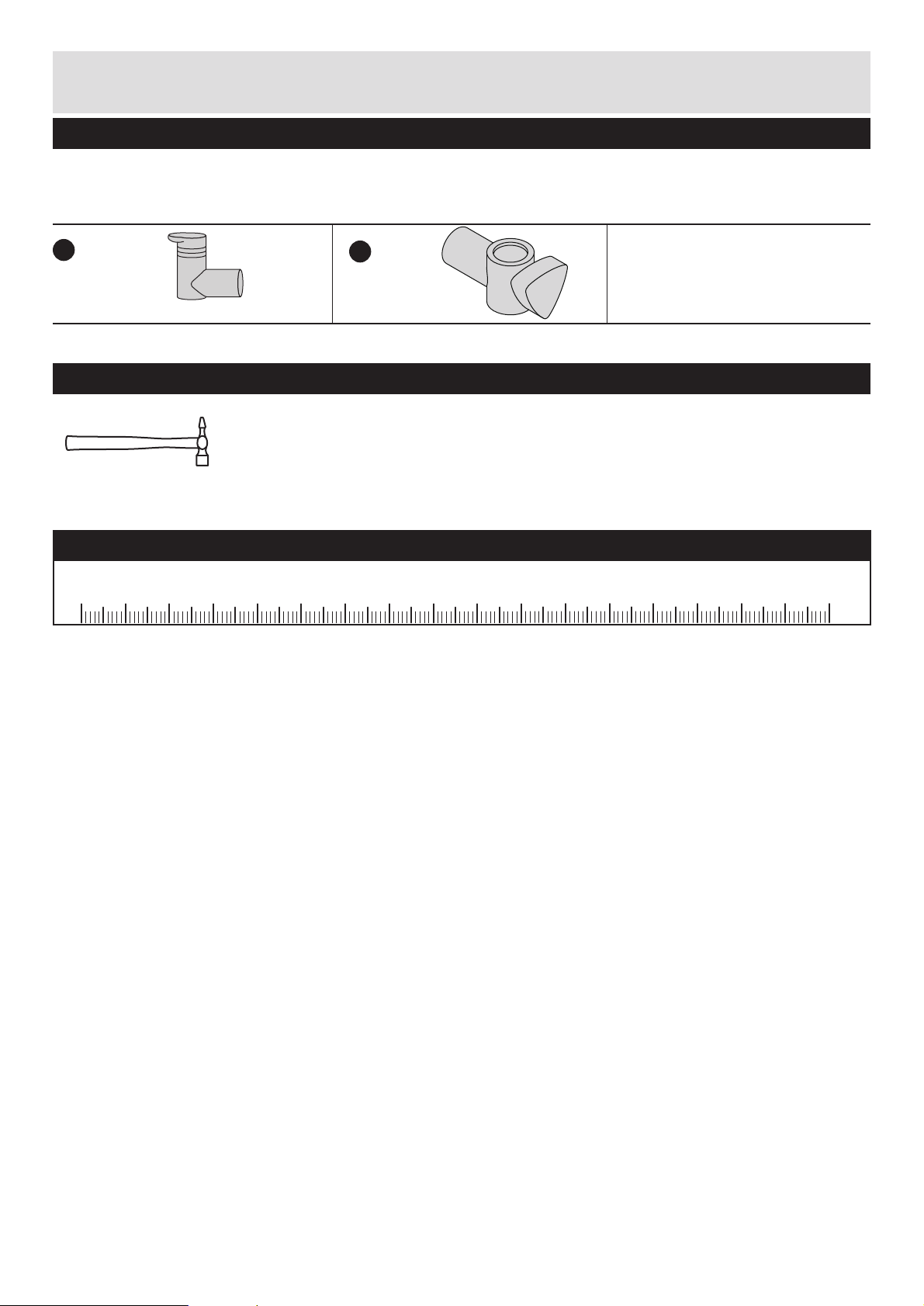

A
Connector x 2
B
A
Lock x 2
Tools required
Small
hammer
Ruler - Use this ruler to help correctly identify the screws
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100
105
110 115 120 125 130 135 140 145 150 155 160 165 170
3
Page 5
Assembly Instructions
Stage 1 –
NOTE: It would be useful to ask
someone to help you at this
stage.

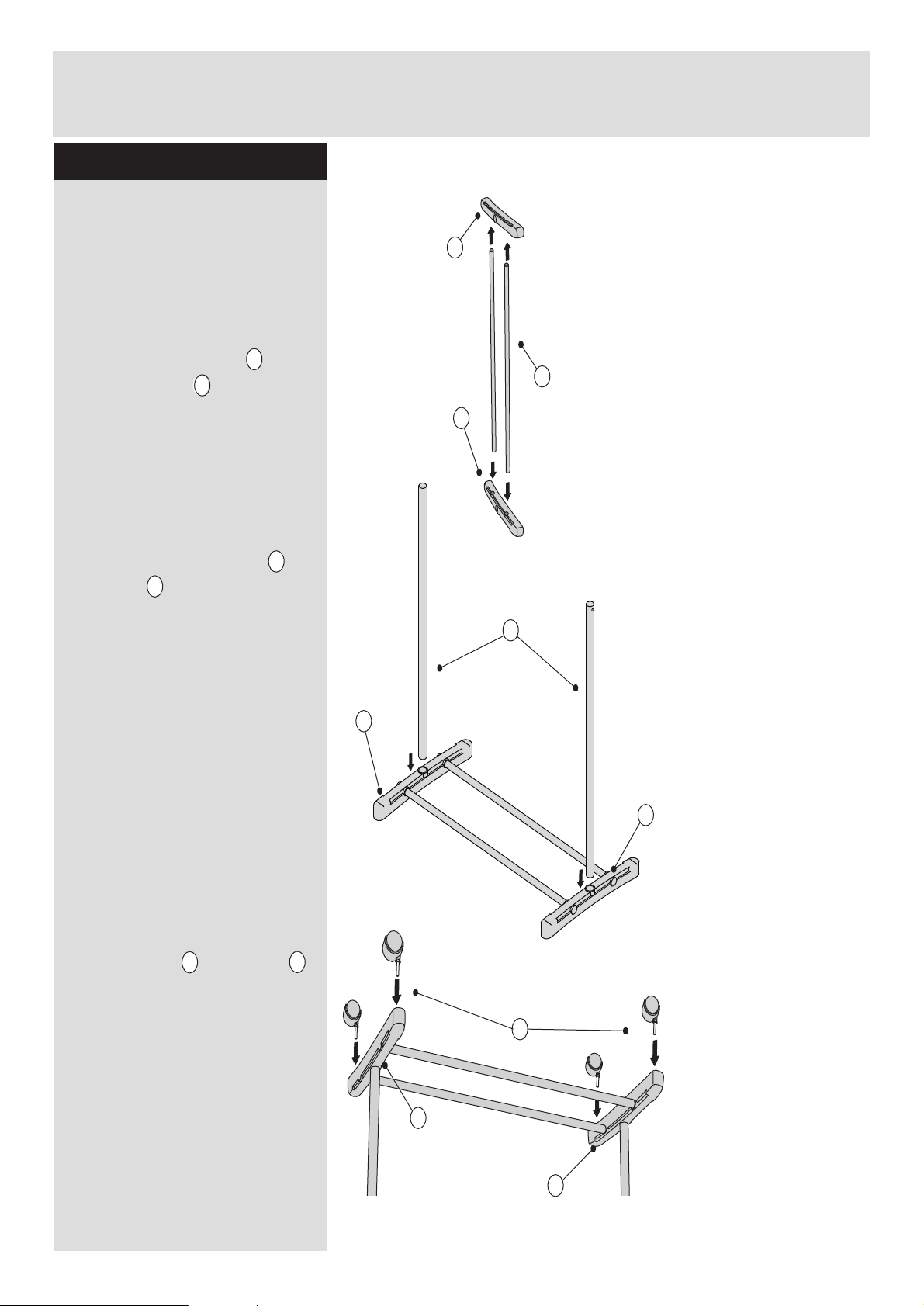

1. Insert Bottom Crossbar E into
the Leg Section . F.
See fig. 1.
2. Insert Lower Side Support into
the BFeet . F.
See fig. 2.
Fitting the Feet
F
F
E
fig. 1
B
3. Insert Castors G into the Feet F .
See fig. 3.
F
F
fig. 2
G
F
fig. 3
F
4
Page 6
Assembly Instructions
Stage 1 –
Stage 2 –
NOTE: It would be useful to ask
someone to help you at this
stage.

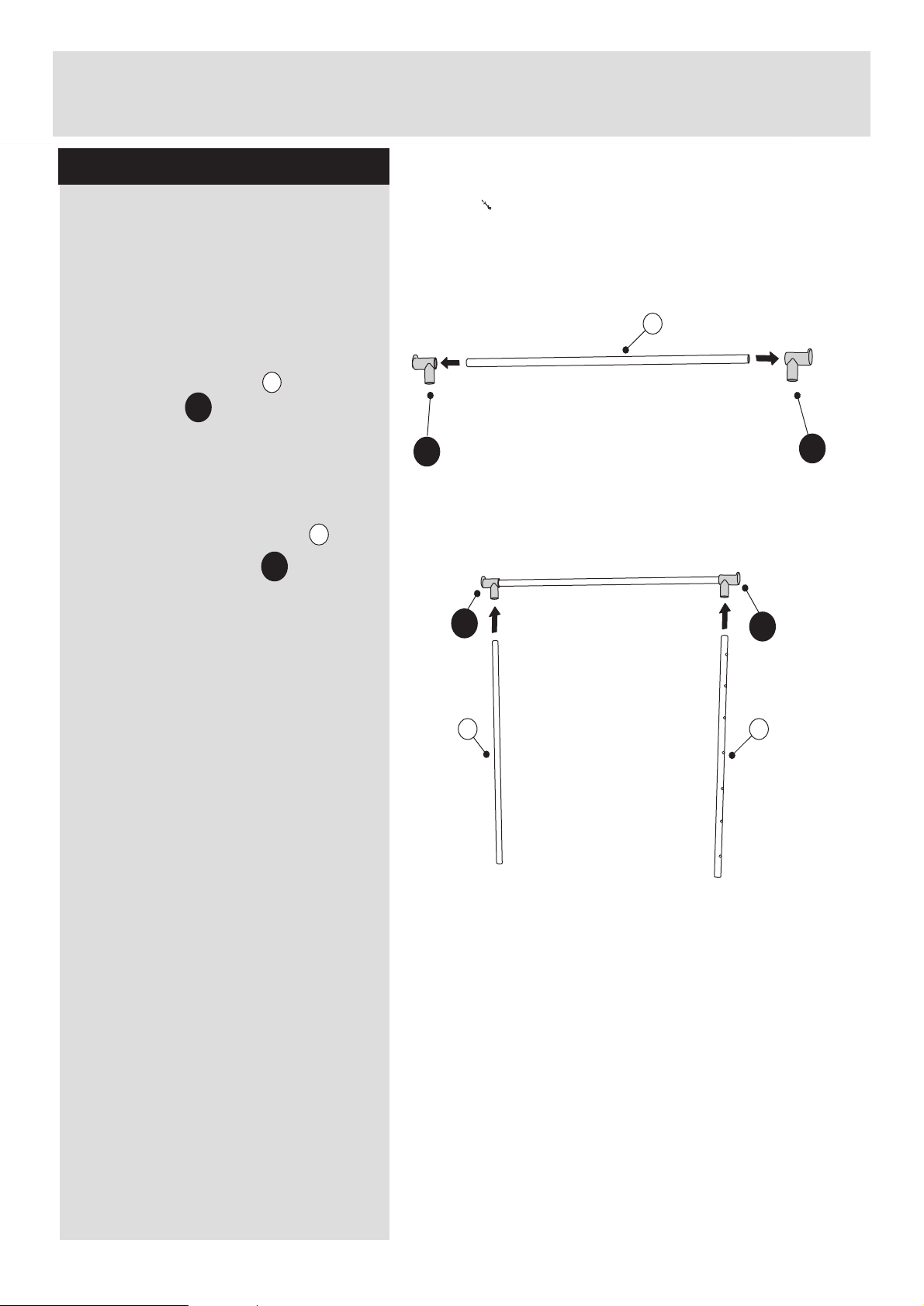

Insert Top Crossbar
1.
Connectors .
See fig. 4.
2.Insert Upper Side Support D
into the Connectors
See fig. 5.
Fitting the Feet
Fitting the Rail
into the
C
A
.
A
A
C
fig. 4
A
A
A
fig. 5
DD
5
Page 7
Assembly Instructions
Stage 3 –
NOTE: It would be useful to ask
someone to help you at this
stage.

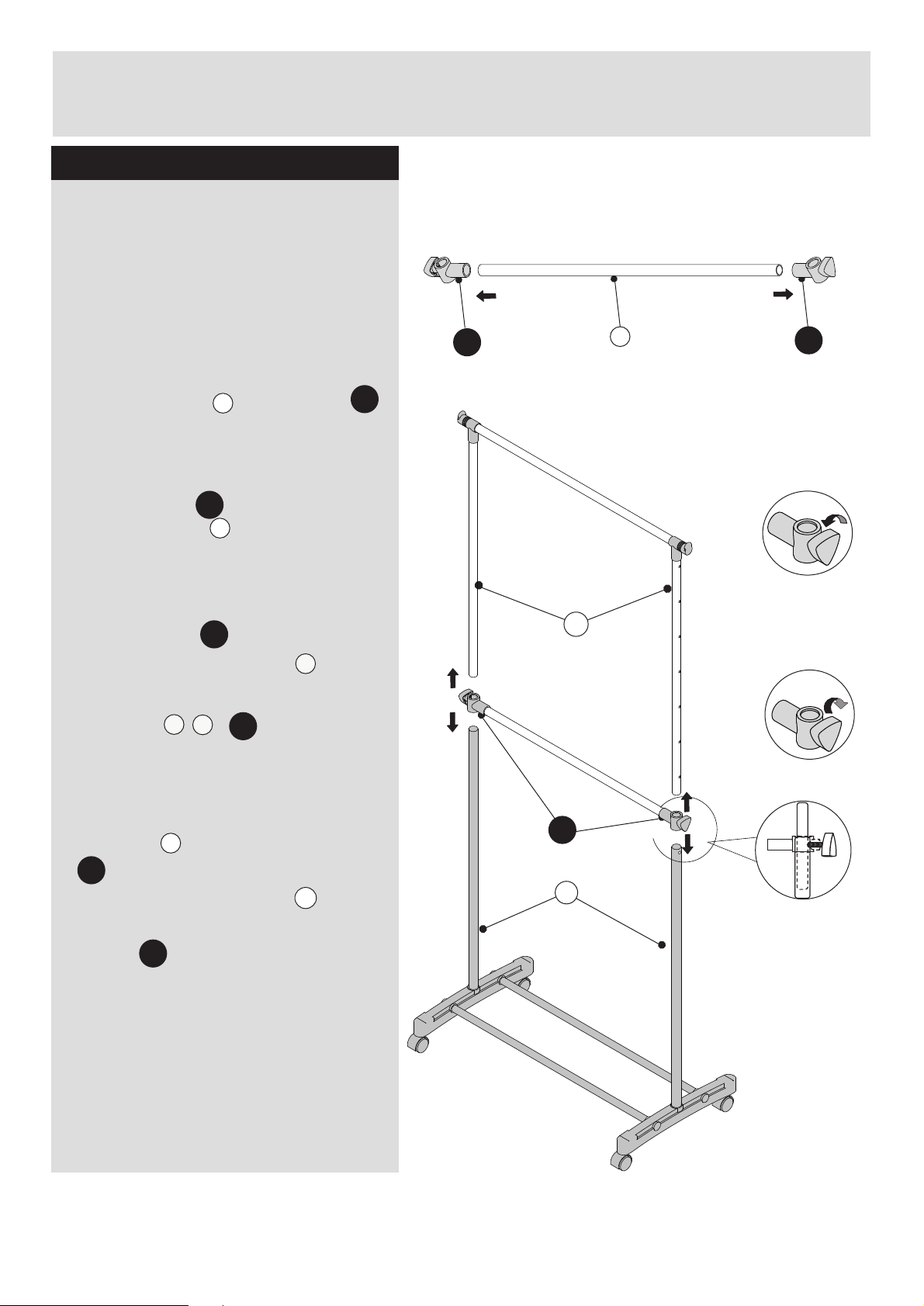

Insert Hanger
1.
See fig. 6.
2. Insert Locks into the Lower
Side Support B .
See fig. 7.
Fitting the Hanger
into the Lock
A
B
B
B
.
fig. 6
A
B
Unlocked
fig. 8
Insert Locks
3.
of Upper Side Support .
NOTES : Align all the holes of the
componets , before locking.
4.
Set the height of the unit:
Using the holes on Upper Side
Support D . Ensuring the Locks
B
are loosened See fig.8., slide
the Upper Side Support D to the
desired height and tighten the
Locks to fix in position.
See fig. 9 . & fig. 10.
Adjustment Range:99.5 ~ 167 cm.
B
into the bottom
B
B
D
&
B
D
D
Locked
fig. 9
B
B
B
fig. 10
fig. 7
6
Page 8
Assembly Instructions
Stage 4 –
NOTE: It would be useful to ask
someone to help you at this
stage.

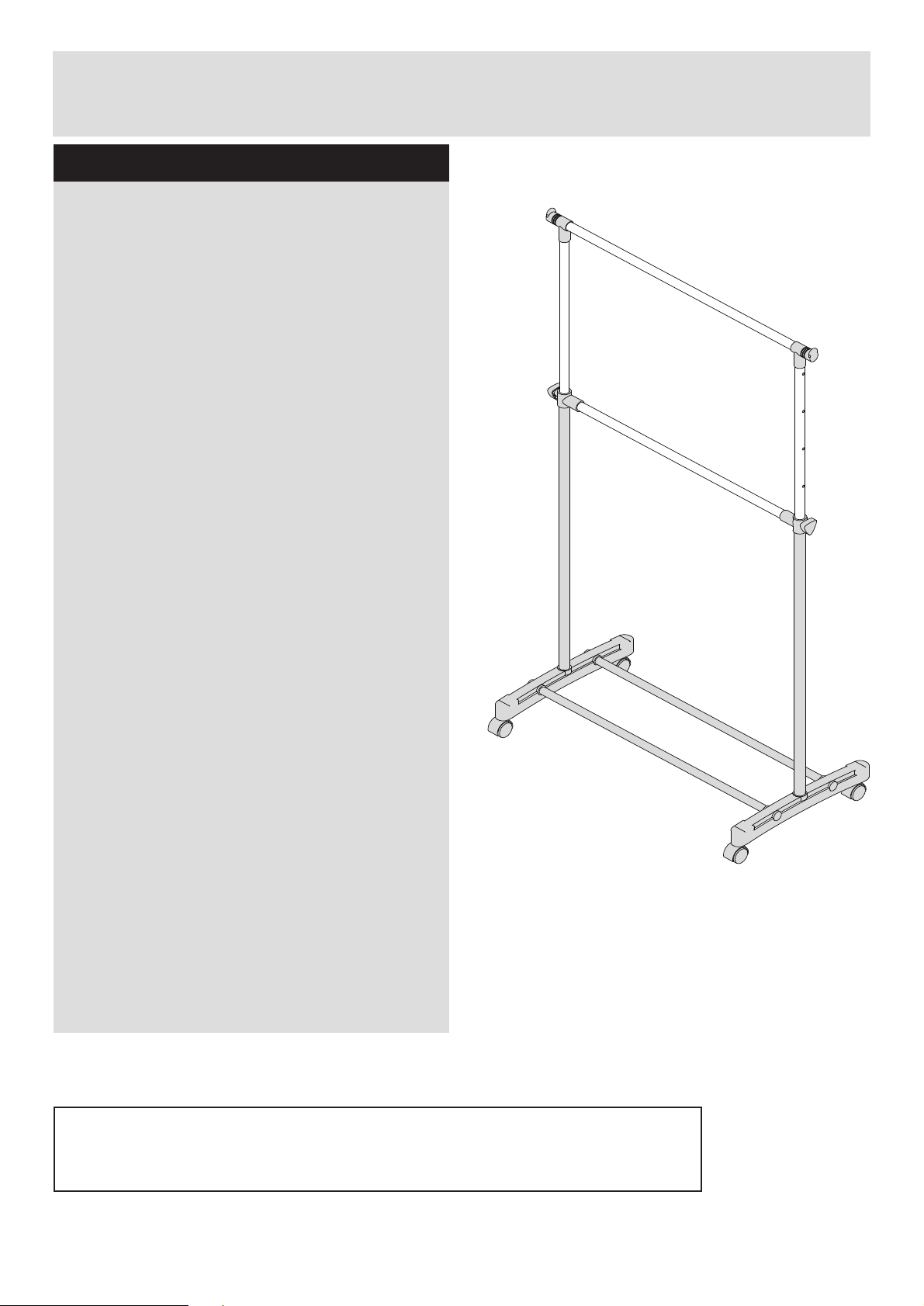

1. Carefully place the unit in the
desired location. See fig.11
And please hold Upper Side
Support and pull downward. It’ll
be fixed if locked or will be glided
downward if unlocked.
Finishing the Unit
NOTE: Before use always make
sure the unit is secure.
fig.11
