Page 1
Media Tower
Assembly Instructions
-
Please keep for future reference
875/4664
Dimensions
Width - 23.6cm
Depth - 20.1cm
Height - 97.6cm
Important - Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the
Customer Helpline: 08456 400800
Version 2 Date: 12/08/12
Page 2
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Check you have all the
components and tools listed on
pages 2 and 3.
rom the
plastic bags and separate them
into their groups.
• Keep children and animals away
from the work area, small parts
could choke if swallowed.
• Make sure you have enough
space to layout the parts before
starting.
• Do not use this item if any
components are missing or
damaged.
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do not use
bleach or abrasive cleaners.
• Do not stand on the product,
this could cause damage.
• Assemble the item as close to
room) as possible.
• Assemble on a soft level surface
to avoid damaging the unit or your
r.
• Parts of the assembly will be
easier with 2 people.
• From time to time check that
there are no loose screws on
this unit.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Dispose of all packaging
carefully and responsibly.
• This product should not be
discarded with household waste.
Take to your local authority waste
disposal centre.
1
Page 3

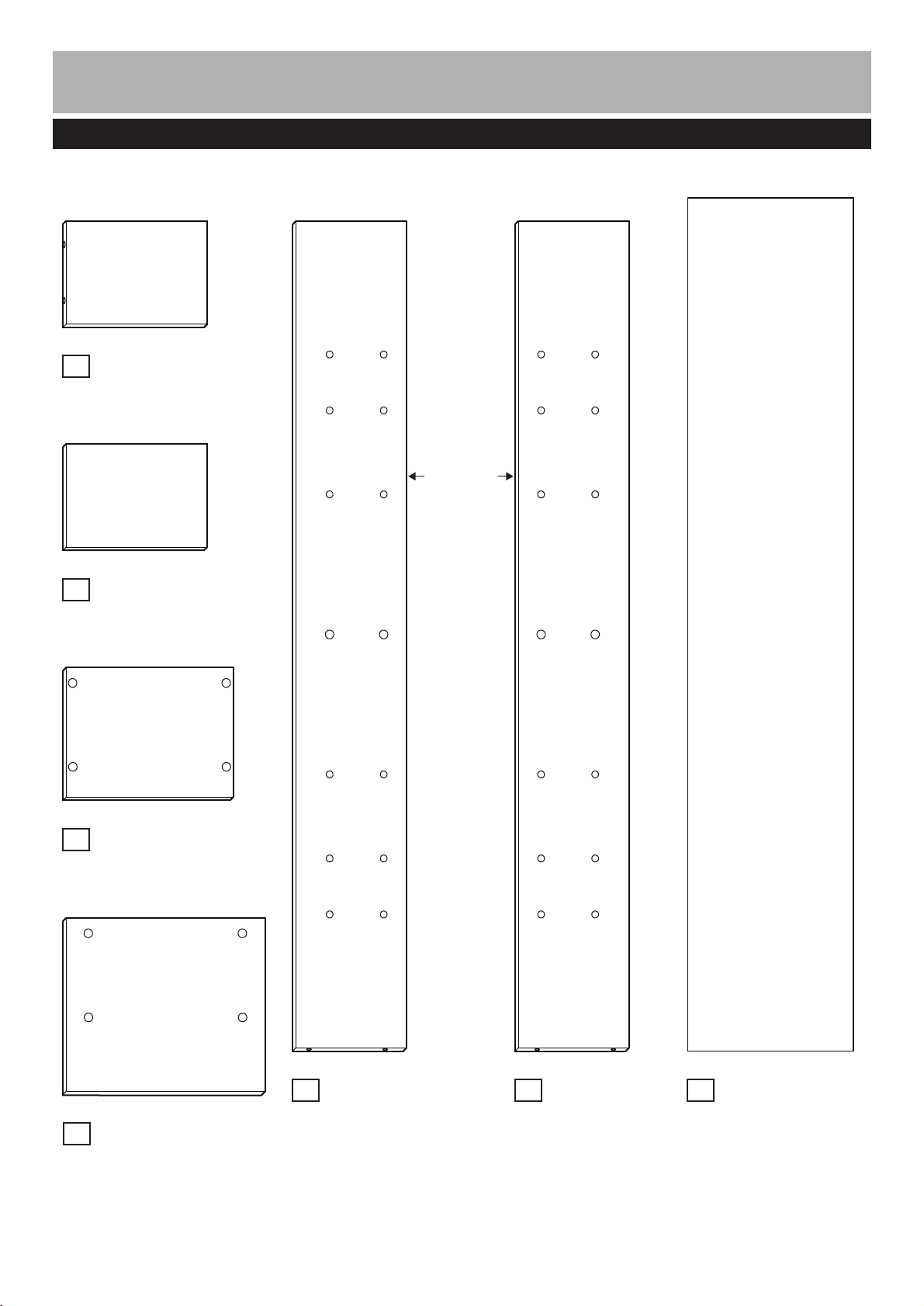

Components - Panels
Please check you have all the panels listed below
Middle support
1
(16.7 x 11.8cm)
Finished
front edge
If you have damaged or missing components,
call the Customer Helpline: 08456 400800
Shelf panel x 4
2
(16.7 x 11.8cm)
Top panel
3
(19.8 x 14.8cm)
Bottom panel
4
(23.5 x 19.8cm)
Right side panel
5
(13.1 x 94.5cm)
Left side panel
6
(13.1 x 94.5cm)
Back panel
7
(19.5 x 97.2cm)
2
Page 4

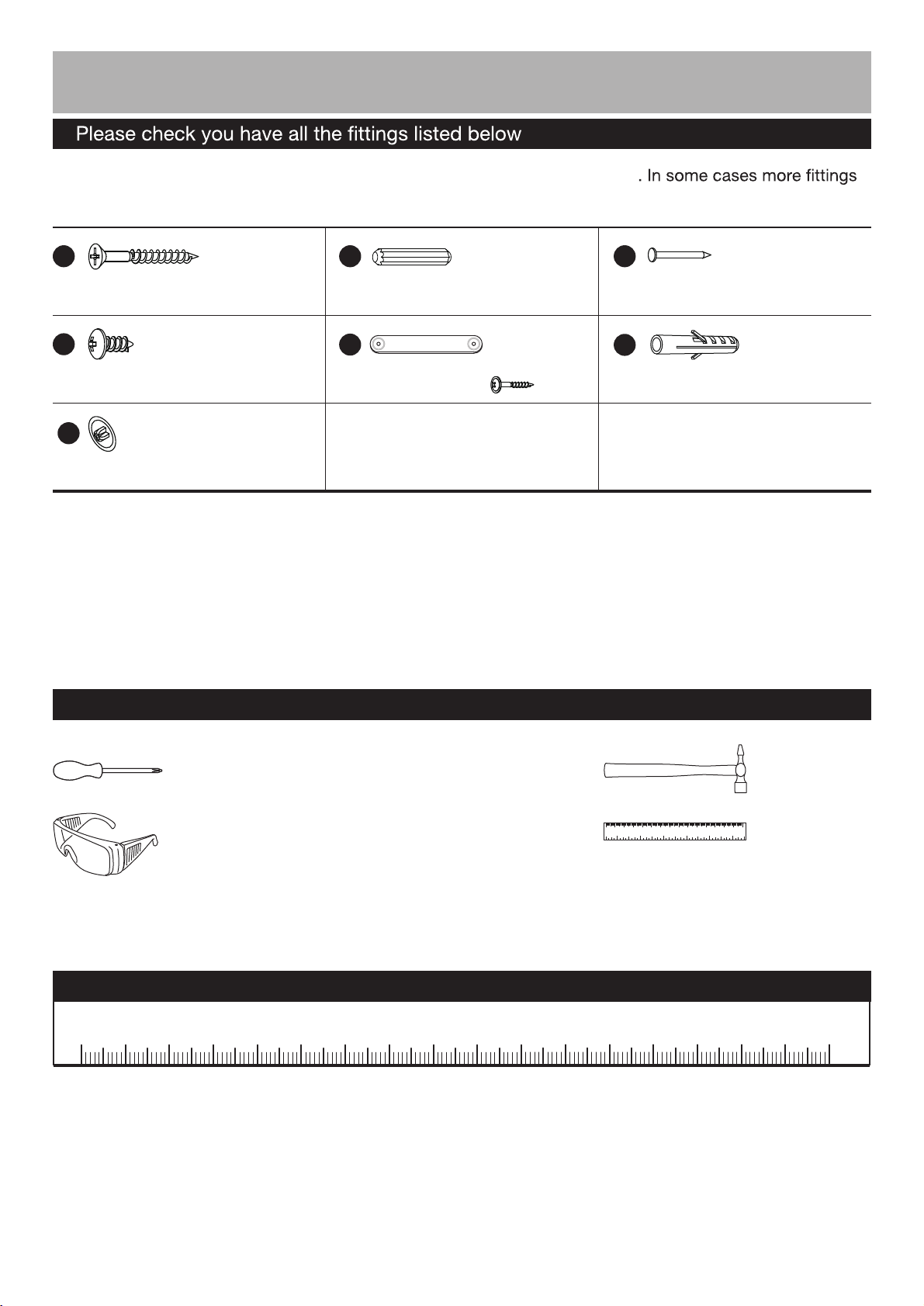

sgnittiF - stnenopmoC
Note: The quantities below are the correct amount to complete the assembly
may be supplied than are required.
A
40mm Screw x 12
D
14mm Screw x 1
G
Screw cover x 4
Q
Tools required
B
C
20mm Dowel x 16 Nail x 17
(This screw is
E
included in the
bag of wall strap)
Wall strap x 1 x 1
F
Wall plug x 1
Phillips screwdriver
(medium & large)
Eye protection
(when using a
hammer or glue)
Ruler - Use this ruler to help correctly identify the screws
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100
105
Small
hammer
0 1 2 3 4 5 6
110 120 130 140 1500 10 20 30 40 50 60 70 80 90 100
Ruler/tape
measure
110 115 120 125 130 135 140 145 150 155 160 165 170
3
Page 5

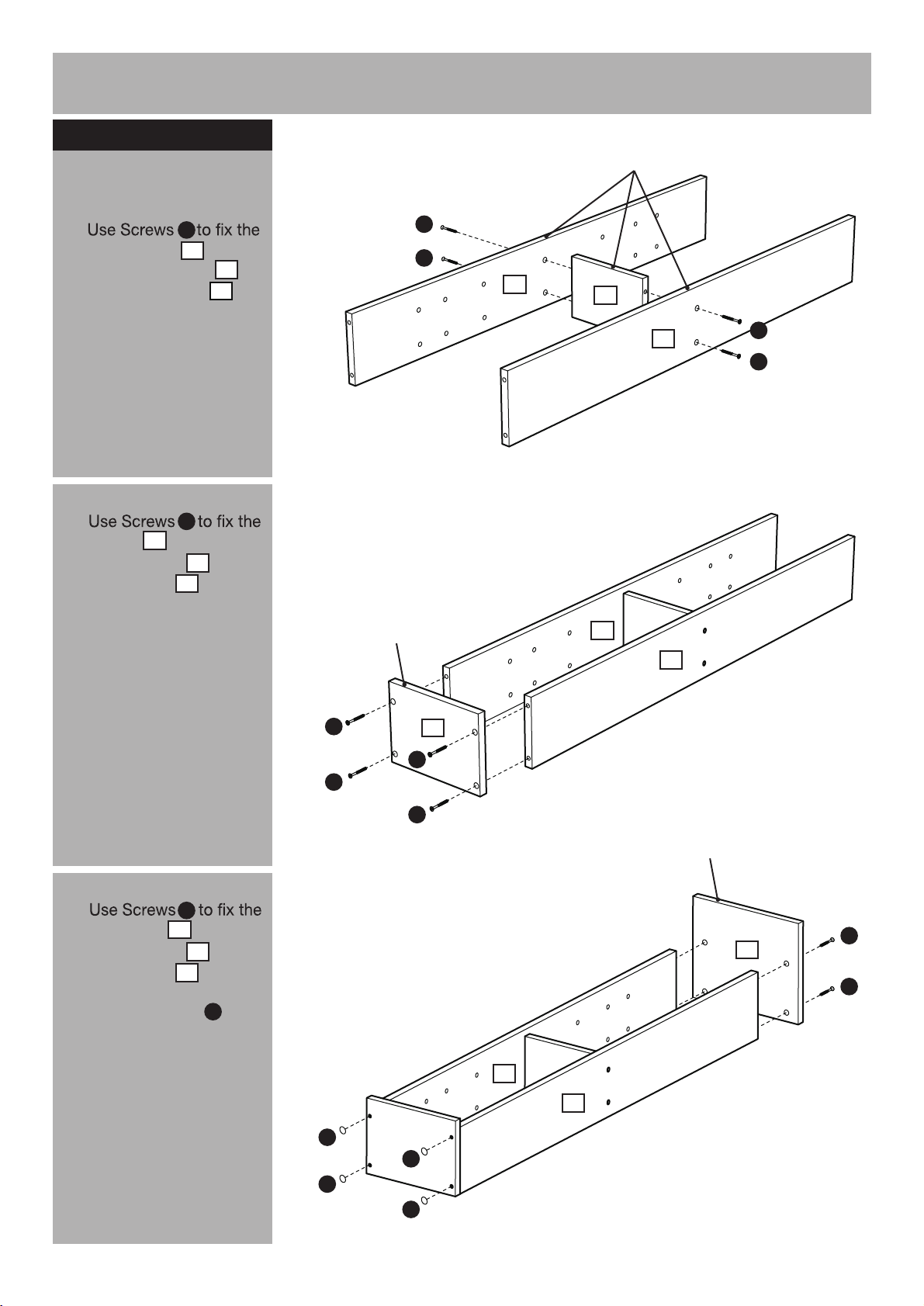

Assembly Instructions
Step 1
Fitting the unit
a:
Middle support onto
the Right side panel
and Left side panel .
b:
Top panel onto the
Right side panel and
Left side panel .
A
1
5
6
A
3
5
6
a:
b:
Finished
front edge
A
A
5
1
6
A
A
c:
Bottom panel onto the
Right side panel and
Left side panel .
Use
Screw covers
A
4
5
6
to
G
cover the screw heads.
c:
A
A
Finished
front edge
A
A
5
6
3
Finished
front edge
A
4
A
5
6
G
G
G
G
4
Page 6

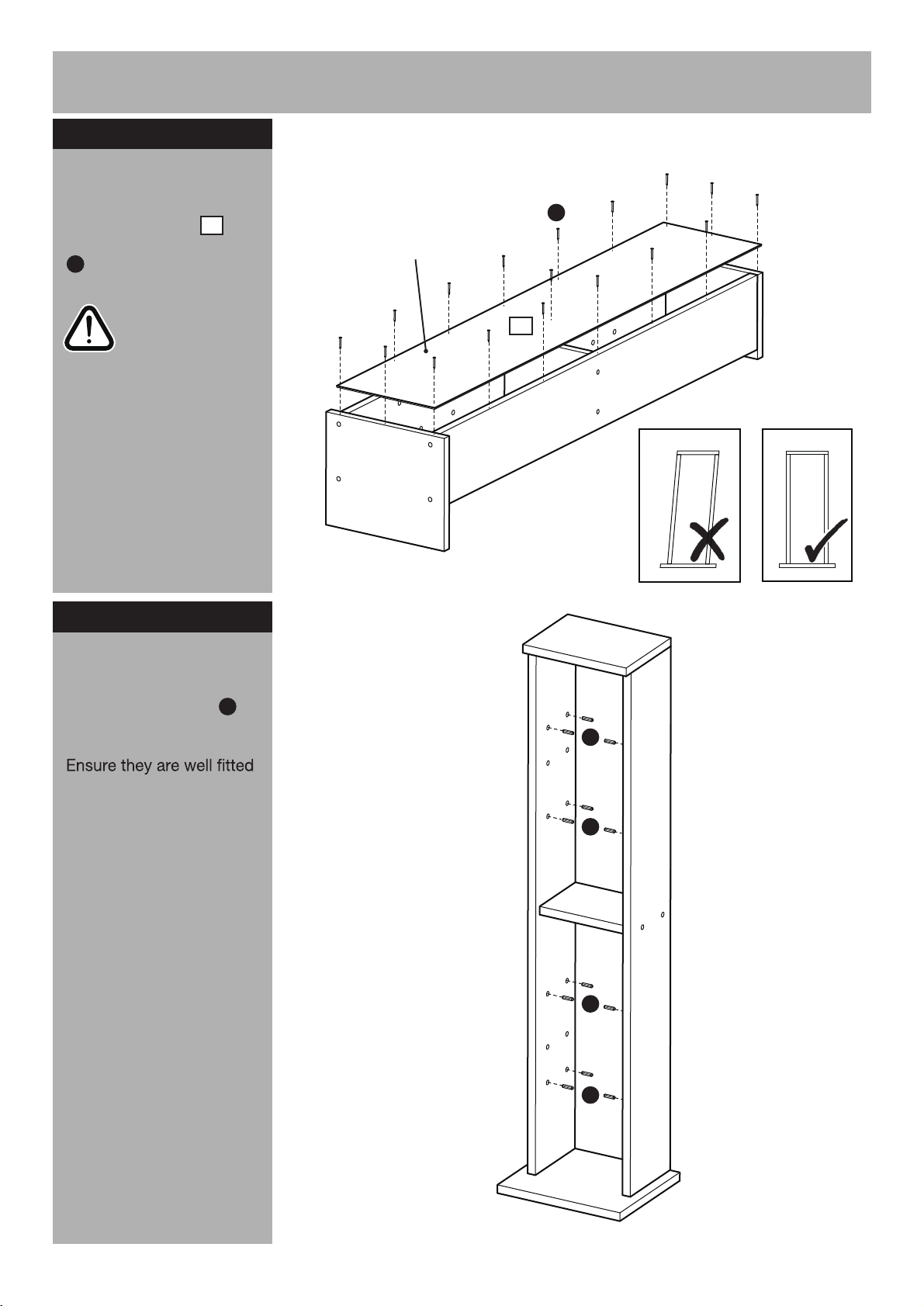

Assembly Instructions
Step 2
Fixing back panel
Attach back panel to
back of chest using nails
C
.
7
Unnished
back surface
C
Important:
The cabinet MUST
be ‘square’ when
the back is attached.
Step 3
Attaching the shelves
a:
Insert the Dowels
into the unit.
B
7
a:
B
before inserting the
shelves.
Continued on next page.
B
B
B
5
Page 7

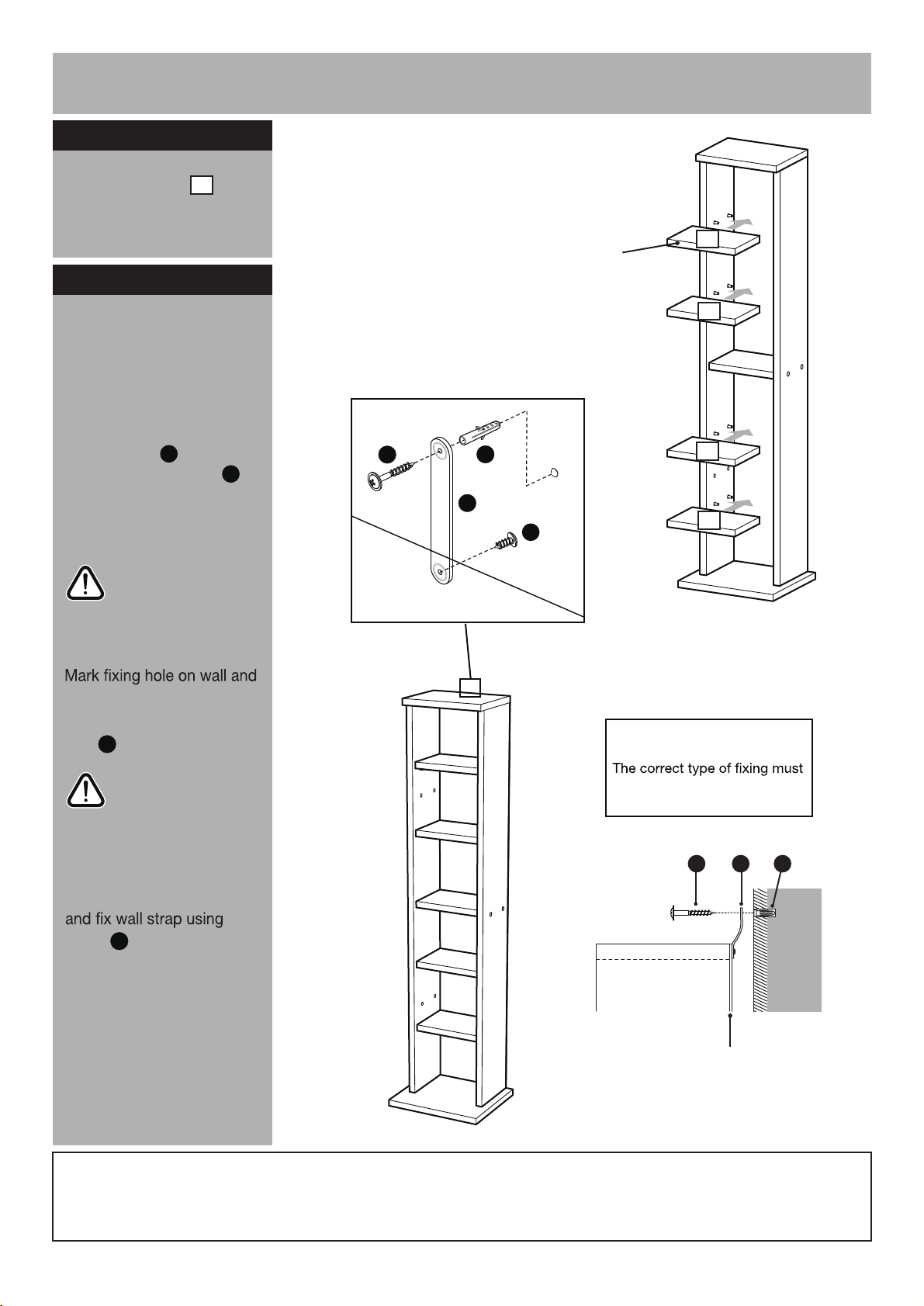

Assembly Instructions
Step 3 - continued
b:
b:
Slide Shelves into
the unit.
2
Step 4
Fixing to wall
It is recommended that the
media tower is xed to a
wall.
Fix Wall strap to back of
top panel using Screw .
With help, move media tower
into position.
Warning:
The
heavy.
Lift with care.
E
D
media tower
is
E
Top panel
Finished
front edge
F
E
wall
D
2
2
2
2
remove media tower .
Drill a hole and insert Wall
F
plug .
Warning:
Before drilling,
check wall for
hidden pipes and
and cables.
Reposition media tower
Screw .
E
Assembly is complete.
Note:
Wall plugs supplied are
for solid wall only.
be used for your wall, seek
professional advice if in doubt
E
E
F
Back panel
If you need help or have damaged or missing parts, call the
Customer Helpline: 08456 400800
6
Page 8

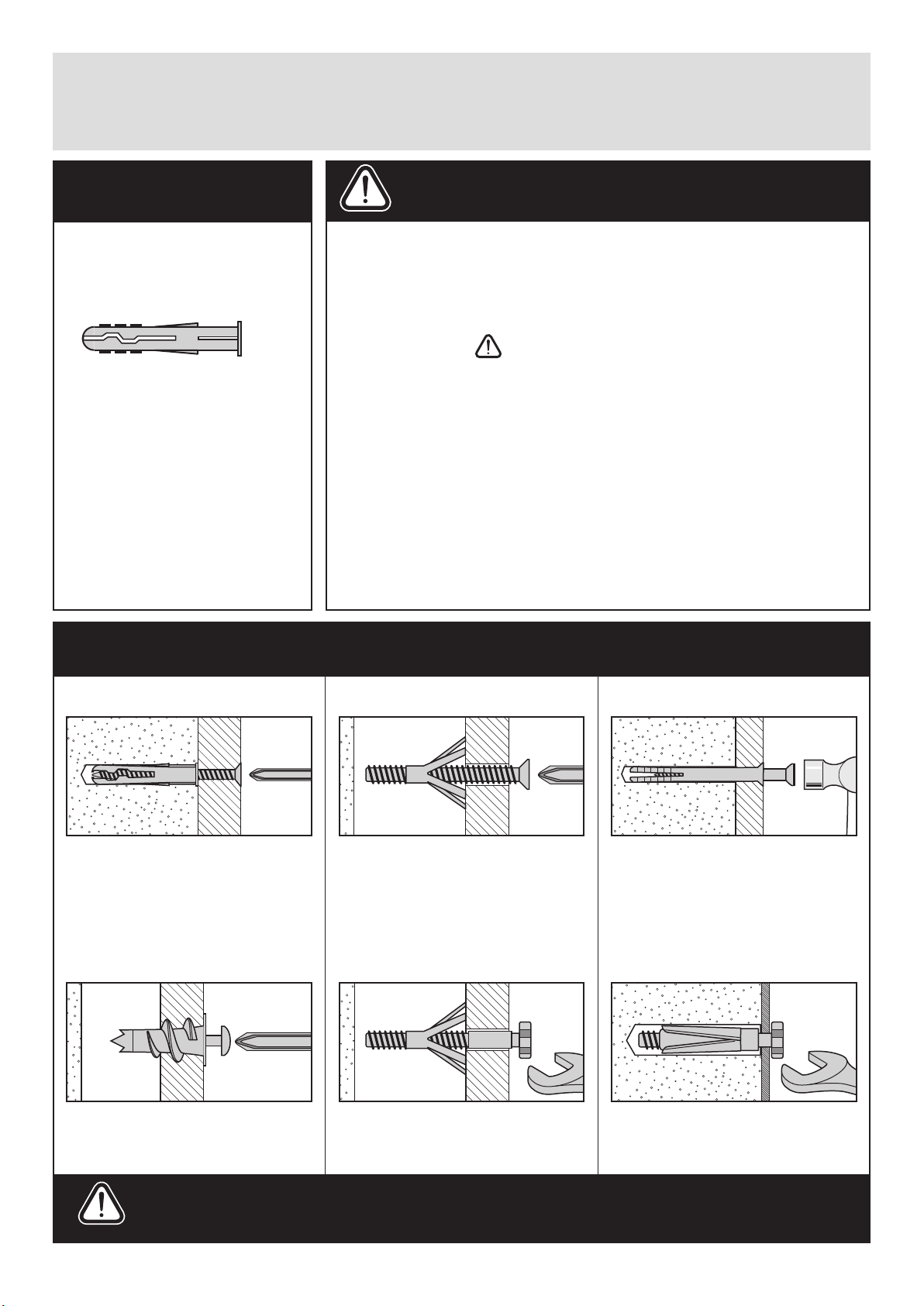

A Guide to - Wall Mounting & Fixings
Important note:
If plastic wall plugs
are supplied with your
product:
- these are only suitable for
use in masonry walls.
If you are in any doubt about
the correct wall plugs for
your wall, seek professional
advice.
Failure of the product due to
using incorrect xings is the
responsibility of the installer.
Important: When drilling into walls always
check that there are no hidden wires or pipes etc.
Make sure that the screws and wall plugs being used
are suitable for supporting your unit. Consult a qualified
tradesperson if you are unsure.
Hints:
1: General rule: Always use a larger screw and wall plug
if you are not sure.
2: Ensure you use the recommended drill bit to match the wall
plug and hole size.
3: Ensure you drill the hole horizontally, do not force the drill or
enlarge the hole.
4: Take extra care when drilling high walls, ceilings and ceramic
tiles. Ensure wall plugs are inserted beyond the thickness of
the ceramic tiles to avoid the tiles splitting or cracking.
5: Ensure wall plugs are well tted and are a tight t in the
drilled hole.
Types of walls
No.1 “General Purpose” wall plug
Generally aerated blocks should not
be used to support heavy loads, use
a specialist tting in this case. For light
loads, general purpose wall plugs can
be used.
No.2 “Plasterboard” wall plug
You can use one of the following types of wall plug if your walls are made
of brick, breeze block, concrete, stone or wood.
No.3 “Cavity Fixing” wall plug
For use with plasterboard partitions or
hollow wooden doors.
No.4 “Cavity Fixing-Heavy Duty”
wall plug
No.5 “Hammer Fixing” wall plug
For use with walls stuck with
plasterboard. The hammer xing allows
it to be xed to the wall rather than the
plasterboard. Always check the xing
is secure to the retaining wall.
No.6 “Shield Anchor” wall plug
Heavy loads
For use when attaching light loads on
to plasterboard partitions.
Care &
Maintenance
For use when tting or supporting
heavy loads such as shelving, wall
cabinets and coat racks.
Safety: Always check the fitting
and location to ensure your safety
in and around the home.
For use with heavier loads such as TV
& HiFi speakers and satelite dishes etc.
Fitting: From time to time check
the fitting to ensure the wall plugs
or screws do not become loose.
Revision 2 - 7/10/09
