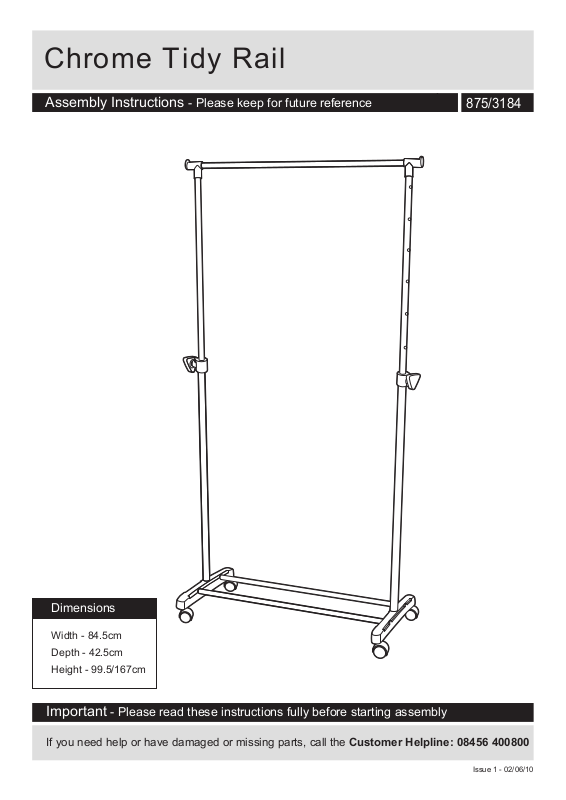

Page 1
Chrome Tidy Rail
Assembly Instructions - Please keep for future reference
875/3184
Dimensions
Width - 84.5cm
Depth - 42.5cm
Height - 99.5/167cm
Important - Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Issue 1 - 02/06/10
Page 2
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Check you have all the
components and tools listed on
page 2.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts are a chokong hazard.
• Make sure you have enough
space to layout the parts before
starting.
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• Assemble on a pad to avoid
damaging the unit or your floor.
• Parts of the assembly will be
easier with 2 people.
• If using power tools, please
follow the safety instructions
supplied with the tools.
• Assemble the unit as close to its
final position (in the same room)
as possible.
• From time to time check that
there are no loose screws on
this unit.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Dispose of all packaging
carefully and responsibly.
• This product should not be
discarded with household waste.
Take to your local authority
waste disposal centre.
1
Page 3
Components - Panels
Please check you have all the panels listed below
Rail x 1 (84cm)
1
If you have damaged or missing components,
call the Customer Helpline: 08456 400800
Bottom tube x 2
2
Lower side support x 2
3
Upper side support x 2
4
(78cm)
(86cm)
(78cm)
Components - Fittings
Please check you have all the fittings listed below
Note:
The quantities below are the correct amount to complete the assembly. In some cases more fittings
may be supplied than are required.
A B
Connector x 2 Lock x 2
D
Castor x 4
C
Leg section x 2
(42cm)
2
Page 4
Assembly Instructions
Step 1
Note: It would be useful
to ask someone to help
you at this stage.
a:
Insert Bottom tubes
into Leg section .
C
A
2
a:
C
2
2
C
b:
Insert Lower side supports
3
into Leg section .
C
A
b:
C
C
3
3
3
Page 5
Assembly Instructions
Step 2
a:
Note: It would be useful
to ask someone to help
you at this stage.
A
A
A
1
a: Insert Rail into
Connectors .
1
A
b: Insert Upper side
A
A
D
A
C
A
support into
Connectors .
4
c: Insert Castors
into Leg section .
b:
c:
A A
4
4
C
D
C
D
4
Page 6
Assembly Instructions
Step 3
Note: It would be useful
to ask someone to help
you at this stage.
B
a: Insert Locks into
A
the top of Lower side
support .
3
Insert Upper side support
4
into the Locks .
B
A
Don’t tighten the Locks
B
A
until the next step of
height setting.
b: Set the height of the
unit.
B
Ensuring the Locks
are loosened, slide the
Upper side support
to the desired height
and tighten the Locks
to affix in position as
shown in fig.1.
A
4
B
A
a:
b:
4
4
B
3
4
B
3
B
Adjustment Range:
99.5-167cm.
Note: Please hold Upper
side support and pull
4
downward. It will be fixed
B
fig.1.
if locked or will glide
downward if unlocked.
Assembly is complete.
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
