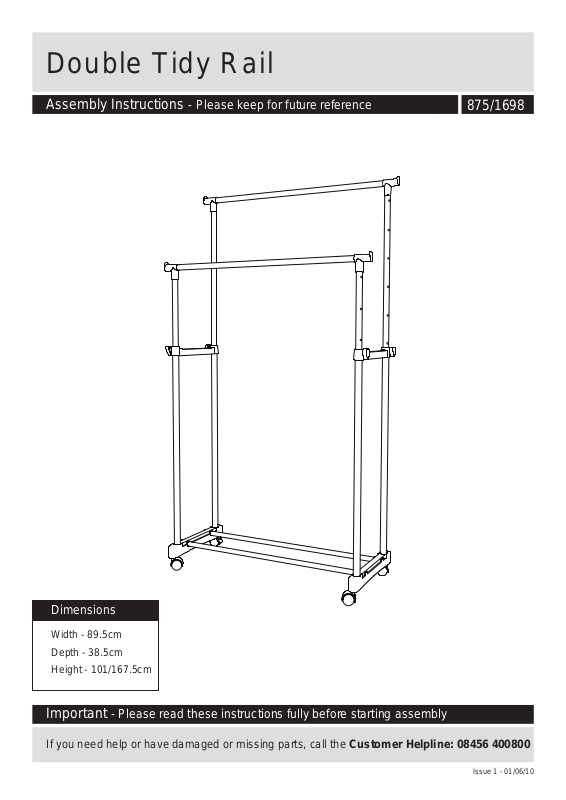

Double Tidy Rail
Assembly Instructions - Please keep for future reference
875/1698
Dimensions
Width - 89.5cm
Depth - 38.5cm
Height - 101/167.5cm
Important - Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Issue 1 - 01/06/10
Page 2
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Check you have all the
components and tools listed on
page 2.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts are a choking hazard.
• Make sure you have enough
space to layout the parts before
starting.
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• Assemble on a pad to avoid
damaging the unit or your floor.
• Parts of the assembly will be
easier with 2 people.
• If using power tools, please
follow the safety instructions
supplied with the tools.
• Assemble the unit as close to its
final position (in the same room)
as possible.
• From time to time check that
there are no loose screws on
this unit.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Dispose of all packaging
carefully and responsibly.
• This product should not be
discarded with household waste.
Take to your local authority
waste disposal centre.
1
Page 3
Components - Panels
Please check you have all the panels listed below
Rail x 2 (89cm)
1
Bottom crossbar x 2 (83cm)
2
Lower side support x 4 (87cm)
3
If you have damaged or missing components,
call the Customer Helpline: 08456 400800
Upper side support x 4 (78cm) (Inserted inside component 3)
4
Components - Fittings
Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings
may be supplied than are required.
A
Connrctor x 4
B
Lock x 2 (33cm) Castor x 4
C
D
Leg section x 2 (39cm)
2
Page 4
Assembly Instructions
Step 1
a:
Note: It would be useful
to ask someone to help
you at this stage.
a: Insert Bottom crossbar
2
into Leg section .
D
A
D
A
b: Insert Lower side
3
support into Leg
section .
2
D
A
b:
D
A
2
2
D
A
D
A
3
3
3
Page 5
Assembly Instructions
Step 2
Finishing the Unit
A
A
1
a: Insert Rail into
Connectors .
b: Insert Upper side
supports into
Connectors .
Repeat steps
to assemble the other
Rail .
4
A
A
a: and b:
1
a:
b:
A
A
1
A
A
4
4
C
c: Insert Castors
into Leg section .
A
D
A
c:
D
3
D
C
C
4
Page 6
Assembly Instructions
Step 3
Finishing the Unit
a: Insert Locks onto
the top of Lower side
support . Align the
Screw on Lock into
the hole on Lower side
support .
3
3
b: Inert Upper side
supports into the
Locks .
4
B
B
B
a:
B
B
3
3
b:
4
B
Note: It would be useful
to ask someone to help
you at this stage.
C:
Set the height of the
unit
Using the Upper side
support . Ensuring the
Locks are loosened,
silde the tubes to the
desired height and tighten
the Locks to affix in
positions shown fig.1.
Adjustment Range:
101-167.5cm.
Note: Please hold
Upper side support
and pull downward. It
will be fixed if locked or
will glide downward if
unlocked.
Assembly is complete.
4
B
B
4
c:
4
B
fig.1
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
