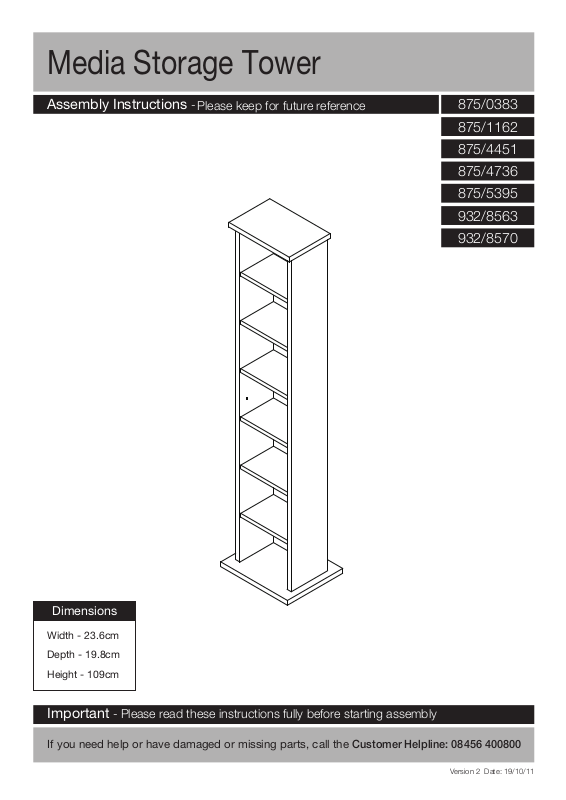

Page 1
Media Storage Tower
Assembly Instructions
-
Please keep for future reference
875/0383
875/1162
875/4451
875/4736
875/5395
932/8563
932/8570
Dimensions
Width - 23.6cm
Depth - 19.8cm
Height - 109cm
Important - Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the
Customer Helpline: 08456 400800
Version 2 Date: 19/10/11
Page 2
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Check you have all the
components and tools listed on
pages 2 and 3.
rom the
plastic bags and separate them
into their groups.
• Keep children and animals away
from the work area, small parts
could choke if swallowed.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand on the product,
this could cause damage.
• Assemble the item as close to
room) as possible.
• Assemble on a soft level surface
to avoid damaging the unit or your
r.
• Parts of the assembly will be
easier with 2 people.
as this could damage the unit.
Only use hand screwdrivers.
• Dispose of all packaging
carefully and responsibly.
• Note: Only apply the glue once
you are sure of the assembly.
Glue safety - Take care when using glue, please follow the advice below
Skin contact: Remove
contamination by washing with
soap and water. This procedure
should also be followed prior to
eating and drinking.
Eye contact: Rinse immediately
with clean water for 15 minutes
and seek medical advice.
If swallowed: Seek medical
advice immediately.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household waste.
Take to your local authority waste
disposal centre.
1
Page 3
If you have damaged or missing components,

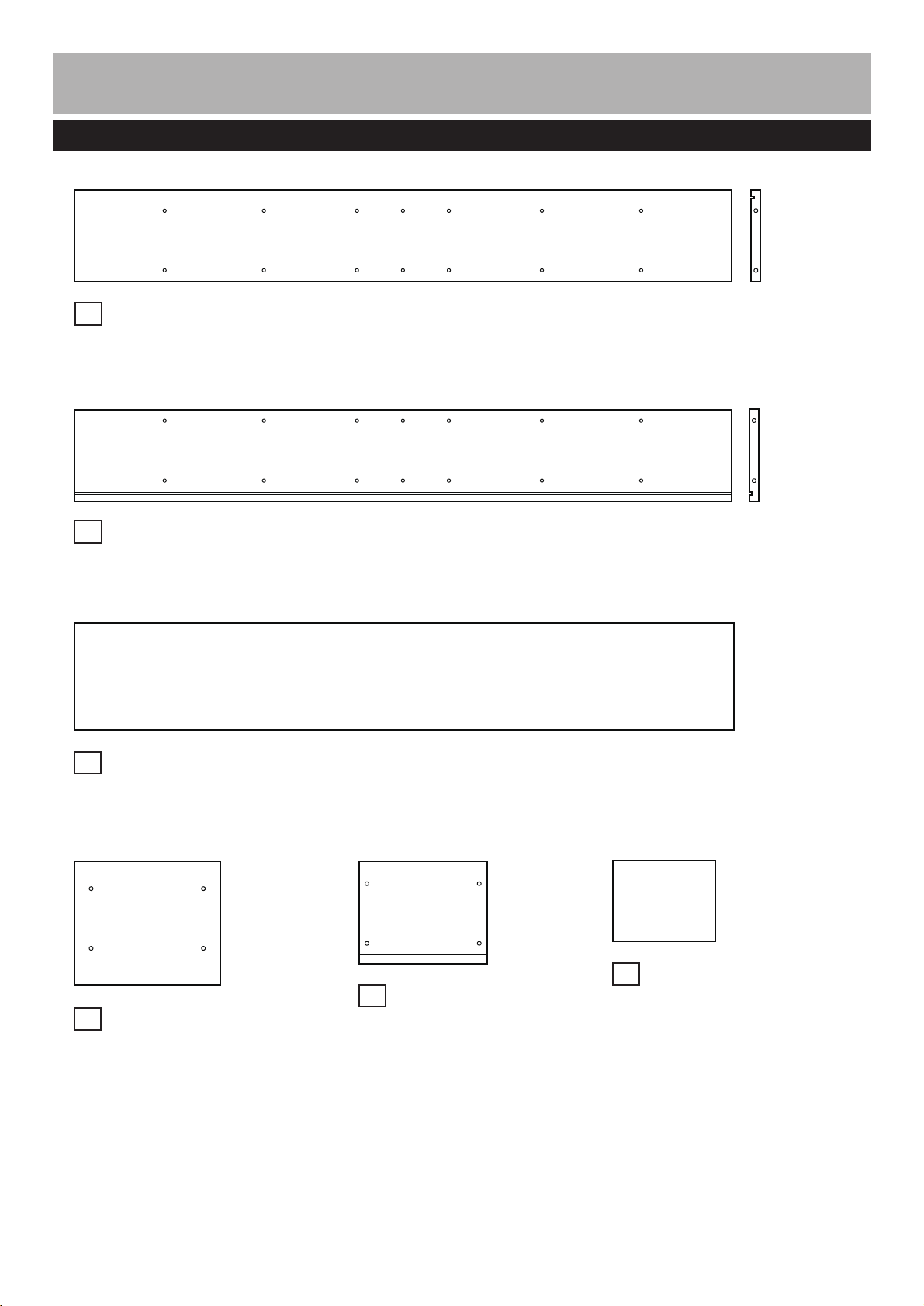

Components - Panels
call the Customer Helpline: 08456 400800
Please check you have all the panels listed below
Right side panel (105.9 x 14.7cm)
1
Left side panel
2
Back panel
3
Bottom panel
4
(23.5 x 19.8cm)
(105.9 x 14.7cm)
(106.3 x 17.2cm)
Top panel
5
(20.6 x 16.5cm)
Shelf x 6
6
(16.5 x 13cm)
2
Page 4

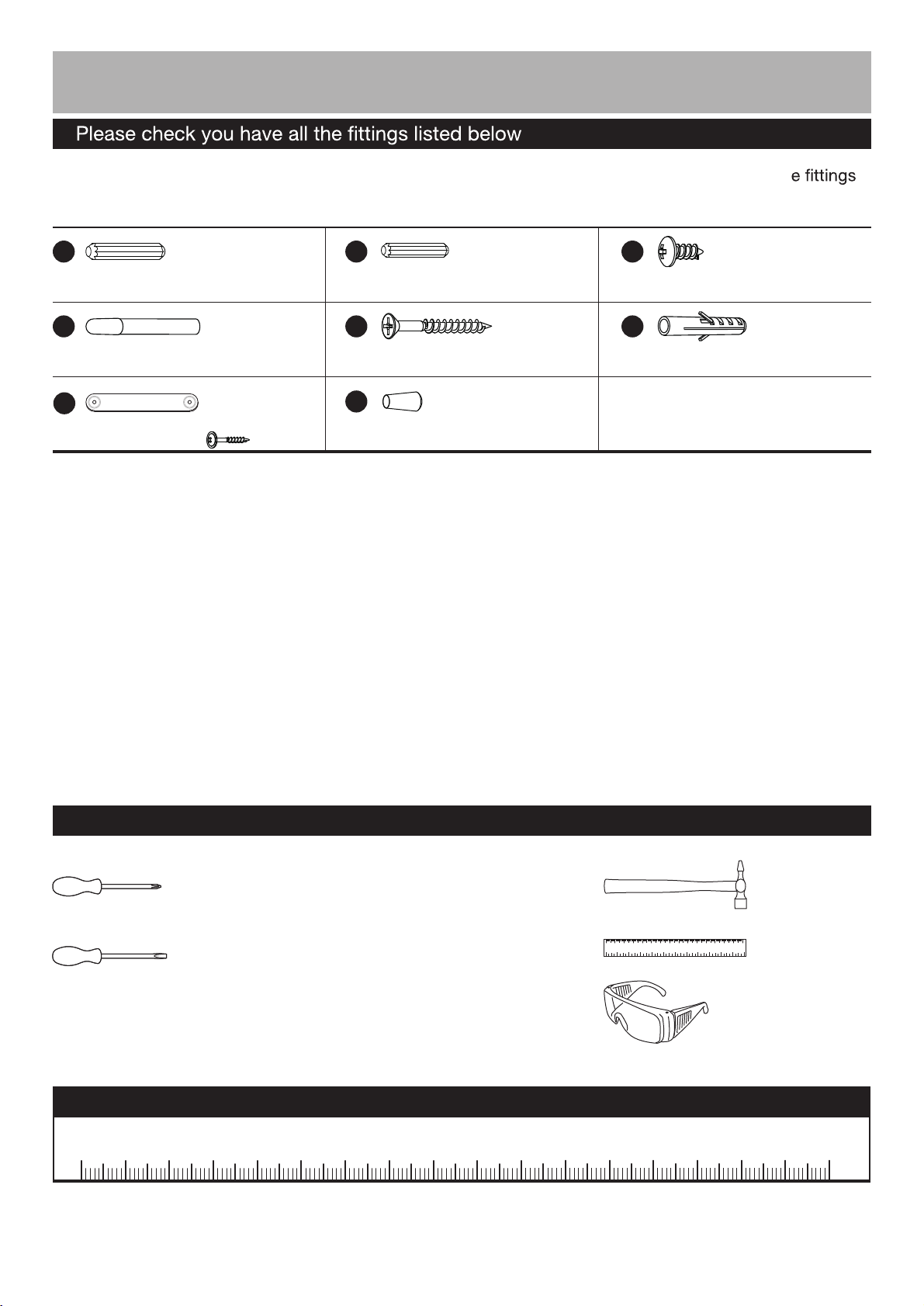

Components - Fittings
Note: The quantities below are the correct amount to complete the assembly. in some cases mor
may be supplied than are required.
A
Wooden dowel x 4
D
Glue x 1
G
Wall strap x 1
(This screw is
included in the
bag of wall strap)
x 1
B
Short wooden dowel x 24
E
40mm Screw x 4
H
Dowel cover x 24
C
14mm Screw x 1
F
Wall plug x 1
Tools required
Phillips screwdriver
(medium & large)
Flatblade screwdriver
(medium)
Ruler - Use this ruler to help correctly identify the screws
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100
3
Small
hammer
0 1 2 3 4 5 6
110 120 130 140 1500 10 20 30 40 50 60 70 80 90 100
Ruler/tape
measure
Eye protection
(when using a
hammer or glue)
105
110 115 120 125 130 135 140 145 150 155 160 165 170
Page 5
Assembly Instructions

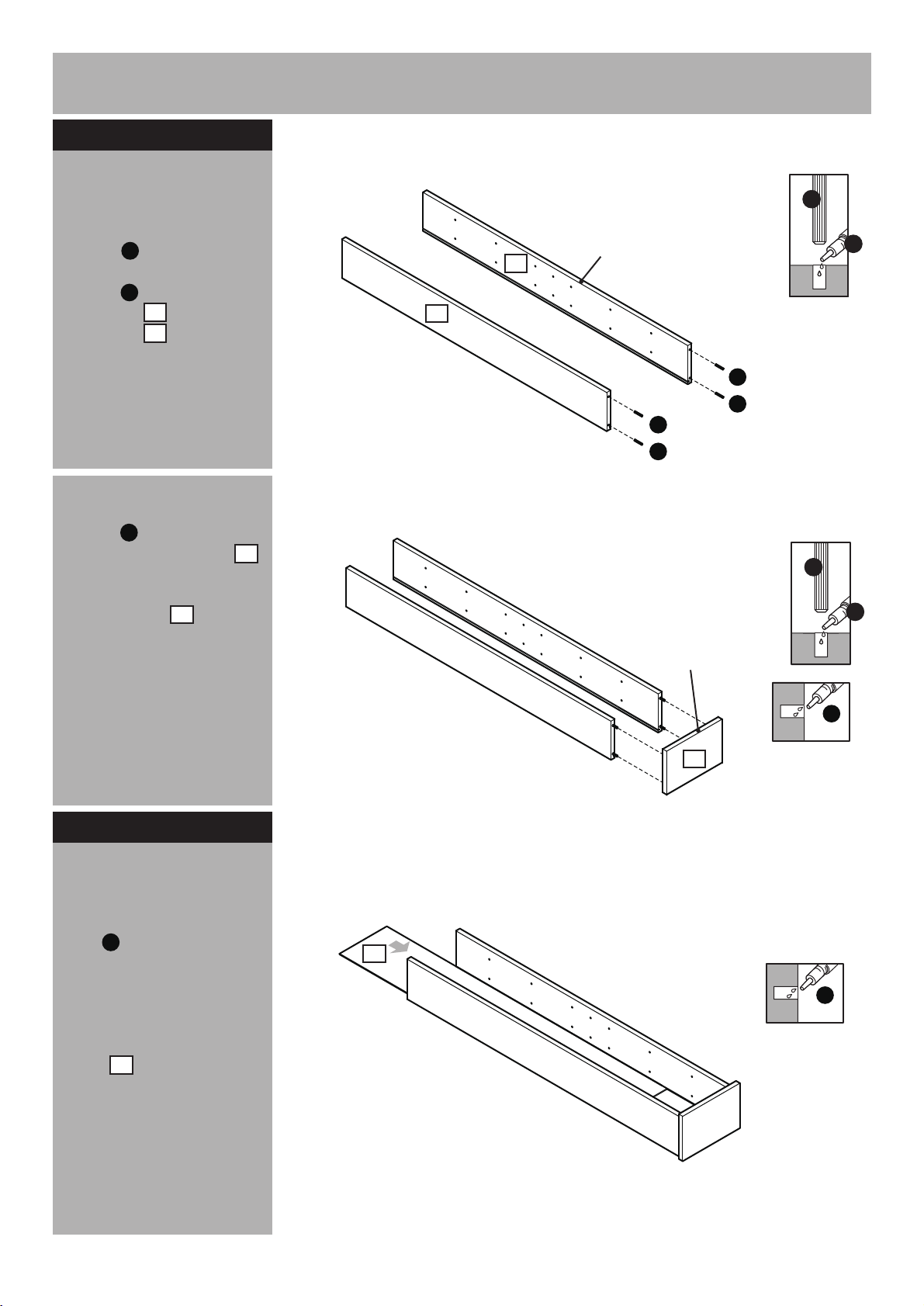

Step 1
Attaching side panels
a:
Place a small amount
of Glue into the dowel
holes. Insert Wooden
dowels into the Right
side panel and Left
side panel .
b:
of Glue into the dowel
holes on the Top panel .
Position Side Panels onto
the Top panel .
D
A
1
2
Place a small amount
D
5
5
a:
b:
A
Finished
Front edge
2
1
A
A
A
A
D
A
D
Step 2
Fixing back panel
Place a small amount of
D
Glue into the grooves
on the Right side panel,
Left side panel and Top
panel.
Carefully slide the Back
panel into the unit.
3
Finished
Front edge
D
5
3
D
4
Page 6
Assembly Instructions

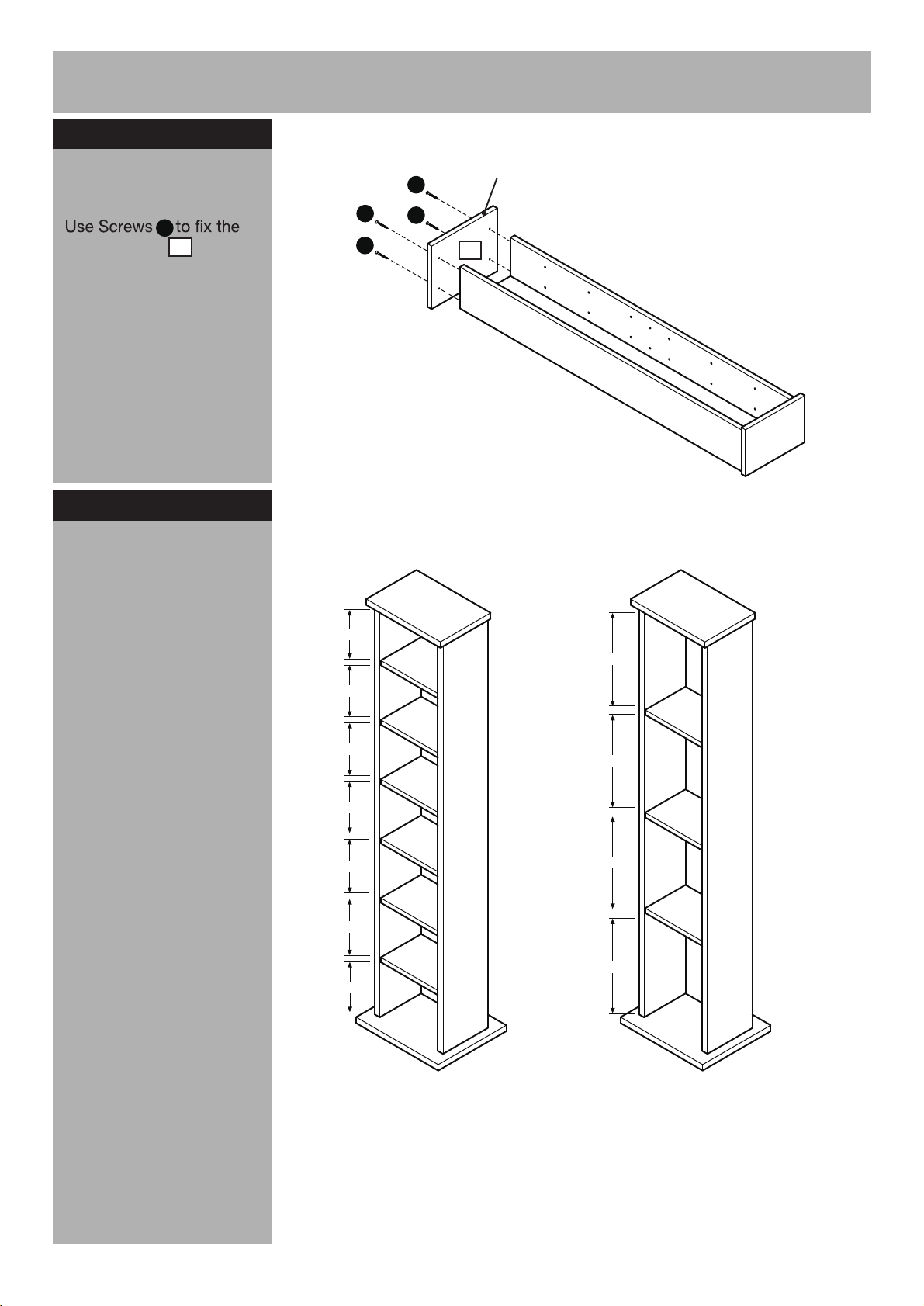

Step 3
Attaching bottom panel
Bottom panel onto the
E
4
unit.
Step 4
Setting CD or DVD
Compartments
Finished
front edge
E
E
E
E
4
For CD: CD is partitioned
into 7 compartments.
For DVD: DVD is partitioned
into 4 compartments.
129
142
132
130
132
142
143
290
206
206
303
Continued on next page.
5
For CD
For DVD
Page 7
Assembly Instructions

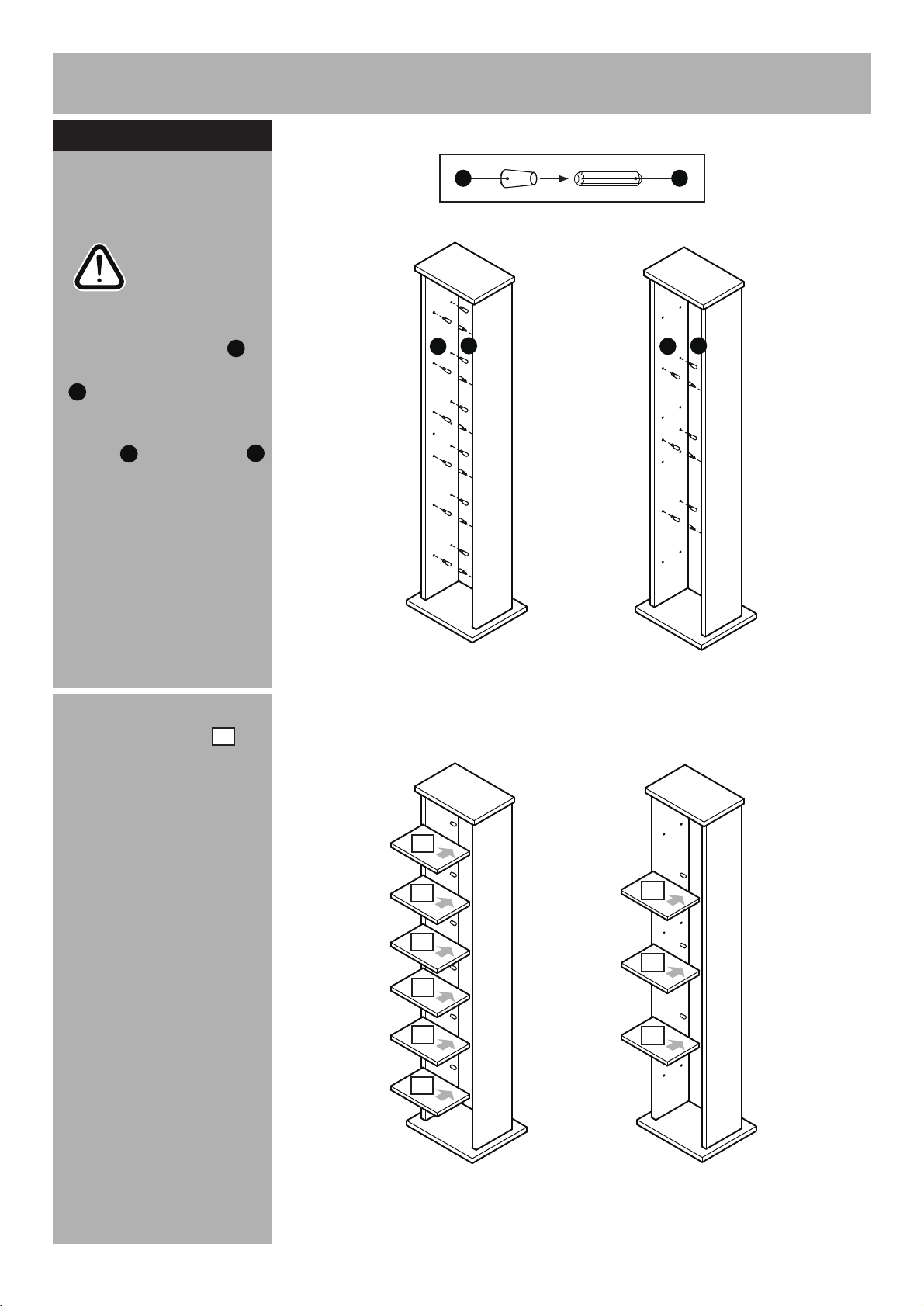

Step 4 - continued
With help, carefully stand
storage unit upright.
Warning:
The storage unit is
heavy.
Lift with care.
a:
SIide Dowel covers
onto
Short
wooden dowels
.
B
lnsert
the Short
dowels (Dowel covers
B
wooden
H
are included) into the unit.
Ensure they are well tted
before inserting the
Shelves.
a:
H
H
+
B
H
B
+
B
H
b:
Slide the Shelves the
6
b:
unit.
For CD For DVD
6
6
6
6
6
6
6
6
6
For CD
For DVD
6
Page 8
Assembly Instructions

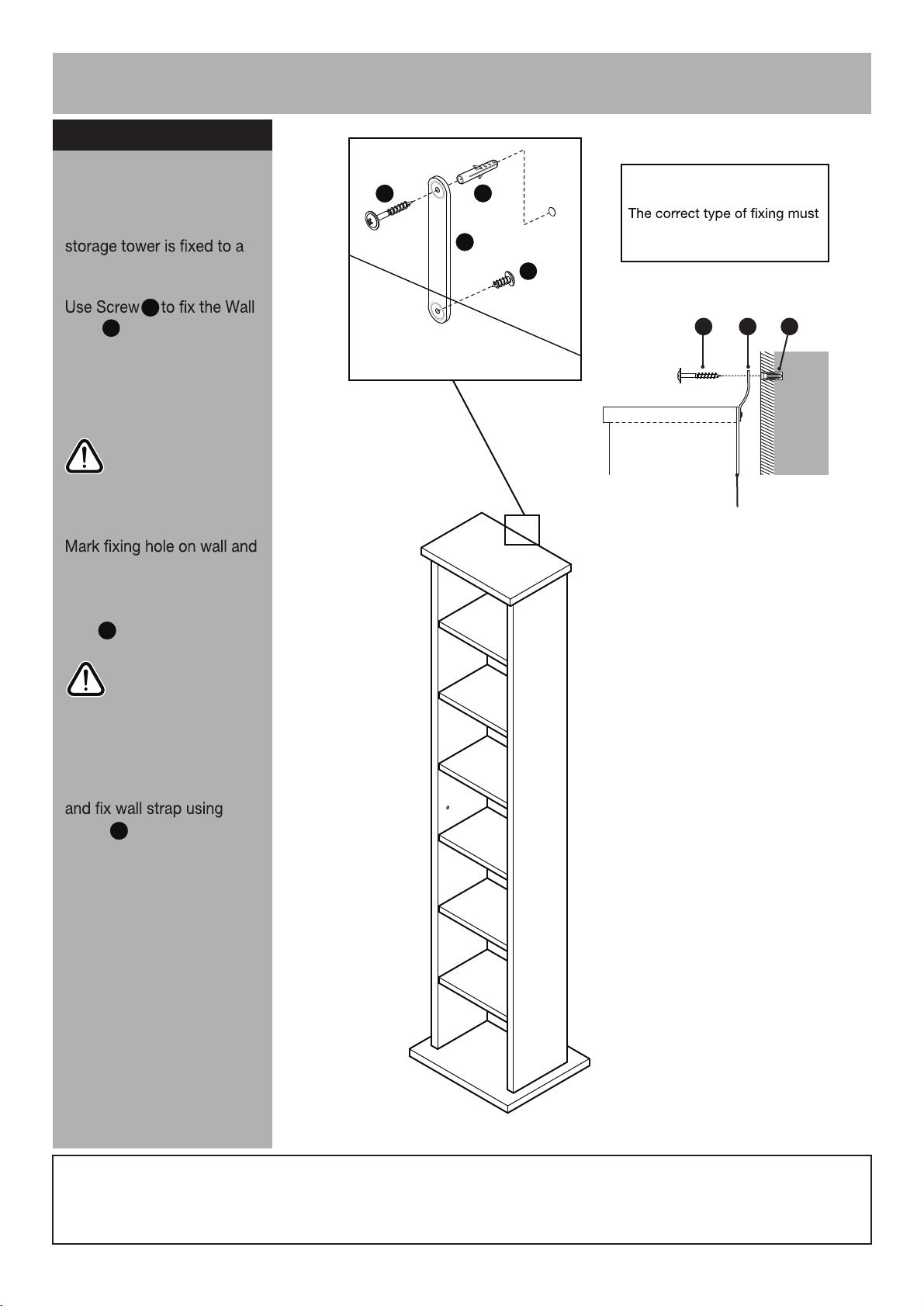

Step
5
Fixing to wall
It is recommended that the
wall.
C
G
strap onto the back of
top panel.
With help, move storage
tower into position.
Warning:
The
storage tower
is
heavy.
Lift with care.
remove storage tower .
G
Top panel
Note:
F
G
wall
C
Wall plugs supplied are
for solid wall only.
be used for your wall, seek
professional advice if in doubt
G
G
back panel
F
Drill a hole and insert Wall
F
plug .
Warning:
Before drilling,
check wall for
hidden pipes and
and cables.
Reposition storage tower
Screw .
Before use allow the
Note:
Glue to dry for 24 hours
and make sure the unit is
secure.
G
Assembly is complete.
If you need help or have damaged or missing parts, call the
7
Customer Helpline: 08456 400800
Page 9

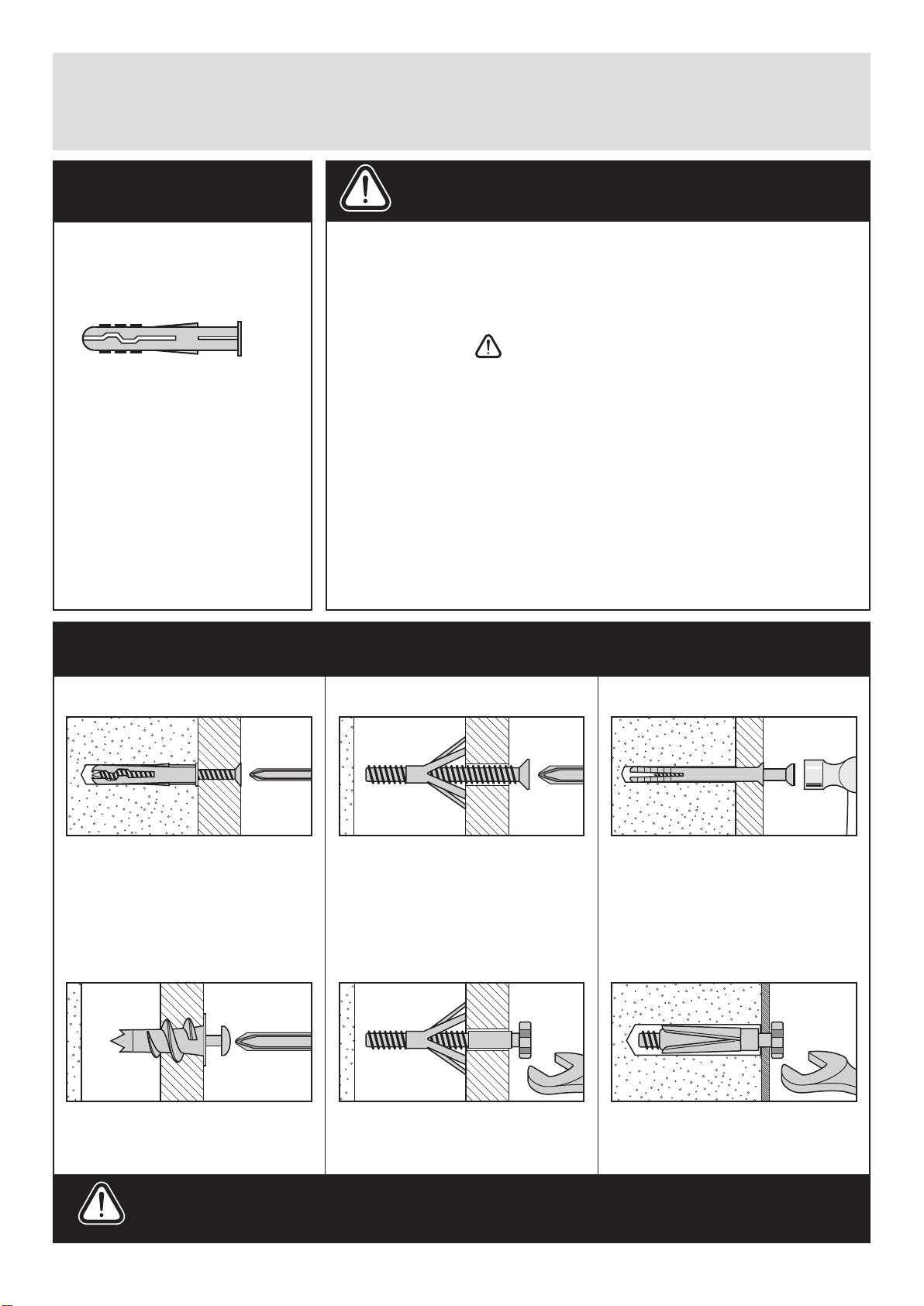

A Guide to - Wall Mounting & Fixings
Important note:
If plastic wall plugs
are supplied with your
product:
- these are only suitable for
use in masonry walls.
If you are in any doubt about
the correct wall plugs for
your wall, seek professional
advice.
Failure of the product due to
using incorrect xings is the
responsibility of the installer.
Important: When drilling into walls always
check that there are no hidden wires or pipes etc.
Make sure that the screws and wall plugs being used
are suitable for supporting your unit. Consult a qualified
tradesperson if you are unsure.
Hints:
1: General rule: Always use a larger screw and wall plug
if you are not sure.
2: Ensure you use the recommended drill bit to match the wall
plug and hole size.
3: Ensure you drill the hole horizontally, do not force the drill or
enlarge the hole.
4: Take extra care when drilling high walls, ceilings and ceramic
tiles. Ensure wall plugs are inserted beyond the thickness of
the ceramic tiles to avoid the tiles splitting or cracking.
5: Ensure wall plugs are well tted and are a tight t in the
drilled hole.
Types of walls
No.1 “General Purpose” wall plug
Generally aerated blocks should not
be used to support heavy loads, use
a specialist tting in this case. For light
loads, general purpose wall plugs can
be used.
No.2 “Plasterboard” wall plug
You can use one of the following types of wall plug if your walls are made
of brick, breeze block, concrete, stone or wood.
No.3 “Cavity Fixing” wall plug
For use with plasterboard partitions or
hollow wooden doors.
No.4 “Cavity Fixing-Heavy Duty”
wall plug
No.5 “Hammer Fixing” wall plug
For use with walls stuck with
plasterboard. The hammer xing allows
it to be xed to the wall rather than the
plasterboard. Always check the xing
is secure to the retaining wall.
No.6 “Shield Anchor” wall plug
Heavy loads
For use when attaching light loads on
to plasterboard partitions.
Care &
Maintenance
For use when tting or supporting
heavy loads such as shelving, wall
cabinets and coat racks.
Safety: Always check the fitting
and location to ensure your safety
in and around the home.
For use with heavier loads such as TV
& HiFi speakers and satelite dishes etc.
Fitting: From time to time check
the fitting to ensure the wall plugs
or screws do not become loose.
Revision 2 - 7/10/09
