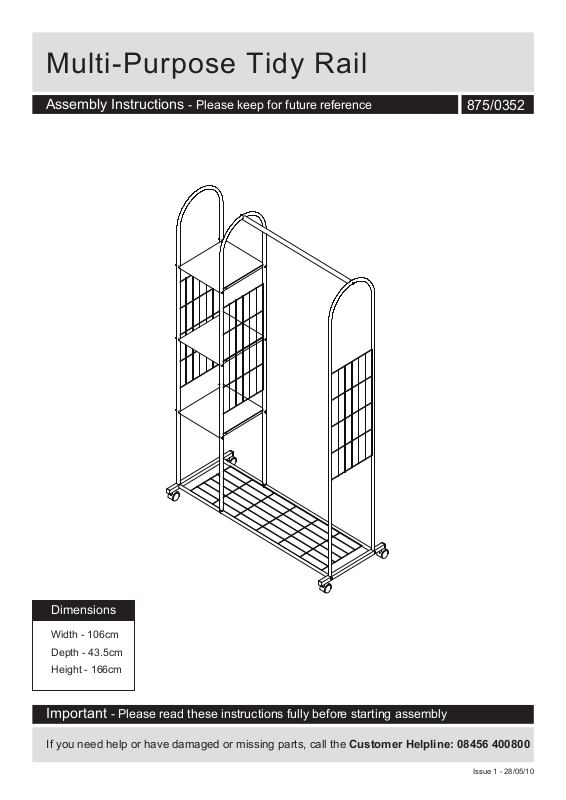

Page 1
Multi-Purpose Tidy Rail
Assembly Instructions - Please keep for future reference
875/0352
Dimensions
Width - 106cm
Depth - 43.5cm
Height - 166cm
Important - Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Issue 1 - 28/05/10
Page 2
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Check you have all the
components and tools listed on
page 2.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Make sure you have enough
space to layout the parts before
starting.
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• Assemble on a soft level surface
to avoid damaging the unit or your
floor.
• Parts of the assembly will be
easier with 2 people.
• If using power tools, please
follow the safety instructions
supplied with the tools.
• Assemble the unit as close to its
final position (in the same room)
as possible.
• From time to time check that
there are no loose screws on
this unit.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Dispose of all packaging
carefully and responsibly.
• This product should not be
discarded with household waste.
Take to your local authority
waste disposal centre.
1
Page 3
Components - Panels
If you have damaged or missing components,
call the Customer Helpline: 08456 400800
Please check you have all the panels listed below
End section x 1
1
Upright section x 1
2
End section x 1
3
Base x 1
4
Crossbar x 1 (73cm)
5
Shelf support x 6 (28cm)
6
Shelf x 3
7
Components - Fittings
Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings
may be supplied than are required.
A
38mm Screw x 20
D
Castor x 4
B
Spacer x 2 Threaded cap x 4
E
Allen key x 1
C
F
Spanner x 1
2
Page 4
Assembly Instructions
Step 1
a:
Note: It would be useful
to ask someone to help
you at this stage.
a: Insert Threaded end
C
A
cap into End sections
3
2
1
& . Ensure screw
C
of End cap correctly
A
aligns with hole for
D
castor in End section
& , then screw
Castor into position
and tighten firmly with
Spanner .
A
3
2
1
D
A
F
A
b: Secure Shelf supports
1
6
2
to End section
using Screws and
tighten with Allen key .
And then fit Upright
2
support to Shelf
supports using
Screws .
2
6
2
A
A
2
A
A
E
A
b:
1
3
A
A
6
A
A
C
A
D
A
F
A
A
A
2
A
A
A
A
A
A
A
A
E
A
1
3
Page 5
Assembly Instructions
Step 2
Finishing the Unit
a: Attach Base to
End section using
Screws , and then
attach to Upright
support as shown at
the figure.
A
A
2
4
1
a:
A
1
2
4
B
A
E
b: Fix Crossbar to
Upright support and
End section using
Screws .Then using
Screws attach End
section to Base
and Crossbar .
A
A
A
A
3
5
2
3
4
5
b:
E
A
5
3
2
4
A
4
Page 6
Assembly Instructions
Step 3
Finishing the Unit
a: Stand product up.
Position Shelf over
two Shelf support
and push down gently
until shelf clips into
place on both sides.
7
6
7
a:
7
6
Assembly is complete.
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
