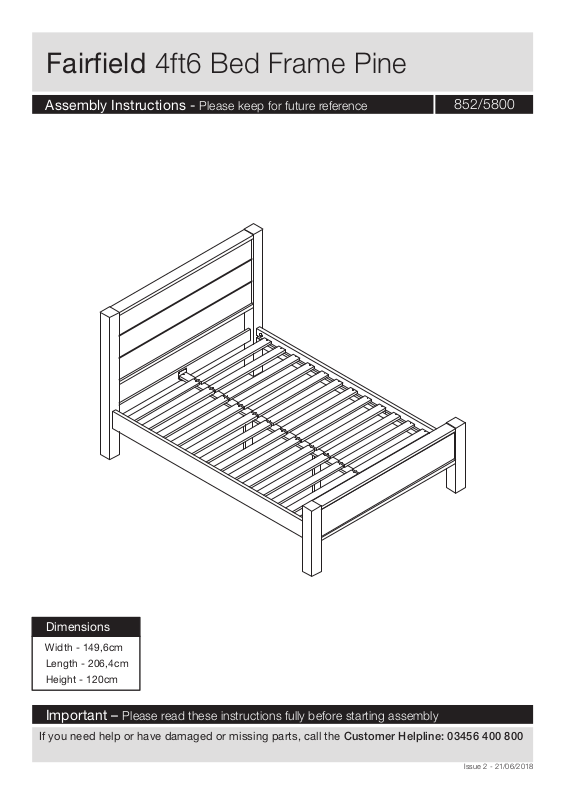

Page 1
Fairfield 4ft6 Bed Frame Pine
Assembly Instructions - Please keep for future reference
852/5800
Dimensions
Width - cm149,6
Length - cm206,4
Height - cm120
Important – Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400 800
Issue -2 21/06/2018
Page 2
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Check you have all the
components and tools listed on
pages 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor.
• This product contain natural
timber. You may notice some
variation in the grain and colour
of differente component parts
which is normal for furniture
produced using natural wood
and is not the result of any
manufacturing fault.
• The product has been treated
with a wax and oil finish to
prevent dirt ingress and
preserve moisture.
• On unpacking the furniture
you may notice an odour due to
this treatment; this will
disappear once the furniture is
unpacked and assembled after
a period of time.
• This process may leave some
staining on the packaging
material; please take care to
ensure this does not transfer to
clothing or carpeted surfaces
during assembly.
•We do not
recommend the
use of power
drill/drives for
inserting screws,
as this could
damage the unit. Only use
hand screwdrivers.
• Parts of the assembly will be
easier with 2 people.
• Dispose of all packaging
carefully and responsibly
Care and maintenance
• Use an appropriate furniture
polish for natural wood furniture
and a dry cloth to clean the
product.
• Avoid placing the furniture in
direct sunlight as this will cause
the timber to prematurely age.
1
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Note: if required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.
Page 3

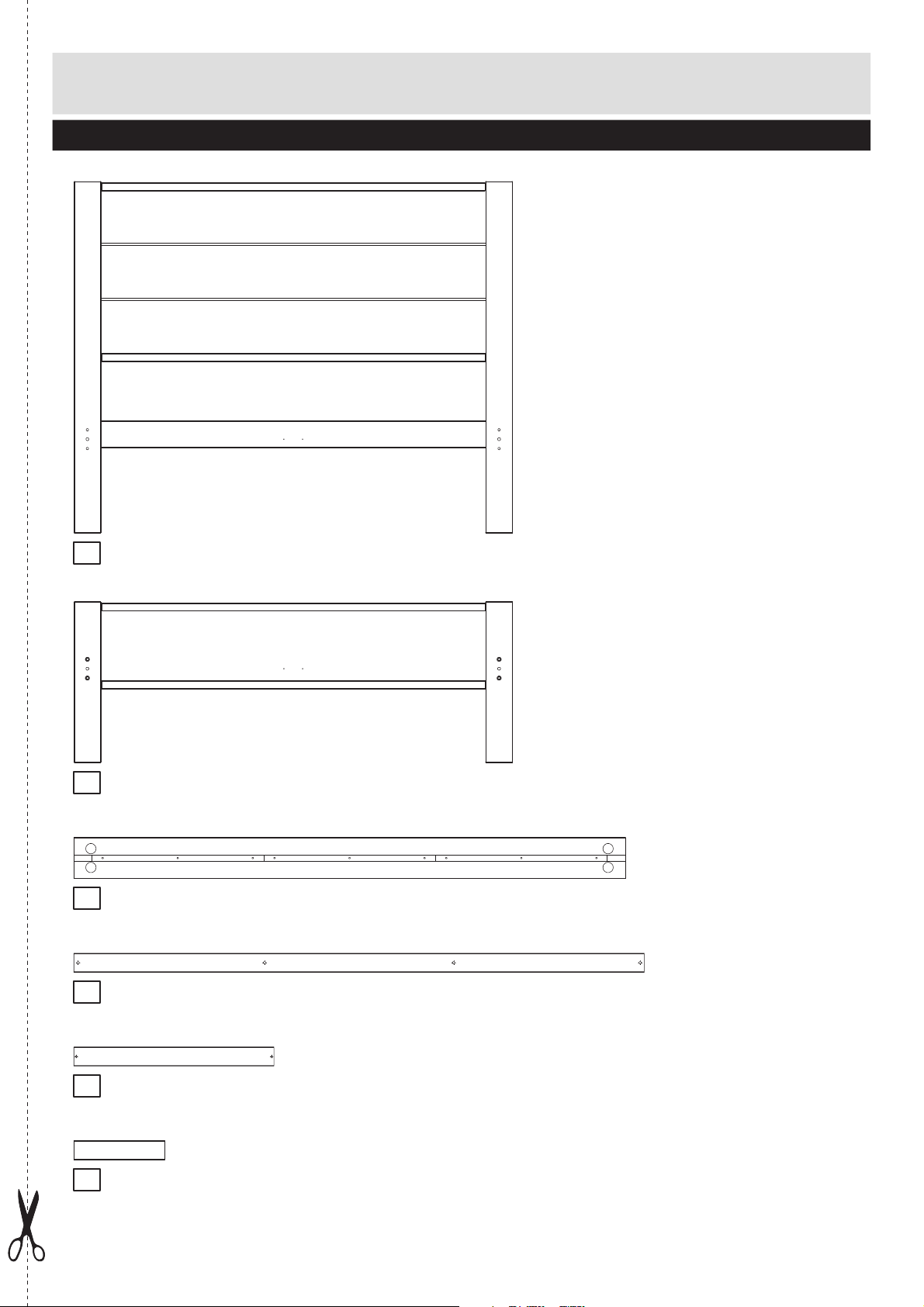

Components - Panels
Please check you have all the panels listed below
Headboard (149,6x120cm)
01
Footboard (149,6x55cm)
02
Side Rail x2 (188x14cm)
03
Central Rail (197x6,5cm)
04
Slats x26 (68,2x6,5cm)
05
Middle Support x2 (30x6,5cm)
06
2
Page 4
If you have damage or missing components,

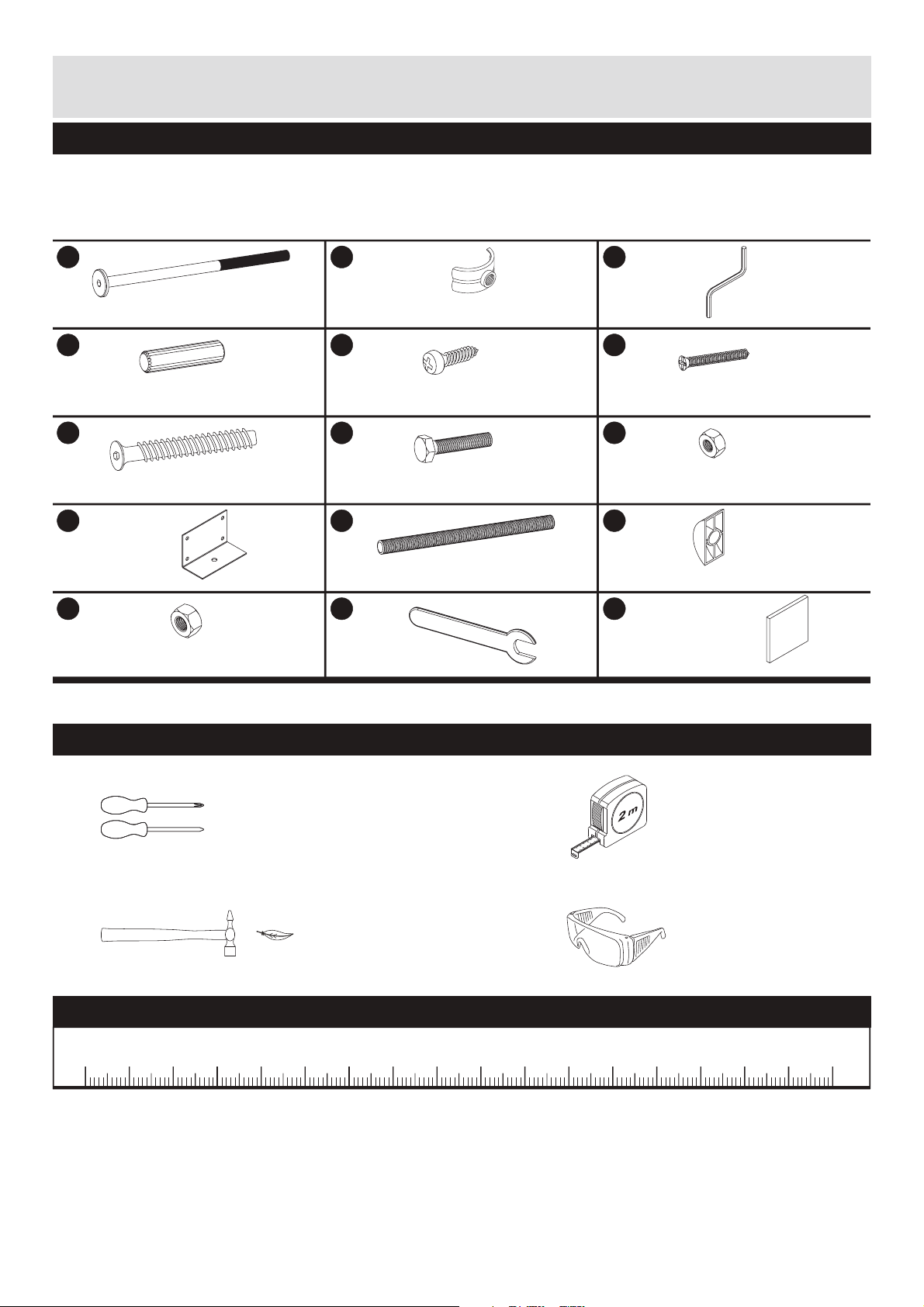

Components - Fittings
call the Customer Helpline: 03456 400 800.
Please check you have all the fittings listed below.
Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings
may be supplied than are required.
A
130mm Bolt x 04
40mm Wooden dowel x 04
G
50mm Bolt x 02
J
Bracket x 02
N
Large Nut M8 x 04
B
Half- oon ut x 04m n
ED
14mm Screw x 08
H I
32mm Bolt x 02
L
80mm Headless bolt x 04
P
Spanner
C
Allen key
F
35mm Screw x 52
Nut 1/4" x 02
M
Washer x 04
Q
Spacer 75mm x 02
Tools required
Phillips screwdriver
(medium & large)
Small
hammer
Ruler - Use this ruler to help correctly identify the screws
5
0
10 15 20 25 30 35 40
45
55
50
60 65 70
75
80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 160 165 170
Ruler/tape
measure
Eye protection
(when using a
hammer or glue)
3
Page 5
Assembly Instructions

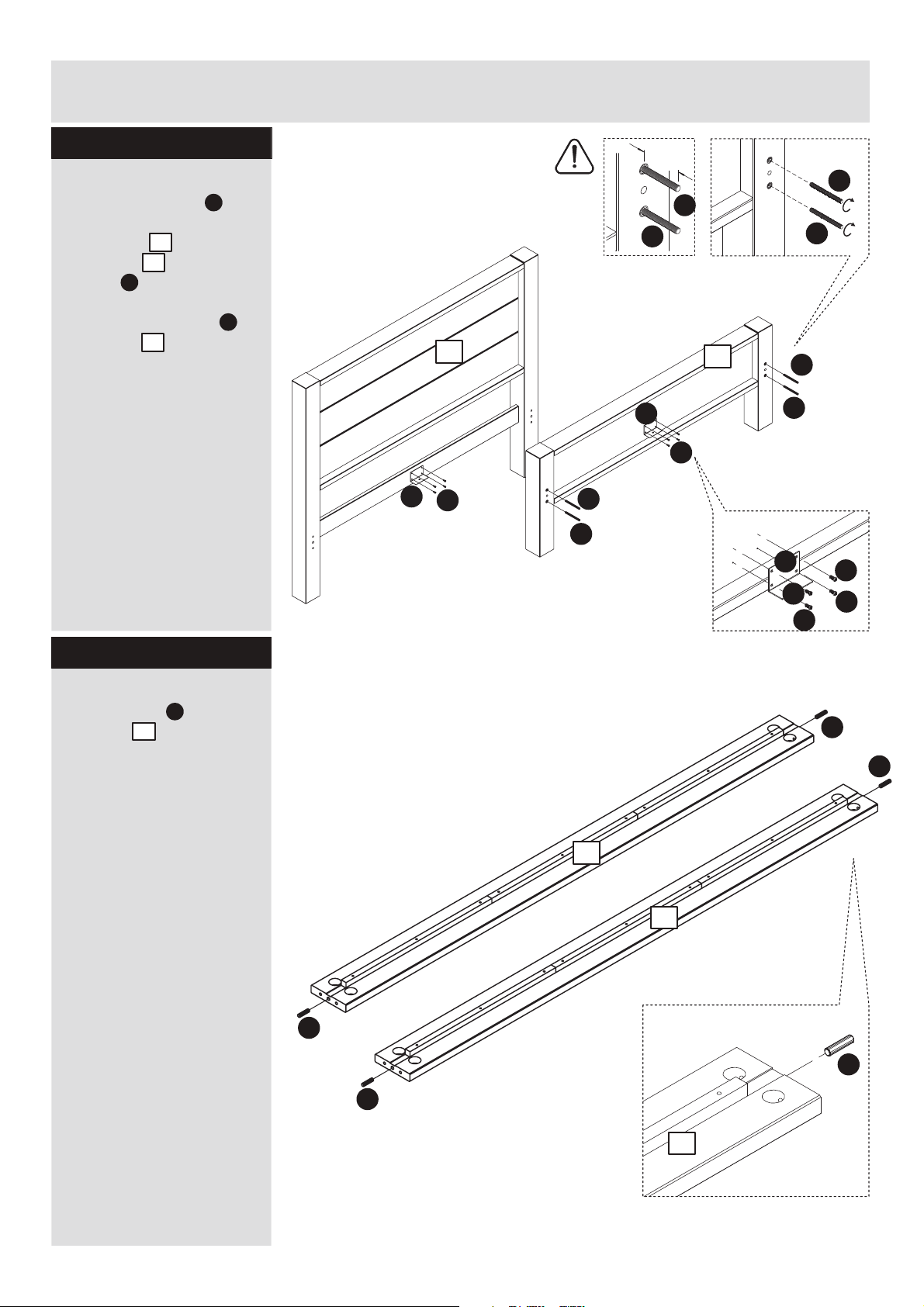

Step 1
Fixing metal brackets
Fix metal brackets J into
pre drilled holes in the
headboard 01 and
footboard 02 using
screws E.
Screw headless bolt L to
footboard 02.
01
02
E
02
J
L
50mm
L
L
L
01
J
J
E
L
L
02
E
L
L
L
J
E
E
E
E
Step 2
Fitting dowels
Insert dowels D into the
side rails 03.
D
03
D
D
03
03
D
D
D
03
4
Page 6
Assembly Instructions

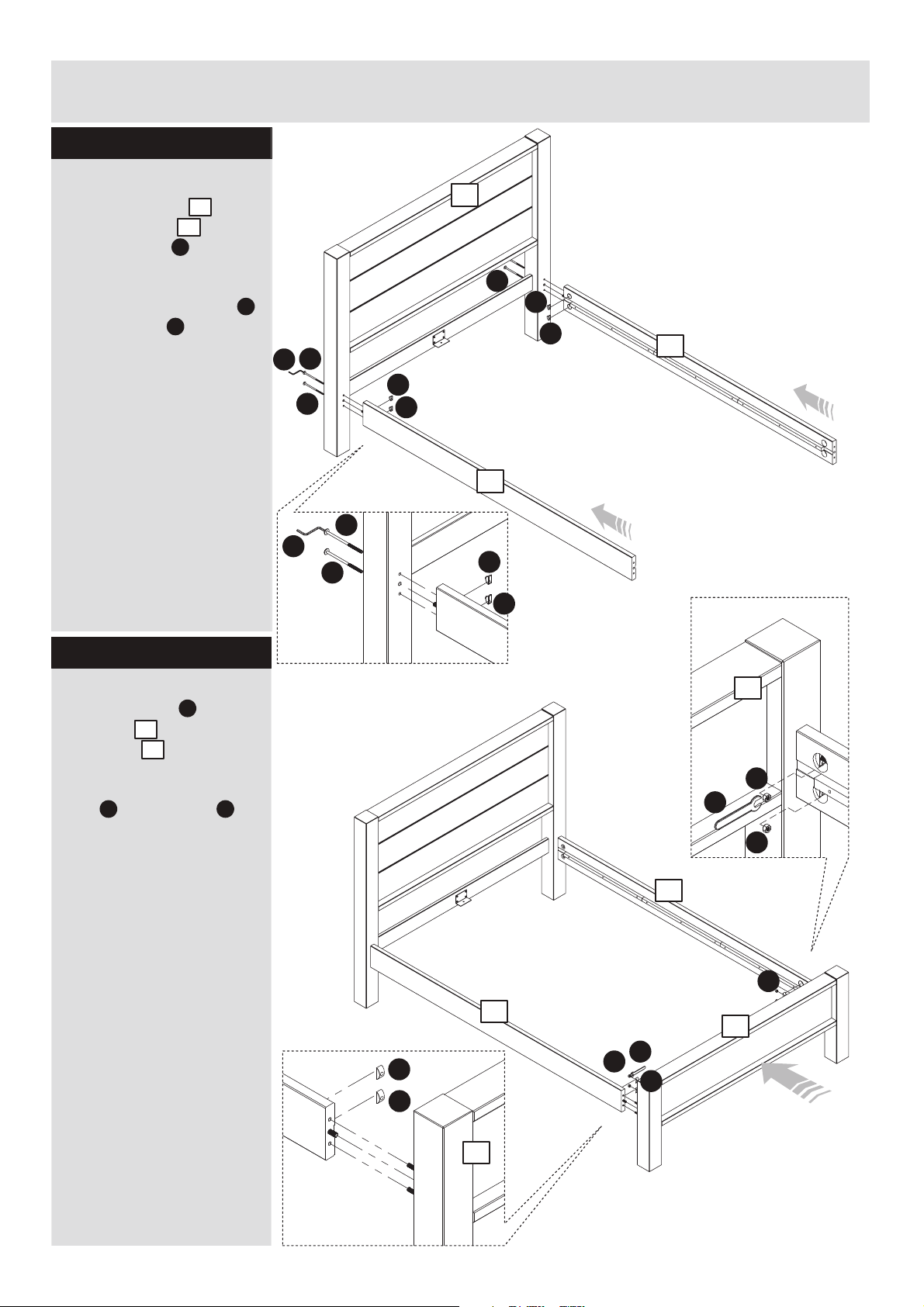

Step 3
Assembling side rails
Attach side rails 03 to
the headboard 01. Insert
half moon nut B into the
side rails as shown. Then
fix them to the
headboard using bolts A
and allen key C.
Caution: Assembling of
Step 3 and Step 4 will be
easier with 2 people. It
can also avoid damages
or brakes of any part or
component.
03
01
B
A
C
C
C
01
A
B
B
A
B
A
A
A
B
03
B
B
03
Step 4
Fixing footboard
Insert washers M into the
side rails 03 and fit
footboard 02 to side
rails.
Fix headless bolts using
N P
nuts N and spanner P.
M
03
02
a:
M
M
03
N
02
b:
N
P
N
03
N
02
P
M
02
5
Page 7
Assembly Instructions
Step 5
Fixing middle support
Fix middle support 06 to
central rail 04 using bolt G
and allen key C as shown.
04
06
G
C
G
04
G
06
C
Step 6
Fixing central rail
Fix central rail 04 to L
shaped brackets in
headboard using bolts H
and nut I as shown.
04
I
G
06
06
H
H
I
04
H
I
06
04
06
6
Page 8
Assembly Instructions

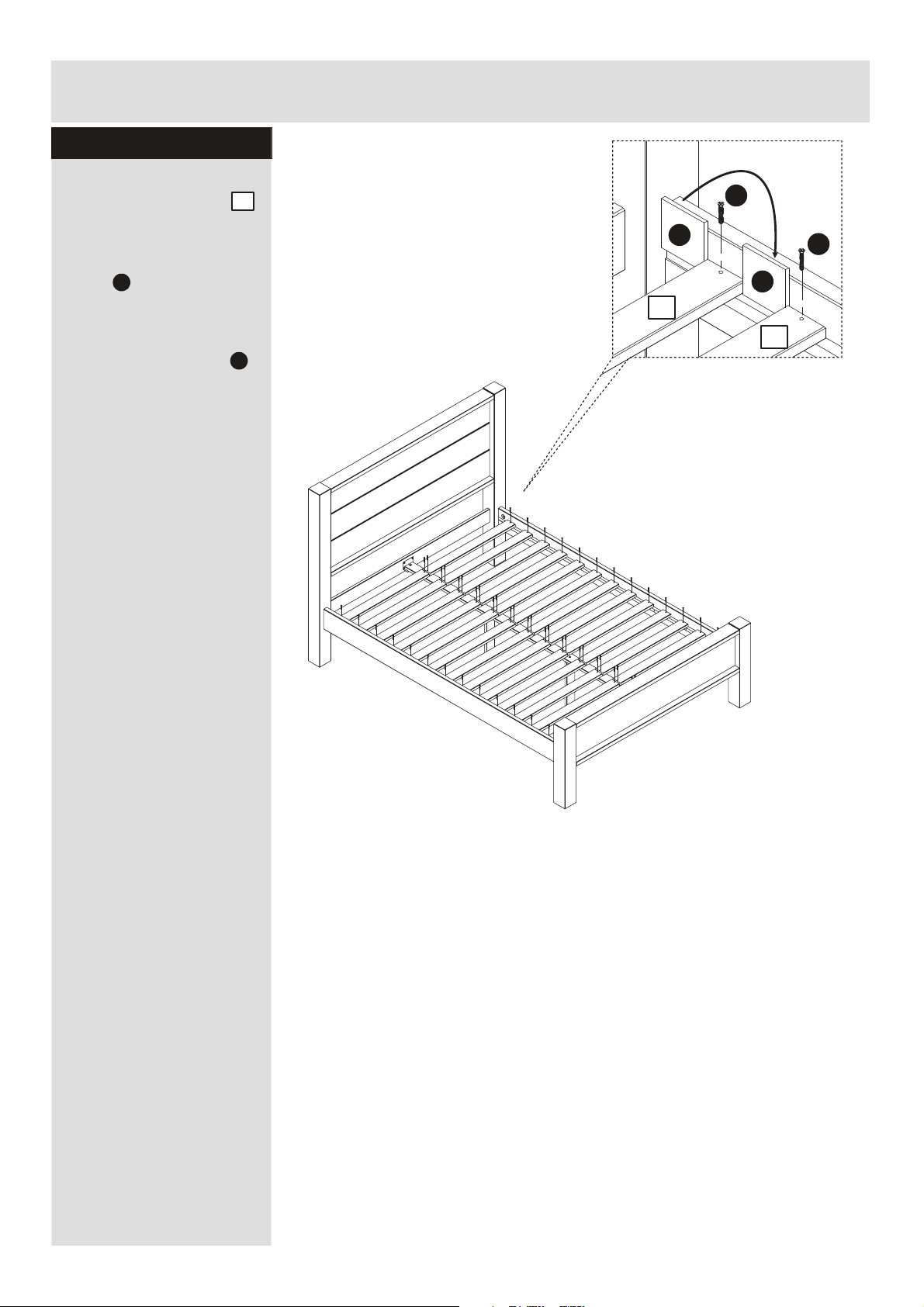

Step 7
Fixing slats
Please fix the first slat 05
at the end of the rail and
work towards the middle
of the bed using the
spacer Q as shown to
ensure correct spacing.
Q
05
05
Q
F
F
Q
Fix all the slats to the side
rails first using screws F.
After, fix all the slats to the
centre rail.
F
05
7
Page 9
Your 3 Year Guarantee
Peace Of Mind
Knowing Your Furniture Is Protected
Protection received within the
Manufacturer’s Guarantee
Covers you for manufacturing defects
for 3 years.
In the event of a problem within this time
please call , or visit an Argos0345 640 0800
store. Please retain your receipt and order
number as proof of purchase.
Key exclusions applying to both the Manufacturer’s Guarantee and Furniture Care include where
the fault is due to misuse, abuse, deliberate damage, wear and tear, neglect, use in contravention
with the instructions, or if the product has been the subject of unauthorised alterations or
commercial use (for full list of exclusions please visit or visithttps://argos.productaftercare.co.uk
an Argos store for more information).
You have up to 45 days post purchase to take out Furniture Care.
Terms and conditions apply. Your statutory rights remain unaffected.
Optional Added Protection
with Furniture Care
Covers you for up to 3 yearsaccidental damage
for incidents such as household spills, rips, tears
and burns. Accidental damage cover begins from
the moment your plan starts.
If you want to purchase
Furniture Care visit
https://argos.productaftercare.co.uk
or go into an Argos store
Register
For Your Manufacturer’s Guarantee
Thank you for choosing Argos Home.
We hope you love your shiny new things!
To provide you with the best possible after sales service, don’t forget to visit
where you can for yourhttps://argos.productaftercare.co.uk register
guarantee.
Once you’ve registered, you can upload your receipt to store safely online,
alongside details of our after sales support service, ready at hand should you
need it.
You can also take out Furniture Care which protects you against accidental
damage, from the moment you take the plan out, to keep your new furniture
looking newer for longer.
