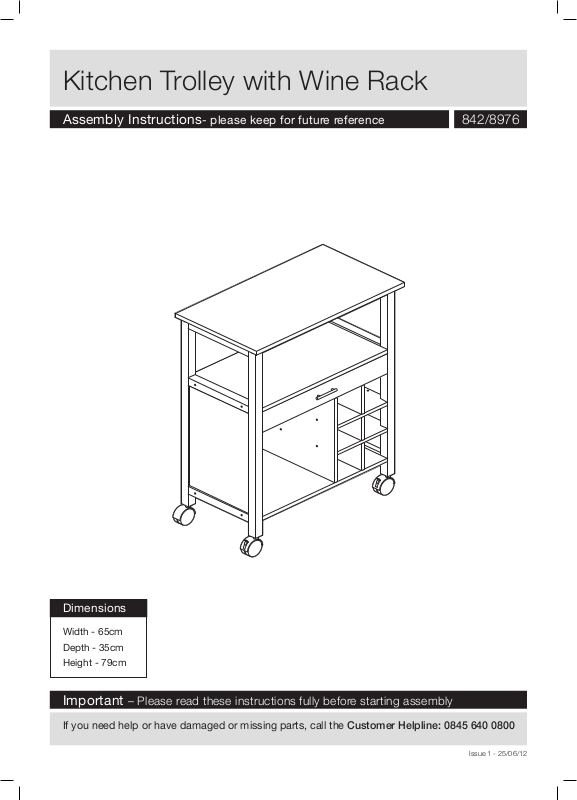

Page 1
Kitchen Trolley with Wine Rack
Assembly Instructions- please keep for future reference
842/8976
Dimensions
Width - 65cm
Depth - 35cm
Height - 79cm
Important – Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 0845 640 0800
Issue 1 - 25/06/12
Page 2
Safety and Care Advice
Important – Please read these instructions fully before starting assembly
• Check you have all the
components and tools listed
below and on pages 1 and 2.
• Remove all ttings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Make sure you have enough
space to layout the parts before
starting.
Care and maintenance
• Only clean using a damp
cloth and mild detergent, do
not use bleach or abrasive
cleaners.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close
to its nal position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your oor.
• Parts of the assembly will be
easier with 2 people.
• From time to time check that
there are no loose screws on
this unit.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Dispose of all packaging
carefully and responsibly.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal
centre.
Page 3
Components - Panels
Please check you have all the panels listed below
Left side x 1
1
(72.5(h) x 32(d)cm)
Wine rack left upright
5
x 1
(32.8(h) x 29.8(d)cm)
Right side x 1
2
(72.5(h) x 32(d)cm)
Wine rack middle
6
upright x 1
(32.8(h) x 29.8(d)cm)
Bottom shelf x 1
3
(53.8(w) x 32(d)cm)
Wine rack bottom
7
shelf x 1
(23.5(w) x 29.8(d)cm)
Middle shelf x 1
4
(53.8(w) x 32(d)cm)
Wine rack top shelf x 1
8
(23.5(w) x 29.8(d)cm)
Bottom back panel
9
x 1
(42(h) x 54.8(w)cm)
Drawer right x 1
13
(7(h) x 25(d)cm)
Top back panel x 1
10
(22.5(h) x 54.8(w)cm)
Drawer back x 1
14
(7(h) x 49(w)cm)
Drawer front x 1
11
(8(h) x 53.6(w)cm)
Drawer base x 1
15
(50(w) x 24.8(d)cm)
Drawer left x 1
12
(7(h) x 25(d)cm)
Top x 1
16
(65(w) x 35(d)cm)
1
Page 4
If you have damaged or missing components,
Components - Fittings
call the Customer Helpline: 0845 640 0800
Please check you have all the ttings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases more ttings
may be supplied than are required.
A
B
C
50mmm Hex bolt x 12 Barrel nut x 12 30mm Screw x 14
D
Cambolt x 2 Camlock x 2 Wooden dowel x 2
G
16mm Bolt x 2 Handle x 1 10mm Screw x 8
J
E
H
K
F
I
L
Left drawer runner (case) x 1 Right drawer runner (case) x 1 Left drawer runner (drawer) x 1
M
Right drawer runner (drawer) x 1 Castor with brake x 2 Castor x 2
P
Allen key x 1
N
O
Tools required
Phillips screwdriver
(medium & large)
Ruler – Use this ruler to help correctly identify the screws
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100
2
105
110 115 120 125 130 135 140 145 150 155 160 165 170
Page 5
Assembly Instructions
Step 1
Fix 2 x cambolt D and 2
x wooden dowel
rear of drawer front
F
into
11
as shown.
Fix 1 x handle
drawer front
16mm bolt
H
to
11
using 2 x
G
as shown.
Step 2
Insert 1 x camlock E into
drawer left
right
12
13
as shown.
and drawer
Step 3
Connect drawer left 12
and drawer right
drawer front
and tighten camlocks
with a screwdriver.
13
11
as shown
to
F
H
12
11
G
12
D
13
11
E
13
Step 4
Slide drawer base 15
into slots of left and right
sides as shown.
Step 5
Connect drawer back
14
to left and right sides
using 4 x 30mm screw
C
as shown.
Step 6
Connect left drawer
runner (drawer)
right drawer runner
(drawer)
M
of drawer using 4 x 10mm
screw
I
as shown.
L
and
to underside
15
C
14
L
I
M
Note: the wheels of the
drawer runners must point
to the rear of the drawer.
3
Page 6
Assembly Instructions
Step 7
Fix left drawer runner
(case)
1
runner (case)
side
screw
J
to left side
and x right drawer
K
to right
2
using 4 x 10mm
I
as shown.
1 2
Step 8
Slot wine rack middle
upright
bottom shelf
wine rack top shelf
6
, wine rack
7
and
8
together as shown.
Step 9
Fix wine rack left
upright
completed at Step 8
using 4 x 30mm screw
C
as shown.
5
to assembly
J
I
K
Front
6
8
7
5
Note: the holes in the
edge of wine rack left
upright
5
must be at
the bottom.
Step 10
Insert 4 x barrel nut B
into underside of bottom
shelf
Note: ensure that the
holes through the barrel
nuts are aligned with the
screw holes in the edge
of the panel.
4
3
as shown.
C
B
3
Page 7
Assembly Instructions
Step 11
Connect bottom shelf 3
to assembly completed
at Step 9 using 4 x
30mm screw
shown.
C
as
3
C
C
Step 12
Fix wine rack assembly
completed at Step 11
to right side
2 x 30mm screw
2 x 50mm hex bolt
Tighten hex bolts using
allen key provided.
2
using
C
and
A
.
Step 13
Insert 4 x barrel nut B
into underside of middle
shelf
4
as shown.
2
B
A
Note: ensure that the
holes through the barrel
nuts are aligned with the
screw holes in the edge
of the panel.
4
5
Page 8
Assembly Instructions
Step 14
Insert 4 x barrel nut B
into underside of top
16
as shown.
Note: ensure that the
holes through the barrel
nuts are aligned with the
screw holes in the edge
of the panel.
Step 15
Connect middle shelf 4
to right side
x 50mm hex bolt
shown.
Connect top
2
side
hex bolt
2
using 2
A
as
16
to right
using 2 x 50mm
A
as shown.
B
16
A
16
2
4
6
Page 9
Assembly Instructions
Step 16
Slide bottom back panel
9
and top back panel
10
into slots of shelves
as shown.
10
9
Step 17
Connect left side 1 to
exposed ends of shelves
and top using 6 x 50mm
hex bolt
A
as shown.
A
1
7
Page 10
Assembly Instructions
Step 18
Place drawer completed
at Step 6 onto its
runners.
Step 10
Warning!
The unit is
heavy. Ask
someone to
help you with
this step.
Insert 2 x castor with
brake
O
as shown.
N
and 2 x castor
into bottoms of legs
O
N
O
N
8
Page 11
9
Page 12
If you need help or have damaged or missing parts, call the Customer Helpline: 0845 640 0800
