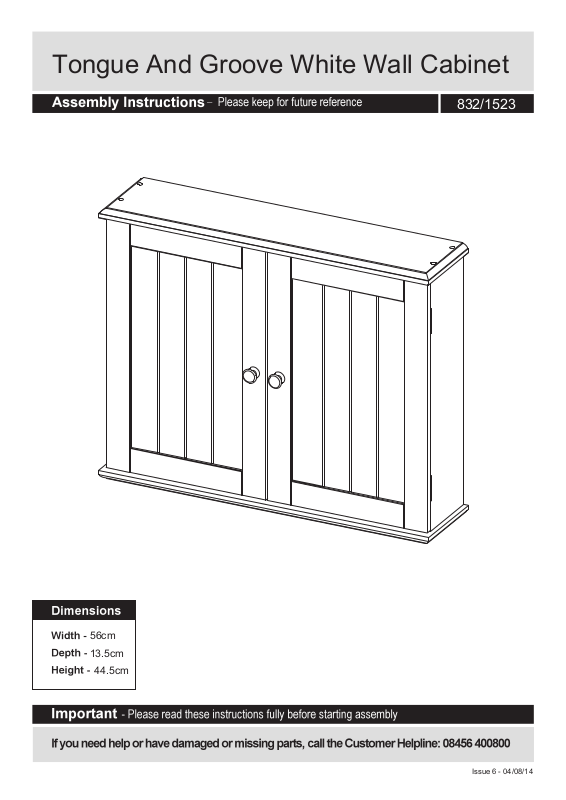

Page 1

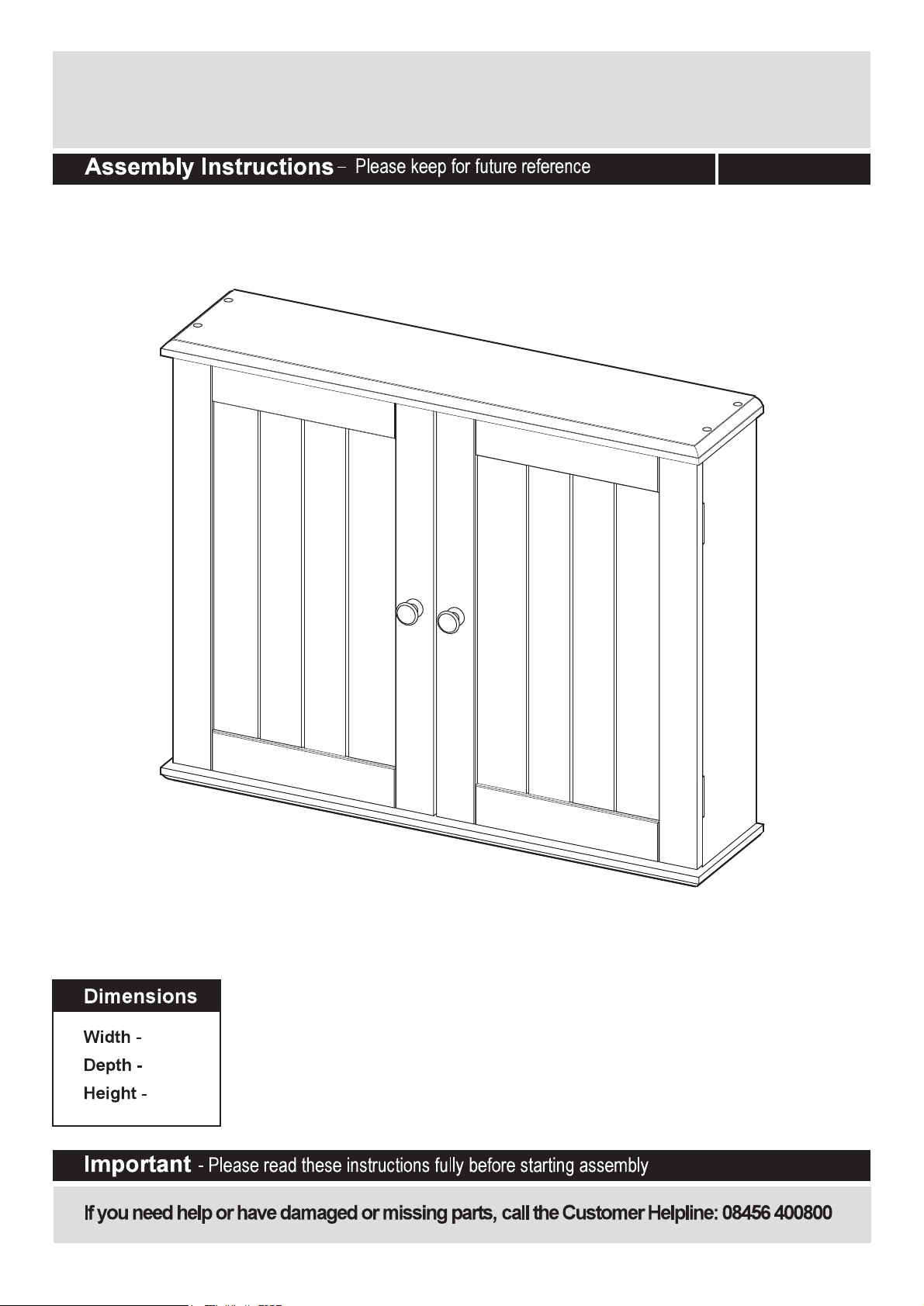

Tongue And Groove White Wall Cabinet
832/1523
56cm
13.5cm
44.5cm
Issue 6 - 04/08/14

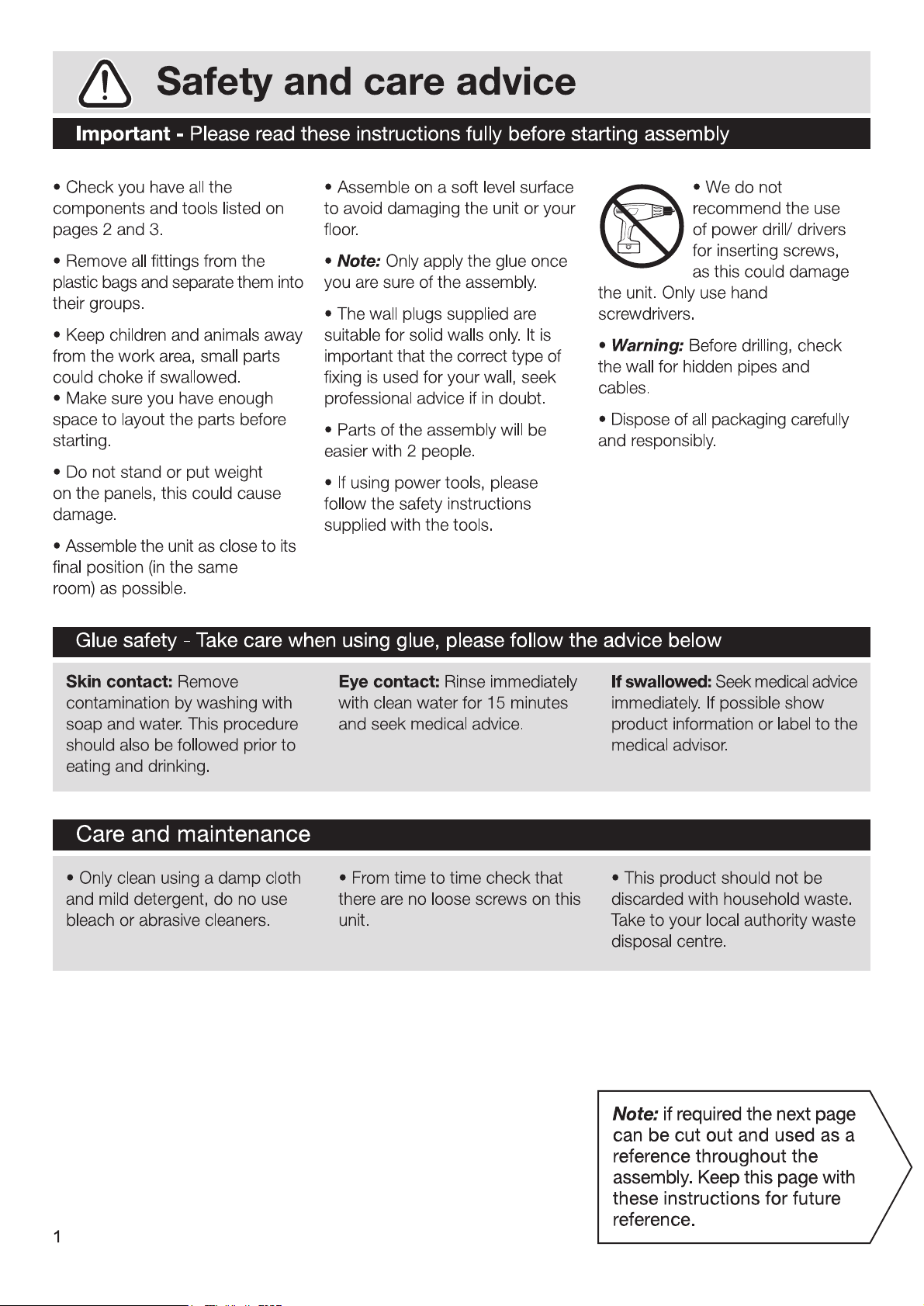

Page 2
Page 3

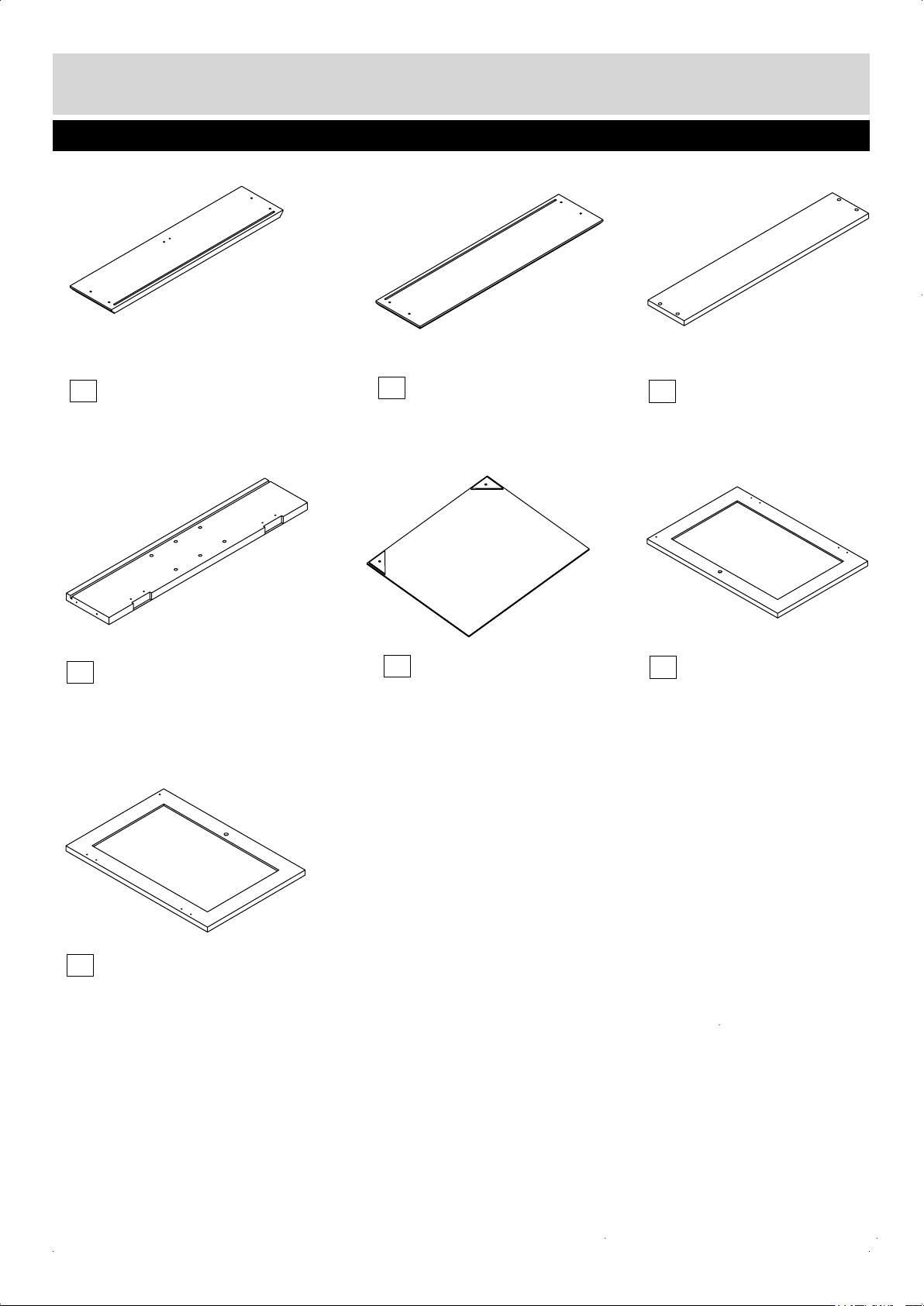

Components - Panels
Please check you have all the panels listed below
2
1
Top
Bottom
If you have damaged or missing components,
call the Customer Helpline:08456 400800
Adjustable Shelf
3
Left & Right side x 2
4
Right Door
7
5
Back
6
Left Door
2
Page 4

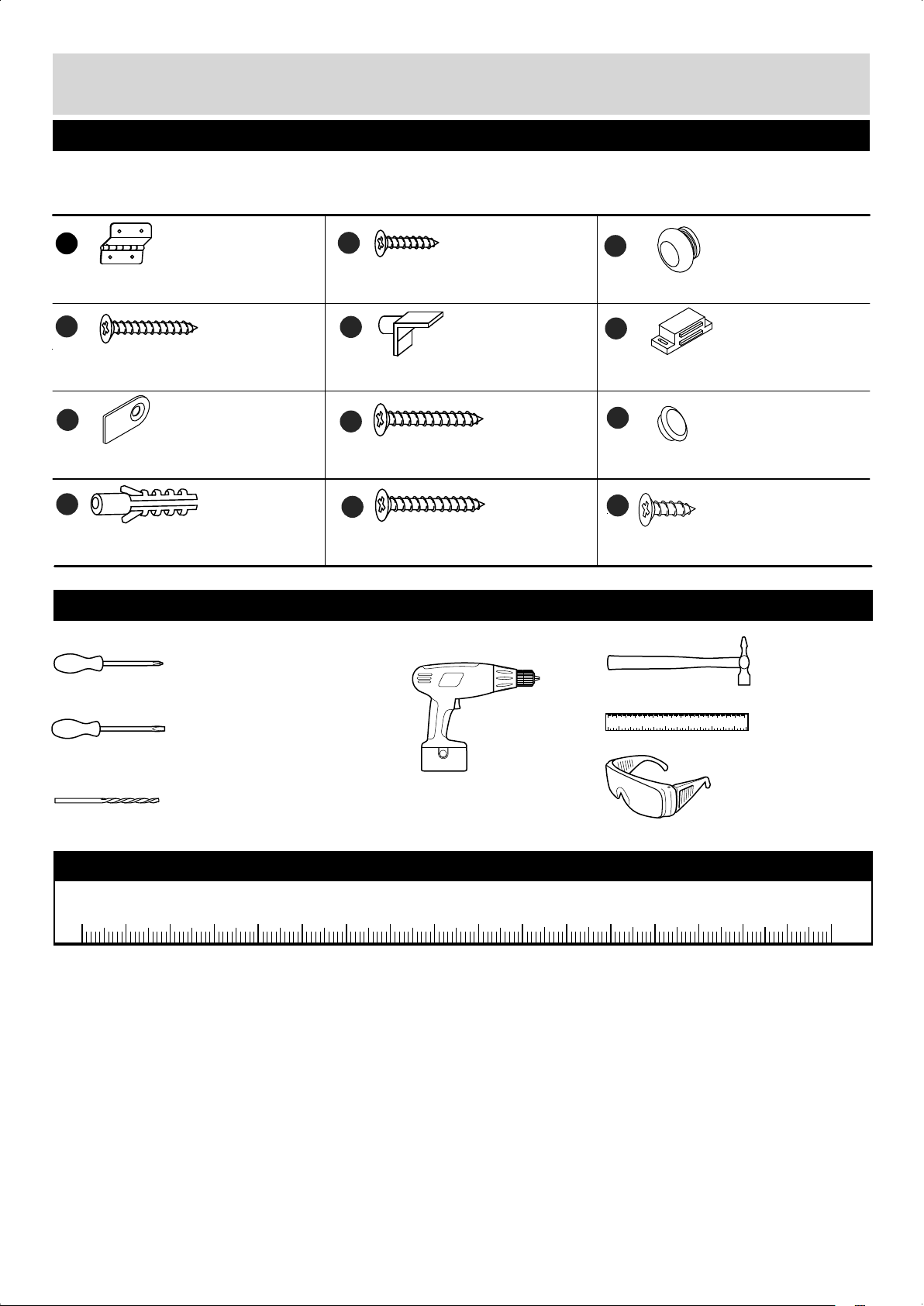

Components - Fittings
Please check you have all the fittings listed below
Note:The quantities below are the correct amount to complete the assembly .In some cases more
fittings may be supplied than are required.
A
Hinge x 4
D
25mm Screw x 2
G
Strike Plate x 2
J
Wall Plug(for solid wall only) x 2
Tools required
Phillips screwdriver
(medium & large)
B
12mm Screw x 2
E
Plastic Support x 4
H
35mm Screw x 8
K
45mm Screw x 2
C
Door Knob x 2
F
Magnetic Catch x 1
I
Screw Cap x 8
L
10mm Screw x 18
Small
hammer
Flatblade screwdriver
(medium)
Drill
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150
0 1 2 3 4 5 6
7mm Suitable drill bit
(for use with wall plug)
Ruler - Use this ruler to help correctly identify the screws
105
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100
110 115 120 125 130 135 140 145 150 155 160 165 170
Ruler/tape
measure
Eye protection
(when using a
hammer or glue)
3
Page 5

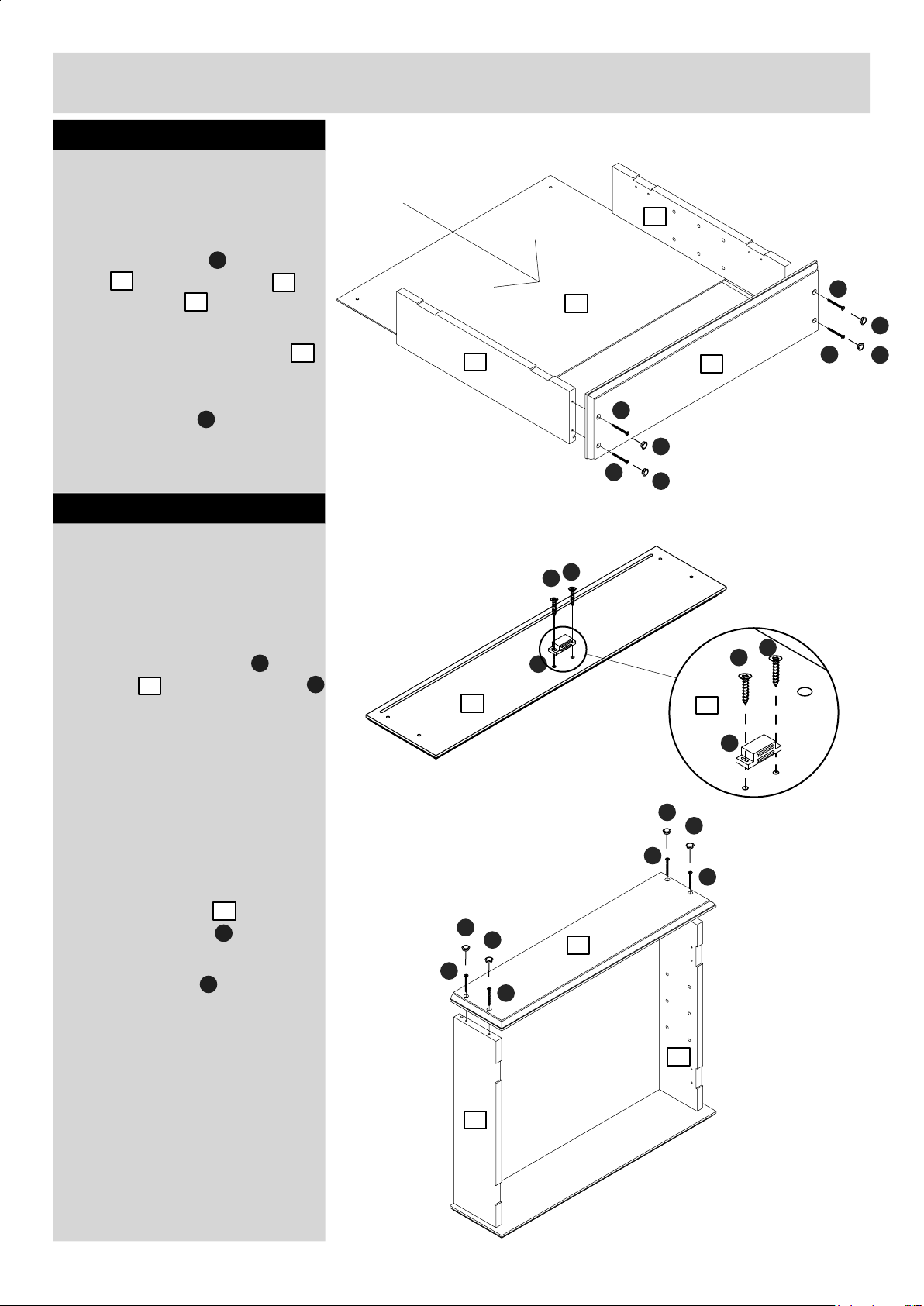

Assembly Instructions
Step 1
Assembling bottom , side and
back panels
NOTE:It would be useful to ask
someone to help you at this stage.
Use 35mm screws to fix bottom
panel into left side panel and
2
right side panel .
Carefully slide the back panel
H
4
4
5
into the grooves of side panels.
Insert screw caps into screw
I
holes.
Step 2
Assembling top panel
NOTE:It would be useful to ask
someone to help you at this stage.
a: Attach magnetic catch to the
top panel with 12mm screws
1
F
4
H
5
I
4
H
I
H
a:
B
1
B
B
F
I
2
B
B
5
H
I
b:Attach top panel to the unit
with 35mm screws
Insert screw caps into screw
1
H
I
holes.
b:
F
I
I
H
H
I
I
H
H
4
1
4
4
Page 6

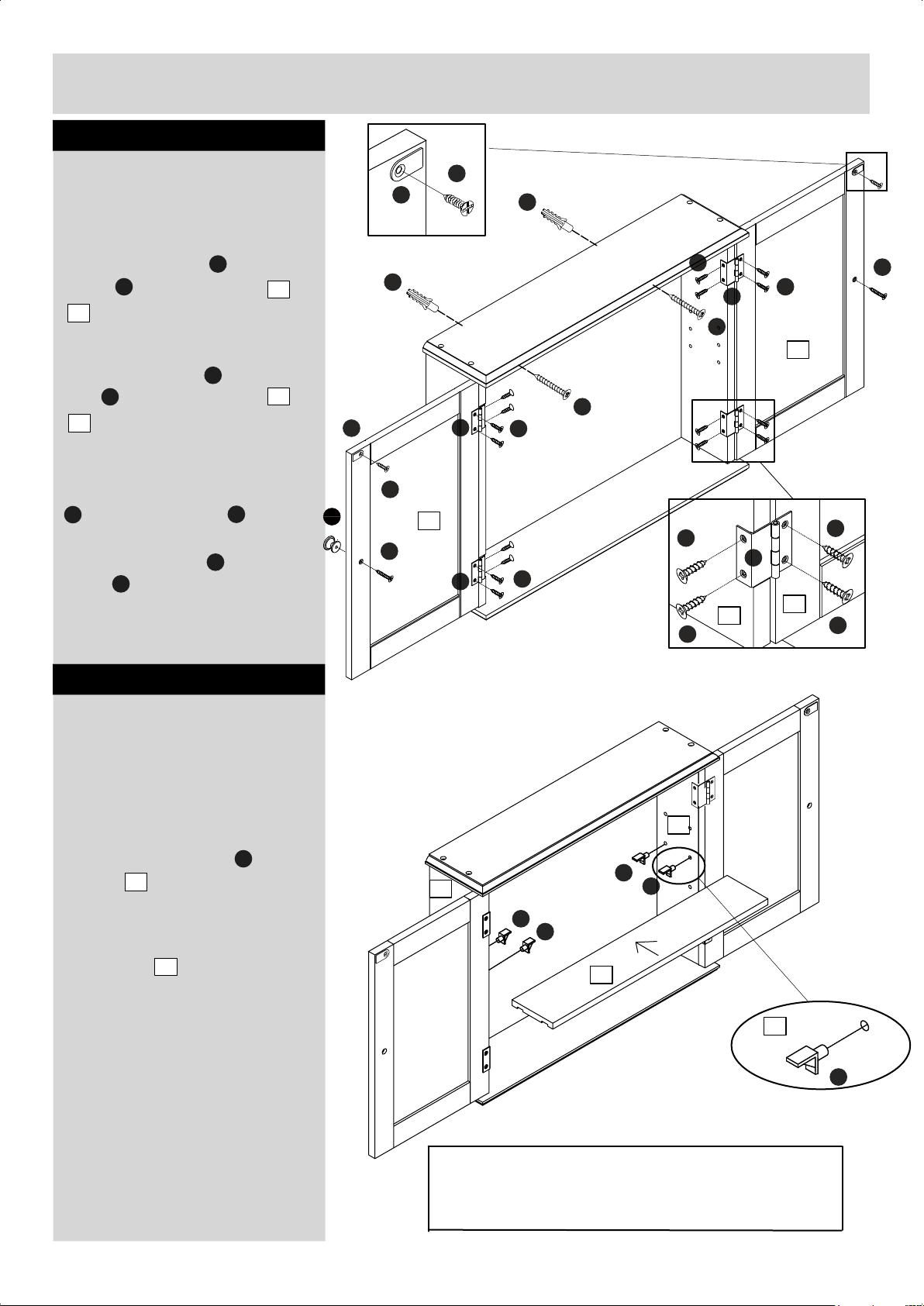

Assembly Instructions
Step 3
Assembling door
NOTE:It would be useful to ask
someone to help you at this stage.
Use 25mm screws to fix door
knobs onto door panels and
C
7
Use 10mm screws to fix strike
G
plate on the door panels and
7
D
6
L
6
Carefully attach left & right door
panel to the unit with door hinges
by 10mm screws
A
Use 45mm screw and Wall
plugs to fix the unit on the wall
J
L
K
L
G
J
G
L
C
D
A
6
A
J
L
A
K
K
L
L
L
4
L
L
7
A
7
D
L
L
Step 4
Assembling abjustable shelf
panel
NOTE:It would be useful to ask
someone to help you at this stage.
Insert plastic supports into side
panels .
4
Carefully slide the abjustable
shelf panel on it.
3
NOTE: Please make sure the unit
is secure before use
The assembly is now complete
E
4
E
4
E
E
3
E
4
E
NOTE:If you have damaged or missing components,
call the Customer Helpline:08456 400800
Argos LTD,489-499 Avebury Boulevard,
Central Milton Keynes, MK9 2NW
5
Page 7

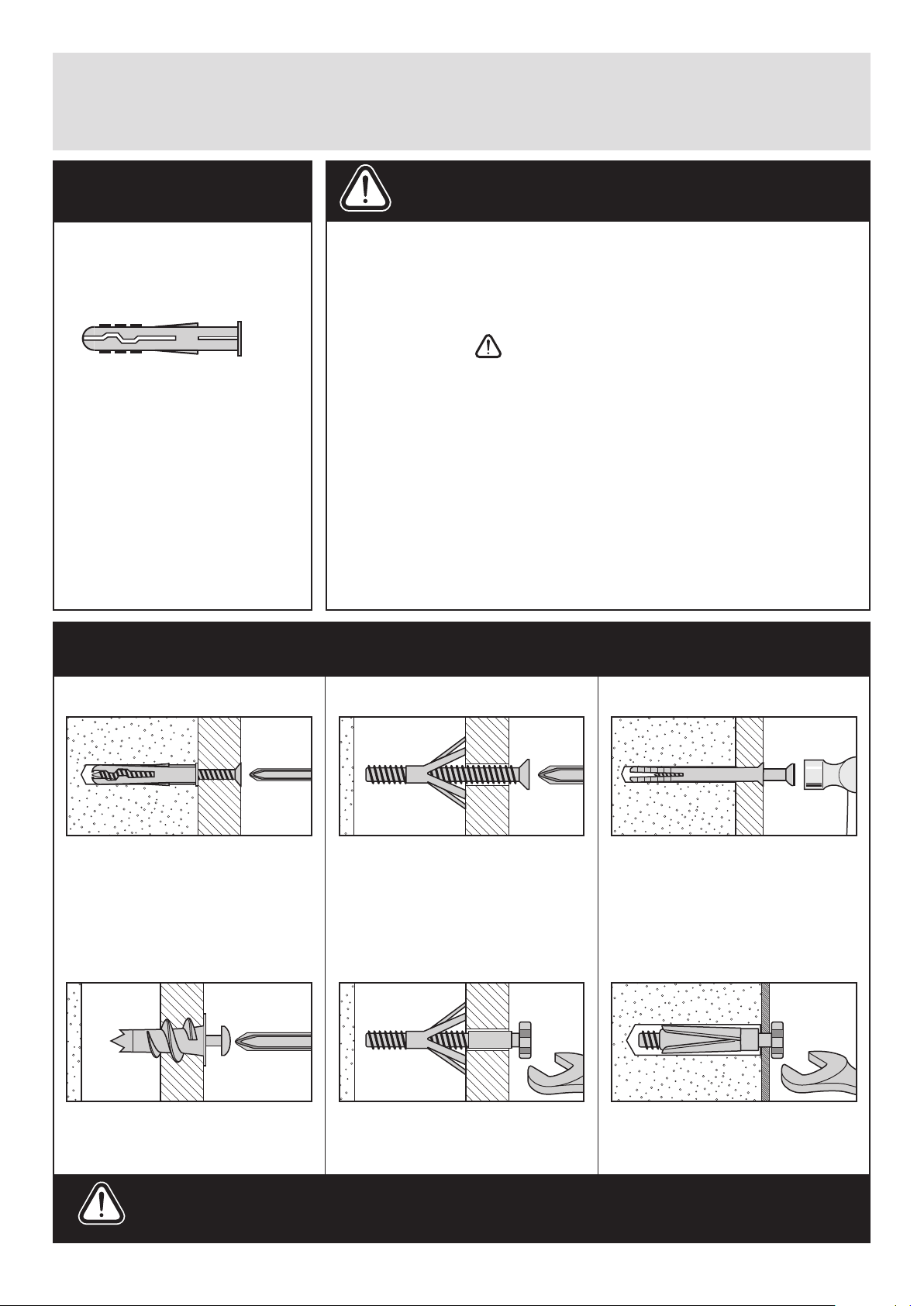

A Guide to - Wall Mounting & Fixings
Important note:
If plastic wall plugs
are supplied with your
product:
- these are only suitable for
use in masonry walls.
If you are in any doubt about
the correct wall plugs for
your wall, seek professional
advice.
Failure of the product due to
using incorrect xings is the
responsibility of the installer.
Important: When drilling into walls always
check that there are no hidden wires or pipes etc.
Make sure that the screws and wall plugs being used
are suitable for supporting your unit. Consult a qualified
tradesperson if you are unsure.
Hints:
1: General rule: Always use a larger screw and wall plug
if you are not sure.
2: Ensure you use the recommended drill bit to match the wall
plug and hole size.
3: Ensure you drill the hole horizontally, do not force the drill or
enlarge the hole.
4: Take extra care when drilling high walls, ceilings and ceramic
tiles. Ensure wall plugs are inserted beyond the thickness of
the ceramic tiles to avoid the tiles splitting or cracking.
5: Ensure wall plugs are well tted and are a tight t in the
drilled hole.
Types of walls
No.1 “General Purpose” wall plug
Generally aerated blocks should not
be used to support heavy loads, use
a specialist tting in this case. For light
loads, general purpose wall plugs can
be used.
No.2 “Plasterboard” wall plug
You can use one of the following types of wall plug if your walls are made
of brick, breeze block, concrete, stone or wood.
No.3 “Cavity Fixing” wall plug
For use with plasterboard partitions or
hollow wooden doors.
No.4 “Cavity Fixing-Heavy Duty”
wall plug
No.5 “Hammer Fixing” wall plug
For use with walls stuck with
plasterboard. The hammer xing allows
it to be xed to the wall rather than the
plasterboard. Always check the xing
is secure to the retaining wall.
No.6 “Shield Anchor” wall plug
Heavy loads
For use when attaching light loads on
to plasterboard partitions.
Care &
Maintenance
For use when tting or supporting
heavy loads such as shelving, wall
cabinets and coat racks.
Safety: Always check the fitting
and location to ensure your safety
in and around the home.
For use with heavier loads such as TV
& HiFi speakers and satelite dishes etc.
Fitting: From time to time check
the fitting to ensure the wall plugs
or screws do not become loose.
Revision 2 - 7/10/09
