Page 1

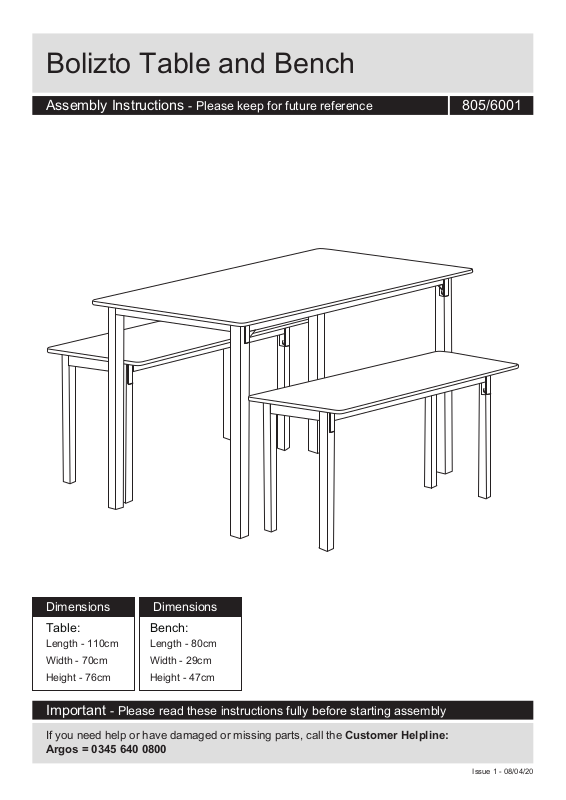

Bolizto Table and Bench
Assembly Instructions - Please keep for future reference 805/6001
Dimensions Dimensions
Table: Bench:
Length - 110cm
Width - 70cm
Height - 76cm
Length - 80cm
Width - 29cm
Height - 47cm
Important - Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 0345 640 0800
Issue 1 - 08/04/20
Page 2
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Check you have all the
components and tools listed on
the following pages.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Make sure you have enough
space to layout the parts before
starting.
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
part connections are tight and in
place.
• During assembly do not stand
or put weight on the product, this
could cause damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor.
• Parts of the assembly will be
easier with 2 people.
• Always lift the product when
moving it around. Never drag.
• Do not stand on the product.
• Do not use this product as step
ladder.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Unit weight: 23.3 kgs.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Handy Hints
• Regularly check and ensure
that part connections are tight
and in place.
1
Page 3
If you have damaged or missing components,
Components - Parts
call the Customer Helpline: 0345 640 0800
Please check you have all the parts listed below
1
Table top x 1
Seat x 2
4
2 Table rail x 2
Table leg x 2
5 Bench rail x 4
Bench leg x 4
Components - Fittings
Please check you have all the fittings listed below
3
6
Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings
may be supplied than are required.
A
Cap x 12
Additional Tools Required
RUBBER MALLET (NOT PROVIDED)
Ruler - Use this ruler to help correctly identify the screws
0 15 30 45 60 75 905 20 35 50 65 80 9510 25 40 55 70 85 100 120 140105 125 145110 130 150115 135 155 160 165 170
2
Page 4
Assembly Instructions
Step 1
Assembling the table
rails
Carefully place the table
1
top face down on a
flat protected surface.
Attach the table rails
by inserting the dowels
on the rails into the
brackets on the table top
as shown.
1
3
3
1
3
1
3
Step 2
Assembling the table
legs
Position the table legs
on the table top as shown
and fix by inserting the
fastener on the table rails
3
into holes on the table
legs then push it down to
lock.
2
2 2
3
3
2
3
3
2
3
Page 5
Assembly Instructions
Step 3
Securing the table legs
Attach caps into holes
on the table rails as
shown. Insert and lock it
carefully into holes by
pressing firmly.
A
3
3
A
A
A
3
A
A
3
Then carefully turn the
table upright and place
on a flat surface.
At least 2 persons are
required to lift the table.
Step 4
Assembling the bench
rails
Carefully place the seat
4
face down on a flat
protected surface.
Attach the bench rails
by inserting the dowels
on the rails into the
brackets on the seat as
shown.
6
4
6
6
4
6
6
4
6
5
Page 6
Assembly Instructions
Step 5
Assembling the bench
legs
Position the bench legs
on the seat as shown
and fix by inserting the
fastener on the bench
6
rails into holes on the
bench legs then push it
down to lock.
5
5 5
6
6
5
5
Step 6
Securing the bench
legs
Attach caps into holes on
the bench rails as
shown. Insert and lock it
carefully into holes
by pressing
firmly.
A
3
5
6
6
A
A
5
6
6
6
A
A
6
6
A
A
A
Then carefully turn the
A
6
6
A
bench upright and place
on a flat surface.
Assembly is complete.
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 0345 640 0800
6
