House Bed
Spare Parts
www.argos-support.co.uk
0370 112 1928
Customer Support
0345 640 2020
Issue 1 - / /
11 06 21
Page 2
Safety and Care Advice
Product Details
House Bed White: 795/9013
House Bed Pine: 789/1195
IMPORTANT! KEEP IT FOR FUTURE REFERENCE: READ CAREFULLY.
Keep children and animals
away from the work area, small
parts could choke if swallowed.
Make sure you have enough space
to layout the parts before
starting.
-This product has been
constructed to be used in the
domestic environment only and
not for commercial purpose.
Care and maintenance
Use a dry cloth to clean the
product, furniture polish is
not recommended.
Assemble the item as close
room) as possible.
Assemble on a soft level
surface to avoid damaging the
•From time to time check that there
are no loose screws, nuts or bolts.
If there are please re-tighten.
We do not
recommend the
use of power
drill/drivers for
inserting screws
as this could damage the unit.
Only use hand screwdrivers.
Parts of the assembly will be
easier with 2 people.
Dispose of all packaging
carefully and responsibly.
This product should not be
discarded with household
waste.Take to your local
authority waste disposal
centre.
Additional Guidance
●Assemble all parts and bolts loosely during assembly, only once the product is complete should you
fully tighten the bolts.
●Regularly check and ensure that all bolts and fittings are tightend properly.
●Maximum user weight 100 kgs.
Warnings for the bed
Warning: Do not place this"child’s bed near heat sources, windows and other furniture
Warning: Do not use this"child’s bed if any part is broken, torn or missing.
Warning: Not suitable for children under 4 years.
Designed and manufactured to BS 8509: 2008 + A1 : 2011
Model:795/9013 - 789/1195
Retailer: Argos Ltd.
The bed is suitable for children aged from 4 years and older.
The bed is suitable for a matress of 190 cm in lenght and 90cm in width.
Periodically check that all fittings are always properly tightened.
Children are likely to play, bounce, jump and climb on beds,
therefore the child’s bed should not be placed too close the other
furniture or windows, blind cords, curtain pulls or other strings or cords and should be placed either tight
any wall or have a gap of 300mm between the wall and side of the bed.
This bed is not designed to be dismantled for storage or transportation.
Any additional or replacements parts are obtained from CustomerHelpline: 0370 112 1928
Assembly to be carried out by a competent adult only!
During assembly children shoud be kept away from the product due to possible risk of injury.
Do not use this item if any components are missing or damaged.
Sainsbury's Argos is a trading name of both: Argos Limited, Registered office: 489-499 Avebury Boulevard, Milton Keynes, United
Kingdom, MK9 2NW, registered number: 01081551 (England and Wales); and Sainsbury's Supermarkets Limited, Registered
office: 33 Holborn, London, EC1N 2HT, registered number: 03261722 (England and Wales). Both companies are subsidiaries of J
Sainsbury's plc.
Page 3

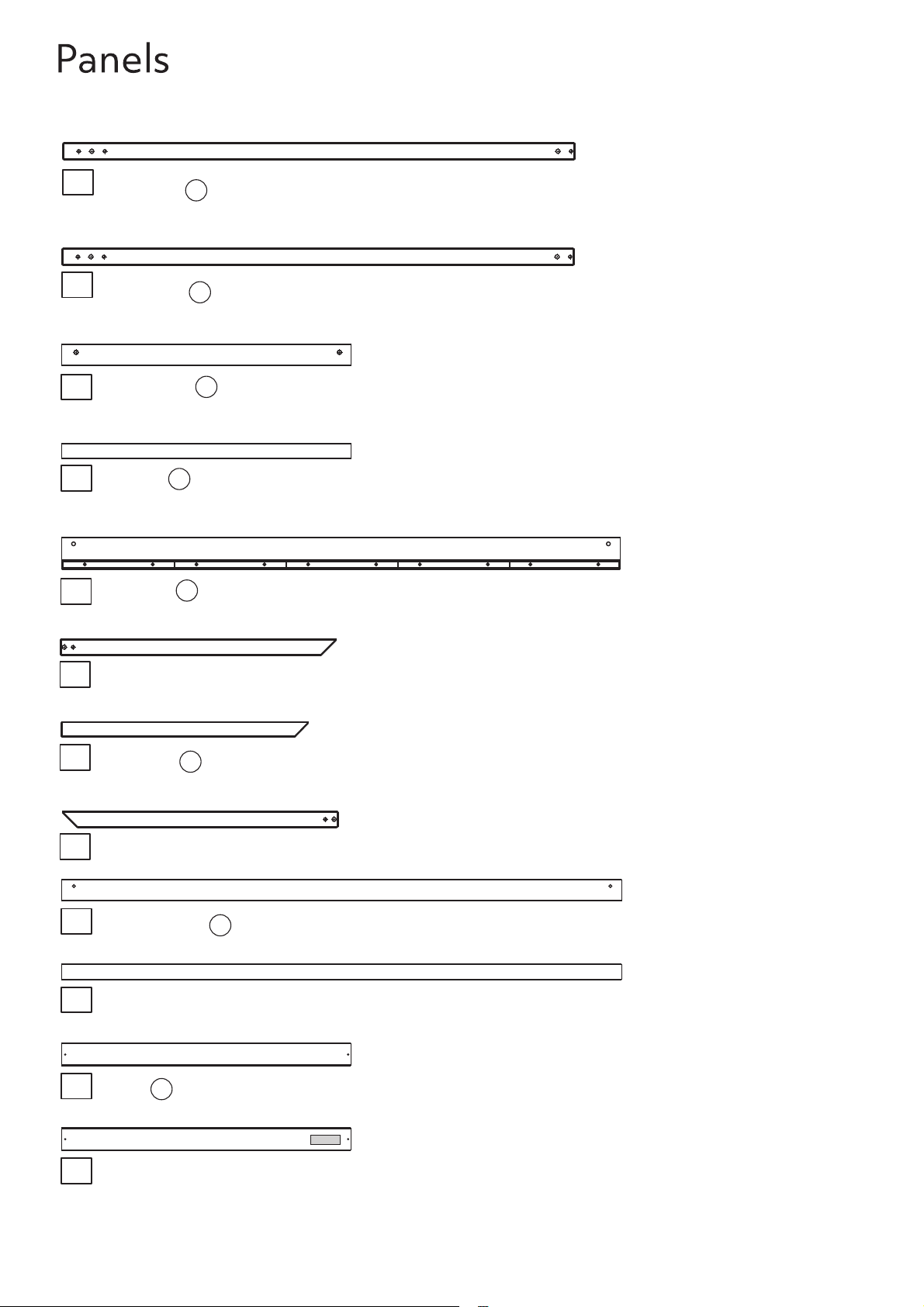

1
Left Foot x2
( x )1260 42mm
2
Right Foot x2
Bottom Rail x2
3
Top Rail x2
4
Side Rail x2
5
6
Roof Rail
( x )1260 42mm
( x m)889 110m
( x m)889 63m
1890 110mm)x
(691 x 42mm)
7
Roof Rail x2
8
Roof Rail
9
Top Side Rail x2
10
Top Center Rail
11
Slat x 13
12
Labelled Slat
(644 x 42mm)
(691 x 42mm)
(1890 x 63mm)
(1890 x 42mm)
(910 x 70mm)
(910 x 70mm)
Page 4

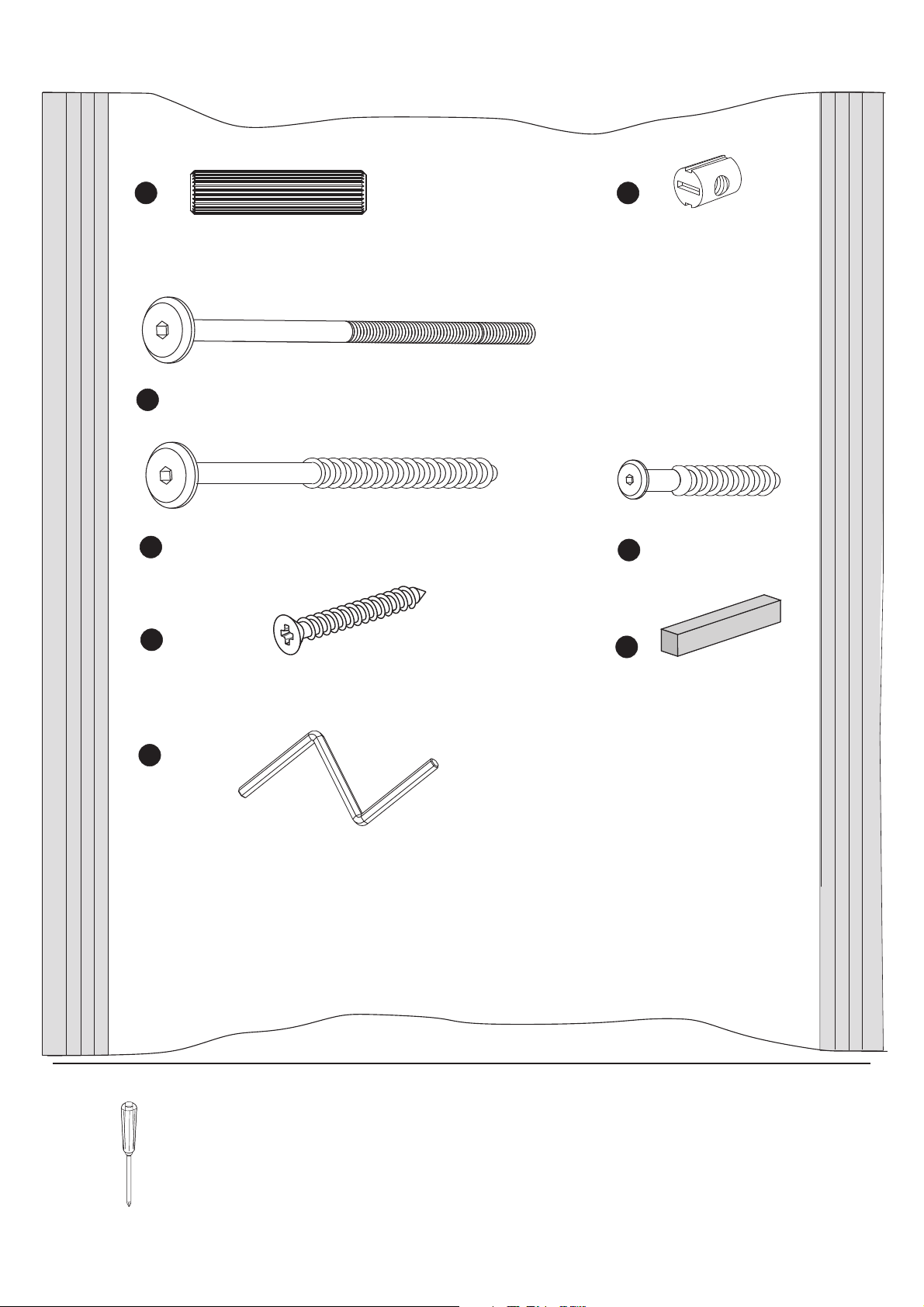

Fittings
A
Large w 14ooden dowel x
10 x 0mm4
1/4 x mm Bolt x90 12
C
Cab. 17
7 80 12x mm Bolt x
D
Cab. 17
10004
F
9205
9114
B
Half moon nut 1/4 x 12
11302
7 40 04x mm Bolt x
E
Cab. 10
G
9106
4 x 35mm Screw x 28
H
Allen key x 1
Tools required
9013
69 x 17 x 17mm Spacer x 2
11505
Phillips screwdriver
(small & medium)
Page 5

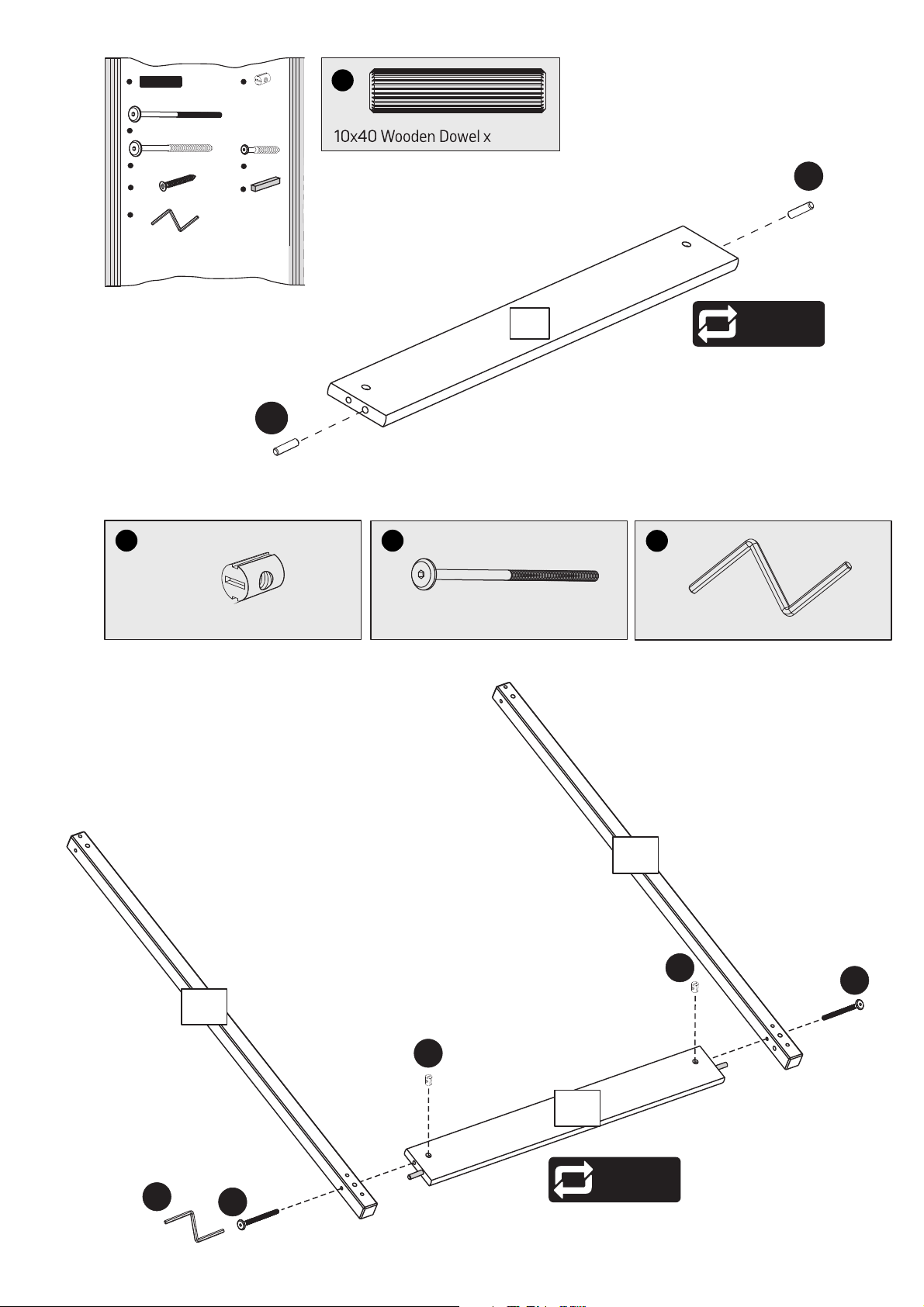

1
A
Largew 14ooden dowel x
10x 0mm4
1/4 x mm Boltx90 12
C
Cab. 17
7 80 12x mm Boltx
D
Cab. 17
F
4 x 35mm Screw x28
H
Allen key x 1
B
10004
9205
9114
9013
Half moon nut 1/4 x12
11302
7 40 04x mm Boltx
E
Cab. 10
G
69x 17 x 17mm Spacer x 2
9106
11505
A
04
A
2
B
Half moon nut 1/4 04x
A
C
1/4 x 90 Bolt 04x
3
Repeat
x2
H
Allen Key 01x
1
B
C
2
B
3
Repeat
x2
H
C
Page 6

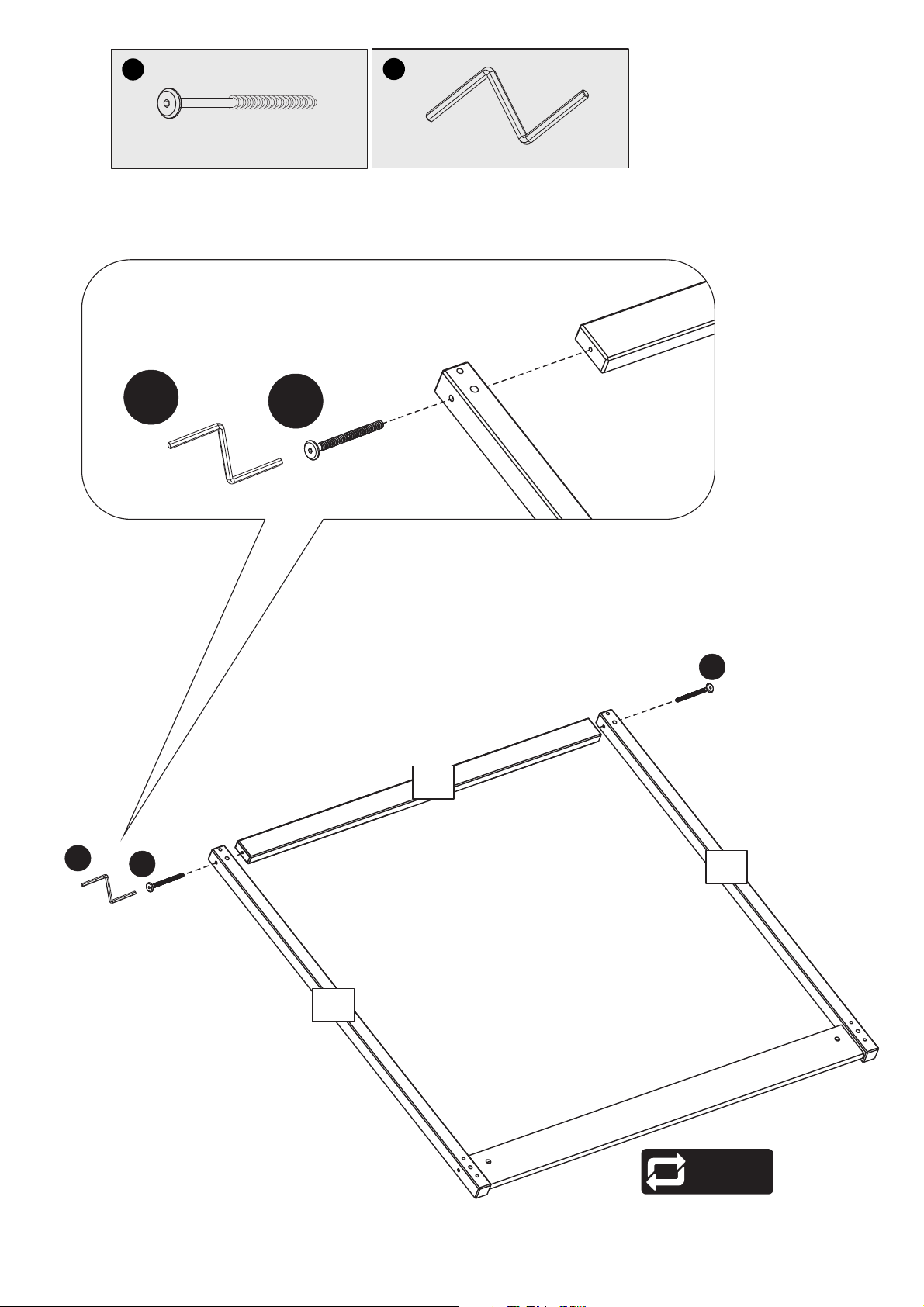

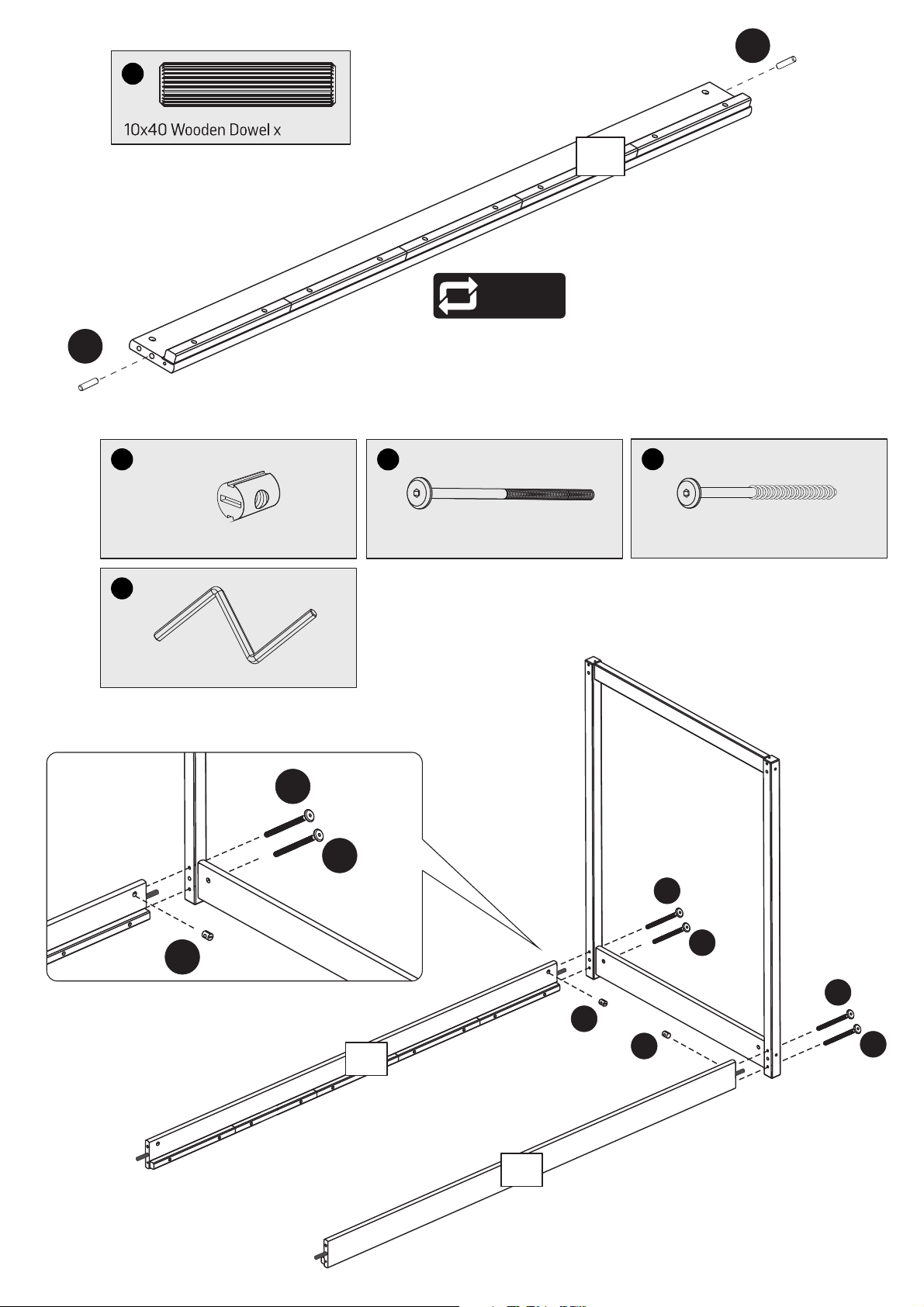

3
D
H
7 x 80 Bolt 04x
H
Allen Key 01x
D
D
4
H
D
2
1
Repeat
x2
Page 7

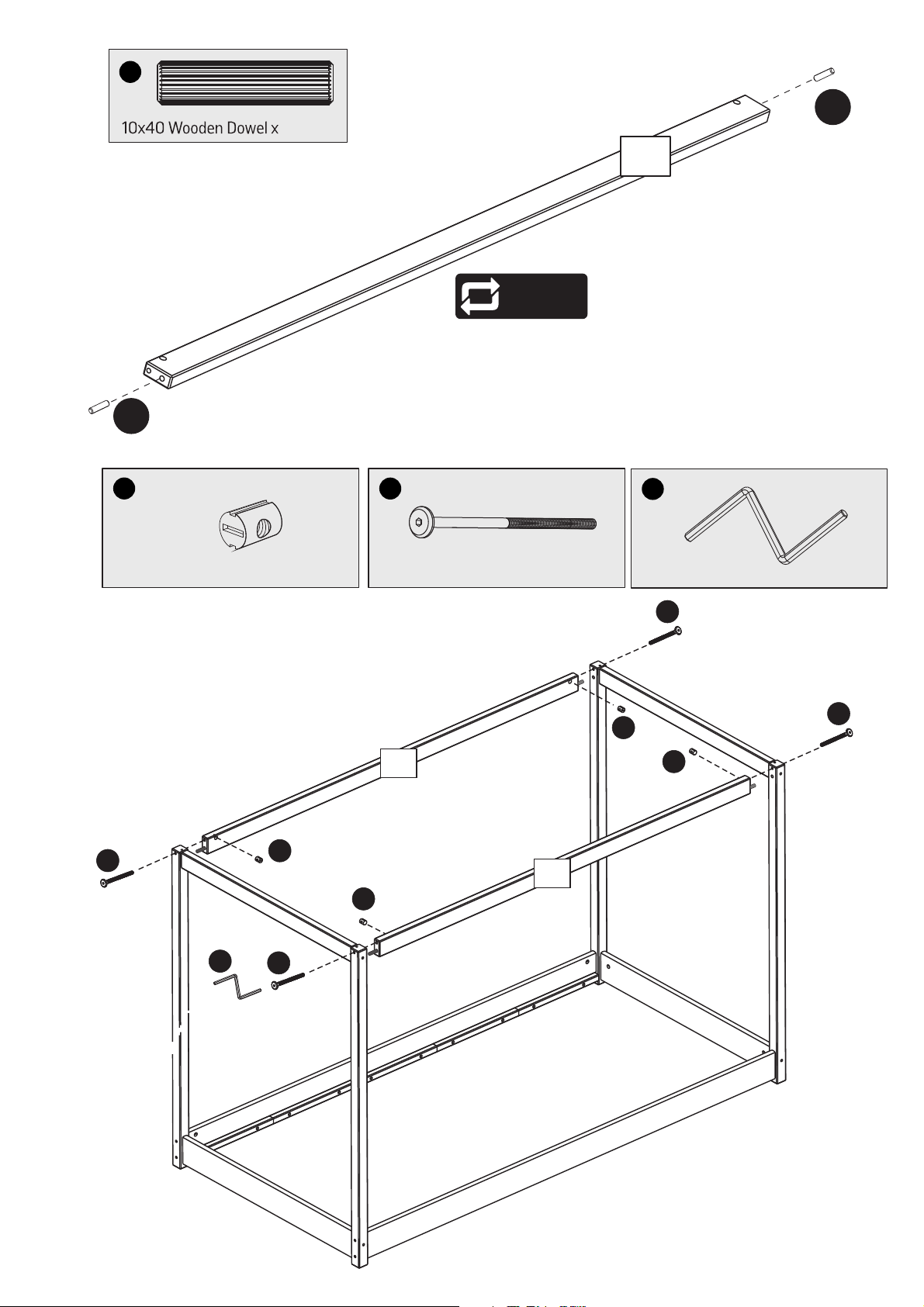

4
A
A
A
04
5
Repeat
x2
5
B
Half moon nut 1/4 02x
H
Allen Key 01x
C
D
C
1/4 x 90 Bolt 02x
D
7 x 80 Bolt 02x
C
B
D
C
B
5
B
5
D
Page 8

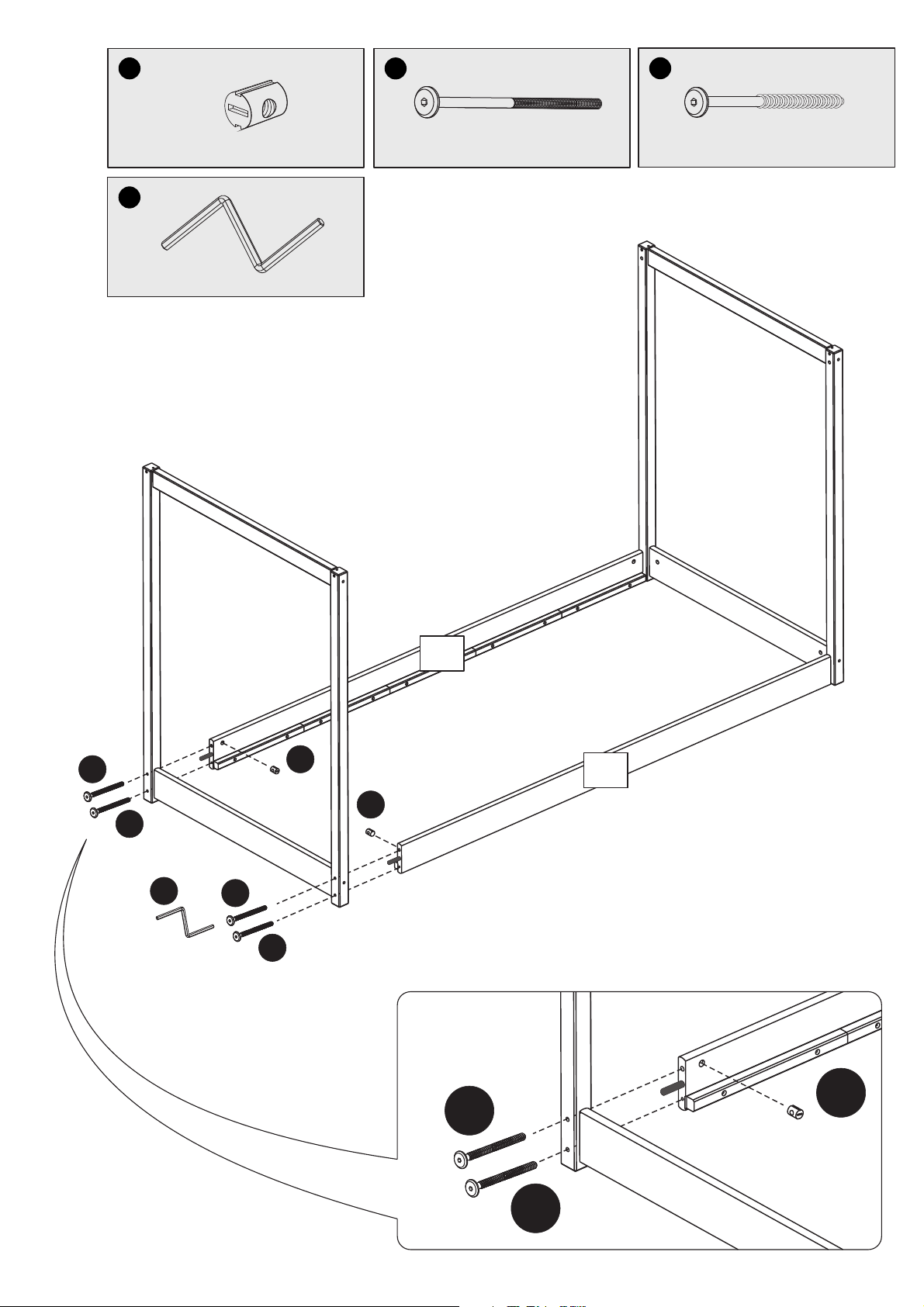

6
B
C
D
Half moon nut 1/4 02x
H
Allen Key 01x
1/4 x 90 Bolt 02x
7 x 80 Bolt 02x
5
C
D
H
C
B
B
D
5
B
C
D
Page 9
A
7
8
A
04
9
Repeat
x2
A
B
C
H
Half moon nut 1/4 04x
C
1/4 x 90 Bolt 04x
9
B
9
B
H
C
Allen Key 01x
C
C
B
B
Page 10

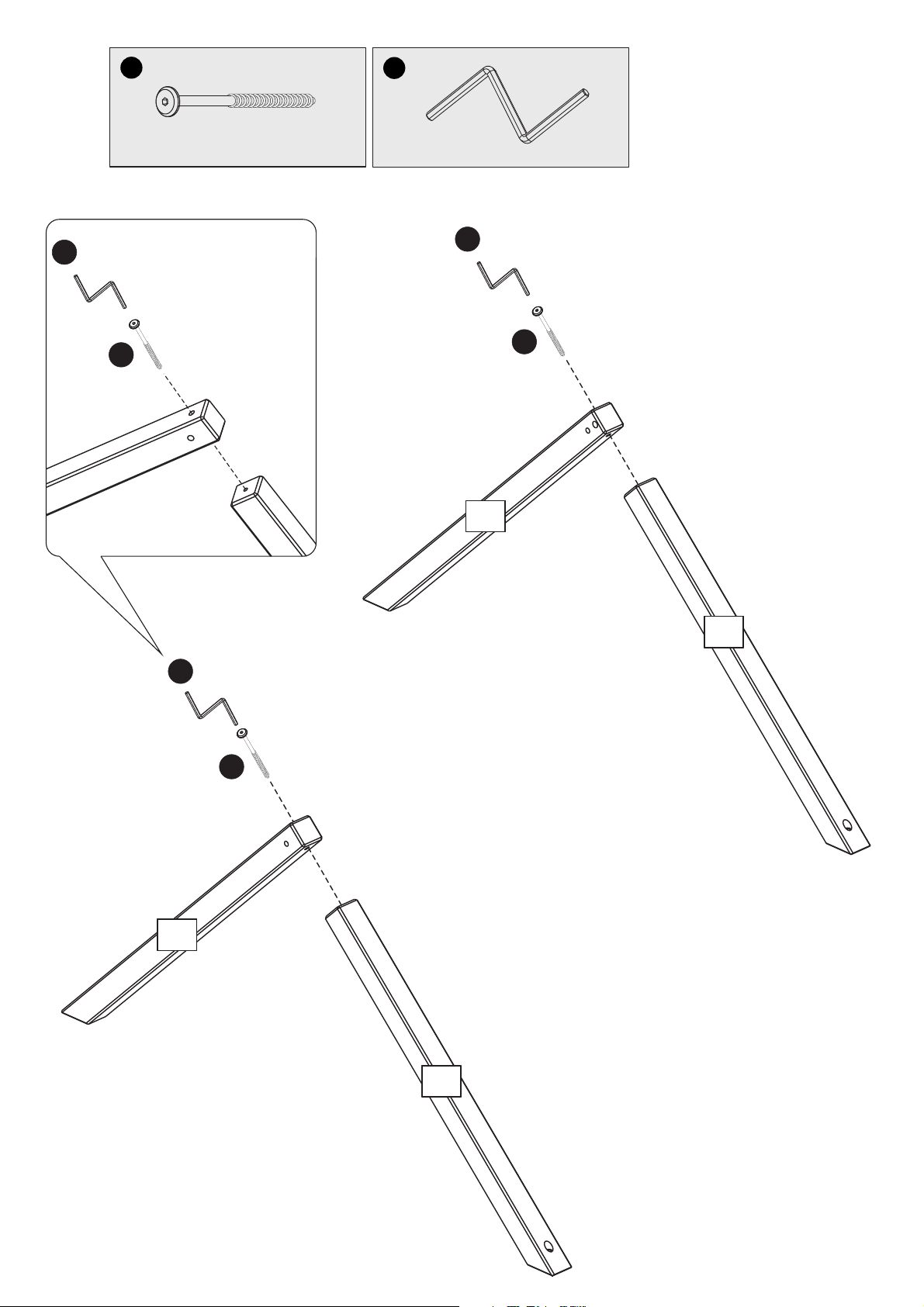

9
D
H
7 x 80 Bolt 02x
H
D
Allen Key 01x
H
D
8
7
H
D
6
7
Page 11
10
E
7 x 40 Bolt 04x
Cab. 10
H
Allen Key 01x
E
8
7
H
E
6
7
E
E
Page 12

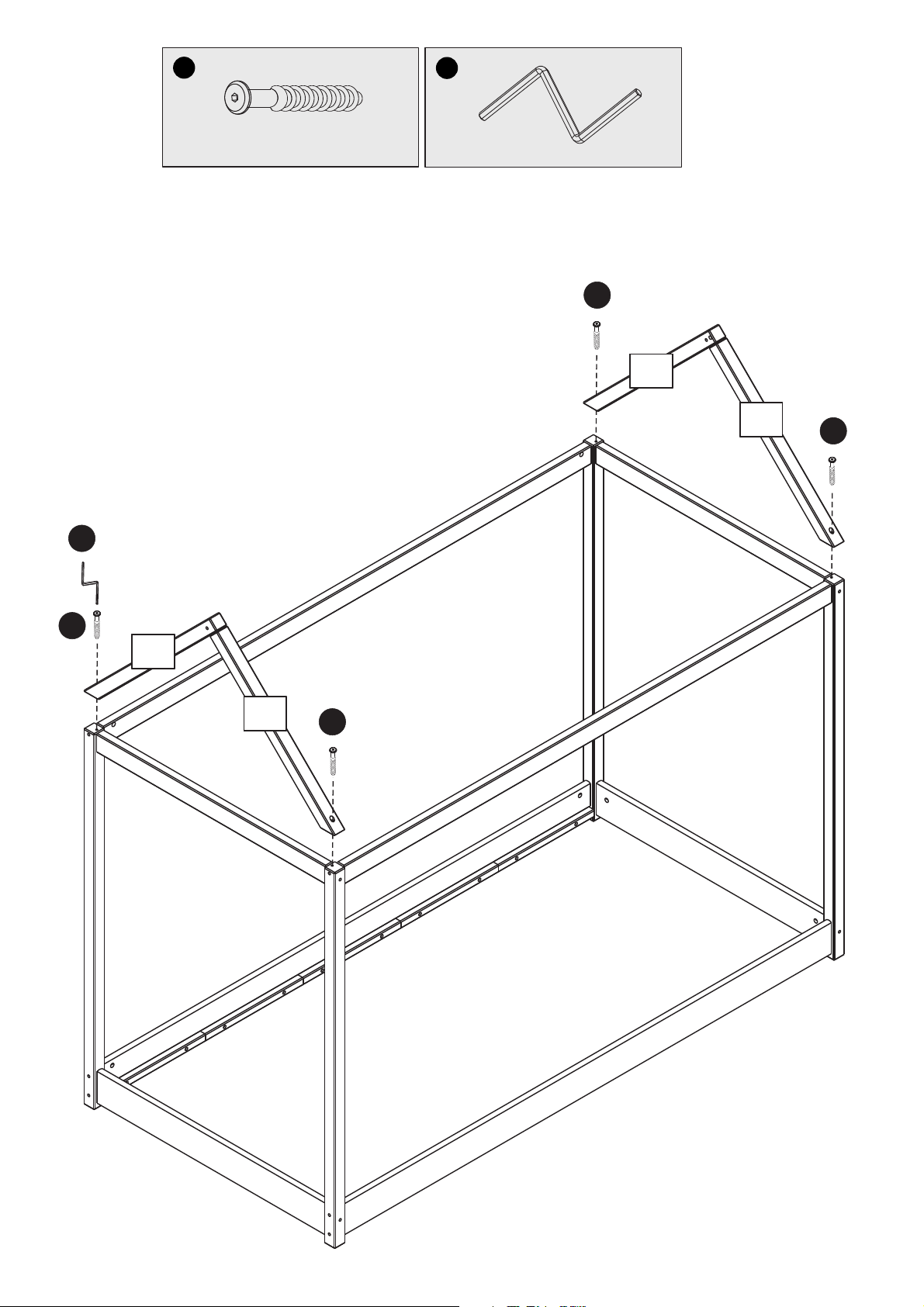

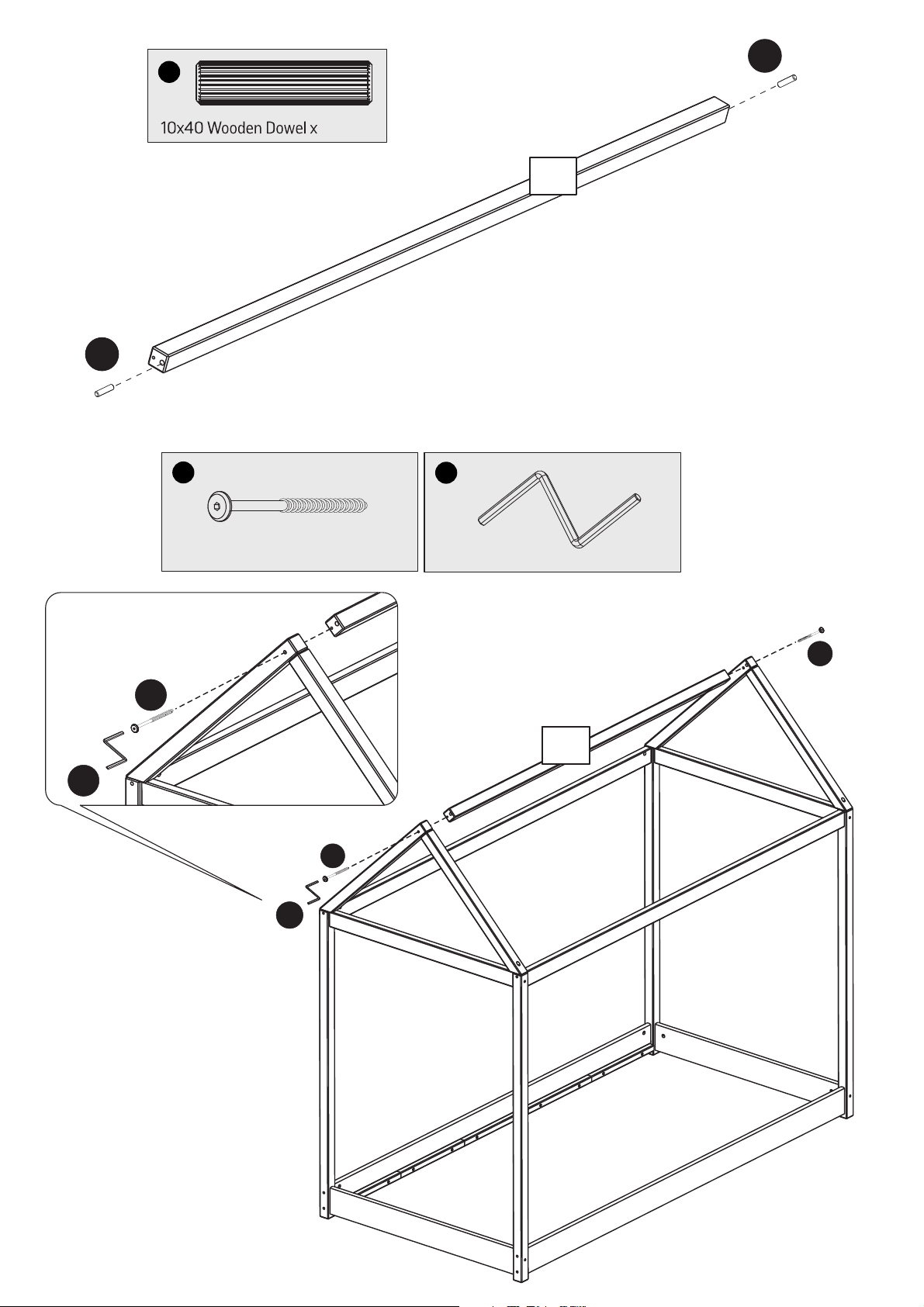

11
A
A
A
02
10
12
H
D
7 x 80 Bolt 02x
D
H
Allen Key 01x
D
10
D
H
Page 13

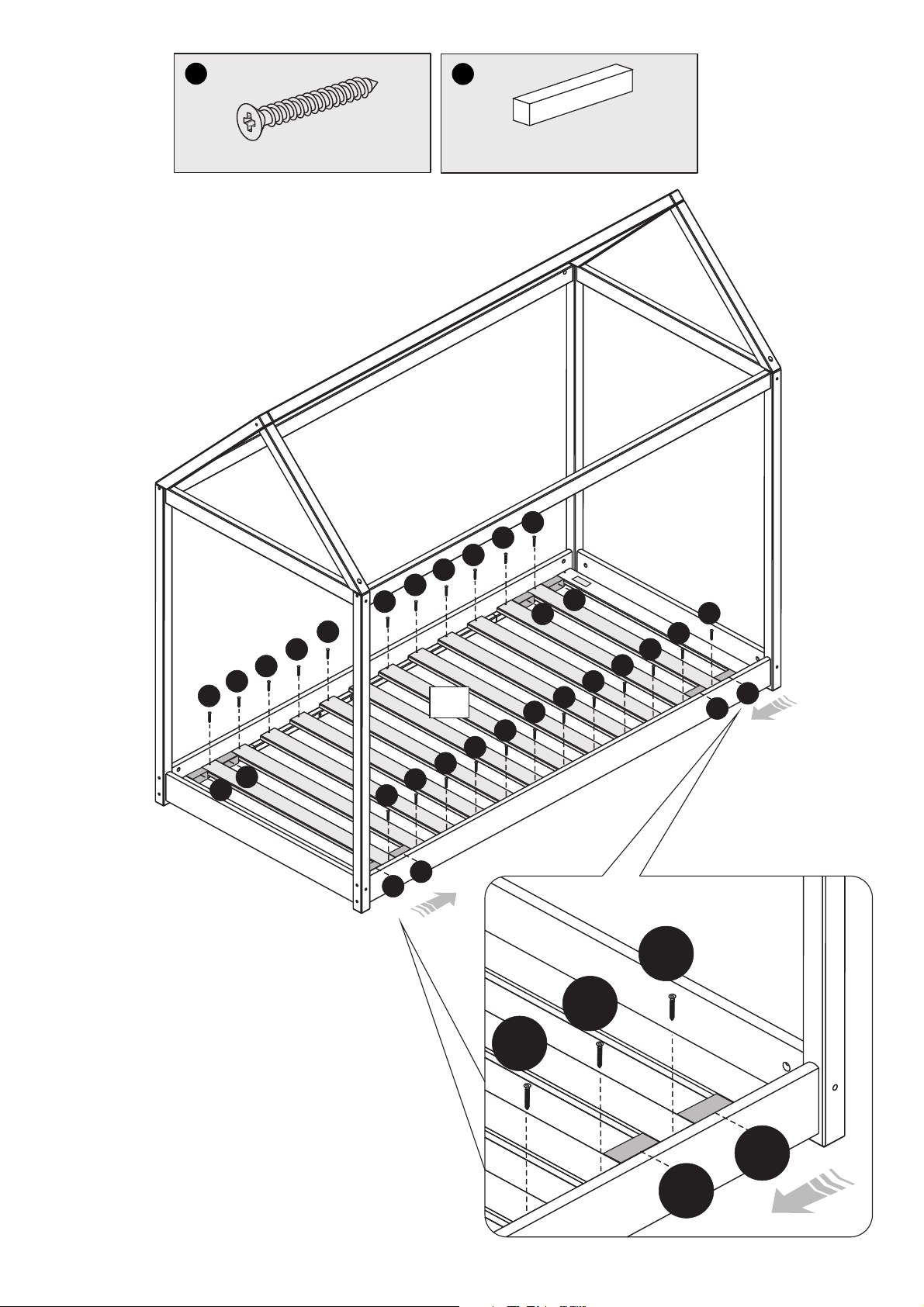

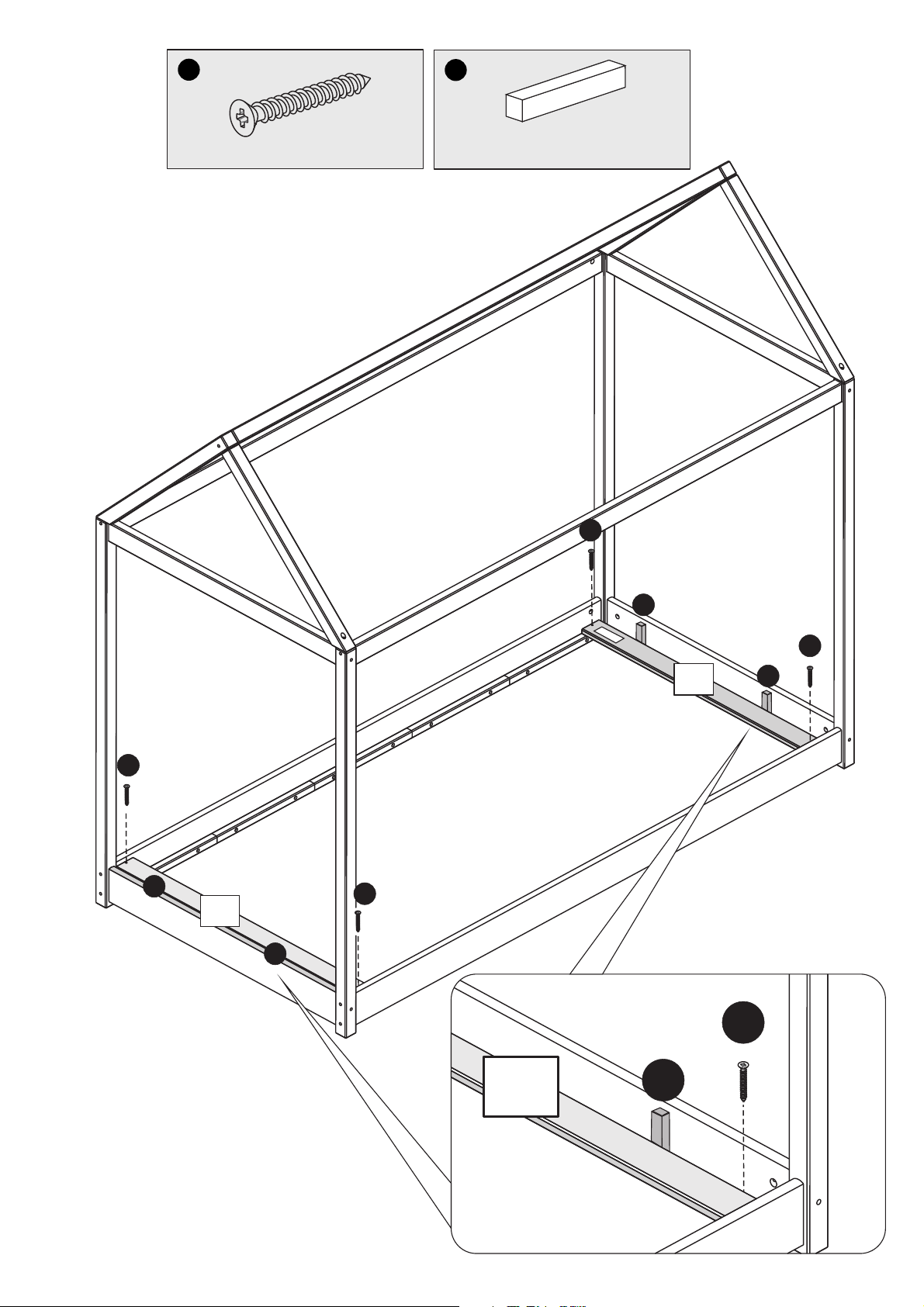

13
