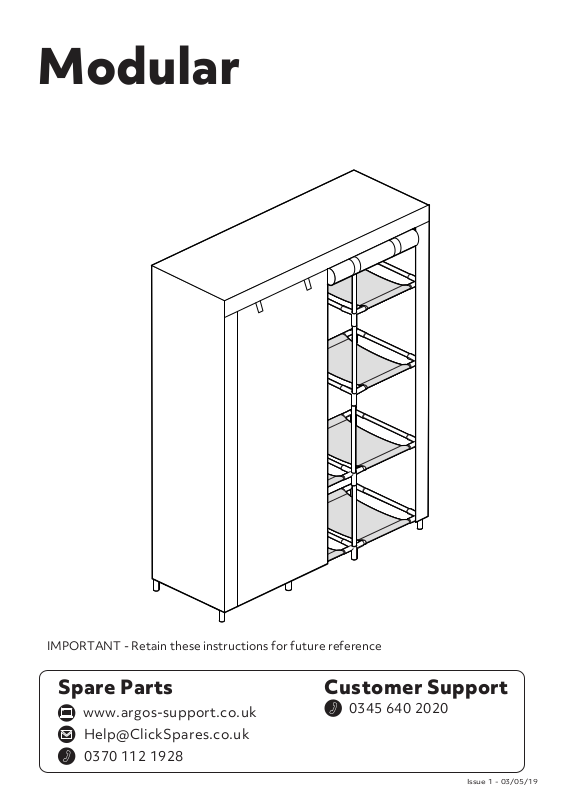

Page 1
Modular
IMPORTANT - Retain these instructions for future reference
Spare Parts
www.argos-support.co.uk
0370 112 1928
Customer Support
0345 640 2020
Issue 1 - 03/05/19
Page 2
Safety and Care Advice
Product Details
785/0040
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY.
Keep children and animals
away from the work area, small
parts could choke if swallowed.
Make sure you have enough space
to layout the parts before
starting.
This product has been
constructed to be used in the
domestic environment only and
not for commercial purposes.
We do not
recommend the
use of power
drill/drivers for
inserting screws
as this could damage the unit.
Only use hand screwdrivers.
Parts of the assembly will be
easier with 2 people.
Dispose of all packaging
carefully and responsibly.
Assemble the item as close
to its final position (in the same
room) as possible.
• WARNING: To prevent
possible overbalancing this unit
must be secured to a wall using
the overbalance protector kit
supplied.
• A unit that is allowed to topple
can cause serious or fatal injury.
In addition to wall fixing the unit,
place heavy items on the lower
shelves, do not put any heavy
objects on top of the unit and
never allow children to climb or
hang on drawers, doors or
shelves.
Warning: Max loading weight
Small shelf - 5 kg
Hanging rail - 15kg
Assemble on a soft level
surface to avoid damaging the
unit or your floor
Care and maintenance
Only clean using a damp cloth
and mild detergent. Do not use
abrasive cleaners.
Use a dry cloth to clean the
product, furniture polish is
not recommended.
• From time to time check that there
are no loose screws, nuts or bolts.
If there are please re-tighten.
This product should not be
discarded with household
waste. Take to your local
authority waste disposal
centre.
Additional Guidance
● Assemble all parts and bolts loosely during assembly, only once the product is complete should you
fully tighten the bolts.
● Regularly check and ensure that all bolts and fittings are tightend properly.
Sainsbury's Argos is a trading name of both: Argos Limited, Registered office: 489-499 Avebury Boulevard, Milton Keynes, United
Kingdom, MK9 2NW, registered number: 01081551 (England and Wales); and Sainsbury's Supermarkets Limited, Registered
office: 33 Holborn, London, EC1N 2HT, registered number: 03261722 (England and Wales). Both companies are subsidiaries of J
Sainsbury's plc.
1
Page 3
Fittings (Shown to scale)
Bag 1
A
x 2
25mm
Screw
B
x 2
6x25mm
Tools required
Ruler/tape
measure
2
Page 4

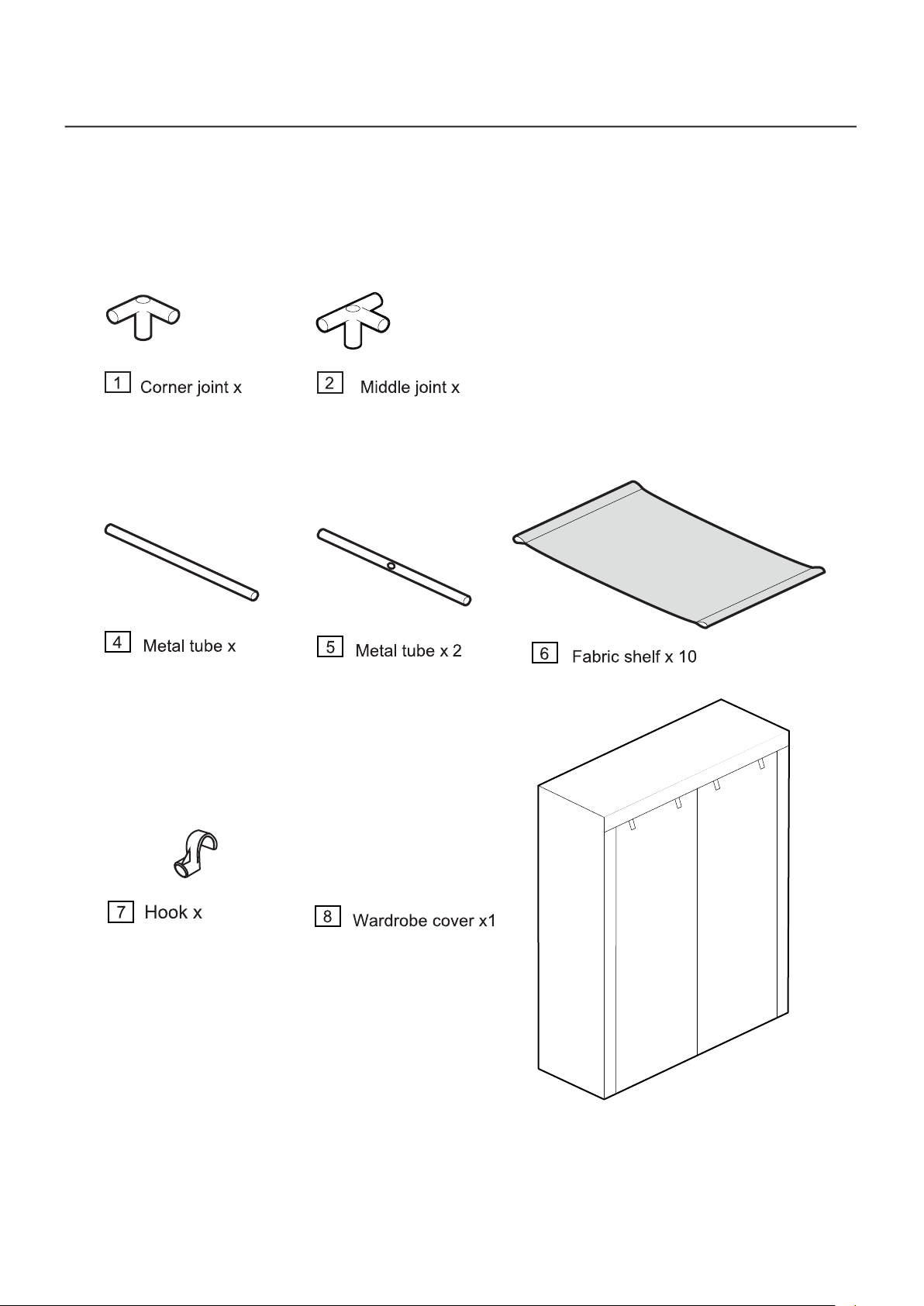

Components
77
28
12
2
3
Page 5

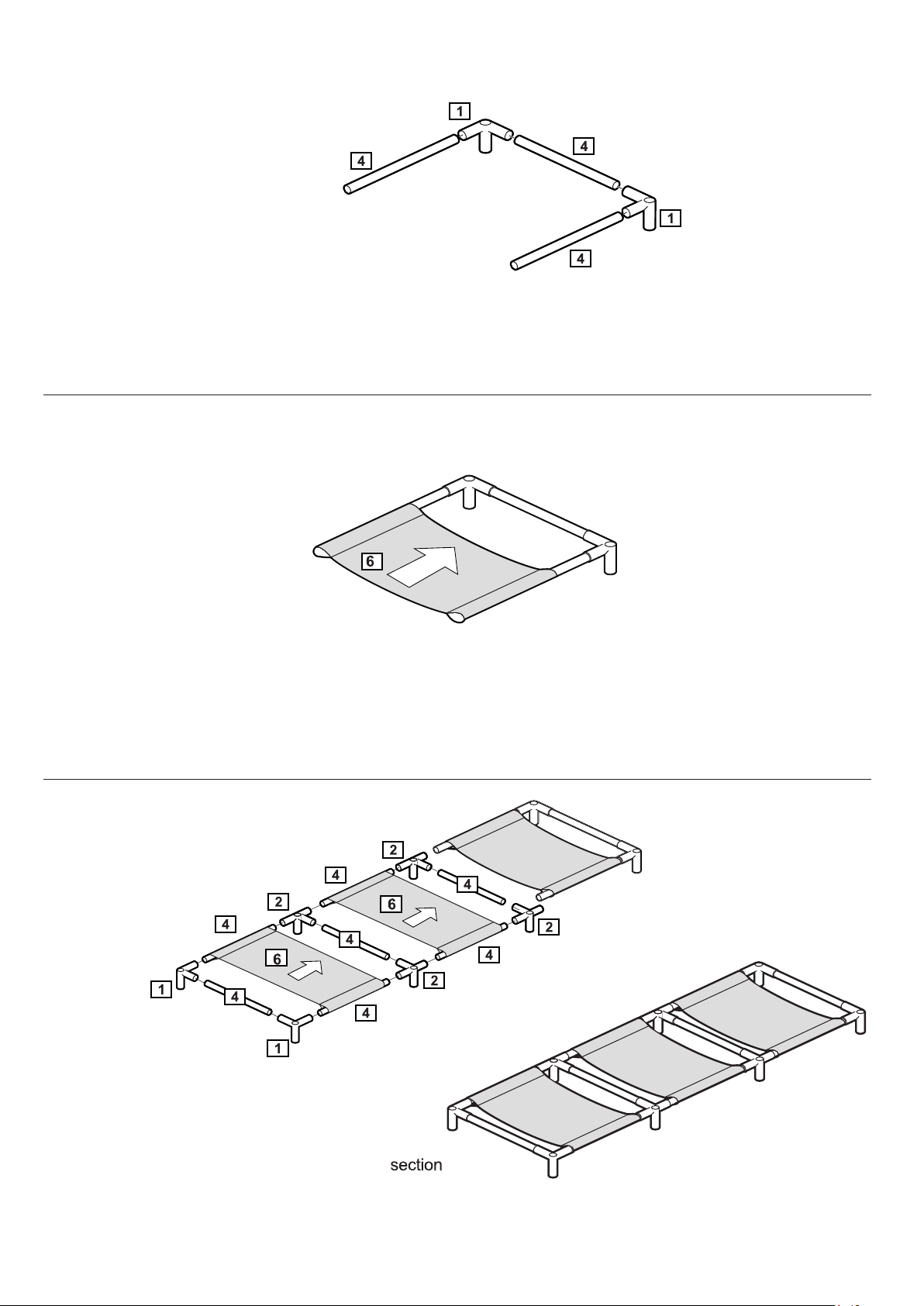

1
2
3

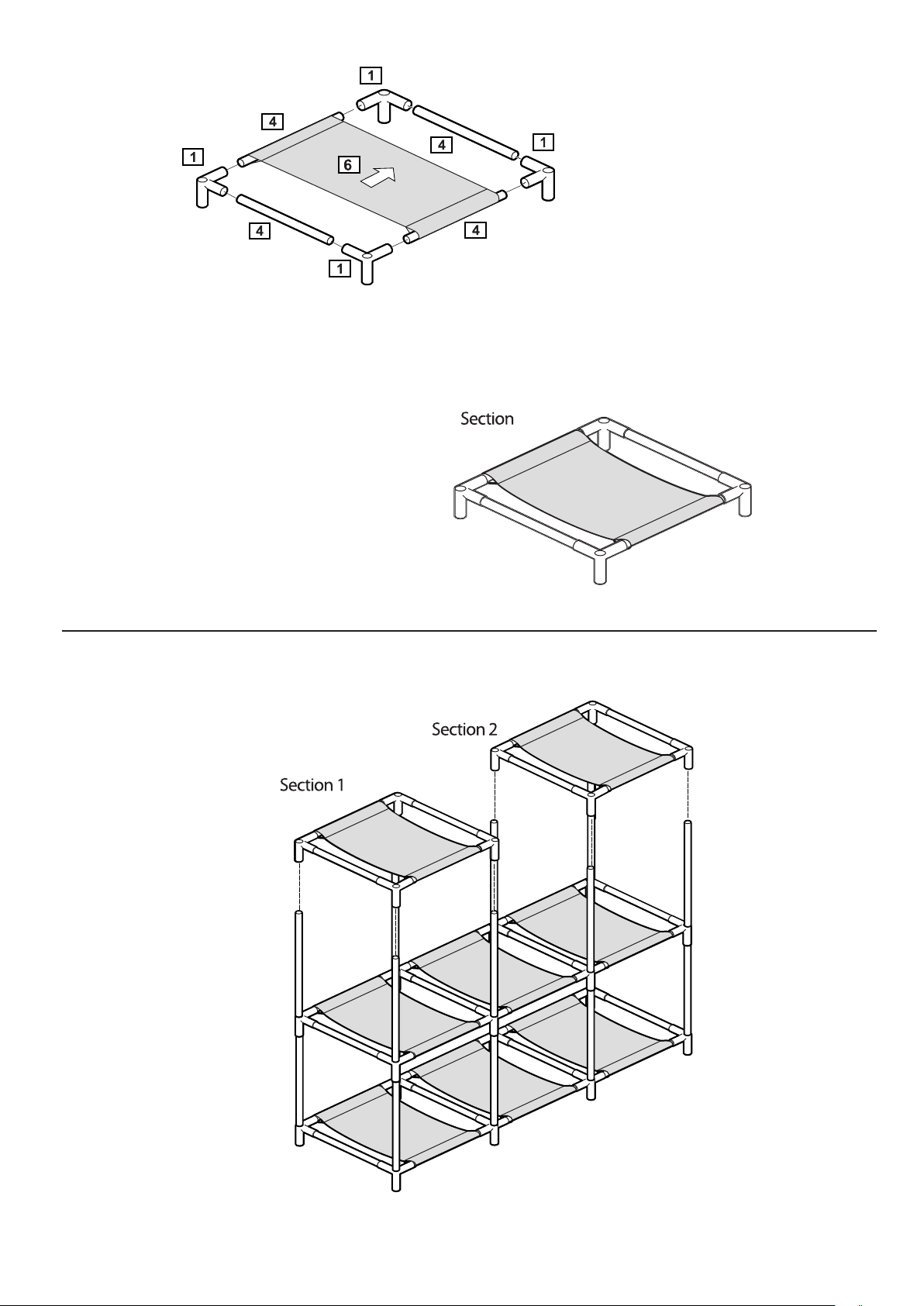

Repeat Steps 1-3 so you have 2
complete identical shelf sections.
1;2
4
Page 6

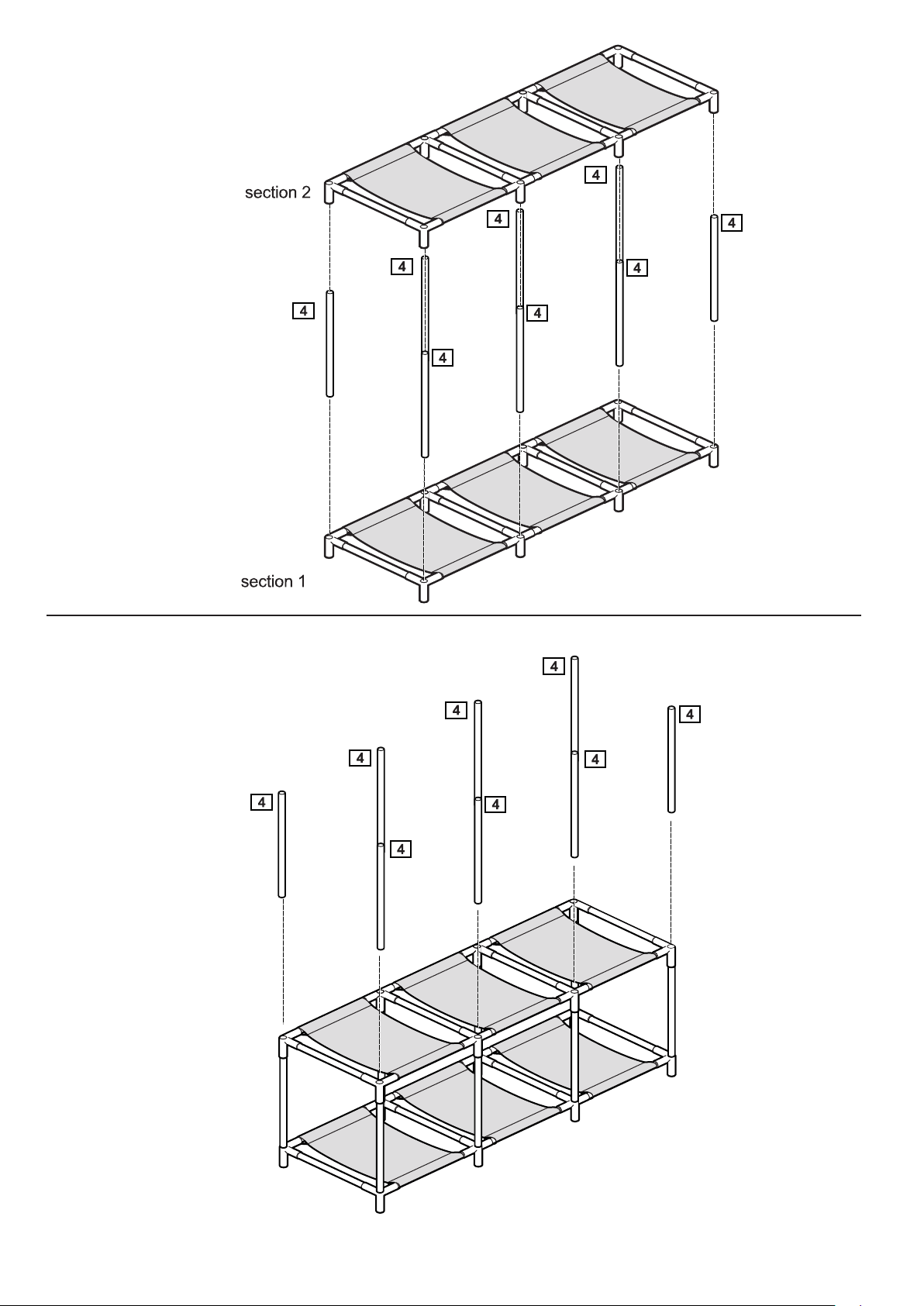

4
5
5
Page 7
6

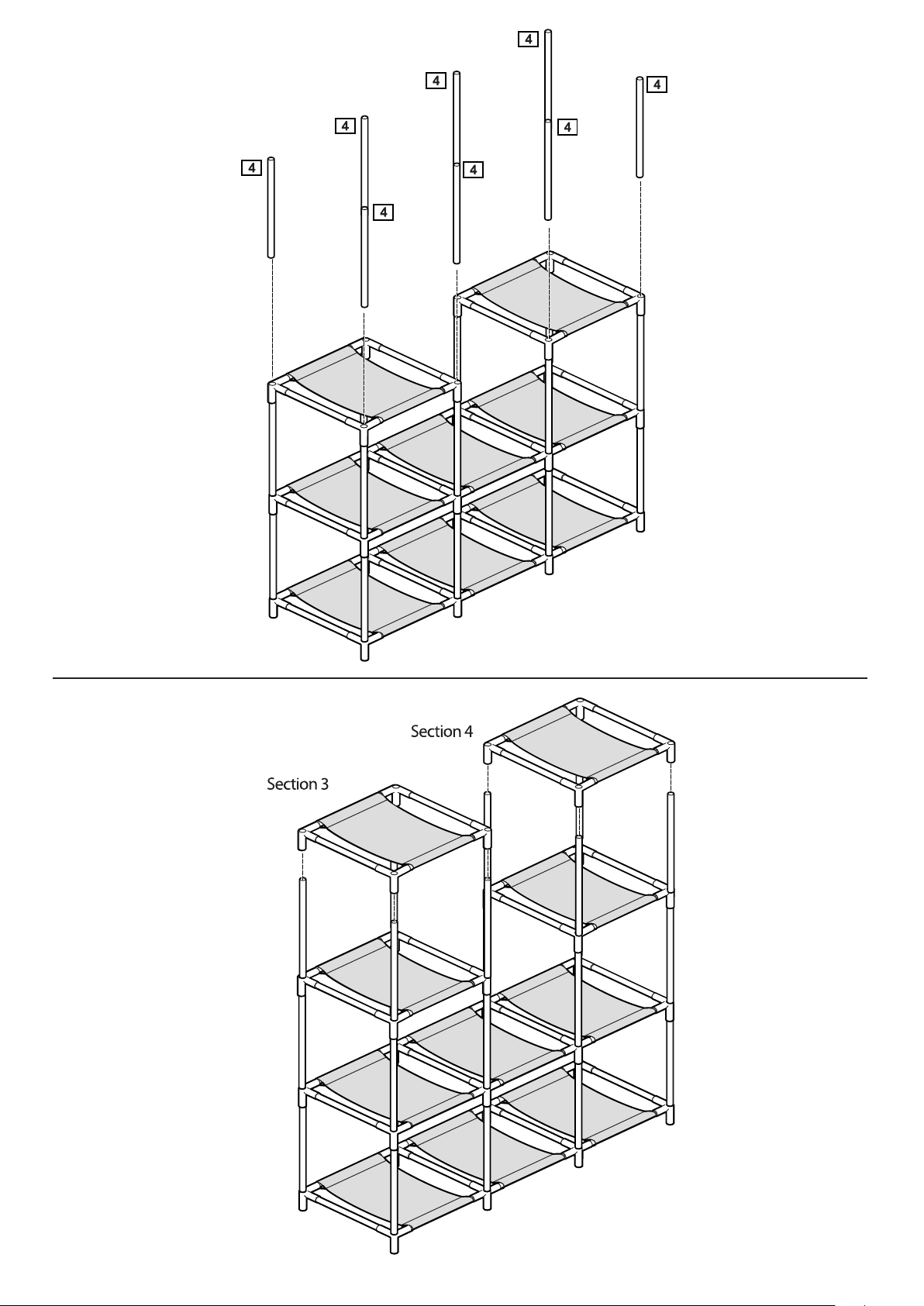

Repeat Step 6 so you have 4 shelf sections.
1,2,3,4
7
6
Page 8
8
9
7
Page 9
10
8
Page 10
11
12
7
4
7
9
Page 11
13
14
8
10
Page 12
15
A
X 2
B
X 2
Pt. No
B
5
A
B
5
A
11
Page 13
A Guide to - Wall Mounting & Fixings
Important note:
If plastic wall plugs
are supplied with your
product:
- these are only suitable for
use in masonry walls.
If you are in any doubt about
the correct wall plugs for
your wall, seek professional
advice.
Failure of the product due to
using incorrect fxings is the
responsibility of the installer.
Important: When drilling into walls always
check that there are no hidden wires or pipes etc.
Make sure that the screws and wall plugs being used
are suitable for supporting your unit. Consult a qualifed
tradesperson if you are unsure.
Hints:
1: General rule: Always use a larger screw and wall plug
if you are not sure.
2: Ensure you use the recommended drill bit to match the wall
plug and hole size.
3: Ensure you drill the hole horizontally, do not force the drill or
enlarge the hole.
4: Take extra car e when drilling high walls, ceilings and ceramic
tiles. Ensure wall plugs are inserted beyond the thickness of
the ceramic tiles to avoid the tiles splitting or cracking.
5: Ensure wall plugs are well ftted and are a tight ft in the
drilled hole.
Types of walls
No.1 “General Purpose” wall plug
Generally aerated blocks should not
be used to support heavy loads, use
a specialist ftting in this case. For light
loads, general purpose wall plugs can
be used.
No.2 “Plasterboard” wall plug
You can use one of the following types of wall plug if your walls are made
of brick, breeze block, concrete, stone or wood.
No.3 “Cavity Fixing” wall plug
For use with plasterboard partitions or
hollow wooden doors.
No.4 “Cavity Fixing-Heavy Duty”
wall plug
No.5 “Hammer Fixing” wall plug
For use with walls stuck with
plasterboard. The hammer fxing allows
it to be fxed to the wall rather than the
plasterboard. Always check the fxing
is secure to the retaining wall.
No.6 “Shield Anchor” wall plug
Heavy loads
For use when attaching light loads on
to plasterboard partitions.
Care &
Maintenance
For use when ftting or supporting
heavy loads such as shelving, wall
cabinets and coat racks.
Safety: Always check the ftting
and location to ensure your safety
in and around the home.
For use with heavier loads such as TV
& HiFi speakers and satelite dishes etc.
Fitting: From time to time check
the ftting to ensure the wall plugs
or screws do not become loose.
