Spare Parts
www.argos-support.co.uk
0370 112 1928
Customer Support
0345 640 2020
Issue 1 - 03/05/16
Page 2
Safety and Care Advice
Product Details
782/6342
DBL OPEN ROBE 3 RAILS 3 SHELVES
Important, Retain For Future Reference: Read Carefully.
Keep children and animals
away from the work area, small
parts could choke if swallowed.
Make sure you have enough space
to layout the parts before
starting.
This product has been
constructed to be used in the
domestic environment only and
not for commercial purposes.
Assemble the item as close
room) as possible.
Assemble on a soft level
surface to avoid damaging the
as this could damage the unit.
Only use hand screwdrivers.
Parts of the assembly will be
easier with 2 people.
Dispose of all packaging
carefully and responsibly.
Care and maintenance
Only clean using a damp cloth
and mild detergent. Do not use
abrasive cleaners.
Use a dry cloth to clean the
product, furniture polish is
not recommended.
From time to time check that there
are no loose screws, nuts or bolts.
If there are please re-tighten.
This product should not be
discarded with household
waste. Take to your local
authority waste disposal
centre.
We do not
recommend the
use of power
drill/drivers for
inserting screws
Additional Guidance
Assemble all parts and bolts loosely during assembly, only once the product is complete should you
fully tighten the bolts.
Regularly check and ensure that all bolts and fittings are tightend properly.
Maximum load weight 15kg.
This product is compliant BS4875-7 & EN14749.
Sainsbury's Argos is a trading name of both: Argos Limited, Registered office: 489-499 Avebury Boulevard, Milton Keynes, United
Kingdom, MK9 2NW, registered number: 01081551 (England and Wales); and Sainsbury's Supermarkets Limited, Registered
office: 33 Holborn, London, EC1N 2HT, registered number: 03261722 (England and Wales). Both companies are subsidiaries of J
Sainsbury's plc.
1
Page 3

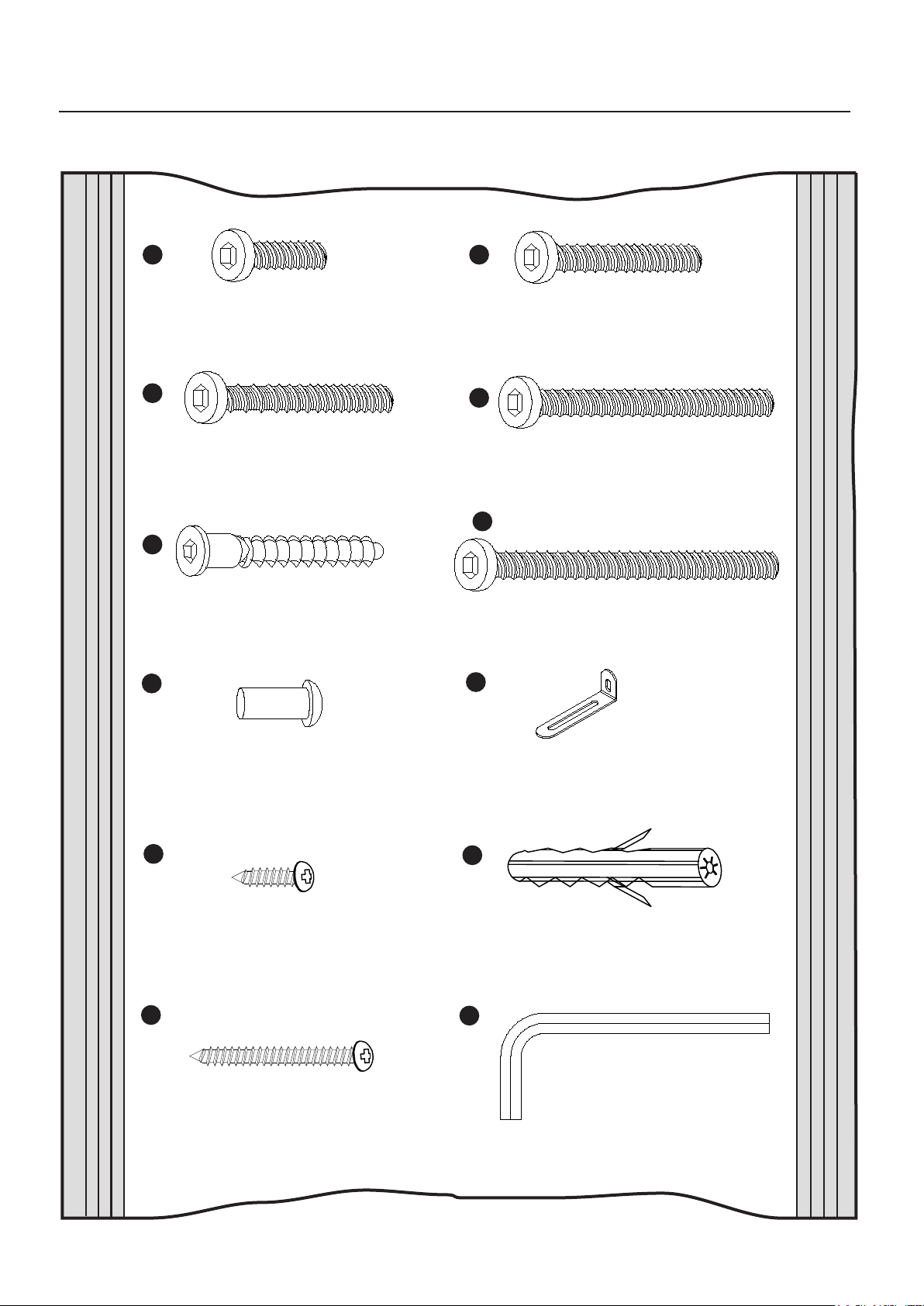

Fittings (Shown to scale)
Bag 1
A B
Bolt (M6x15mm) x 16
C
Bolt (M6x35mm) x 5 Bolt (M6x50mm) x 4
E
Screw(Ø
G
7x38 mm )x8
D
F
H
Bolt (M6x30mm) x 12
Bolt (M6x60mm) x 2
Nut (M6x14mm) x 19
I
Screw(Ø3.5x14mm) x 2
K
Screw(Ø4x35mm) x 2
J
L
Wall Bracket x 2
Wall Plug
(Ø
8x40 mm )x2
Allen key x 2
2
Page 4

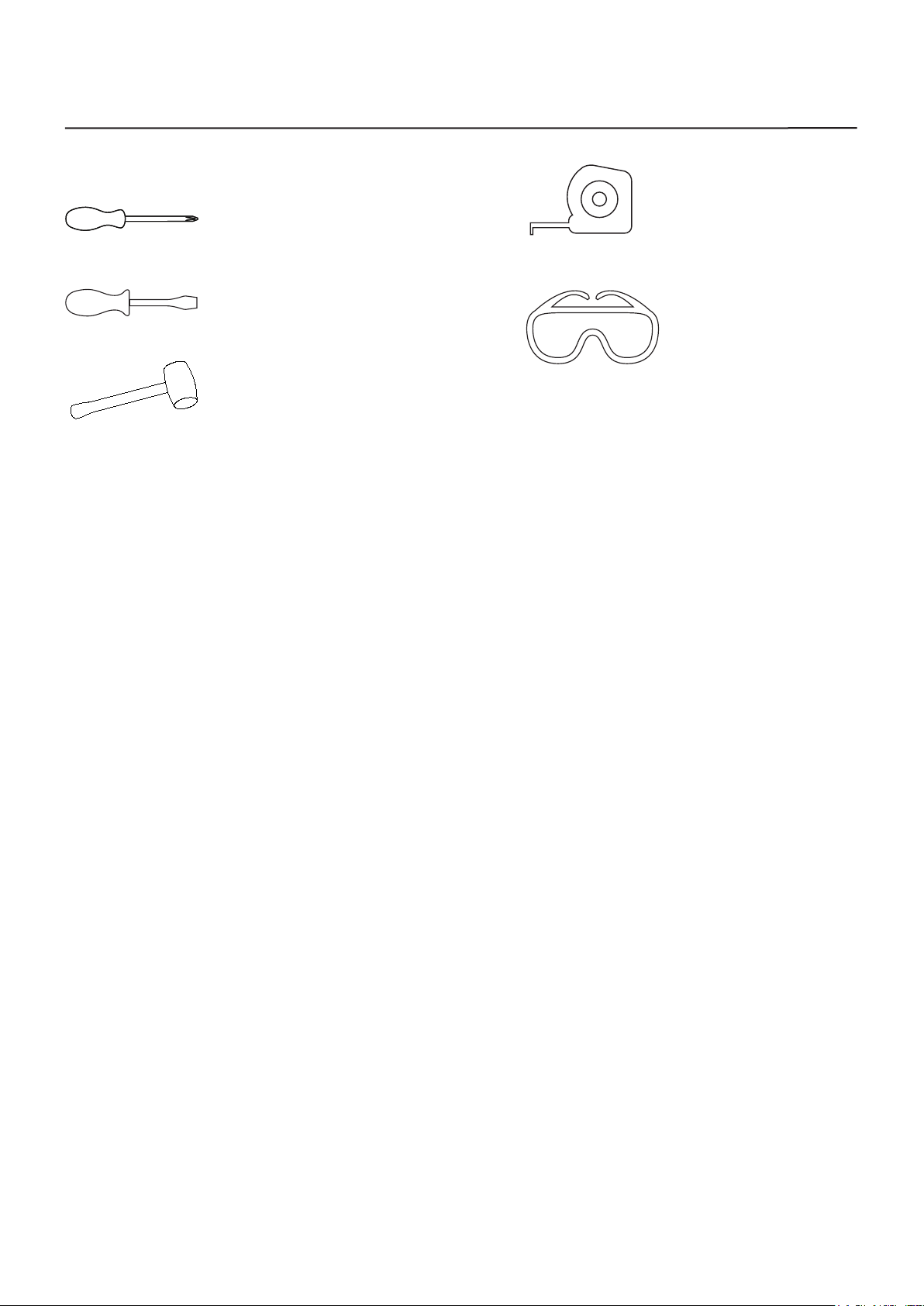

Tools required
Phillips screwdriver
(small & medium)
Phillips screwdriver
(small & medium)
Rubber
hammer
Ruler/tape
measure
Eye protection
(when using a
hammer or glue)
3
Page 5

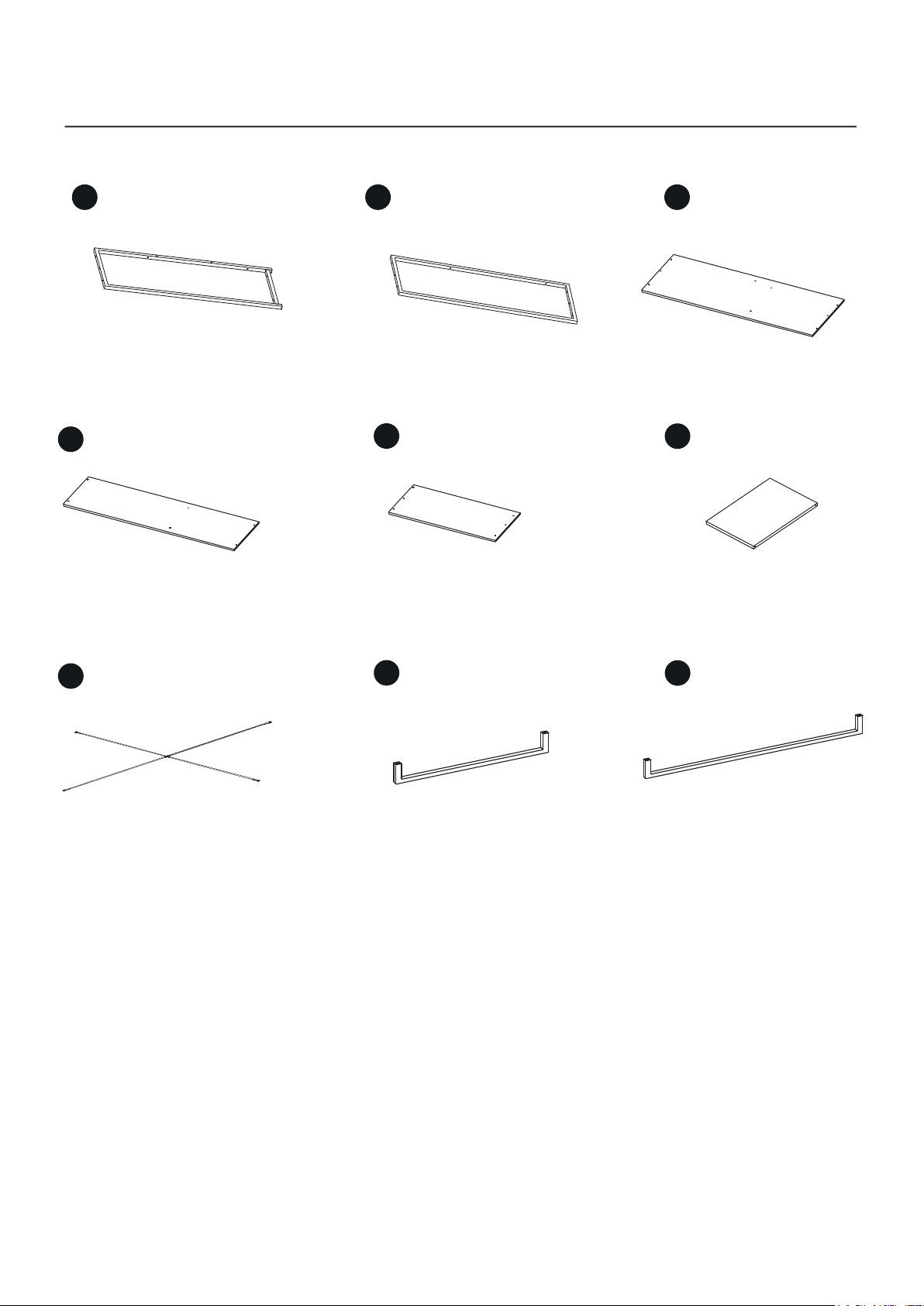

Panels
Lower Section Side Bars x 3
1 2 3
(1058 x 400 mm ) (1058 x 400 mm )
Base Panel x 1
4
(900 x 358 mm )
Upper Section Side Bars x 3
Middle Panel x 1
5
(600 x 358 mm )
Top Panel x 1
(900 x 400 mm )
6
Small Shelf Panel x 2
(400 x 280 mm )
7
Cross Bars x 2
(99Ø6
x 855 mm )
8
Short Haning Rail x 1
(598 x 100 mm ) (898 x 100 mm )
9
Long Haning Rail x 1
4

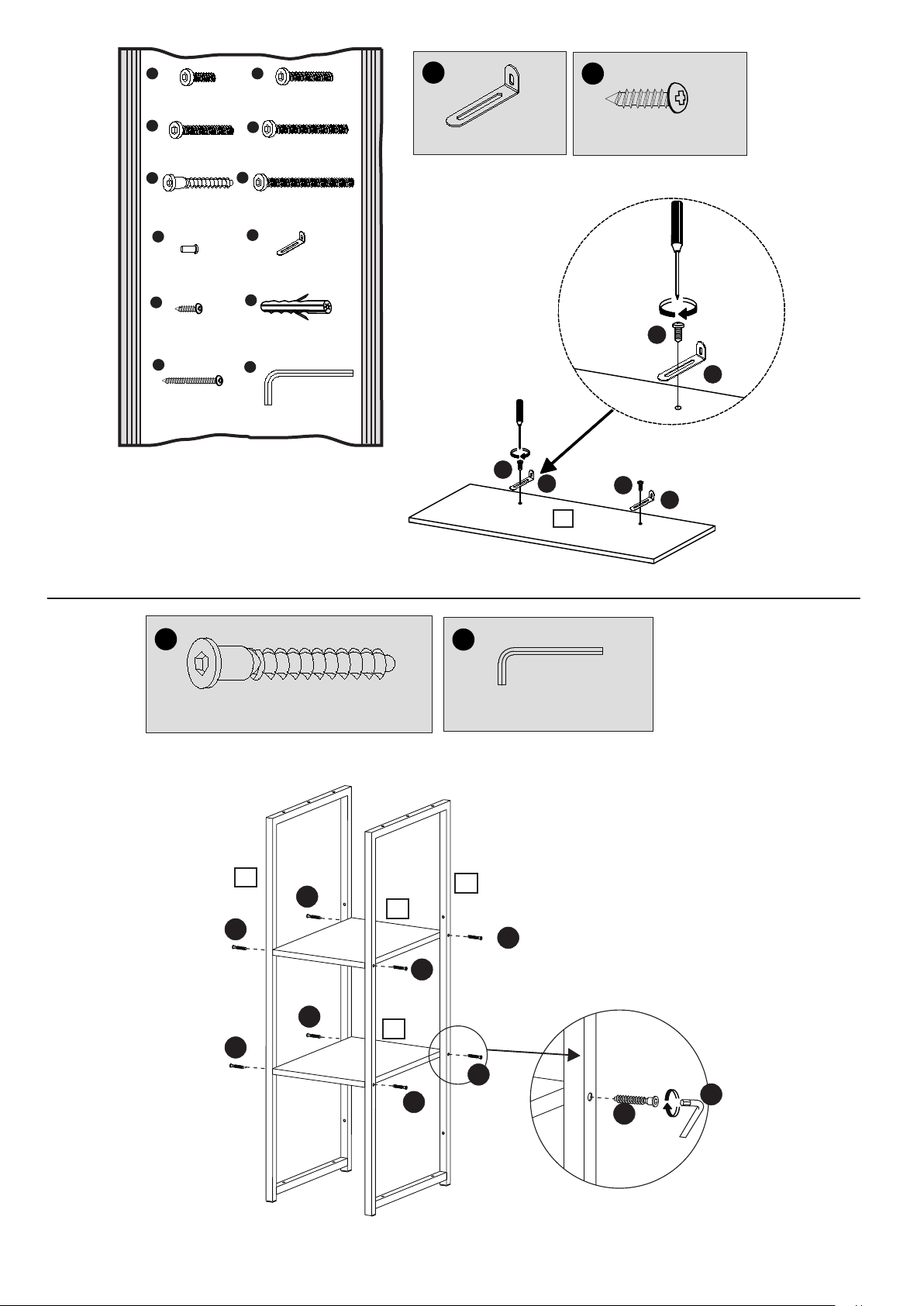

Page 6
A B
Bolt (M6x15mm) x 16
Bolt (M6x30mm) x 12
H
I
1
C
Bolt (M6x35mm) x 5 Bolt (M6x50mm) x 4
E
Screw(Ø
7x38 mm )x8
G
Nut (M6x14mm) x 19
I
Screw(Ø3.5x14mm) x 2
K
Screw(Ø4x35mm) x 2
D
F
H
Wall Bracket x 2
J
(Ø
L
Bolt (M6x50mm) x 2
Wall Plug
8x40 mm )x2
Allen key x 2
Wall Bracket x 2
I
H
Screw(Ø3.5x14mm) x 2
Pt. No
I
3
Pt. No
I
H
H
2
E
Screw(Ø
7x38 mm )x8
1
Pt. No
L
Allen key x 1
Pt. No
1
E
6
E
E
E
E
6
E
E
E
E
L
5

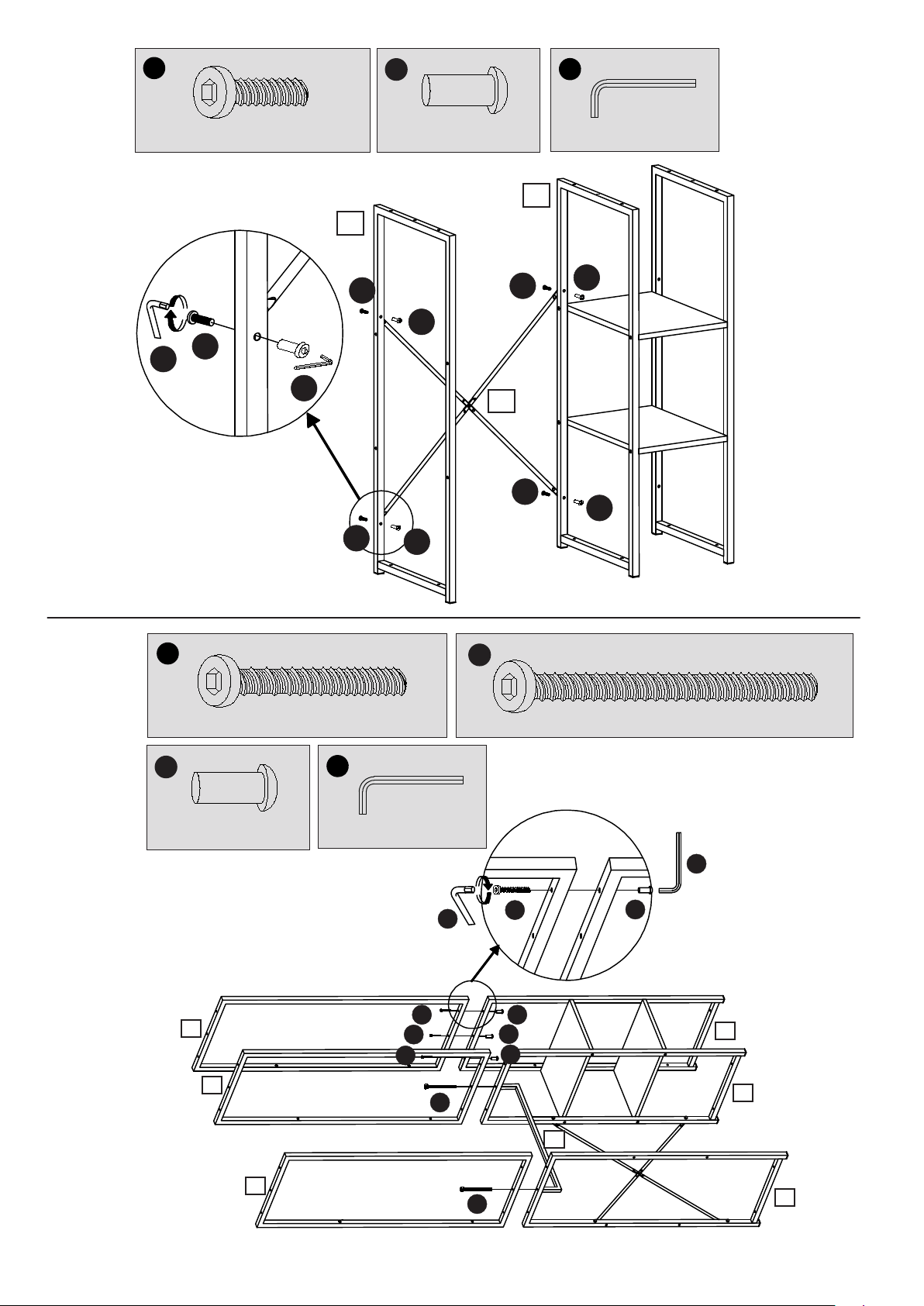

Page 7
A
G
L
3
Bolt (M6x15mm) x 4
A
L
L
1
A
Nut (M6x14mm) x 4
Pt. No
A
G
G
Pt. No
Allen key x 2
Pt. No
1
A
G
7
A
G
4
C
Bolt (M6x35mm) x 3
G
Nut (M6x14mm) x 3
2
2
Pt. No
L
Allen key x 2
C
C
C
Pt. No
L
F
F
Pt. No
G
G
Bolt (M6x60mm) x 2
L
C
G
G
1
1

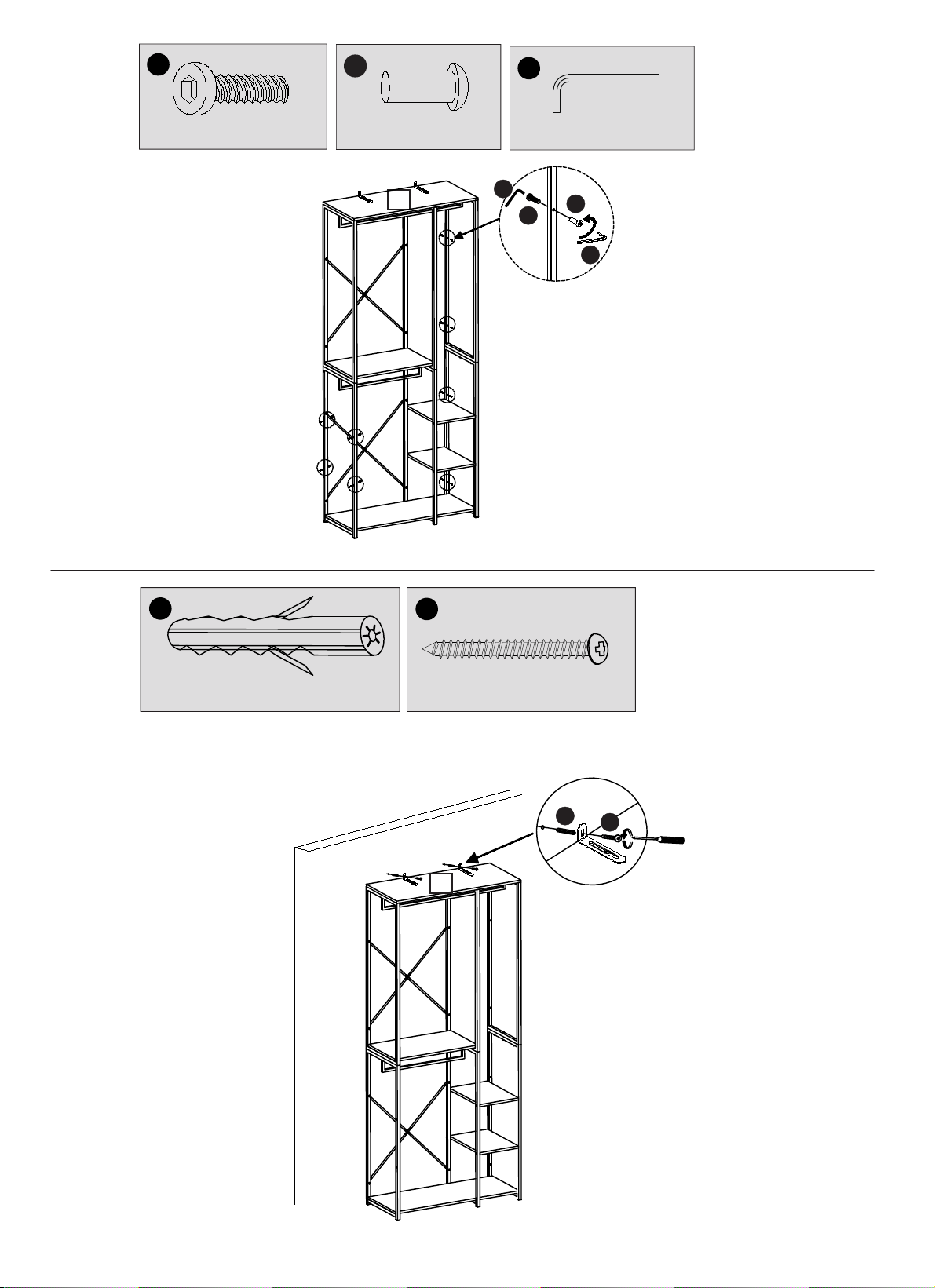

Pt. No
8
2
F
1
6

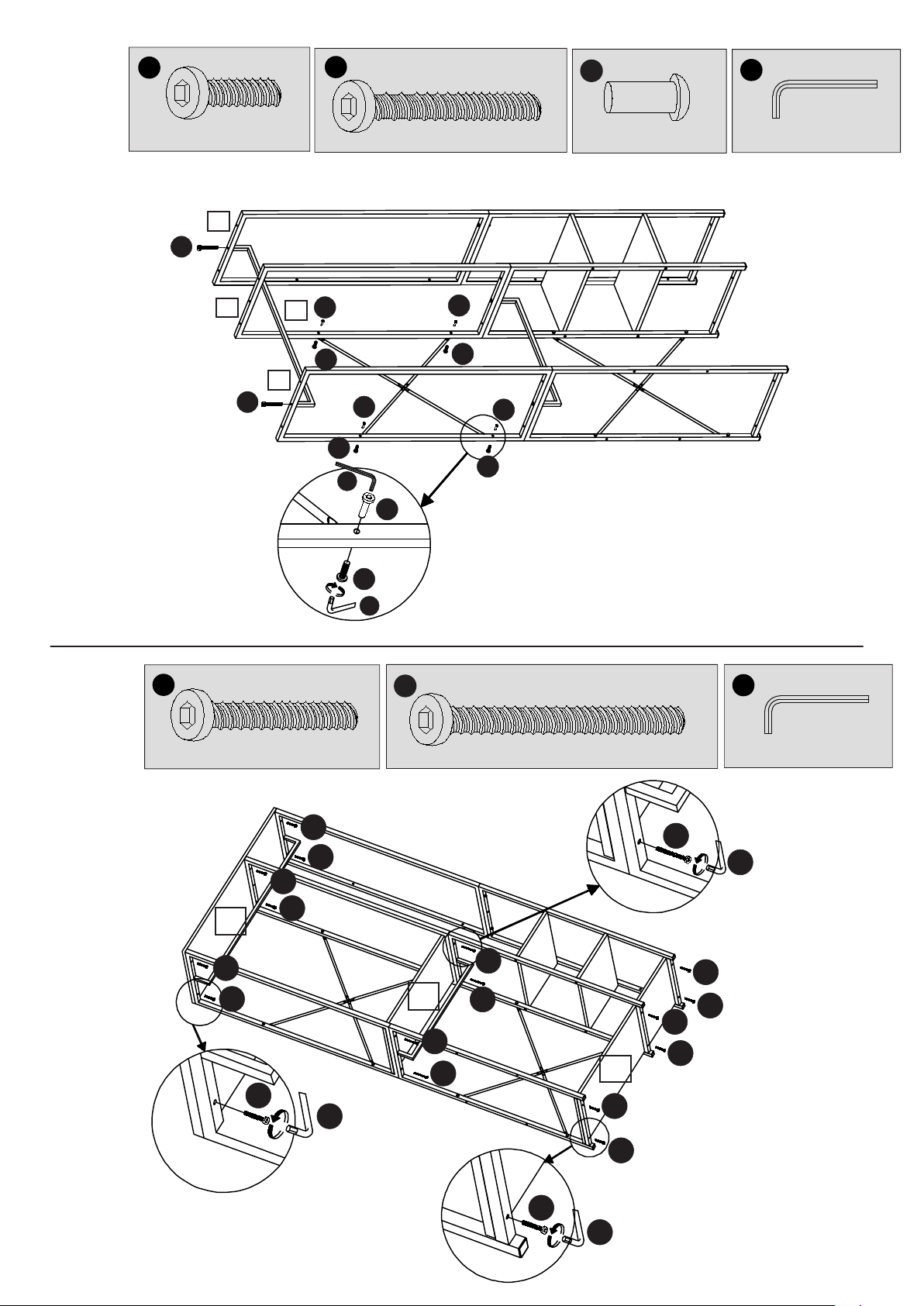

Page 8
A
C
G
L
5
Bolt (M6x15mm) x 4
2
C
2
C
Pt. No
G
9
A
2
A
L
Bolt (M6x35mm) x 2
G
G
A
L
G
A
G
A
Nut (M6x14mm) x 4
Pt. No
Pt. No
Allen key x 2
Pt. No
6
B
Bolt (M6x30mm) x 12
B
3
B
B
B
B
B
B
L
Pt. No
D
5
D
D
Bolt (M6x50mm) x 4
D
D
4
B
D
B
B
Pt. No
B
B
L
L
Allen key x 1
Pt. No
B
L
B
7
Page 9
A
G
L
7
Bolt (M6x15mm) x 8
Nut (M6x14mm) x 8
Pt. No
Pt. No
3
L
A
Allen key x 2
G
L
Pt. No
8
J
Wall Plug
8x40 mm )x 2
(Ø
Pt. No
K
Screw(Ø4x35mm) x 2
3
Pt. No
J
K
8

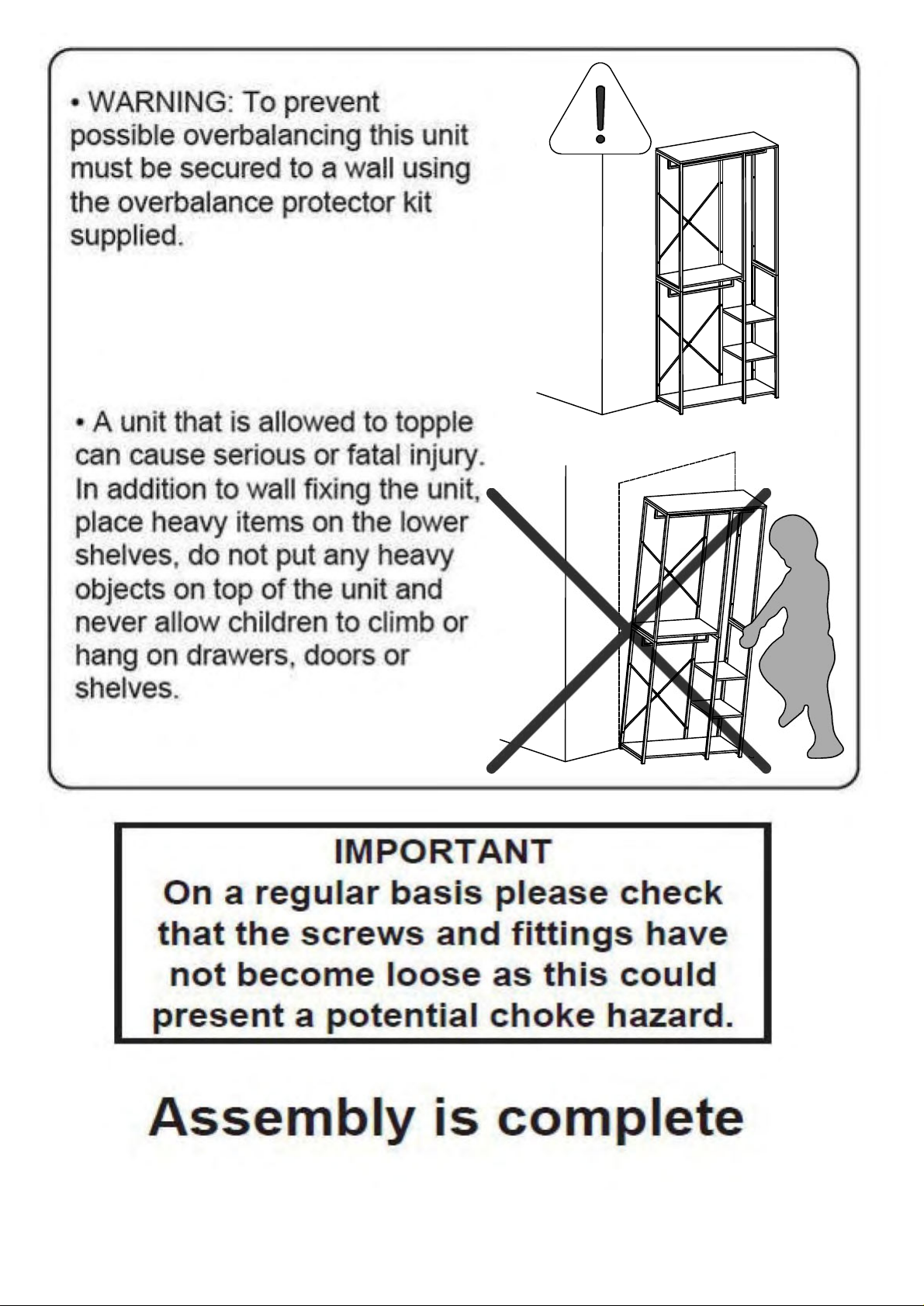

Page 10
9

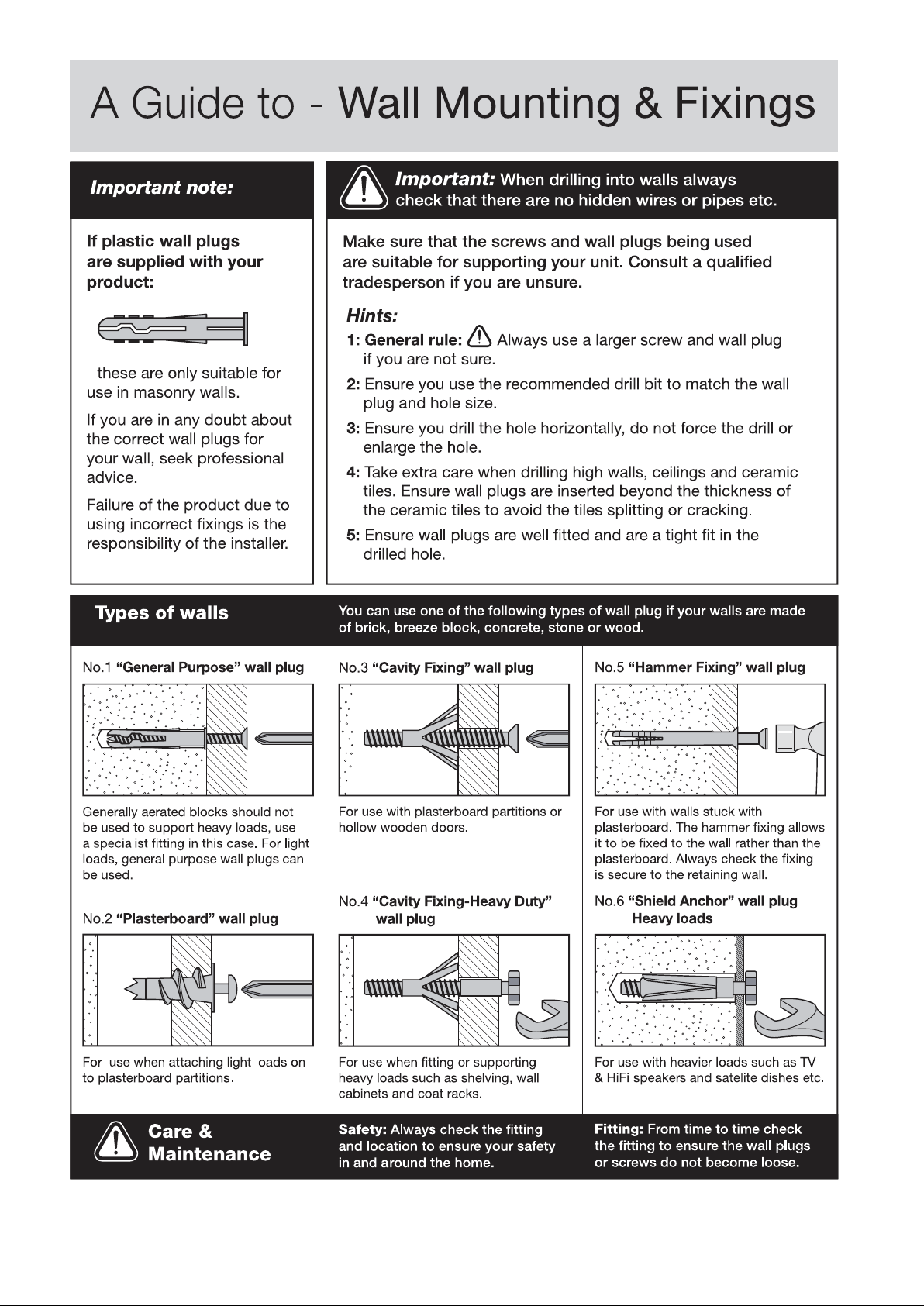

Page 11
10
