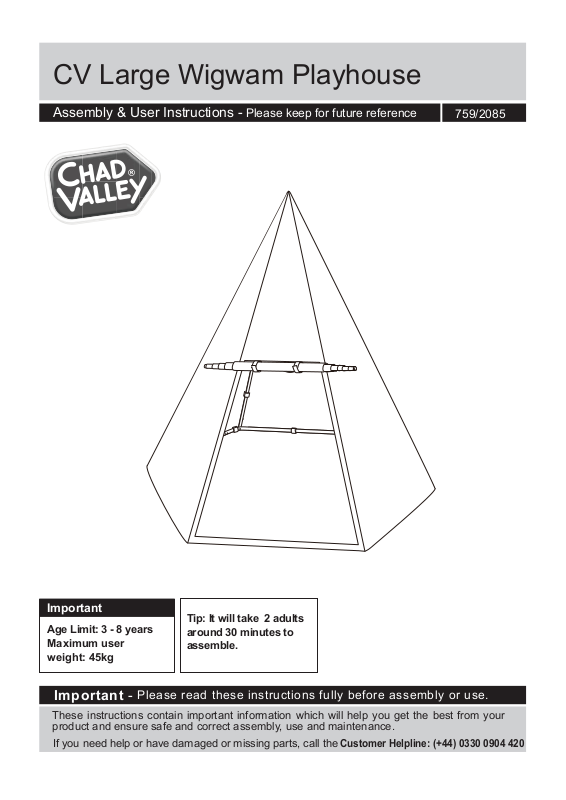

CV Large Wigwam Playhouse
Assembly & User Instructions - Please keep for future reference
759/2085
Important
Tip: It will take 2 adults
Age Limit: 3 - 8 years
Maximum user
weight: 45kg
Important -
These instructions contain important information which will help you get the best from your
product and ensure safe and correct assembly, use and maintenance.
If you need he
Please read these instructions fully before assembly or use.
lp or have damaged or missing parts, call the
around 30 minutes to
assemble.
Customer Helpline: (+44) 0330 0904 420
Page 2
Contents
Warnings
Parts
Assembly Instructions
Care and Maintenance
2
3
4-9
10
1
Page 3
Warnings
Important –Please read these instructions fully before assembly or use.
PLAY SUPERVISION
● ALWAYS dress children appropriately for safe play, e.g.
wear well-fitted rubber sole shoes, and remove loose or
● WARNING! Not suitable for children under the age of 36
months because of small part(s) and long cord(s) – choking
and entanglement/ strangulation hazards.
● This item is not for user weighing more than 45kg.
● This product is intended for use by children age 3-8 years.
● For domestic outdoor use only.
● Adult assembly required.
● Children must not use the product until it is properly
assembled and anchored. Adult supervision is required during
the use of this equipment at all times.
● DO NOT allow children to climb or jump on this product.
● Packaging materials are not toys. Please remove all
packaging and packing tags / wires before giving this toy to
your child.
● Do not make changes to the original toy or use the product
other than intended by the original manufacture.
● Once assembly is complete, carefully check the equipment
before use. If you find any problems, do not allow children to
use until it is fit for use.
● Please retain these instructions for future reference.
LOCATION OF PLAY SET
● The equipment must be placed more than 1.8 meter from any
structures or obstructions, including but not limited to
buildings, fence, garage, trees, laundry lines, electrical wires.
Children can be seriously injured running or swinging into
obstacles.
● The product must be placed on level ground. Remove any
tripping hazards from the safe play area, such as roots, tree
stumps, rocks, landscaping, sprinkler heads, railroad ties,
plumbing and electrical connections. Uneven ground must be
leveled prior to installation. Installation on sloping or uneven
ground will put stress on the joints, causing the unit to become
loose and unstable which may result in serious injuries.
● Do not install your play set over hard surface, e.g. asphalt,
concrete, packed earth, tile or brick floor. Recommended
ground covers include double shredded bark mulch, uniform
wood chips, fine gravel, fine sand.
● Place the equipment out of direct sunlight to reduce the
likelihood of burns. A slide that faces north will receive the
least direct sunlight.
sharp items such as jewelry, hair accessories, scarves,
etc which may become entangled in the equipment or
cause injuries.
● DO NOT allow children to climb on structural parts (e.g.
legs, top bar). These are structural components and are
not designed for play.
● ALWAYS prevent access and secure from any
unauthorised use when there is no adult supervision.
● DO NOT allow pets or other animals near the equipment
to prevent damage or injuries.
DISPOSAL INSTRUCTIONS
● Fully disassemble the product before disposal. Do not
leave partially disassembled equipment parts in areas
accessible by children.
● Should you wish to recycle the steel tubing, please take
the frame to your recycling center.
● All plastic parts could be recycled. Take it to your local
recycling center. Do not let children play with any
disassembled parts destined for disposal, such as tubing,
bolts, nuts, screws, etc.
WEATHER CONDITIONS
● DO NOT use this equipment if the canopy or other parts are
wet. Use the product only when the parts are clean and dry. If
the equipment is wet, the user could slip and suffer injuries.
● Please be aware of weather conditions when using the
equipment. If it is too windy, users could lose control and
suffer injuries. The playground equipment must be properly
anchored, stored away or restricted from use during inclement
weather such as heavy winds or severe weather storms.
2
Page 4

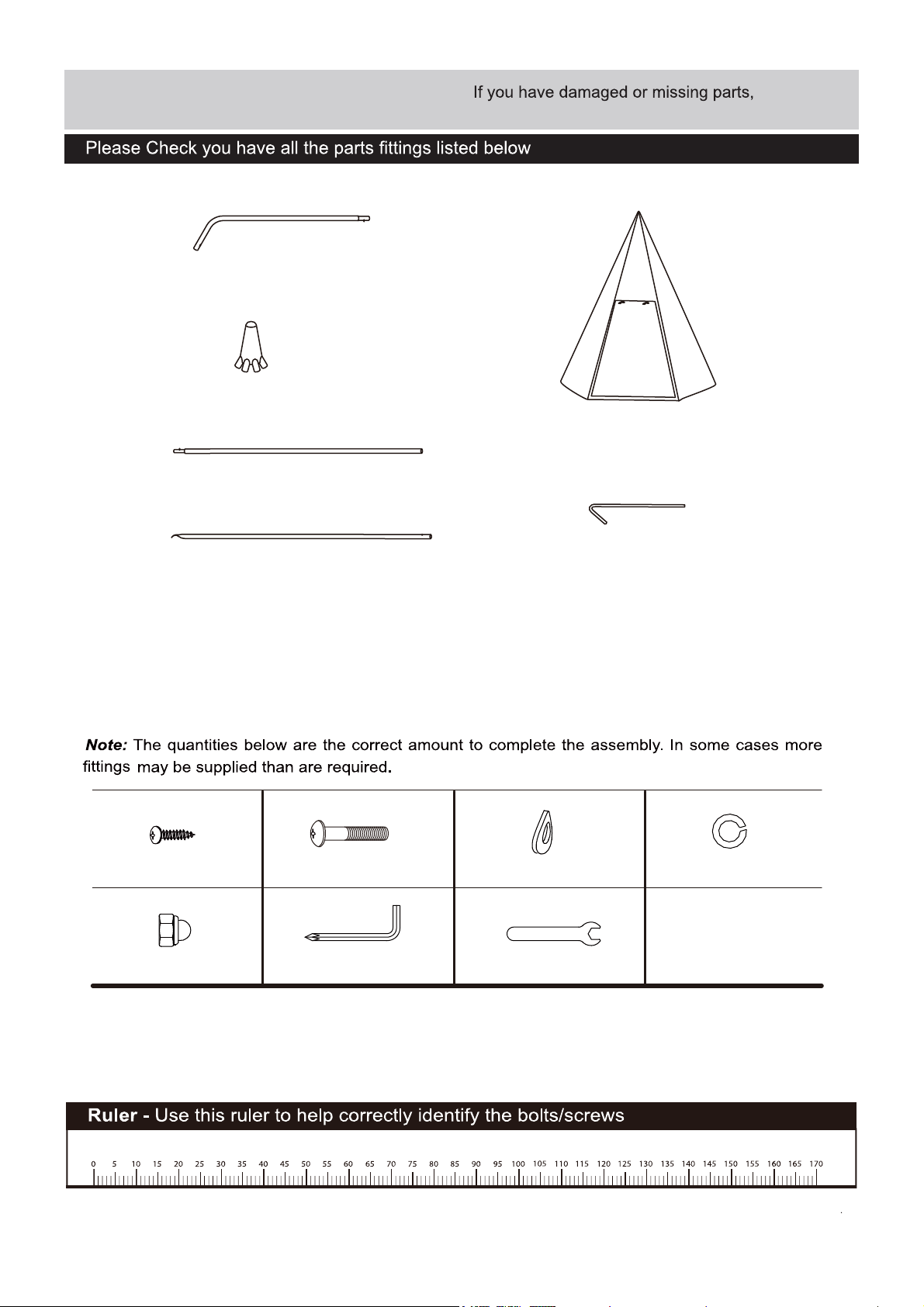

Parts
1 ‘’L’’ Tube x6pc
2 Plastic Cap x1pc
3 Upper Tube x6pcs
4 Lower Tube x6pcs
call the Customer Helpline:
5 Canopy x1pc
6 Anchor x6pcs
(+44) 0330 0904 420
A B
x6(M4x13mm) x6(M5x20mm) ×12(Ø5.5×15mm) ×6(Ø6.5×10mm)
E F
×6(M5) ×1(6mm) ×1(10mm)
3
C D
G
Page 5
Assembly Instructions
11

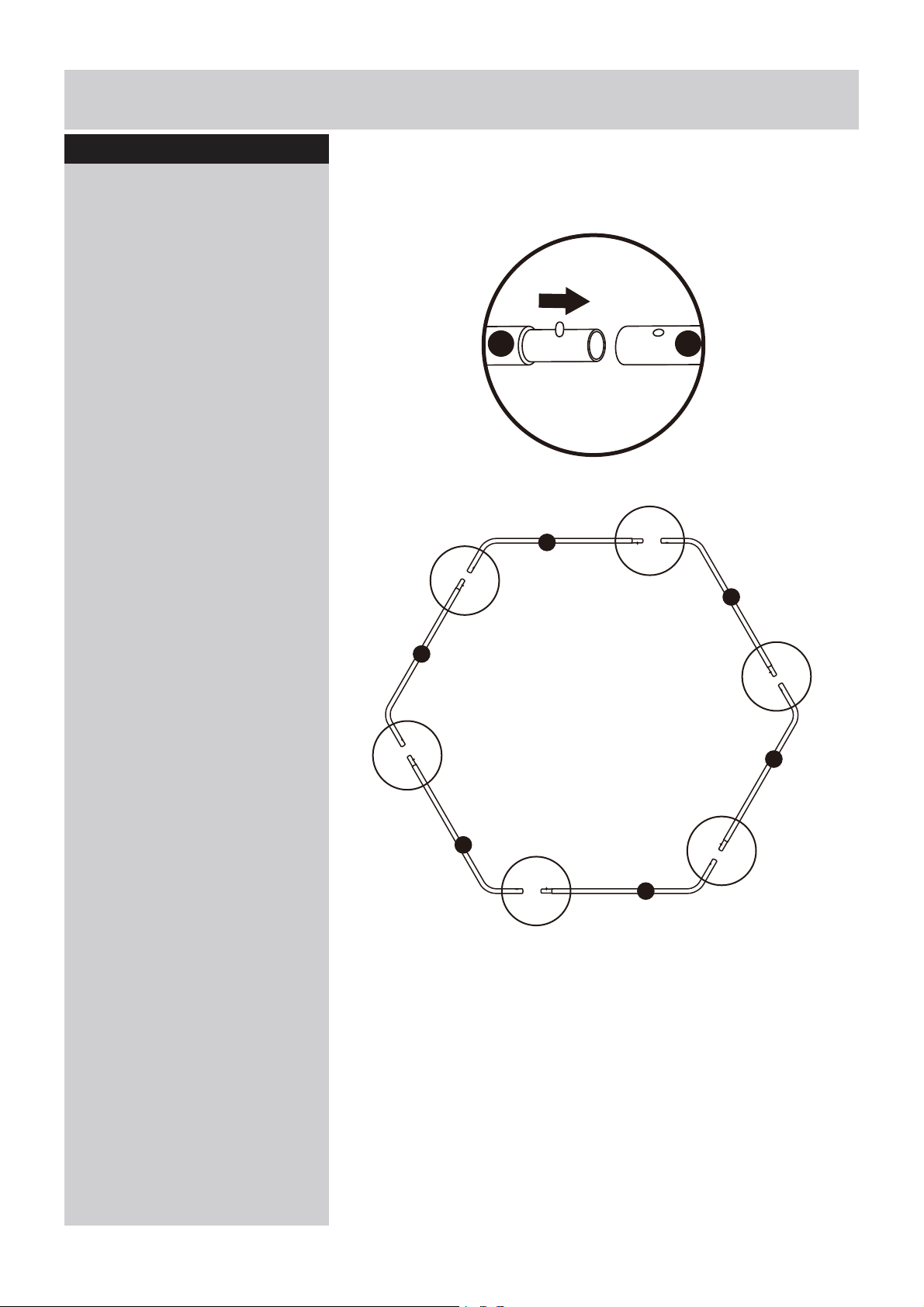

Step 1
Connect 1 together as shown.
1
1
1
1
1
1
Figure 1
4
Page 6
Assembly Instructions
A
x 6pcs
2
3
#E
#A
34

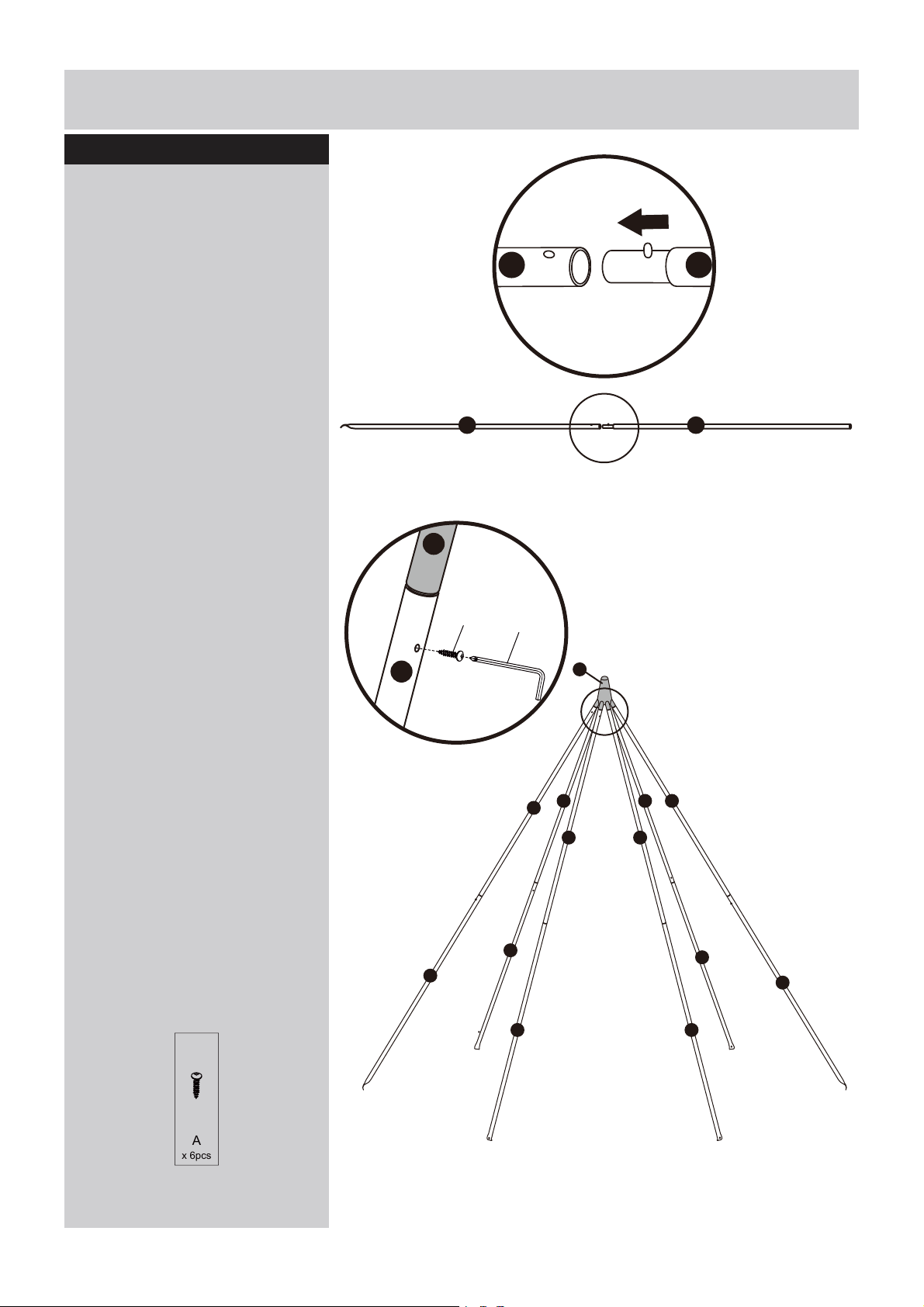

Step 2
Insert 3 into the sockets of 4
and make sure the retractable
button on 3 is secured into the
hole on 4, then secure it to 2
using A and E as shown.
34
2
3
3
3
4
4
4 4
3 3
3
4
4
5
Figure 2
Page 7
Assembly Instructions
CB
x 6pcs x 6pcsDx 6pcsEx 6pcs
#E
#C
#C
#B
1
4
#D

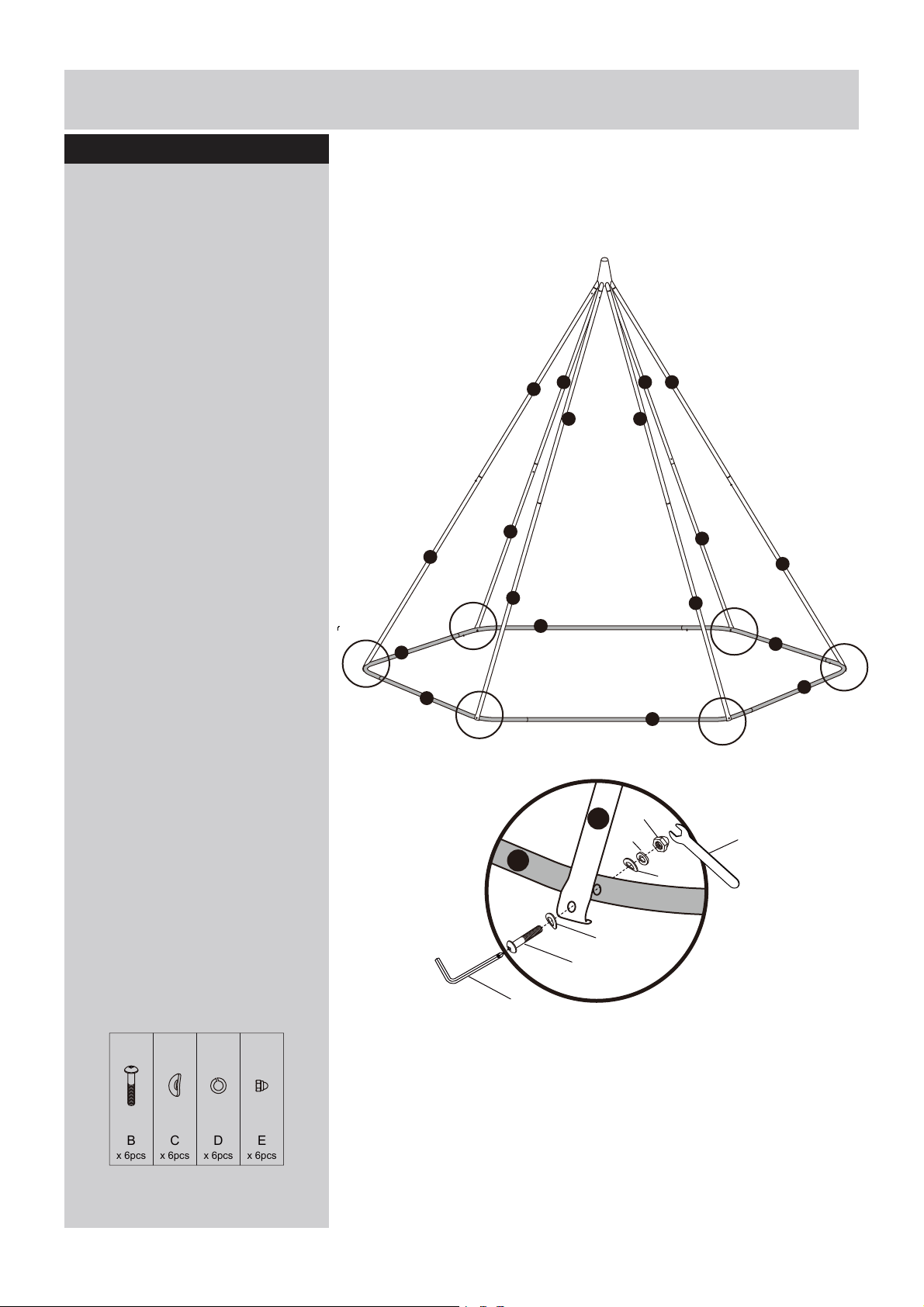

Step 3
Secure 4 to 1 using B, C, D and
E as shown. Use F and G to
tighten.
3
3
3
4
4
4
1
1
1
3 3
3
4
4
4
1
1
1
6
#G
#F
Figure 3
Page 8
Assembly Instructions

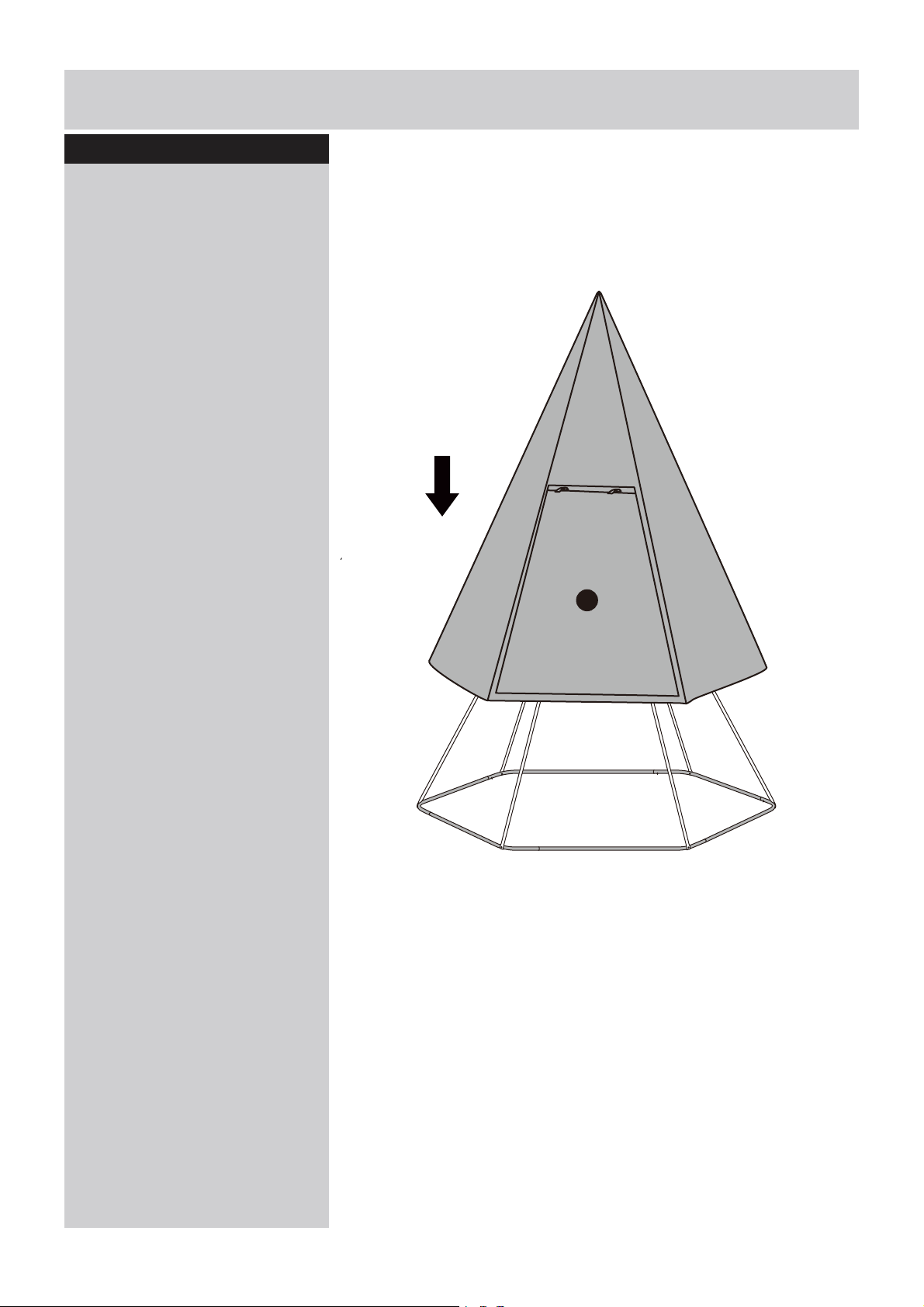

Step 4
Install the canopy (5) over the
assembled frame as shown.
5
Figure 4
7
Page 9
Assembly Instructions

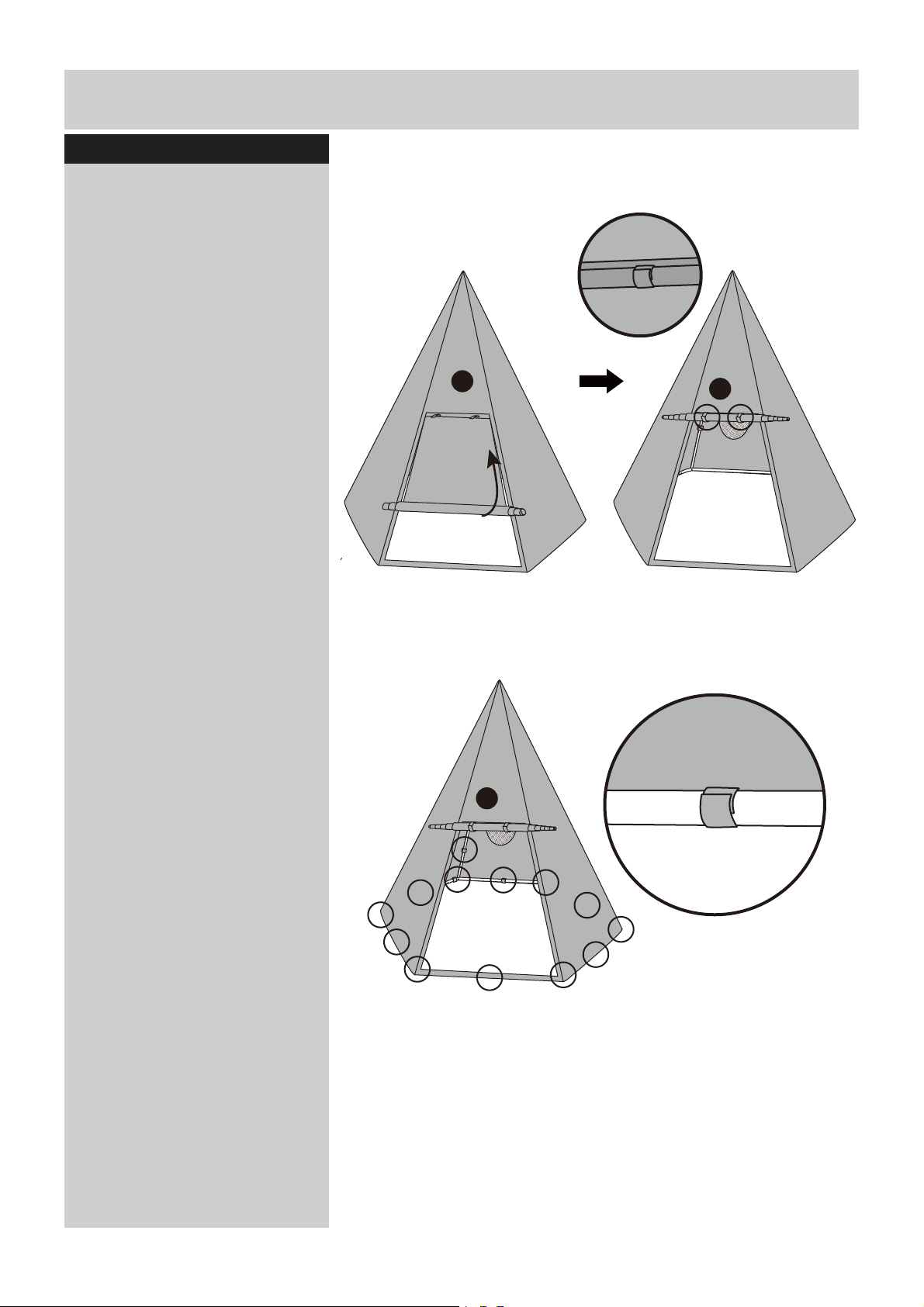

Step 5
Secure the canopy to the frame
by fastening all the velcro
straps as shown.
5
5
5
Figure 5
8
Page 10
Assembly Instructions

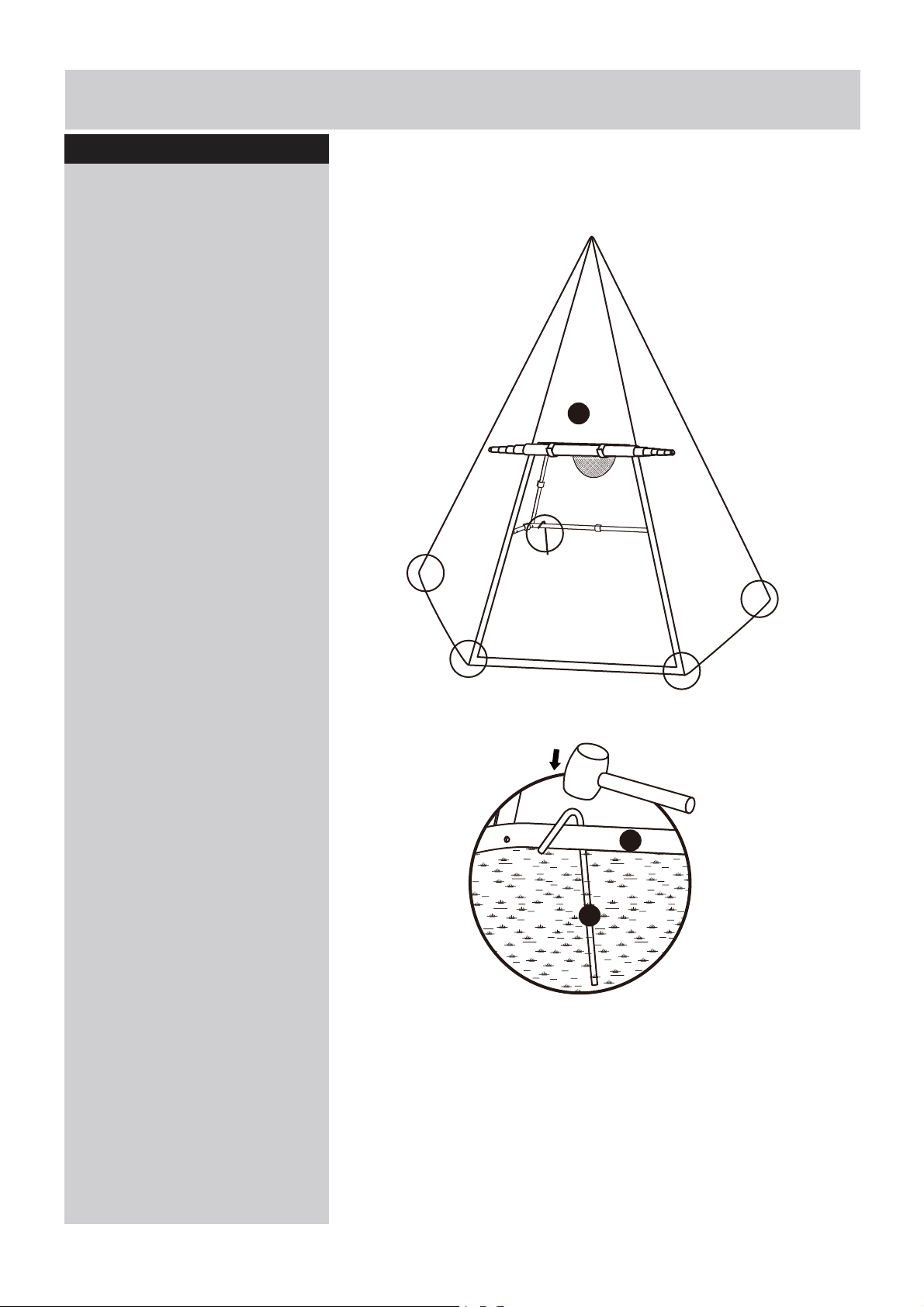

Step 6
Use a hammer to insert the 6
anchors fully into the ground as
shown.
5
1
6
Figure 6
9
Page 11

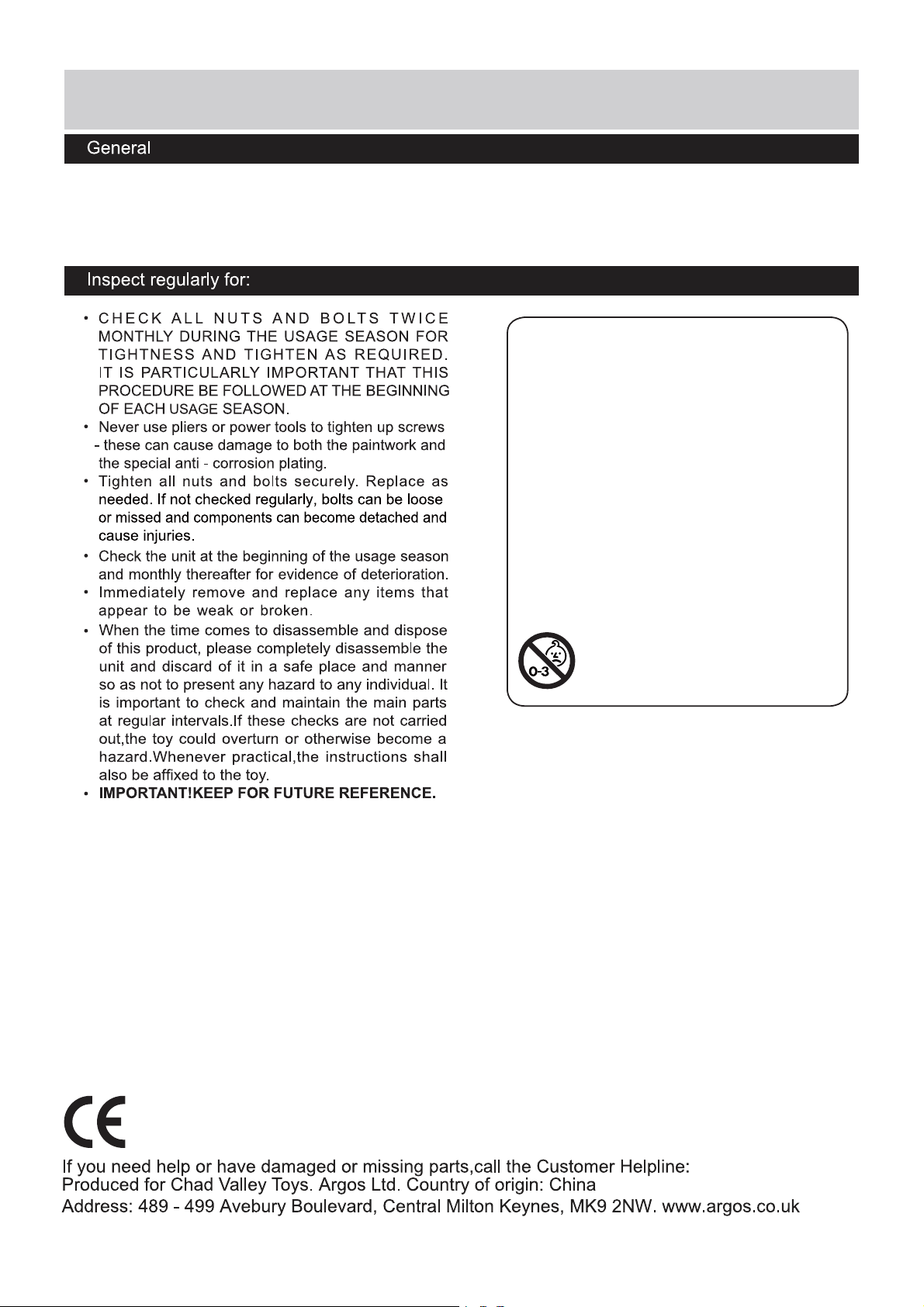

Care and Maintenance
This product was designed and manufactured
with quality materials and craftsmanship.
If correct care and maintenance is taken, it will
provide users with longer usage for fun and
enjoyment.
WARNING!
Ensure product is properly anchored to the
ground before use. For outdoor use only. To be
played in an open area with adult supervision.
This item is not for user weighing more than
45kg.This product is intended for use by children
age 3-8 years. For family domestic use only. As
an extra precaution, check this toy regularly for
signs of wear or damage. Packaging materials are
not toys. Please remove all packaging and
packing tags/wires before allowing children to
use. Maintenance to be carried out under the
direct supervision of a responsible adult. Colour,
designs and decorations may vary from those
shown in the photographs.
WA RNING! Not suitable for
children under 3 years due to
small parts, chocking hazard.
10
(+44) 0330 0904 420
SP-19-SW-077-ARGOS-17001
