Page 1
Pastelle 3ft Bed
Assembly Instructions - Please keep for future reference
758/9153
Dimensions
Width - 100.5cm
Depth - 201.5cm
Height - 96.0cm
Important – Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400 800
Issue 1 - 08/05/13
Page 2
Safety and Care Advice
Important – Please read these instructions fully before starting assembly
.
Check you have all the
components and tools listed on
pages 2 and 3.
.
Remove all fittings from the
plastic bags and separate them
into their groups.
.
Keep children and animals
away from the work area, small
parts could choke if swallowed.
.
Make sure you have enough
space to layout the parts before
starting.
.
Do not stand or put weight on
the product, this could cause
damage.
.
Assemble the item as close
to its final position (in the same
room) as possible.
.
Assemble on a soft level
surface to avoid damaging the
unit or your floor.
.
This product has been produced
from natural timber; you may
notice some variation in the grain
and colour of different component
parts which is normal for furniture
produced using natural wood and
is not the result of any
manufacturing fault.
recommend the
use of power
drill/drivers
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
.
Parts of the assembly will be
easier with 2 people.
.
Dispose of all packaging
carefully and responsibly.
.
We do not
for
care and maintenance
.
Use an appropriate furniture
polish for natural wood
furniture and a dry cloth to
clean the product.
.
Avoid placing the furniture in
direct sunlight as this will cause
the timber to prematurely age.
.
From time to time check
that there are no loose
screws on this unit.
.
This product should not be
discarded with household
waste. Take to your local
authority waste disposal
centre.
Note: if required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.
1
Page 3
Components - Panels
Please check you have all the panels listed below
Headboard (985 x 96cm)
01
Footboard (985 x 72cm)
02
Side rails x 2 (190 x 11.5cm)
03
Top Rail x 2 (100.5 x 6.5cm)
04
2
Page 4
If you have damaged or missing components,

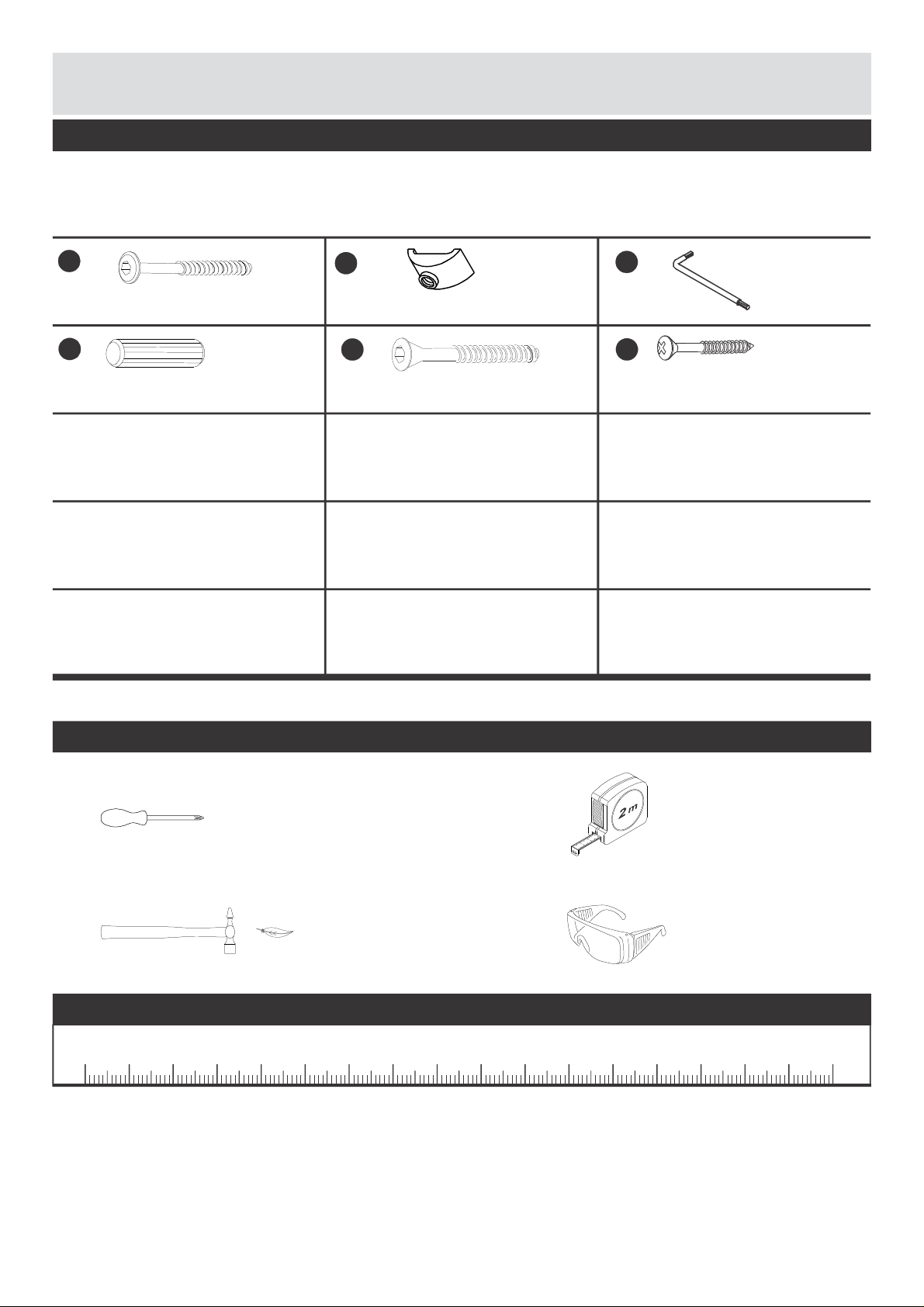

Components - Fittings
call the Customer Helpline: 08456 400 800
Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases more
fittings may be supplied than are required.
A
100mm Bolt x 08
D
40mm Wooden dowel x 12
B
Half-Moon Nut x 08
E
70mm Bolt x 08
C
Allen key
F
35mm Screw x 08
Tools required
Phillips screwdriver
(medium & large)
Small
hammer
Ruler/tape
measure
Eye protection
(when using a
hammer or glue)
Ruler - Use this ruler to help correctly identify the screws
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100105110115120125130135140145150155160165170
3
Page 5
Assembly Instructions
Step 1
Fitting dowels
Insert dowels
into the indicated parts.
D
D
D
03
03
D
D
D
D
D
04
02x
D
D
4
Page 6
Assembly Instructions
Step 2
Fixing Top Rails:
Fix top rail into
headboard and
footboard using bolts
E
and allen key as
04
01
02
C
shown.
04
04
E
01
E
E
E
E
E
E
02
E
E
C
Step 3
Assembling side rails:
Insert half moon nut into
side rails as shown.
03
Then fix them to the
headboard using bolts
A
and allen key .
Assembling of
01
Caution:
Step 2 and Step 3
will be easier with 2
people. It can also avoid
damages or brakes of any
part or component.
B
C
B
03
B
01
B
B
03
C
A
C
A
5
Page 7
Assembly Instructions
Step 4
Assembling side rails:
Insert half moon nut into
side rails as shown.
Then fix them to the
footboard using bolts
A
and allen key .
03
02
B
C
B
A
C
03
03
A
02
B
C
A
C
Step 5
Fixing slats:
Centralize slats in bed
frame prior to fixing. Fix
slats using screws as
shown.
Fix slats in one side first,
then fix them in the other
side by pushing the rail
against the slats if
necessary.
Periodically check that all
screws are tight.
F
F
F
F
F
F
F
F
F
Assemble is complete!
