RONDA 8 SEATER CORNER DINING SET
Assembly Instructions - Please keep for future reference
7473441
Dimensions
Width -110cm
Depth -71cm
Height -76cm
Important - Read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 03456400800
For further assistance please visit http://www.argos-support.co.uk/
Issue 1 - 28/09/17
!
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Check you have all the
components and tools listed on
page 2 & 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the components during assembly,
this could cause damage.
• Assembly on a soft level surface
to avoid damaging the unit or your
floor.
• Parts of the assembly will be
easier with 2 people.
• Dispose of all packaging carefully
and responsibly.
• Do not stand on this bench.
• Warning: The unit weighs
approximately 9.2 kgs. Please lift
with care.
Care and maintenance
• Wash frame parts with mild
soap and water, rinse thoroughly,
and dry completely. Do not use
bleach, acid, or other solvents
on the frame parts.
• We recommend the use of
furniture covers when not in use.
• Inspect and tighten all bolts
and fasteners on a regular basis
to ensure the proper performance
and safety of your bench.
• In order to prolong the life and
beauty of your bench, we
recommend that it be stored in a
dry and protected area when not
in use .
1
Components - Fittings
Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly.
A
M6 x 70mm Bolt x 3 M6 x 35mm Bolt x 1 M6 x 15mm Bolt x 4
D
D10 Spring Washer x 8
B C
Tools required
4mm Hex Key
10mm Hex Key
Ruler - Use this ruler to help correctly identify the screws
15
2

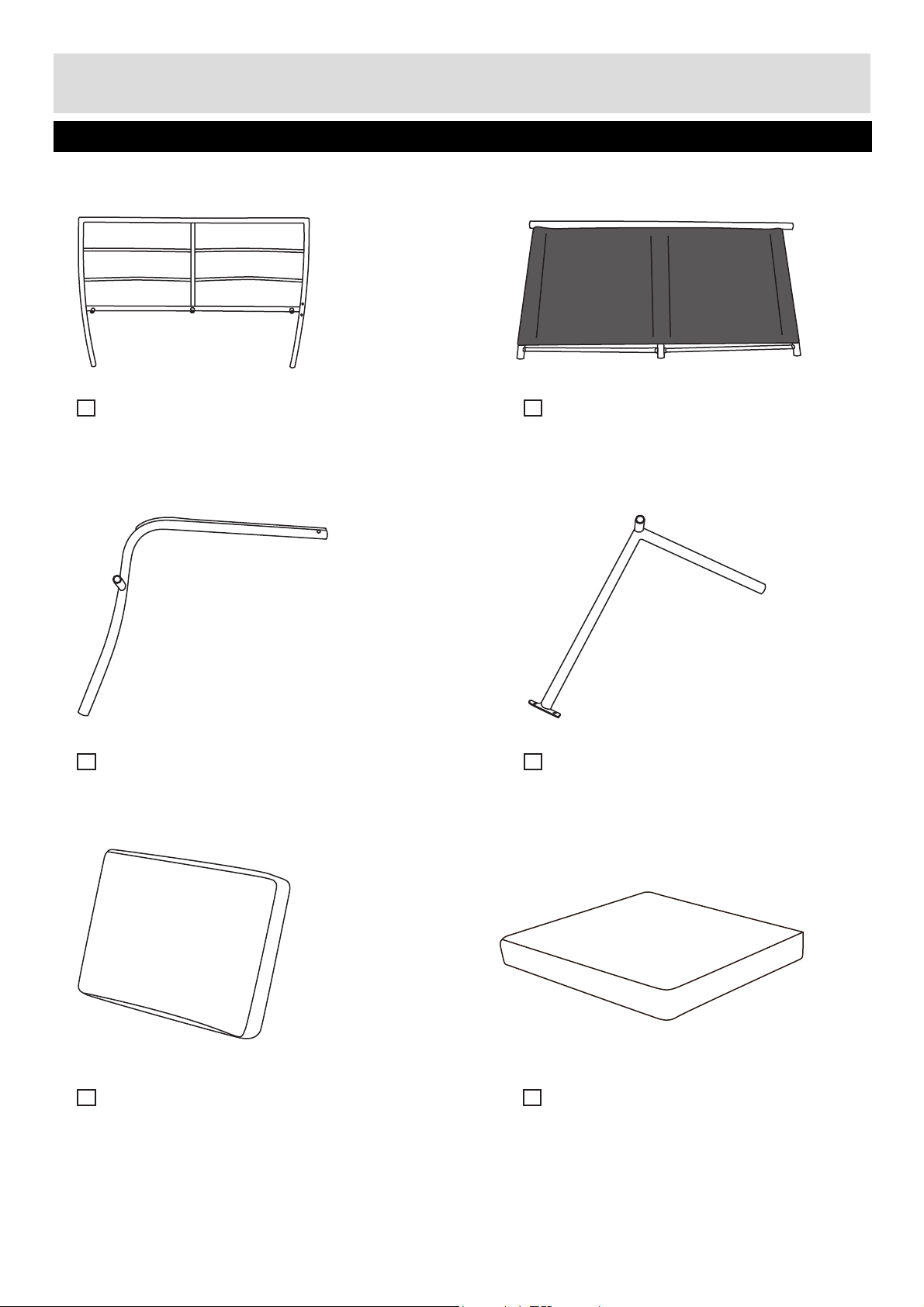

Components - Parts
Please check you have all the parts listed below
1
3
Right Arm x 1
2
Seat Assembly x 1Back Assembly x 1
4
Left Leg x 1
5
Back Cushion x 2
3
6
Seat Cushion x 2
Assembly Instructions

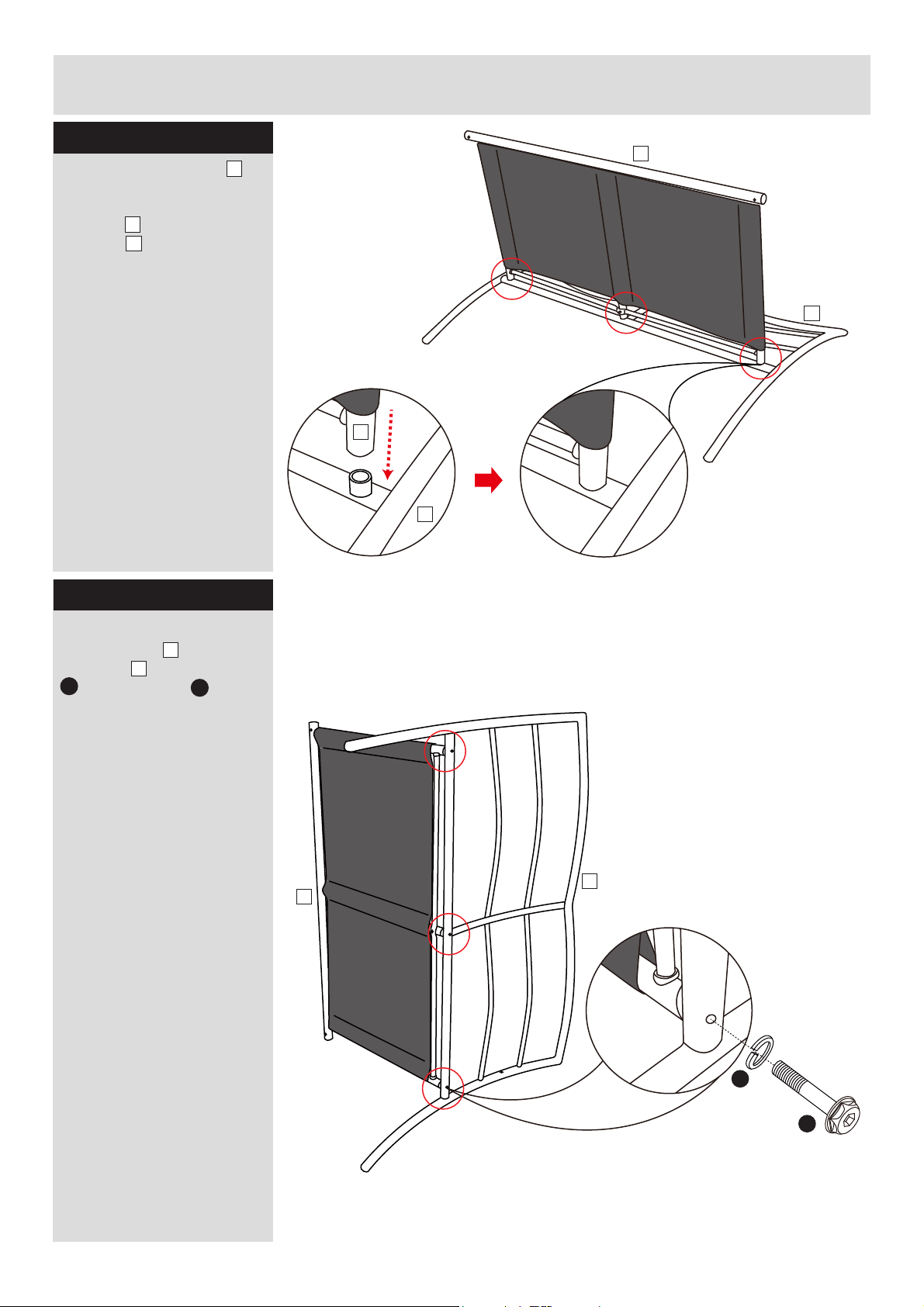

Step 1
Place the back assembly
onto a non-abrasive surface,
such as a carpet. Insert the seat
assembly into the back
assembly .
2
1
1
2
1
2
1
Step 2
At the rear of the seat, fix the
seat assembly to the back
assembly by using bolts
A
, spring washers .
Keep the bolts loose.
2
1
D
1
2
D
A
4
Assembly Instructions
Step 3
At the front of the seat, insert the
right arm and left leg into
the seat assembly by using
bolts ,
Keep the bolts loose.
Note:
The labels marked “L” and “R”
on left leg (#4) and right ram
(#3) should coincide with Figure
to ensure proper assembly.
3 4
2
spring washers .
C
D
R
3
4
2
2
4
L
D
C
Step 4
Fix the left leg to the back
assembly by using bolts ,
spring washers . Keep the
bolts loose.
4
1
D
C
4
1
C
C
D
D
5
Assembly Instructions

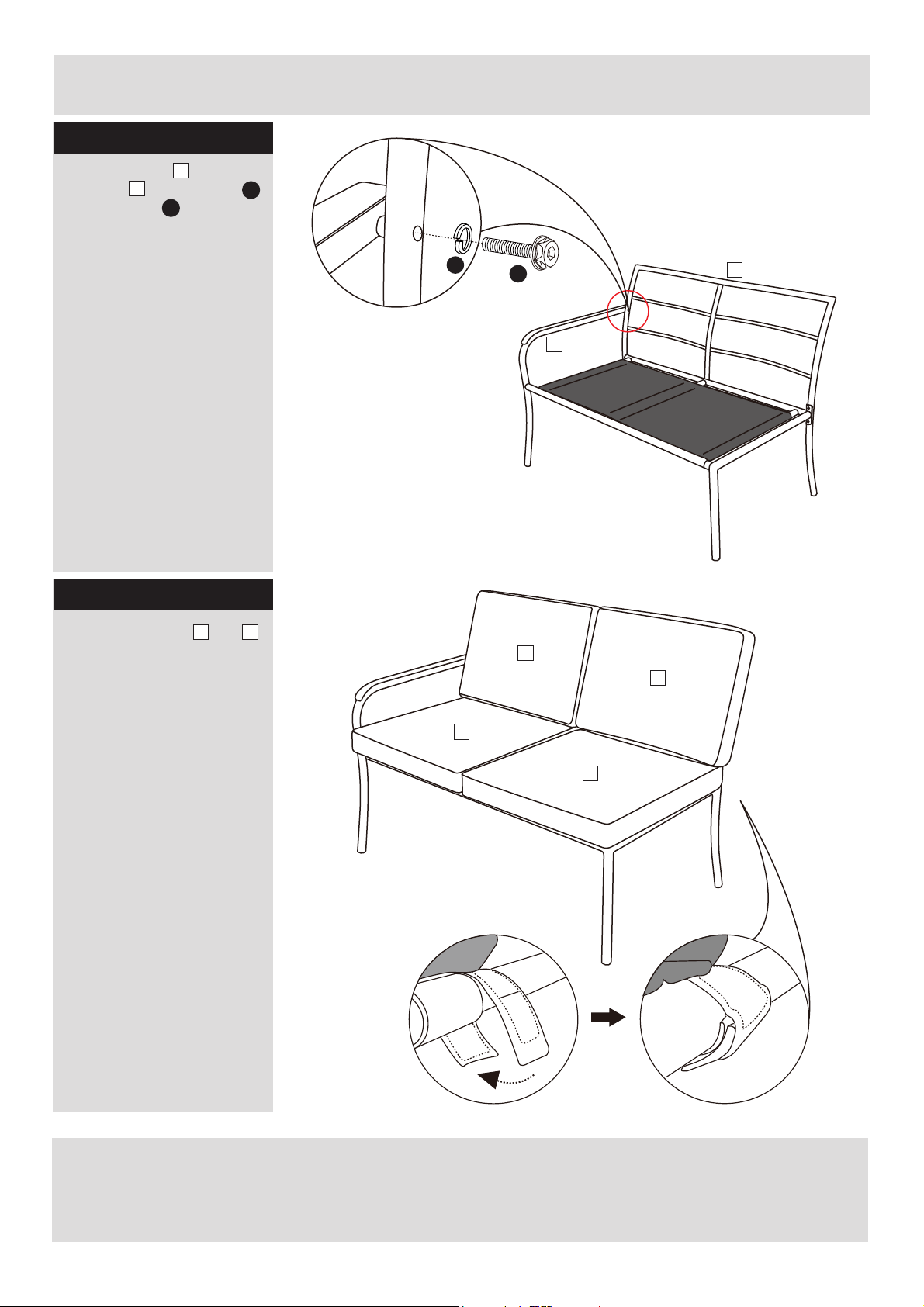

Step 5
Fix the right arm to the back
assembly by using bolts ,
spring washers . Make sure
that all of the bolts have been
tightened completely.
3
1
D
B
Step 6
D
B
3
1
Place the cushions and
onto the bench. Secure the
cushions to the bench by using
the velcro straps.
5
6
Assembly is completed.
5
5
6
6
