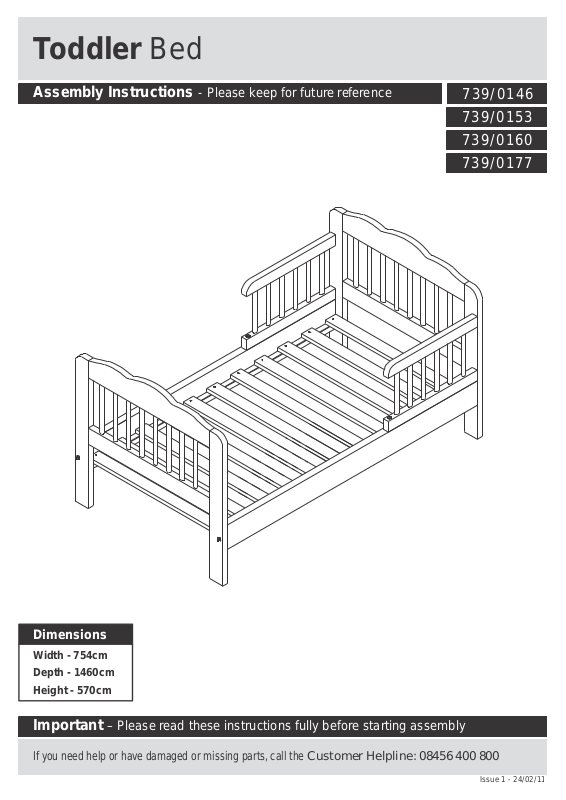

Toddler Bed
Issue 1 - 24/02/11
Assembly Instructions - Please keep for future reference
739/0146
739/0153
739/0160
739/0177
Dimensions
Width - 754cm
Depth - 1460cm
Height - 570cm
Important – Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400 800
Page 2
Safety and Care Advice
Important – Please read these instructions fully before starting assembly
.
Check you have all the
components and tools listed on
pages 2 and 3.
.
Remove all fittings from the
plastic bags and separate them
into their groups.
.
Keep children and animals
away from the work area, small
parts could choke if swallowed.
.
Make sure you have enough
space to layout the parts before
starting.
.
Do not stand or put weight on
the product, this could cause
damage.
.
Assemble the item as close
to its final position (in the same
room) as possible.
.
Assemble on a soft level
surface to avoid damaging the
unit or your floor.
.
This product has been produced
from natural timber; you may
notice some variation in the grain
and colour of different component
parts which is normal for furniture
produced using natural wood and
is not the result of any
manufacturing fault.
recommend the
use of power
drill/drivers
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
.
Parts of the assembly will be
easier with 2 people.
.
Dispose of all packaging
carefully and responsibly.
.
We do not
for
care and maintenance
.
Use an appropriate furniture
polish for natural wood
furniture and a dry cloth to
clean the product.
.
Avoid placing the furniture in
direct sunlight as this will cause
the timber to prematurely age.
.
From time to time check
that there are no loose
screws on this unit.
.
This product should not be
discarded with household
waste. Take to your local
authority waste disposal
centre.
Note: if required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.
1
Page 3
Components - Panels
Please check you have all the panels listed below
Headboard (75.4 x 57cm)
01
Footboard (75.4 x 52cm)
02
Guard rails x 2 (47.5 x 25.5cm)
05
Slats x 12 (69 x 6.9cm)
06
Left side rail (140 x 9cm)
03
Right side rail (140 x 9cm)
04
2
Page 4
If you have damaged or missing components,
3
Components - Fittings
call the Customer Helpline: 08456 400 800
Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases more
fittings may be supplied than are required.
A
70mm Bolt x 04
D
40mm Wooden dowel x 08
G
Spacer x 02
B
Half-Moon Nut x 04
E
25mm Screw x 24
C
Allen key
F
60mm Bolt x 06
Tools required
Phillips screwdriver
(medium & large)
Small
hammer
Ruler/tape
measure
Eye protection
(when using a
hammer or glue)
Ruler - Use this ruler to help correctly identify the screws
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100105110115120125130135140145150155160165170
Page 5
Assembly Instructions
Step 1
Fitting dowels
Insert dowels
into the indicated parts.
D
D
D
Step 2
D
D
D
D
03
D
D
04
Assembling side rails:
Insert half moon nut into
side rails and as
shown.
Then fix them to the
headboard using bolts
and allen key .
Make sure rails
are positioned as
shown with holes near to
headboard.
03
01
Caution:
B
04
CA
03
B
ATTENTION
04
B
01
B
C
C
A
4
Page 6
Assembly Instructions
Step 3
Assembling side rails:
Insert half moon nut into
side rails and as
shown.
Then fix them to the
footboard using bolts
and allen key .
03
02
B
04
CA
C
A
02
C
A
B
B
Step 4
Fixing slats:
Fix the slats adjacent to
the headboard working
towards the middle of the
bed using the spacer
as shown to ensure correct
spacing. Fix using screws
E
.Periodically check that
all screws are tight.
06
G
12x
11
06
A
C
G
G
E
E
5
Page 7
Assembly Instructions
Step 5
Attaching guard rails:
Fix guard rails using
bolts and allen
key .
Make sure to fix bolts in
headboard and rails as
shown.
F
C
05
C
C
02
C
050505
F
F
C
C
01
F
F
F
C
F
05
F
C
F
C
Assemble is complete!
6
