Argos 7372140 ASSEMBLY INSTRUCTIONS

09 SITNSLEEP METAL HIGHSLEEPER FRAME
Assembly Instructions - Please keep for future reference
758/5401
758/5418
Bed unit dimensions
Width - 201cm
Depth - 154cm
Height - 179cm

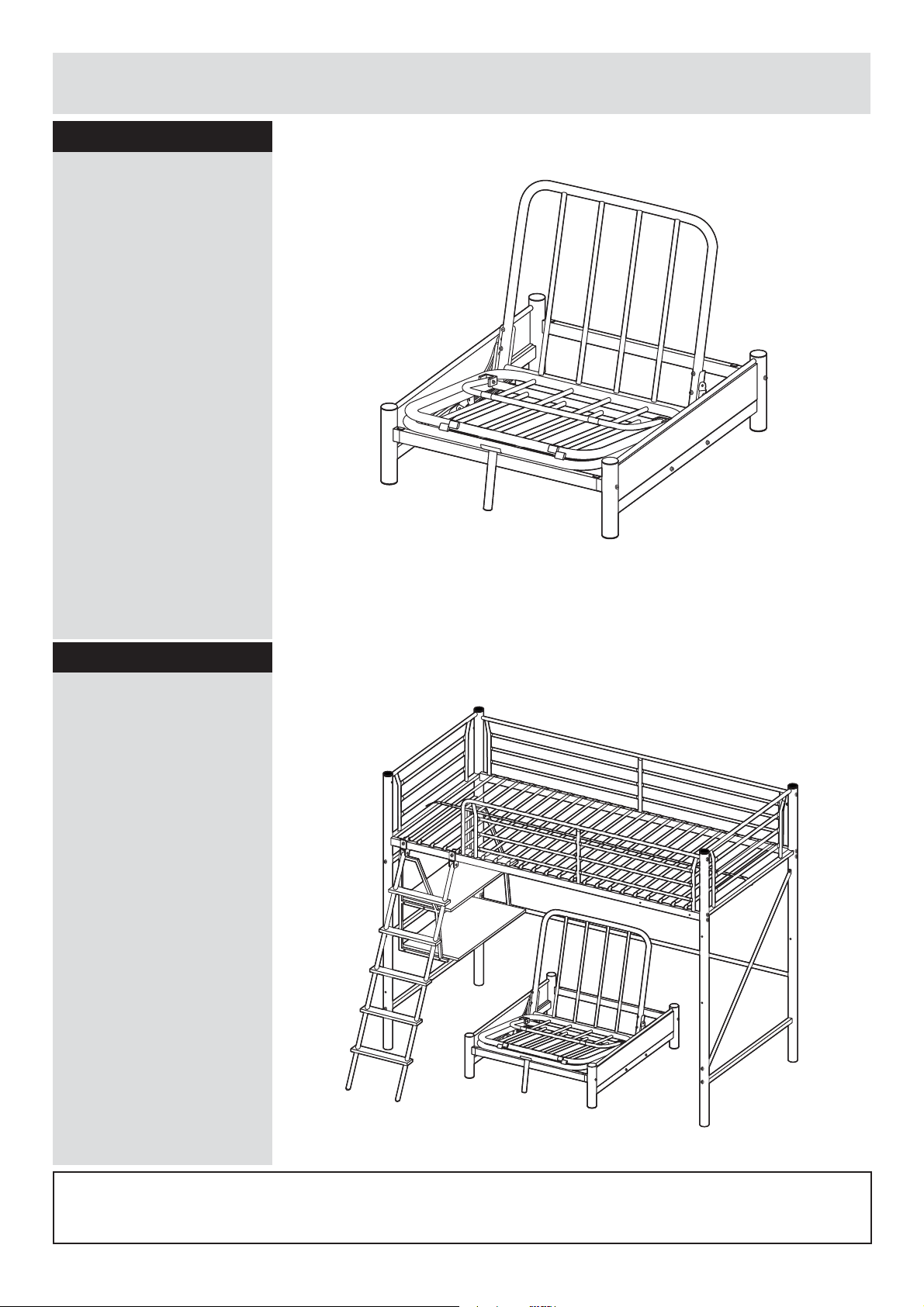

Sofa unit dimensions
Width - 202cm
Depth - 85.5cm
Height - 25.5cm
Important - Please read these instruction fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800

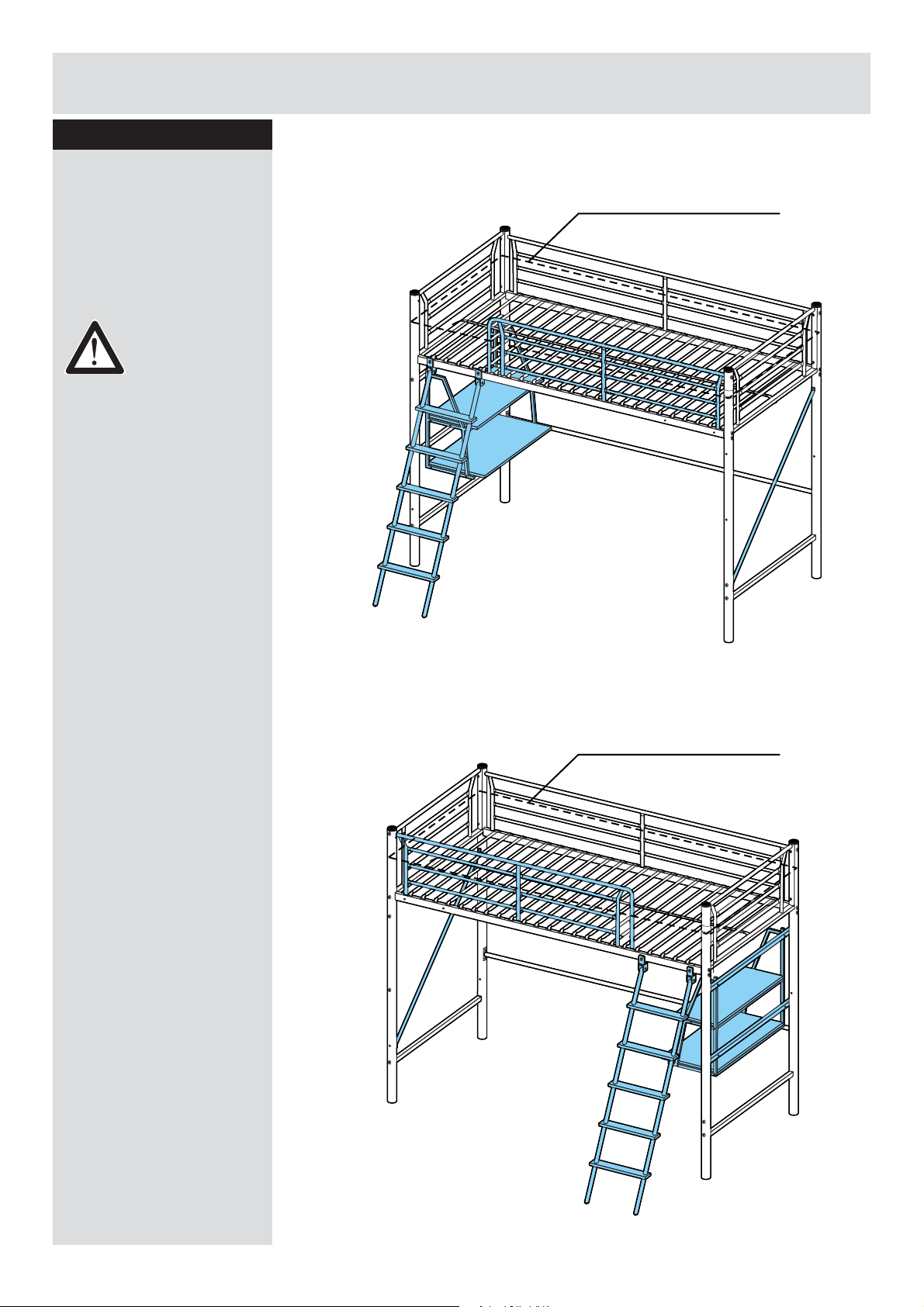

Safety and Care Advice
IMPORTANT – READ CAREFULLY–RETAIN FOR FUTURE REFERENCE
Care and maintenance
and mild detergent, do not use bleach or abrasive cleaners.
there are no loose screws on this unit.
Keep These Instructions For Future Reference
This product complies with
EN 747-1:2007
Argos plc 489-499 Avebury Boulevard Central Milton Keynes MK9 2NW
discarded with household waste. Take to your local authority waste disposal centre.
if required the next
Note:
page can be cut out and used as reference throughout the assembly. Keep this page with these instructions for future reference.
1
Components
Please check you have all the panels listed below
Metal leg
1
Metal legX1(179 x 4.8cm)
4
Base frame X 2(88.7x2cm) Base frameX1(129 x 3cm)
7
(179 x 4.8cm)X 1
Metal leg X 1(179 x 4.8cm)
2
HeadboardX2(89.9 x 39.4cm)
5
Filler barX2
8 9
(91x3cm)
Metal leg X 1(179 x 4.8cm)
3
Base frameX2(88.7 x 2cm)
6
Side rail (190.7x4cm)X 1
10
Desk frame X 2(57.3x30.8cm)
13 14
11
Side rail (191.3x1.9cm) liarediS1X (190.7x4cm)X 1
Base frame X 4(70.4 x 1.6cm)
12

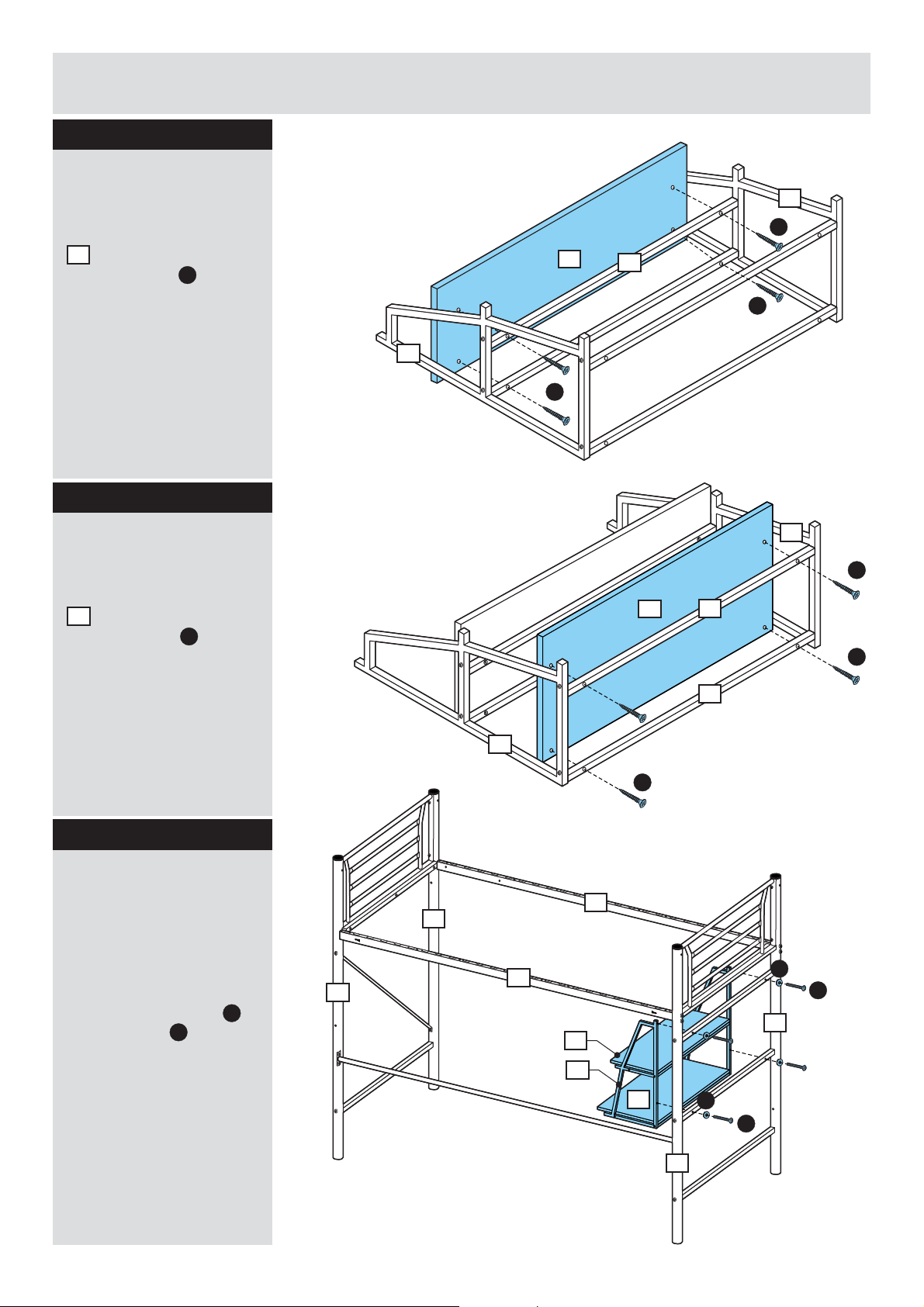

Upper desk panelX1(70 x 28cm)
15
Argos
2
Components
Please check you have all the panels listed below
Lower desk panel X 1
16
Front safety barrierX1
19
(154x37cm)
Side frameX2(96.8x25cm)
22 23
(70x40cm)
17
20

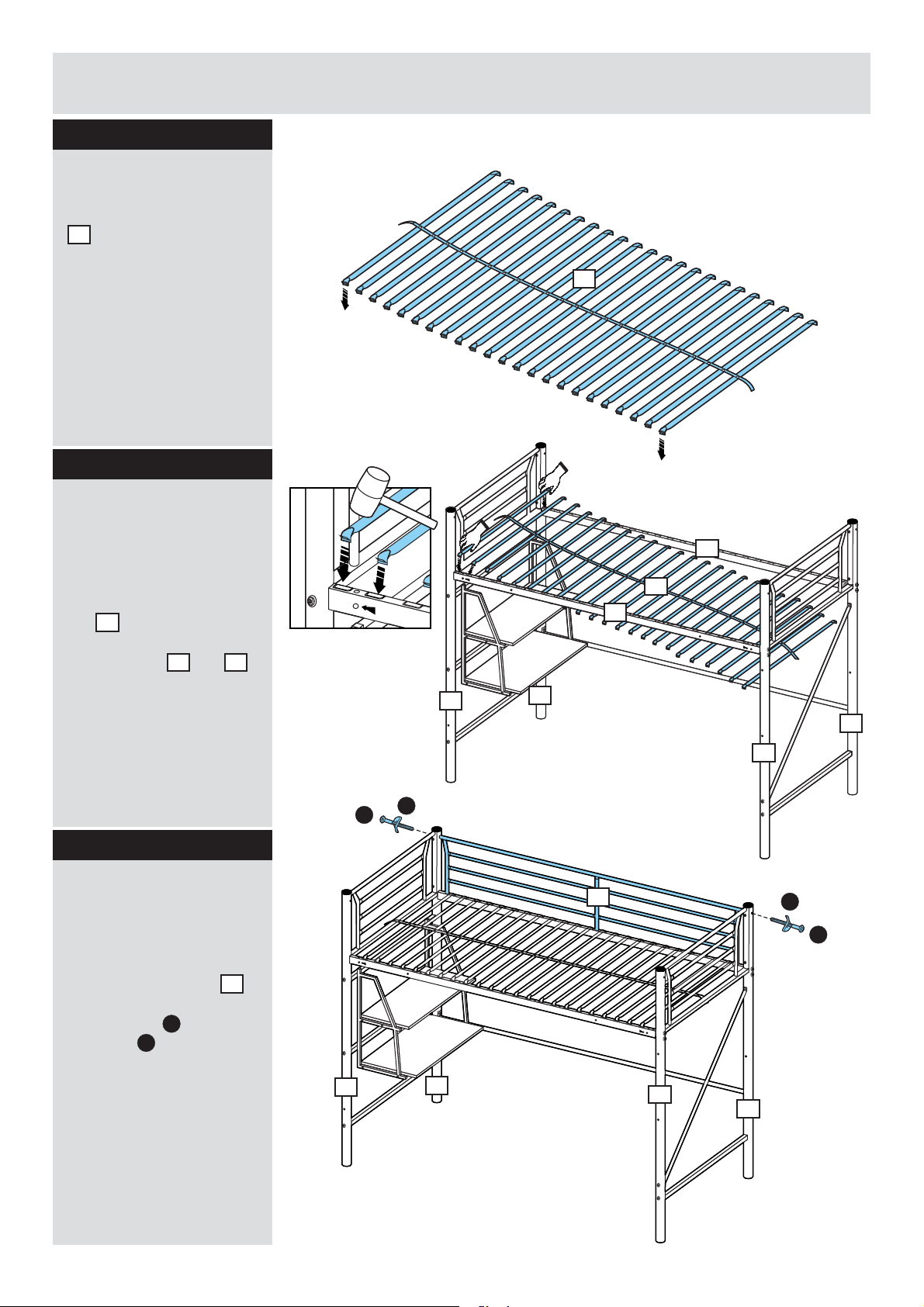

Bed slatX1 (190.7x93.4cm)

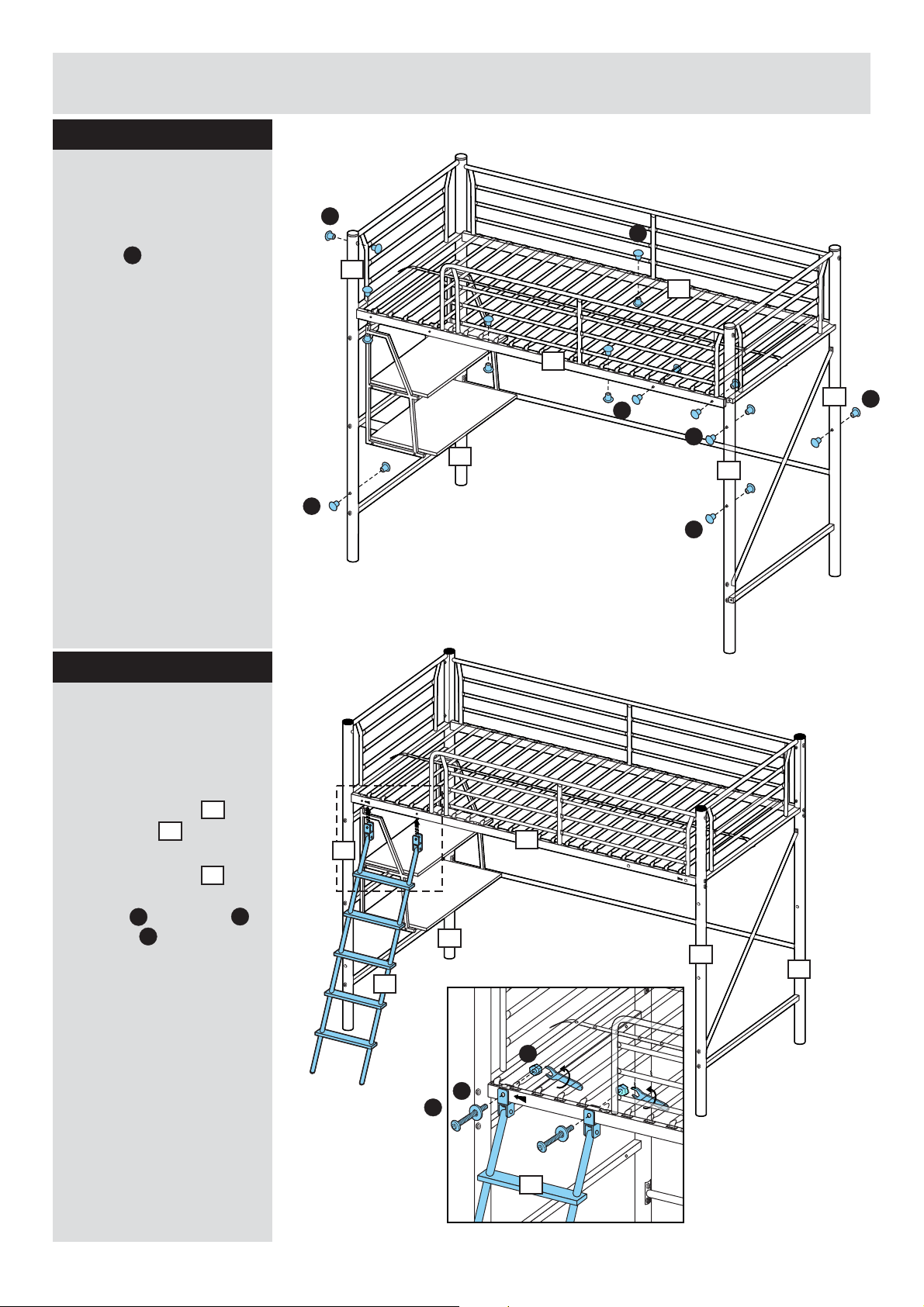

LadderX1(152 x 37.5cm)

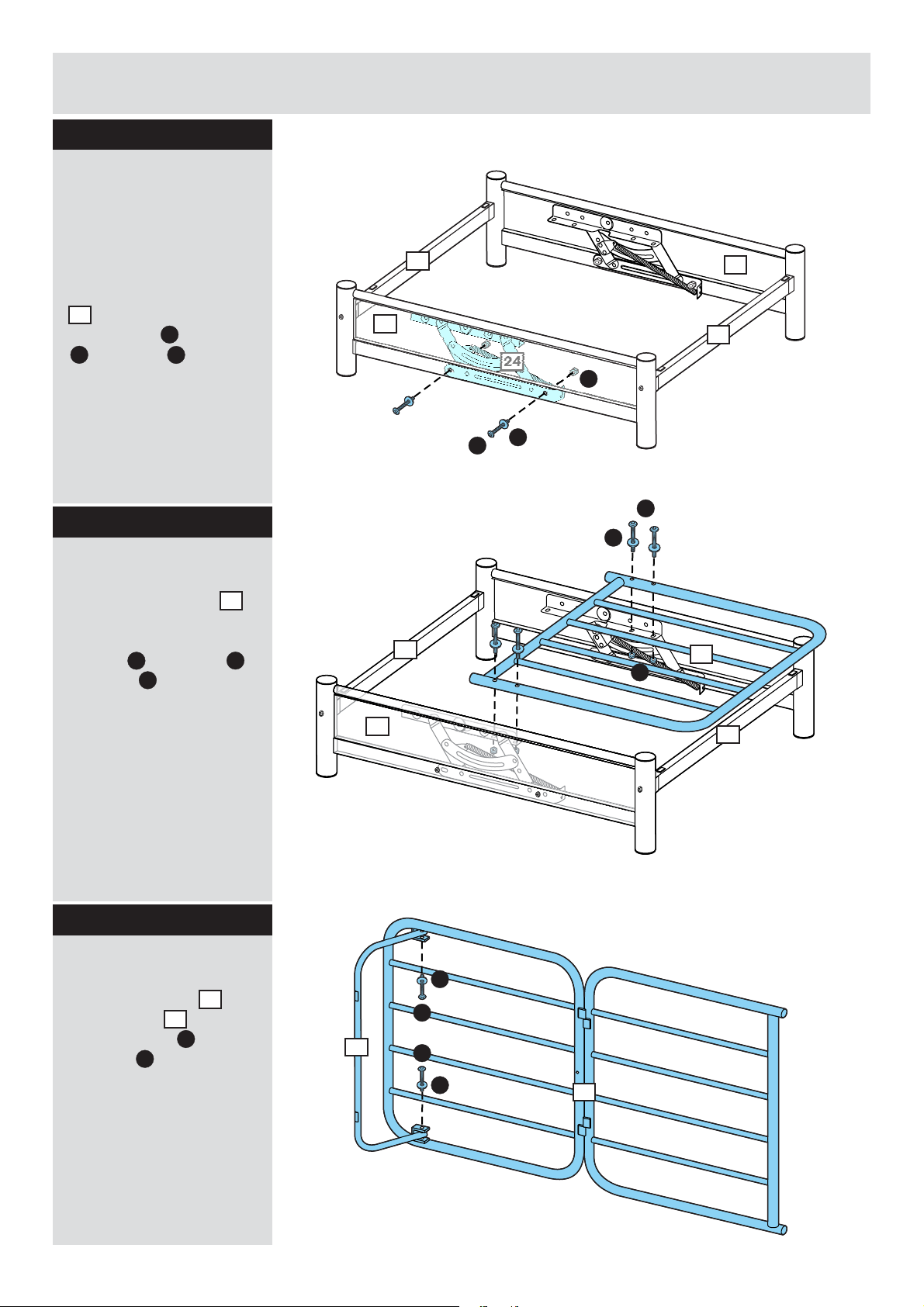

Spring hinge (46x16cm)X 1
Back safety barrierX1
18
(190.3x37cm)
Base frameX2(75.3 x 4cm)
21
Spring hinge (46x16cm)X 1
24

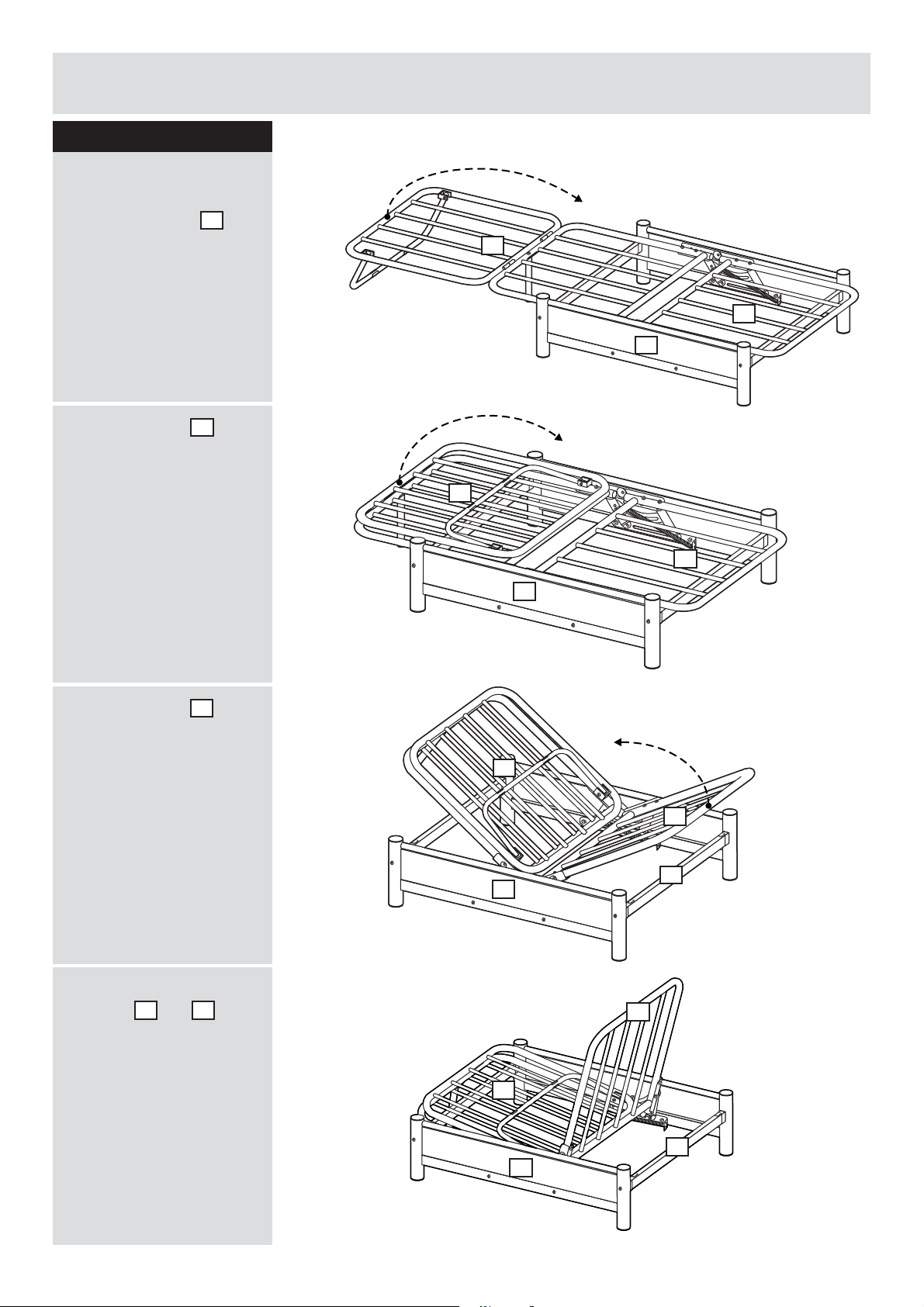

Sofa slat (71.5 x 64.5cm) talsafoS1X (130.9x71.5cm) leetstooF1X (64.6x23.5cm)X 1
25 26 27
28
3
Foot steel
(18.7 x 7cm)X 1
If you have damaged or missing components,
Components - Fittings
call the Customer Helpline: 08456 400800
Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
A
M6 x 20mm Boltsx8
D
M6 x 45mm Boltsx6
G
M6 x 18mm Boltsx4 M6 x 35mm Boltsx14
J
25mm Self-tapping screw x 8
M
M6 x 55mm Boltsx5
P
Plastic coverx22
B
M6 x 70mm Boltsx16 Ø 216 Washersx2
E
H
K
M8 x 75mm Boltsx3
N
M8 x 55mm Boltsx1
Q
Sticky padx4
C
F
M6 Nutsx4M6 x 61mm Boltsx2
I
Ø18 Washersx19
L
Ø19 Washersx3
O
Ø 0 20Washersx2
R
M8x70mm Boltsx4
S
M8 x 32mm Boltsx4
V
M8 x 45mm Boltsx1
T
M8 Nutsx12
Tools required
Allen key M4 (included)
Allen key M5 (included)
Spanner M6 (included)
Spanner M8 (included)
Ruler - Use this ruler to help correctly identify the screws
U
M8x38mm Boltsx10
Screwdriver (not included)
Rubber mallet (not included)
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 110 120105 115 125 130 135 140 145 150 155 160 165 170
4
Assembly I nstructions

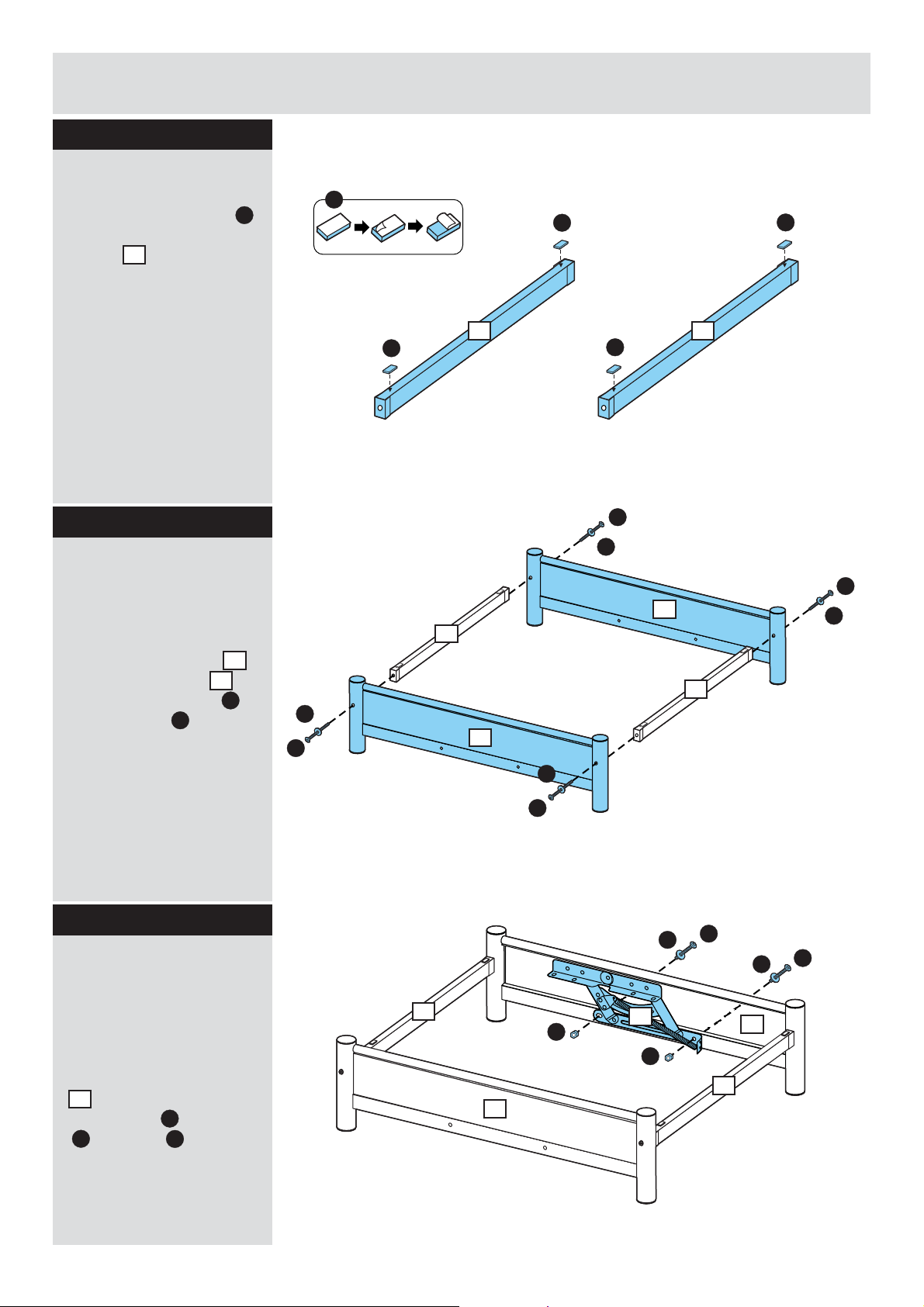

Step 1
Note : Pleas e ensure theWASHER is curving in facing the hole befo r e assemblin g.

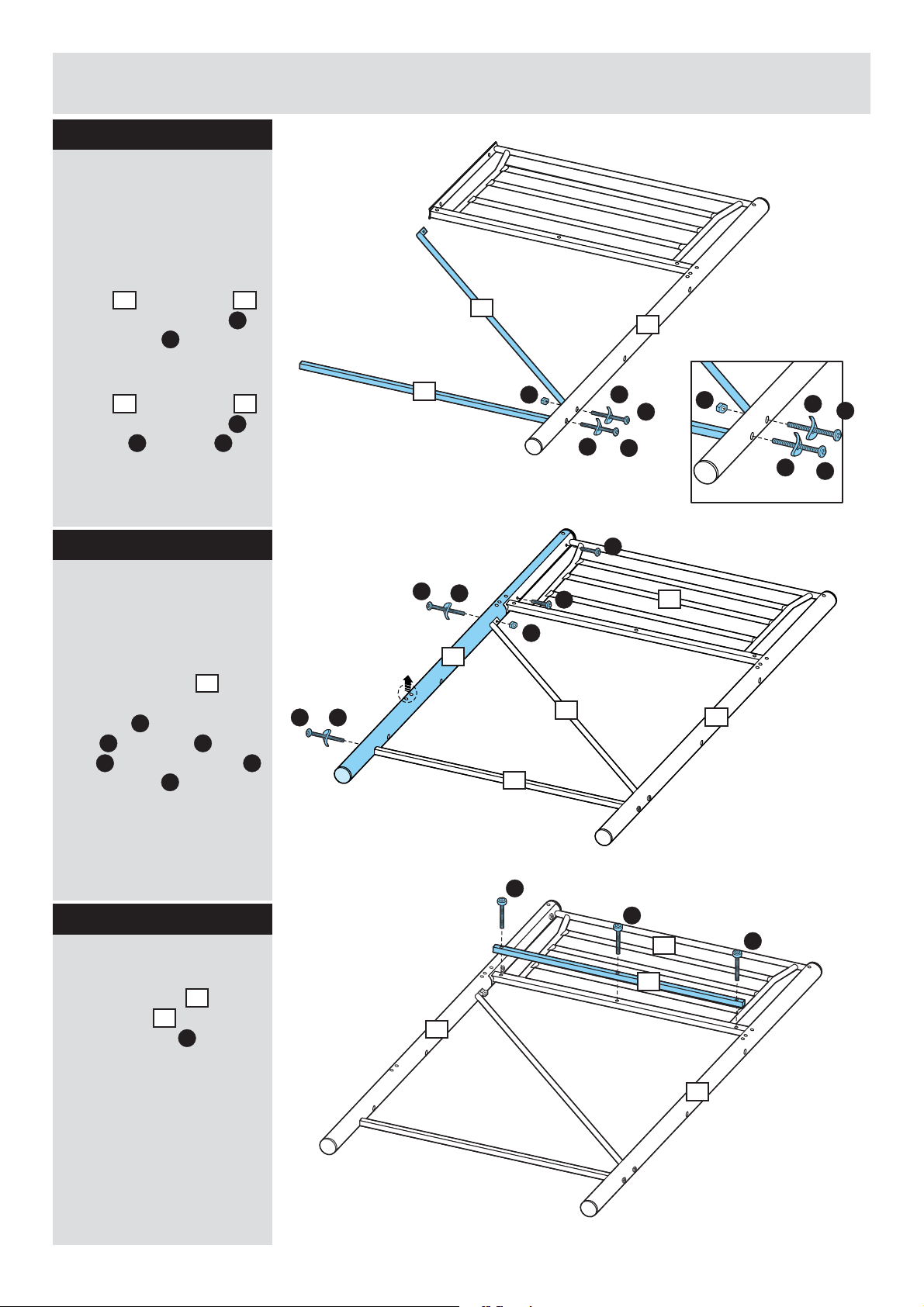

Step 2 - Bed unit
Preparing metal leg
Please be c areful to select metal leg , ,
& for assmbling.
3 4
1 2

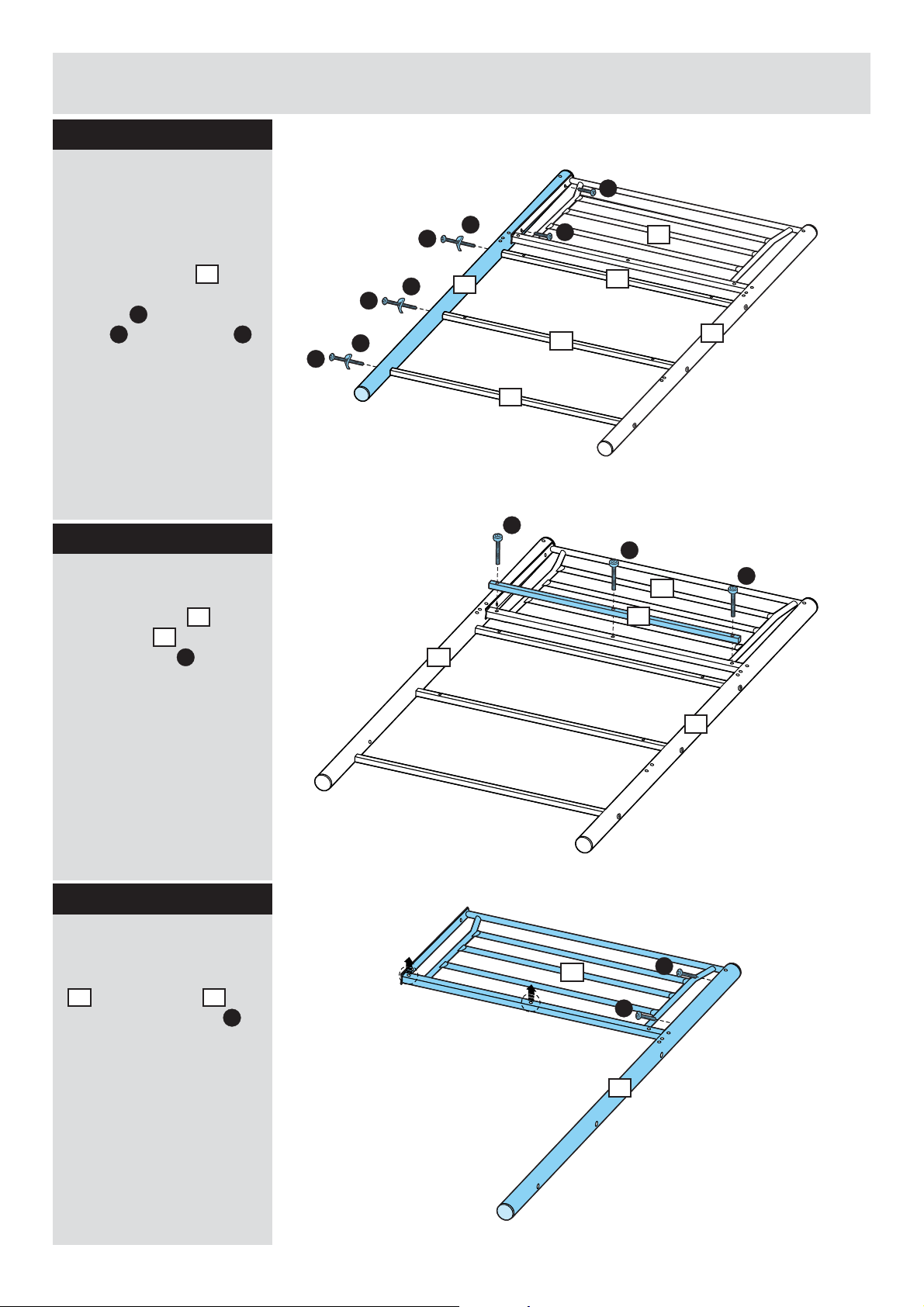

Step 3
Attaching headboard
Attach 1 pc of me tal leg
to headboard by
1 5
using 2 pcs of bolt s .
A
The washer curving in facing the hole is correct.
1
2
The washer curving out facing the hole is incorrect.
3
5
A
4
A

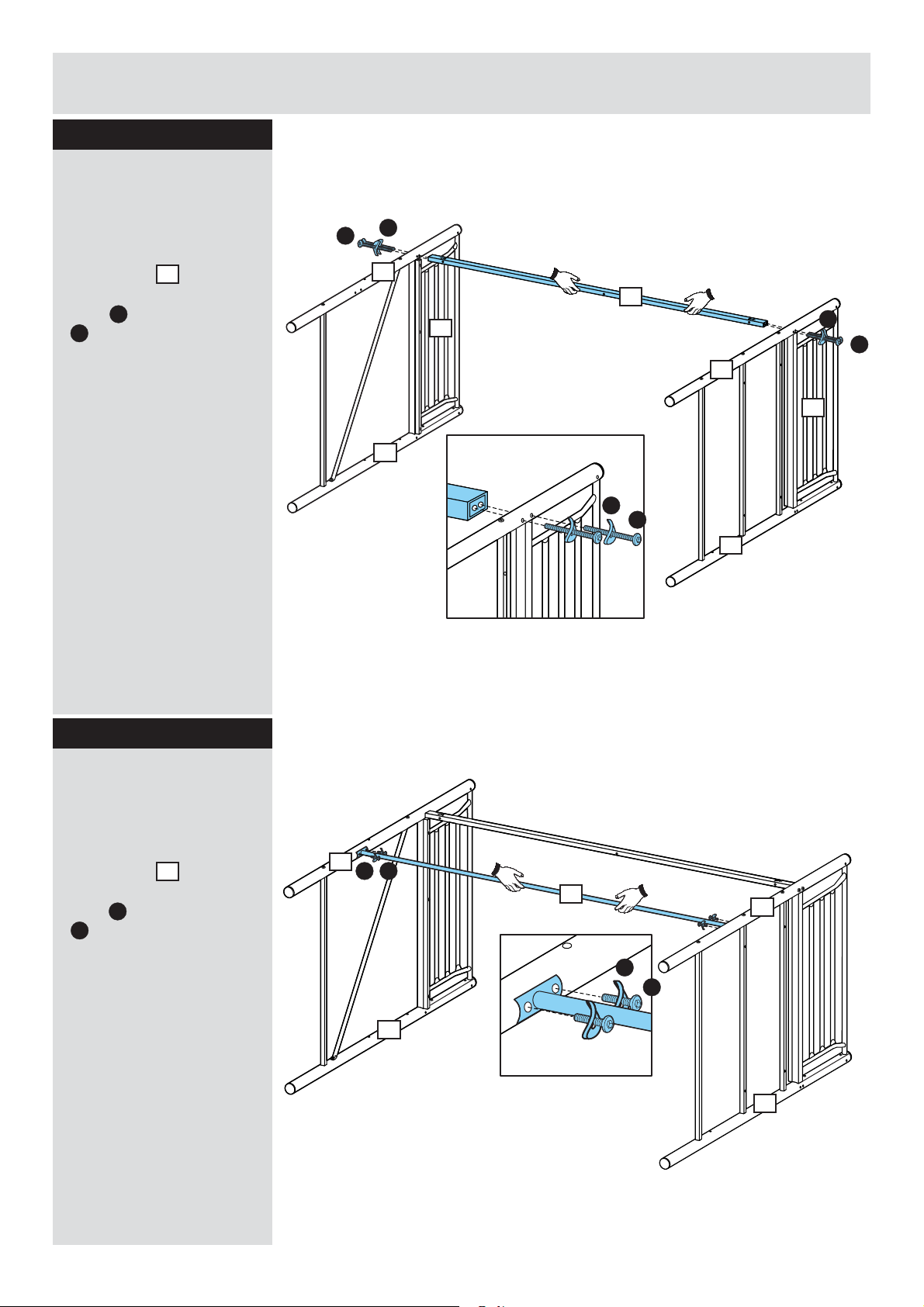

Step 4
Attaching base frame
Attach 2 pcs of base frames and 1pc of base fram e to the metal leg by using 3 pcs of bolt s and washers
6
7
1
B
.
C
1
6
C
6
7
1
C
B
C
B
B
5
