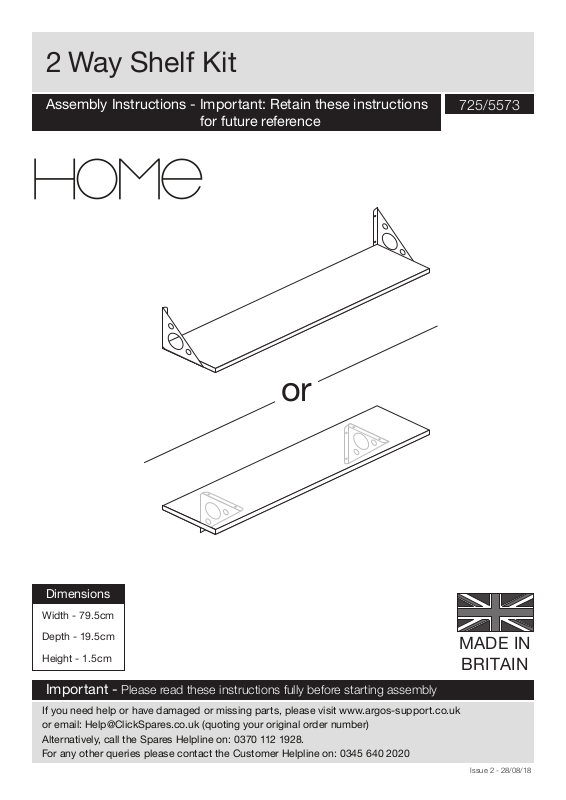

2 Way Shelf Kit
Assembly Instructions - Important: Retain these instructions
for future reference
725/5573
Dimensions
Width - 79.5cm
Depth - 19.5cm
Height - 1.5cm
or
MADE IN
BRITAIN
Important - Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, please visit www.argos-support.co.uk
or email: [email protected] (quoting your original order number)
Alternatively, call the Spares Helpline on: 0370 112 1928.
For any other queries please contact the Customer Helpline on: 0345 640 2020
Issue 2 - 28/08/18
Page 2
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 2kgs.
Please lift with care.
• Assembly to be carried out by
a competent adult only.
• Check you have all the
components and tools listed on
page 2.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• During assembly children
should be kept away from the
product due to possible risk of
injury.
• Installation shall only be
carried out exactly according to
the manufacturer’s instructions
- otherwise a safety risk can
occur if incorrectly installed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Dispose of all packaging
carefully and responsibly.
• Do not use this item if any
components are missing or
damaged.
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• Regularly check all fastenings
to ensure that they are properly
tightened.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.
1
Page 3

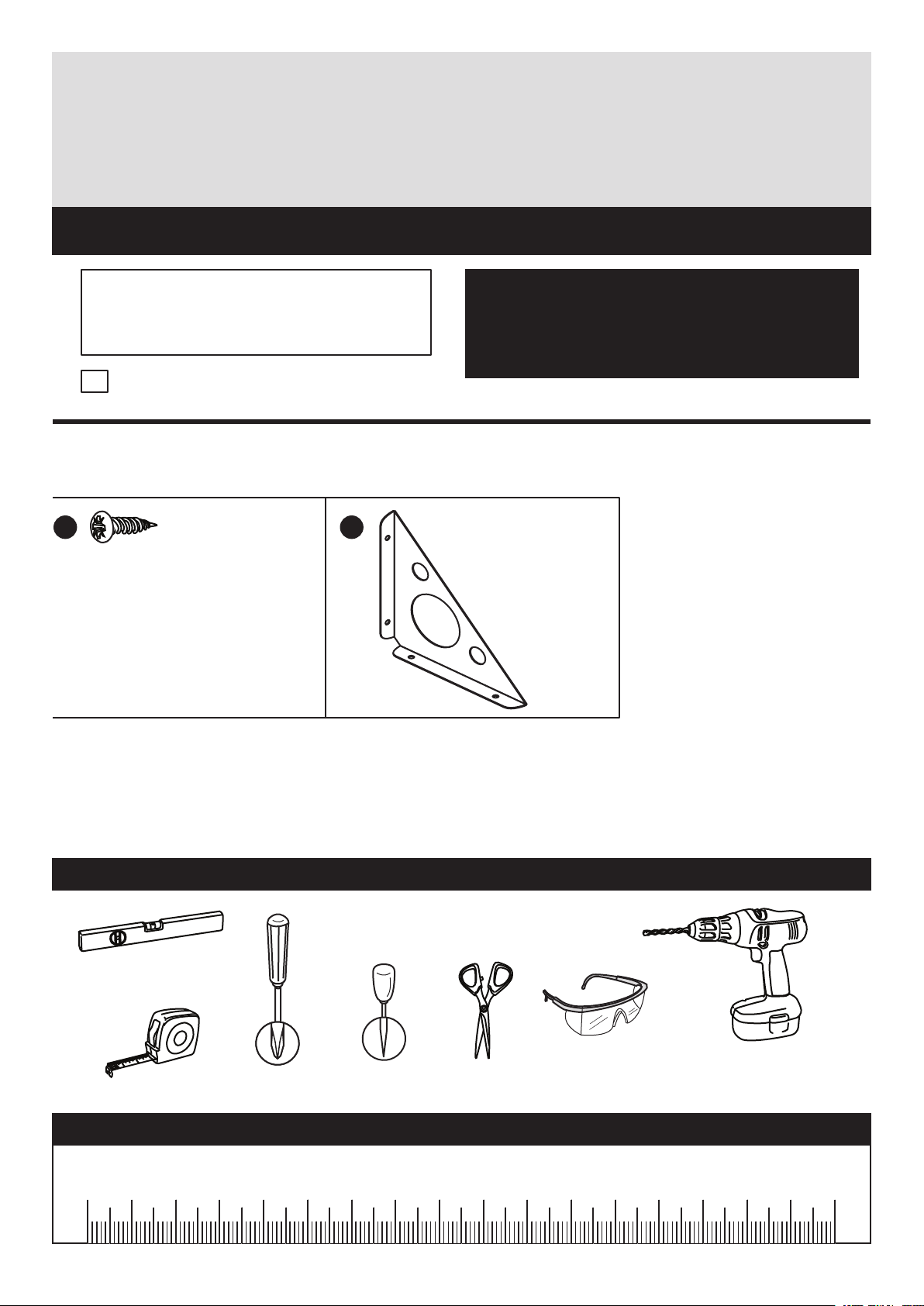

Components - Panels and Fittings
If you need help or have damaged or missing parts, please visit www.argos-support.co.uk
or email: [email protected] (quoting your original order number)
Alternatively, call the Spares Helpline on: 0370 112 1928.
For any other queries please contact the Customer Helpline on: 0345 640 2020
Please check you have all the panels and fittings listed below
When applicable, remove
any protective film from the
panel before it is used
1
Shelf (DPF215)
(79.5 x 19.4cm)
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
A
12mm Screw
Tools required
Spirit level
(F883) x 4
B
Bracket
(F297) x 2
Rule
Cross-head
screwdriver
Bradawl
Scissors
Eye protection
(when using a
hammer or drill)
Electric drill
(only use when
drilling into walls)
Ruler - Use this ruler to help correctly identify the screws
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
2
Page 4
Assembly Instructions

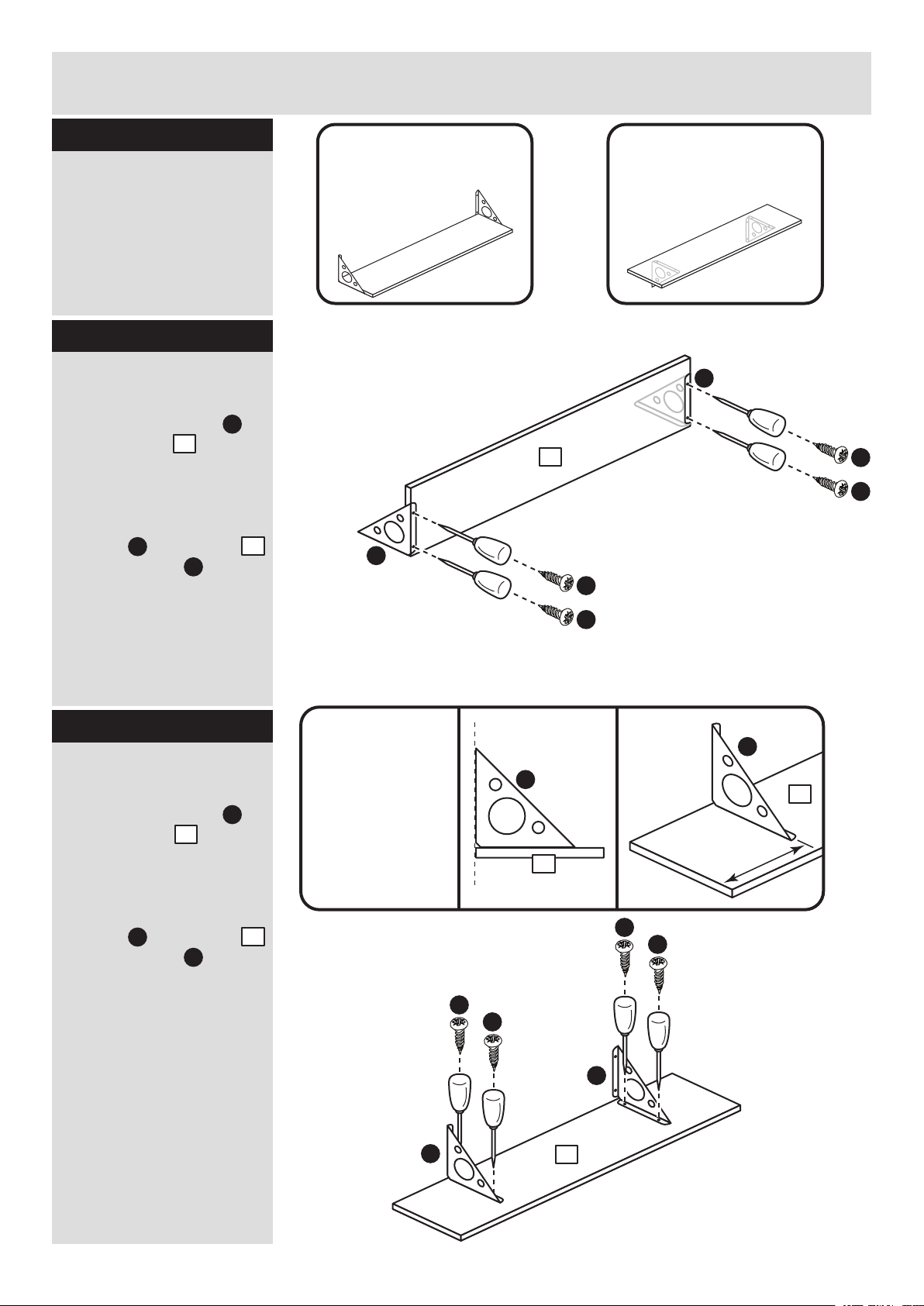

Step 1
Choose which look
you would like for
your shelf
Step 2
Fit the brackets
Push the 2 brackets
onto the shelf , as
1
shown.
Mark the holes with a
bradawl and secure each
bracket to the shelf
B
using 2 screws .
Note: Before fitting the
screws, make sure that
the shelf is pushed into
the ‘corner’ of the
brackets.
B
1
A
If you have chosen to
have your shelf this
way, go to step 2
B
If you have chosen to
have your shelf this
way, go to step 3
B
1
A
A
A
A
Step 3
Fit the brackets
Push the 2 brackets
onto the shelf , as
shown.
Mark the holes with a
bradawl and secure each
bracket to the shelf
B
using 2 screws .
B
1
1
A
The back edge
of the bracket
must be flush
with the back
edge of the shelf
and positioned
with the screw
holes 130mm in
from the ends.
B
B
B
1
A
A
A
A
B
1
130mm
1
3
Page 5
Assembly Instructions

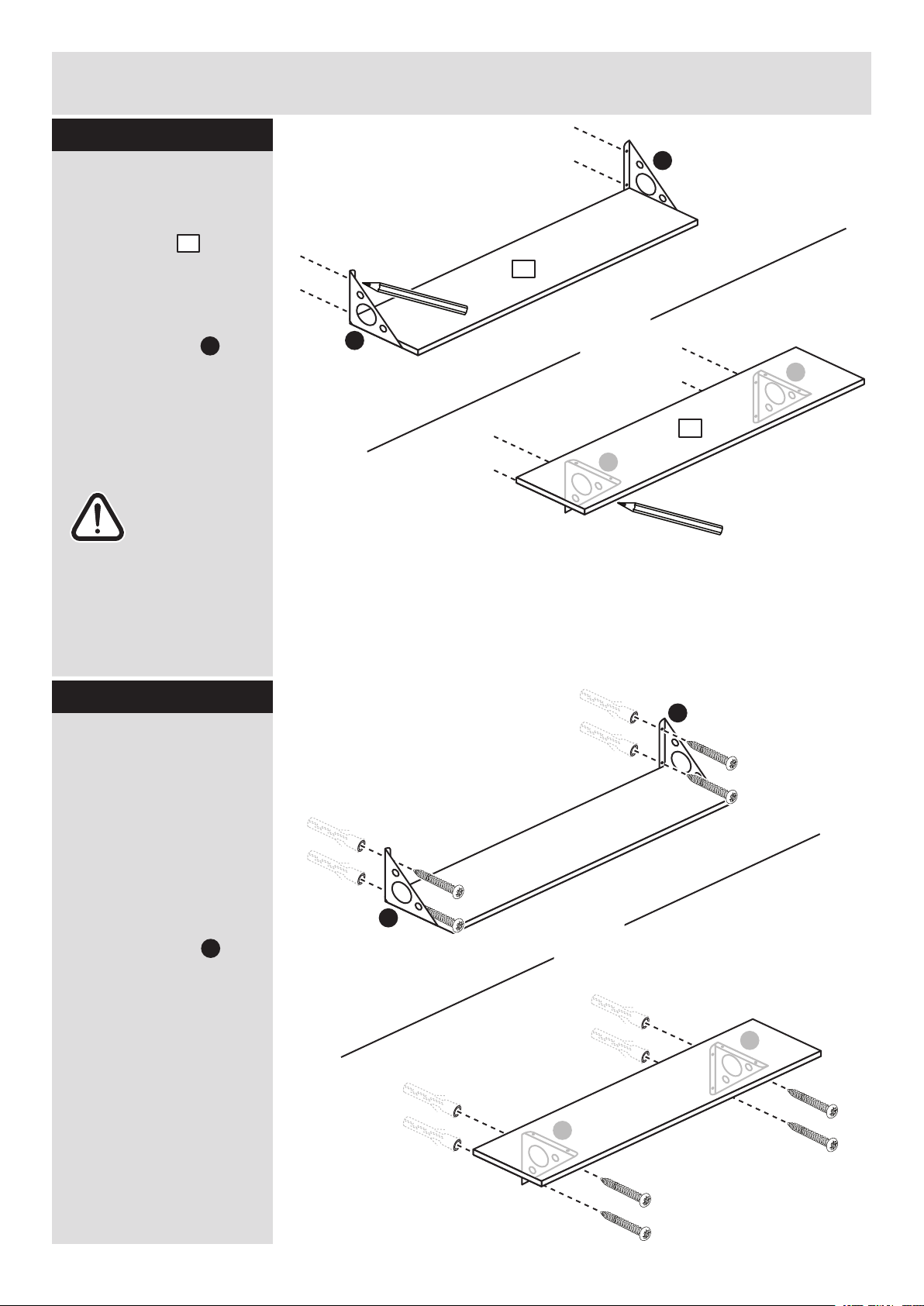

Step 4
Mark the bracket
positions
B
Hold the shelf up to
the wall and, using a
spirit level, make sure
that it is level.
Mark the bracket
holes with a pencil.
Drill the 4 mark holes to
suit the wall plugs and
screws (not supplied).
Warning: Take
care when
drilling the wall
that you do not drill into
any pipes, wires etc. If in
doubt, consult an expert.
1
B
1
B
or
B
1
B
Step 5
Fit the shelf unit
See the next page for a
guide to wall mounting
and fixings
Push 4 wall plugs (not
supplied) into the drilled
holes.
Line the brackets up
with the wall plugs
and fit them using 4
screws (not supplied).
B
B
B
or
B
B
4
Page 6

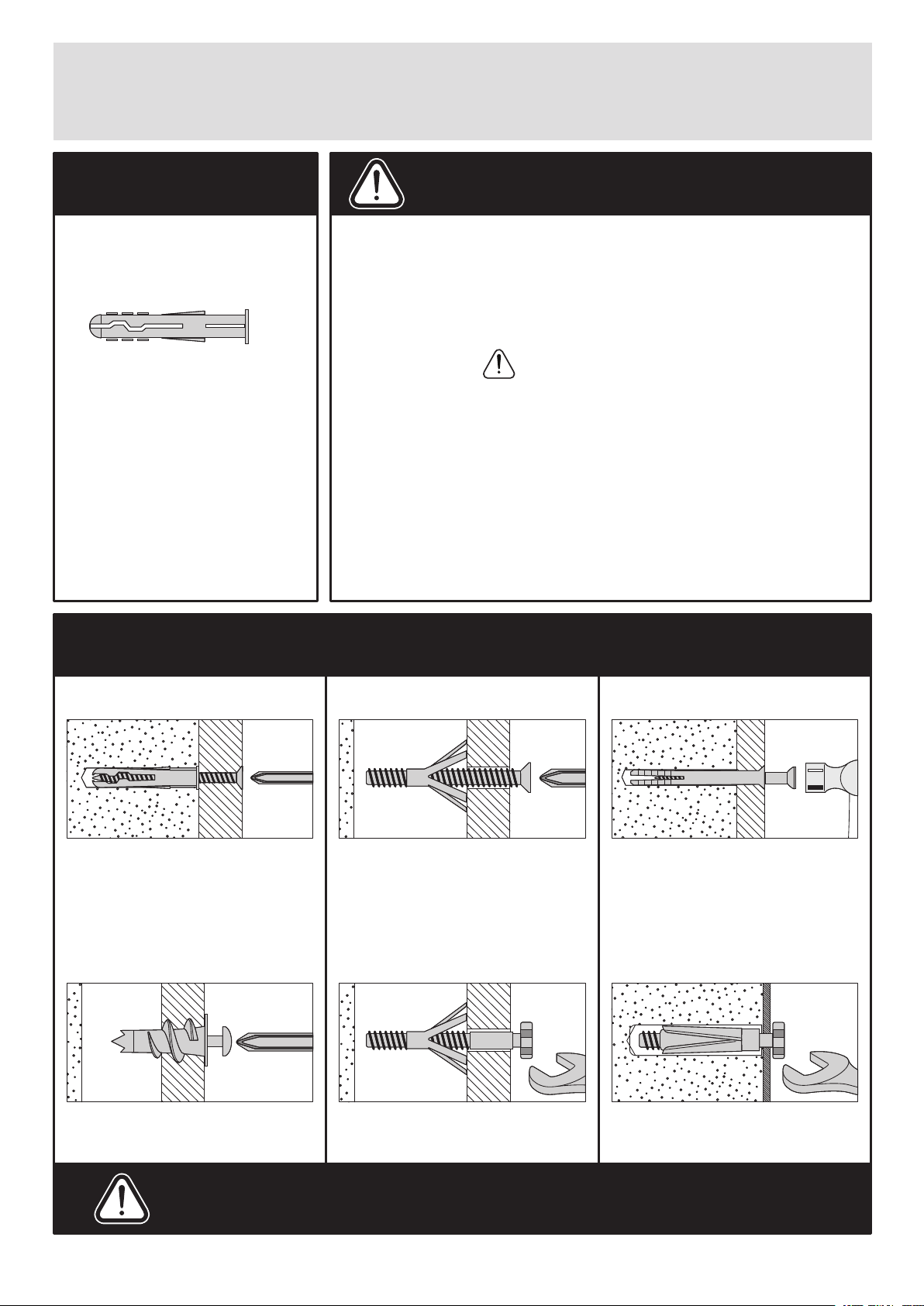

A Guide to Wall Mounting & Fixings
Important note:
If plastic wall plugs
are supplied with your
product:
- these are only suitable for
use in masonry walls.
If you are in any doubt about
the correct wall plugs for
your wall, seek professional
advice.
Failure of the product due to
using incorrect fixings is the
responsibility of the installer.
Important: When drilling into walls always
check that there are no hidden wires or pipes etc.
Make sure that the screws and wall plugs being used
are suitable for supporting your unit. Consult a qualifed
tradesperson if you are unsure.
Hints:
1: General rule: Always use a larger screw and wall plug
if you are not sure.
2: Ensure you use the recommended drill bit to match the wall
plug and hole size.
3: Ensure you drill the hole horizontally, do not force the drill or
enlarge the hole.
4: Take extra care when drilling high walls, ceilings and ceramic
tiles. Ensure wall plugs are inserted beyond the thickness of
the ceramic tiles to avoid the tiles splitting or cracking.
5: Ensure wall plugs are well fitted and are a tight fit in the
drilled hole.
Types of walls
You can use one of the following types of wall plug if your
walls are made of brick, breeze block, concrete, stone or wood.
No.1 “General Purpose” wall plug No.3 “Cavity Fixing” wall plug No.5 “Hammer Fixing” wall plug
Generally aerated blocks should not
be used to support heavy loads, use
a specialist fitting in this case. For light
loads, general purpose wall plugs can
be used.
No.2 “Plasterboard” wall plug
For use with plasterboard partitions or
hollow wooden doors.
No.4 “Cavity Fixing-Heavy Duty”
wall plug
For use with walls stuck with
plasterboard. The hammer fixing allows
it to be fixed to the wall rather than the
plasterboard. Always check the fixing
is secure to the retaining wall.
No.6 “Shield Anchor” wall plug
Heavy loads
For use when attaching light loads on
to plasterboard partitions.
Care &
Maintenance
5
For use when fitting or supporting
heavy loads such as shelving, wall
cabinets and coat racks.
Safety: Always check the fitting
and location to ensure your safety
in and around the home.
For use with heavier loads such as TV
& HiFi speakers and satelite dishes etc.
Fitting: From time to time check
the fitting to ensure the wall plugs
or screws do not become loose.
Page 7
Assembly Instructions

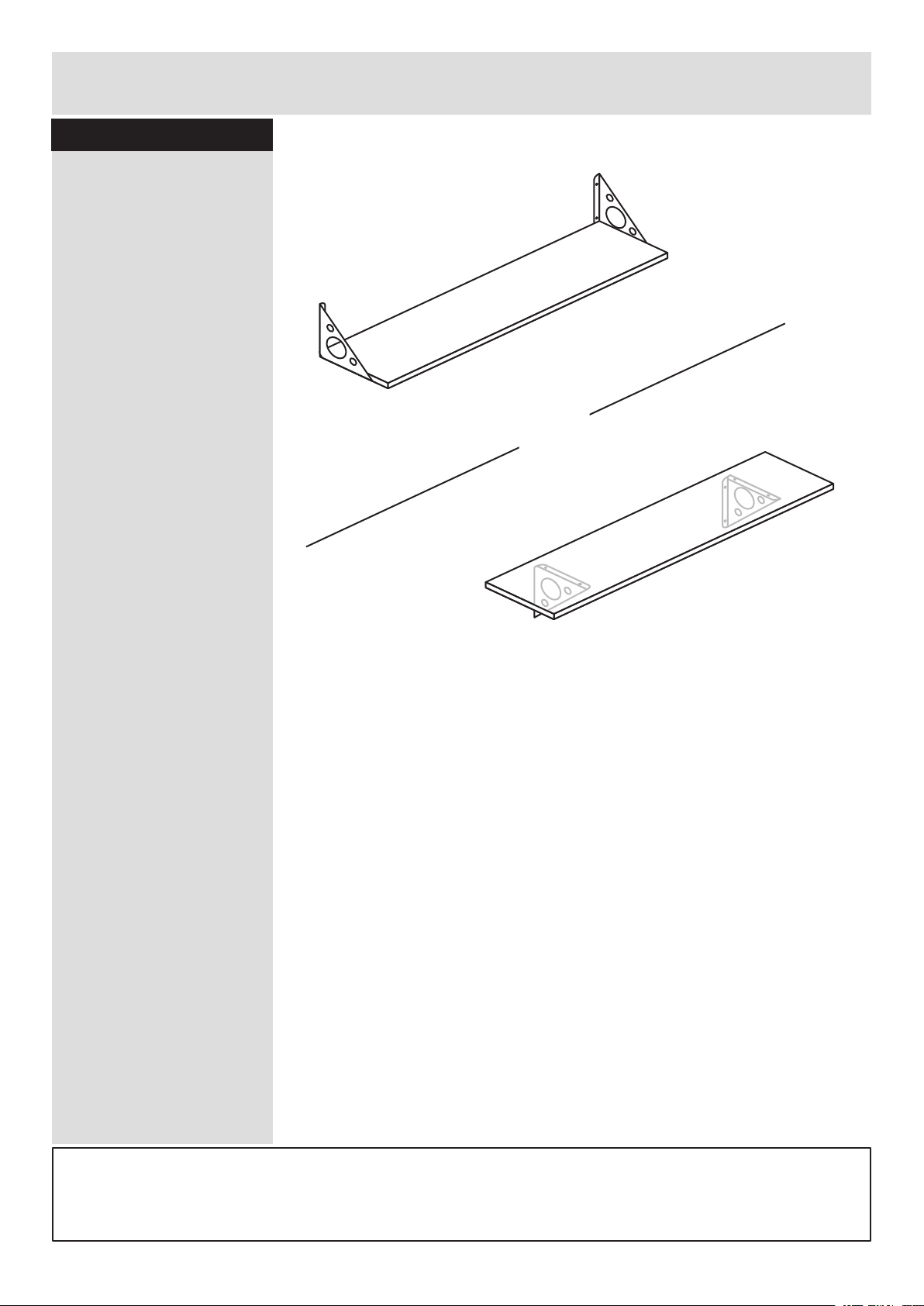

Step 6
Assembly is complete
or
If you need help or have damaged or missing parts, please visit www.argos-support.co.uk
or email: [email protected] (quoting your original order number)
Alternatively, call the Spares Helpline on: 0370 112 1928.
For any other queries please contact the Customer Helpline on: 0345 640 2020
