Page 1

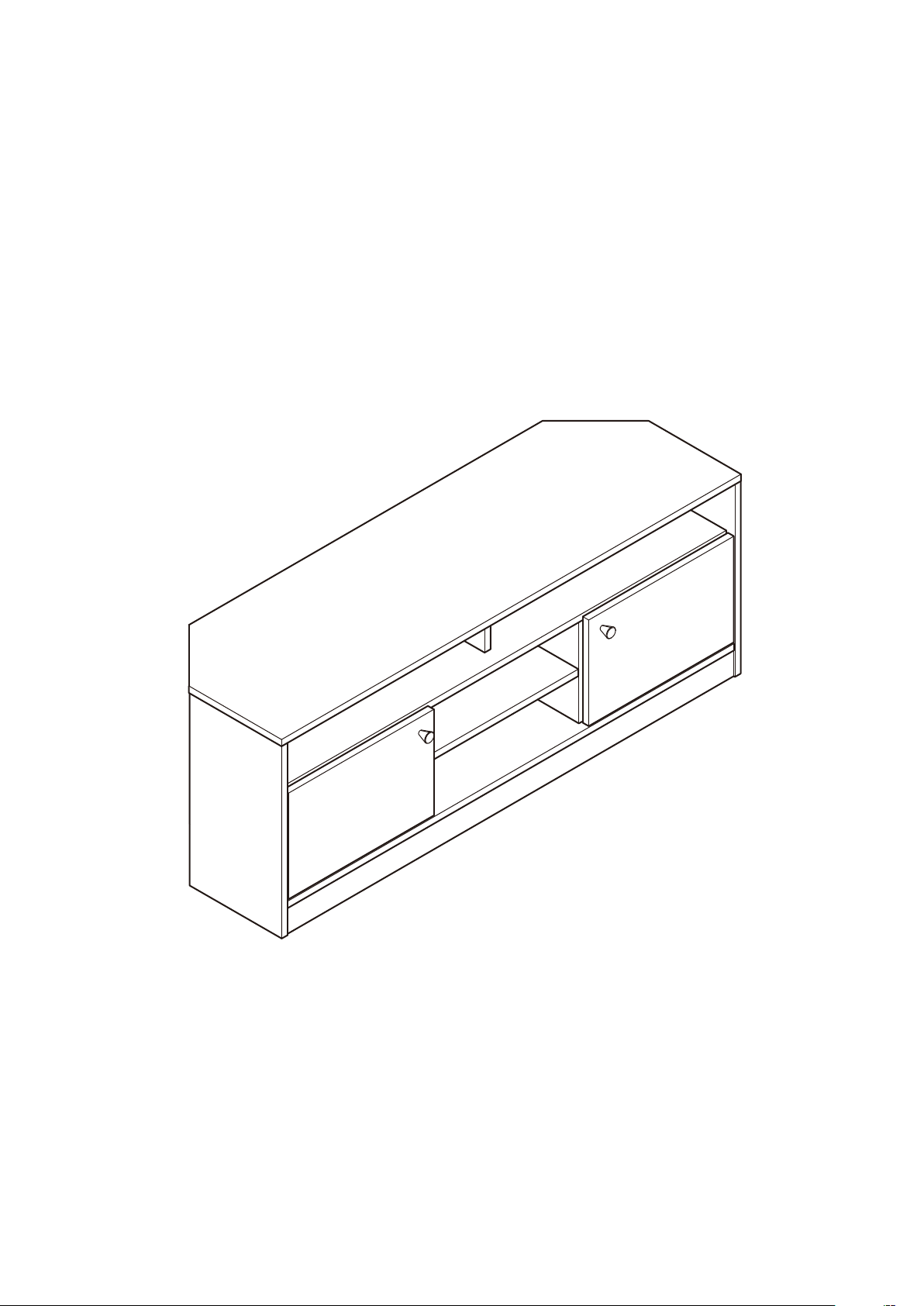

Corners Large TV Unit
737/6672
724/3932
724/8841
-
Care & Instruction Manual
Please read and retain these instructions for future reference
Page 2
Safety and Care Advice
Important – Please read these instructions fully before starting assembly
• Check you have all the
components and tools listed on
the following pages.
• Remove all fi ttings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Make sure you have enough
space to layout the parts before
starting.
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
Handy Hints
• During assembly do not stand
or put weight on the product,
this could cause damage.
• Assemble the item as close
to its fi nal position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your fl oor.
• Parts of the assembly will be
easier with 2 people.
• From time to time check that
there are no loose screws on
this unit.
• To reduce
the likelihood of
damaging your
product please
ensure that your
power drill is set on a low torque
setting.
• This product should not be
discarded with household waste.
Take to your local authority
waste disposal centre.
• Regularly check and ensure
that all bolts and fi ttings are
tightend properly.
Note: if required the next
page can be cut out and used
as reference throughout the
assembly. Keep this page with
these instructions for future
reference.
1
Page 3
If you have damaged or missing components, call the
Components - Panels
Customer Helpline:
Please check you have all the panels listed below
Argos = 0345 6400800
Top panel
1
Bottom panel
2
Middle panel
3
(120 x 38cm)
(116.8 x 36.2cm)
(116.8 x 34.1cm)
Middle support
9
Shelf panel
10
Front panel
11
Right door panel
12
(19.8 x 11.6cm)
(40 x 33.9cm)
(116.8 x 5.9cm)
(37.9 x 24cm)
Right side panel
4
(24 x 43.5cm)
Right support
6
(34 x 22.9cm)
Pilot holes for
guidance only
Unfinished
back edge
Left side panel
5
(24 x 43.5cm)
Left support
7
(34 x 22.9cm)
Left door panel
13
Small back panel x 2
14
(37.9 x 24cm)
(36.1 x 20.5cm)
Back panel
8
(92.2 x 43.5cm)
2
Page 4
Components - Fittings
Please check you have all the fi ttings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases more fi ttings
may be supplied than are required.
A B C
50mm Screw x 14
D
15mm Locking nut x 20 30mm Screw x 2
G
E F
Handle x 2
H
Door hinge x 4Door pad x 4
30mm Dowel x 639mm Locking pin x 20
I
(This screw is included in
the door hinge bag)
15mm Screw x 16
J K
Plastic support x 3
15mm Screw x 6
Tools required
Phillips screwdriver
(medium & large)
Flatblade screwdriver
(medium)
Drill
7mm Suitable drill bit
(for use with wall plug)
Ruler - Use this ruler to help correctly identify the screws
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100
The screws length is measured from the head to the point (30mm screw shown).
3
105
Small
hammer
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150
0 1 2 3 4 5 6
Ruler/tape
measure
Eye protection
(when using a
hammer or glue)
110 115 120 125 130 135 140 145 150 155 160 165 170
Page 5
Assembly Instructions
Step 1
Attaching hinges
a:
Use Screws to fix
the Door hinges ‘back
I
H
plates’ onto the Right side
panel and Left side
panel .
Note:
4
5
Only two screws
(not four) are fitted to the
door hinge back plate.
a:
I
I
I
H
H
4
I
I
I
H
H
H
5
H
b:
Screw Locking pins
B
into the Right side panel
4
and Left side panel
5
.
Insert Locking pins
Note:
as far as shown.
Do not over tighten.
Insert Dowels into the
Right side panel
Left side panel .
C
4
and
5
b:
B
B
C
C
B
B
B
4
B
B
B
B
5
4
Page 6
Assembly Instructions
Step 2
Attaching bottom and
middle panel
a:
Use Screws to fix
Plastic supports onto
the Front panel .
Note:
Be sure the edges
of the Plastic supports
K
J
11
J
even with the edges of
the Front panel .
b:
Use Screws to fix the
Front panel onto the
Bottom panel .
11
K
11
2
a:
b:
K
J
K
J
K
J
K
11
K
J
11
K
J
11
c:
Screw Locking pins
into the Middle panel .
Insert Locking pins
Note:
B
3
as far as shown.
Do not over tighten.
c:
J
K
2
J
B
B
B
B
B
3
Continued on next page.
5
Page 7
Assembly Instructions
Step 2 - continued
d:
Use Screws to fix
the Middle support
onto the Middle panel .
A
9
3
d:
Unfinished back
9
3
edge
A
A
e:
Use Screws to fix
the Right support and
Left support onto the
Shelf panel .
Insert Dowels into the
Right support and Left
support .
7
A
6
7
10
C
6
e:
Unfinished back
C
A
A
6
10
edge
C
A
7
A
Continued on next page.
6
Page 8
Assembly Instructions
Step 2 - continued
f:
Carefully locate the
Middle panel onto the
3
unit.
Insert 4 Locking nuts
D
into the unit.
Use a screwdriver to turn
Locking nuts clockwise
D
to lock.
f:
D
D
3
D
7
D
6
g:
Use Screws to fix
Bottom panel onto the
A
2
unit.
g:
D
7
6
2
A
A
A
A
7
Page 9
Assembly Instructions
Step 3
Attaching right and left
side panel
a:
Carefully locate the
Left side panel onto
5
the unit.
Insert 4 Locking nuts
D
into the unit.
Use a screwdriver to turn
Locking nuts clockwise
D
to lock.
a:
D
5
3
D
D
2
D
D
b:
Carefully locate the
Right side panel onto
4
the unit.
Insert 4 Locking nuts
D
into the unit.
Use a screwdriver to turn
Locking nuts clockwise
D
to lock.
b:
D
3
D
4
D
2
D
D
8
Page 10
Assembly Instructions
Step 4
Attaching back panel
a:
Insert Dowels into
the Back panel .
Use Screws to fix the
Back panel onto the
Middle panel and
Bottom panel .
C
8
A
8
3
2
a:
Unfinished back
C
A
C
3
A
A
surface
A
8
2
b: With help, carefully
stand the unit upright.
Warning:
The unit is heavy.
Lift with care.
Slide small back panels
14
into the unit.
b:
Finished front
14
3
5 4
surface
8
14
2
9
Page 11
Assembly Instructions
Step 5
Attaching top panel
a:
Screw Locking pins
into the Top panel .
Insert Locking pins
Note:
B
1
as far as shown.
Do not over tighten.
b:
Carefully locate the
Top panel onto the
1
unit.
a:
b:
B
B
B
B
B
B
1
D
B
B
B
Insert 8 Locking nuts
D
into the unit.
Use a screwdriver to turn
Locking nuts clockwise
D
to lock.
14
1
14
D
D
D
D
8
D
D
5
9
D
4
10
Page 12
Assembly Instructions
Step 6
Attaching hinges to
doors
Fix 4 Door hinges to
Left door panel and
Right door panel using
Screws .
I
H
13
12
Tear off the protective
backing from the Door
G
Pads .
Carefully stick the Door
G
pads onto the Left door
panel and Right door
panel .
13
12
Step 7
Hanging doors
I
H
I
I
13
H
H
F
G
G
E
H
I
I
H
12
F
G
G
E
G
With help, Mount the
a:
doors by clipping the
hinge arms onto the
H
mounting plates.
b:
Press the hinge end
H
button to unclip the door
if need be .
See ‘ Hinge adjustment ’
in page13 .
H
H
H
H
13
12
b:
H
H
11
Press to Unclip
a:
Page 13
Assembly Instructions
Step 8
Finishing the unit
Note:
It would be useful
to ask someone to help
you at this stage.
With help, place the unit
in the intended position.
12
Page 14
Fittings-Hinges
a:
You will need to
support the weight of the
doorduring this process.
If the door is close to the
ground this can be
achieved by using blocks
orsimilar. Otherwise a
second person may be
required to assist.
Loosen, but do not
remove the top and
bottom screws on all
hinge mounting plates.
b:
Try to work on the
hinges one at a time.
This will prevent the
weight of the door
pulling it out of position.
a:
b:
c:
This method can
also be used to
straighten-up tilting or
twisting doors.
Try to work on the
hinges one at a time.
Gradually adjusting and
checking to see what
changes each
adjustment makes.
If you are finding the
screw difficult to turn it
may help to slightly
loosen the rear screw,
retightening after.
Assembly is complete.
c:
If you need help or have damaged or missing parts, call the Customer Helpline: Argos = 0345 6400800
Produced in Indonesia for Argos Limited, 489-499 Avebury Boulevard, Milton Keynes, MK9 2NW
www.argos.co.uk
13
