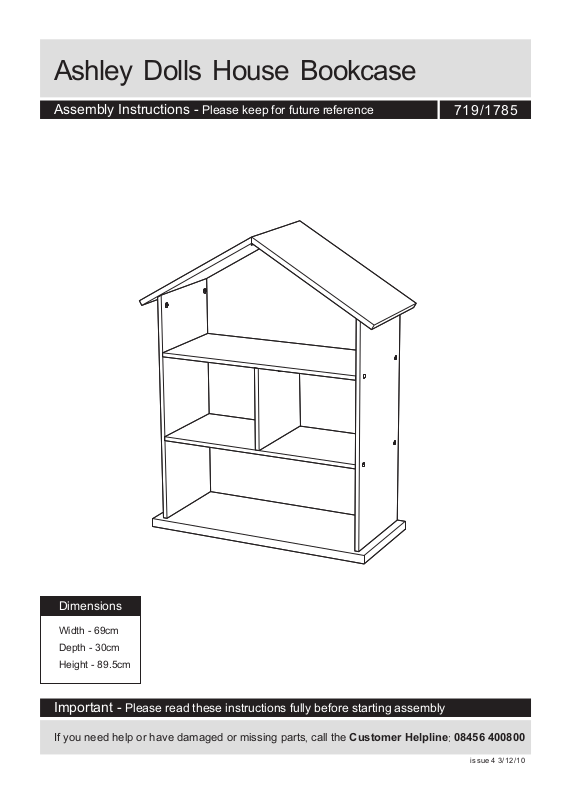

Ashley Dolls House Bookcase
Assembly Instructions - Please keep for future reference
719/1785
Dimensions
Width - 69cm
Depth - 30cm
Height - 89.5cm
Important - Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
issue 4 3/12/10
Page 2
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
Check you have all the
components and tools listed on
pages 2 and 3.
Remove all fittings from the
plastic bags and separate them
into their groups.
Keep children and animals
away from the work area, small
parts could choke if swallowed.
Make sure you have enough
space to layout the parts before
starting.
Care and maintenance
●Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
Assembly to be carried out by
the competent adult only.
Do not stand on the panels, this
could cause damage.
Assemble the unit as close to its
final position (in the same room)
as possible.
Assemble on a soft level
surface to avoid damaging the unit
or your floor.
Parts of the assembly will be
easier with 2 people.
●From time to time check that
there are no loose screws on this
unit.
During assembly children
should be kept away from the
product due to the potential risk of
injury.
We do not
recommend the use
of power drill/ drivers
for inserting screws,
as this could damage
the unit. Only use hand
screwdrivers.
Dispose of all packaging carefully
and responsibly.
Warning: The unit weighs
approximately 13.9kgs.
Please lift with care.
●This product should not be
discarded with household waste.
Take to your local authority waste
disposal centre.
disposal centre.
Do not use this item if any
components are missing or
damaged.
“IMPORTANT: RETAIN THESE
INSTRUCTIONS FOR FUTURE
REFERENCE”.
Argos Ltd. MK9 2NW.
The maximum weight of the
children user: 50kgs.
1
Regularly check all fastenings
to ensure that they are properly
tightened.
Note: If required the next page
can be cut out and used as a
reference throughout the
assembly. Keep this page with
these instructions for future
reference.
This product is suitable for
children in the age of 6 or above.
Page 3

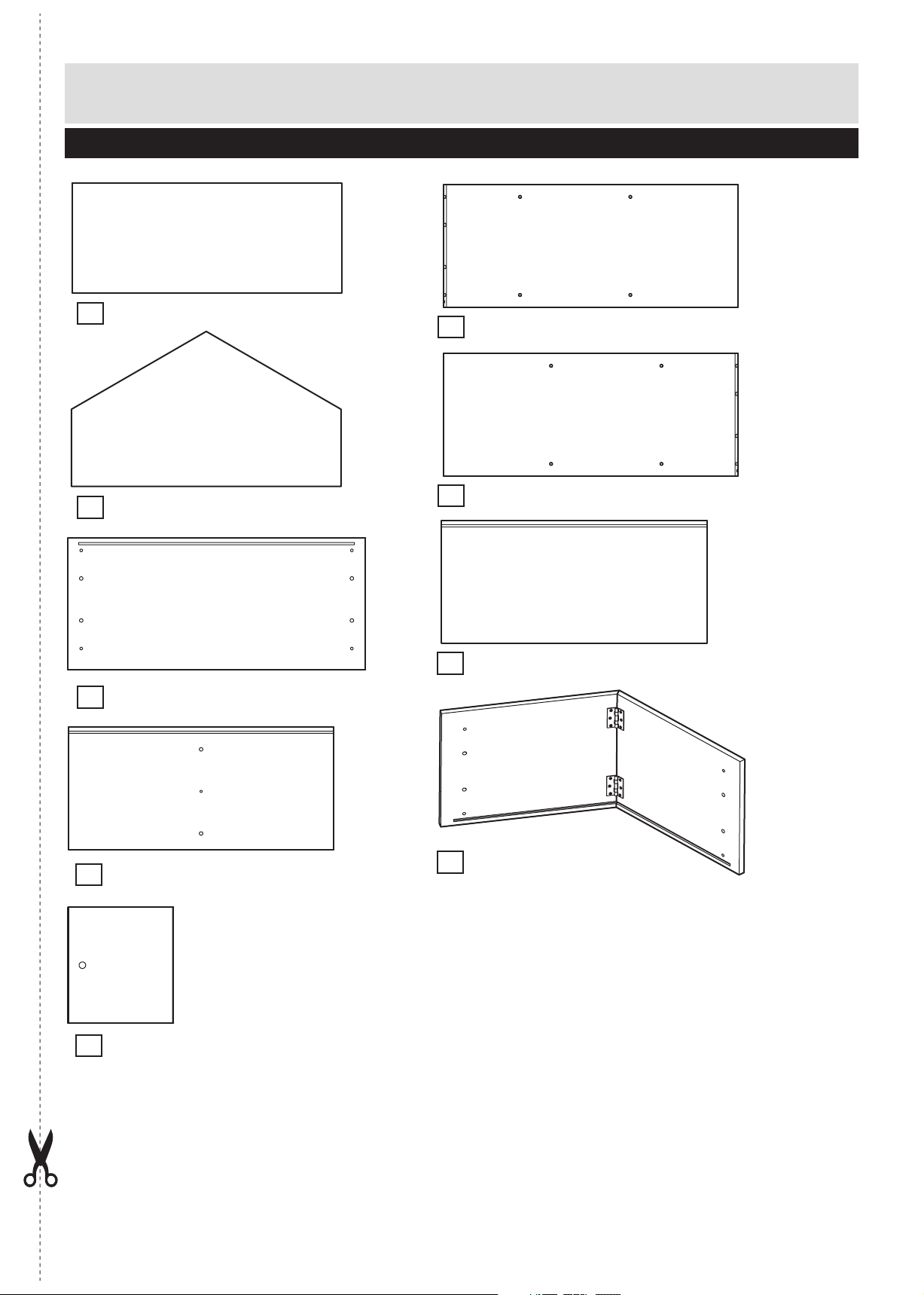

Components - Panels
Please check you have all the panels listed below
Back A x 2 (59.6 x 24.6cm)
1
Back B (59.6 x 35.5cm)
2
Left side (68.3 x 26.8cm)
6
Right side (68.3 x 26.8cm)
7
If you have damaged or missing components,
call the Customer Helpline:08456 400800
Bottom (65 x 29cm)
3
Lower shelf (59 x 26.7cm)
4
Middle (24 x 25.3cm)
5
Upper shelf (59 x 26.7cm)
8
Top (69x 30cm)
9
2
Page 4

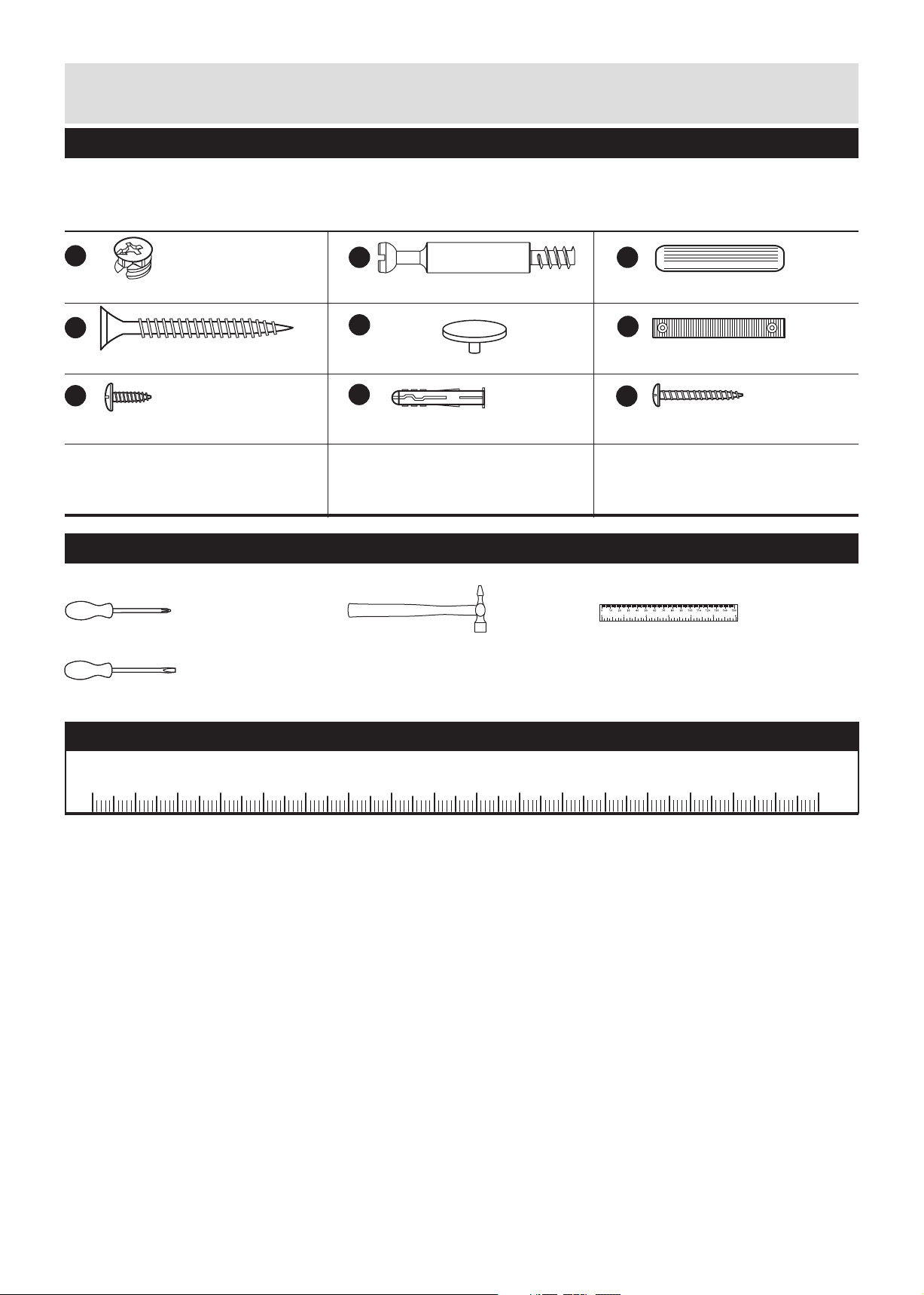

Components - Fittings
Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings
may be supplied than are required.
A
Locking nut 13mm x 5
D
45mm Screw x 13
G
15mm Screw x 1
Tools required
Phillips screwdriver
(medium & large)
Flatblade screwdriver
(medium)
B C
Locking pin x 5
E
Cap x 8
H
Wall plug x 1
Small
hammer
Dowel x 20
F
Wall strap x 1
I
26mm Screw x 1
Ruler/tape
measure
Ruler - Use this ruler to help correctly identify the screws
105
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100
110 115 120 125 130 135 140 145 150 155 160 165 170
3
Page 5
Assembly Instructions

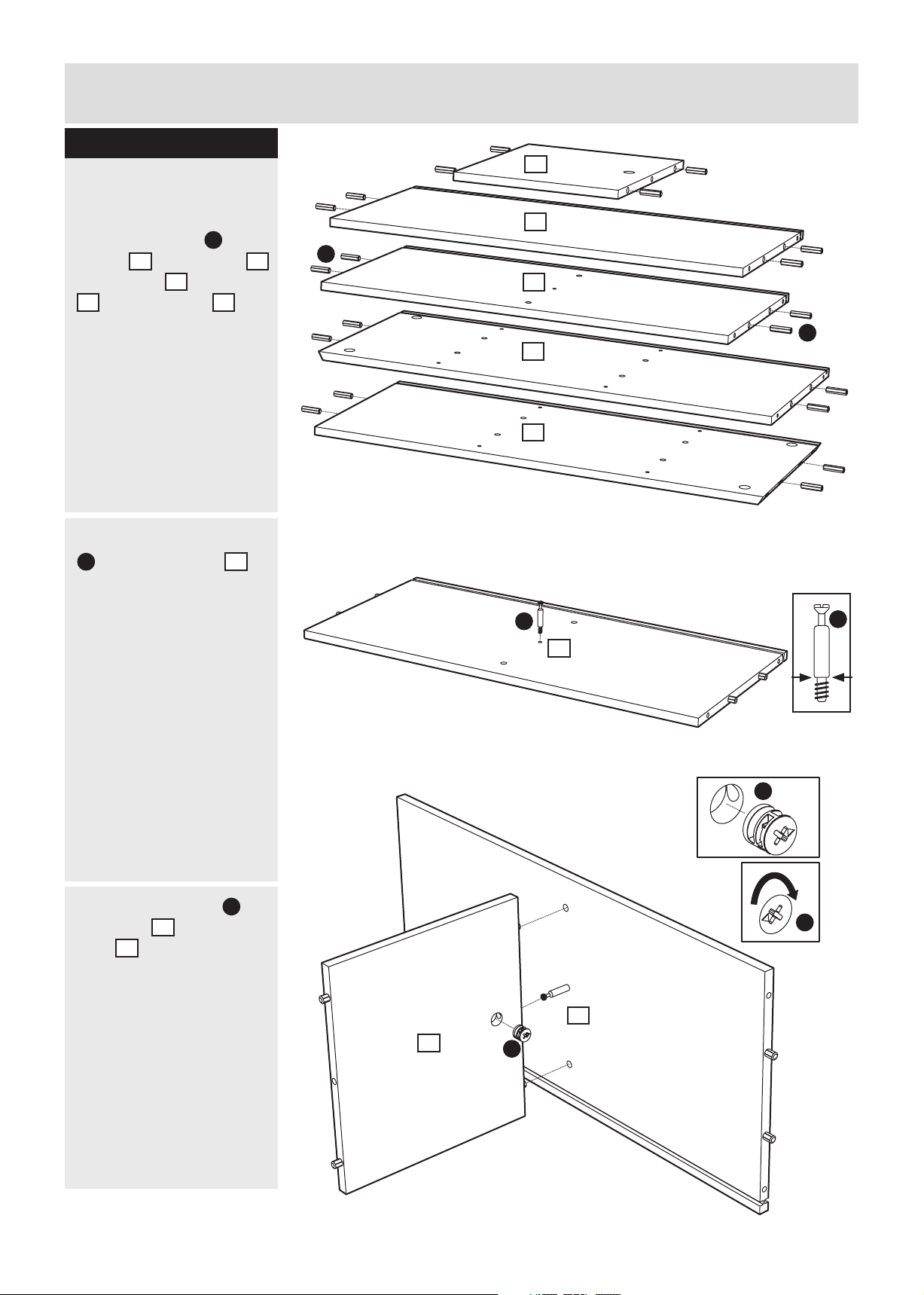

Step 1
Step 1
a:
Fitting the dowels
a: Insert Dowels into
Middle ,Upper shelf
Lower shelf , Left side
6 and Right side .
6 7
5
C
8
4
C
5
8
4
C
6
7
b: Screw in Locking pins
c into Upper shelf .
B 8
c: Use Locking nut to
fix Middle onto Upper
shelf .
5
8
A
c:
b:
B
8
A
B
A
8
5
A
4
Page 6
Assembly Instructions
Step 2

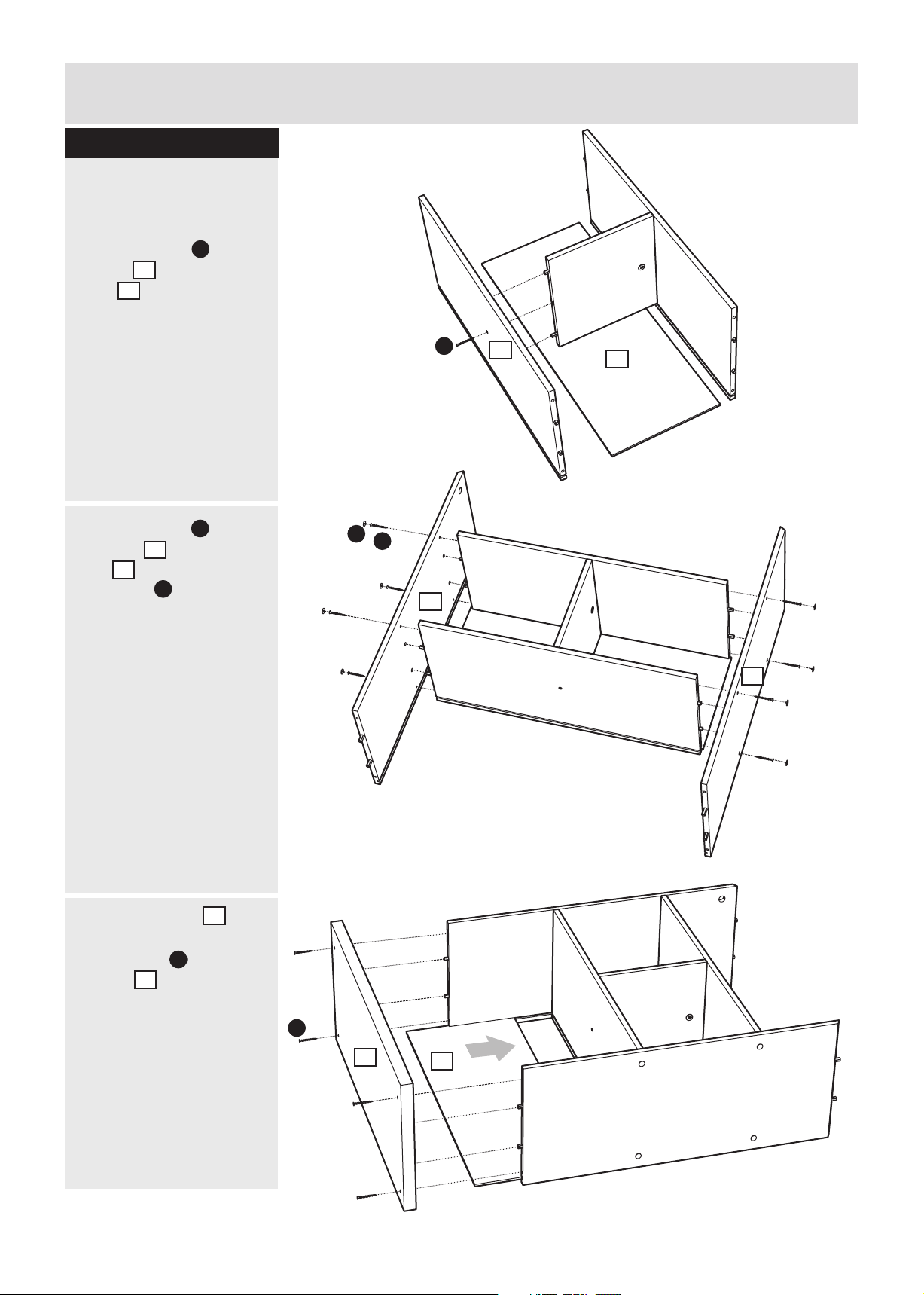

Fitting shelves
a: Use Screws to fix
Back A and Lower
shelf onto the unit.
1
4
b: Use Screws to fix
Left side and Right
side onto the unit.
7
Use Caps to cover the
holes on the unit.
D
D
6
E
b:
E
a:
D
D
6
4
1
c: Insert Back A into
the unit.
Use Screws to fix
Bottom onto the unit.
3
1
D
7
c:
D
3
1
5
Page 7
Assembly Instructions
Step 3

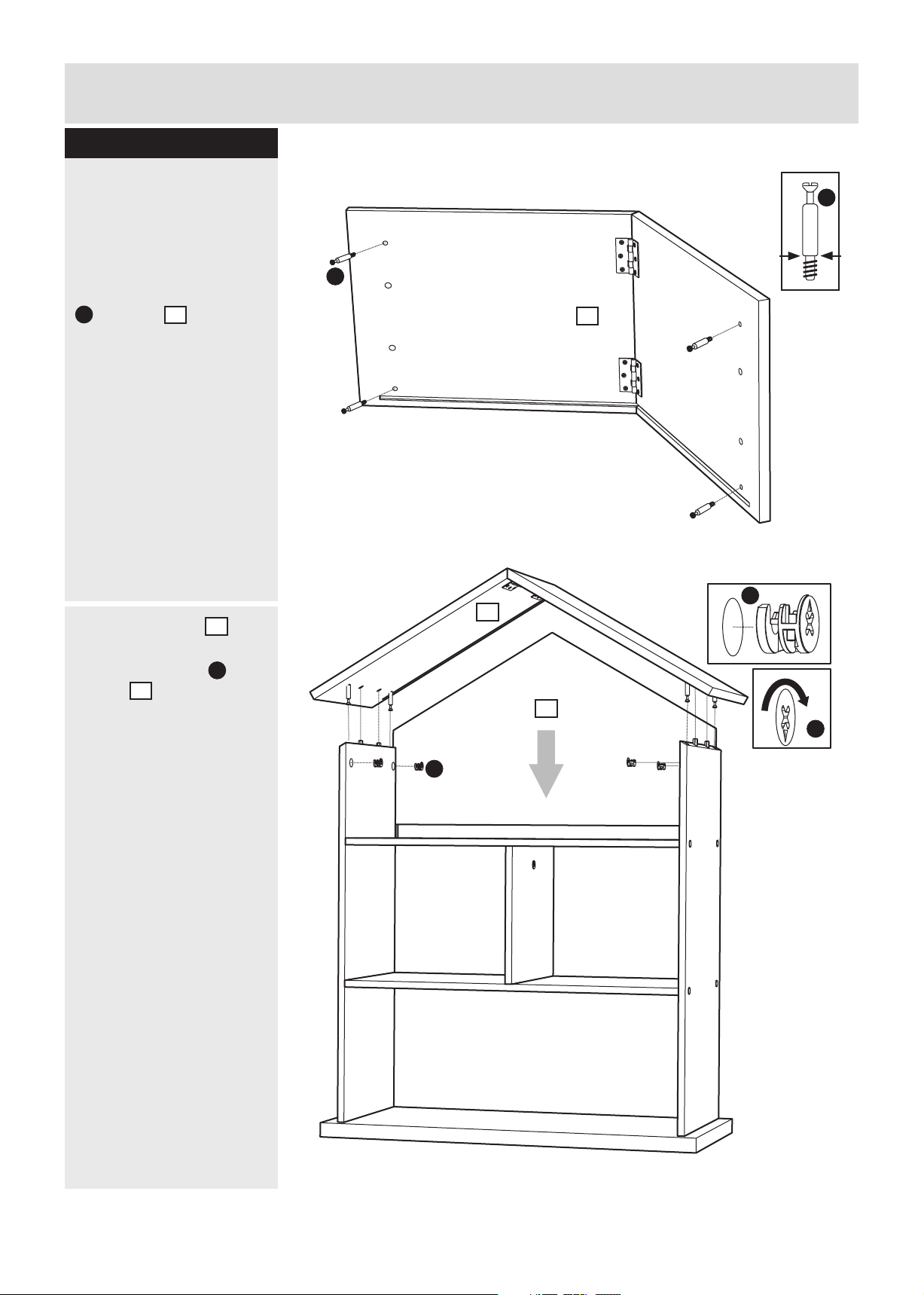

Fitting the top
a: Screw in Locking pins
c into Top .B 9
b: Insert Back B into
the unit.
Use Locking nuts to
fix Top onto the unit.
9
2
A
B
a:
B
9
A
9
b:
2
A
A
6
Page 8
Assembly Instructions
Step 4

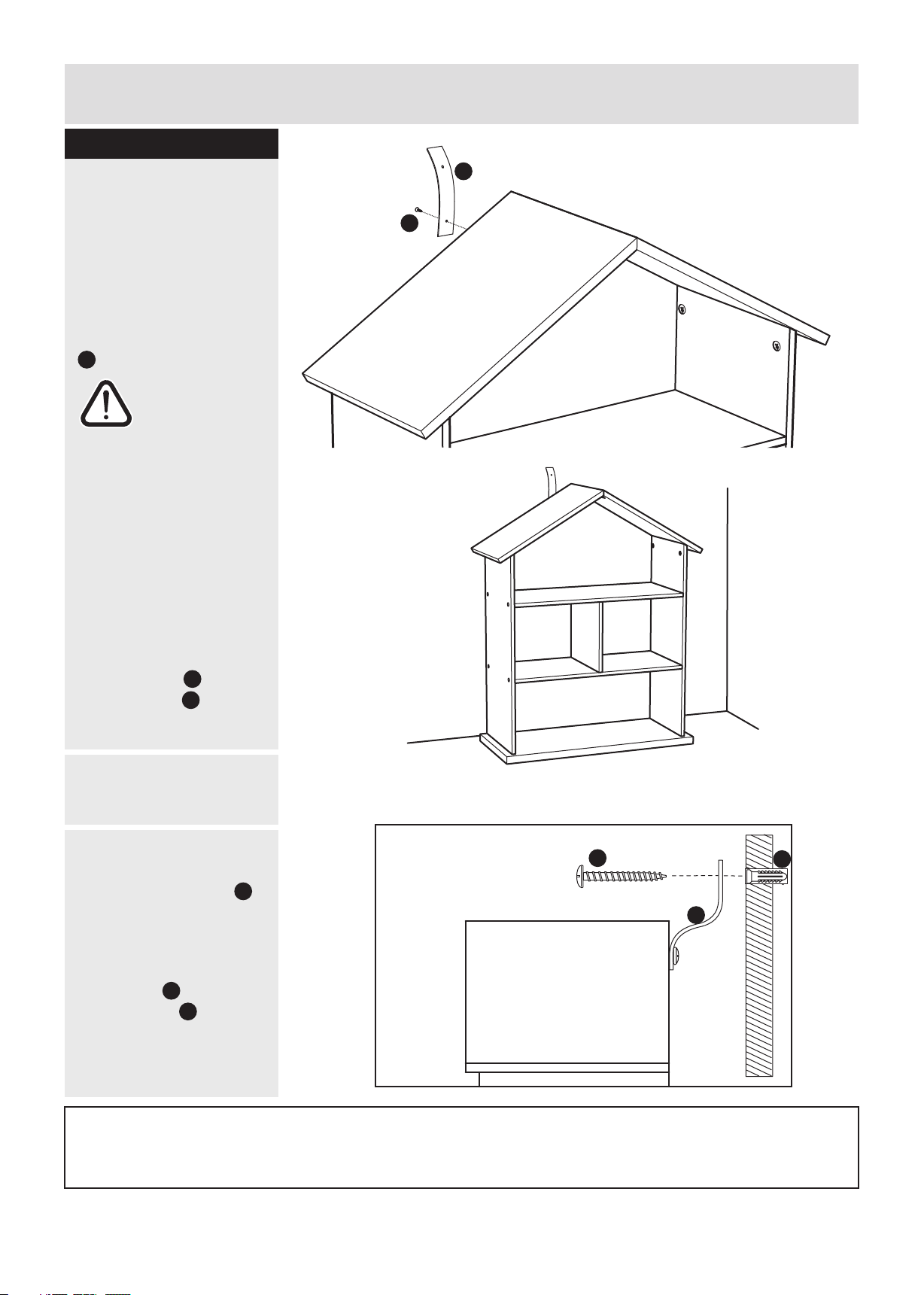

Fixing to wall
a:
F
Note: It would be useful to
ask someone to help you
at this stage.
It is strongly recommended
that the unit is attached to
the wall using Wall straps
F
C .
Important: When drilling
into walls always check
that there are no hidden
wires or pipes etc. Make
sure that the screws and
wall plugs supplied are
suitable for supporting
the unit. Consult a
qualified tradesperson if
you are not sure.
G
b:
a: Use Screw to fix
the Wall strap onto the
back of the unit .
G
F
b: With help, place the
unit in the intend position.
c: Drill a hole in the wall
at an appropriate position
and insert Wall plugs
(Masonry walls only).
To secure the unit, fix
Wall straps to the wall
using Screws
(Masonry walls only).
Assembly is complete.
F
I
H
c:
I
F
H
If you need help or have damaged or missing parts, call the
7
Customer Helpline : 08456 400800
Page 9

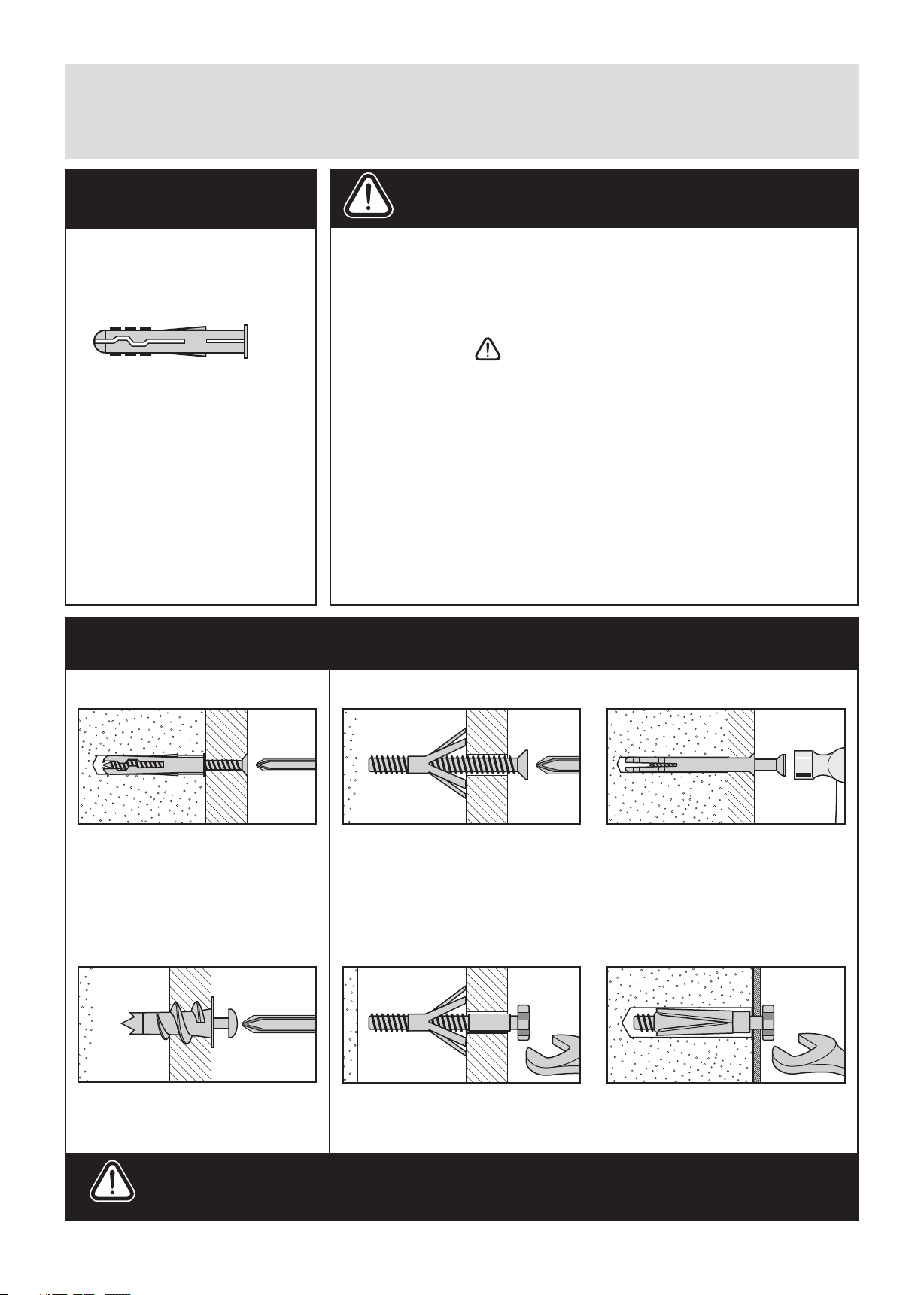

A Guide to - Wall Mounting & Fixings
Important note:
If plastic wall plugs
are supplied with your
product:
- these are only suitable for
use in masonry walls.
If you are in any doubt about
the correct wall plugs for
your wall, seek professional
advice.
Failure of the product due to
using incorrect fxings is the
responsibility of the installer.
Important: When drilling into walls always
check that there are no hidden wires or pipes etc.
Make sure that the screws and wall plugs being used
are suitable for supporting your unit. Consult a qualifed
tradesperson if you are unsure.
Hints:
1: General rule: Always use a larger screw and wall plug
if you are not sure.
2: Ensure you use the recommended drill bit to match the wall
plug and hole size.
3: Ensure you drill the hole horizontally, do not force the drill or
enlarge the hole.
4: Take extra car e when drilling high walls, ceilings and ceramic
tiles. Ensure wall plugs are inserted beyond the thickness of
the ceramic tiles to avoid the tiles splitting or cracking.
5: Ensure wall plugs are well ftted and are a tight ft in the
drilled hole.
Types of walls
No.1 “General Purpose” wall plug
Generally aerated blocks should not
be used to support heavy loads, use
a specialist ftting in this case. For light
loads, general purpose wall plugs can
be used.
No.2 “Plasterboard” wall plug
You can use one of the following types of wall plug if your walls are made
of brick, breeze block, concrete, stone or wood.
No.3 “Cavity Fixing” wall plug
For use with plasterboard partitions or
hollow wooden doors.
No.4 “Cavity Fixing-Heavy Duty”
wall plug
No.5 “Hammer Fixing” wall plug
For use with walls stuck with
plasterboard. The hammer fxing allows
it to be fxed to the wall rather than the
plasterboard. Always check the fxing
is secure to the retaining wall.
No.6 “Shield Anchor” wall plug
Heavy loads
For use when attaching light loads on
to plasterboard partitions.
Care &
Maintenance
For use when ftting or supporting
heavy loads such as shelving, wall
cabinets and coat racks.
Safety: Always check the ftting
and location to ensure your safety
in and around the home.
For use with heavier loads such as TV
& HiFi speakers and satelite dishes etc.
Fitting: From time to time check
the ftting to ensure the wall plugs
or screws do not become loose.
