Page 1

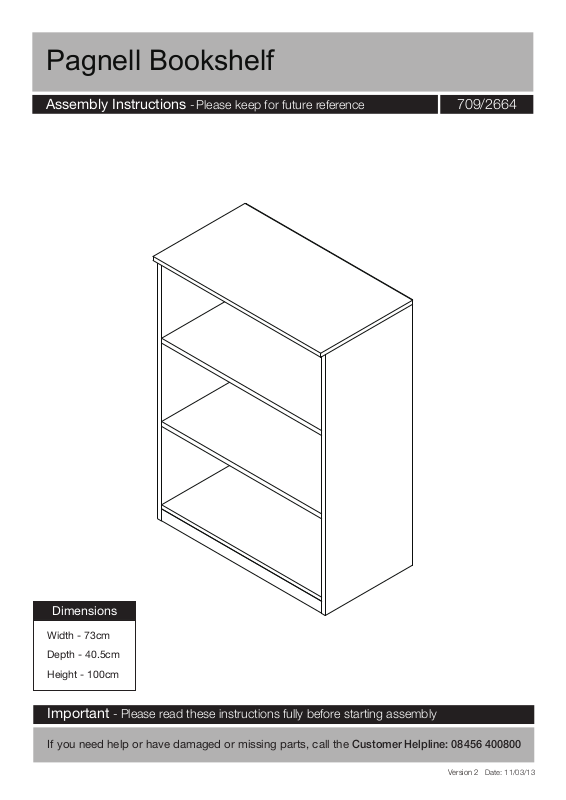

Pagnell Bookshelf
Assembly Instructions
-
Please keep for future reference
709/2664
Dimensions
Width - 73cm
Depth - 40.5cm
Height - 100cm
Important - Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the
Customer Helpline: 08456 400800
Version 2
Date: 11/03/13
Page 2
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Check you have all the
components and tools listed on
pages 2 and 3.
rom the
plastic bags and separate them
into their groups.
• Keep children and animals away
from the work area, small parts
could choke if swallowed.
• Make sure you have enough
space to layout the parts before
starting.
• Do not use this item if any
components are missing or
damaged.
Care and maintenance
• Do not stand on the product,
this could cause damage.
• Assemble the item as close to
room) as possible.
• Assemble on a soft level surface
to avoid damaging the unit or your
r.
• Parts of the assembly will be
easier with 2 people.
• Assembly to be carried out by
the competent adult only.
• During assembly children should
be kept away from the product due
to the potential risk of injury.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Dispose of all packaging
carefully and responsibly.
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household waste.
Take to your local authority waste
disposal centre.
IMPORTANT: RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
• Argos Ltd. MK9 2 NW. • Regularly check all fastenings
• This product is suitable for
children in the age 6 or above.
• Maximum load:
50 kgs ( top of bookshelf ).
to ensure that they are properly
tightened.
Note: if required the next
page can be cut out and used
as reference throughout the
assembly. Keep this page with
these instructions for future
reference.
1
Page 3
If you have damaged or missing components,
Components - Panels
call the Customer Helpline: 08456 400800
Please check you have all the panels listed below
Top panel (73 x 40cm)
1
Shelf x 2
5
(69.8 x 37.9cm)
Right side panel
2
(38 x 98.4cm)
Finished
front edge
Left side panel
3
(38 x 98.4cm)
Front panel
6
(69.8 x 4.5cm)
Bottom panel
4
(69.8 x 37.9cm)
Back panel
7
(72.4 x 95.2cm)
2
Page 4
Components - Fittings
Note: The quantities below are the correct amount to complete the assembly. in some cases mor
may be supplied than are required.
A
30mm Dowel x 16
D
39mm Locking pin x 16
G
Wall plug x 1
B
Plastic support x 3
E
15mm Locking nut x 16
H
(This screw is
included in the
bag of wall strap)
Wall strap x 1
C
14mm Screw x 7
F
Nail x 20
x 1
Tools required
Phillips screwdriver
(medium & large)
Flatblade screwdriver
(medium)
Bradawl
(or sharp point)
Ruler - Use this ruler to help correctly identify the screws
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100
3
Small
hammer
0 1 2 3 4 5 6
110 120 130 140 1500 10 20 30 40 50 60 70 80 90 100
Ruler/tape
measure
Eye protection
(when using a
hammer or glue)
105
110 115 120 125 130 135 140 145 150 155 160 165 170
Page 5
Assembly Instructions
Step 1
a:
Fitting dowels
A
Insert Dowels into
a:
the Bottom panel and
Shelves .
Insert Dowels into
b:
5
the Right side panel
and Left side panel .
A
4
A
2
3
b:
4
A
A
5 x 2
A
2
A
A
A
Step 2
Attaching plastic
supports
a:
Plastic supports onto
the Front panel .
C
B
6
a:
A
3
C
B
C
6
B
C
B
C
B
Continued on next page.
4
Page 6
Assembly Instructions
Step 2 -
b:
Front panel onto the
Bottom panel .
continued
C
6
4
Step 3
Fitting locking pins
Screw Locking pins
into the Right side panel
2
and Left side panel
.
3
D
b:
C
C
C
C
6
4
D
D
D
D
D
D
2
D
Note:
Insert Locking pins
as far as shown.
Do not over tighten.
Step 4
Attaching bottom
panel
Position Bottom panel
onto the Left side panel
3
.
Insert Locking nuts
into the Bottom panel .
Use a screwdriver to turn
Locking nuts clockwise
E
to lock.
4
E
4
a:
D
D
D
D
E
4
E
D
back edge
D
3
3
E
5
Page 7
Assembly Instructions
Step 5
Attaching shelves
4
Position Shelves onto
5
the unit.
E
Insert Locking nuts
into the Shelves .
E
4
5
Use a screwdriver to turn
E
Locking nuts clockwise
E
to lock.
Step 6
Attaching right side
panel
Position Right side panel
2
onto the unit.
Insert Locking nuts
into the Shelves and
Bottom panel .
Use a screwdriver to turn
Locking nuts clockwise
E
to lock.
E
5
4
back edge
back edge
5
5
E
2
E
E
4
E
E
3
E
E
5
5
Step 7
Attaching top panel
Screw Locking pins
a:
into the Top panel .
Note:
Insert Locking pins
as far as shown.
Do not over tighten.
Continued on next page.
D
1
a:
E
D
D
D
1
D
D
6
Page 8
Assembly Instructions
Step 7 -
Position Top panel
b:
continued
1
onto the unit.
Insert Locking nuts
E
into the Right side panel
2
and Left side panel
4
.
Use a screwdriver to turn
Locking nuts clockwise
E
to lock.
b:
E
back edge
E
2
E
3
1
E
E
Step 8
Fixing back panel
Attach Back panel
onto the unit using Nails
F
.
Important:
The unit MUST
be ‘square’ when
back is attached.
7
back surface
F
7
7
Page 9
Assembly Instructions
Step
Fixing to wall
9
It is recommended that
wall.
Fix Wall strap to back
H
of top panel using Screw
C
.
With help, move
bookshelf into position.
Warning:
The bookshelf is
heavy.
Lift with care.
and remove bookshelf.
H
Top panel
Note:
Wall plugs supplied are
for solid wall only.
G
H
wall
C
be used for your wall, seek
professional advice if in doubt
H
Back panel
G
H
Drill a hole and insert Wall
plug .
G
Warning:
Before drilling,
check wall for
hidden pipes and
cables.
Reposition bookshelf
Screw .
H
Assembly is complete.
If you need help or have damaged or missing parts, call the
Customer Helpline: 08456 400800
8
Page 10
A Guide to - Wall Mounting & Fixings
Important note:
If plastic wall plugs
are supplied with your
product:
- these are only suitable for
use in masonry walls.
If you are in any doubt about
the correct wall plugs for
your wall, seek professional
advice.
Failure of the product due to
using incorrect xings is the
responsibility of the installer.
Important: When drilling into walls always
check that there are no hidden wires or pipes etc.
Make sure that the screws and wall plugs being used
are suitable for supporting your unit. Consult a qualified
tradesperson if you are unsure.
Hints:
1: General rule: Always use a larger screw and wall plug
if you are not sure.
2: Ensure you use the recommended drill bit to match the wall
plug and hole size.
3: Ensure you drill the hole horizontally, do not force the drill or
enlarge the hole.
4: Take extra care when drilling high walls, ceilings and ceramic
tiles. Ensure wall plugs are inserted beyond the thickness of
the ceramic tiles to avoid the tiles splitting or cracking.
5: Ensure wall plugs are well tted and are a tight t in the
drilled hole.
Types of walls
No.1 “General Purpose” wall plug
Generally aerated blocks should not
be used to support heavy loads, use
a specialist tting in this case. For light
loads, general purpose wall plugs can
be used.
No.2 “Plasterboard” wall plug
You can use one of the following types of wall plug if your walls are made
of brick, breeze block, concrete, stone or wood.
No.3 “Cavity Fixing” wall plug
For use with plasterboard partitions or
hollow wooden doors.
No.4 “Cavity Fixing-Heavy Duty”
wall plug
No.5 “Hammer Fixing” wall plug
For use with walls stuck with
plasterboard. The hammer xing allows
it to be xed to the wall rather than the
plasterboard. Always check the xing
is secure to the retaining wall.
No.6 “Shield Anchor” wall plug
Heavy loads
For use when attaching light loads on
to plasterboard partitions.
Care &
Maintenance
For use when tting or supporting
heavy loads such as shelving, wall
cabinets and coat racks.
Safety: Always check the fitting
and location to ensure your safety
in and around the home.
For use with heavier loads such as TV
& HiFi speakers and satelite dishes etc.
Fitting: From time to time check
the fitting to ensure the wall plugs
or screws do not become loose.
Revision 2 - 7/10/09
