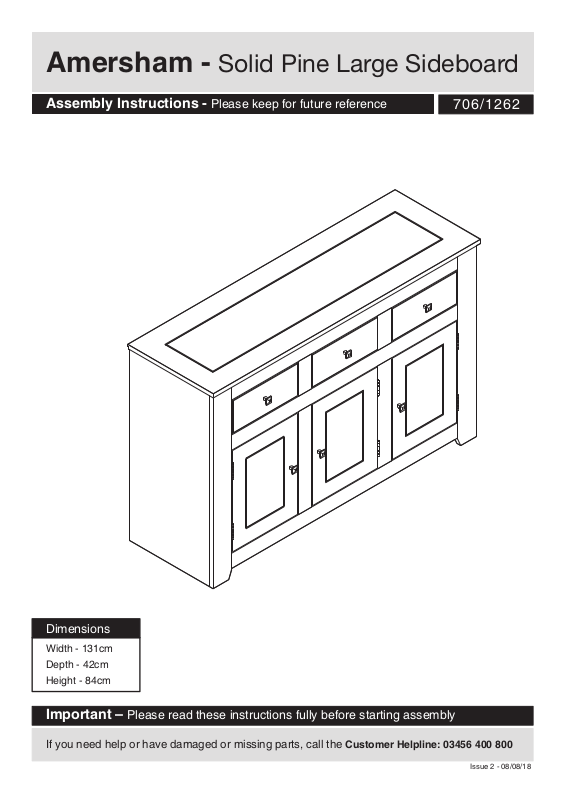

Amersham - Solid Pine Large Sideboard

Assembly Instructions - Please keep for future reference

706/1262

Dimensions

Width - 131cm

Depth - 42cm

Height - 84cm

Important – Please read these instructions fully before starting assembly

If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400 800

Issue 2 - 08/08/18

Page 2

Safety and Care Advice

Important – Please read these instructions fully before starting assembly

Check you have all the components and tools listed on pages 2 and 3.

Remove all fittings from the plastic bags and separate them into their groups.

Keep children and animals away from the work area, small parts could choke if swallowed.

Make sure you have enough space to layout the parts before starting.

Do not stand or put weight on the product, this could cause damage.

Assemble the item as close to its final position (in the same room) as possible.

Assemble on a soft level surface to avoid damaging the unit or your floor.

This product has been produced from natural timber; you may notice some variation in the grain and colour of different component parts which is normal for furniture produced using natural wood and is not the result of any manufacturing fault.

The product has been treated with a wax and oil finish to prevent dirt ingress and preserve moisture.

On unpacking the furniture you may notice an odour due to this treatment; this will disappear once the furniture is unpacked and assembled after a period of time.

This process may leave some staining on the packaging material; please take care to ensure this does not transfer to clothing or carpeted surfaces during assembly.

We do not recommend the use of power drill/drivers for

inserting screws,

as this could damage the unit. Only use hand screwdrivers.

Parts of the assembly will be

easier with 2 people.

Dispose of all packaging

carefully and responsibly.

Care and maintenance

Use an appropriate furniture polish for natural wood furniture and a dry cloth to clean the product.

Avoid placing the furniture in direct sunlight as this will cause the timber to prematurely age.

From time to time check that there are no loose screws on this unit.

This product should not be discarded with household waste. Take to your local authority waste disposal centre.

Note: If required the next page can be cut out and used as reference throughout the assembly. Keep this page with these instructions for future reference.

Page 3

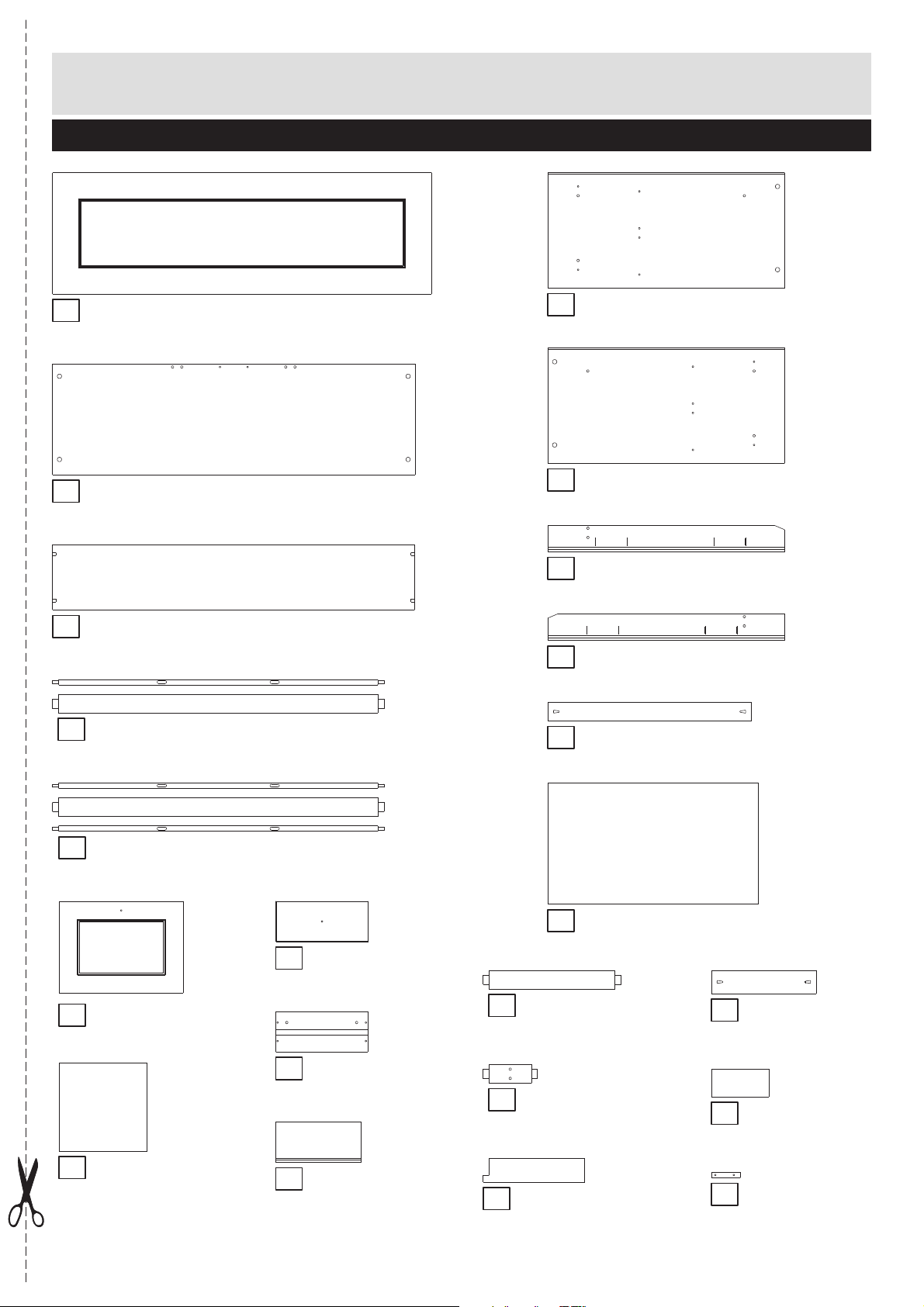

Components - Panels

Please check you have all the panels listed below

Top panel (131 x 42cm)

Right side panel (82 x 40cm)

top

underside

Base panel (125.6 x 38.4cm)

underside

Shelf (125.4 x 22.6cm)

Front frame x 2 (114.8 x 6.5cm)

Middle front frame (114.8 x 6.5cm)

top

Left side panel

(82 x 40cm)

Right front frame

(82 x 9.2cm)

Left front frame

(82 x 9.2cm)

Back column x 2

(70.6 x 6.5cm)

Door x 3

(43 x 31.8cm)

D x 3rawer bottom

(30.5 x 30.5cm)

Drawer front x 3

(32 x 14cm)

Drawer sides x 6

(31.8 x 14cm)

Drawer back x 3

(29.6 x 14cm)

Vertical frame x 2

(47.7 x 6.5cm)

Small vertical

frame x 2

(18.8 x 6.5cm)

Side drawer

runner x 2

(35.2 x 8cm)

Back panel x 3 (73 x 42cm)

Middle drawer

runner x 2

(36.4 x 8cm)

Bottom Support

(20 x 9.6cm)

Block x 4

(10 x 2cm)

Page 4

If you have damaged or missing components,

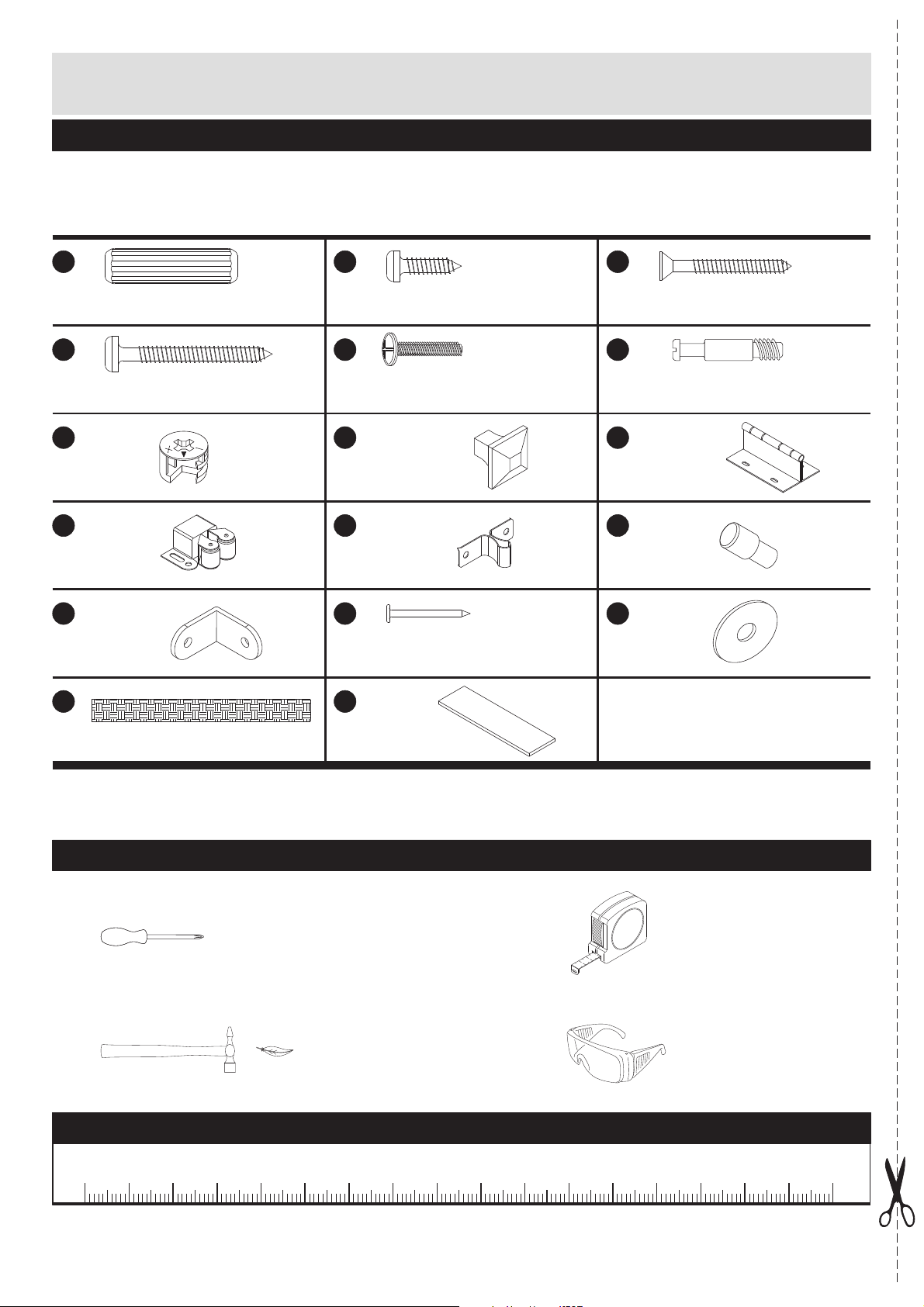

Components - Fittings

call the

Customer Helpline: 03456 400 800

Please check you have all the fittings listed below

Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.

Wooden dowel x 42

35mm Screw x 28

Locking nut x 8

14mm Screw x 40

22mm Bolt x 6

Door / Drw handle x 6

Clip x 3 Plug x 3

M N O

Metal bracket x 1

Nail x 48

Door

Wall strap x 2

spacer x 1

30mm Screw x 24

Metal dowel x 8

Door hinge x 6

Shelf support x 4

Washer x 4

Tools required

Phillips screwdriver (medium & large)

Small hammer

Ruler - Use this ruler to help correctly identify the screws

10 15 20 25 30 35 40

60 65 70

80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 160 165 170

Ruler/tape measure

Eye protection (when using a hammer or glue)

Page 5

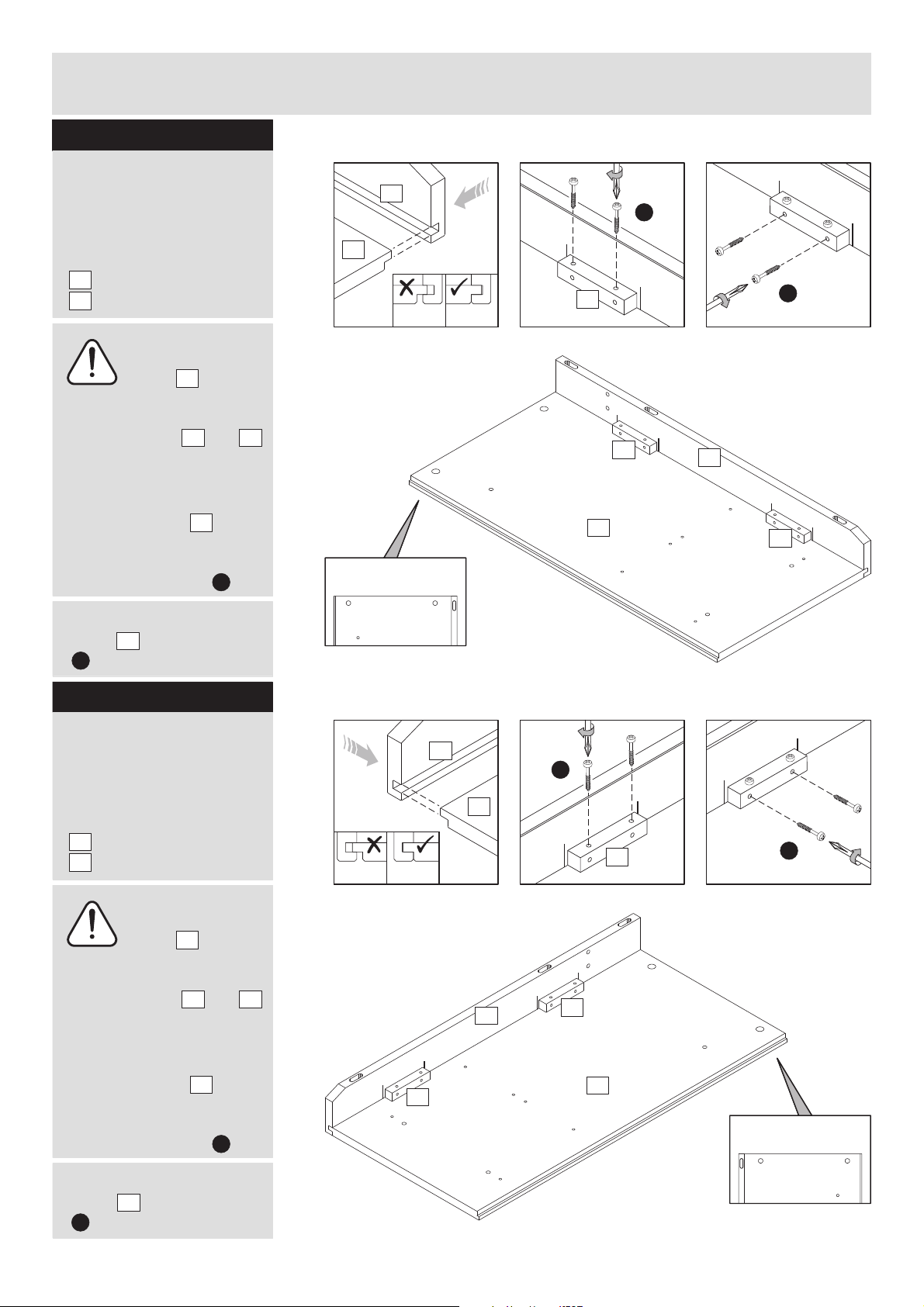

Assembly Instructions

Step 1

Fixing right front frame to the right side panel

(Two people required for an easier assembly).

a: Insert right side panel

into right front frame

through joints.

Note:

Before fixing

blocks into place it is important to ensure that the slot and groove of parts and are fully pushed together and lined up correctly at the top and bottom.

b: Place blocks

between the two marks as shown. First fix to the side panel using screws .

c: Fix front frame through

blocks using screws

6 8

a: b: c:

Yes!No!

Attention: correct position of panel.

Top

Step 2

Fixing left front frame to the left side panel

(Two people required for an easier assembly).

a: Insert left side panel

into left front frame

through joints.

Note:

Before fixing

blocks into place it is important to ensure that the slot and groove of parts and are fully pushed together and lined up correctly at the top and bottom.

b: Place blocks

between the two marks as shown. First fix to the side panel using screws .

c: Fix front frame through

blocks using screws

a: b: c:

Yes!No!

Attention: correct position of panel.

Top

Page 6

Assembly Instructions

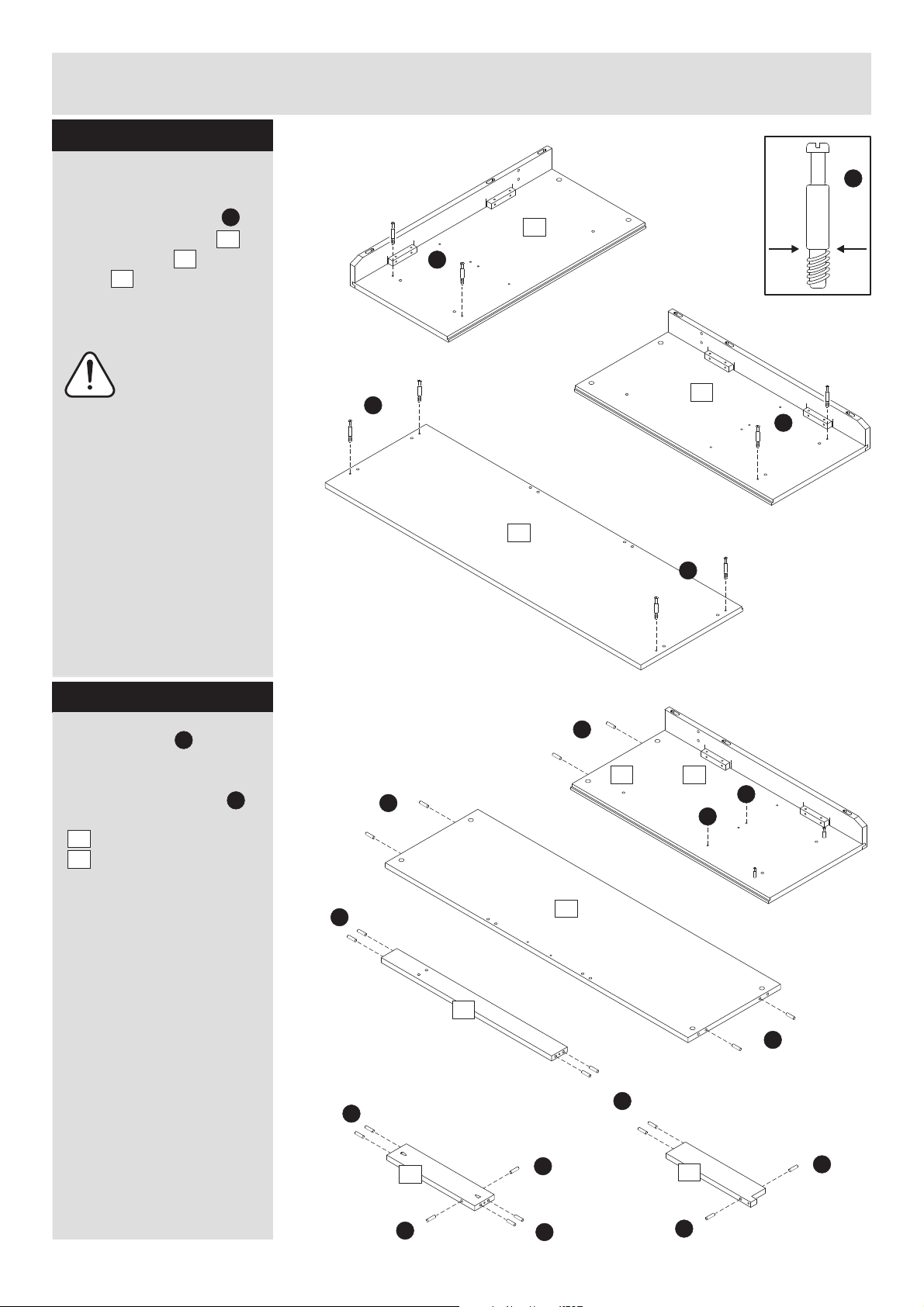

Step 3

Fitting Metal dowels.

Screw metal dowels into right side panel , left side panel and top panel .

Insert metalNote: dowels as far as shown.

Do not over tighten.

Step 4

Insert dowels into the indicated parts.

Insert shelf supports into the right side panel

and left side panel

and

Page 7

Assembly Instructions

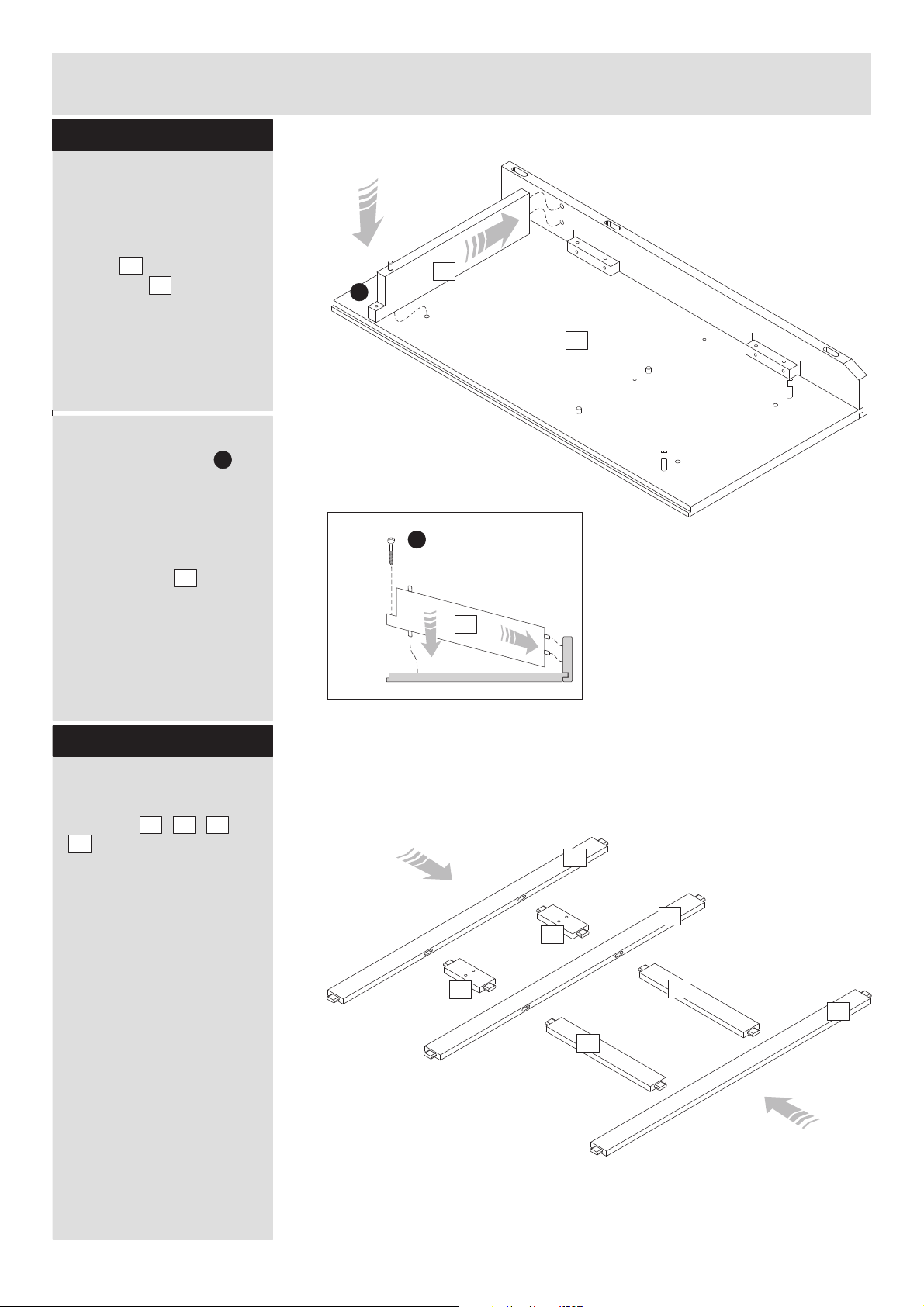

Step 5

Fixing side drawer runners.

a: Fit side drawer

runner to the right side panel . Fit and push dowels into the front frame first.

b: Attach side drawer

runner using screw .

Repeat step 5 for the left side panel and side drawer runner.

Step 6

Assembling parts.

Put parts , , and

together as shown in

the diagram.

Page 8

Assembly Instructions

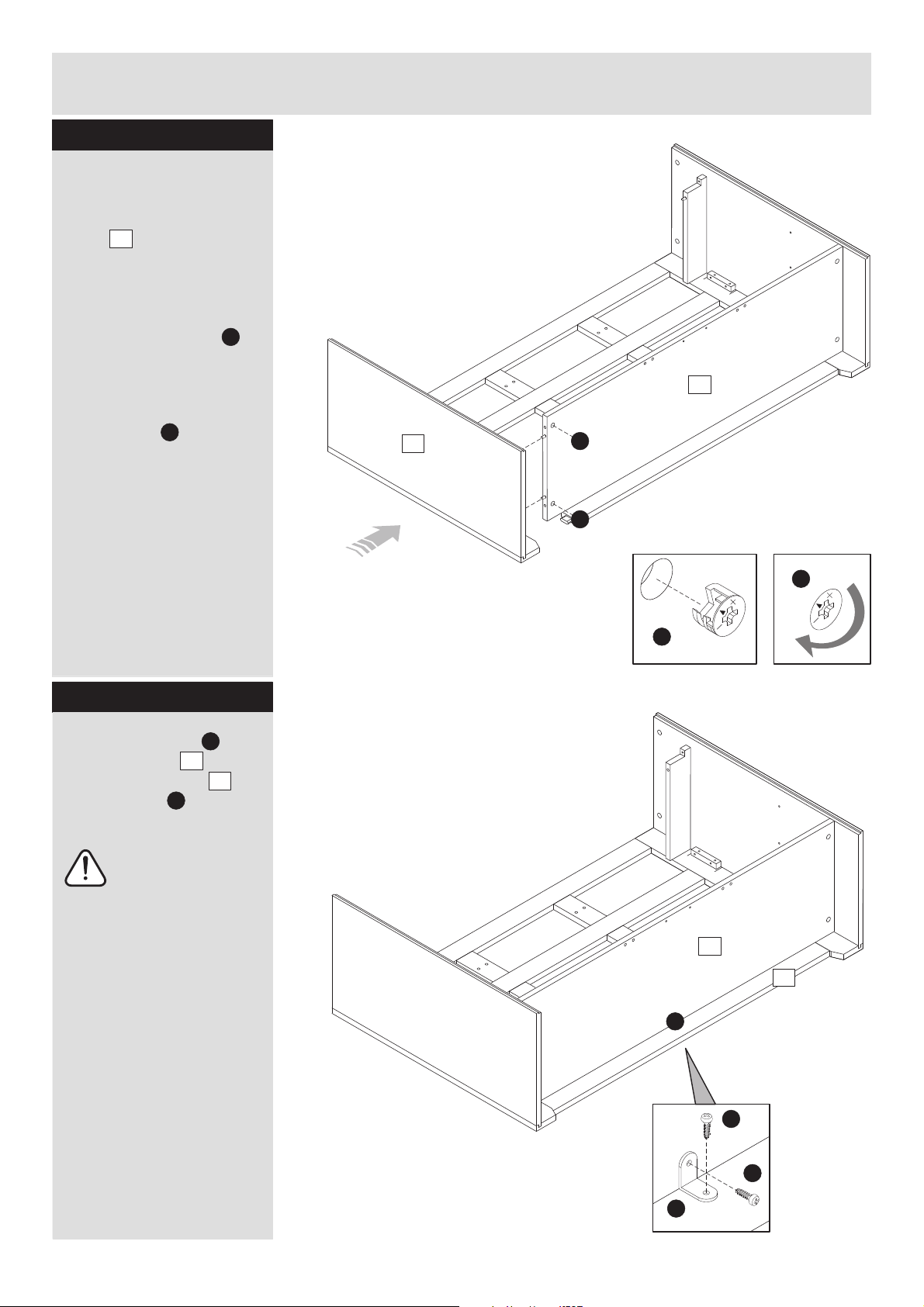

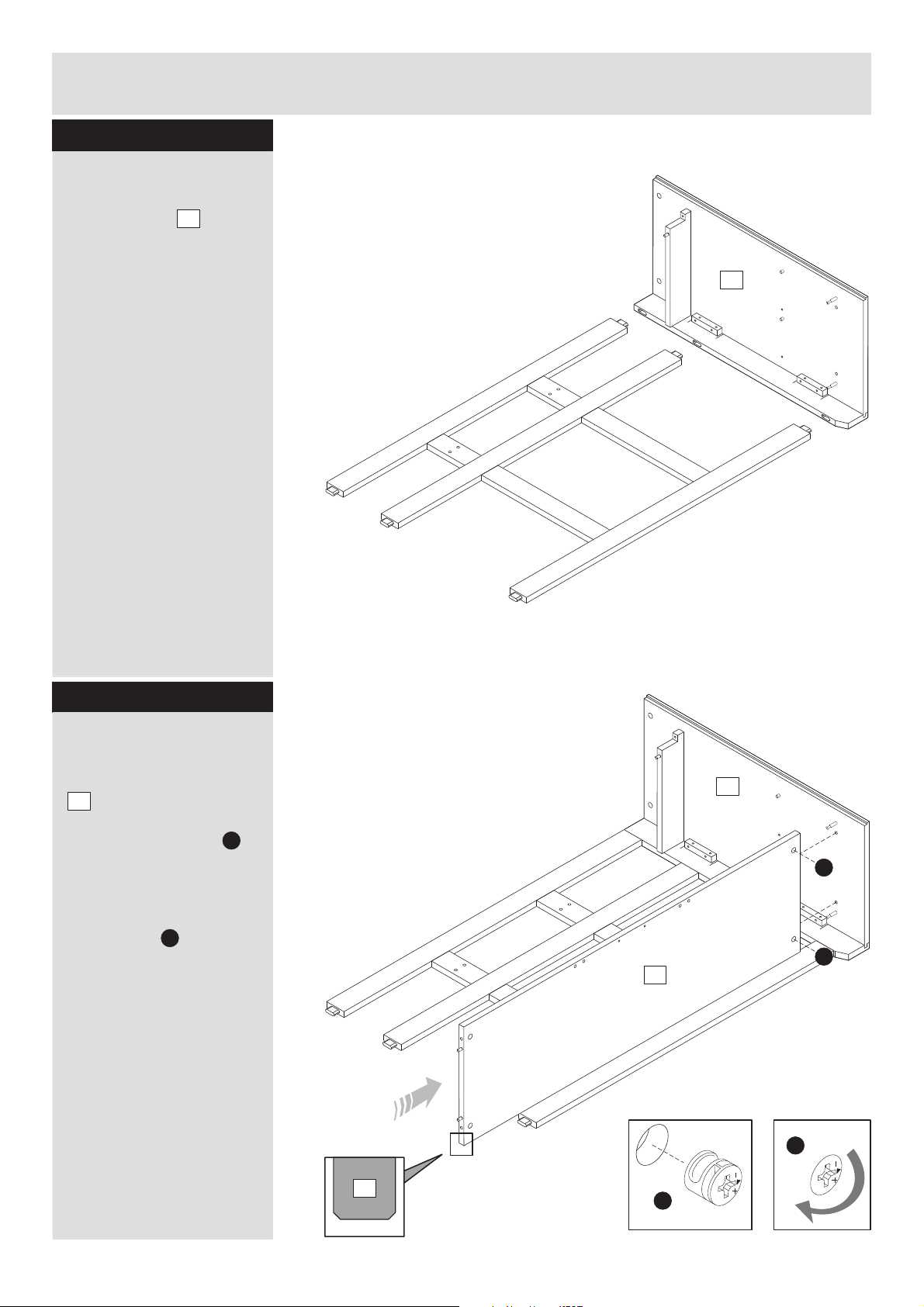

Step 7

Insert the assembled frame into the holes on left side panel .

Step 8

Fixing base panel.

With help, fit base panel

to the left side panel.

Insert 2 locking nuts into base panel where shown.

Use a screwdriver to turn locking nuts clockwise

to lock.

Do not over tighten.

Page 9

Assembly Instructions

Step 9

Fixing right side panel.

With help, place right side panel properly

ensuring dowels and front frames are all fit into their holes at the same time.

Insert 2 locking nuts

into base panel where shown.

Use a screwdriver to turn locking nuts clockwise

to lock.

Do not over tighten.

Step 10

Fix metal bracket in the base panel and bottom front frame using screws as shown.

Important:

With help, carefully

stand the product upright.

Page 10

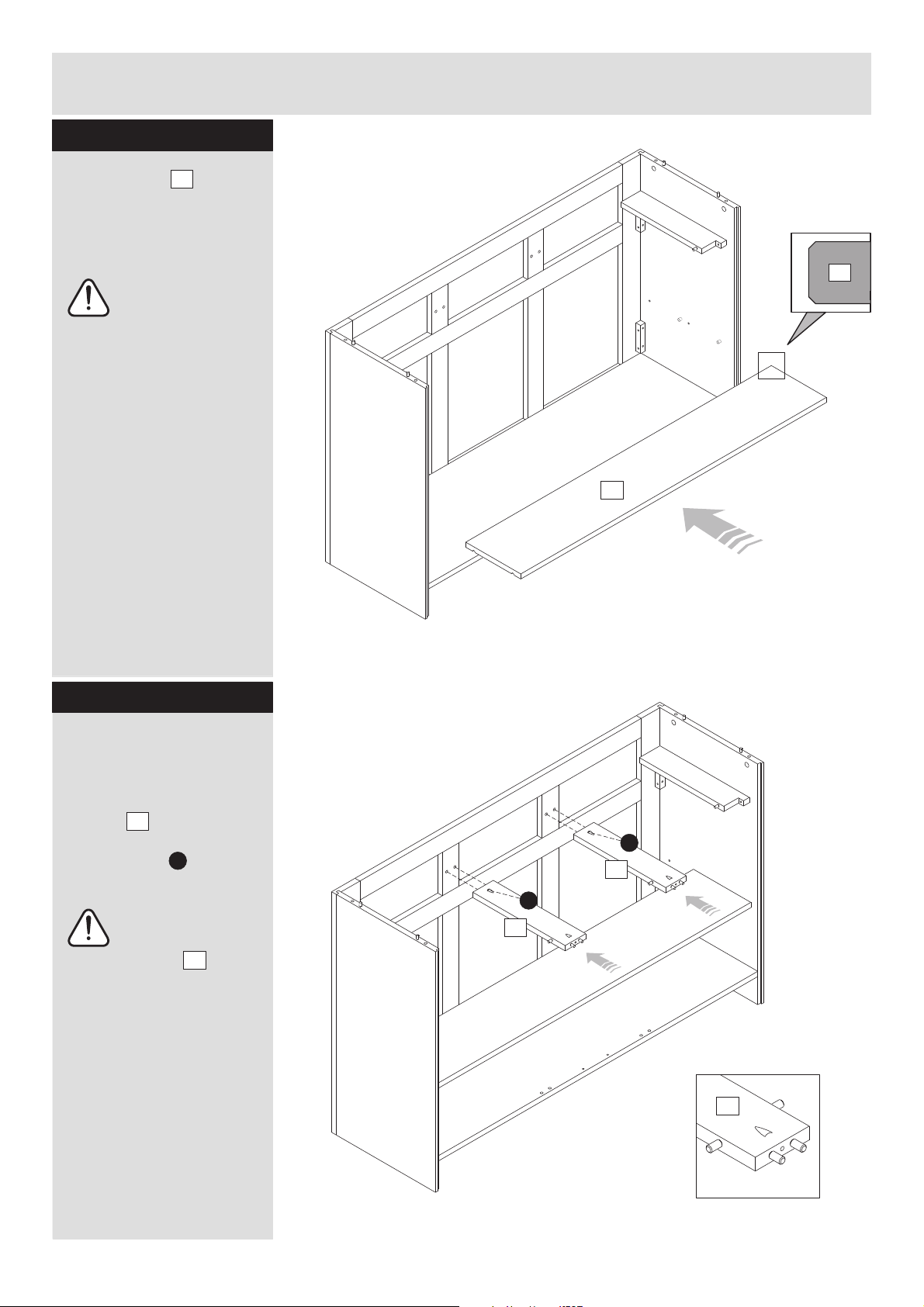

Assembly Instructions

Step 11

Position shelf into

place. Make sure round edge is facing front.

Note:

This shelf is

adjustable it can be placed near the back panel and leave a gap in the front or it can be placed near the doors, leaving a gap in the back.

Step 12

Fixing middle drawer runners.

Fit middle drawer runners at the small vertical frames then fix using screws .

drawer runners are positioned as shown in the diagram prior to fixing.

Attention:

Make sure middle

Attention:

View from behind

Page 11

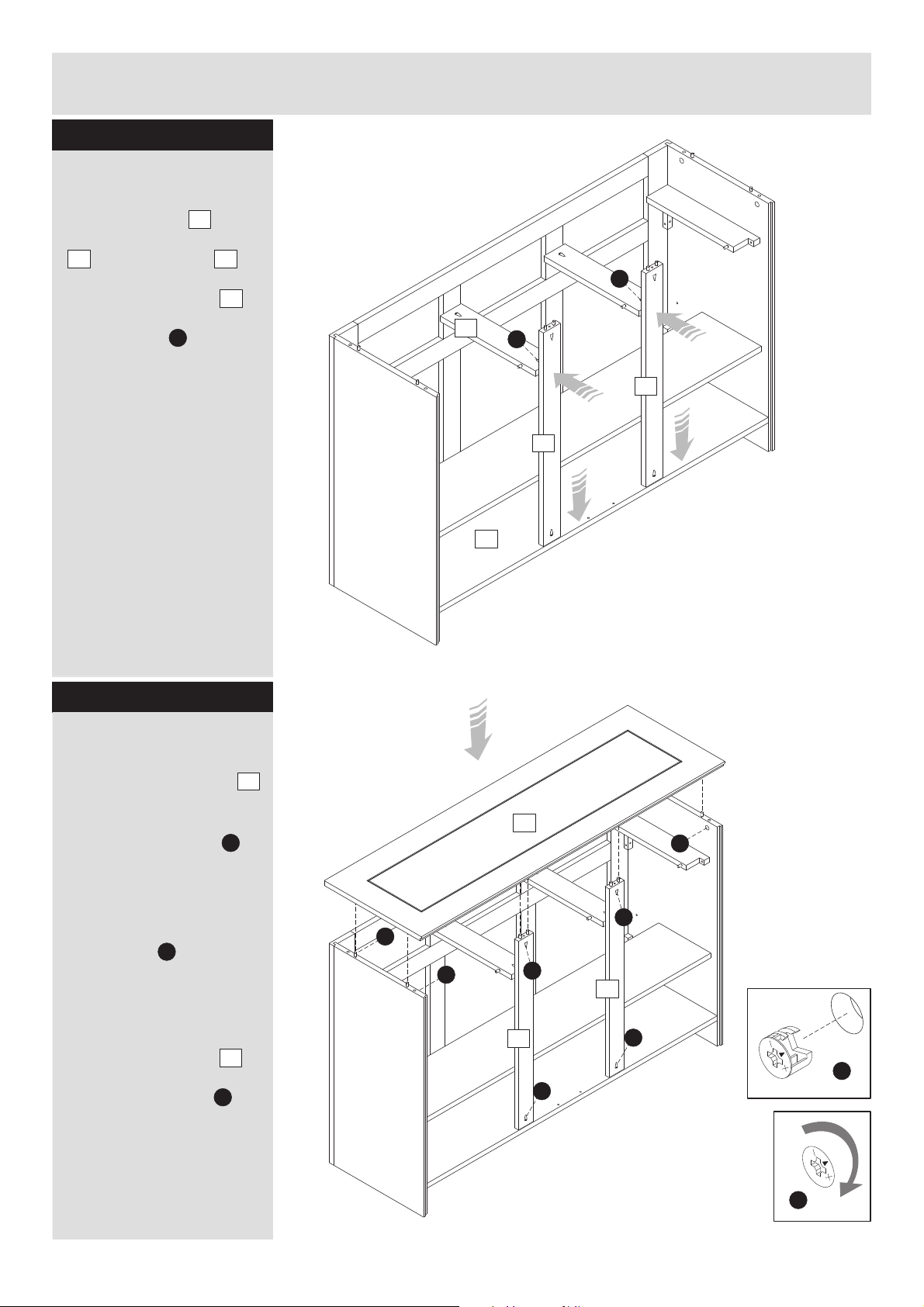

Assembly Instructions

Step 13

Fixing back column.

Fit back column to

middle drawer runners

and base panel .

Attach back column

to middle drawer runners using screws .

Step 14

Fixing top panel.

With help, f

to the cabinet.

Insert locking nuts4

side p sinto anel where

shown.

Use a screwdriver to turn locking nuts clockwise

to lock.

Do not over tighten.

Attach back column to top panel and base panel using screws .

it top panel

Page 12

Assembly Instructions

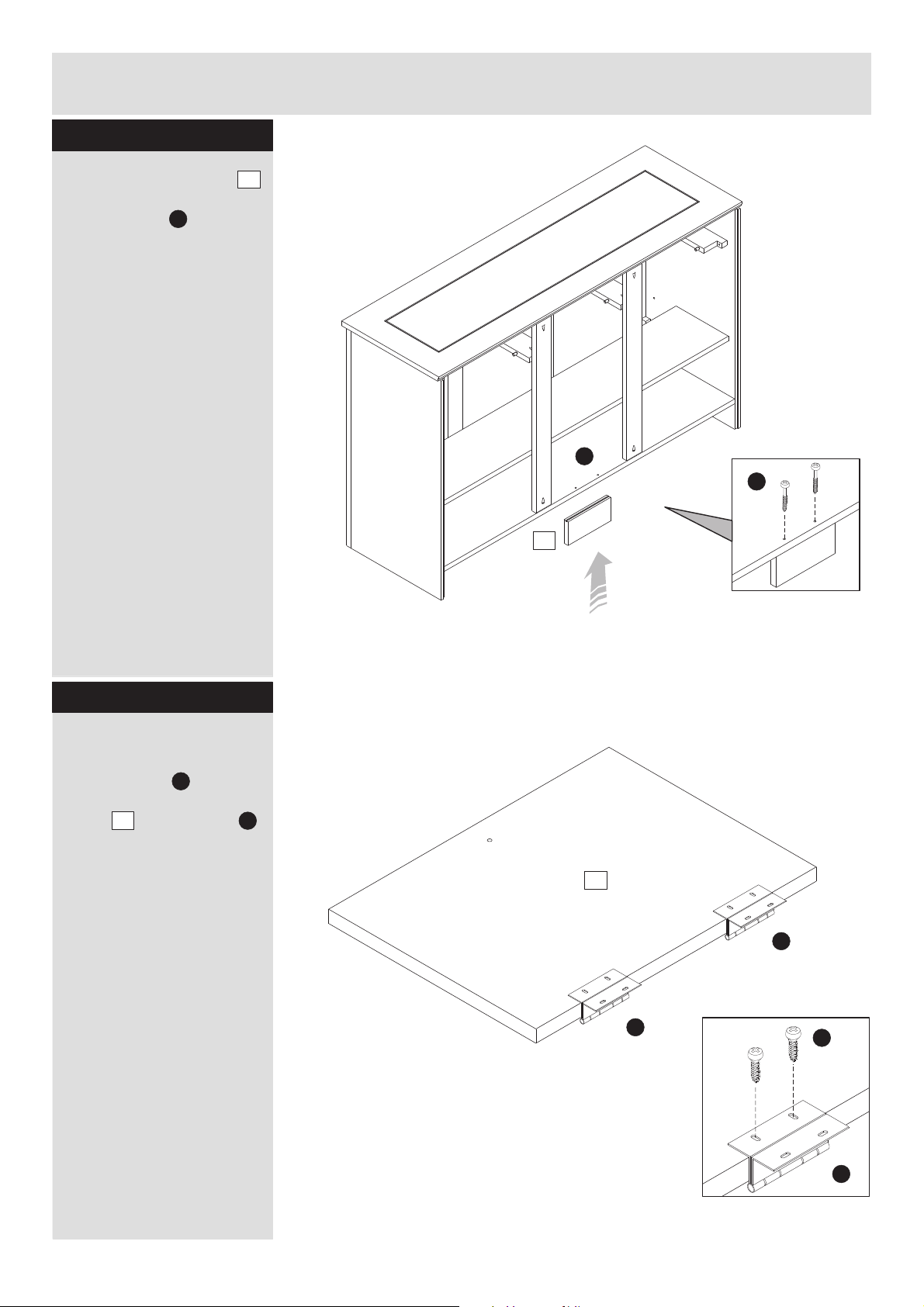

Step 15

Attach bottom support to the base panel using screws .

Step 16

Fitting hinges to doors.

Attach hinges in the pre marked holes on doors using screws as shown.

Page 13

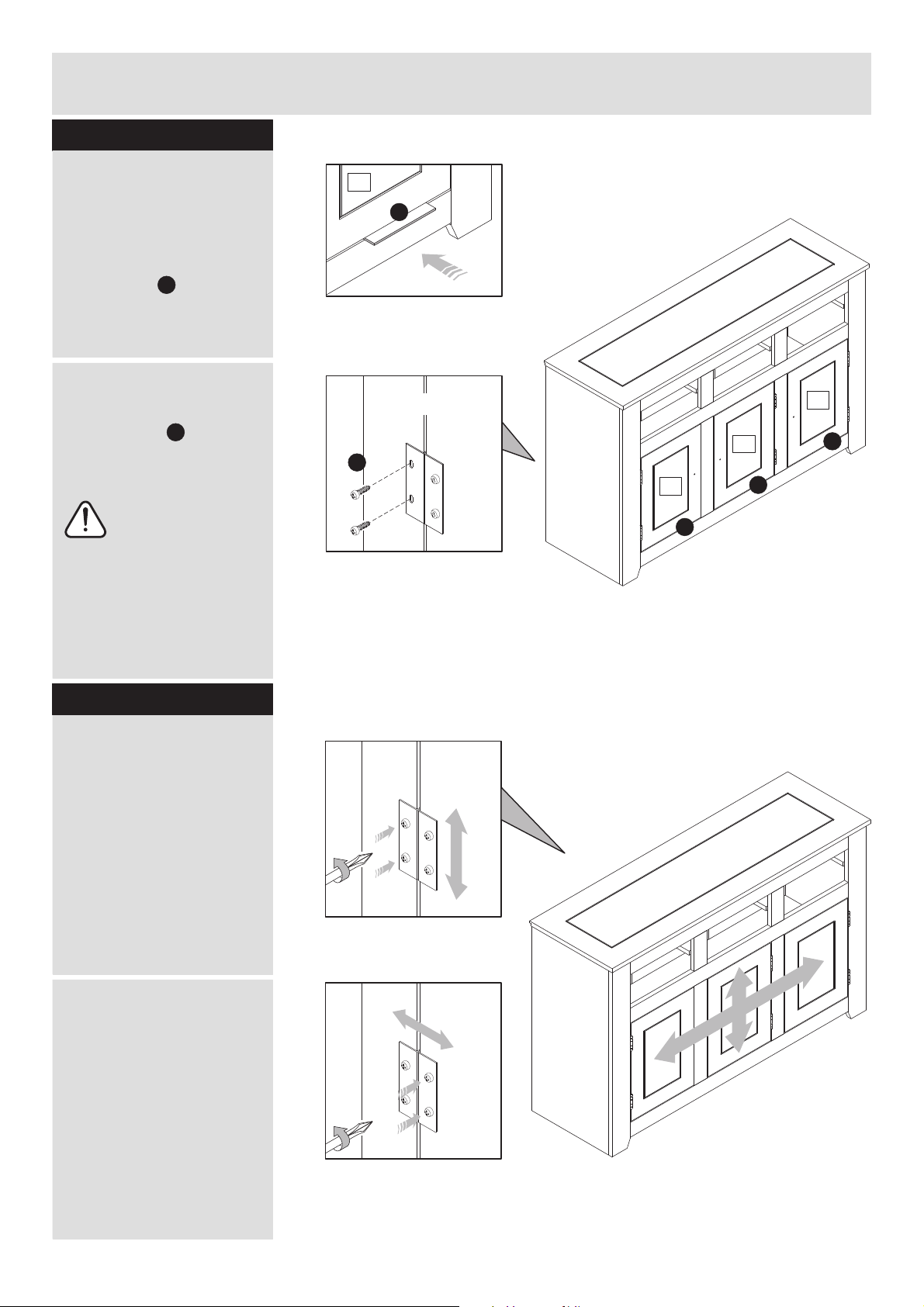

Assembly Instructions

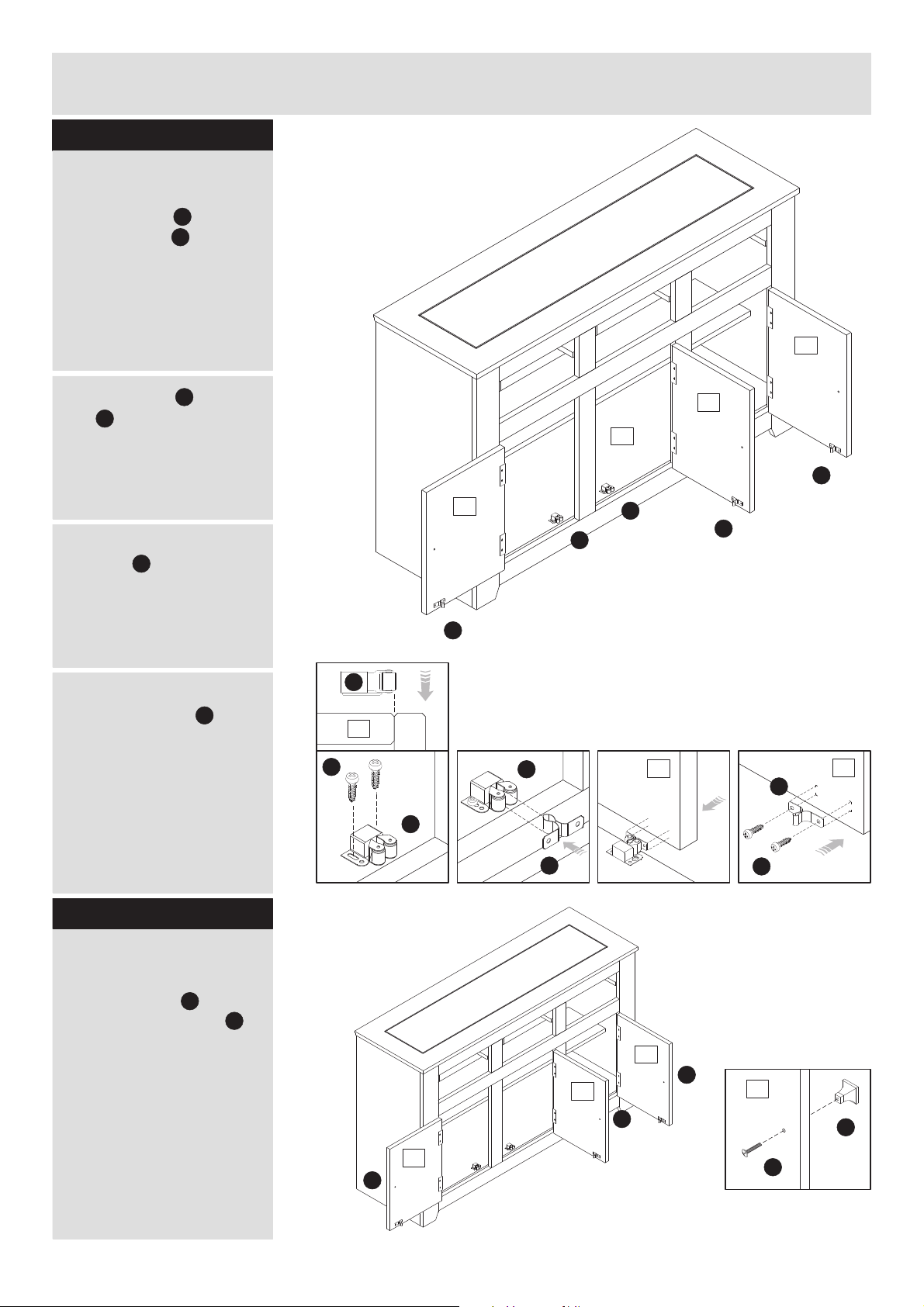

Step 17

Hanging doors.

With help, centralise

the doors in the opening of the cabinet using the door spacer to ensure correct spacing, as shown.

b: From inside the

cabinet fix the hinges using screws as shown.

alignment of the doors is correct, centralise the doors in the opening before attaching to the cabinet.

Note:

To ensure the

View from behind

Step 18

Hinge adjustment.

a: To move doors up or

down: loosen screws shown and move doors to suit.

Once doors are aligned, re-tighten screws.

b: To move doors left or

right: loosen screws shown and move doors to suit.

Re-tighten screws.

View from behinda:

Page 14

Assembly Instructions

Step 19

Fitting door lock.

a: Screw clip in place

using screws .

Ensure that the 2 small wheels are flush with the edge of the base as shown in the diagram.

b: Insert plug into

clip , ensuring they

are leveled as shown in the diagram.

c: Push the door against

the plug . This will make 2 small marks on the door as shown in the diagram.

d: The door can then be

opened and plug can be screwed into place using the 2 marks made as a guide. This will ensure that the 2 parts of the door clips are lined up correctly.

Step 20

Fitting handles to doors.

Attach handles to the doors using bolts

as shown.

b: d:

Page 15

Assembly Instructions

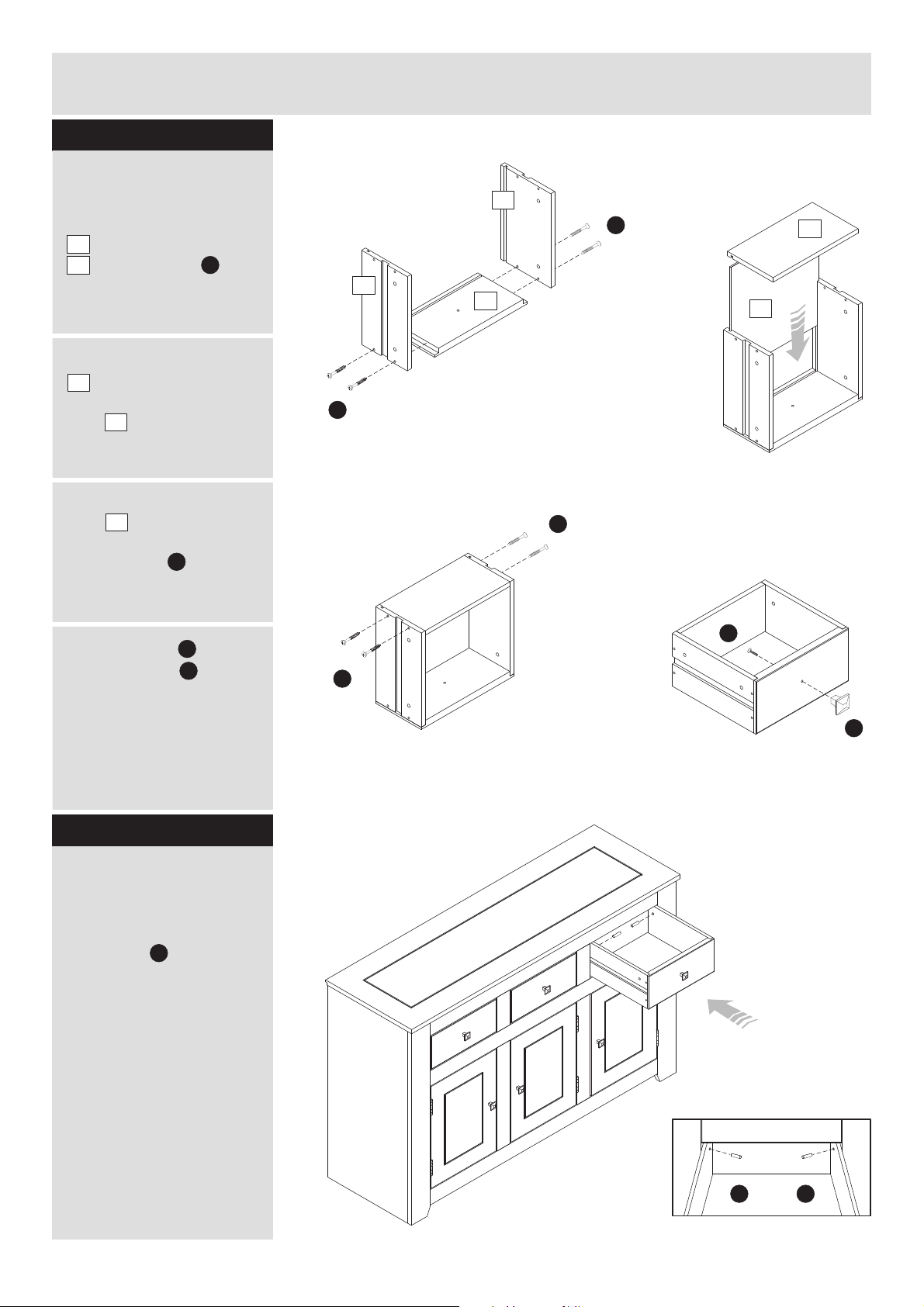

Step 21

Drawer assembly.

a: Attach drawer sides

to the drawer front

using screws .

b: Slide drawer bottom

into slots on drawer

sides and position drawer

back in place.

c: Holding the drawer

back , press the drawer sides and fix them using screws .

c: d:

d: Using bolts attach

drawer handle to drawer front.

Repeat step 21 for the other drawers.

Step 22

Insert drawer into unit. With the back of the drawer past the front frames, use a hammer to tap dowels in flush to drawer sides. This is a safety catch to stop drawer falling out.

A A

Page 16

Assembly Instructions

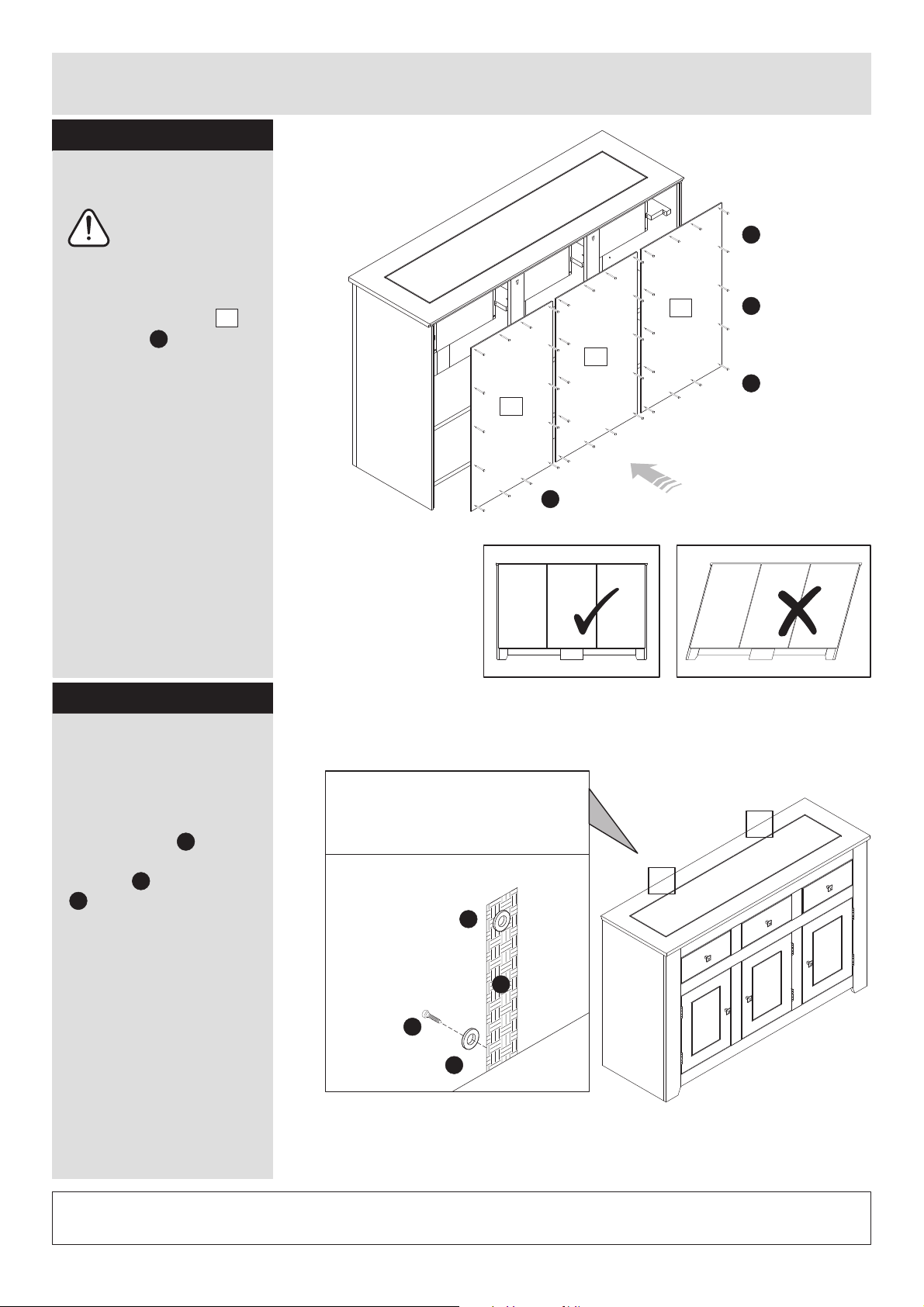

Step 23

Fixing back panels.

Important:

Cabinet beMUST ‘square’ when back panels are attached.

Attach back panels using nails .

Step 24

Fixing to wall

Furniture must be fixed to

a wall.

Fix wall straps to top of furniture using washers and screws

With help, move furniture into position.

Assembly is complete.

Note: Wall plugs not supplied. The correct type of fixing must

be used for your wall, seek

professional advice if in doubt.

wall

If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400 800

Page 17

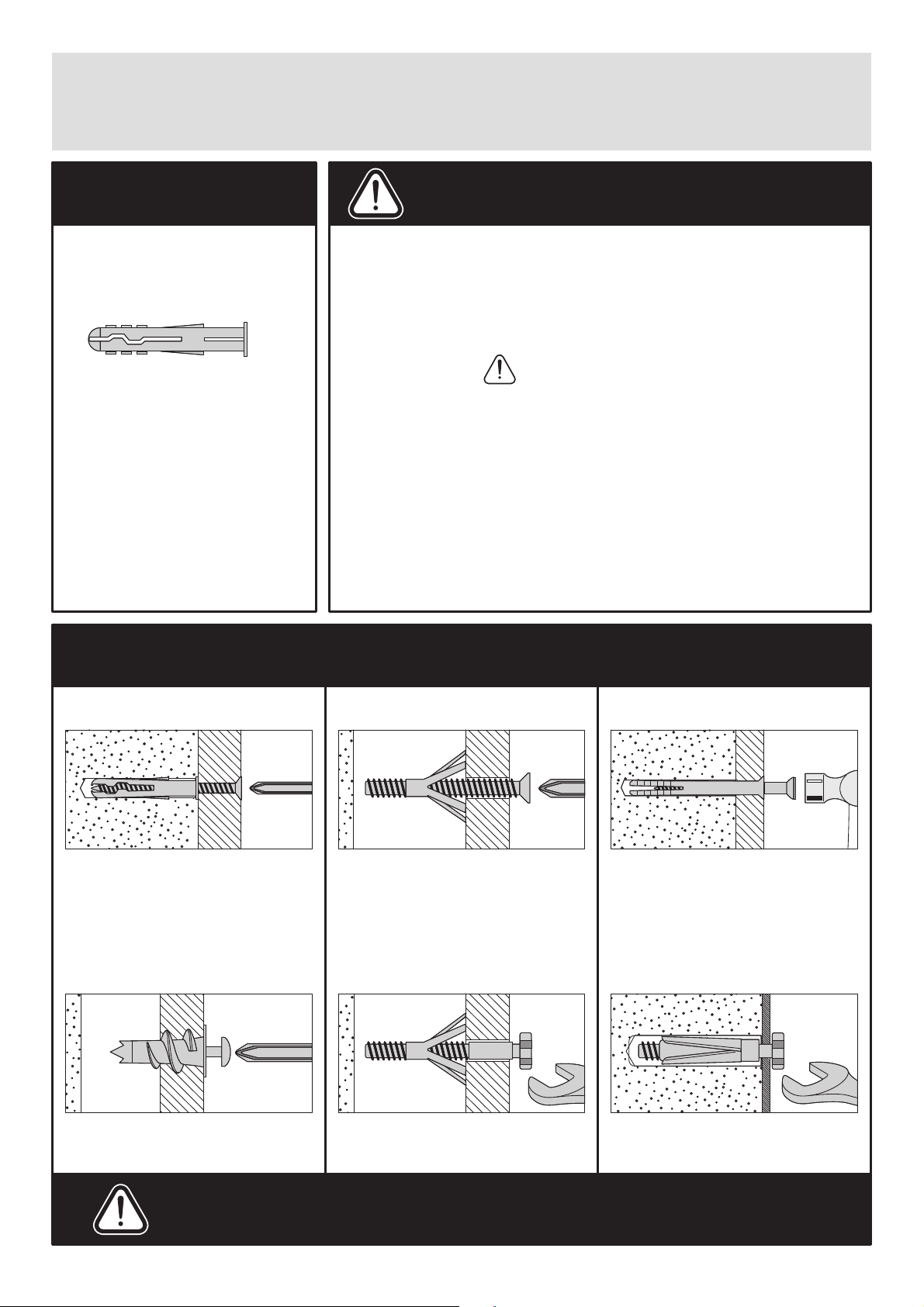

A Guide to - Wall Mounting & Fixings

Important note:

If plastic wall plugs are supplied with your product:

- these are only suitable for use in masonry walls.

If you are in any doubt about the correct wall plugs for your wall, seek professional advice.

Failure of the product due to using incorrect fixings is the responsibility of the installer.

Important: When drilling into walls always check that there are no hidden wires or pipes etc.

Make sure that the screws and wall plugs being used are suitable for supporting your unit. Consult a qualifed tradesperson if you are unsure.

Hints:

1: General rule: Always use a larger screw and wall plug

if you are not sure.

2: Ensure you use the recommended drill bit to match the wall

plug and hole size.

3: Ensure you drill the hole horizontally, do not force the drill or

enlarge the hole.

4: Take extra care when drilling high walls, ceilings and ceramic

tiles. Ensure wall plugs are inserted beyond the thickness of the ceramic tiles to avoid the tiles splitting or cracking.

5: Ensure wall plugs are well fitted and are a tight fit in the

drilled hole.

Types of walls

You can use one of the following types of wall plug if your walls are made of brick, breeze block, concrete, stone or wood.

No.1 “General Purpose” wall plug No.3 “Cavity Fixing” wall plug No.5 “Hammer Fixing” wall plug

Generally aerated blocks should not be used to support heavy loads, use a specialist fitting in this case. For light loads, general purpose wall plugs can be used.

No.2 “Plasterboard” wall plug

For use with plasterboard partitions or hollow wooden doors.

No.4 “Cavity Fixing-Heavy Duty”

wall plug

For use with walls stuck with plasterboard. The hammer fixing allows it to be fixed to the wall rather than the plasterboard. Always check the fixing is secure to the retaining wall.

No.6 “Shield Anchor” wall plug

Heavy loads

For use when attaching light loads on to plasterboard partitions.

Care & Maintenance

For use when fitting or supporting heavy loads such as shelving, wall cabinets and coat racks.

Safety: Always check the fitting and location to ensure your safety in and around the home.

For use with heavier loads such as TV & HiFi speakers and satelite dishes etc.

Fitting: From time to time check the fitting to ensure the wall plugs or screws do not become loose.

Page 18

Your 1 Year Guarantee

Peace Of Mind

Knowing Your Furniture Is Protected

Protection received within the Manufacturer’s Guarantee

Covers you for manufacturing defects for 1 year.

he event of a problem within this time

please call , or visit an Argos0345 640 0800 store. Please retain your receipt and order number as proof of purchase.

Key exclusions applying to both the Manufacturer’s Guarantee and Furniture Care include where the fault is due to misuse, abuse, deliberate damage, wear and tear, neglect, use in contravention with the instructions, or if the product has been the subject of unauthorised alterations or commercial use (for full list of exclusions please visit or visithttps://argos.productaftercare.co.uk an Argos store for more information). You have up to 45 days post purchase to take out Furniture Care. Terms and conditions apply. Your statutory rights remain unaffected.

Optional Added Protection with Furniture Care

Covers you for up to 2 years for specific following thestructural defects expiry of the manufacturer’s guarantee.

- covers you for up toPlus accidental damage

3 years for incidents such as household spills, rips, tears and burns. Accidental damage cover begins from the moment your plan starts.

If you want to purchase Furniture Care visit

https://argos.productaftercare.co.uk

or go into an Argos store

For Your Manufacturer’s Guarantee

Thank you for choosing Argos Home. We hope you love your shiny new things!

To provide you with the best possible after sales service, don’t forget to visit

where you can for yourhttps://argos.productaftercare.co.uk register

guarantee.

Once you’ve registered, you can upload your receipt to store safely online, alongside details of our after sales support service, ready at hand should you need it.

You can also take out Furniture Care which protects you against accidental damage, from the moment you take the plan out, to keep your new furniture looking newer for longer.

https://argos.productaftercare.co.uk
