Page 1

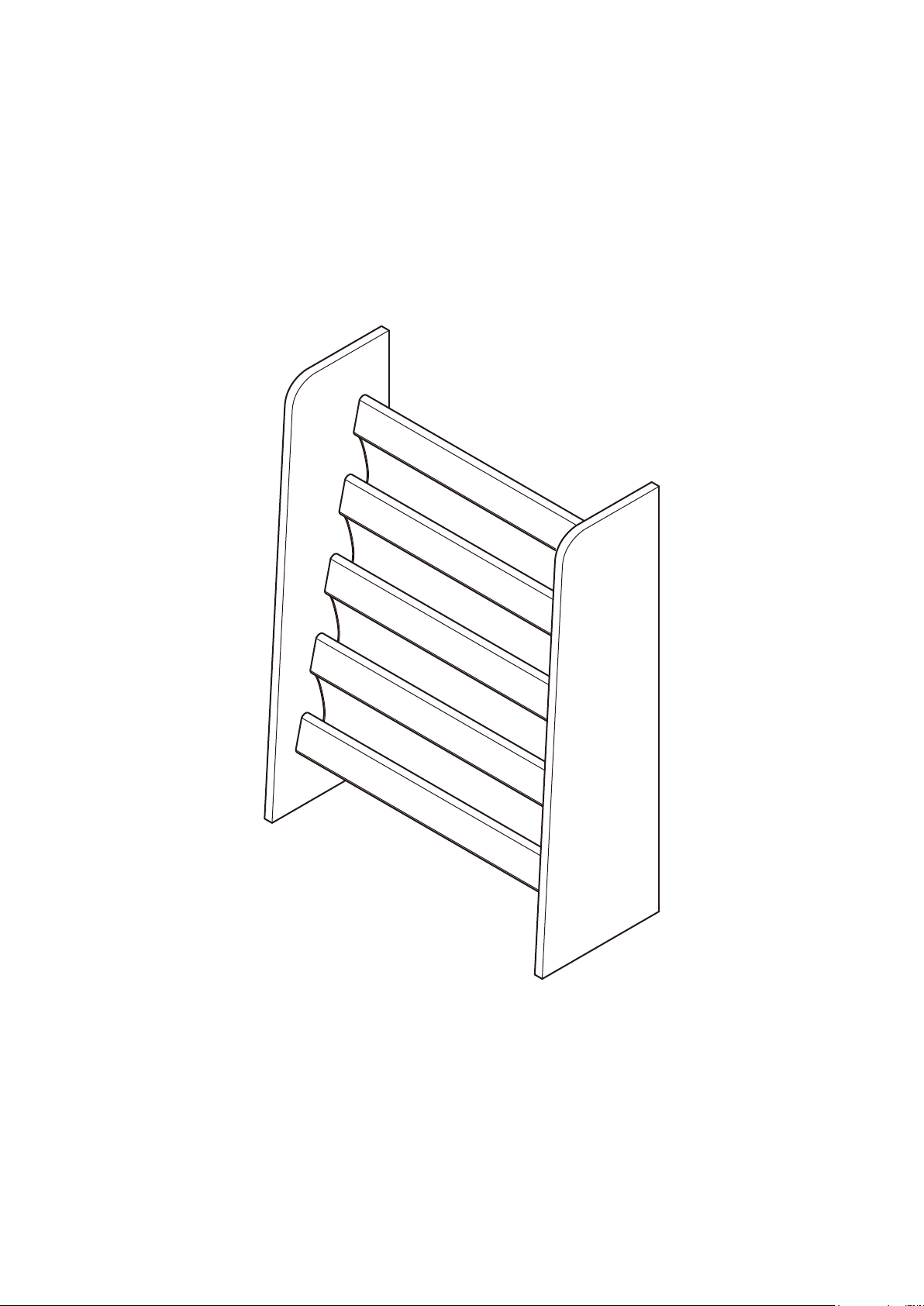

Book Tidy
719/0023
700/6007
Care & Instruction Manual
tPlease read and retain these ins ructions for future reference
Page 2
Safety and Care Advice
Important – Please read these instructions fully before starting assembly
• Check you have all the
components and tools listed on
the following pages.
• Remove all fi ttings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Make sure you have enough
space to layout the parts before
starting.
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
Handy Hints
• Do not use this item if any
components are missing or
damaged.
• During assembly do not stand
or put weight on the product,
this could cause damage.
• Assemble the item as close
to its fi nal position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your fl oor.
• From time to time check that
there are no loose screws on
this unit.
• During assembly children
should be kept away from the
product due to possible risk of
injury.
• Parts of the assembly will be
easier with 2 people.
• To reduce
the likelihood of
damaging your
product please
ensure that your
power drill is set on a low torque
setting.
• This product should not be
discarded with household waste.
Take to your local authority
waste disposal centre.
• Assemble all parts and bolts
loosely during assembly, only
once the product is complete
should you fully tighten the bolts.
• Regularly check and ensure
that all bolts and fi ttings are
tightend properly.
IMPORTANT: RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
• Argos Ltd. MK9 2 NW.
• Maximum load 15 kgs.
:
• Assembly of this product must
be carried out by a competent
adult.
• This product is intended for
children in the age 6 or above.
•This product is suitable for
children in the age range of
7-12 years.
1
Page 3
If you have damaged or missing components, call the

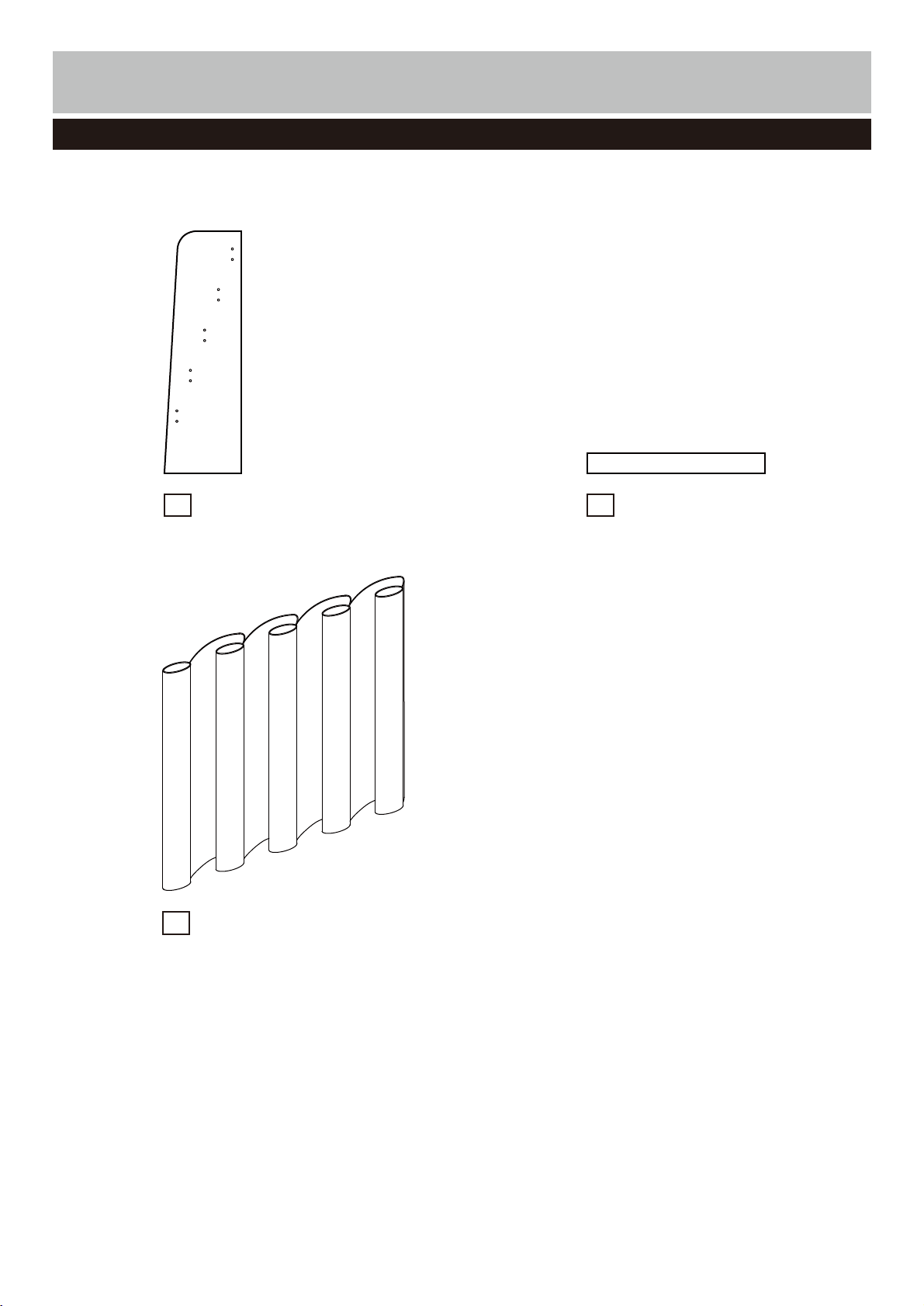

Components - Panels
Customer Helpline:
Please check you have all the panels listed below
Argos = 0345 6400800
Side panel x 2
1
(23.5 x 74cm)
Non-woven sling
3
(146 x 59.8cm)
Support x 5
2
(60 x 6cm)
2
Page 4

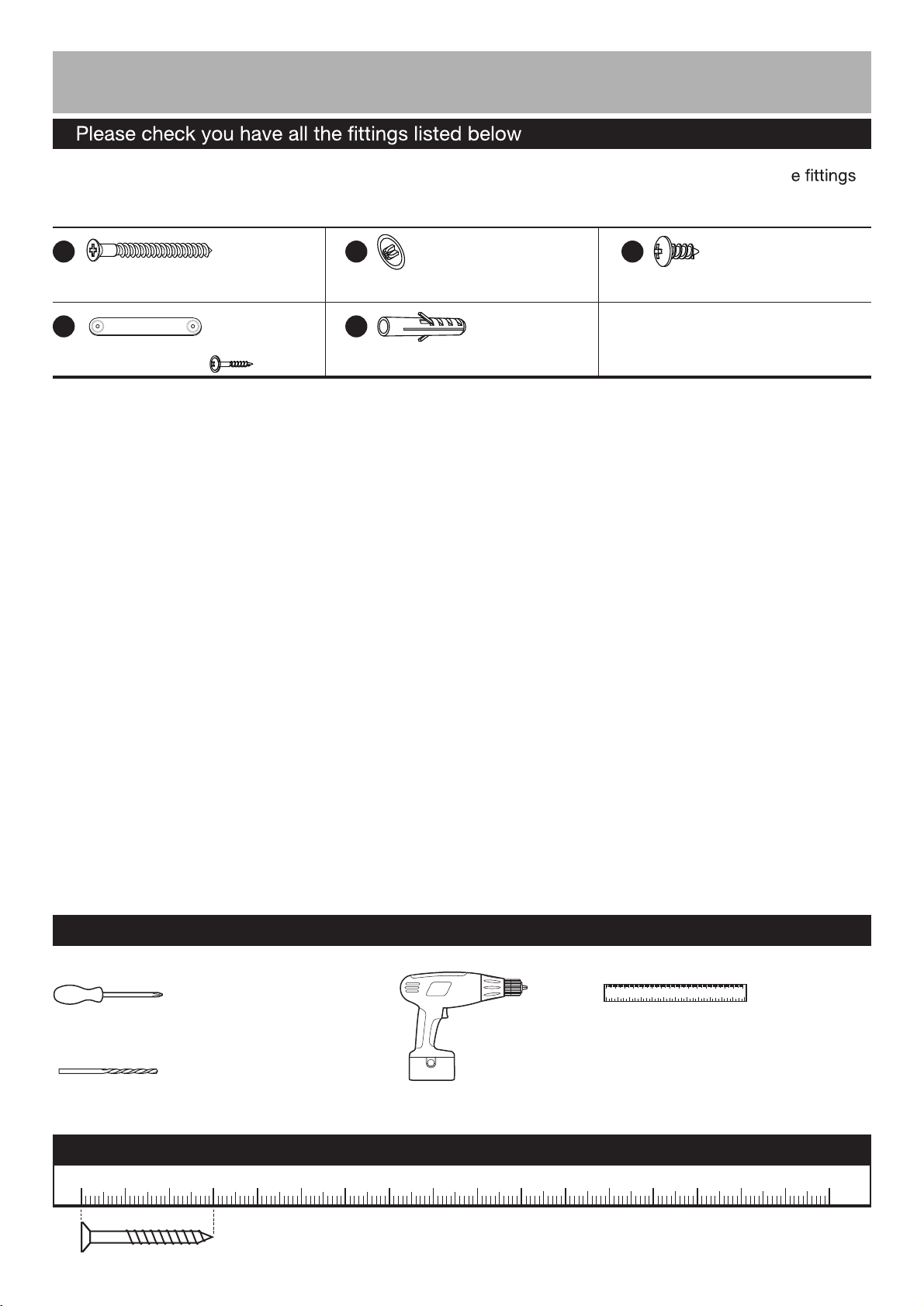

Components - Fittings
Note: The quantities below are the correct amount to complete the assembly. in some cases mor
may be supplied than are required.
A
50mm Screw x 20 14mm Screw x 1
D
Wall strap x 1
(This screw is
included in the
wall strap bag)
x 1
B
Screw cover x 20
E
Wall plug x 1
C
Tools required
Phillips screwdriver
(medium & large)
7mm Suitable drill bit
Drill
(for use with wall plug)
Ruler - Use this ruler to help correctly identify the screws
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100
The screws length is measured from the head to the point (30mm screw shown).
3
105
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150
0 1 2 3 4 5 6
110 115 120 125 130 135 140 145 150 155 160 165 170
Ruler/tape
measure
Page 5
Assembly Instructions

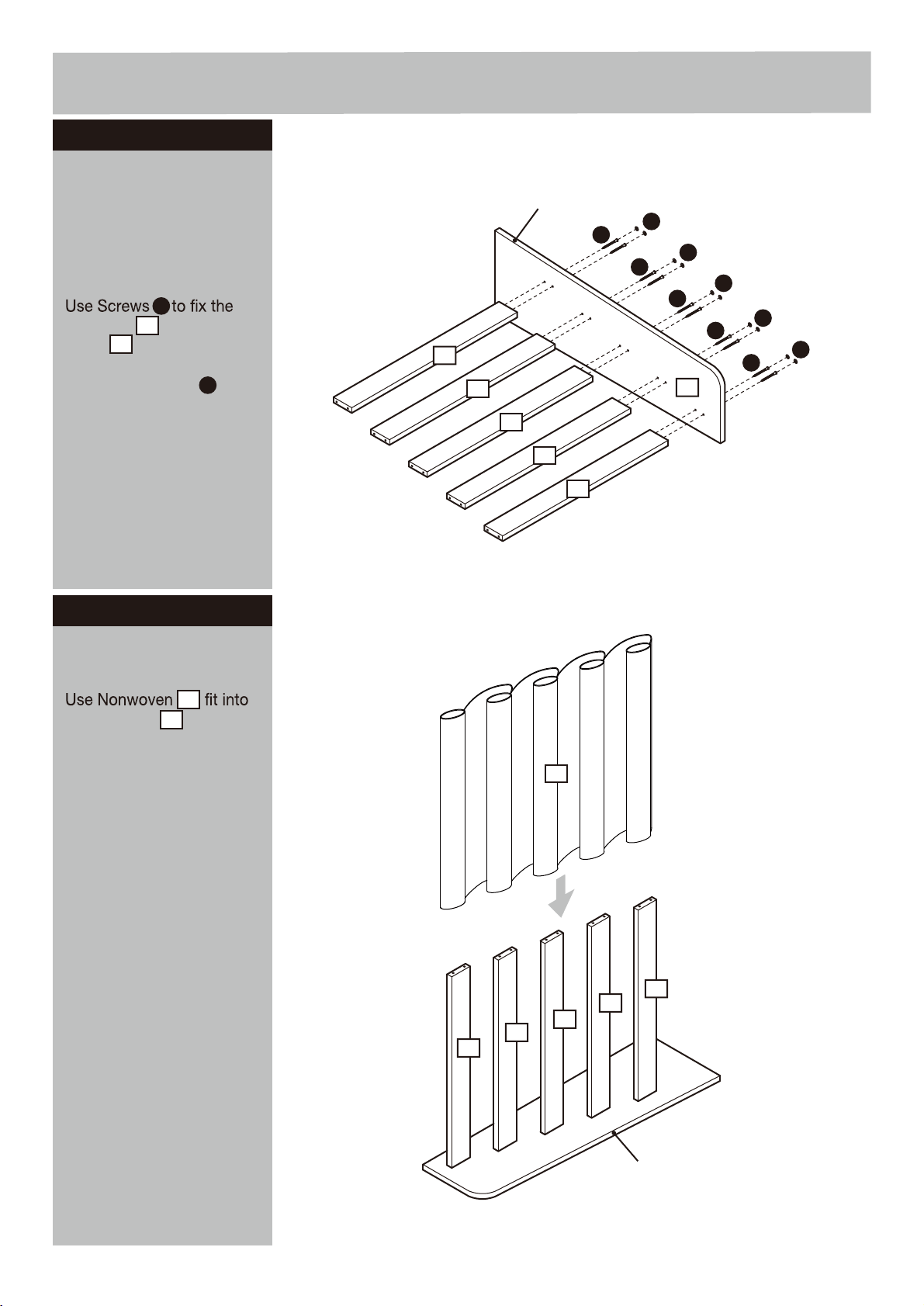

Step 1
Attaching supports
Note:
to ask someone to help
It would be useful
you at this stage.
Supports onto the Side
panel .
Use Screw covers to
A
2
1
B
cover the screw heads.
Step 2
Finished
front edge
A
2
2
2
2
2
B
A
B
B
A
A
1
B
B
A
Fitting the nonwoven
the Supports .
3
2
3
2
2
2
2
2
Finished
front edge
4
Page 6
Assembly Instructions

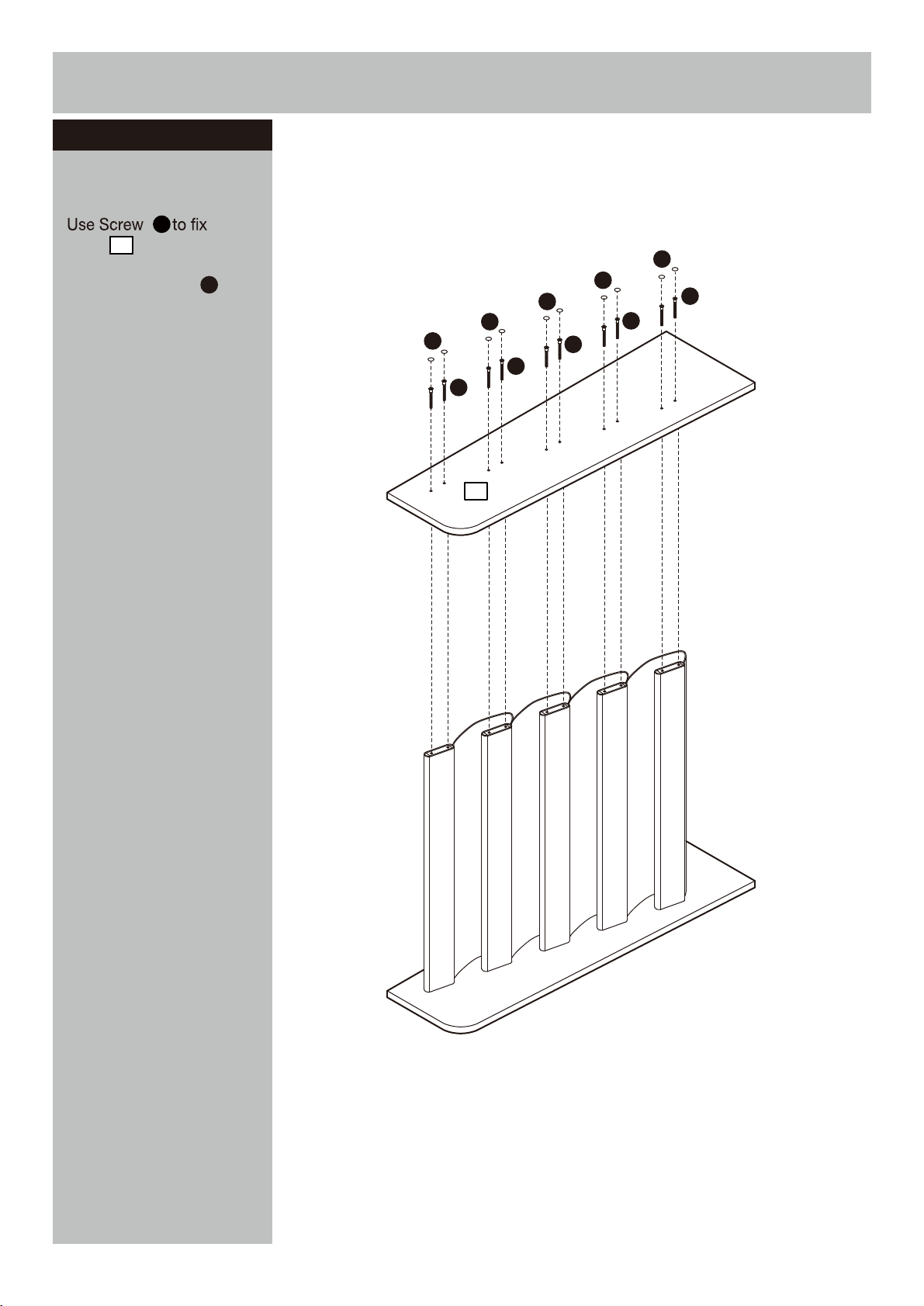

Step 3
Attaching side panel
panel onto the unit.
Use Screw covers to
A
s
1
Side
B
cover the screw heads.
B
B
B
B
B
A
A
1
A
A
A
5
Page 7
Assembly Instructions

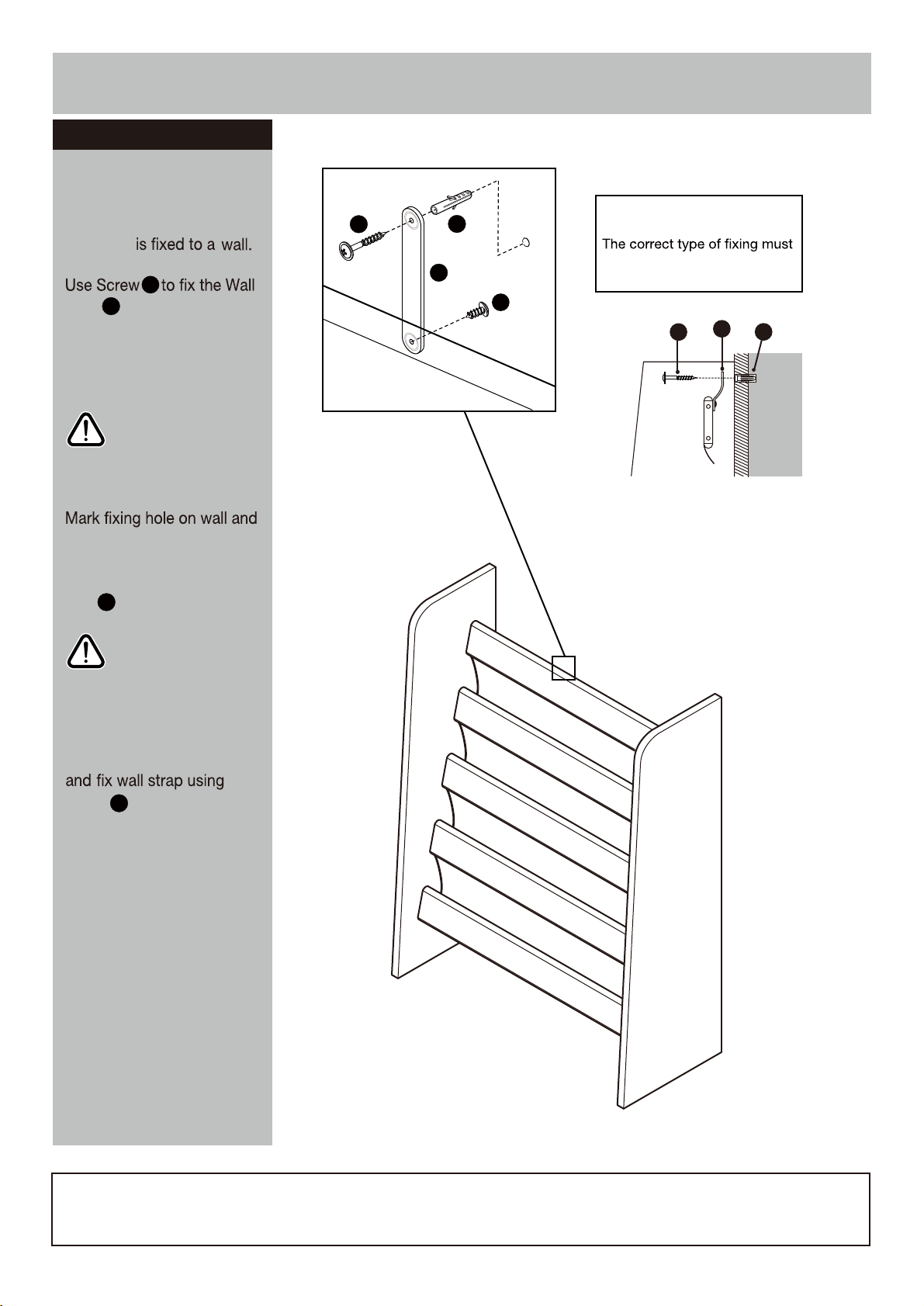

Step 4
Fixing to wall
It is recommended that the
book tidy
C
strap onto the support.
D
With help, move book tidy
into position.
D
Top support
Note:
E
D
wall
C
Wall plugs supplied are
for solid wall only.
be used for your wall, seek
professional advice if in doubt
D
D
D
D
E
E
Warning:
The
book tidy
is heavy.
Lift with care.
remove book tidy .
Drill a hole and insert Wall
E
plug .
Warning:
Before drilling,
check wall for
hidden pipes and
cables.
Reposition book tidy
Screw .
D
Assembly is complete.
If you need help or have damaged or missing parts, call the Customer Helpline: Argos = 0345 6400800
Produced in Indonesia for Argos Limited, 489-499 Avebury Boulevard, Milton Keynes, MK9 2NW
www.argos.co.uk
6
Page 8

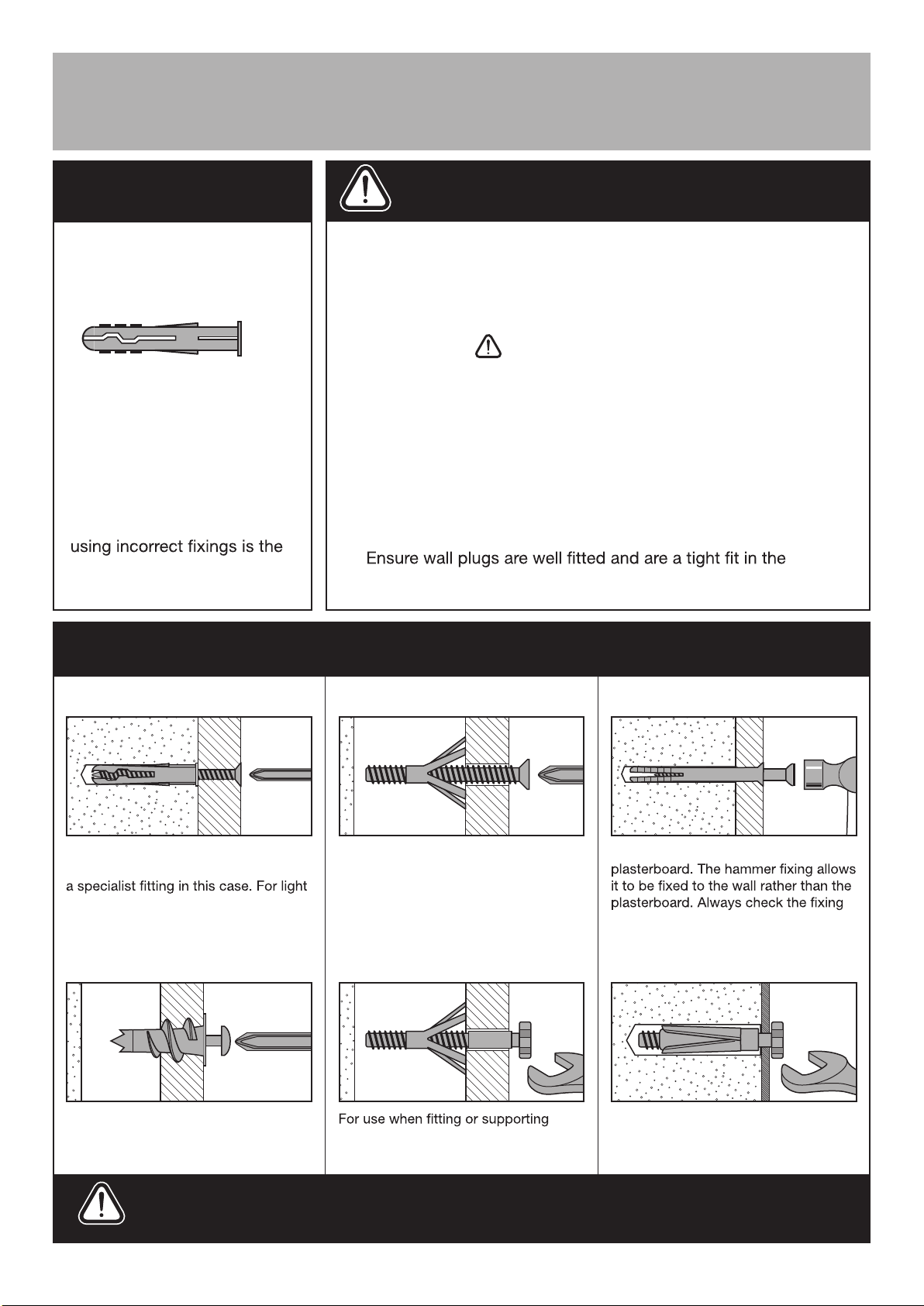

A Guide to - Wall Mounting & Fixings
Important note:
If plastic wall plugs
are supplied with your
product:
- these are only suitable for
use in masonry walls.
If you are in any doubt about
the correct wall plugs for
your wall, seek professional
advice.
Failure of the product due to
responsibility of the installer.
Important: When drilling into walls always
check that there are no hidden wires or pipes etc.
Make sure that the screws and wall plugs being used
are suitable for supporting your unit. Consult a qualified
tradesperson if you are unsure.
Hints:
1: General rule: Always use a larger screw and wall plug
if you are not sure.
2: Ensure you use the recommended drill bit to match the wall
plug and hole size.
3: Ensure you drill the hole horizontally, do not force the drill or
enlarge the hole.
4: Take extra care when drilling high walls, ceilings and ceramic
tiles. Ensure wall plugs are inserted beyond the thickness of
the ceramic tiles to avoid the tiles splitting or cracking.
5:
drilled hole.
Types of walls
No.1 “General Purpose” wall plug
Generally aerated blocks should not
be used to support heavy loads, use
loads, general purpose wall plugs can
be used.
No.2 “Plasterboard” wall plug
You can use one of the following types of wall plug if your walls are made
of brick, breeze block, concrete, stone or wood.
No.3 “Cavity Fixing” wall plug
For use with plasterboard partitions or
hollow wooden doors.
No.4 “Cavity Fixing-Heavy Duty”
wall plug
No.5 “Hammer Fixing” wall plug
For use with walls stuck with
is secure to the retaining wall.
No.6 “Shield Anchor” wall plug
Heavy loads
For use when attaching light loads on
to plasterboard partitions.
Care &
Maintenance
heavy loads such as shelving, wall
cabinets and coat racks.
Safety: Always check the fitting
and location to ensure your safety
in and around the home.
For use with heavier loads such as TV
& HiFi speakers and satelite dishes etc.
Fitting: From time to time check
the fitting to ensure the wall plugs
or screws do not become loose.
Revision 2 - 7/10/09
