Page 1

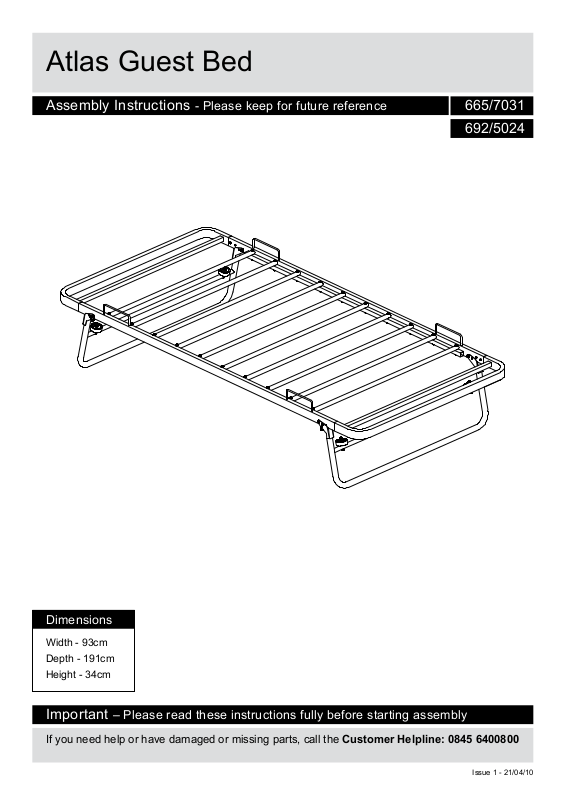

Atlas Guest Bed
Assembly Instructions - Please keep for future reference
665/7031
692/5024
Dimensions
Width - 93cm
Depth - 191cm
Height - 34cm
Important – Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 0845 6400800
Issue 1 - 21/04/10
Page 2
Safety and Care Advice
Important – Please read these instructions fully before starting assembly
• Check you have all the
components and tools listed on
pages 2 and 3.
• Remove all ttings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Make sure you have enough
space to layout the parts before
starting.
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do not use
bleach or abrasive cleaners.
• As you unpack and prepare
for assembly, clear an area for
assembly. The parts should be
placed on a carpeted or padded
area to protect them from
damage.
• Parts of the assembly will be
easier with 2 people.
• Do not discard any of the
packaging until you have
checked that you have all the
parts and pack of fittings.
• From time to time check that
there are no loose screws on
this unit.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• To ensure an easier assembly,
we strongly advise that all
fittings are only finger tightened
druing initial assembly. Only
upon completion of the
assembly should all fixing points
be fully tightened.
• This product should not be
discarded with household waste.
Take to your local authority
waste disposal centre.
1
Page 3
If you have damaged or missing components,

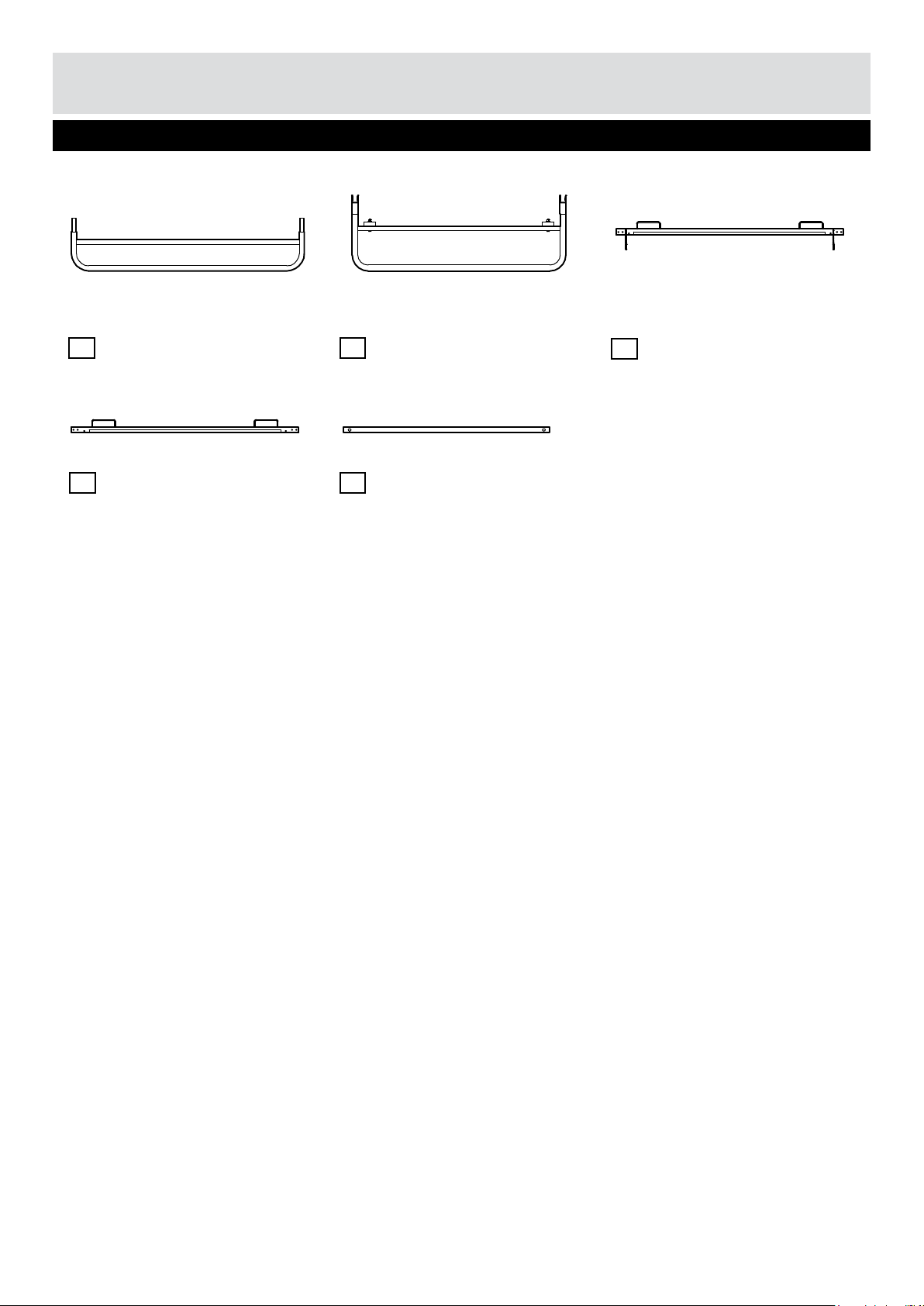

Components - Panels
call the Customer Helpline:
Please check you have all the panels listed below
0845 6400800
End x 2
1
Side rail
4
(93 x 21cm)
(160x9cm)
Leg x 2 (93.5 x 33.1cm)
2
Slat x 10
5
(dia1.9x88.6cm)
Side rail
3
(160 x 9cm)
2
Page 4

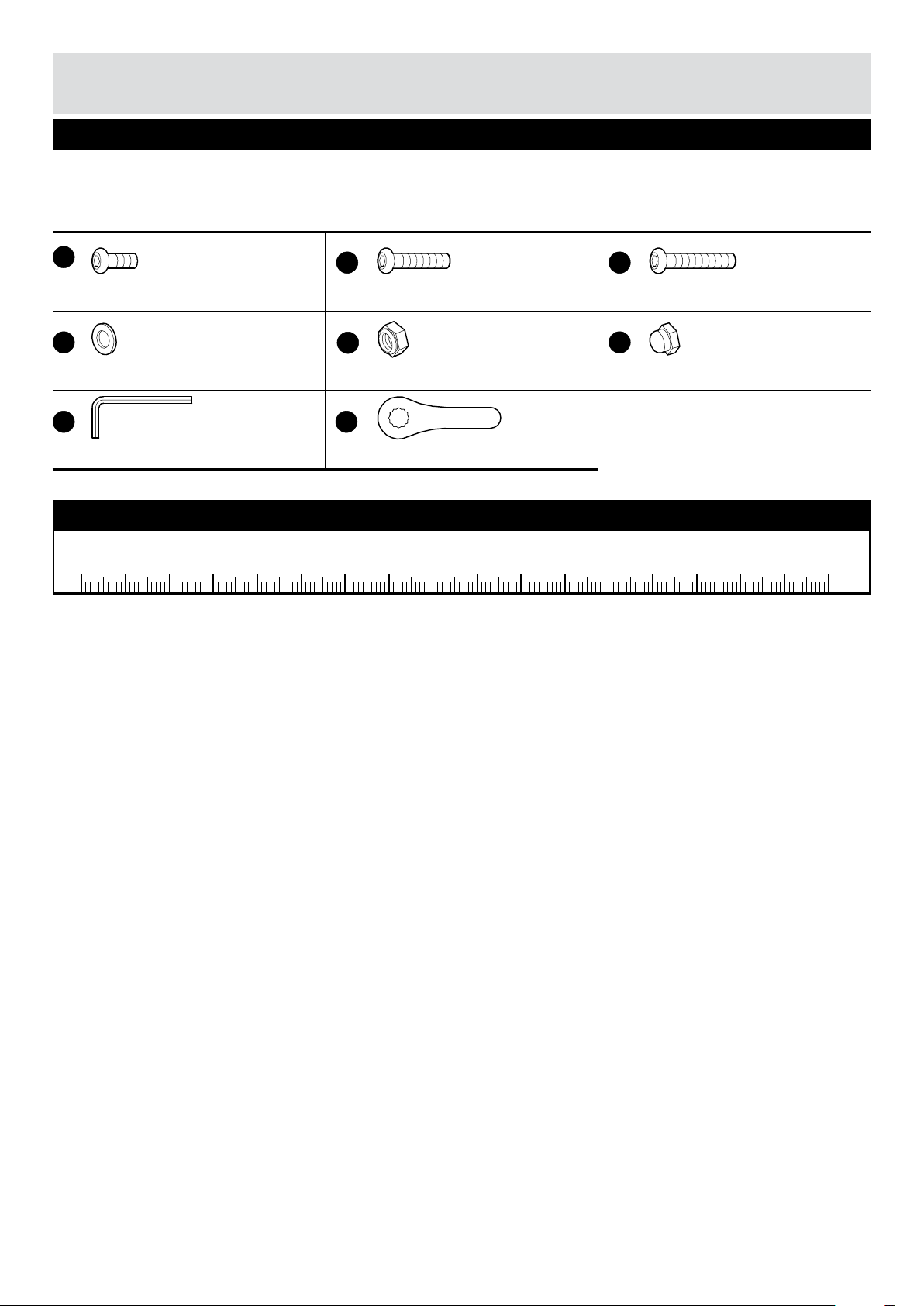

Components - Fittings
Please check you have all the ttings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases more ttings
may be supplied than are required.
A
17mm Bolt x 8
D
Plain washer x 44
G
Hex key x 1
B
37mm Bolt x 4
E
Nut x 4
H
Wrench x 1
Ruler - Use this ruler to help correctly identify the screws
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100
105
C
48mm Bolt x 20
F
Cap nut x 20
110 115 120 125 130 135 140 145 150 155 160 165 170
3
Page 5

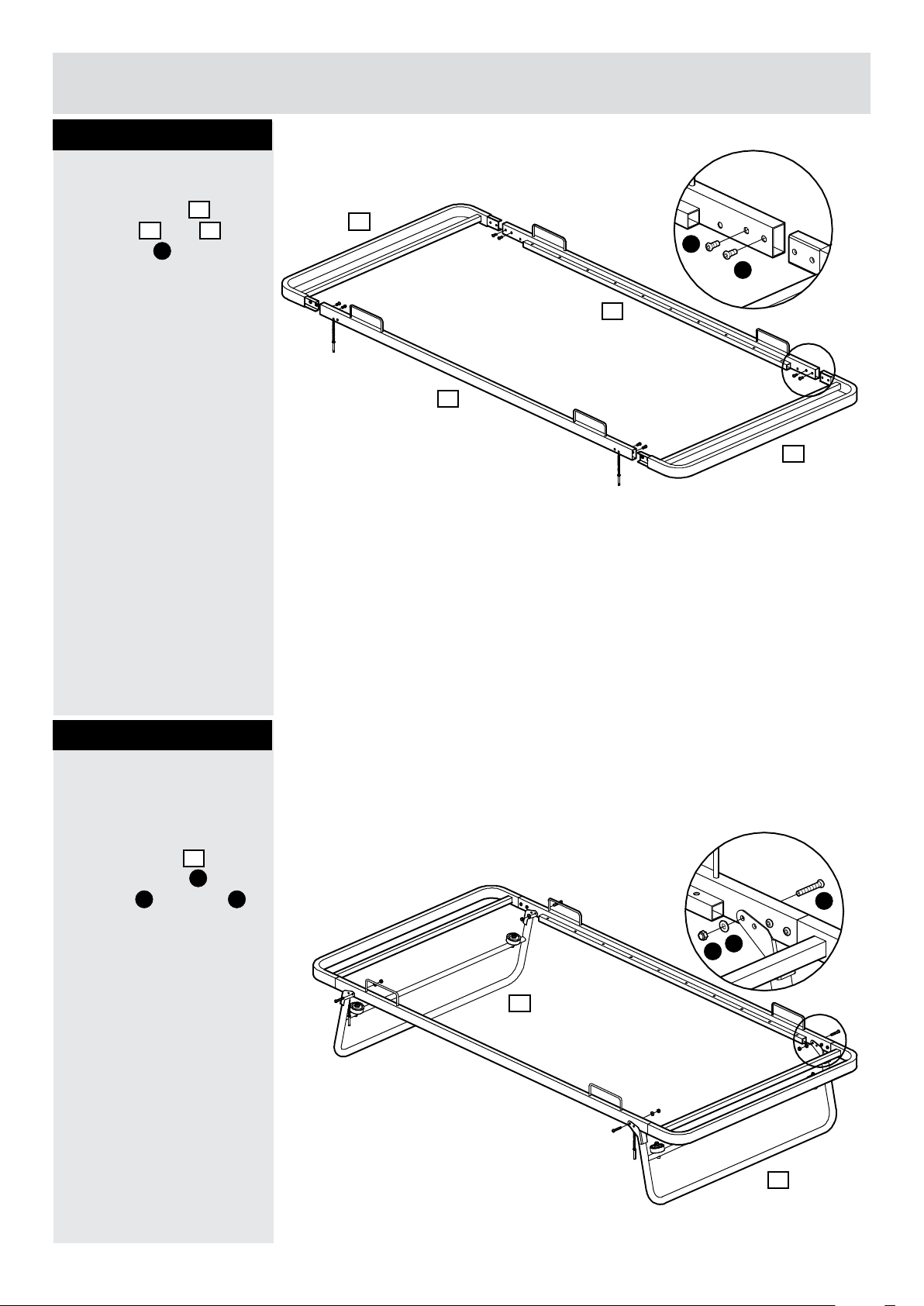

Assembly Instructions
Step 1
Assemble ends
1
Assemble ends
side rails
using bolts
3
and 4
A
to
1
.
A
A
4
3
1
Step 2
Assemble legs
Two people are needed
here.
2
Assemble legs
rails using bolts
washers
D
and nuts E.
Note: Do not tighten
bolts.
to side
B
, plain
B
D
E
2
2
4
Page 6
Assembly Instructions

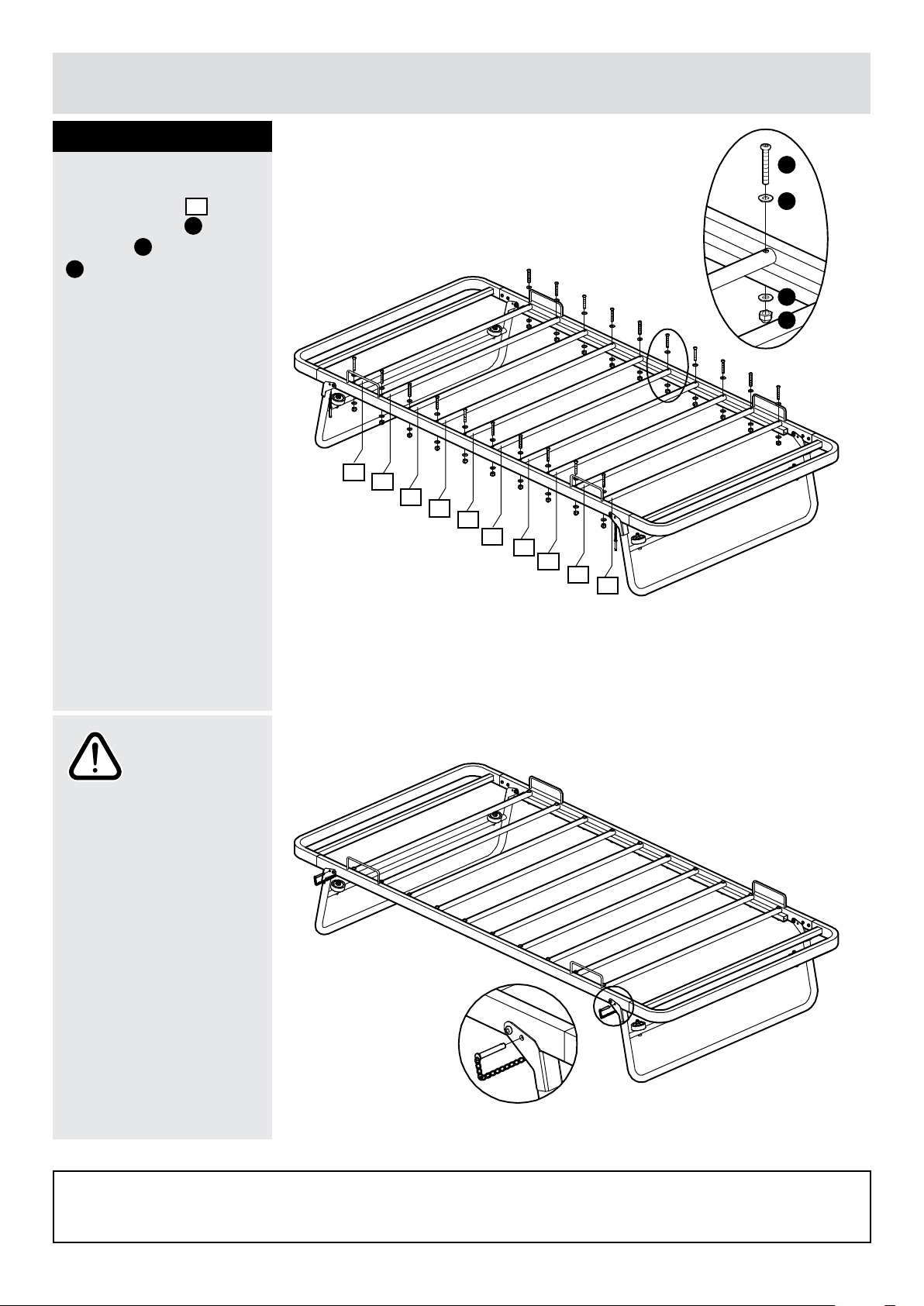

Step 3
Assemble slats
5
Assemble slats
unit using bolts
washers
F
.
D
and cap nuts
to the
C
, plain
C
D
Note: Re-tighten all the
bolts.
Caution:
D
F
5
5
5
5
5
5
5
5
5
5
Ensure the
locking pins are
inserted into the holes
when in use. Failure
to do so could cause a
hazard.
Assembly is complete.
If you need help or have damaged or missing parts, call the Customer Helpline: 0845 6400800
