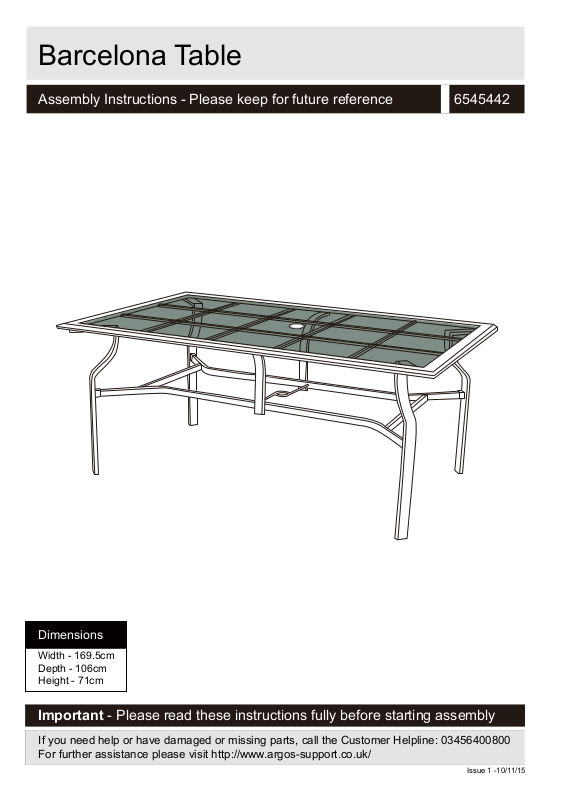

Page 1
Barcelona Table
Assembly Instructions - Please keep for future reference 6545442
Dimensions
Width - 169.5cm
Depth - 106cm
Height - 71cm
Important - Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 03456400800
For further assistance please visit http://www.argos-support.co.uk/
Issue 1 -10/11/15
Page 2
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• This product is manufactured from
toughened safety glass. In the unlikely
event that the glass fails it will break in to
a large number of small fragments that
may be spread over a wide area. This is
a feature of toughened glass ,designed to
remove the risk of Injure from glass
breaking into large shards.
• If the glass is chipped or broken ,stop
using the product and consult the
manufacturer or supplier.
• Check you have all the components and
tools listed on page 2.
• Remove all fittings from the plastic bags
and separate them into their groups.
Care and maintenance
• Wash frame parts with mild soap and
water, rinse thoroughly, and dry completely.
Do not use bleach, acid, or other solvents
on the frame parts.
• Wash glass with mild soap and water,
rinse thoroughly, and dry completely.
• Do not use washing powders or any
abrasive substances which may scratch
the surface.
• Keep children and animals away from
the work area, small parts could choke if
swallowed.
• Make sure you have enough space to
layout the parts before starting.
• Do not stand or put weight on the
components during assembly, this could
cause damage.
• Assemble on a soft level surface to
avoid damaging the unit or your floor.
• Parts of the assembly will be
easier with 2 people.
• Inspect and tighten all bolts and fasteners
on a regular basis to ensure the proper
performance and safety of your table.
• When moving the table, remove the
umbrella and lift. Do not drag this table.
• We recommend the use of furniture
covers when not in use.
• Dispose of all packaging carefully and
responsibly.
• Do not sit or stand on this
table.
• A weighted umbrella base
must be used when using an
umbrella with this table.
• Do not place very hot or very
cold items on the glass.
• Warning: The unit weighs
approximately 44.21kgs.
Please lift with care.
• In order to prolong the life and
beauty of your table, we recommend that
it be stored in a dry and protected area
when not in use.
• Tempered glass has been used for
increased strength and safety of your
table. However, during windy conditions
the umbrella should be lowered and /or
removed.
• Do not use the glass as chopping
surface. Do not strike the glass with
hard or pointed items.
1
Page 3
Components - Fittings
Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly.
A
D
M6 x 28mm Bolt x 14
D
Bolt Cap x 14
B
d6.5 x D10 x1.6
Spring Washer x 14
Components - Parts
Please check you have all the parts listed below
C
d6.5 x D13 x 1.0 Washer x 14
1
Table Top x 1
4
Center Connector With Ring x1
Tools required
2
Leg x 4
5
Galss x 1
3
Support x 2
6mm Hex Key
Ruler - Use this ruler to help correctly identify the screws
2
Page 4
Assembly Instructions
Step 1
Remove the glass from
the table top .
Step 2
Place the table top onto
a non-abrasive surface,
such as a carpet, with its
underside facing upwards.
Fasten the legs and
the supports to the
underside of the table top
1
rim by using bolts
and washers ( and ).
Keep the bolts loose.
3
1
2
A
B
C
2
2
2
3
3
1
2
A
B
C
3
Page 5
Assembly Instructions
Step 3
Fasten the center
connector with ring to
the middle of the legs
by using bolts and
washers ( and ). Keep
B
the bolts loose.
Note:
The arrow marks on the
center connector with ring
4
should coincide with
Figure to ensure proper
assembly.
4
2
A
C
2
2
A
2
2
B
C
Step 4
Fasten the center
connector with ring to
the supports by using
A
bolts and washers (
C
and ).
3
Tighten all bolts by using
the supplied Hex key.
Then cover the bolts
with bolt caps .
4
B
D
2
2
4
A
3
C
B
2
3
2
D
A
E
4
Page 6
Assembly Instructions
Step 5
Turn the table to its
upright position. Place the
glass on to the table
top .
Suggest to finished this
step by 2 people.
Note:
To use an umbrella with
this table, remove the
plastic center plug and put
the umbrella pole through
the table top and center
connector ring.
A weight umbrella base
must be used when using
an umbrella with this table.
5
1
!
Warning: Don't detach the plastic support
from the table frame! It is for glass support!
Assembly is completed.
If you need help or have damaged or missing parts, call the Customer Helpline: 03456400800
For further assistance please visit http://www.argos-support.co.uk/
Retailer: Argos
Address: 489-499 Avebury Boulevard Saxon Gate West, Central Milton Keynes Bucks, MK9, 2NW
