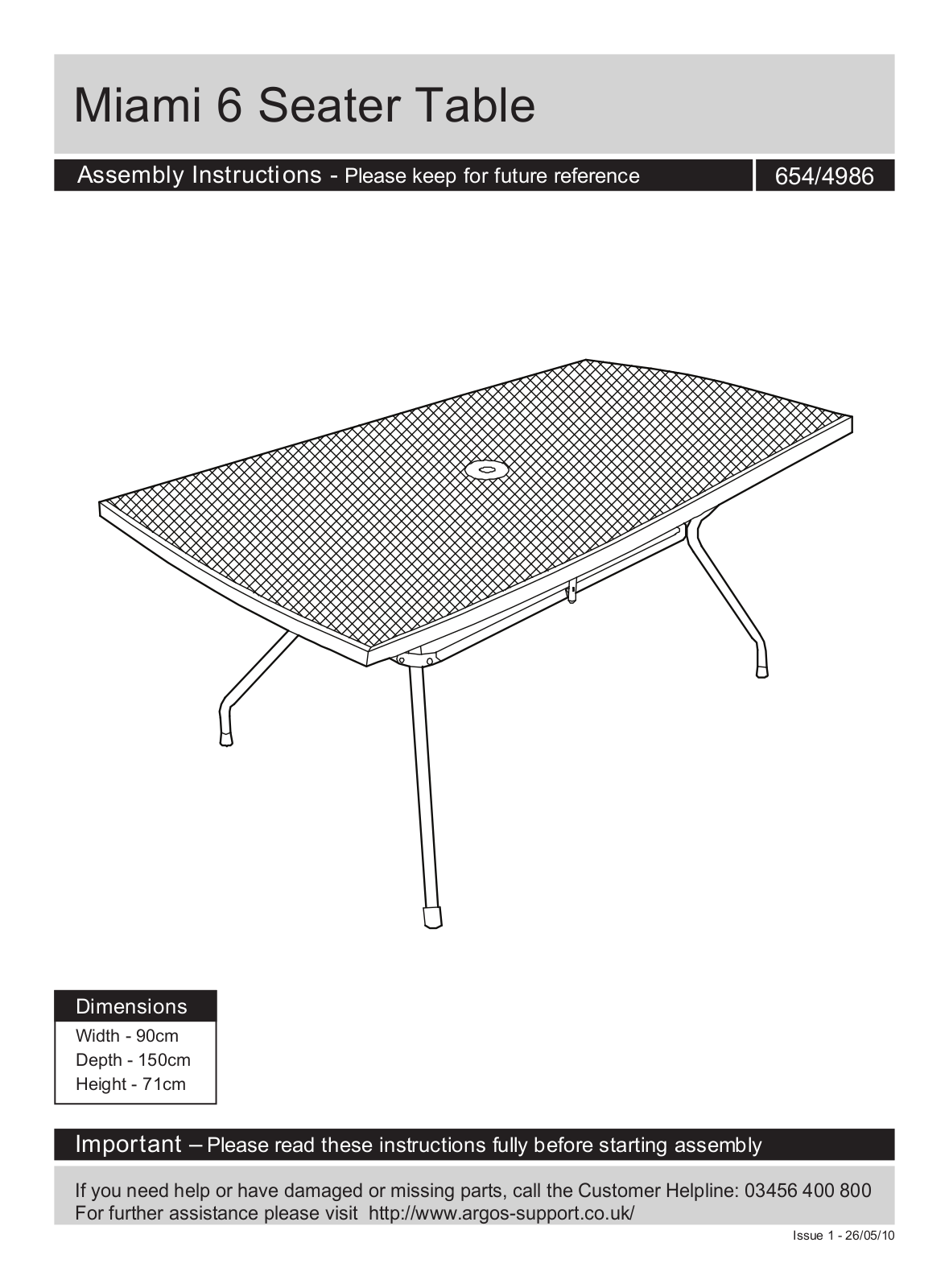

Page 1
Miami 6 Seater Table
Assembly Instructions -
Please keep for future reference
654/4986
Dimensions
Width - 90cm
Depth - 150cm
Height - 71cm
Important –
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400 800
For further assistance please visit http://www.argos-support.co.uk/
Please read these instructions fully before starting assembly
Issue 1 - 26/05/10
Page 2

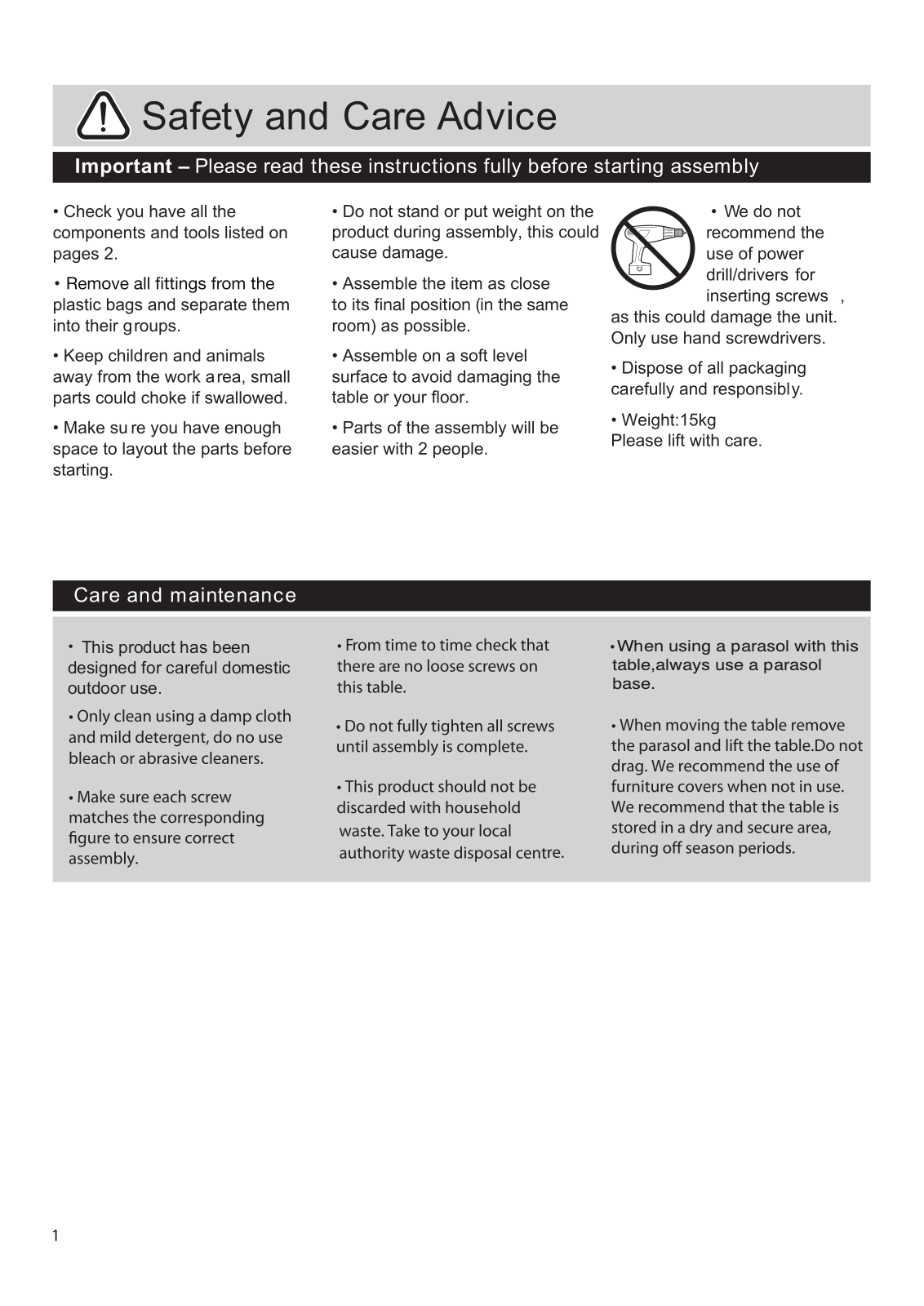

This product has been
designed for careful domestic
outdoor use.
When using a parasol with this
table,always use a parasol
base.
Page 3

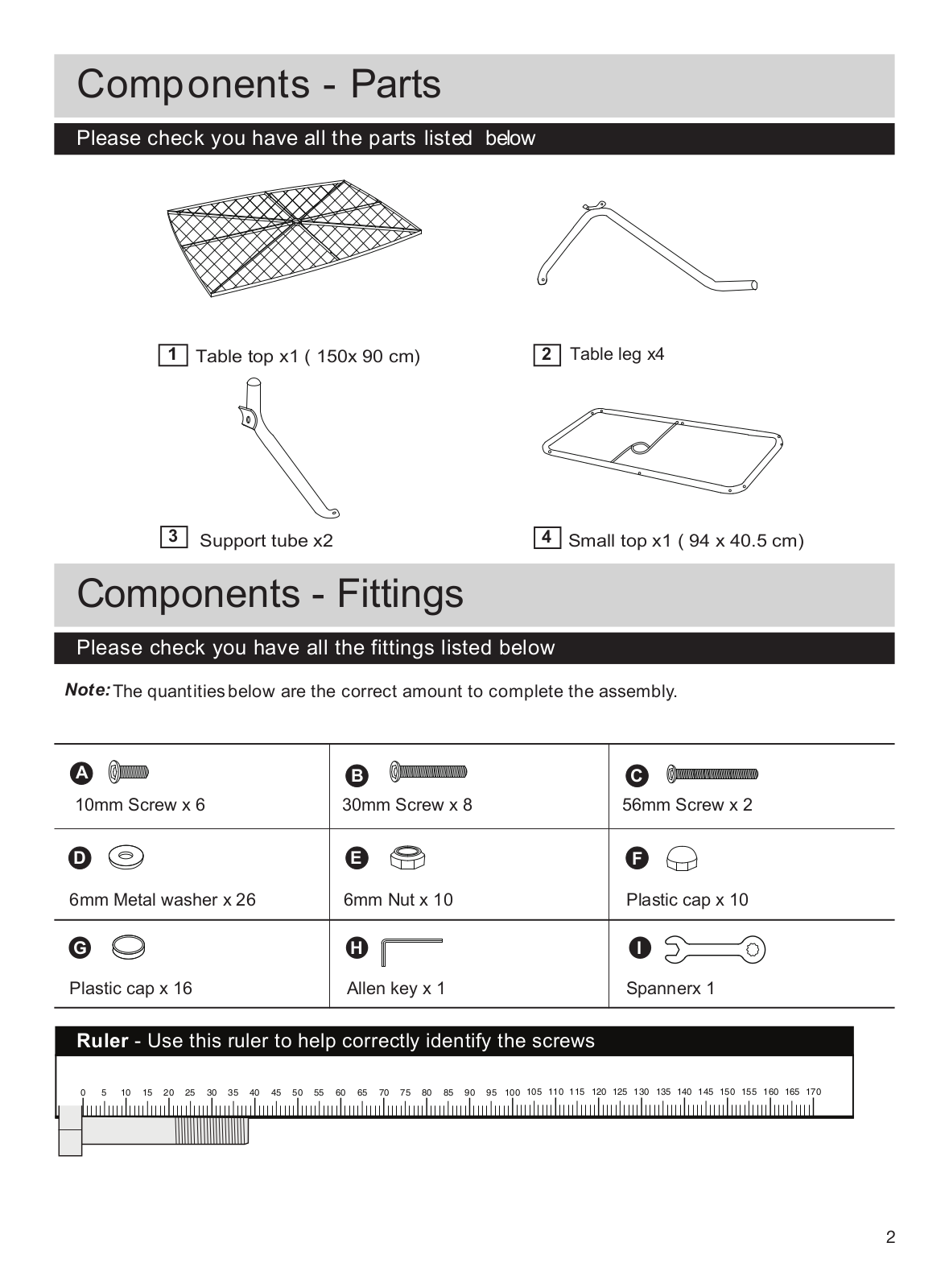

Components - Parts
Please check you have all the parts listed below
1
Table top x1 ( 150x 90 cm)
Table leg x4
2
3
Support tube x2
4
Small top x1 ( 94 x 40.5 cm)
Components - Fittings
Please check you have all the fittings listed below
Note:
The quantities
A
10mm Screw x 6 30mm Screw x 8 56mm Screw x 2
D
6mm Metal washer x 26
G H I
Plastic cap x 16 Allen key x 1 Spannerx 1
below are the correct amount to complete the assembly.
B C
E
6mm Nut x 10
F
Plastic cap x 10
Ruler - Use this ruler to help correctly identify the screws
105
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100
110 115 120 125 130 135 140 145 150 155 160 165 170
2
Page 4

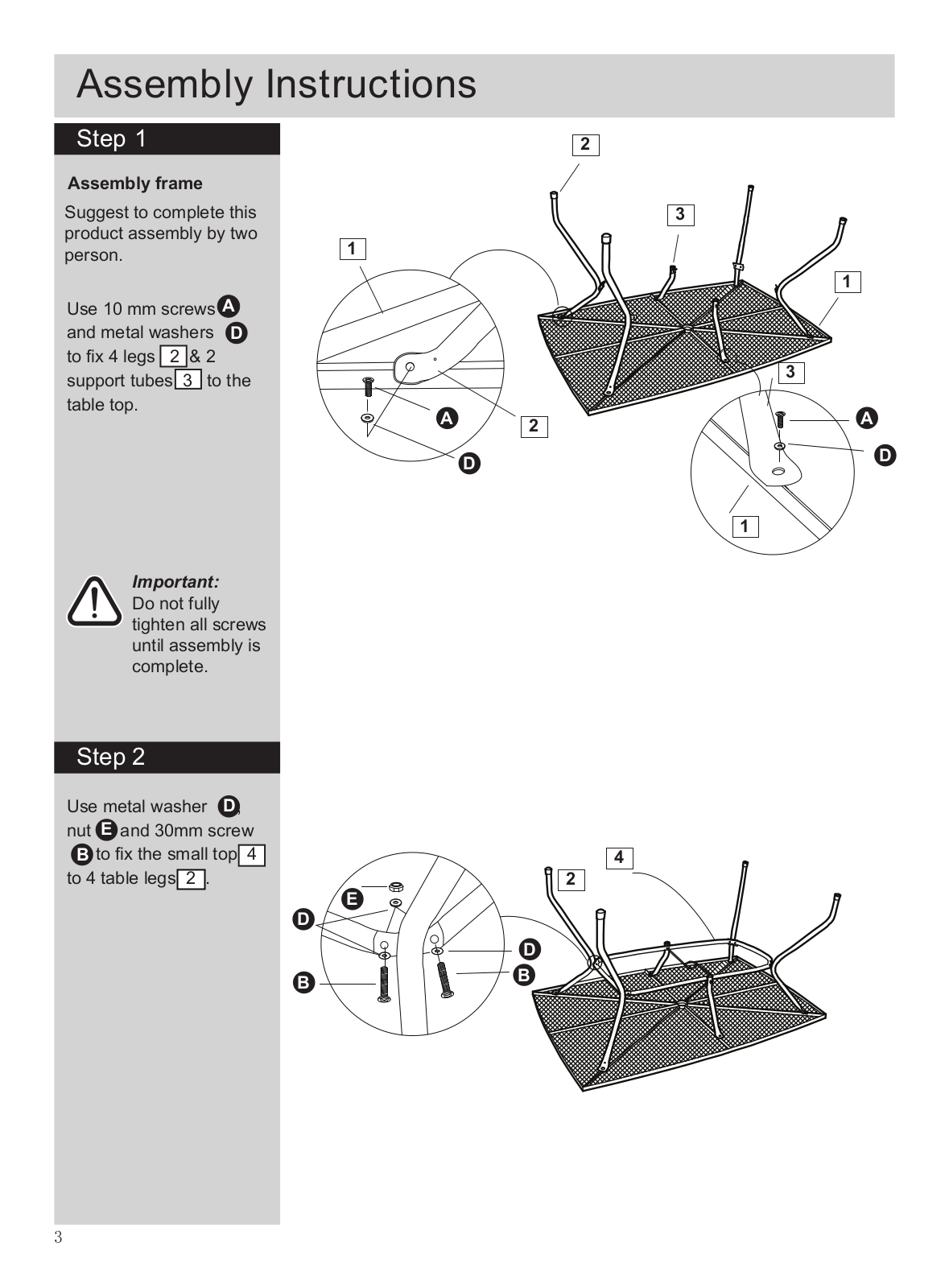

Assembly Instructions
Step 1
Assembly frame
Suggest to complete this
product assembly by two
person.
Use 10 mm screws
and metal washers
to fix 4 legs 2 & 2
support tubes 3 to the
table top.
Important:
Do not fully
tighten all screws
until assembly is
complete.
A
D
2
1
A
D
2
3
1
3
A
D
1
Step 2
Use metal washer ,
E
nut and 30mm screw
to fix the small top 4
B
to 4 table legs 2 .
D
4
2
E
D
D
B
B
3
Page 5
Page 6

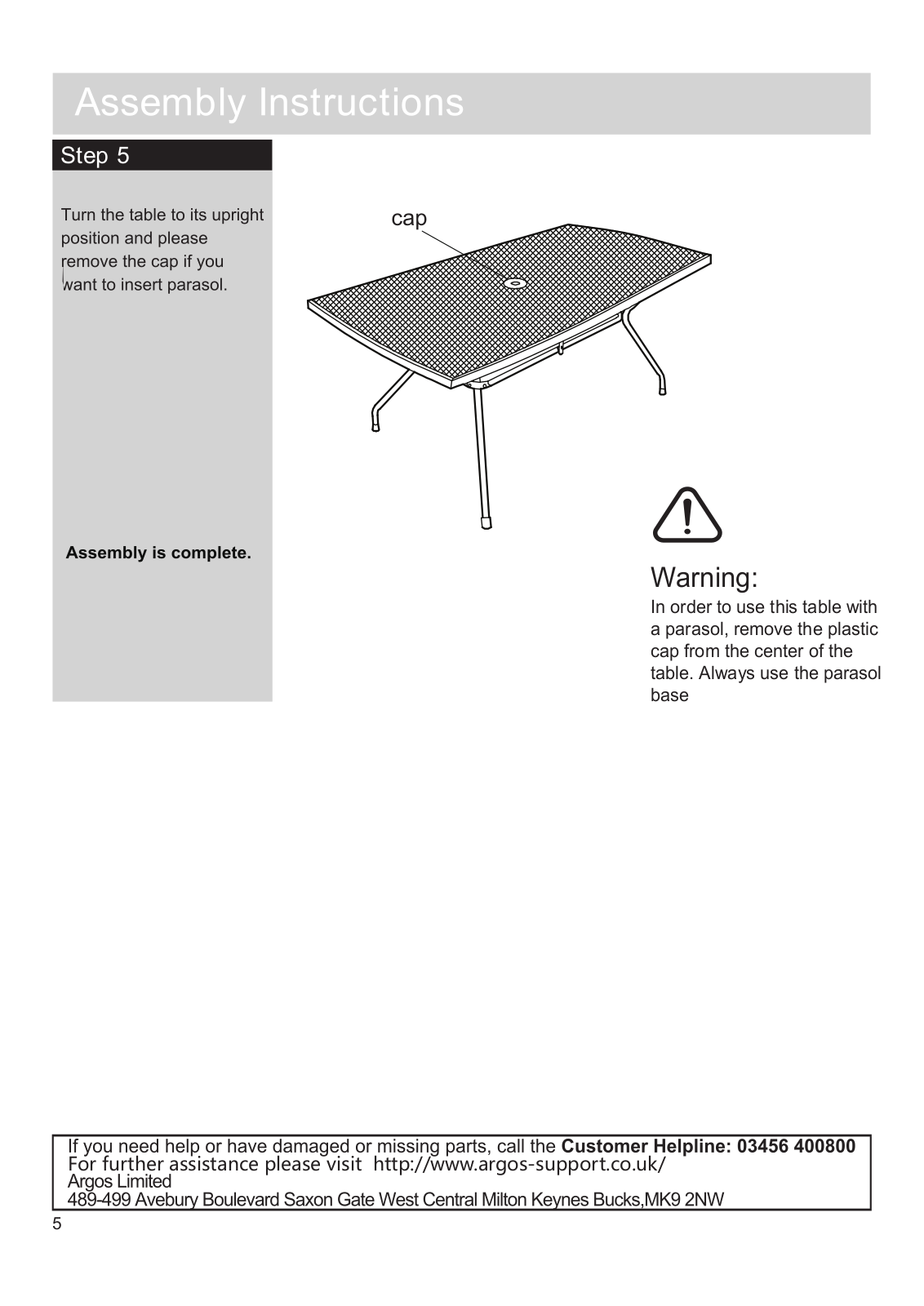

Step 5
Warning:
In order to use this table with
a parasol, remove the plastic
cap from the center of the
table. Always use the parasol
base
For further assistance please visit http://www.argos-support.co.uk/
5
