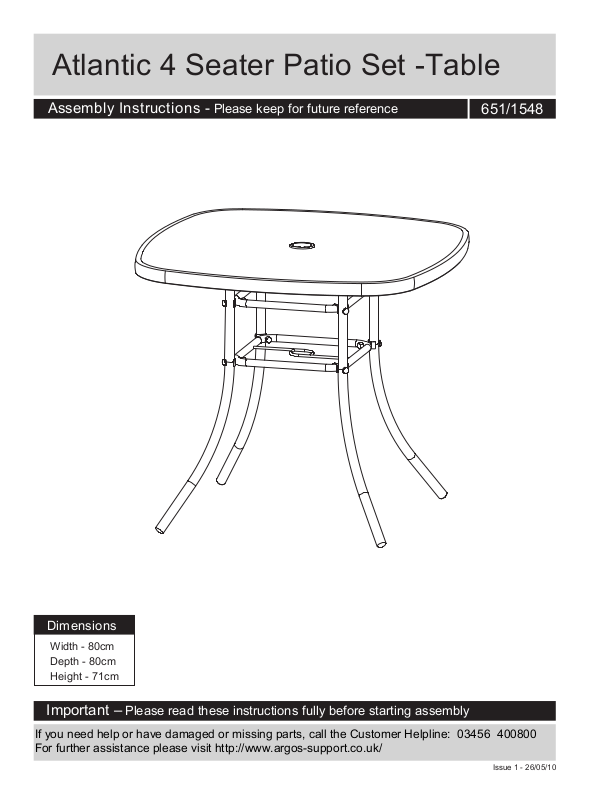

Page 1
Atlantic 4 Seater Patio Set -Table
Assembly Instructions -
Please keep for future reference
651/1548
Dimensions
Width - 80cm
Depth - 80cm
Height - 71cm
Important – Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800
For further assistance please visit http://www.argos-support.co.uk/
Issue 1 - 26/05/10
Page 2
This product is
manufactured from
toughened safety glass.
In the unlikely event that
the glass fails it will break
in to a large number of
small fragments that may
be spread over a wide
area. This is a feature of
toughened glass,
designed to remove the
risk of injure from glass
breaking into large shards.
If the glass is chipped
or broken, stop using the
product and consult the
manufacture
Check you have all the
or supplier.
components and tools
listed on page 2.
Remove all fittings from
the plastic bags and
separate them into their
groups.
Keep children and
animals away from the
work area, small parts
could choke if swallowed.
Make sure you have
enough space to layout
the parts before starting.
Do not stand or put
weight on the parts during
assembly, this could
cause
damage.
Assemble on a soft
level surface to avoid
damaging the unit or your
floor.
Dispose of all packing
carefully
Do not sit or stand upon
horizontal glass surface.
Do not place very hot or
very cold items on the
glass
thick tablemats are used to
prevent such items from
coming into contact with
the glass.
Warning:
weights approximately
10.7
Please lift with care.
and responsibly
unless adequately
The unit
kgs.
.
This product has been
designed for careful domestic
outdoor use.
Wash frame parts with
mild soap and water, rinse
thoroughly, and dry frame
completely. Do not use
b leach, acid, or other
solvents on the frame
parts.
Wash glass with mild
soap and water
thoroughly,
completely
and dry glass
When using a parasol with
this
table,always use a parasol
base.
When moving the table,
remove the umbrella. Do
not drag.
We recommend the
of furniture covers when
not in use.
Do not use the glass as
, rinse
use
chopping surface.
strike the glass with
or pointe
In order to p
life and beauty of your
table, we recomm end it be
stored in a dry
protected area during off
season periods.
Do not use washing
powders or any abrasive
substances which may
scratch the surface.
d items.
Do not
hard
rolong the
and
Page 3

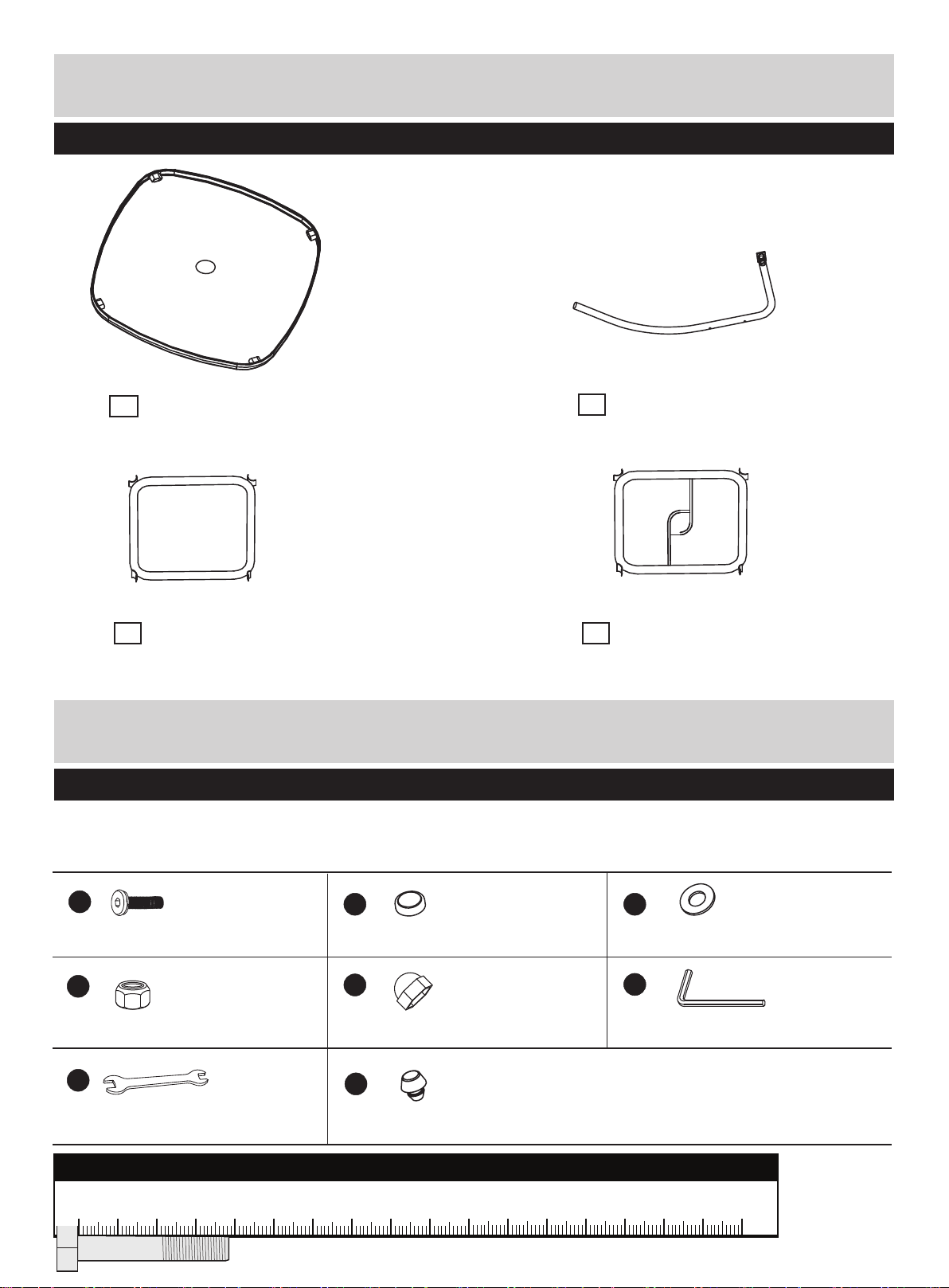

Components - Parts
Please check you have all the parts listed below
1
Table top x 1
2
Table leg x 4
3
Center connector x 1
Components - Fittings
Please check you have all the fittings listed below
Note:
The quantities
A
52mm Screw x 8
D
Nut x 8
G
below are the correct amount to complete the assembly.
B
Plastic cap x 8
E
Plastic nut cap x 8 Allen key x 1
H
(Have already fixed on the leg tube)
4
Center connector with ring x 1
C
Metal washer x 16
F
Spanner x 1
Ruler - Use this ruler to help correctly identify the screws
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100
Plastic support x 4
105
110 115 120 125 130 135 140 145 150 155 160 165 170
2
Page 4

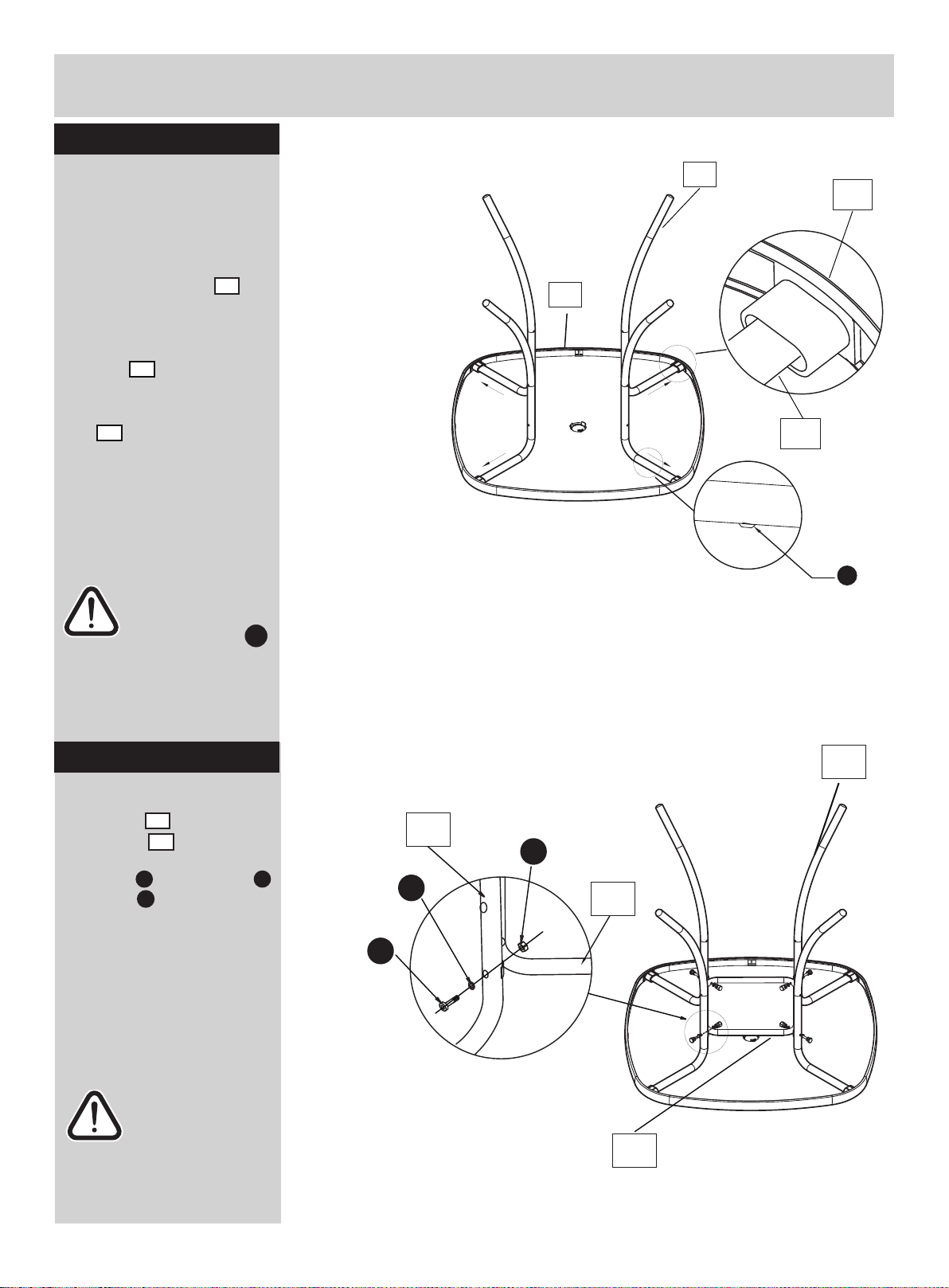

Assembly Instructions
Step 1
Assembly frame
Suggest to complete this
product assembly by two
person.
Place the table top 1 on
a non-abrasive surface,
such as carpet ,with the
underside facing up. Insert
the legs 2 into the plastic
holders attached on the
back of the table top
rim 1 .
Important:
Make sure the
plastic support
not detached from
leg tube.
H
2
1
1
2
H
Step 2
Mount and align the center
connector 3 to the middle
of the legs 2 , then fasten
them by using metal
washers and screws
and nuts .
C
D
Important:
Do not fully
tighten all screws
until assembly is
complete.
A
2
2
D
C
3
A
3
3
Page 5

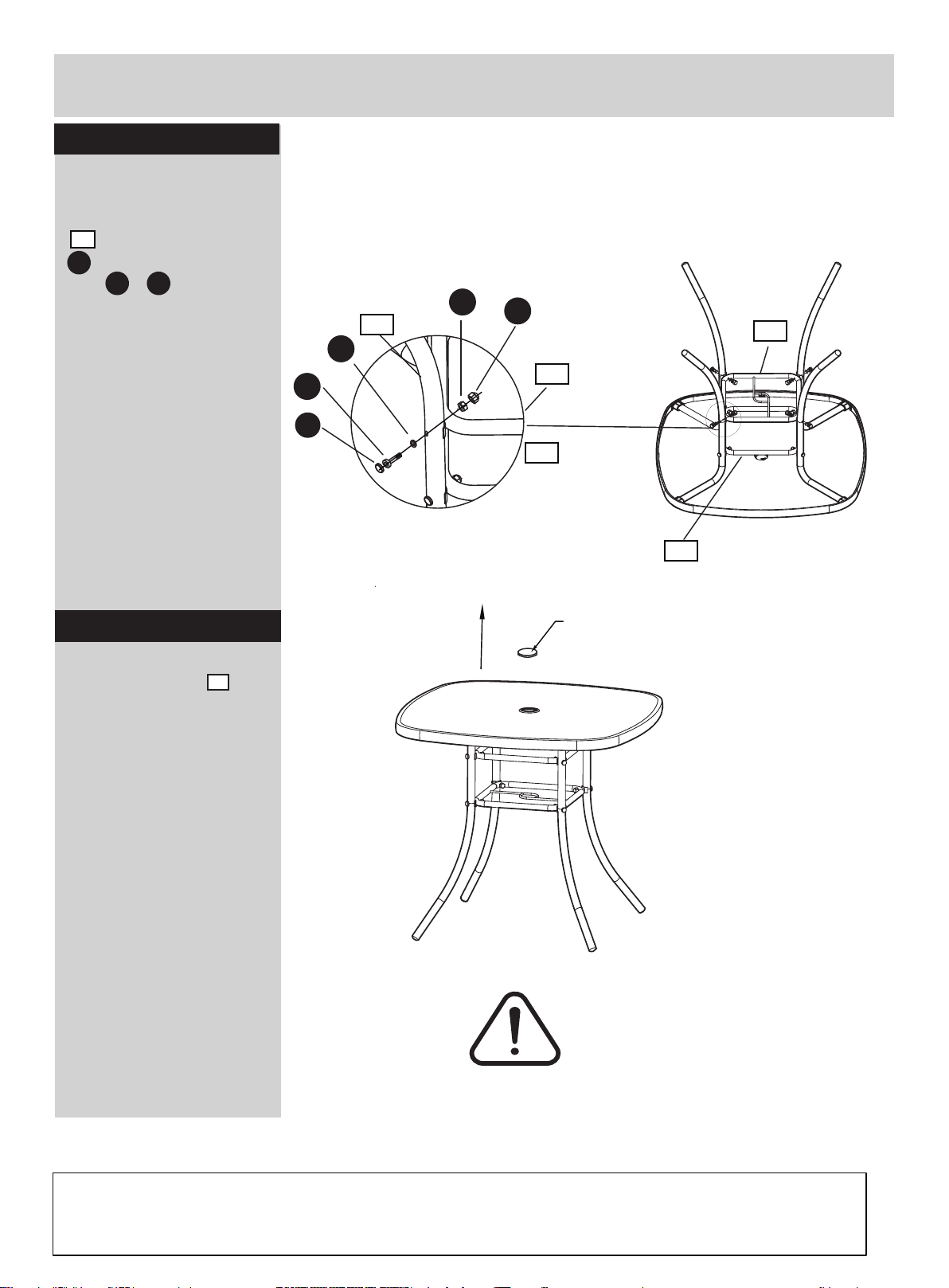

Assembly Instructions
Step 3
Repeat step 2 to install the
center connector with ring
4 . Tighten all the screws
and seal them with
A
caps & .
B E
2
C
A
B
D
E
4
4
3
3
Step 4
Turn the table top 1 to
its upright position and
please remove the cap if
you want to insert parasol.
Assembly is complete.
cap
Warning:
The parasol must be
placed into the parasol's
base if the table set need
to match a parasol.
If you need help or have damaged or missing parts, call the
For further assistance please visit http://www.argos-support.co.uk/
Argos Limite d
489-499 Avebury
Boulevard Saxon Gate West Central Milton K eynes B ucks,MK9 2 NW
Customer Helpline: 0 3 4 56 4 00800
4
Page 6
Glass Guidelines
During assembly do not lay the glass directly onto hard or rough surfaces.
We recommend laying the glass on a blanket or cardboard during
assembly. You could even use the box.
When lifting or moving the product, ask for someone to lend a hand, trying
to move a product on your own can lead to accidents.
Do not use furniture if any parts are missing or broken. Contact your
retailer immediately.
Do not place very hot or very cold items, such as saucepans or barbecues,
directly on the glass surface. Extreme temperature differences over small
areas can damage glass.
Do not sit or stand upon the glass surface.
Do not strike the glass with hard or pointed items, or use the glass as a
chopping surface.
Do not drag rough or heavy objects over the top of the glass.
We recommend using place mats, coasters and table cloths to help
protect against scratches and accidentally dropped items.
Clean the glass regularly to make sure there are no grit on the top.
Do not clean glass with washing powders or any other substances
containing abrasives, since these substances can scratch glass.
For tables that can be used outdoors, if your table has a parasol, make
sure the edge of the parasol cut-out has a protector in place. In addition
always use a weighted parasol base, and remove the parasol in windy
conditions. Parasols can put pressure on the table top or even blow the
table over in windy weather.
For tables that can be used outdoors it is advised that the table is kept
covered when not in use to protect the glass from the weather and
accidental damage.
