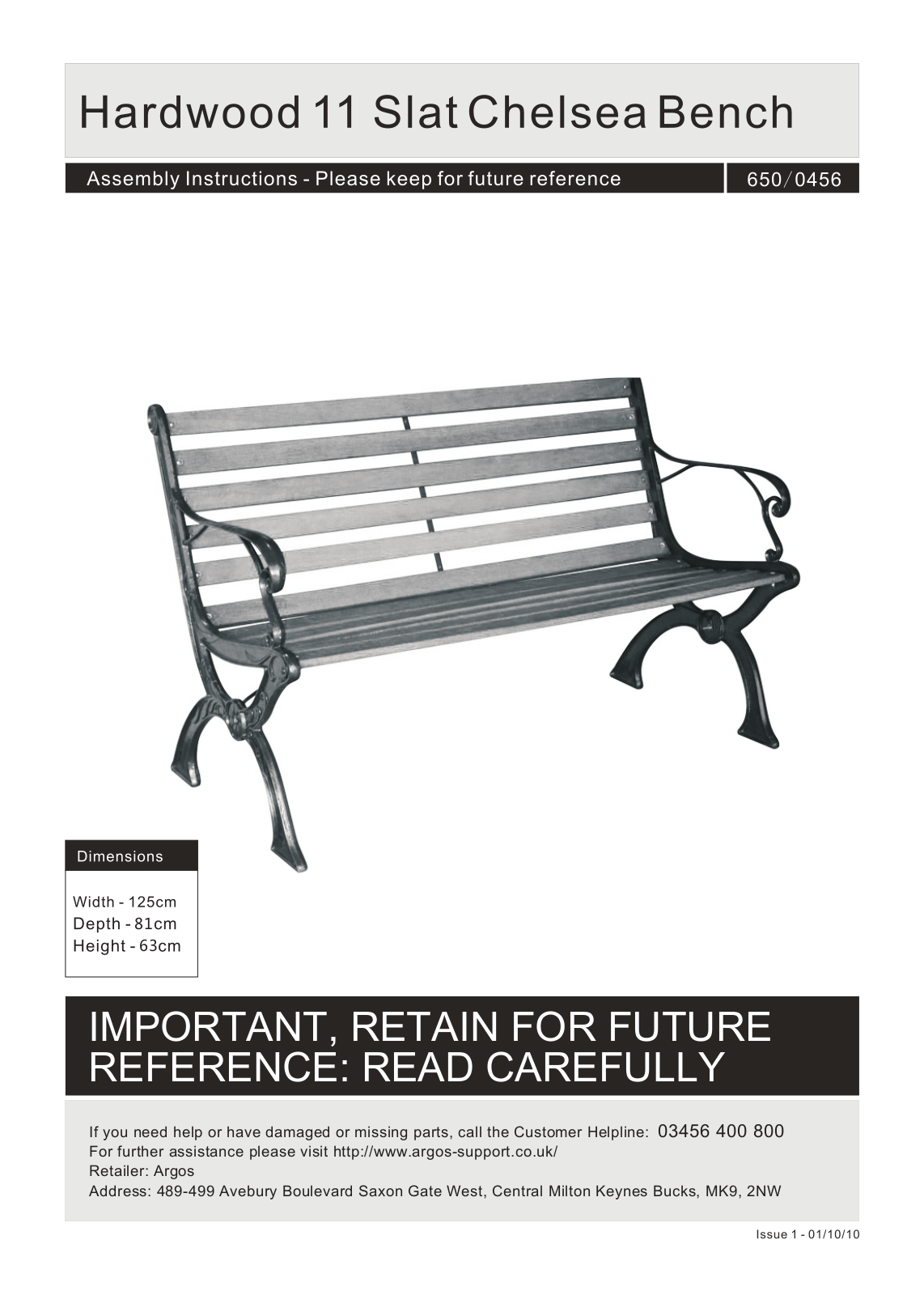

Page 1
81
63
IMPORTANT, RETAIN FOR FUTURE
REFERENCE: READ CAREFULLY
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400 800
For further assistance please visit http://www.argos-support.co.uk/
Retailer: Argos
Address: 489-499 Avebury Boulevard Saxon Gate West, Central Milton Keynes Bucks, MK9, 2NW

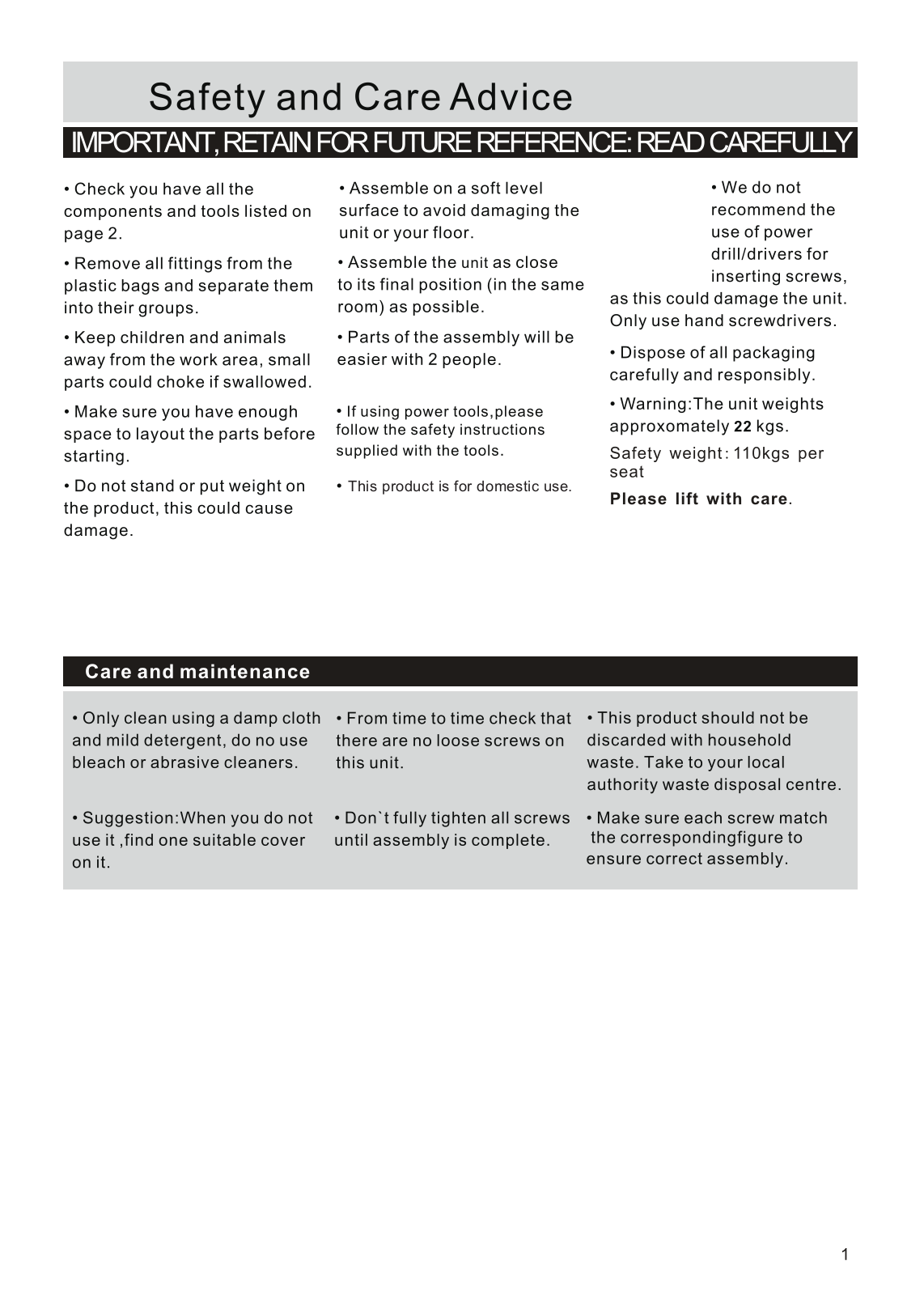

Page 2
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
This product is for domestic use.

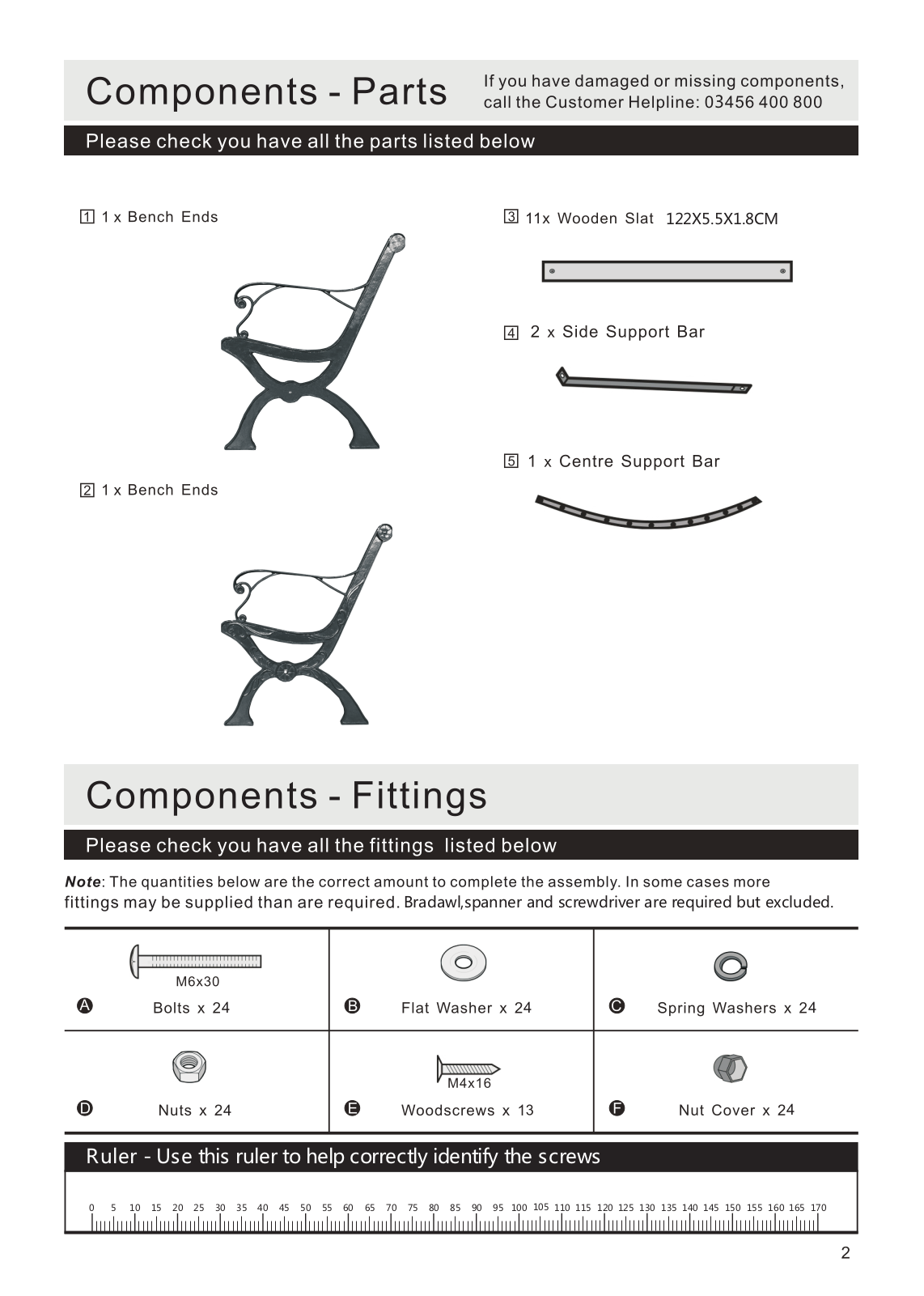

Page 3
3
11
122X5.5X1.8CM
Bradawl,spanner and screwdriver are required but excluded.
4
4
4
Ruler - Use this ruler to help correctly identify the screws
105
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100
110 115 120 125 130 135 140 145 150 155 160 165 170
4
4

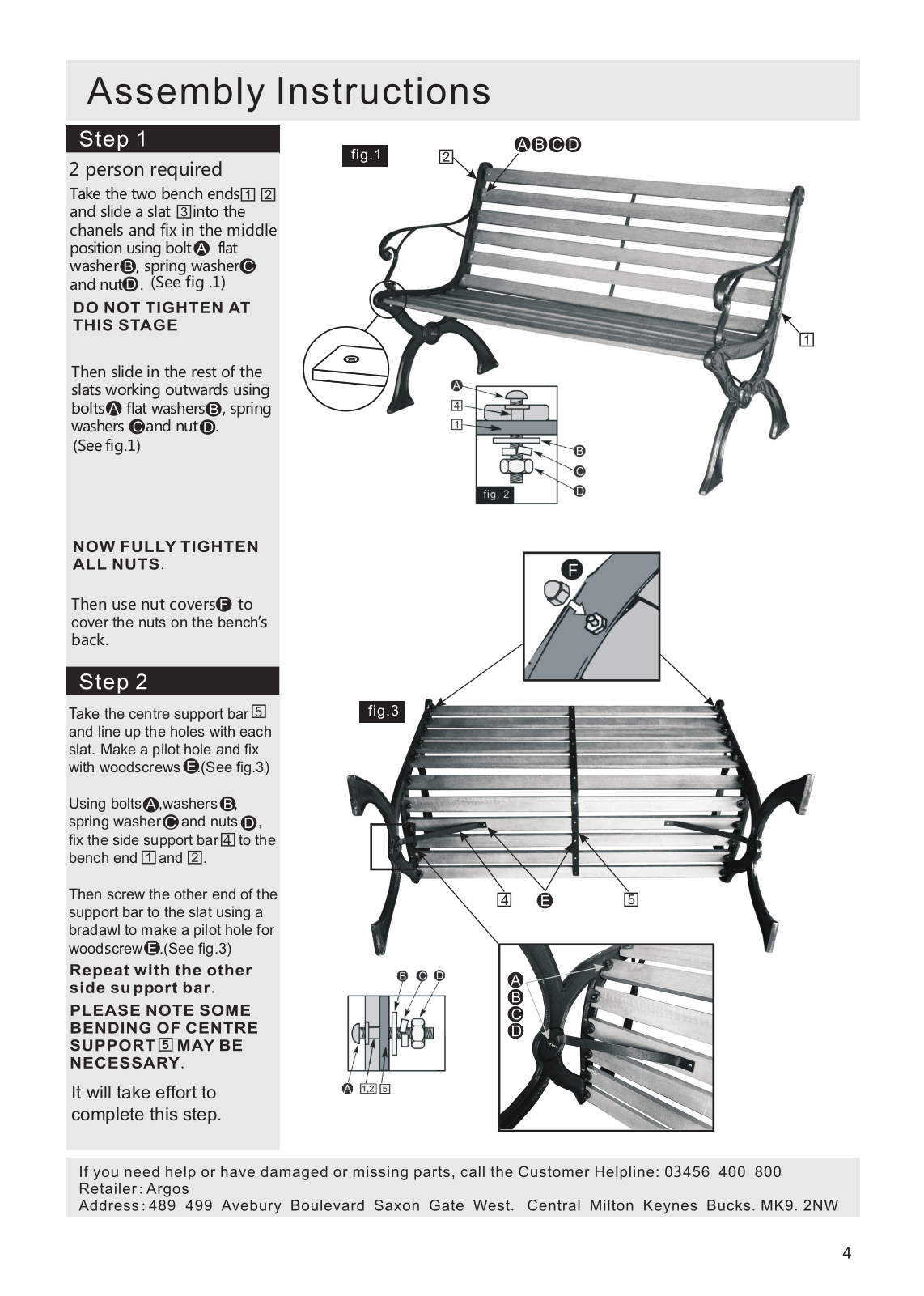

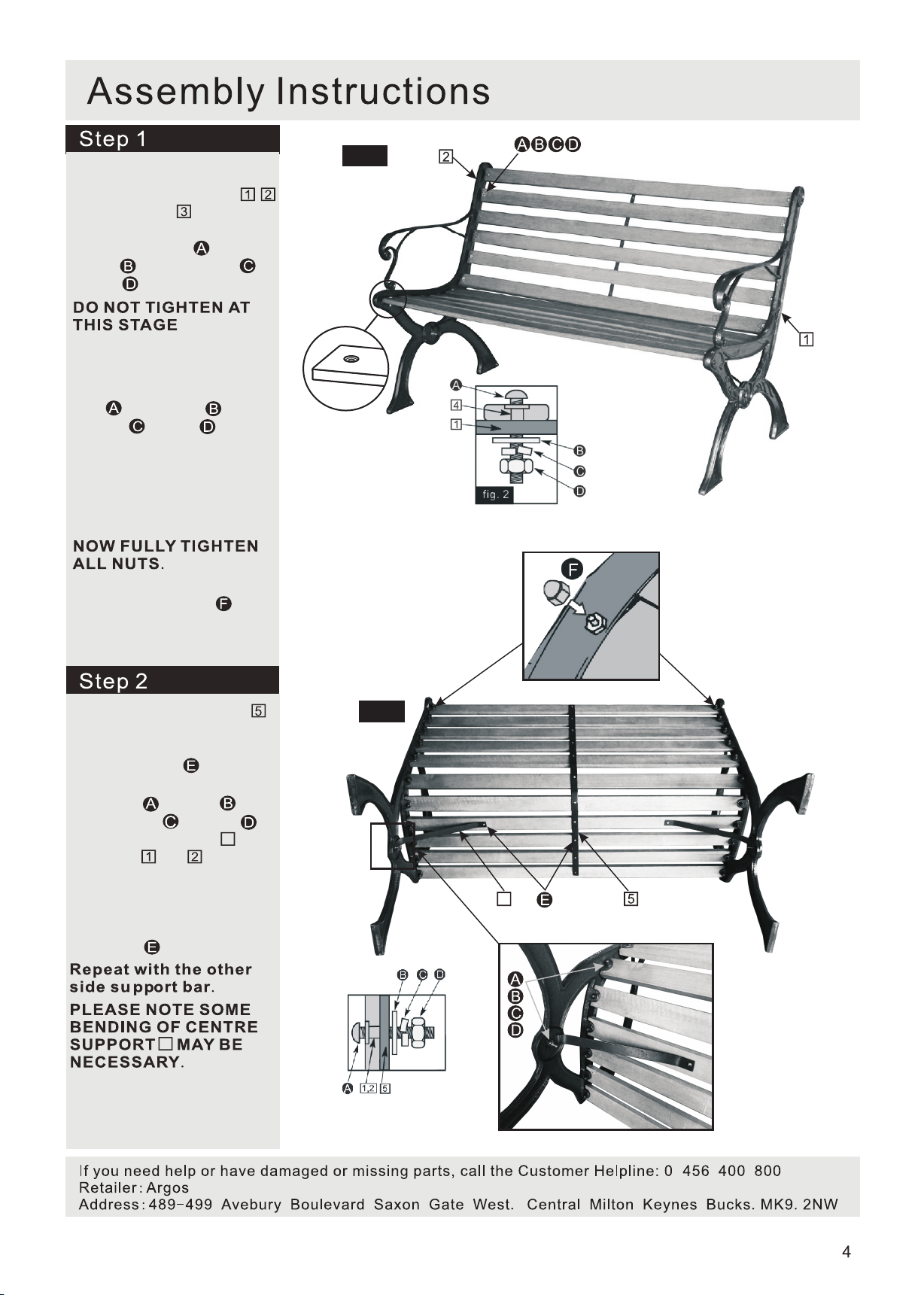

Page 4
2 person required
Take the two bench ends
and slide a slat into the
chanels and fix in the middle
position using bolt flat
washer , spring washer
and nut .
Then slide in the rest of the
slats working outwards using
bolts flat washers , spring
washers and nut .
(See
fig.1)
(See fig .1)
fig.1
Then use nut covers to
cover the nuts on the bench,s
back.
Take the centre support bar
and line up the holes with each
slat. Make a pilot hole and fix
with woodscrews .(See fig.3)
Using bolts ,washers ,
spring washer and nuts ,
fix the side support bar to the
bench end and .
Then screw the other end of the
support bar to the slat using a
bradawl to make a pilot hole for
woodscrew .(See fig.3)
4
fig.3
4
5
It will take effort to
complete this step.
3
