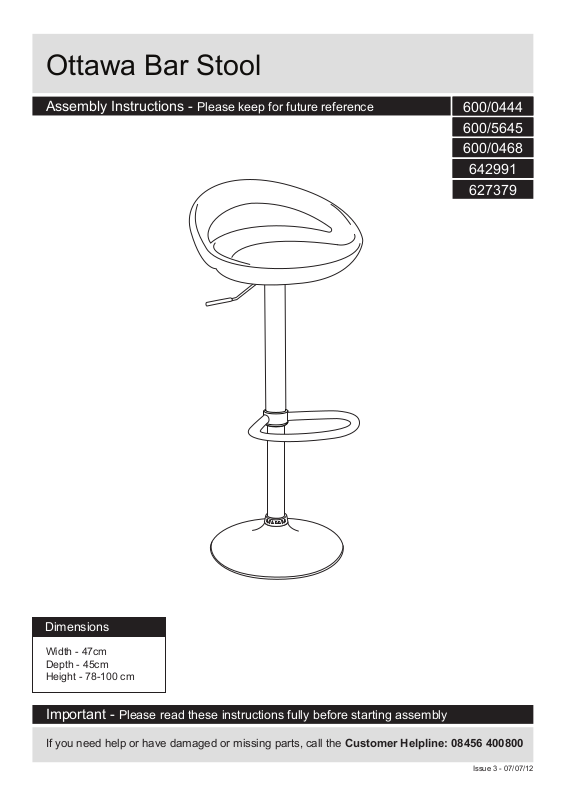

Page 1
Ottawa Bar Stool
Assembly Instructions - Please keep for future reference
600/0444
600/5645
600/0468
642991
627379
Dimensions
Width - 47cm
Depth - 45cm
Height - 78-100 cm
Important - Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Issue 3 - 07/07/12
Page 2
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• We suggest you spend a short
time reading through this leaflet
and follow the simple step by
step assembly instructions.
• Do not discard any of the
packaging until you have
checked that you have all the
parts and the pack of fittings.
• Assemble this product on a
flat surface.
Warnings
• Do not stand on the stool.
• Do not use the stool as a step
ladder.
• Assemble all parts loosely
before tightening any bolts.
• Discard all extra fittings and
keep fittings out of reach of
children.
• Unit weight: 6.3kgs.
• Maximum safe weight of user:
100kgs.
• Retain Assembly Instructions
for future reference.
• Do not sit with sharp objects in
back pockets as this may
damage the seat surface.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Dispose of all packaging care
fully and responsibly.
• Do not knock the surface of
the seat against sharp solid
surfaces.
Care and maintenance
• Please clean the seat surface
using either damp (not wet)
cloth and a mild domestic soap
solution or by using an
appropriate polish.
• Do not use any abrasive
materials when cleaning.
• From time to time check that
there are no loose bolts on
this unit.
1
Page 3
If you have damaged or missing components,
Components - Parts
call the Customer Helpline: 08456 400800
Please check you have all the parts listed below
1
Seat
(41 x 47 x 23.5cm)
4
Footrest
(29 x 21 x 3.3cm)
2
Upper leg
(Ø5.8 x 39.5 x 16cm)
5
Decor ring
(Ø6.3 x 7.5 x 2.2cm)
3
Gaslift
(Ø5 x 50-72cm)
6
Base
(Ø38.5 x 8.5cm)
Components - Fittings
Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases more
fittings may be supplied than are required.
A
M6 x 15mm Bolt x 4 Washer x 4
D
Allen key x 1
B
Tools required
Crosshead
Screwdriver
C
Stud bolt x 1
2
Page 4
Assembly Instructions
Step 1
Attaching upper leg
Place the seat upside
1
down on a flat protected
surface. Position the
upper leg and make
2
sure that the lever is at
your left hand side as
shown in the diagram.
Secure using washer
and bolt . Tighten bolts
A
B
using a screwdriver.
Step 2
Attaching footrest
Connect the footrest
into the upper leg by
turning it clockwise.
4
2
Lever
A
2
A
A
B
B
1
A
A
B
B
2
2
1
4
B
Step 3
Step 3
Attaching gaslift
Place the base on a
6
flat protected surface.
Position the decor ring
5
on the base and
insert the gaslift into
3
the decor ring and hole
of the base.
Important:
Remove plastic tip
cover on
gaslift before
assembling.
3
Plastic tip
3
5
6
Page 5
Assembly Instructions
Step 4
Step 3
Attaching the seat
Position the seat as
shown and insert the
gaslift into the upper
leg . Secure by
pressing down the
seat firmly.
3
2
2
4
3
Step 5
Securing footrest
Adjust the footrest
and make sure to centre
align it with the seat .
Then secure using stud
C
bolt as shown and
tighten using allen key .
Gaslift operation
To adjust the seat higher,
lift up the lever under the
seat and release at
desired height.
To lower the seat, lift up
the lever while seated on
the stool.
4
1
D
Lever
1
C
4
C
D
2
Assembly is complete.
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
