Argos Valencia - Corner Wall Cabinet, 633-2992, 633-2978, 205-3079, 633-2985 ASSEMBLY INSTRUCTIONS
...
MADE IN
BRITAIN
Dimensions
Width - 57cm
Depth - 57cm
Height - 72cm
Valencia - Corner Wall Cabinet
Assembly Instructions - Please keep for future reference
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Issue 2 - 05/08/14
Important - Please read these instructions fully before starting assembly
656/5752
633/2992
633/2978
205/3079
633/2985
203/7215
hygena
Black Door Pack
Cream Door Pack
Oak Door Pack
White Gloss Door Pack
White HN Door Pack
Cabinet
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 16kgs.
Please lift with care.
• Check you have all the
components and tools listed on
pages 2 to 5.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.
Tools required
Rule Scissors Hammer
Eye protection
(when using a
hammer or drill)
Cross-head
screwdriver
Electric drill
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Safety note: It is
recommended that this unit is
secured to a wall using the
brackets supplied.
• Dispose of all packaging
carefully and responsibly.
Components - Panels
Please check you have all the panels listed below
2
1
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
4
2 3
Top/Base (DPF101A)
(566 x 566mm) x 2
Loose Shelf (DPF102A)
(545 x 545mm)
Back (DPF103A)
(205 x 684mm)
End Panel (DPF141A)
(320 x 716 mm) x 2
5 6
Left Back Panel (DPF104A)
(430 x 694 mm)
Right Back Panel (DPF105A)
(430 x 694 mm)
Door (DPF144B)
(238 x 716mm) x 2
7
Please check you have all the fittings listed below
3
Components - Fittings
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
A
Wooden dowel (F22) x 12
B
Metal dowel (F901) x 8
C
D
Large locking
nut (F900) x 8
F
G H
K
I
13mm Screw (F63) x 8
E
19mm Connecting bolt (F461) x 2
25mm Screw (F50) x 4
Connecting Sleeve (F432) x 2
Shelf support (F110) x 5
J
Wall bracket (F198) x 2
Hanging bracket
(F849) x 2
L
N
Q
40mm Screw (F910) x 2
Bent
Hinge
Arm (F154)
x 2
M
Cantilevered
Hinge Arm
(F155) x 2
O
Nail (F51) x 8
P
Soft Close
Unit (F156)
x 2
2mm Hinge
Plate (F157) x 2
4mm Hinge
Plate (F158) x 2
RRa
b
25mm Screw (F132) x 2
Handle (F214) x 1
Ruler - Use this ruler to help correctly identify the screws
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
Assembly Instructions
4
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Step 1
Step 2
Choose which way
you would like the
door to open
You can fit the door to
the left side or right side.
If you would like your door
to open this way, fit the
hinge plates to the left side
If you would like your door
to open this way, fit the
hinge plates to the right side
Q
Prepare the left end
panel
Refer to step 1 and, if
required, fit 2 hinge
plates onto the left
end panel , orientated
as shown.
Screw 4 metal dowels
into the holes shown on
the left end panel .
Note: Tighten metal
dowels up fully against
the panels.
Fit a hanging bracket
to the left side using
2 screws , making
sure that the hook is
towards the back edge.
4
B
4
B
Q
Q
B
B
B
B
This will be the
left end panel
4
J
G
G
J
4
G
Q K
H=2H=4
H=4
H=2
Q
Assembly Instructions
5
Step 3
Step 4
Prepare the top and
base
Insert 4 large locking
nuts into the top
and base as shown.
Note: Arrow on locking
nut must point towards
hole in edge of panel.
Tap 4 wooden dowels
into the top and base
. as shown.
Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.
C
C
1
1
10mm
A
A
1
1
B
B
B
B
4
This will be the
right end panel
Q
Prepare the right end
panel
Refer to step 1 and, if
required, fit 2 hinge
plates onto the right
end panel , orientated
as shown.
Screw 4 metal dowels
into the holes shown on
the right end panel .
Note: Tighten metal
dowels up fully against
the panels.
Fit a hanging bracket
to the right side using
2 screws , making
sure that the hook is
towards the back edge.
4
B
4
J
4
G
J
G
G
Q
Q
C
C
C
C
A
A
A
A
1
C
C
C
C
A
A
A
A
1
Q K
H=2H=4
H=4
H=2
Q
Assembly Instructions
6
Step 5
Step 6
Join the right end
panel and base
Push the base onto
the right end panel .

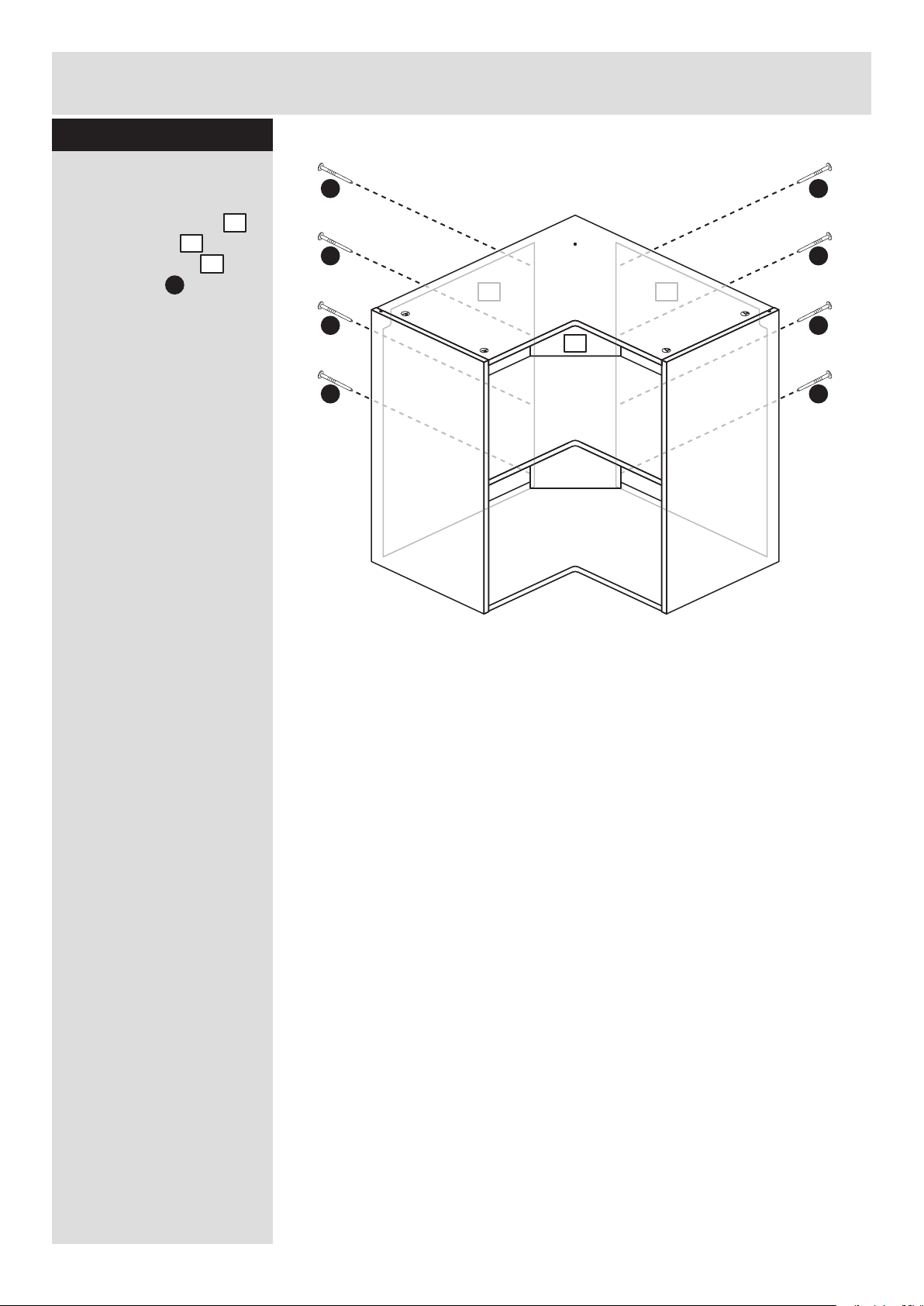

Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the base .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
1
1
4
C
C
B
C
1
4
1
4
A
A

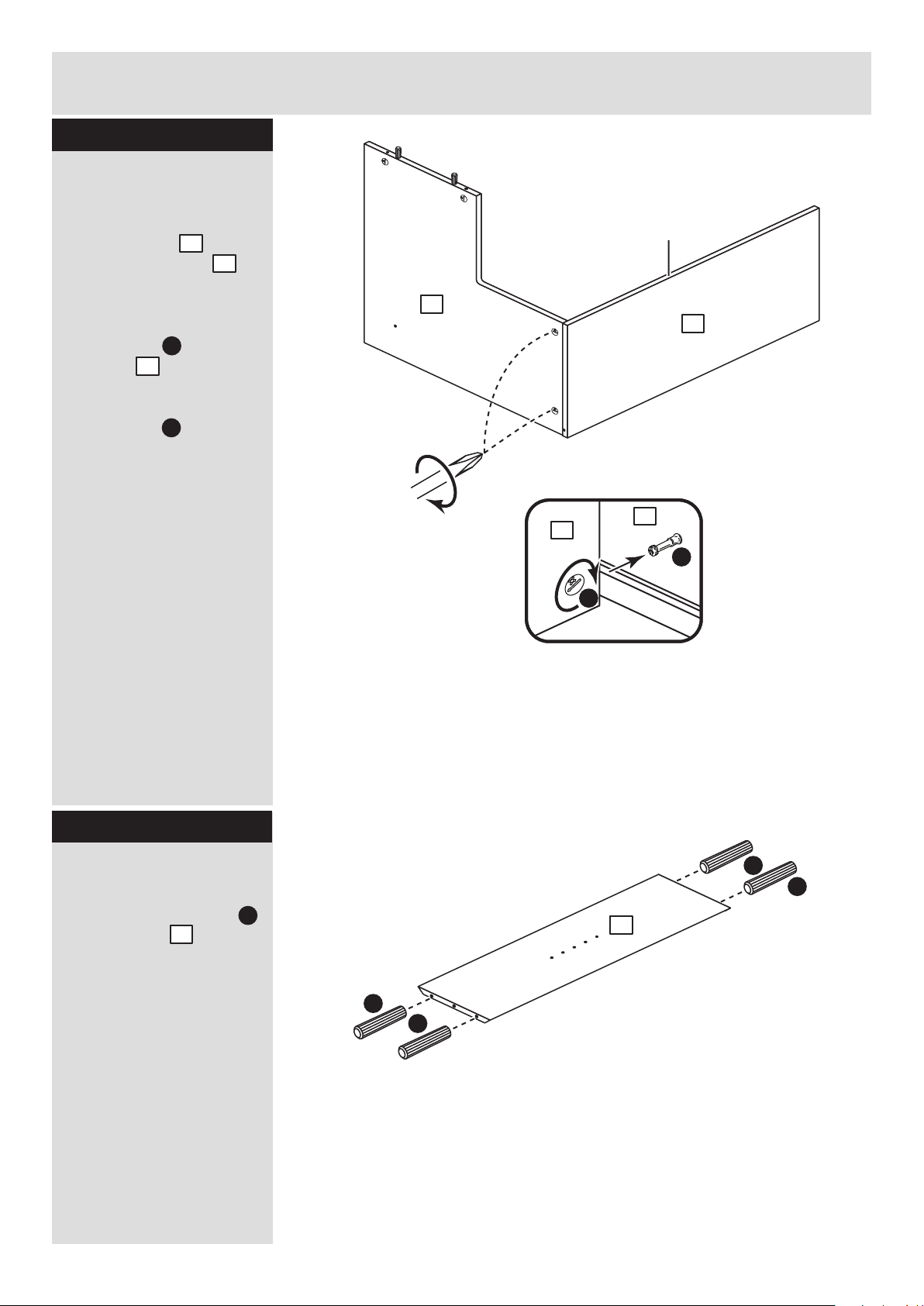

Prepare the back
Tap 4 wooden dowels
into the back as
shown.
A
3
A
A
3
Finished
front edge
L
Assembly Instructions
7
Step 7
Step 8
L
3
1
Fit the back
Push the back onto
the base and secure
with screw .
Fit the top
Push the top onto
the right end panel
and back .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the top .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
Secure the back to
the top with screw
. .
4
3
1
1
C
C
L
3
1
1
L
1
4
3
3
Assembly Instructions
8
Step 9
Step 10

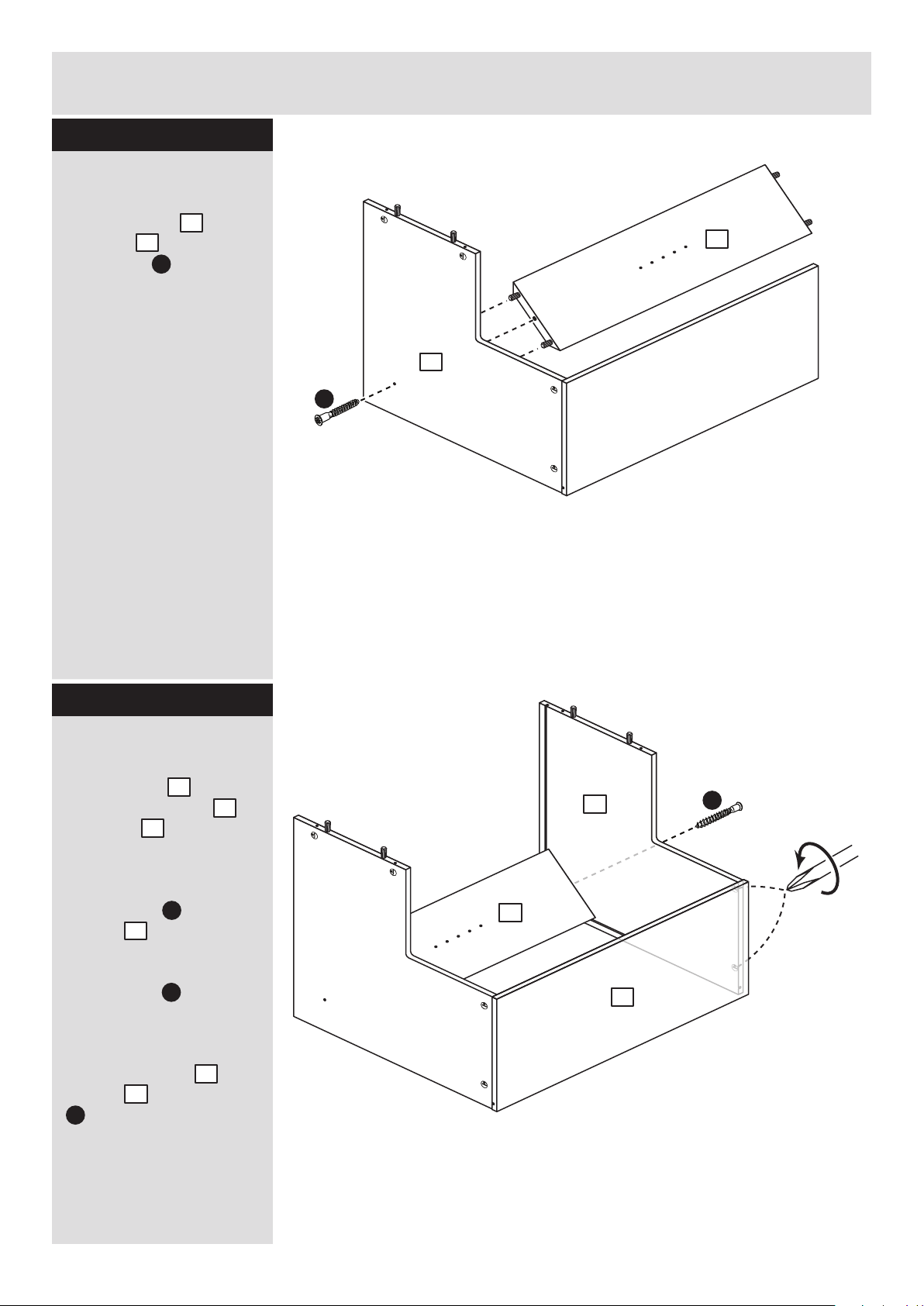

Fit the left end panel
Push the left end panel
. onto the base
and top .
Use a screwdriver to
tighten the 4 large
locking nuts fitted to
the base and top .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
1
1
4
1 1
C
C

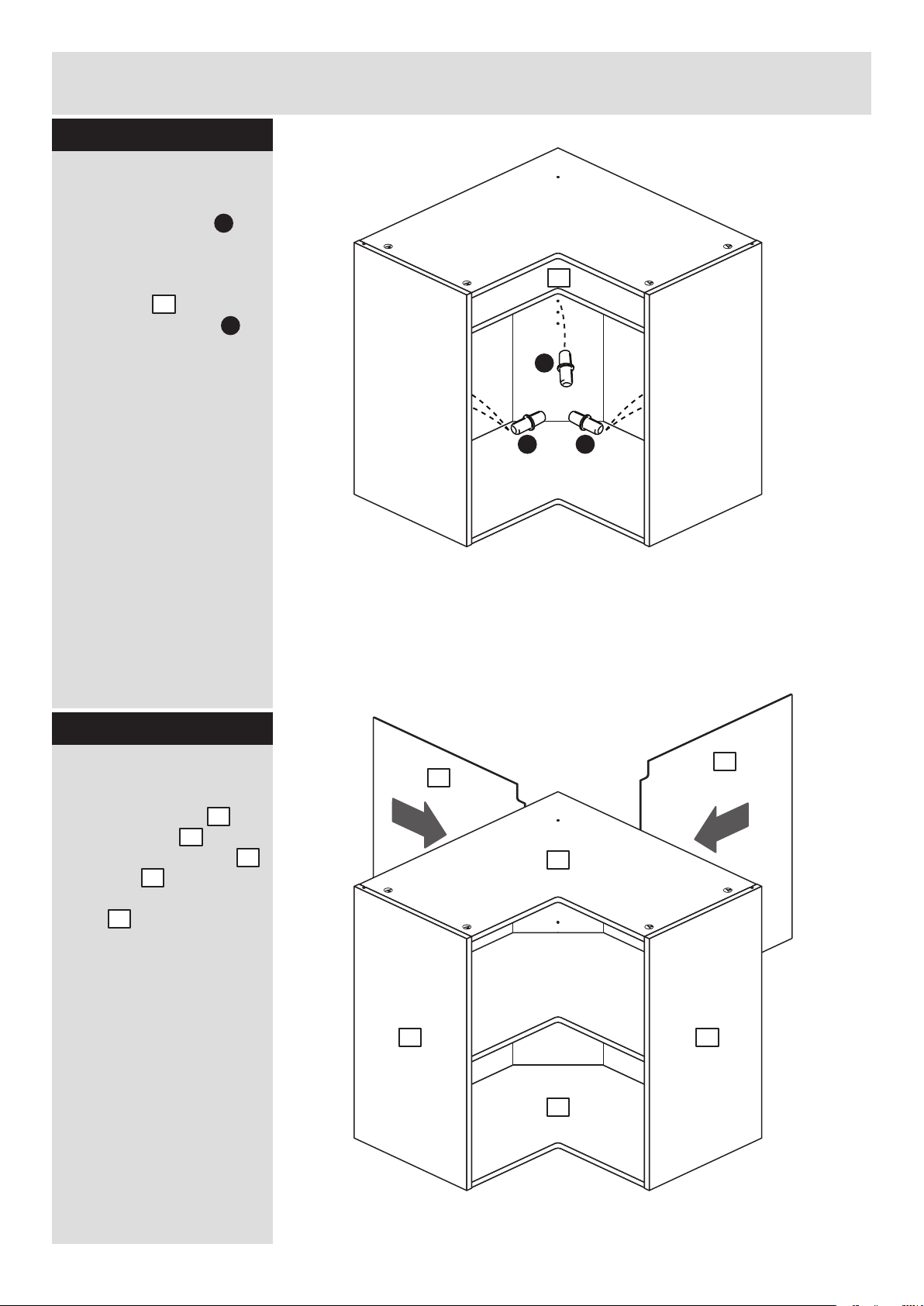

Insert the loose shelf
Place the loose shelf
inside the unit.
2
2
4
1
1
Assembly Instructions
9
Step 11
Step 12
H
H H
x 2 x 2
Fit the loose shelf
Insert 5 shelf studs at
the required height.
Lift and then lower the
loose shelf down
onto the shelf studs .
H
H
2
2
Fit the backs
Slide the left back
and right back along
the grooves in the top
and base and into
the grooves in the panel
ends .
5
6
1
4
1
5
6
1
1
4 4
Assembly Instructions
10
Step 13
O
Fit right back
Secure the left back
and right back to the
sides of the back
using 8 nails .
5 6
5
6
3
O
O
O
O
O
O
O
O
3
I
I
Assembly Instructions
11
Step 14
18mm
37mm
I
18mm
37mm
I
To adjust the height of
the unit on the wall,
turn the bottom screw
Pull the unit up
against the wall
by tightening
the top screw
J
I
Warning: The
unit is heavy.
Lift with care.
Fit the unit to the wall
If you are joining this unit
to another one, also refer
to step 10.
To fix the unit to the wall,
place the unit in the
required position and
lightly mark the outline of
the top corners of the
unit with a pencil.
Fit the 2 wall brackets
to the dimensions shown
in the top diagram.
The screws and plugs
are not supplied as they
need to be the correct
type to suit your wall.
Place your unit onto the
wall brackets , via the
hanging brackets
which you have fitted to
the end panels of the
unit.
Use the screw in the
bottom of the wall
brackets to adjust the
height of the unit.
Finally, pull the unit up
against the wall by
tightening up the top
screw in the hanging
brackets .
Warning: Take
care when
drilling the wall
that you do not drill into
any pipes, wires etc. If in
doubt, consult an expert.
I
I
J
4
J
J
4 4
Assembly Instructions
12
Step 15
5mm
Joining units together
Fittings have been
supplied so you are able
to join units together.
Make sure that your first
unit is level.
Push the other unit up
against first unit and
ensure both units are
level.
Check that the ends are
flush and in line, then
clamp them together.
Using a 5mm drill bit,
drill 2 holes (approximate
positions shown circled)
in the side panel into the
adjoining side panel of
the other unit.
Push the connecting
sleeves into the holes
and then screw the
connecting bolts in
from the other side.
E
F
E
F
7
Assembly Instructions
13
Step 16
K
K
a:
b:
90
M
H=2
H=2
H=4
H=4
K Q
K
N

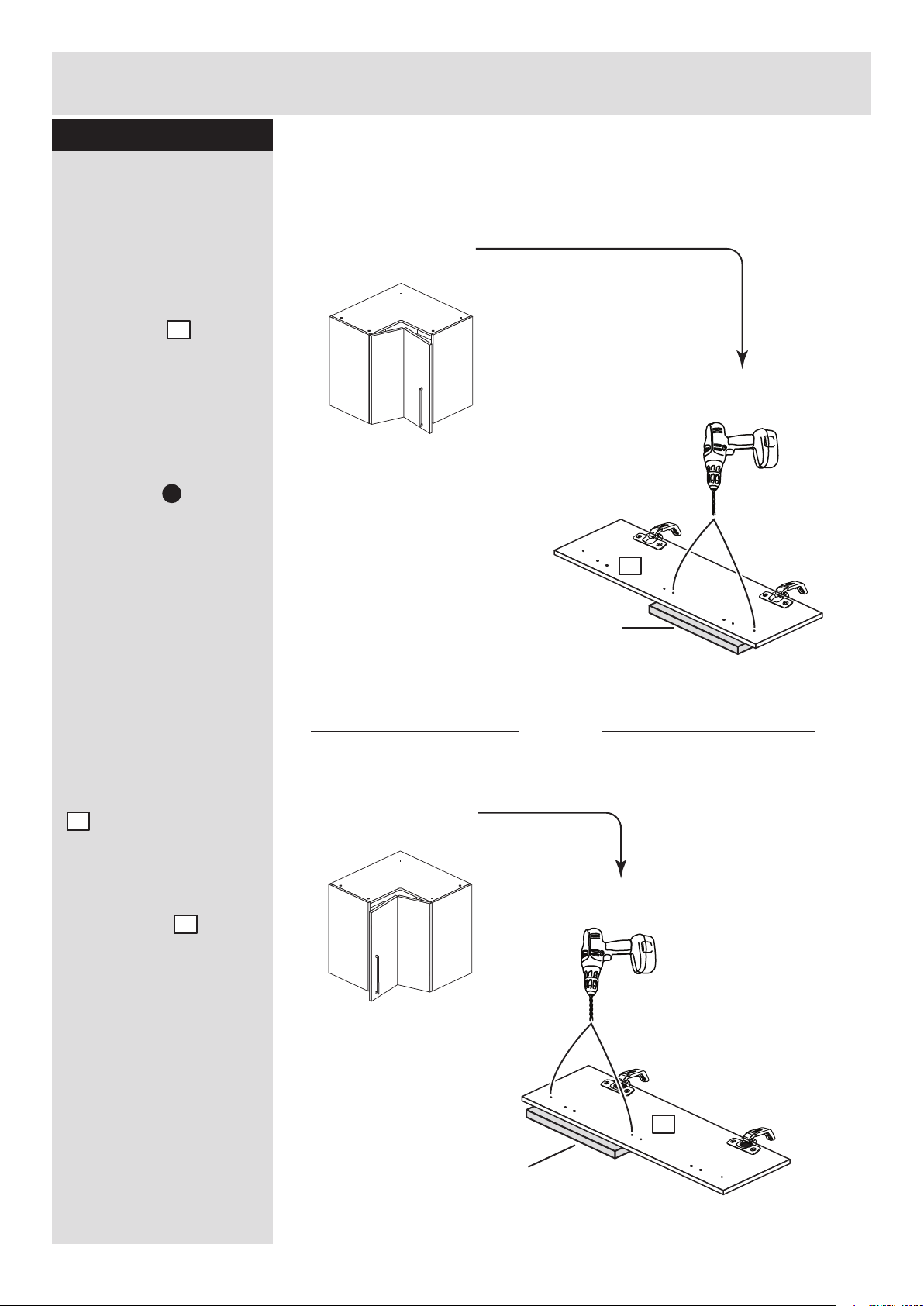

Prepare 1 of the doors
to be the carcase
door
a: Fit 2 hinge plates
onto a door , making
sure that they face the
same way as the
diagram.
b: Push fit 2
cantilevered hinge arms
. into the door .
Secure each hinge arm
with 2 screws .
Note: Before securing
with the screws, make
sure that the hinges are
positioned at 90 degrees
with the front edge of the
door.
7
P
D
7
7
D
D
D
D
M
M
Assembly Instructions
14
Step 17

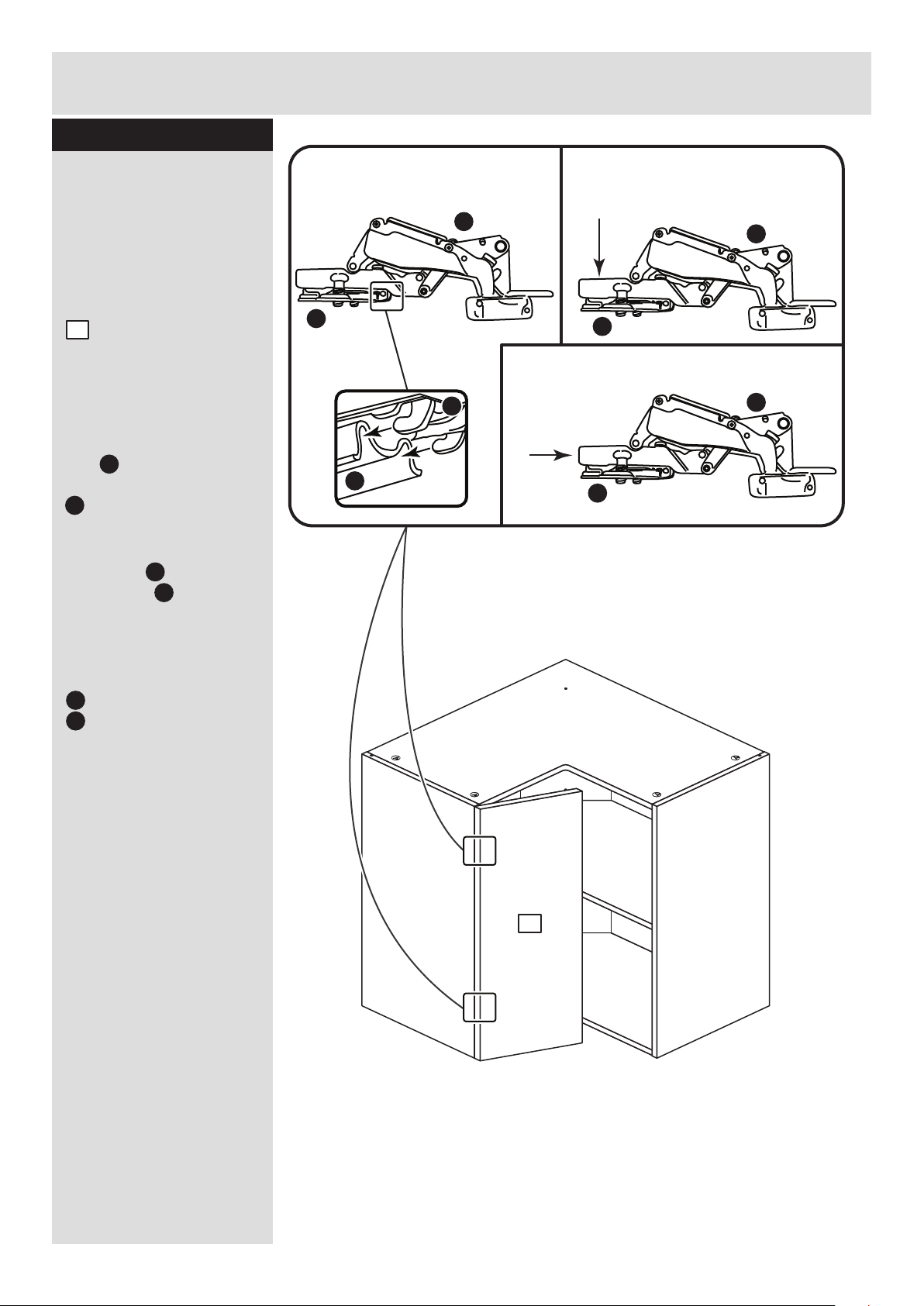

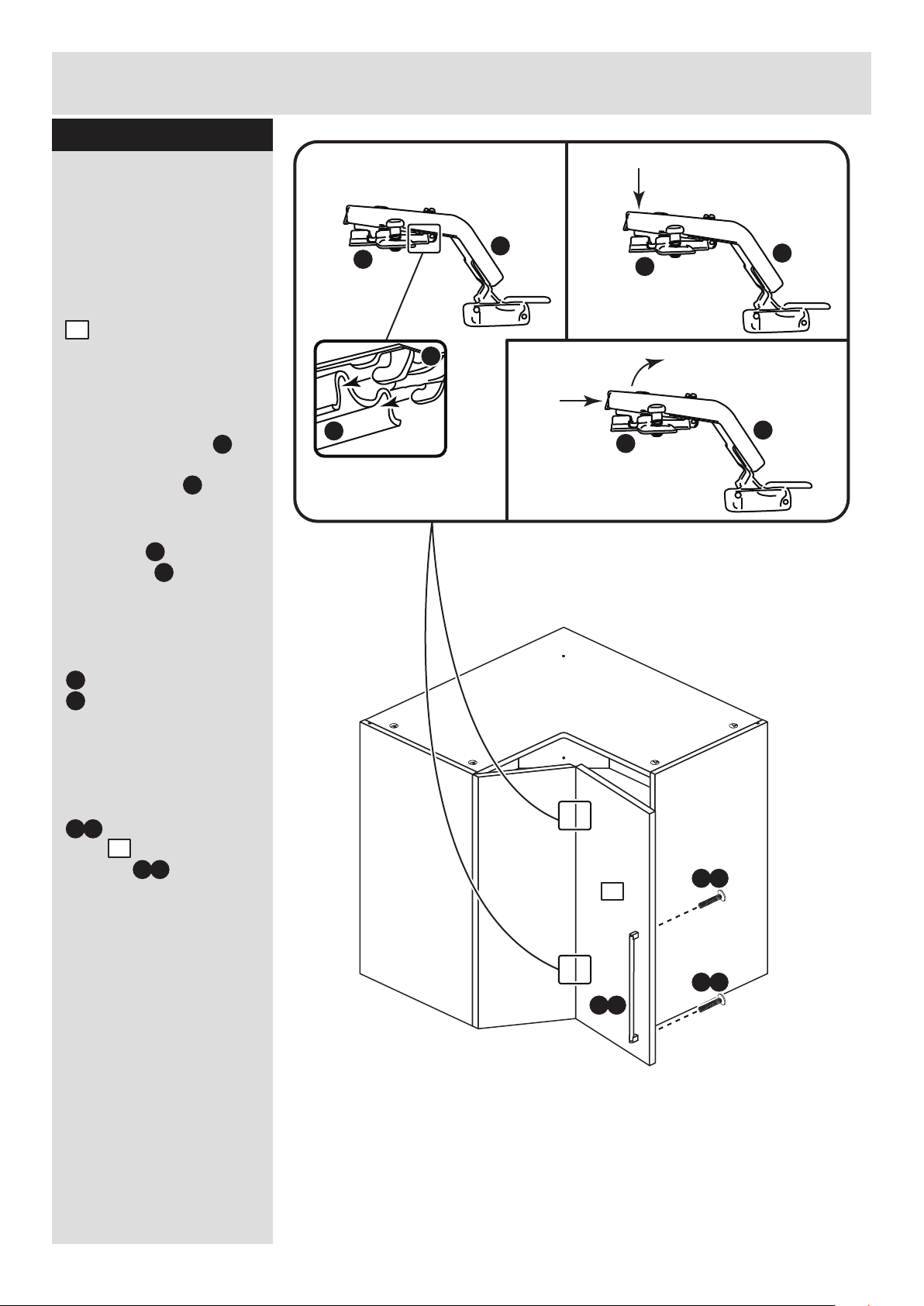

Fit the carcase door
2 people are needed
here
Note: The easiest way to
attach the carcase door
. is to fit the top hinge
first, then align and fit the
other hinge.
a: Push the hooks on
the cantilevered hinge
arm underneath the
front of the hinge plate
. .
b: Press the front of the
hinge arm against the
hinge plate until it
clicks into place.
c: If you need to
seperate the hinge arm
. from the hinge plate,
. press the button at
the end of the hinge arm
and lift it off of the hinge
plate.
Q
M
Q
M
7
M
Q
This shows the carcase door being fitted
to hinge plates on the left side.
You may have fitted them to the right side.
7
a:
b:
c:
Push and click
Push
M
M
M
Q
Q
Q
Q
M
7
Assembly Instructions
15
Step 18
90
D
D
D
D
Prepare the other
door to be the hinged
door
Push fit 2 bent hinge
arms into the other
door .
Secure each hinge arm
with 2 screws .
Note: Before securing
with the screws, make
sure that the hinges are
positioned at 90 degrees
with the front edge of the
door.
N
N
O
N
7
D
Assembly Instructions
16
Step 19
Drill the handle holes
in the hinged door
Important: Please follow
these instructions
carefully.
Lay the door down
onto a smooth surface.
Important: Carefully
choose which holes you
need to drill.
This will depend on
which side you fitted the
hinge plates .
Check that the holes and
hinges are in the same
place as the diagrams.
Note: We recommend
the use of a small piece
of waste wood, placed
behind the hole while
drilling, to reduce the
possibility of any
breakout.
Using the pilot hole in
the rear face of the door,
. drill through the
holes indicated opposite,
using a 2.5mm diameter
drill.
Turn the door over
and open out the 2.5mm
holes that you have just
drilled by drilling back
through them with a
5mm drill.
Note: Drill bits are not
provided.
7
K
7
7
Drill these 2 holes if
you have fitted the
hinges to the left side.
Drill these 2 holes if
you have fitted the
hinges to the right side.
or
Small piece of
waste wood
ONLY drill
these 2 holes
DO NOT drill
any other holes
7
ONLY drill
these 2 holes
Small piece of
waste wood
DO NOT drill
any other holes
7
PLEASE FOLLOW THESE INSTRUCTIONS CAREFULLY
TO CHOOSE WHICH 2 HOLES YOU WILL NEED TO DRILL
Assembly Instructions
17
Step 20
This shows the hinged door being fitted to
carcase door on the left side.
You may have fitted it to the right side.
Fit the hinged door
2 people are needed
here
Note: The easiest way to
attach the hinged door
. is to fit the top hinge
first, then align and fit the
other hinge.
a: Push the hooks on
the bent hinge arm
underneath the front of
the hinge plate .
b: Press the front of the
hinge arm against the
hinge plate until it
clicks into place.
c: If you need to
seperate the hinge arm
. from the hinge plate,
. press the button at
the end of the hinge arm
and lift it off of the hinge
plate.
d: Attach the handle
. supplied with the
door using the
screw(s) packed
with it.
K
N
K
N
7
N
K
R a
R b
7
7
R b
R b
R a
a:
b:
c:
Push and click
Push
K
N
K
N
K
N
K
N
Assembly Instructions
18
Step 21
Fit the soft close unit
Push a soft close unit
onto each cantileved
hinge arm until it
clicks into place.
P
M
Step 22
P
M
Adjust the doors if
needed
Adjust the hinge plates
and arms by turning the
screws on them
clockwise or anticlockwise.
Assembly Instructions
19 ALR2664
Step 23
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
and quote the reference numbers on the component pages.
Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW
Fit other products to
the unit
To fit other products to
this unit, please follow
the instructions packed
with them.
We recommend that you
consult a qualified joiner
or kitchen fitter.
Assembly is complete
Warning: The
unit is heavy.
Lift with care.
Loading...
