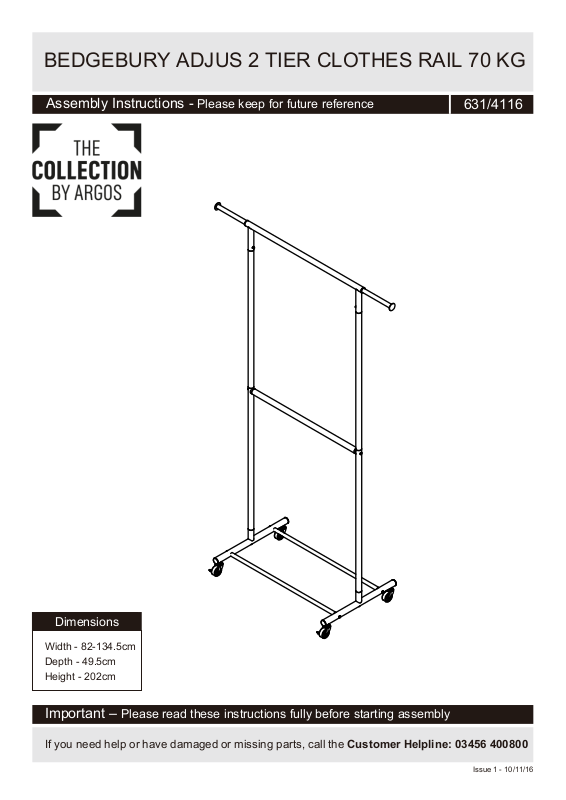

BEDGEBURY ADJUS 2 TIER CLOTHES RAIL 70 KG
Assembly Instructions -
Please keep for future reference
631/4116
Dimensions
Width - 82-134.5cm
Depth - 49.5cm
Height - 202cm
Important – Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800
Issue 1 - 10/11/16
Page 2
Safety and Care Advice
Important – Please read these instructions fully before starting assembly
• Check you have all the
components and tools listed on
the following pages.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Make sure you have enough
space to layout the parts before
starting.
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• During assembly do not stand
or put weight on the product,
this could cause damage.
• Assemble the item as close
to its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor.
• Parts of the assembly will be
easier with 2 people.
• From time to time check that
there are no loose screws on
this unit.
• To reduce
the likelihood of
damaging your
product please
ensure that your
power drill is set on a low torque
setting.
• This product should not be
discarded with household waste.
Take to your local authority
waste disposal centre.
Handy Hints
• Assemble all parts and bolts
loosely during assembly, only
once the product is complete
should you fully tighten the bolts
• Regularly check and ensure
that all bolts and fittings are
tightened properly.
No t e: If required the nex t
page can be cut out and used
as reference thro ugho ut the
assembly. Keep this pag e with
these instructions fo r futu re
reference.
1
Page 3
Components - Parts
If you have damaged or missing components,
call the Customer Helpline: 03456 400800
Please check you have all the parts listed below
Top Rail x 1
1
(19 x 0.47 x 70 mm)
Base x 2
4
Upper Rail x 2
2
( 29 x 0.65 x 910 mm)
Center Rail x 1
5
( 29 x 0.65 x 715 mm)
Lower Rail x 2
3
(29 x 0.65 x 910 mm)
Bottom Rail x 2
6
( 19 X 0.47 X 722 mm)
Components - Fittings
Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases more
fittings may be supplied than are required.
A
Screw x 2
E
Allen Key x 1
B
Hexscoket Screw x 6
F
Regular Castor x 2
C
Spacer x 2
G
Castor with brack x 2
D
End Cap x 4
H
Hex Key x 1
2
Page 4
Assembly Instructions
Step 1
1. Connect Upper Tube
2
together with Lower
Tube first and then
assemble Base
using Screw and
Allen Key .
3
4
A
E
2
2. Insert End Cap to
Base .
4
3. Assemble Castor and
using Hex Key .
D
F
HG
see fig.1
Step 2
1. Put Spacer in
between when
connecting Center Rail
5
. Tighten it up using
Hex Scoket Screw
and Allen Key .
C
B
E
3
4
D
H
G
F
A
E
fig. 1
E
5
C
2. Connect Bottom Rail
with Base using Hex
Scoket Screw .
4
B
see fig.2
3
6
B
4
6
B
fig. 2
Page 5
Assembly Instructions
Step 3
1. Connect Top Rail .
see fig.3
1
1
Step 2
The unit is complete.
see fig.4
Important Note:
The Maximun Safe Load
for each rail is 35 kg.
Evenly distributed.
fig. 3
fig. 4
4
