Page 1

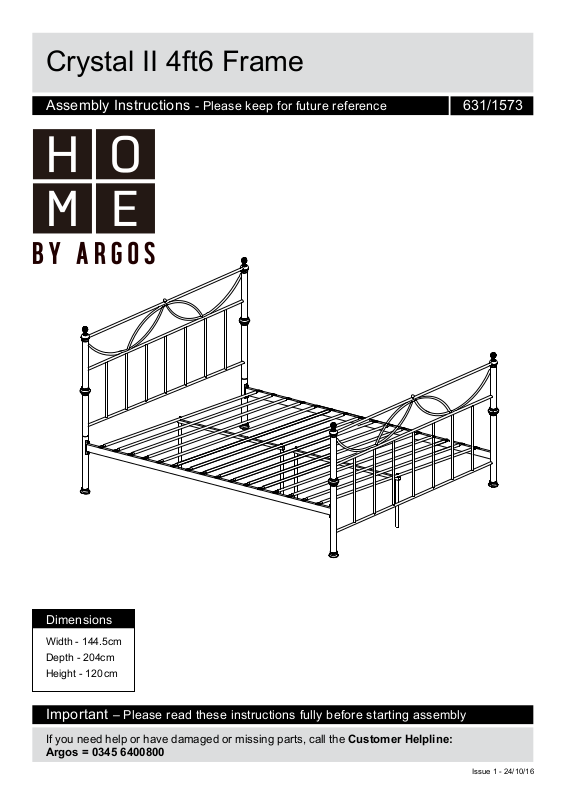

Crystal II 4ft6 Frame
Assembly Instructions - Please keep for future reference 631/1573
Dimensions
Width - 144.5cm
Depth - 204cm
Height - 120cm
Important – Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 0345 6400800
Issue 1 - 24/10/16
Page 2
Safety and Care Advice
Important – Please read these instructions fully before starting assembly
• Check you have all the
components and tools listed on
the following pages.
• Remove all fi ttings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Make sure you have enough
space to layout the parts before
starting.
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• During assembly do not stand
or put weight on the product,
this could cause damage.
• Assemble the item as close
to its fi nal position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your fl oor.
• Parts of the assembly will be
easier with 2 people.
• From time to time check that
there are no loose screws on
this unit.
• To reduce
the likelihood of
damaging your
product please
ensure that your
power drill is set on a low torque
setting.
• This product should not be
discarded with household waste.
Take to your local authority
waste disposal centre.
Handy Hints
• Assemble all parts and bolts
loosely during assembly, only
once the product is complete
should you fully tighten the bolts
• Regularly check and ensure
that all bolts and fi ttings are
tightend properly.
1
Page 3
If you have damaged or missing components, call the
Components - Panels
Customer Helpline: Argos = 0345 6400800
Please check you have all the panels listed below
1
Headboard Frame
(144.5x 75cm)
Footboard Frame
2
(144.5 x 90cm)
Headboard post x 2
3
(dia7.5 x 43cm)
Side rail x 2
4
(192.2 x 9cm)
Slat with center support hole x 4
6
(137.2 x 3.2cm)
Center leg x 4
8
(dia3 x 34cm)
Slat x 12
5
(137.2 x 3.2cm)
Center support slat x 2
7
(87 x 1.8cm)
Finial x 4
9
(dia6 x 10cm)
2
Page 4

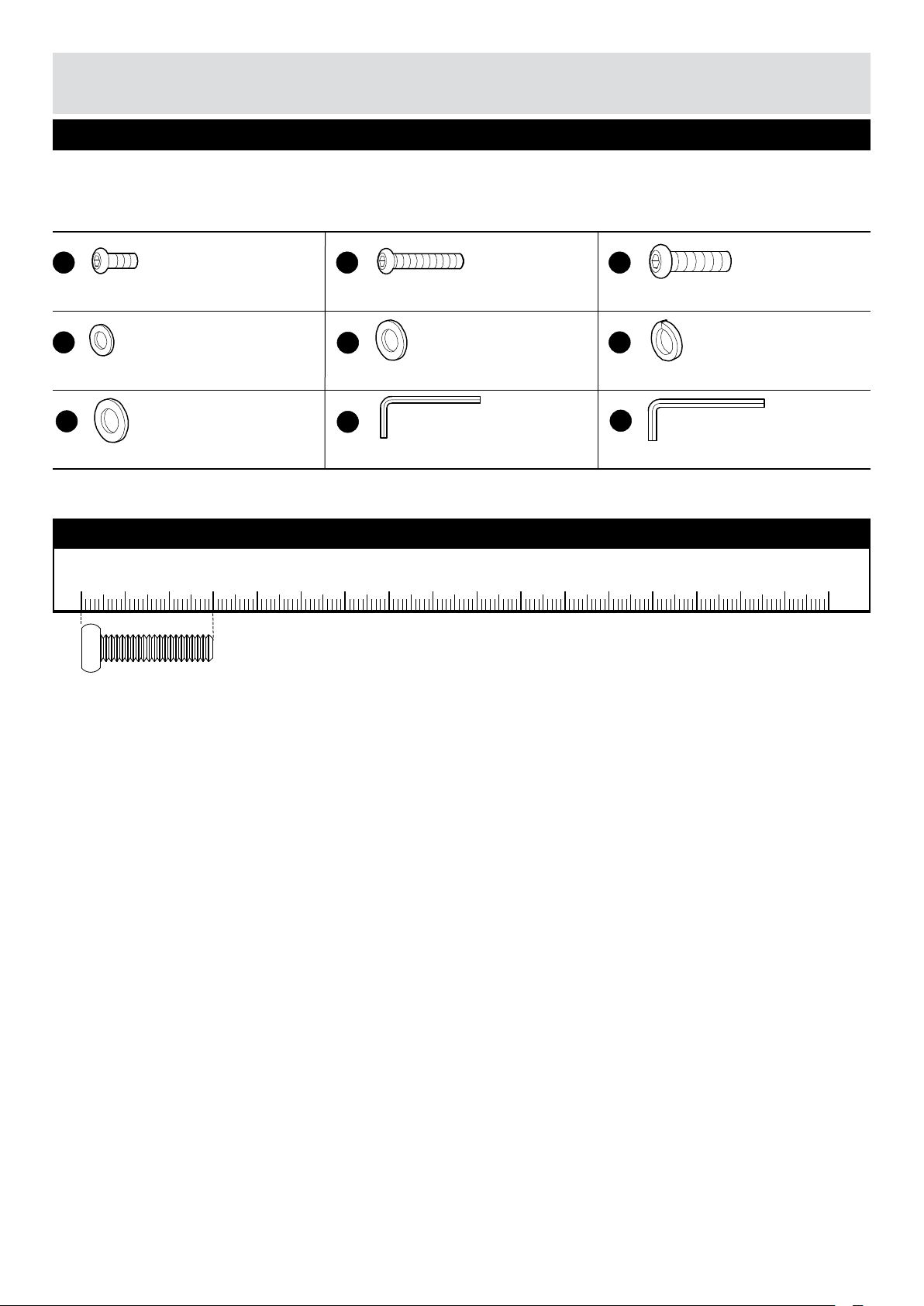

Components - Fittings
Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings
may be supplied than are required.
A
16mm Bolt x 4
Small plain washer x 4
G
Plastic washer x 8
B
49mm Bolt x 4
E
Large plain washer x 8
H
Small hex key x 1
Ruler - Use this ruler to help correctly identify the screws
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100
The bolts length is measured from the head to the point (30mm bolt shown).
105
C
30mm Bolt x 8
FD
Spring washer x 8
I
Large hex key x 1
110 115 120 125 130 135 140 145 150 155 160 165 170
3
Page 5
Assembly Instructions

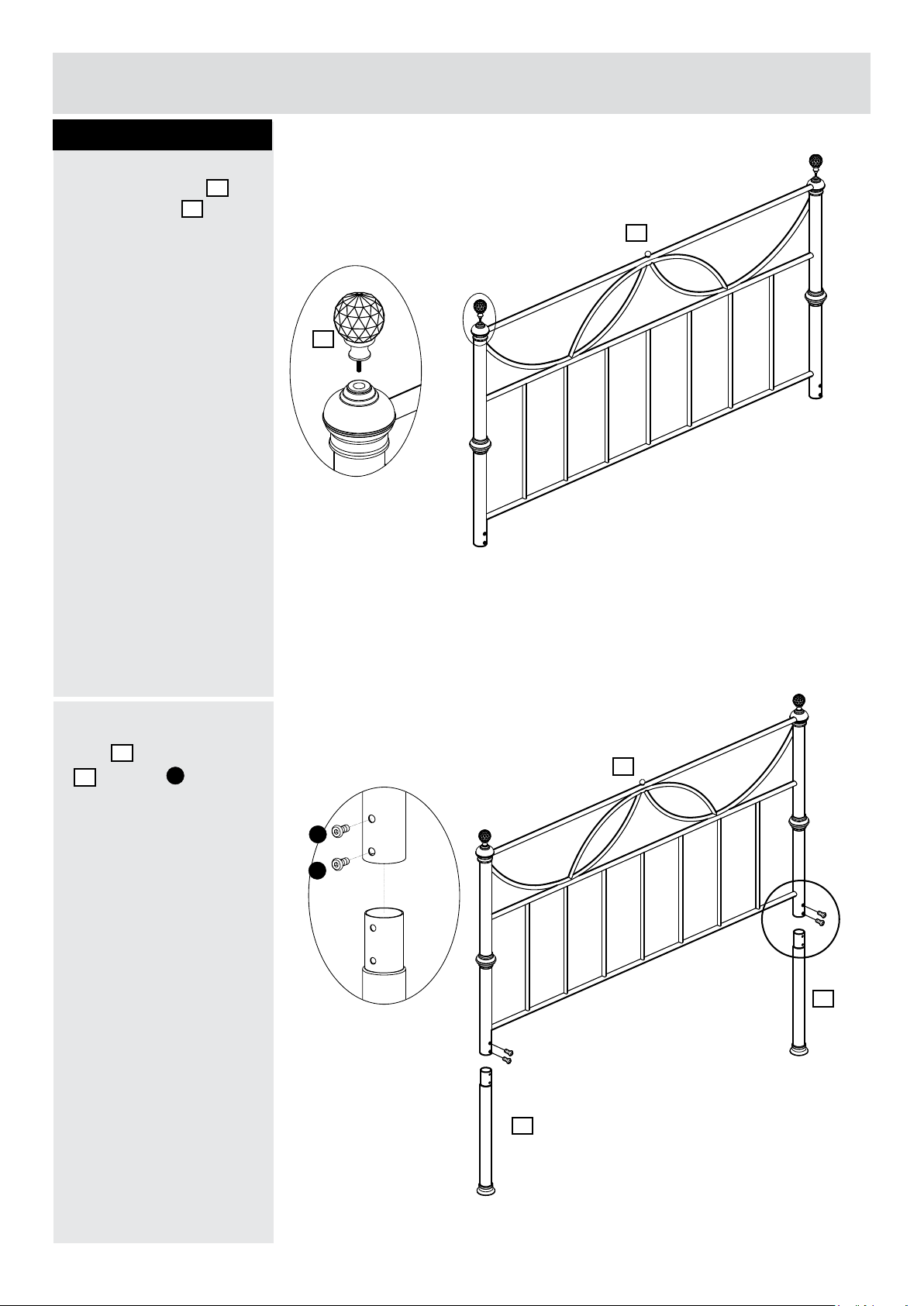

Step 1
a: Insert the finial into
the headboard , tighten
the finial by turning
clockwise.
9
1
a:
1
9
b: Attach the headboard
3
post into headboard
by bolts .
1
A
b:
1
A
A
3
3
4
Page 6
Assembly Instructions

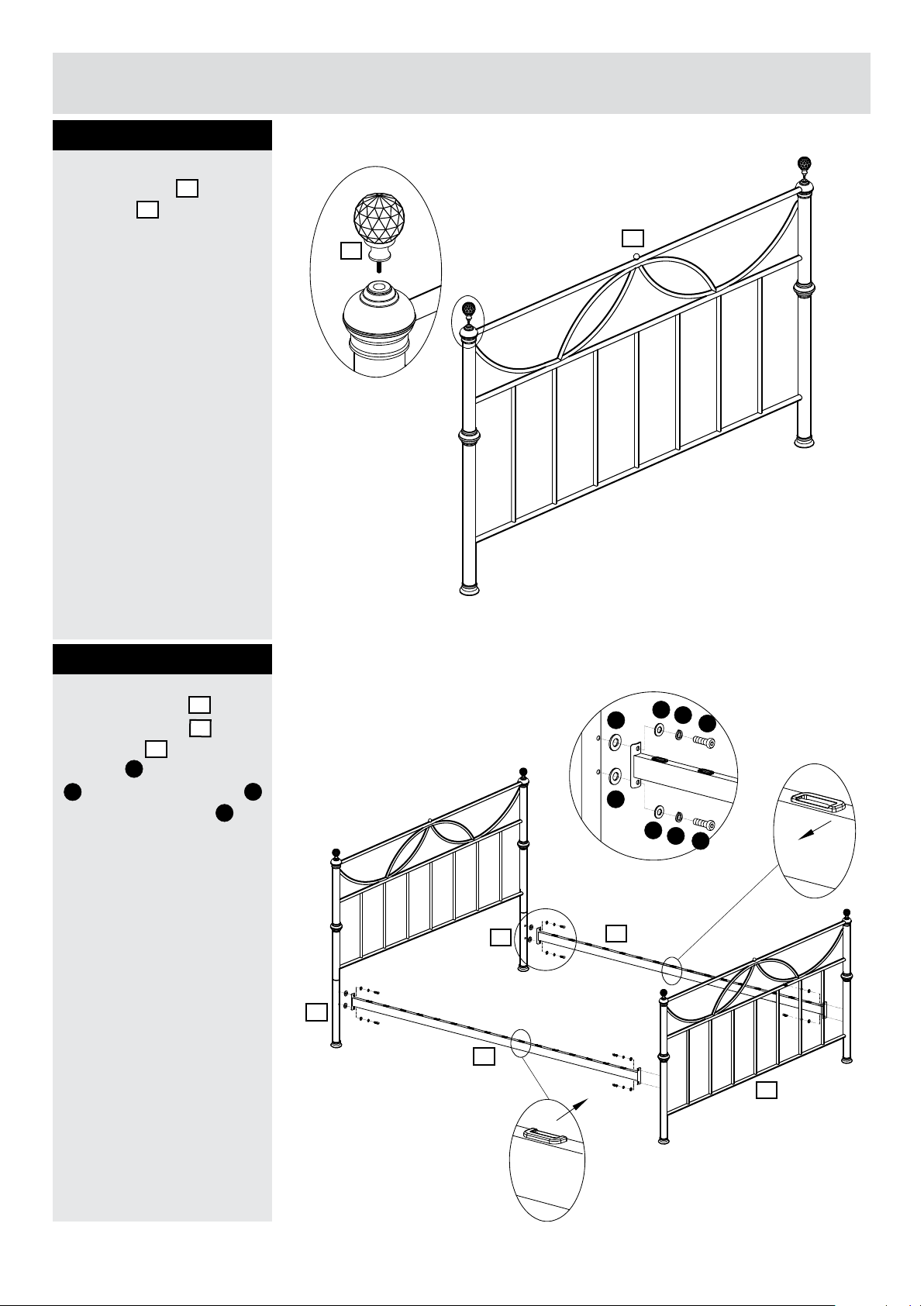

Step 2
Insert the finial into the
footboard , tighten the
9
2
finial by turning clockwise.
9
2
Step 3
Attach side rail to
headboard post and
footboard .Fix them
by bolts ,spring washers
,
F
C
large plain washers
and plastic washers as
shown in the figure.
Note: Do not tighten
bolts until fully
assembled.
4
3
2
E
G
E
G
G
3
3
4
4
F
C
E
F
C
2
5
Page 7
Assembly Instructions

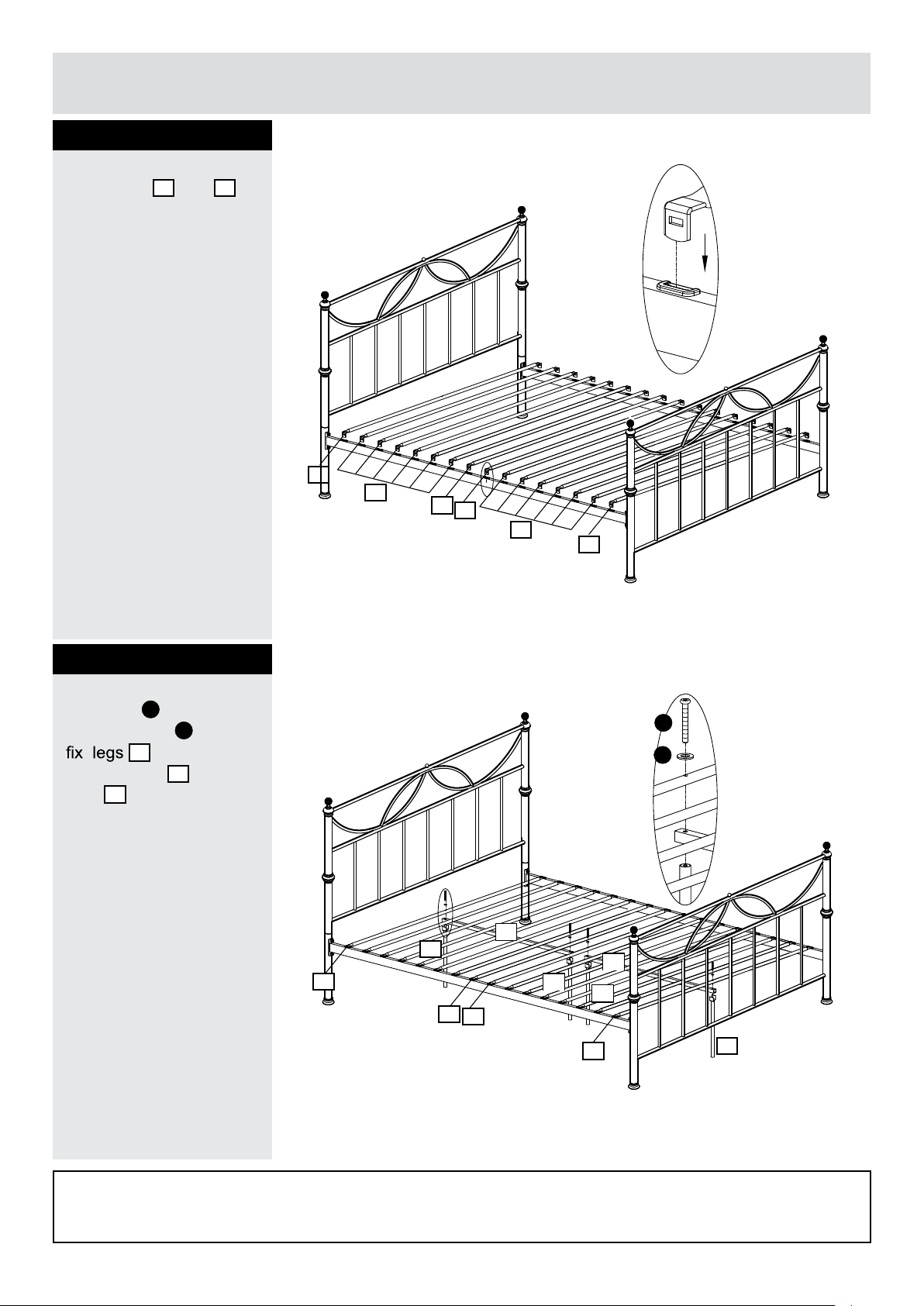

Step 4
Insert slats and to
5
6
the side rails.
6
5
6
6
5
6
Step 5
Use bolts
plain washers
support slats
slats .
Note: Re-tighten all the
bolts.
Assembly is complete.
B
8
and center
6
and small
D
to
7
onto
B
D
7
8
6
6
6
8
7
8
6
8
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 0345 6400800
