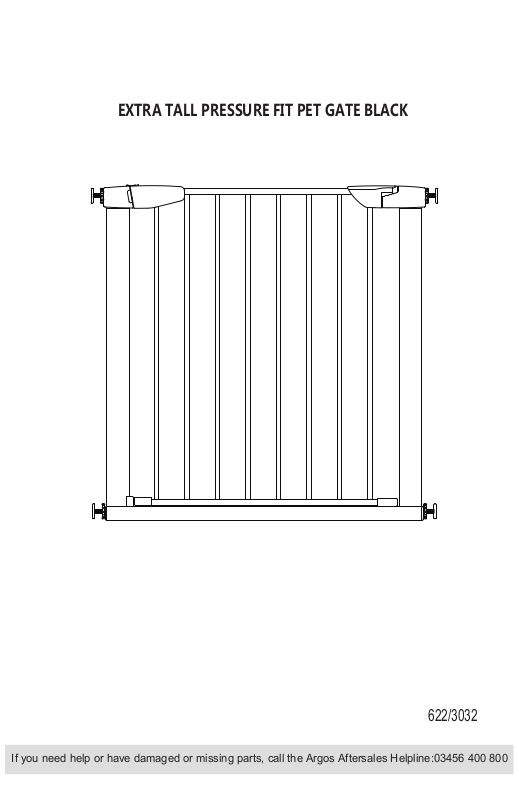

Argos 622/3032 User guide

EXTRA TALL PRESSURE FIT PET GATE BLACK

622/3032

If you need help or have damaged or missing parts, call the Argos Aftersales Helpline:03456 400 800

IMPORTANT! READ AND FOLLOW
THESE INSTRUCTIONS CAREFULLY
AND KEEP FOR FUTURE REFERENCE

Introduction

Please read the instructions thoroughly to ensure proper installation.

Please immediately inspect your pet gate upon receipt. If you see any damage, or additional parts are required for this gate,

do not assemble gate and please go to back page of the instruction booklet for website or Consumer Relations Representative information.

We recommend that you carry out the installation away from young children as some of the smaller components may

present a choking hazard when loose.

Important Information

There is a gap between your gate frame and handle. This is not a defect. The gap on your gate will close once it is properly mounted.

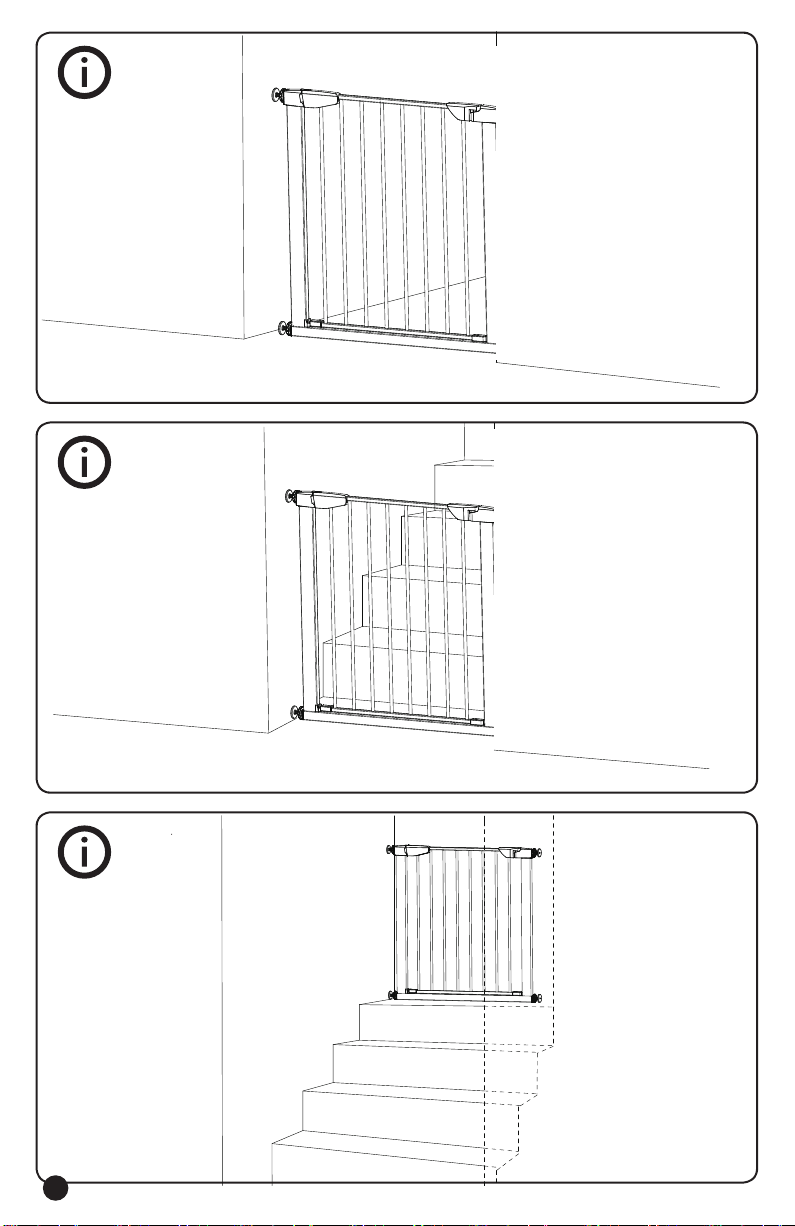

Please check the gate on a regular basis to ensure gate and parts are all in proper working order. If the gate is used at the top of stairs,

it should not be positioned below the top level. When using at top of stairs, gate must open away from stairs. If the gate is used at the

bottom of the stairs, please place towards the front of the lowest stair. Ensure the gate is attached between two clean and solid surfaces.

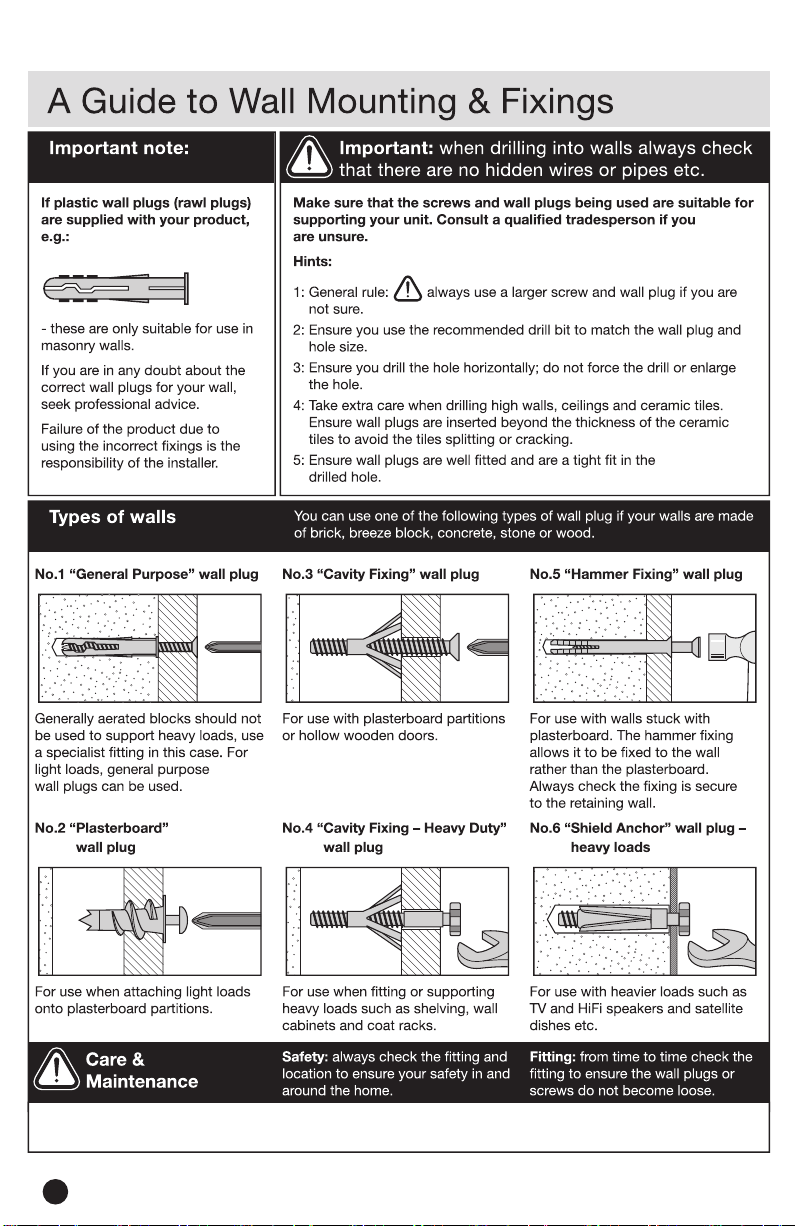

Ensure appropriate fixings are used for drywall, wood, brick, etc. If wall plugs are provided with the gate and do not secure to the wall

satisfactorily, consult with a hardwarestore for your proper wall plug application. If additional parts are required for this gate, please go to

back page of the instruction booklet for website or Consumer Relations Representative information. Do not use this gate at the top or

bottom of stairs without using all four wall cups. For maximum safety, use 4 wall cups with sticky pads and screws provided when installing

the gate in all locations. In some openings only 2 top wall cups can be fitted.

Disclaimer

Any pet gate which has been subjected to misuse, abuse, abnormal use, excessive wear and tear, improper assembly, negligence,

environmental exposure, alteration or accident, or has had its serial number altered or removed invalidates any and all claims against the

manufacturer. Any damage to property during installation of your safety gate is the sole responsibility of the end user.

Use only with the locking mechanism securely

engaged. It is auto closing system.
To prevent serious injury or death, securely install

gate or enclosure. And use according to manufacturer’s

instructions.
Periodically check all fasteners to be sure they are

tight and secure.

Adult assembly required.
Install according to manufacturer’s instructions.

This product is intended for pet.
This product will not necessarily prevent all accidents.

This pet gate is for domestic use only.
To clean: Use mild soap and wipe with a damp cloth.

1

If you need help or have damaged or missing parts, call the Argos Aftersales Helpline:03456 400 800

2

3

4

1

pre-assemble the gate,and locate four points for hole drilling.

5

2

Drill hole for the 4 marked positions,then put wall plugs(B)
,and use (A) and (D) to fix component (C).

6

3

Ensure the gap
below 5 mm

4

5

1.5mm

Ensure the gap is appropriate to get smooth lock
and unlock operation.

7

6

One-handed use,push the button and lift
the gate for two way opening.This gate has
a easy-closing system. Use the tools
provided to adjust bolt(E) to get smooth
lock and unlock operation. Caution:Check
the lock function before each use!

The gate is closed
when there is a click
sound and the red
mark on the switch
is invisible. Must
ensure the gate
full locked in use.

lift

push

The gate
could stay open
at the maximum
position.

8
