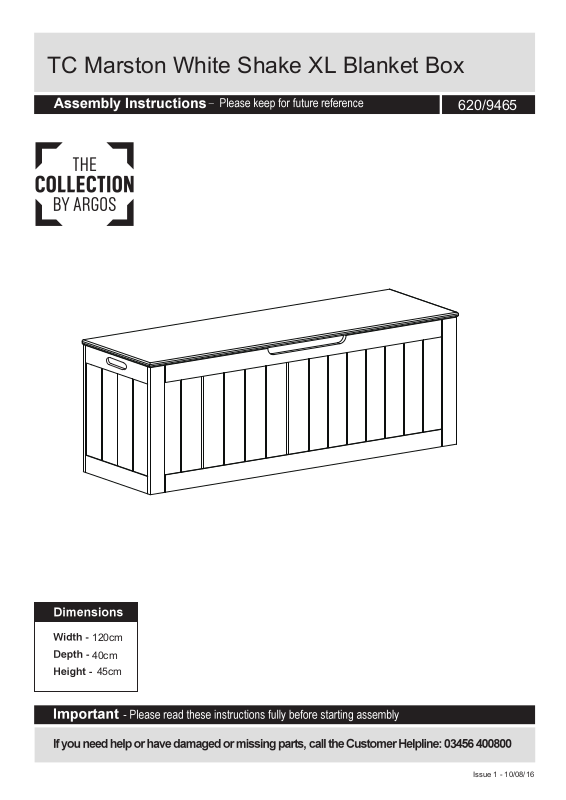

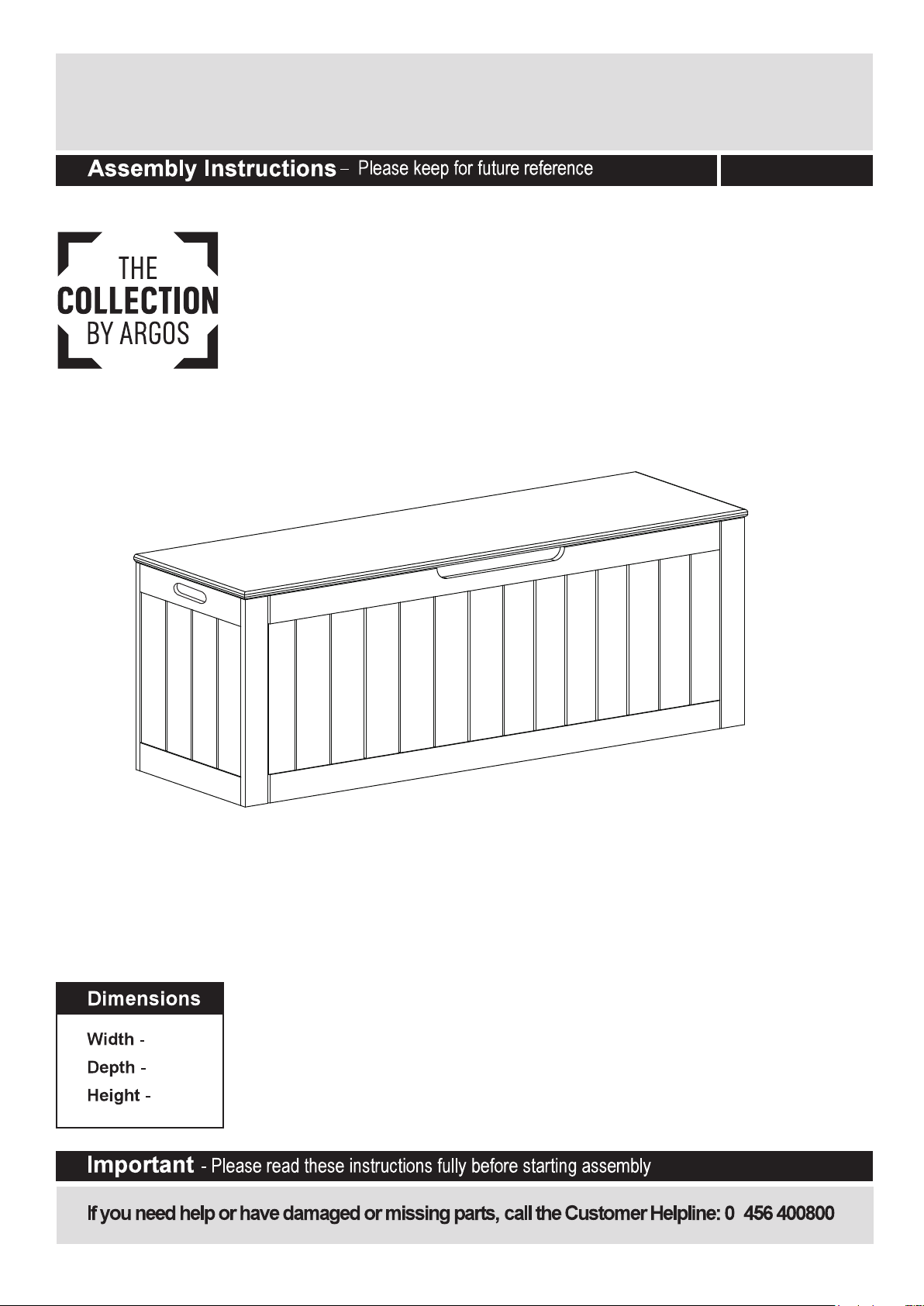

TC Marston White Shake XL Blanket Box
620/9465
120cm
40cm
45cm
3
Issue 1 - 10/08/16

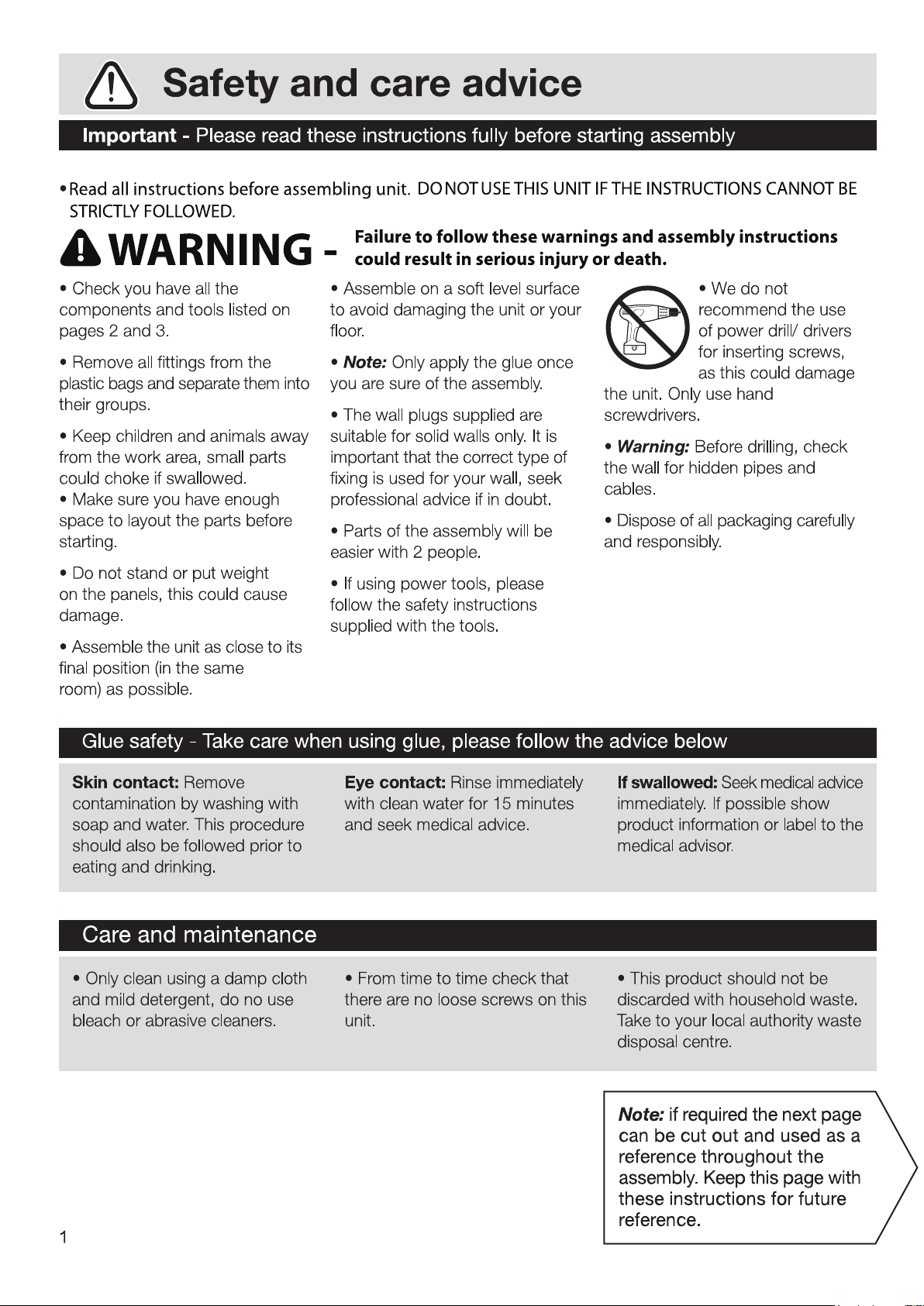

Page 2
Page 3

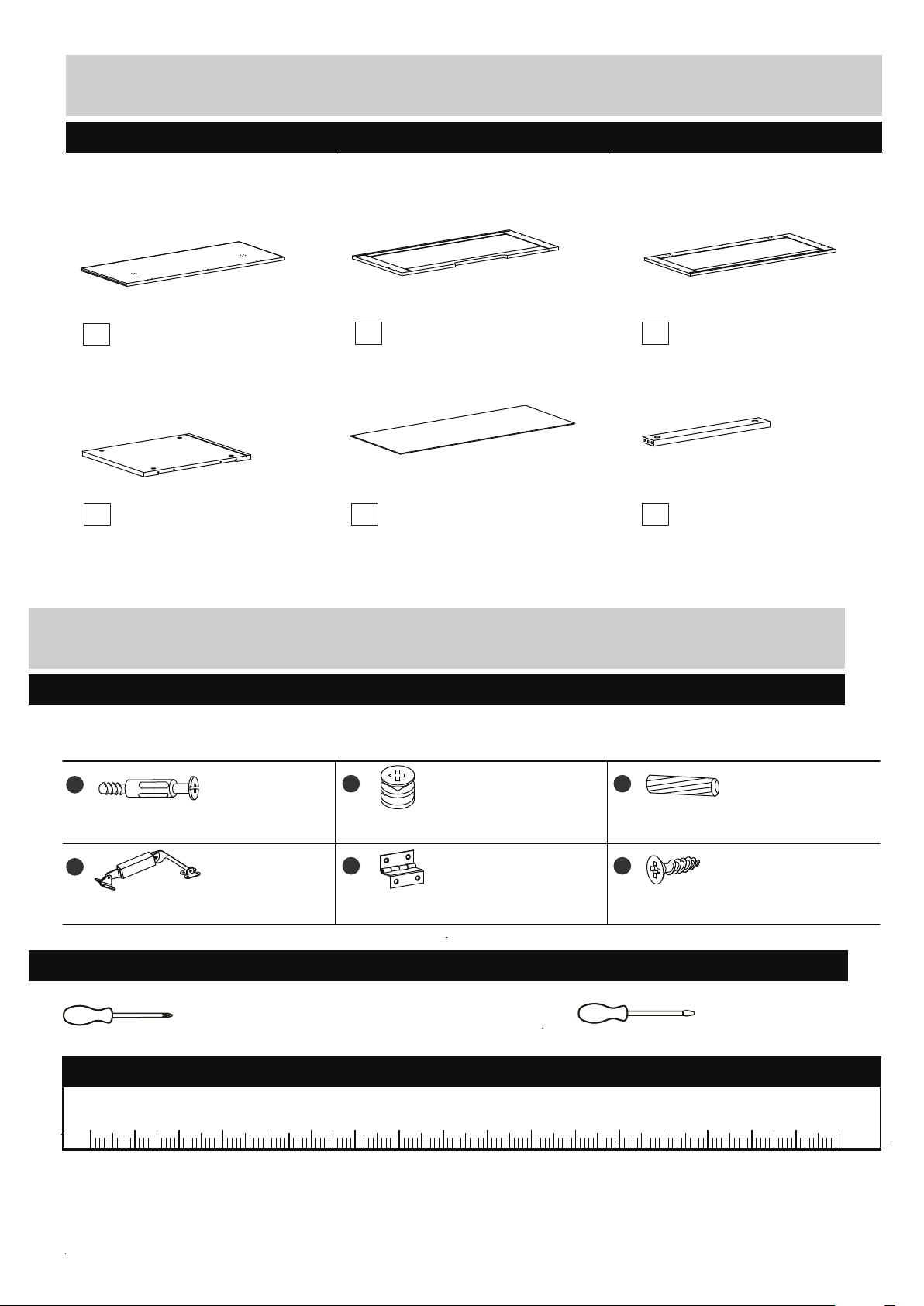

Components - Panels
Please check you have all the panels listed below
If you have damaged or missing components,
call the Customer Helpline:03456 400800
12Top panel x 1
4
Side panel x 2 Bottom panel x 1
Front panel x 1
5
3
Back panel x 1
6
Bottom rail x 1
Components - Fittings
Please check you have all the fittings listed below
Note:The quantities below are the correct amount to complete the assembly .In some cases more
fittings may be supplied than are required.
A
B C
Locking pin x 10 Locking nut x 10
D
Spring hinge x 2
Tools
required
Phillips screwdriver
(medium & large)
Ruler - Use this ruler to help correctly identify the screws
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100
2
E F
Hinge x 3
Wooden dowel x12
12mm Screw x 28
Straight screwdriver
(medium & large)
105
110 115 120 125 130 135 140 145 150 155 160 165 170
Page 4
Assembly Instructions
Step 1

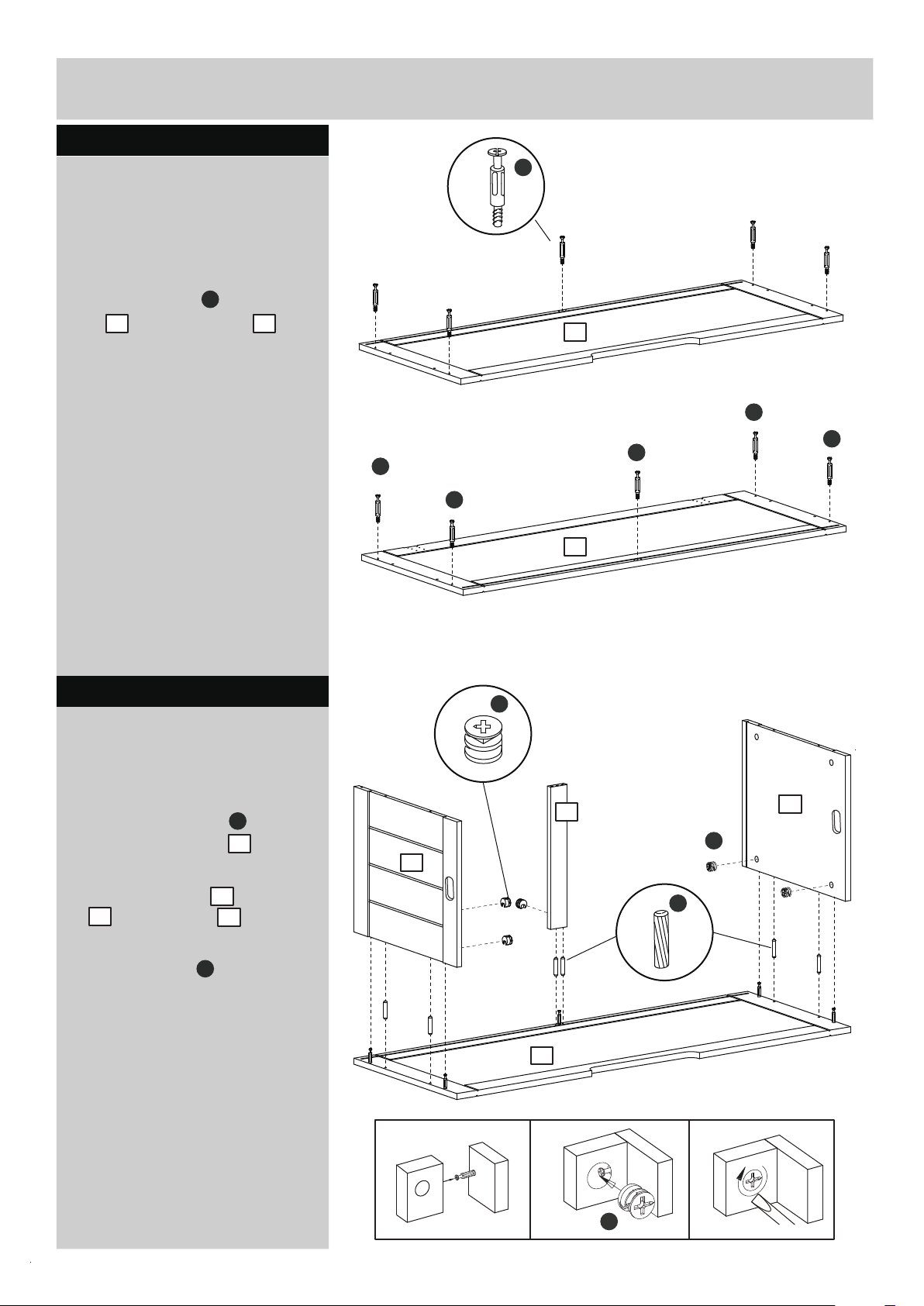

Assembling front panel and
back panel
A
Screw locking pin into front
panel and back panel as
2
A
3
shown
Step 2
Assembling side panel
a:
2
A
A
A
A
A
3
B
a:
Insert wooden dowel into front
panel and bottom rail as shown.
Attach side panels and bottom
6
rail to front panel .
Insert locking nut into side panel
C
6
4
2
B
and bottom rail as shown and
tighten it with a screwdriver.
Continued on next page
6
4
C
2
1 2 3
B
4
B
3
Page 5
Assembly Instructions
Step 2 - continued
Assembling side panel
b:
Slide down bottom panel along
grooves in side panel and front
panel.
Repeat above steps to assemble
back panel as shown.
3
5
b:
C
3
5
6
Step 3
Assembling side panel
NOTE: It would be useful to ask
someone to help you at this stage.
a:

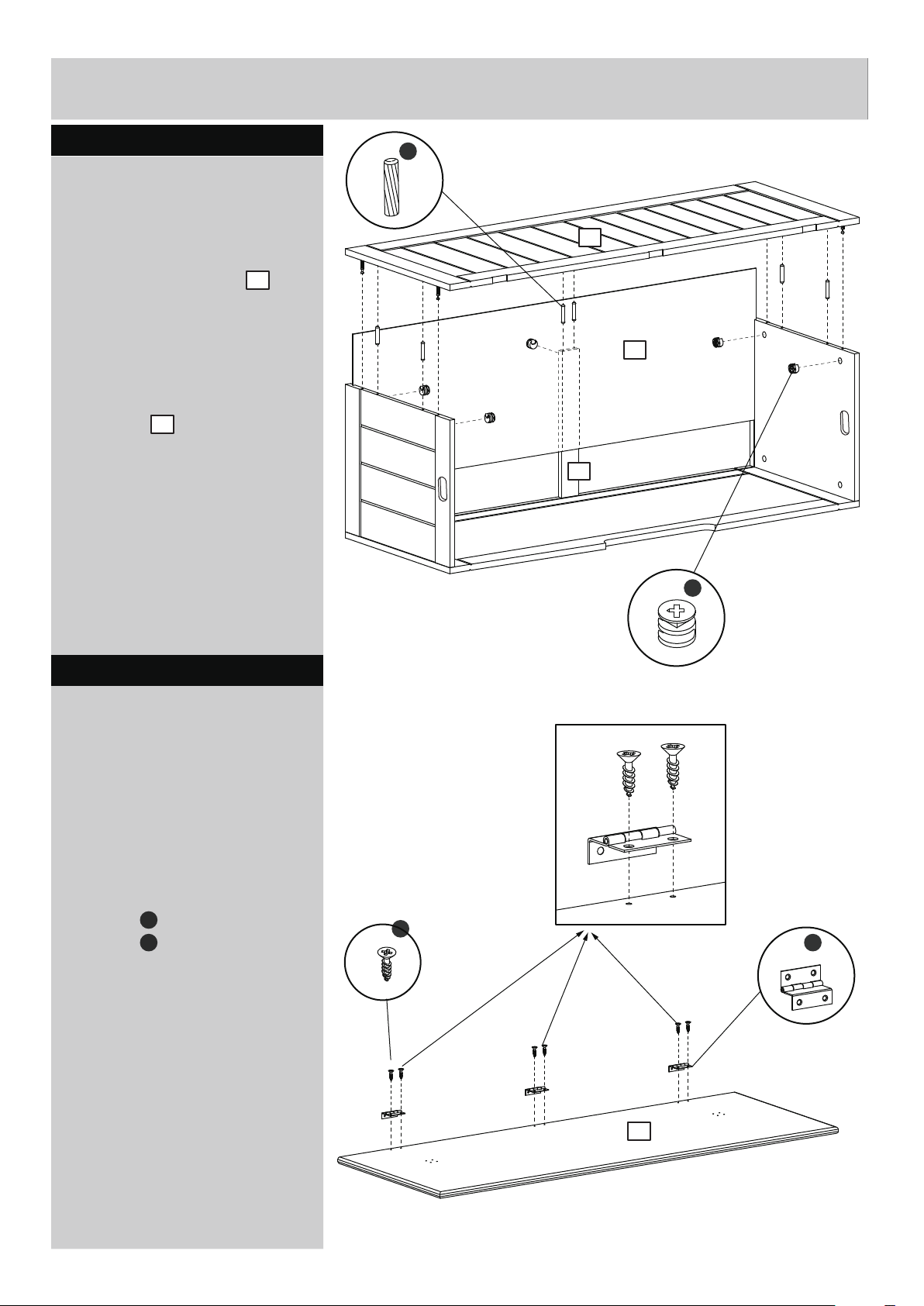

Fix hinges to top panel using
6 x screw as shown.
E
F
B
a:
F
E
Continued on next page
4
1
Page 6
Assembly Instructions
Step 3 - continued
Assembling side panel
NOTE: It would be useful to ask
someone to help you at this stage.
b:

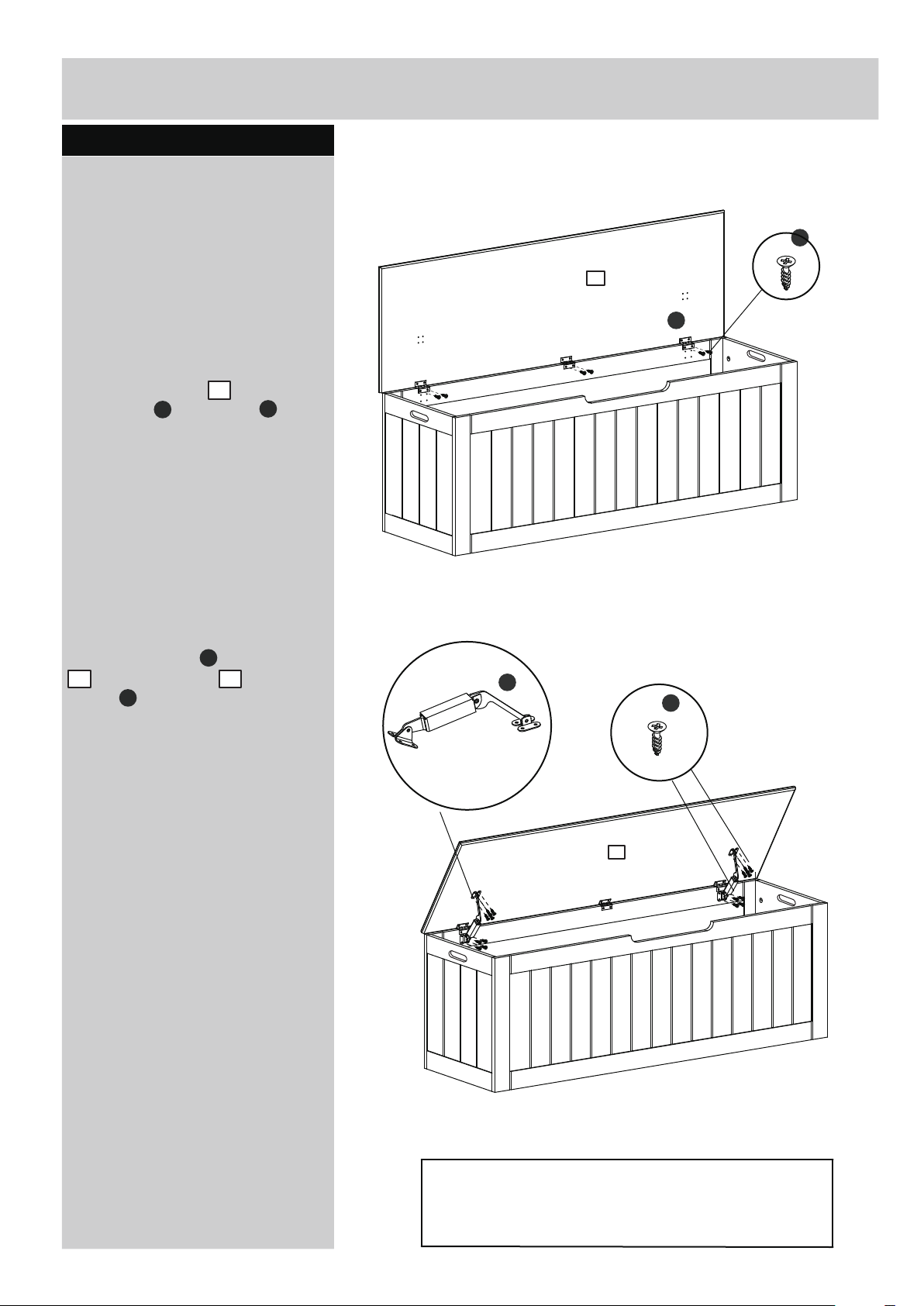

Attach top panel onto the unit
with hinge and screw as
shown.
E
1
F
b:
F
1
E
c:
Fix spring hinge to top panel
and back panel using 16 x
screw as shown.
After above assembly, please
double check and make sure all
screws are firmly fixed before use.
F
D
31
c:
D
F
1
NOTE:If you have damaged or missing components,
call the Customer Helpline:03456 400800
Argos LTD,489-499 Avebury Boulevard,
Central Milton Keynes, MK9 2NW
5
