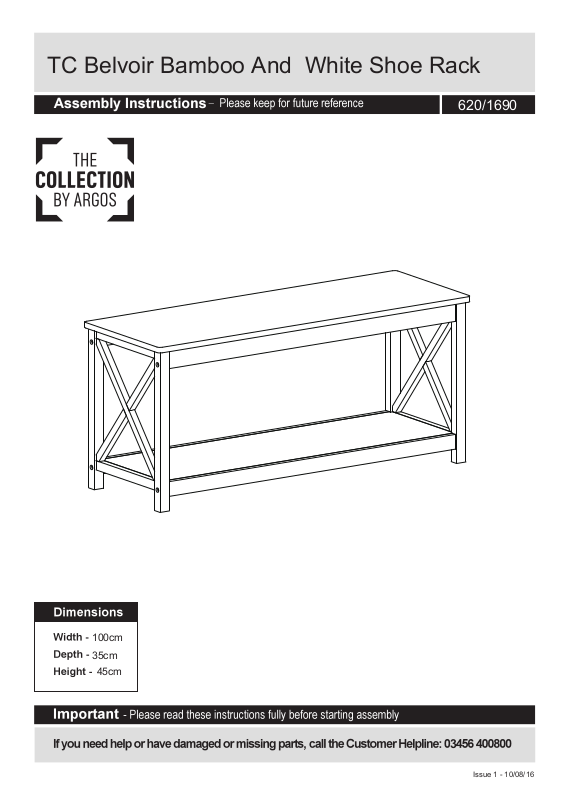

Page 1
TC Belvoir Bamboo And White Shoe Rack
620/1690
100cm
35cm
45cm
3
Issue 1 - 10/08/16

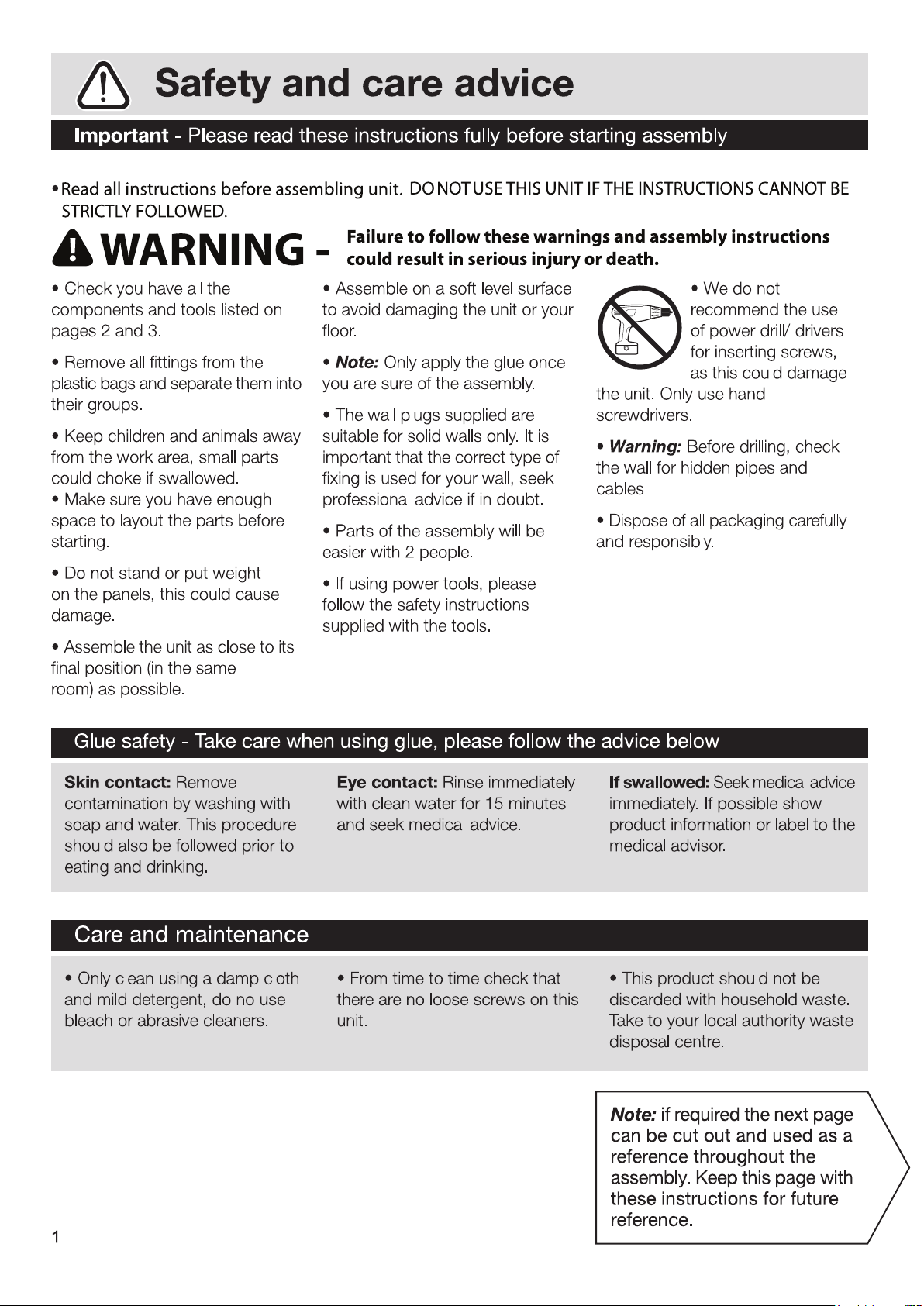

Page 2
Page 3
Components - Panels
Please check you have all the panels listed below
If you have damaged or missing components,
call the Customer Helpline:03456 400800
1
Top panel
4
Upper support rail x 2 Under support rail x 2
Shelf panel
2
5
Side panel x 2
3
Components - Fittings
Please check you have all the fittings listed below
Note:The quantities below are the correct amount to complete the assembly .In some cases more
fittings may be supplied than are required.
A
B C
Locking pin x 4 Locking nut x 4 Wooden dowel x14
D
60mm Bolt x 8
G
55mm Screw x 6
Tools
Ruler - Use this ruler to help correctly identify the screws
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100
required
Phillips screwdriver
(medium & large)
E F
Barrel nut x 8
H
30mm Screw x 2
105
110 115 120 125 130 135 140 145 150 155 160 165 170
Allen key x 1
Straight screwdriver
(medium & large)
2
Page 4
Assembly Instructions
Step 1
Assembling shelf panel
a:
Screw the locking pin into under
support rail as shown.
5
b:
Attach the 2pcs under support rails
to the shelf panel with wooden
dowel .
C
A
2
a:
b:
A
5
B
C
5
2
C
5
Insert locking nut into shelf
panel and tighten the locking
2
B
nut to secure the unit.
Step 2
Assembling side panel
NOTE: It would be useful to ask
someone to help you at this stage.
a:
3
Attach the upper support rail
and the shelf panel onto the
side panel with wooden dowel
, bolt and barrel nut
C
3
3
D
2
as shown.
4
E
a:
1
F
D
2
B
C
3
D
4
3
2
C
Use Allen key to tighten bolt .
DF
Continued on next page
3
4
C
E
Page 5
Assembly Instructions
Step 2 - continued
Assembling side panel
b:
Repeat above steps to assemble
the other side panel to the unit.
3
Step 3
b:
D
C
4
3
2
4
C
C
E
Assembling top panel
Attach the top panel to the unit
with wooden dowel and lock it
by 30mm screw and 55mm
screw .
G
1
C
H
1
G
H
G
G
G
H
After above assembly, please
double check and make sure all
screws are firmly fixed before use.
4
NOTE:If you have damaged or missing components,
call the Customer Helpline:03456 400800
Argos LTD,489-499 Avebury Boulevard,
Central Milton Keynes, MK9 2NW
